Product type	Air purifier
Brand	Steba
Model	LR 10 Plasma
Power supply	220-240 V ~ 50 Hz
Main functions	Pre-filter, activated carbon filter, HEPA filter, plasma generator
Power levels	2 speeds (I and II) + stop
Operation indicator	Yes, lights up when turned on
Ion generation	Built-in plasma generator, permanently activated
HEPA filter	Not washable, replaceable (ref. 93.10.00)
Pre-filter	For dust, cleanable by vacuuming
Carbon filter	For odors
Filter maintenance	Clean by vacuuming; do not wash
Filter replacement	Unscrew the cover, remove the old filter, insert the new one
Spare part	Replacement filter, art. no. 93.10.00
Child safety	Keep out of reach of children under 8 years
Use	Private, indoor
Placement surface	Flat, stable, heat-resistant
Do not cover	Air inlet and outlet must never be covered
Cleaning the device	With a damp cloth, do not immerse in water

Frequently Asked Questions - lr10plasmaluftreinigerstebagebrauchsanweisung4011833501080 STEBA

How to clean the air purifier filter?

Use a vacuum cleaner to vacuum the dust on the filter surface. The filter is NOT washable.

When should the HEPA filter be replaced?

Replace the HEPA filter when it is very dirty. You can get a replacement filter from Steba customer service with art. no. 93.10.00.

What to do if the airflow is weak?

Check if the filter needs cleaning or replacement, and make sure the air inlet is not blocked by obstacles.

The device does not turn on, what to do?

Check that the device is plugged in and that the power outlet works. Check the fuse if necessary.

What types of filters are used in this device?

The device has three filters: a pre-filter for dust, an activated carbon filter for odors, and a HEPA filter for pollen and fine particles.

How does the plasma generator work?

The plasma generator creates positive and negative ions in the air that bind to pollutants and break them down. It is activated automatically.

Can I use the device with a timer or remote control?

No, the device must not operate with a timer or separate remote control system.

Where to place the device for optimal operation?

Place the device on a flat, stable, and heat-resistant surface, away from table edges and heat sources. Close doors and windows for better performance.

What to do in case of abnormal odor?

An odor may indicate that the filter is dirty. Clean or replace the filter.

How to dispose of the device at end of life?

Do not throw the device with household waste. Take it to a collection point or to the store where it was purchased for recycling.

USER MANUAL lr10plasmaluftreinigerstebagebrauchsanweisung4011833501080 STEBA

220 – 240 V\~; 50 Hz; 40 W

Luftreiniger

LR 10 Plasma

Instructions for use 9

Mode d'emploi 15

ON: speed 1 - speed 2

Fehlerbehebung

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker.

The device filters the fine dust, pollen and odours enriched ambient air by:

• Prefilter for dust and dander
• Activated carbon filter for odours
• HEPA filter for pollen and fine dust
• Plasma generator creates ions in the air which bind pollutants. The device is no substitute for adequate ventilation.

Safety information

• Connect and operate the appliance in accordance with the specifications shown on the rating label.
• Do not use if the plug cord is damaged. Verify before every use.
• Do not plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
• Plug off the appliance after each use or in case of failure.
• Do not pull at the cord. Don't pull it over edges and don't bend it too much.
• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are su-

pervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
• The appliance must not be operated using a timer or a separate remote system!
• Do not leave the appliance outdoors or in a damp area.

- Never immerse the unit in water.

- Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

- The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

- Only use the device as described in this manual.

- This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

- If an extension cable is used, it has to have a cross-section of 1,5mm^2 . A cable drum must always be unwound.

- If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.

- Make sure that children do not tease the cable or that a trip hazard occurs.

• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Do not use the device in rooms with explosive gas or while using inflammable solvents or varnish or glues.

Cleaning

Attention! Pull the plug before cleaning. Never immerse the unit into water.

• Never use solvent-containing detergent.
• Clean the housing with a damp cloth.
• Cleaning the filter:

o The efficiency of the device deteriorates if the air filter is cleaned irregularly.
o Vacuum the surface of the filter with a vacuum cleaner.
o The filter is NOT washable!

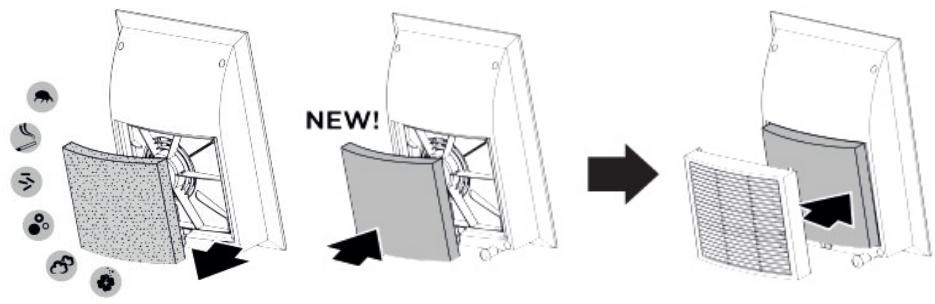

- Replacing the filter:

o If the HEPA filter is very dirty, it must be replaced. To do this, loosen the cover and remove the filter.
o Dispose of the used filter in a bag.
o Insert the new filter and reattach the cover.
o You can obtain replacement filters from Steba customer service with art. no. 93.10.00

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

Getting started

- Attach the two feet to the device.

• Doors and windows should be closed for an optimal cleaning performance.
• Connect the device.

• Use the slide switch to select the desired power level OFF I 1 I 2.
  The power control lamp lights up.

• The plasma generator is always activated automatically. It creates positive and negative ions in the air that bind to pollutants and break them down.

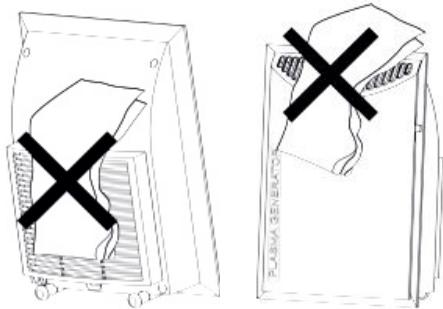

• The air intake and outlet must never be covered.

ON: speed 1 - speed 2

Troubleshooting

Dear Client,

Thank you for buying this STEBA product. The following table will help you with problems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious. Please check the following list before contacting our customer service.

Problem	Reason	Solution
Device does not work	· Device is not plugged in· Device is not turned on	· Check fuse· Plug it in
Air flow rate is low	· Filter must be cleaned or replaced· Air intake is blocked	· Clean or replace filter· Free air intake from dirt or obstacles
Noises	· Obstacles in the ventilation area· Uneven surface	· Remove obstacles· Place device on even surface
Odours	· Filter is soiled	· Clean or replace filter

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
