USER MANUAL INTELIUS 50 HAIER

Dear customer 3
Scope of delivery 3
Intended use 3
Safety instructions 4
Unpacking 6
Installation 6
Using the dryer rack. 7
Front view 8
Rear view. 9
Control panel 10
Program modes 12
Preparing the dryer 13
Preparing the laundry 13
Loading the dryer 14
Care chart. 14
Load reference. 15
Set program & start. 15
End of dry cycle. 16
Empty the water tank 16
Lint filter cleaning 17
Condenser filter cleaning 17
Heat pump technology 18
Consumption table 18
Cleaning & care 19
Error codes 19
Troubleshooting 20

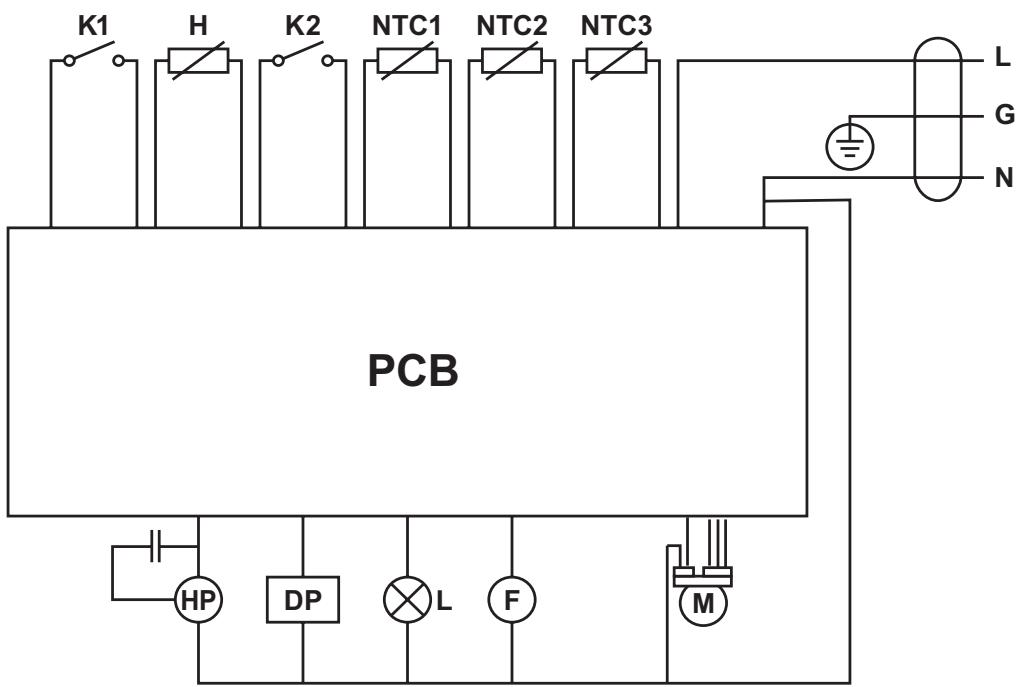

Electric circuit diagram. 21
Customer service 22

DEAR CUSTOMER

Thank you for your purchase of a Haier product. Please read the manual and safety instructions carefully and keep them for future reference and pass them on to any future owner.

Instructions showing this icon need special attention for safe handling.

SCOPE OF DELIVERY

Please check, if the accessories and literature is in accordance with this list.

1 User manual
2 Rack

1

2

INTENDED USE

This heat pump tumble dryer is designed for household use only. It should be used to dry items which have been washed in a water solution and are marked on the manufacturer's care label as being suitable for tumble drying.

It is not intended for commercial or outdoor use.

Haier cannot be held liable for damage resulting from incorrect or improper use or operation.

This tumble dryer conforms to current safety requirements.

SAFETY INSTRUCTIONS

• The tumble dryer must NOT be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised when using it or have been shown how to use it in a safe way and understand the hazards involved.
  Children under 8 years of age must be kept away from the tumble dryer unless they are constantly supervised.
• Children 8 years and older may only use, clean or maintain the tumble dryer without supervision if they have been shown how to do so in a safe way and understand the hazards involved.
• The tumble dryer is not a toy! To prevent the risk of injury, do not allow children to play with it or near it, or to play with the controls.
• Before setting up the tumble dryer, check it for any externally visible damage.
• Do not install or use a damaged tumble dryer.
• Before connecting the tumble dryer, ensure that the connection data match the mains electricity supply. if in any doubt, consult a qualified electrician.
• The electrical safety of this tumble dryer can only be guaranteed when correctly earthed.
• Do not connect the tumble dryer to the mains electricity supply by an extension lead.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person.
• Faulty components must be replaced by original spare parts.
• The tumble dryer must be isolated from the mains supply in the event of a fault and during cleaning and maintenance.
• Do not install the tumble dryer in a room where there is a risk of frost occurring. The ambient temperature should be between 5^ and 35^ .
• Do not install the tumble dryer behind a lockable door, a sliding door or a door with hinges on the opposite side of the tumble dryer door as this limits the full opening of the tumble dryer door.
• Always keep the area around the tumble dryer free of dust and lint. Also make sure that the area is dry and well ventilated.
• The tumble dryer must not be used in a non-stationary location (e.g. a ship).
• Do not make any alterations to the tumble dryer, unless authorised to do so by Haier.
• In areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the tumble dryer and its surroundings in a clean condition at all times.
• Do not dry unwashed items in the tumble dryer.
• Do not load more than Nominal load.
• Items which contain residues of inflammable substances such as cooking oil, acetone, alcohol, benzine, petrol, kerosene, spot removers, turpentine, waxes, wax removers or other chemicals should not be dried in the tumble dryer.
• If it is unavoidable to dry items that contain vegetable oil, cooking oil, hair care or cosmetical products, they should be washed using additional detergent and select a high temperature. If in doubt, wash the items several times.

4 | English

• Items which contain a large proportion of rubber, foam rubber (latex foam) or rubber like materials such as shower caps, waterproof textiles, rubberised articles and items of clothing and pillows with foam rubber filling should not be dried in the tumble dryer.
• Items which have been cleaned using chemicals such as professional drycleaning agents, should not be dried in the tumble dryer.
• Do not dry damaged items which contain padding or fillings (e.g. pillows, jackets), as the filling can get out with the risk of igniting in the dryer.
• Remove all items such as lighters and matches from pockets.
• The end of a dryer cycle runs without heat (cool down cycle) to ensure that the items do not get damaged and are at a handleable temperature.
• Warning: Do not switch the tumble dryer off before the drying cycle is finished. Afterwards, the laundry must be hung up or spread out to cool it down.
• Fabric softeners and similar products must be used as specified by the manufacturer's packaging.
• The dryer must not be used without the lint filters in place or with damaged filters.
• The lint filters must be cleaned regularly.
• Close the door once the laundry is removed to prevent children, animals and objects getting into the drum.
• Do not sit or lean on the door, as this can cause the tumble dryer to tilt.
• Condensed water is not drinking water. It can cause health problems in both people and animals.

UNPACKING

Remove all packaging material including the polystyrene base. All packaging material should be recycled.

1 Cut the strips.
2 Lift the cover upwards.
3 Remove the protective parts.
4 Remove the base.

! Ensure that any plastic wrappings, bags, etc are kept out of the reach of babies and young children. Danger of suffocation.

1

2

3

4

INSTALLATION

WARNING. Following transportation and installation, you MUST leave the dryer to stand for two hours before use.

1 Check the dryer does not rock or wobble. Adjust the four feet to level the dryer before operation.
2 Make sure the socket meets the requirements and connect it to an earthed socket outlet.

1

2

• Do not install in a room which is susceptible to frost. Water may cause damage once it starts to freeze.
• Transport the dryer in a vertical upright position.
• There may be residual water in the dryer.

This can leak out if the dryer is at an angle.

TECHNICAL DATA

Power

220 - 240 V~ / 50 Hz

Nominal load (kg)

HD70-A82

7

HD80-A82

8

Drying programs

Max. power (W)

12

Fuse (A)

900

Ambient temperature (^)

min. 10

Dimensions (H x D x W mm)

5-35

Net weight (kg)

845× 650× 595

Water protection level

approx. 51,5

IPX4

power consumption in left on mode: 0.05 W
power consumption in off mode: 0.05 W

For further technical information, please check the type plate on the appliance.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are diposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

The dryer rack is designed for use with items which are not recommended for tumble drying such as trainers, sneakers, sweaters or delicate lingerie.

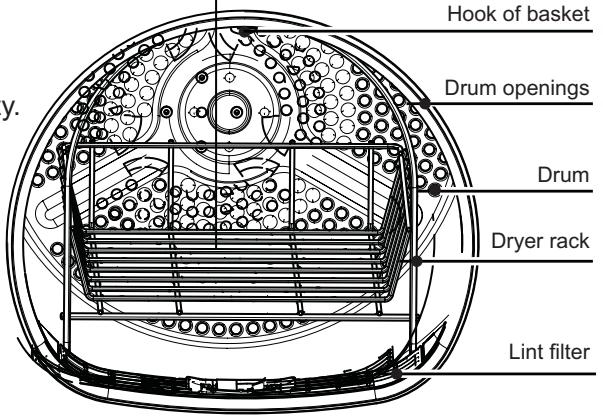

TO USE THE DRYER RACK

1. Open the dryer door.
2. Check that the drum is empty.
3. Put the dryer rack into the drum.
4. Make sure the catches are inserted in the hole of the lint filter and locked in the hook of basket.

PLEASE NOTE

• Do not use this dryer rack when there are other clothes in the dryer.
• During drying, please make sure the items are placed on the rack with no risk of entangling the baffles while the drum is rotating.
• The dryer rack must be used with the "Timer", "Wool" or "Rack", "Cool Air" cycle.
  Maximum weight of wet items: 1.5kg

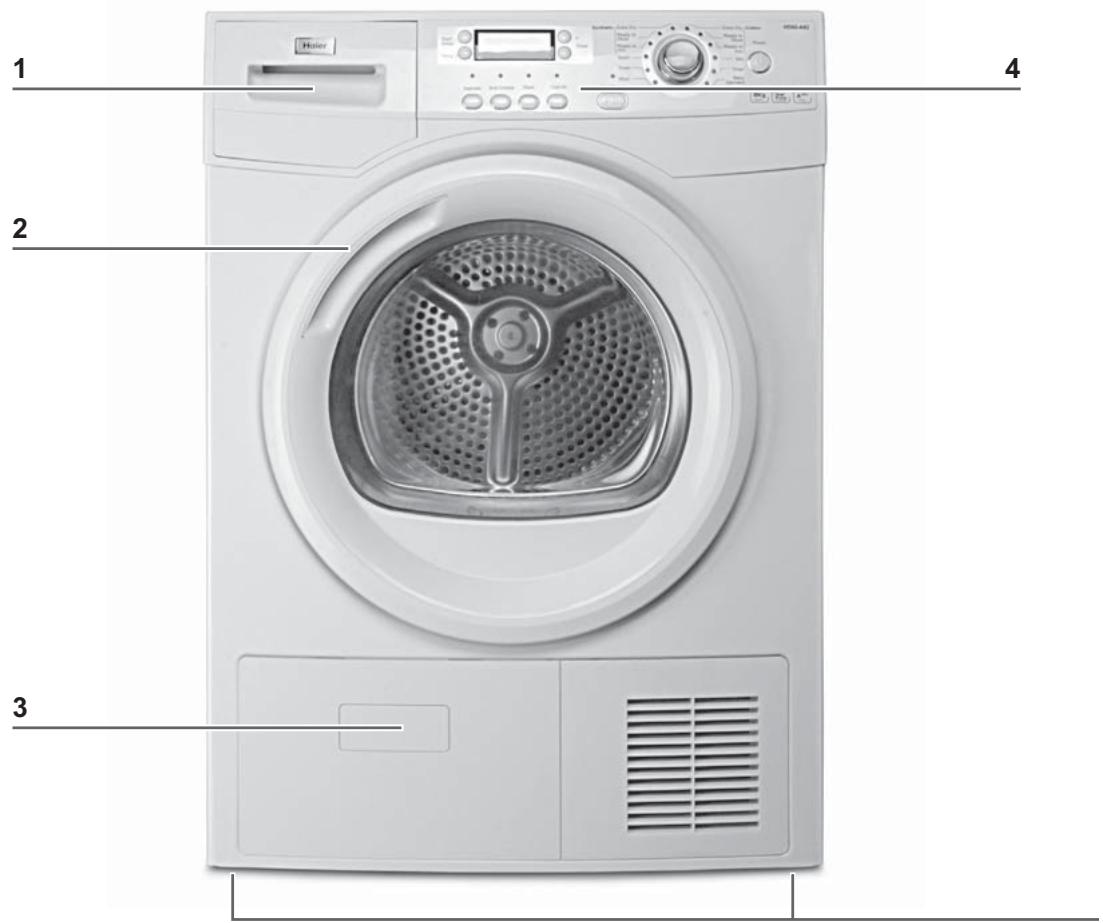

FRONT VIEW

The pictures may differ from the appliance you have purchased due to technical improvements.

1 Water tank
3 Service door
2 Tumble dryer door
4 Control panel

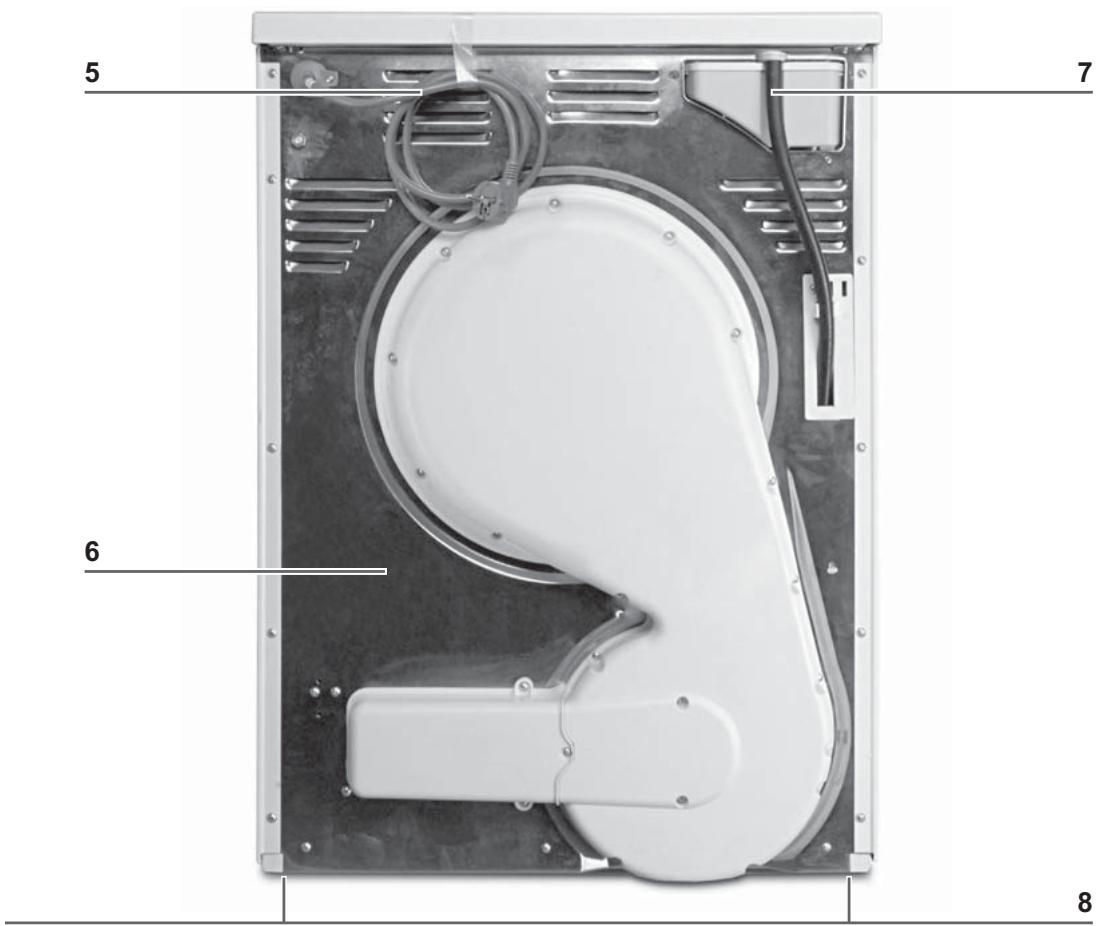

REAR VIEW

5 Power supply cord
6 Back plate

7 Drainage outlet
8 Adjustable feet

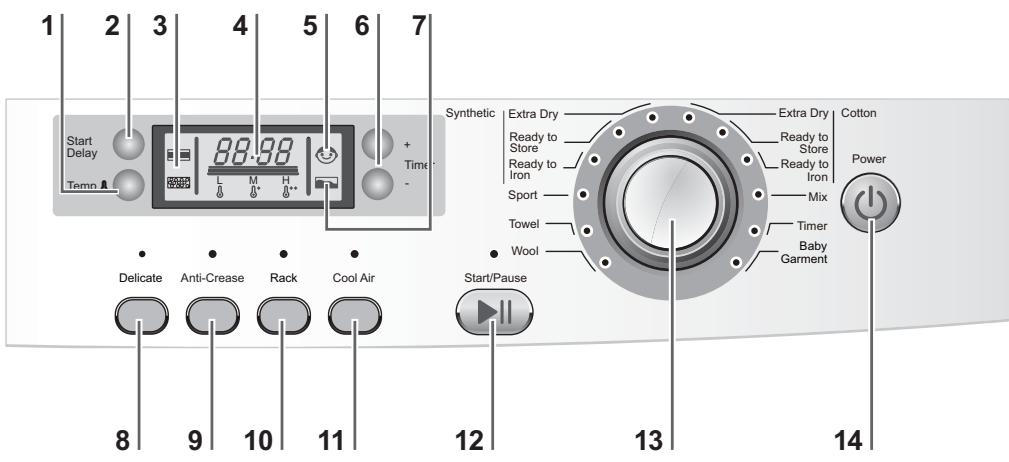

CONTROL PANEL

1 Temp button	Set temperature to the desired level.
2 Start Delay button	Press button for delayed start (in 1 hour intervals -up to 19 hours). The appliance should be finished in, afterwards press Start/Pause to start the delayed operation.
3 Clean filter indicators	Filters must be cleaned regularly. See Lint Filter Cleaning or Condenser Filter Cleaning section of the manual.
4 Display	The display shows the remaining time, the delay time and other related information. Note: The remaining time is a default value, this time will be re-calculated depending on additional program settings and the moisture content of the laundry.
5 Child-lock indicator	To activate the Child-lock function after a cycle has been started, press the Rack & Cool-Air buttons for 3 sec. until the indicator lights up. To deactivate press both button for 3 sec. again. Note: When the cycle ends or the power supply is interrupted the function will be deleted automatically.
6 Timer buttons	Modify the default time to your needs, using the + and - timer buttons.
7 Empty tank indicator	Water tank must be emptied. Important: Empty the water tank after each drying cycle. See Empty the water tank section of the manual.
8 Delicate button	Use this function for delicate fabrics. It lowers the temperature and lengthens the drying cycle time to take better care of the laundry.
9 Anti-Createase button	Use this function to lengthen the automatic anticreate phase at the end of each program by 60 minutes. Note: The laundry can be removed at any time during the anti-crease phase.
10 Rack button	Press the Rack button if the rack should be used in a drying cycle.
11 Cool Air button	Use this function for fabrics that can not be dried with one of the heat settings.
12 Start/Pause button	Press Start/Pause to Start a drying cycle. Press button again to pause the drying cycle – indicator light is flashing. Press button again to continue.
13 Program knob	Select one of the 12 programs using this knob. The indicator of the respective program lights up. See Program Modes section of the manual for further information.
14 Power button	Press Power button to switch on/off the tumble dryer.
signal	You can choose signal as you need. To activate the signal function after the Cool air cycle has been selected, press temp & delicate for 5 sec until the screen show beep on. To deactivate press both button for 5 sec. again until the screen show beep off.

PROGRAM MODES
	PROGRAM	DRYING DEGREE	RECOMMENDED LAUNDRY	MAX. HD80	LOAD HD70
COTTON / LINEN	Extra Dry	Extra dry	Heavy cotton, sheets, gowns	8 kg	7 kg
	Ready to Store*)	Ready to wear	Cotton, sheets, coats	8 kg	7 kg
	Ready to Iron	Damp	Ordinary cotton	8 kg	7 kg
SYNTHETICS	Extra Dry	Extra dry	Heavy synthetic	4 kg	4 kg
	Ready to Store	Ready to wear	Ordinary synthetic	4 kg	4 kg
	Ready to Iron	Ready to wear	Ordinary synthetic	4 kg	4 kg
SPECIAL	Sport	Ready to wear	Sportswear	4 kg	4 kg
	Towel	Ready to wear	Towels	8 kg	7 kg
	Wool**)	Fluff but not dry	Woollen clothing	1 kg	1 kg
	Baby Garment	Ready to wear	Baby clothing	4 kg	4 kg
	Timer	Ready to wear	Heavy fabrics, need further drying	8 kg	7 kg
	Mix	Ready to wear	Heavy fabrics, need further drying	4 kg	4 kg

*) EN 61121 test program setting.
**) Special program for careful treating of woollen fabrics with warm air, after they have been worn or stored for long periods. Wool fibres stand up and the wool becomes soft and cosy.

PREPARING THE DRYER

1 Connect the tumble dryer to a power socket.
2 Make sure the water tank is empty and properly installed.
3 Make sure that the lint filter is clean and properly installed.
4 Make sure that the condenser filter is clean and properly installed.

1
3

2

4

4

PREPARING THE LAUNDRY

1 Sort clothes according to fabric (cotton, synthetics, wool etc.). Only laundry that has been spun.
2 Empty pockets of all sharp or flammable objects such as keys, lighters and matches. Remove harder decorative objects such as brooches.

1

2

Follow the instructions on the laundry label and dry only machine-dryable garments. Do not dry silk, down or other delicate fabrics to avoid damage to the laundry.

• Close zippers and hooks, make sure the buttons are sewn on tightly and place small items such as socks, bras etc. in a wash bag.
• Unfold large pieces of fabric such as bed sheets, table cloth etc.

LOADING THE DRYER

1 Place the laundry evenly in the drum making sure not to overload the dryer.
2 Switch on the tumble dryer by pressing the Power button.

1

2

Fabric softeners or similar products should be used as specified in the manufacturer's instructions.

CARE CHART

Resistant material

Bleachable in cold water

Do not dry clean

Delicate fabric

Do not bleach

Dry flat

Washable at 95^ C

Iron at 200^

Hang to dry

Washable at 60^

Iron at 150^ C

Dry on clothes hanger

Washable at 40^

Iron at 100^

Tumble dry (normal heat)

Washable at 30^ C

Do not iron

Tumble dry (reduced heat)

Hand wash

Dry cleaning (any solvent)

Do not tumble dry

Dry clean only

Dry cleaning (pericloride)

Wool seal

Dry cleaning (aviation fuel)

LOAD REFERENCE

Bed sheet (single)	Cotton	Approx. 800 g
Blended fabric clothes	/	Approx. 800 g
Jackets	Cotton	Approx. 800 g
Jeans	/	Approx. 800 g
Overalls	Cotton	Approx. 950 g
Pyjamas	/	Approx. 200 g
Shirts	/	Approx. 300 g
Socks	Blended fabrics	Approx. 50 g
T-Shirts	Cotton	Approx. 300 g
Underwear	Blended fabrics	Approx. 70 g

SET PROGRAM & START

1 Turn the program knob to select the desired program. It can be modified by use of the Timer and Temperature buttons.
2 Set functions such as Delay, Delicate, Anti-Create. Afterwards press the Start/Pause button to start the dry cycle.

1

2

ENVIRONMENTAL TIPS

• Spin the laundry as dry as possible before putting it into the tumble dryer.
• Avoid overloading the tumble dryer.
• Shake the laundry loose before putting it into the tumble dryer.
• Choose a proper drying program. Make sure the laundry is not dried longer than needed.
• Make sure to use the tumble dryer with cleaned filters.

END OF DRY CYCLE

The tumble dryer stops operation automatically when a dry cycle is complete. The display shows END. Open the tumble dryer door and remove the laundry. If the laundry is not removed the anti-crease program starts automatically.

1

2

3

4

1 Switch off the tumble dryer by pressing the Power button.
2 Unplug the tumble dryer from the power socket.
3 Empty the water tank after each dry cycle.
4 Clean the lint filter after each dry cycle.
5 Clean the condenser filter approx. every 20 dry cycles.

5

EMPTY THE WATER TANK

During operation, steam condenses to water which is collected in the water tank. Empty the water tank after each drying cycle.

1

2

1 Pull out the water tank from its housing.
2 Empty the water tank.
3 Reinstall the water tank to the tumble dryer.

Note: Do not use the water for any kind of drinking or food processing.

3

LINT FILTER CLEANING

Clean the lint filter after each dry cycle.

1 Re move the lint filter from the drum.
2 Open up the lint filter.
3 Clean the lint filter form any lint residuals.
4 Reinstall the cleaned lint filter in the tumble dryer.

Note: if the lint filter is very dirty, it can be cleaned under running water. Let it dry thoroughly before use.

1
3

2
4

CONDenser FILTER CLEANING

Clean the condenser filter approx. every 20 dry cycles.

1 Open the Service door.
2 Open the four levers of the condenser filter.
3 Pull out the condenser filter from its housing.
4 Remove the rear filter screen.
5 Clean the condenser filter form any residuals.
6 Reinstall the rear filter to the condenser filter.

To reinstall the condenser filter, follow the above steps 3 to 1 in reverse order.

Note: if the condenser filter is very dirty, it can be cleaned under running water. Let it dry thoroughly before use.

1
3

2
4

5

6

HEAT PUMP TECHNOLOGY

The condensation dryer with heat exchanger is outstanding in terms of efficient energy consumption.

These are guide values determined under standard conditions.

The values may differ from those given, depending on overvoltage and undervoltage, the type of fabric, composition of the laundry to be dried, the residual moisture in the fabric and the size of the load.

CONSUMPTION TABLE
	Program	Spin Speed in rpm (Residual Moisture)	Energy Consumption		DRYING TIME
			HD80 8kg	HD70 7kg	HD80 8kg
COTTON / LINEN	Extra Dry	1000 (approx. 60 %)	2.08 kwh	1.84kwh	2:50 h
	Ready to Store	1000 (approx. 60 %)	1.95 kwh	1.73kwh	2:40 h
	Ready to Iron	1000 (approx. 60 %)	0.90 kwh	0.8kwh	1:15 h

CLEANING & CARE

TUMBLE DRYER

Wipe the outside of the tumble dryer and the control panel with a damp cloth. Do not use any organic solvent or corrosive agent to avoid damage to the device.

DRUM

After some operation time, fabric care agents or calcium contained in the water can form an almost invisible film on the inside of the drum. Use a damp cloth and some detergent to remove it. Do not use any organic solvent or corrosive agent to avoid damage to the device.

EVAPORATOR

If the evaporator behind the condenser filter is dirty, it can be cleaned by use of a vacuum cleaner. Make sure not to damage the evaporator while cleaning it.

ERROR CODES
CODE	CAUSE	SOLUTION
F2	Drain pump error.	Contact the customer service.
F31, F32, F33	The condenser thermal sensor is open-circuited or short-circuited.	Contact the customer service.
F4	Temperature of the laundry in the drum does not change.	Contact the customer service.
E6	The filters is clogged.	Clean both filters.
E7	Under voltage or over voltage fault.	Check the voltage of power supply. Or contact the customer service.
E8	Over load warning.	Reduce the load, Repower the dryer. Or contact the customer service.
Lo	Temperature is too low.	Use the dryer when air temperature is higher than 2 °C.

TROUBLESHOOTING

Before contacting the customer service, please check the following circumstances:

PROBLEM	CAUSES	SOLUTION
Tumble dryer fails to operate.	- Poor connection to the power supply.	·Check connection to the power supply.
	- Power failure.	·Check the power supply.
	- No drying program is set.	·Set a drying program.
	- Device has not been switched on.	·Switch the device on.
	- The water tank is full.	·Empty the water tank.
	- The door is not closed properly.	·Close the door properly.
Tumble dryer fails to operate and the display shows END.	- The laundry has reached the condition defined by the program.	·Check if the program setting is appropriate.
	- There is no laundry in the drum.	·Check if there is laundry in the drum.
Drying time is too long and the results are not satisfac-tory.	- The program setting is not correct.	·Make sure the program is set correctly.
	- The filter is clogged.	·Clean the filter screen.
	- The evaporator is blocked.	·Clean the evaporator.
	- The tumble dryer is overloaded.	·Reduce the amount of laundry.
	- The laundry is too wet.	·Spin the laundry properly before drying.
	- The vent duct is blocked.	·Check the vent duct and unblock it.
Remaining time on the display stops or skips.	The remaining time will be adjusted continuously based upon the following factors:	The automatic adjustment is a normal operation.
	- Type of laundry.
	- Loaded amount.
	- Moisture degree of the laundry.
	- Ambient temperature.

ELECTRIC CIRCUIT DIAGRAM

K1 Door switch
K2 Water level switch
H Humidity sensor
NTC1 Temperature sensor
NTC2 Temperature sensor
NTC3 Temperature sensor

HP Heat pump
DP Drainage pump
L Lamp
F Fan motor
M Motor

CUSTOMER SERVICE

If you have a problem with your appliance, first see the Troubleshooting section of the manual. If you cannot find a solution there, please contact your local dealer or try one of the following numbers.

Before contacting the customer service, ensure that you have the following data available. The data can be found on the rating plate:

MODEL

SERIAL NUMBER

Also check the Warranty Card supplied with the product in case of warranty.

COUNTRY	PHONE NUMBER	COSTS
Haier Italy (IT)	199-100 912
Haier Spain (ES & PT)	902 509 123
Haier Germany (DE)	0180 5 39 39 99*	* 14 Ct/Min Landline / max. 42 Ct/Min Mobile
Haier Austria (AT)	0820 001 205*	* 14,53 Ct/Min Landline / max. 20 Ct/Min all others
Haier United Kingdom (UK)	0845 025 30 25
Haier France (FR)	0980 406 409

For other countries please refer to the service and support area of: www.haier.com.

Haier

Dimensions (H x P x L mm)

845× 650× 595

Poids net (kg)

envviron 51,5
