Product type	Monobloc portable air conditioner
Brand	Optimea
Model	OPC A01 070HP 1
Usage	Indoor, room up to 25 m²
Dimensions (W x D x H)	45 x 35 x 70 cm
Net weight	25 kg
Power supply	230 V ~ 50 Hz, 10 A
Cooling power	7000 BTU/h (2050 W)
Power consumption (cooling)	1000 W
Airflow	350 m³/h
Noise level	55 dB(A)
Water tank (condensate)	1.5 L, manual or continuous drain
Main functions	Cooling, dehumidification, ventilation
Operating modes	Auto, dry, cool, fan
Adjustable thermostat	16 to 30 °C
Programmable timer	24 h, delayed on/off
Remote control	Yes, with batteries (not included)
Air filter	Washable, removable
Maintenance and cleaning	Clean the filter every 2 weeks, dust the unit
Safety	Automatic shutdown in case of overheating, anti-freeze protection
Spare parts and repairability	Filter and remote available, after-sales service compatible
General information	Energy class A (cooling), refrigerant R290

Frequently Asked Questions - OPC A01 070HP OPTIMEA

How to correctly install the Optimea OPC A01 070HP 1 portable air conditioner?

Place the unit near a window or door to exhaust hot air through the provided exhaust kit. Ensure the hose is not bent and that the air outlet is properly directed outside. Plug the unit into a 230 V outlet.

How to drain the condensation water?

The 1.5 L tank must be emptied regularly. In dehumidification mode, condensation accumulates faster. You can also connect a continuous drain hose (not supplied) for permanent drainage.

What is the noise level of the air conditioner?

The noise level is approximately 55 dB(A) at full power, which corresponds to the sound of a normal conversation. It can be reduced in night mode or low speed.

How to clean the air filter?

Turn off and unplug the unit. Open the rear grille, remove the filter and wash it with warm soapy water. Rinse, dry completely before reinstalling. Clean every 2 weeks to maintain efficiency.

The remote control is not working, what should I do?

Check that the batteries are correctly inserted and have sufficient charge. Replace the batteries with new ones. Point the remote control towards the receiver on the unit. If the problem persists, contact after-sales service.

How to use the programmable timer?

Press the 'Timer' button to set a delay for turning on or off. Use the + or - buttons to adjust the time (from 1 to 24 h). The unit will automatically turn on or off at the scheduled time.

What is the power consumption of the air conditioner?

In cooling mode, the consumption is approximately 1000 W, i.e., 1 kWh per hour of operation. The energy class is A, ensuring good efficiency.

Can I use the air conditioner in dehumidifier-only mode?

Yes, select the 'Dry' mode on the remote or control panel. In this mode, the unit operates with low fan speed and removes humidity from the air without excessive cooling.

What to do if the unit displays an error code?

Consult the manual for the meaning of codes. Common errors indicate a full water tank, dirty filter, or overheating. Resolve the issue (drain the tank, clean the filter, wait for cooling) and restart the unit.

How to store the air conditioner in winter?

Completely empty the water tank and condensation circuit. Clean and dry the filter. Store the unit in a dry, dust-free place, preferably in its original packaging.

USER MANUAL OPC A01 070HP OPTIMEA

Plus d'infos

Notes :

- Méthode 2 :

Plus d'infos

Portable air conditioner (reversible)

User manual

Item : OPC-A01-070HP

More info

This product is only suitable for well insulated spaces or occasional use.

Thank you for choosing our product.

For proper operation of the device, please Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.

If you lose this User Guide, please contact your reseller, or send an e-mail to [e-mail] to obtain the electronic version.

Table of Contents

1. Important safety instructions ____ 1
2. Features and components ____ 4
3. Compliance 5
4. Control settings ____ 6
5. Safety devices 8
6. Installation and adjustment ____ 9
7. Drainage instructions ____ 11
8. Maintenance 13
9. Storage of the unit ____ 13
10. Troubleshooting ____ 14
11. Technical data ____ 16

The refrigerant used in mobile air conditioners is the environmentally friendly hydrocarbon R290. This refrigerantis odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant, and its effect is very low.

Please read the instructions before use and repair. The drawings provided in this manual may not be the same as the physical objects. Please refer to the physical objects.

1. Important safety instructions

Avertissement

- Do not use products other than those recommended by the manufacturer to accelerate defrosting or for cleaning the air conditioner.

- The appliance must be placed in an area free from continuous sources of ignition (e.g., open flames, gas, or operating electrical devices).

- Do not pierce or burn.

- Be aware that refrigerant gases may be odorless.

- The appliance must be installed, used, and stored in a room larger than 11 m ^2 .

- Ensure that ventilation outlets and inlets are not obstructed.

- Follow the manufacturer's maintenance instructions.

- Use the unit in a well-ventilated room corresponding to its cooling/ventilation capacity.

- Any person working on the refrigerant circuit must hold proper certification issued by an accredited organization that guarantees competence in handling refrigerants.

- Maintenance and repairs requiring assistance must be carried out under the supervision of a qualified professional experienced in the use of flammable refrigerants.

- Any operation that may affect safety must be carried out by competent persons.

Warning: Fire hazard.

Notes

The air conditioner is intended for domestic use and is not suitable for any other potential applications.

1. During installation, please follow the rules for connecting to the power supply and ensure that it is properly grounded. If you have any questions regarding the electrical installation, follow the manufacturer's instructions and, if necessary, seek professional assistance for the installation.

2. Place the air conditioner on a flat, dry surface, at least 50 cm away from other objects or walls.

3. After installation, make sure the plug is intact and securely connected, and ensure that the power cord is positioned so that no one can trip over it or pull the plug out accidentally.

4. Never block the air inlets or outlets with objects.

5. Check that the drainage hoses are not twisted or kinked.

6. Be careful not to damage any parts when attaching accessories to the hot air exhaust hose.

7. If you move the air conditioner, it must always remain in a horizontal position.

8. Keep away from any type of fuel, flammable gas, stoves, or other sources of heat.

9. Do not attempt to disassemble, repair, or modify the air conditioner yourself, as this could cause malfunction, personal injury, or property damage. To avoid any risk, please contact the manufacturer or qualified professionals in case of malfunction.

10. Do not install the air conditioner in a bathroom or any other damp location.

11. Do not switch off the air conditioner by unplugging it from the socket.

12. Do not place glasses or other objects on the unit to avoid liquids spilling into the air conditioner.

13. Do not use insecticides or flammable substances near the air conditioner.

14. Do not use chemical products or detergents for cleaning. Clean the air conditioner with a slightly damp cloth and dry it. If the air conditioner is very dirty, use a mild detergent (such as dishwashing liquid).

15. This appliance can be used by persons aged 16 years and above, and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they are properly supervised or have been given instructions on the safe use of the appliance and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazards. The air conditioner must be installed in accordance with applicable wiring regulations.

Do not operate in a bathroom or damp room such as a laundry room.

Transport, Marking and Storage of Air Conditioners

1. Transport of the Equipment Contains flammable refrigerants / Must comply with transport regulations.
2. Marking of the Equipment Use of symbols / Must comply with applicable regulations.
3. Handling of the Equipment Use of flammable refrigerants / Must comply with applicable regulations.
4. Storage of the Equipment The equipment must be stored in accordance with the manufacturer's instructions.
5. Storage of Unopened (Unsold) Equipment The protective packaging must be designed in such a way that any mechanical damage inside the packaging cannot cause leakage of the refrigerant charge. The maximum number of units that can be stored together is defined by local standards.

2. Features and components

1. Specifications

• Functions: Cooling, heating, dehumidification, and ventilation.
• The connector support is designed in height to facilitate assembly and ensure airflow through the duct.
• The control panel has an LED display and a remote control allows easy adjustment of the unit settings.
• Timer function: 24 hours.
• Safety anti-restart function preventing the automatic start of the compressor for 3 minutes.
• An alert indicates that the unit must be drained when the water tank is full.
• Operating range: 7°C to 35°C (indoor).
  • Temperature setting range: 16°C to 31°C.

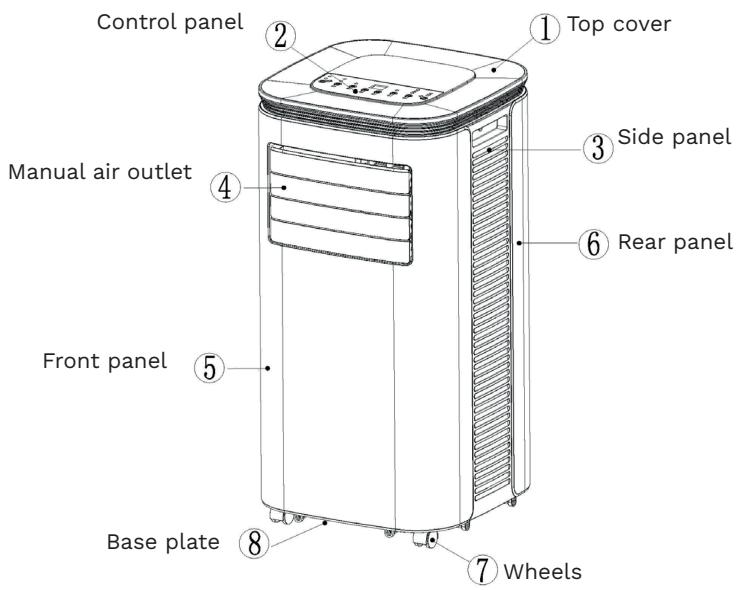

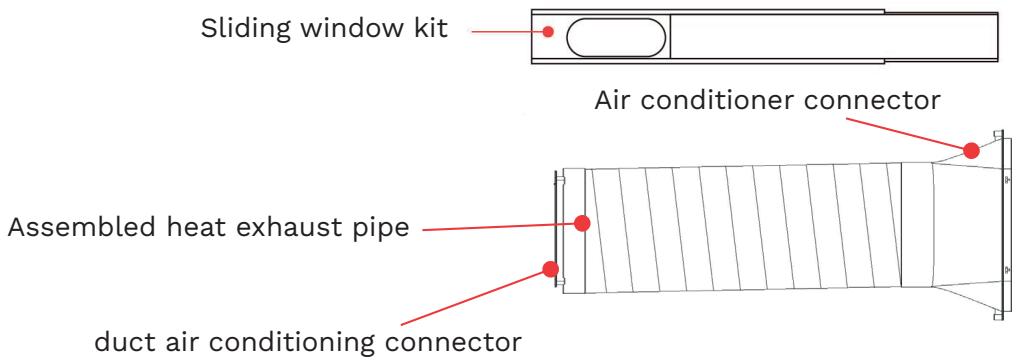

2. Component

3. Compliance

OPTIMEA OPC-A01-070HP complies with European directives:

• 2014/35/EU - Low Voltage Directive (LVD)
• 2014/30/EU - Electromagnetic Compatibility (EMC)

Electrical waste must not be disposed of with household waste. Please check recycling facilities near you. Contact local authorities or your dealer for recycling advice. Remote control batteries contain materials that are hazardous to the environment and must be disposed of responsibly.

4. Control settings

1. Control Panel Operating Instructions

1) Operating Interface

① Power ON/OFF ② Mode ③ Sleep ④ “Down” ⑤ “Up” ⑥ Speed ⑦ Timer

When the unit is powered on for the first time, the buzzer sounds and the unit enters standby mode.

① Power ON/OFF :

Turn the air conditioner on or off. If the unit is off, press the button to switch it on. If it is on, press the button to switch it off.

② Mode Selection :

When the unit is powered on, press this button to switch between the modes: Cooling → Dehumidification → Fan → Heating → Cooling → ...

③ Sleep Mode :

Sleep mode ensures continuous operation adapted to rest periods and environments where comfort and energy efficiency are a priority. In this mode, the fan operates at low speed and the compressor is activated only when the room temperature exceeds the set temperature, then stops as soon as the setpoint is reached. This automatic regulation maintains stable conditions while limiting energy consumption, thus ensuring optimal comfort with economical use of the unit.

④ ⑤ Down and Up Buttons :

Press these buttons to adjust the temperature or the timer setting:

• For temperature adjustment, press UP or DOWN to set the desired temperature (not available in Fan or Dehumidification mode).
• For timer adjustment, press UP or DOWN to set the desired number of hours.

⑥ Fan Speed Selection :

• Cooling: when the unit is on, press this button to activate cooling mode.
• Fan: when the unit is on, press this button to activate fan mode.
• Heating: when the unit is on, press this button to activate heating mode.
• Dehumidification: this button is not functional; the fan will automatically run at low speed.

⑦ Timer :

If the timer is off, press this button to activate it. If it is on, press again to deactivate it. When the timer indicator flashes, use the UP and DOWN buttons to set the desired time. The setting range is from 1 to 24 hours, adjustable in 1-hour increments.

2. remote control operating instructions

The remote control is as follows :

1. "Power On/Off"
2. "Timer"
3. "Down" to lower the temperature or set the timer
4. "Mode" to select cooling, dehumidification, ventilation or heat
5. "Up" to increase the temperature or set the timer
6. "Speed" to select low or high fan speed
7. "Sleep" to activate the sleep function

5. Safety devices

1. Anti-freeze protection

In cooling or energy-saving mode, if the exhaust pipe temperature becomes too low, the air conditioner will automatically switch to safety mode. Once the exhaust pipe temperature rises again, the unit will automatically resume operation.

2. Overflow protection

When the water level in the tank exceeds the alert threshold, the air conditioner will automatically emit an audible alarm, and the “FULL” indicator will flash. You must then move the drainage hose and connect the unit to a drain or another suitable drainage area to empty the water (for more details, refer to the Drainage Instructions section at the end of this chapter). Once the water has been drained, the air conditioner will automatically resume operation.

WARNING : When using the cooling mode under very high temperatures combined with particularly high humidity, we recommend using the continuous drainage function (see Chapter VI: Drainage Instructions, Section 2: Continuous Drainage) to prevent possible tank overflows.

3. Automatic Defrost

In heating mode, the unit features an automatic defrost function. After defrosting, the unit will automatically return to its previous state.

4. Overheating Protection

To extend the service life of the unit, it is equipped with overheating protection in heating mode. During the protection period, the compressor and lower motor stop operating and will automatically return to normal heating mode once the unit's temperature has stabilized.

6. Installation and adjustments

1. Installation

Caution : The air conditioner must remain in a vertical position for at least two hours before use. The unit can be easily moved to the desired location. During transportation, always keep it upright and place it on a flat surface. Do not install the unit in a bathroom or any other humid environment.

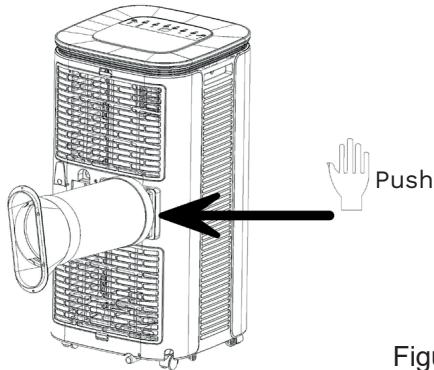

1.1 Installing the Assembled Exhaust Hose (see Fig. 1)

Figure1

1. Remove the external connector and the exhaust hose from their plastic packaging.
2. Insert the exhaust hose (hose joint end) into the air outlet slot on the rear panel (turn counterclockwise to tighten) and complete the assembly (see Figure 1).

1.2. Installing the Window Sealing Panels

1. Open the window halfway, then install the sealing system on the window (see Figures 2 and 3).
2. The panels can be installed either horizontally or vertically.
3. Extend the adjustable parts of the sealing system to match the window frame so that both ends of the device are in contact with the frame. Make the necessary adjustments on the different sections of the sealing kit.

Notes :

1. The flat end of the exhaust hose joint must be securely locked in place.
2. The hose must not be twisted or bent. The ventilation of the exhaust hose must not be obstructed.

Figure 2

Figure 3

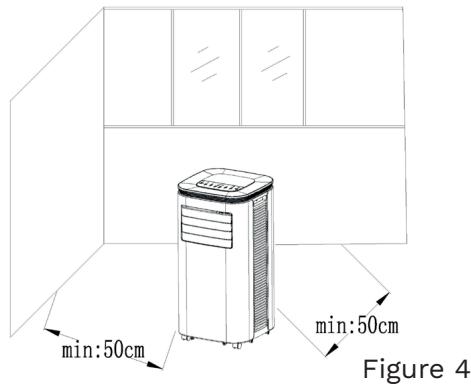

1.3. Installing the Main Unit

1. Move the air conditioner with the exhaust hose and connected accessories to the window, keeping a distance of at least 50 cm between the unit and walls or other objects (see Figure 4).

1. Extend the exhaust hose and insert its flat end into the opening of the window sealing system (see Figures 5 and 6).

Notes :

1. The flat end of the exhaust hose must be firmly locked into place.
2. The hose must not be twisted or bent. Make sure the exhaust hose ventilation is not obstructed.

installation of a sash window Figure 5

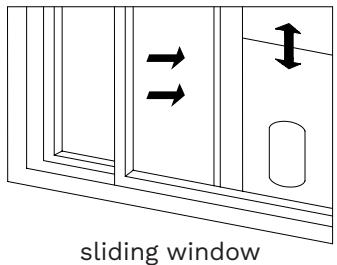

sliding window installation Figure 6

Important Notes :

The exhaust hose length must be between 280 and 1500 mm, depending on the air conditioner specifications. Do not use extensions and do not replace with different hoses, as this may cause malfunction. The exhaust hose inlet must not be blocked to avoid overheating.

7. Drainage Instructions

This unit has two drainage methods: manual drainage or continuous drainage.

1. Manual Drainage

1. When the unit stops due to excess water, press the OFF button and unplug the unit.
   Note: Move the unit carefully to prevent water from spilling inside the base of the unit.
2. Place a container under the drain outlet at the back of the unit.
3. Unscrew the drain cap and remove the rubber stopper. The water will flow automatically into the container below.

Notes :

1. Keep the drain cap and rubber stopper.
2. During drainage, you may tilt the unit slightly backwards.
3. If the container cannot hold all the water, close the drain outlet before it overflows to prevent water from spilling on the floor or carpet.
4. Once the water has been drained, replace the rubber stopper and screw the drain cap back in place.

2. Continuous Drainage

There are two methods for continuous drainage:

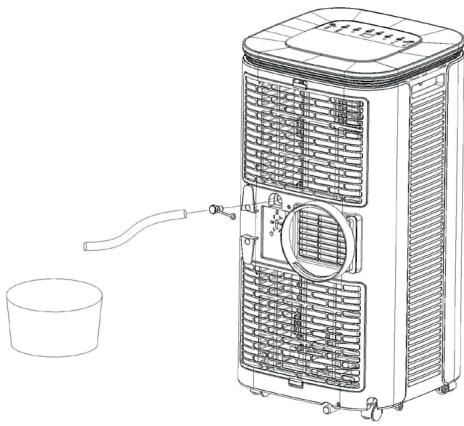

- Method 1:

1. Unscrew the drain cap and remove the rubber stopper.
2. Connect the supplied drainage hose to the drain outlet.
3. Place the other end into a bucket.

- Method 2:

1. Unscrew the drain cap and remove the rubber stopper.
2. Connect the supplied drainage hose to the drain outlet.
3. Unscrew the drain cap and remove the rubber stopper from the bottom drainage hole.
4. Connect the other end of the hose to the bottom drainage hole.

8. Maintenance

Cleaning : Always turn off and unplug the unit before performing any cleaning or maintenance..

1. Cleaning the Housing :

Clean the housing with a soft damp cloth. Do not use chemicals such as benzene, alcohol, or detergents, as they may damage the surface and the entire unit.

2. Cleaning the Filter Screen :

To prevent dust from clogging the filter and reducing the efficiency of the air conditioner, clean the filter every two weeks.

3. Cleaning the Upper Filter Frame :

1. Using a screwdriver, remove one of the screws holding the EVA filter on the rear housing. Remove the filter.

2. Soak the filter in warm water mixed with a neutral detergent (approx. 40 °C / 104 °F). Rinse thoroughly and let it dry in the shade before reinstalling.

9. Storage of the Unit

1. Unscrew the drain cap and remove the rubber stopper, then drain the water into a container (you may slightly tilt the unit).
2. Switch the unit on in low fan mode and let it run until the drain hose is completely dry. This will prevent moisture and mold from developing inside.
3. Turn off and unplug the unit, wrap the power cord around the designated holder, and install the water inlet connector and drain cap.
4. Remove the exhaust hose and store it carefully.
5. Cover the unit with a plastic bag and store it in a dry place, away from children, and protected from dust.
6. Remove the batteries from the remote control and store them safely.

Note : Always store the unit in a dry place and keep all accessories carefully.

10. Troubleshooting

Do not repair or disassemble the air conditioning by yourself. Unqualified repair will lead to failure of the warranty card, and may cause damage to users or their properties.

Problems	Reasons	Solutions
The air conditioning does not work.	·There is no electricity.	·Turn it on after connecting it to a socket with electricity.
	·The overflow indicator displays "FL".	·Discharge the water inside.
	·The ambient temperature is too low or too high.	·Recommend to use the machine in at the temperature of 7-35 °C (44-95 °F).
	·In cooling mode, the room temperature is lower than the set temperature; in heating mode, the room temperature is higher than the set temperature.	·Change the set temperature.
	·In dehumidification mode, the ambient temperature is low.	·The machine is placed in a room with an ambient temperature of greater than 17 °C (62 °F).
The cooling effect is not good.	·There is direct sunlight.	·Pull the Curtain.
	·Doors or windows are open; there are a lot of people; or in cooling mode, there are other sources of heat.	·Close doors and windows, and add new air conditioning.
	·The filter screen is dirty.	·Clean or replace the filter screen.
	·The air inlet or outlet is blocked.	·Clear obstructions.
Big Noise.	·The air conditioning is not placed on a flat surface.	·Put the air conditioning on a flat and hard place (to reduce noise).
compressor does not work.	·Overheat protection starts.	·Wait for 3 minutes until the temperature is lowered, and then restart the machine.
The remote control does not work.	·The distance between the machine and the remote control is too far.	·Let the remote control get close to the air conditioning, and make sure that the remote control directly faces to the direction of the remote control receiver.
	·The remote control is not aligned with the direction of the remote control receiver.
	·Batteries are dead.	·Replace batteries.
Displays 'E1'.	·The pipe temperature sensor is abnormal.	·Contact after-sales service
Displays 'E2'.	·The room temperature sensor is abnormal.

Note :

If problems not listed in the table occur or recommended solutions do not work, please contact the professional service organization : [e-mail]

Environment

Meaning of the crossed-out wheeled dustbin :

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local council for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

1. Technical data

Item	Rated value	Measured value	Requirements for minimum energy efficiency	Energy Efficiency Class (According to table 2 of EU 626/2011)	Verdict
Rated capacity for cooling (kW)	2.05	2.060	-	-	Pass
Power input for cooling (kW)	0.780	0.780	-	-	Pass
EER_rated	2.60	2.61	≥ 2.34	A	Pass
Rated capacity for heating (kW)	1.61	1.623	-	-	Pass
Power input for heating (kW)	0.700	0.664	-	-	Pass
COP_rated	2.30	2.44	≥ 1.84	A	Pass
Standby Mode Power (W) (According to (UE) n° 206/2012)	1.00	0.53	≤ 1.00	-	Pass
Networked Standby Mode Power (W) (According to (CE) n° 1275/2008 & (UE) n° 801/2013)	2.00	1.15	≤ 2.00	-	Pass
Off Mode Power (W)	N/A	N/A	≤ -	-	N/A
Sound Power, indoor (dB(A))	65	60.2	≤65	-	Pass
Sound Power, outdoor (dB(A))	N/A	N/A	≤	-	N/A

Optimea

Please find our product range on our website www.optimea.fr :

More info
