USER MANUAL FR9010140B OREA 1 SUPRA

RADIATEUR BAIN D'HUILE OIL RADIATOR

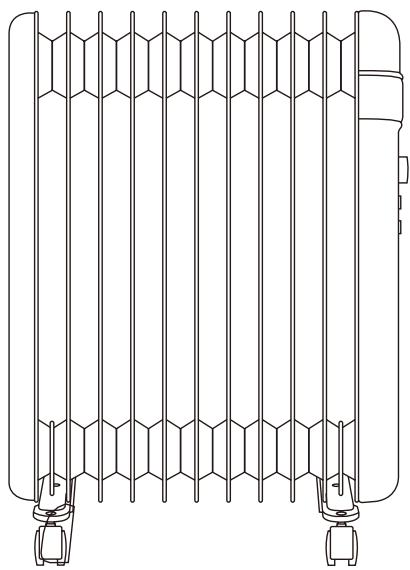

Line drawing of a vertical heating element with cooling fins and mounting feet (no text or symbols)

SUPRA.

EN: This product is only suitable for well insulated spaces or occasional use.

Line drawing of a horizontal heat exchanger with cooling fins and wheels (no text or symbols)

Français

Many thanks for choosing to purchase a SUPRA brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WAR- NINGS

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- This product is only suitable for well insulated spaces or occasional use.

- The appliance must not be placed below a power socket.

- Children of less than 3 years should be kept away unless continuously supervised.

- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal

operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children unless they are supervised.

- Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Do not use the appliance near bathtubs, showers or swimming pools.

- This appliance has been filled with a quantity and quality of certain oils, therefore the replacement or refilling of oil in case of a leakage should be carried

out by an authorised technical service centre.

• This appliance contains, or could contain, oil. Remember that one should abide by the regulations concerning the elimination of this type of contaminant.
• If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.
• This device is only intended for domestic use, not for professional or industrial use

This symbol means that product can't be covered.

- CAUTION: In order to prevent overheating do not cover the appliance.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Use the appliance in a well ventilated area.
• If other gas or fuel appliances can be used at the same time in the room where the appliance is to be used, that room must be well ventilated.
• Place the appliance on a horizontal, flat, stable surface, suitable for withstanding high temperatures and away from other heat sources and contact with water.
• Keep the appliance away from flammable mate-

rial such as textiles, cardboard or paper, etc.
- Do not place inflammable material near the appliance.
- Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.
- Do not use the appliance if the cable or plug is damaged.
- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
- CAUTION: Maintain the appliance dry.
- CAUTION: Do not use the appliance near water.
- Do not use the appliance with damp hands or feet, or when barefooted.
- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
- Do not wrap the power cord around the appliance.
- Do not clip or crease the power cord.
- Do not allow the power cord to come into contact with the appliance's hot surfaces.
- Keep the appliance well away from heat sources, oil, sharp edges or moving parts.
- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
- The appliance is not suitable for outdoor use.
- Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
- As an additional protection to the electrical supply for the appliance, it is advisable to have a differential current device with a maximum sensitivity of 30 mA. Ask for advice from a competent installer.
- Do not use or store the appliance outdoors.
- Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
- Do not touch the plug with wet hands.
- Do not use the appliance in the case of persons insensitive to heat (the appliance has heated surfaces).
- Do not touch the heated parts of the appliance, as it may cause serious burns.
- The temperature of the accessible surfaces may be high when the appliance is in use.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• Do not remove the support feet of the appliance.
• Do not use the appliance if it is tipped up and do not turn it over.

- Do not turn the appliance over while it is in use or connected to the mains.

- If you use the appliance in a bathroom or similar place, unplug the appliance from the mains when it is not in use, even if it is only for a short while, as proximity to water involves a risk, even if the appliance is disconnected.

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- This appliance is for household use only, not professional, industrial use.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Do not store the appliance if it is still hot.

- Do not store or transport the appliance if it is still hot.

- Do not store the appliance on areas where the temperature could be lower than 2^ C.

- Do not expose the appliance to extreme temperatures.

- Never leave the appliance unattended while in use.

- Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

- Do not use the appliance to dry pets or animals.

- Do not use the appliance to dry textiles of any kind.

- CAUTION: User can't sleep when appliance is under use; there is a risk of injuries.

- If, for some reason, the oil were to catch fire, disconnect the appliance from the mains and smother the fire using the lid, a cover or a large kitchen cloth. NEVER WITH WATER.

- Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.

SERVICE:

- CAUTION: There is a risk of fire if the appliance's cleaning is not done according to these instructions.

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

A Display

B Mode / Setting

C Eco mode

D On/off Button

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

ASSEMBLING THE WHEELS:

• To assemble the wheels, place the appliance face down.
• Position the wheel supports in the first and last elements of the radiator.
• Fix the wheel supports using the "U" shaped clamp and the wing nuts provided.
• Stand the appliance up again so as to check that the wheels work properly.

INSTRUCTIONS FOR USE BEFORE USE:

• Make sure that all products' packaging has been removed.
• To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Turn the appliance on, by using the on/off button.
• Turn the control (B) to set the desired temperature (5-35°C)
• When the setting temperature is lower than 5^ C, the screen will display F_r , the heater will be working in anti-frost mode.
• Press and turn (B) to select the power H1 (low power), H2 (medium power) or H3 (high power).
• Press (B) to confirm ro wait for 3 seconds.

TIMER FUNCTION:

• The appliance's operating time can be controlled.
• To program the operating time press (B) for 3

seconds, the screen will display 80k , select the timer from 1 to 24 hours.

• Press (B) to confirm or wait for 3 seconds.
• The time programmed or remaining time will appear on the display.

ECO MODE

- Press (C) to set the eco mode the screen will display £.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off using the on/off button.
• Unplug the appliance from the mains.
• Clean the appliance.

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.
• This appliance contains, or could contain, oil. Remember that one should abide by the regulations concerning the elimination of this type of contaminant.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Model:	OREA 1500/2000/2500
Heat output
Nominal heat output Pnom	1,5 kW / 2,0 kW / 2,5 kW
Minimum heat output (indicative) Pmin	0,6 kW / 0,8 kW / 1,0 kW
Maximum continuous heat output Pmax,c	1,5 kW / 2,0 kW / 2,5 kW
Auxiliary electricity consumption
At nominal heat output elmax	1,459 kW / 1.968 kW / 2,488 kW
At minimum heat output elmin	0,567 kW / 0,794 kW / 0,973 kW
In standby mode eISB	0,0007 kW
Type of heat input, for electric storage local space heaters only
Manual heat charge control, with integrated thermostat	No
Manual heat charge control with room and/or outdoor temperature feedback	No
Electronic heat charge control with room and/or outdoor temperature feedback	No
Fan assisted heat output	No
Type of heat output/room temperature control
single stage heat output and no room temperature control	No
Two or more manual stages, no room temperature control	No
with mechanic thermostat room temperature control	No
with electronic room temperature control	No
electronic room temperature control plus day timer	Yes
electronic room temperature control plus week timer	No
Other control options
room temperature control, with presence detection	No
room temperature control, with open window detection	No
with distance control option	No
with adaptive start control	No
with working time limitation	No
with black bulb sensor	No
Contact details	SUPRA FRANCE RCS BP 22 – 67216 OBERNAI CE-DEX - FRANCE

OREA 1500/2000/2500

SUPRA.

SUPRA FRANCE RCS Saverne 441 048 576
