FHI 2000 - Fan heater Orbegozo - Free user manual and instructions

Product type	Fan heater
Brand	Orbegozo
Model	FHI 2000
Power	2000 W
Supply voltage	220-240 V ~ 50/60 Hz
Dimensions (H x L x D)	25 x 20 x 15 cm
Weight	1.5 kg
Color	White and black
Material	ABS plastic
Heating type	Ceramic
Operating modes	Cool air, low heat (1000 W), high heat (2000 W)
Thermostat	Adjustable, automatic shut-off at desired temperature
Safety	Overheating and tip-over protection (automatic shut-off)
Protection grille	Removable metal grille for cleaning
Cable length	1.5 m
Maintenance	Unplug and clean the grille with a dry cloth; do not immerse
Spare parts	Available on request from after-sales service
Repairability	Repairable by an authorized professional
Energy class	Not specified
Included accessories	Instruction manual

Frequently Asked Questions - FHI 2000 Orbegozo

What is the power of the Orbegozo FHI 2000 fan heater?

The Orbegozo FHI 2000 fan heater has a power of 2000 watts, which allows quick heating of a medium-sized room.

Does the heater make noise?

Like any fan heater, a slight ventilation noise is normal. The sound level is about 45 dB, comparable to a quiet conversation.

What safety features are integrated?

The device is equipped with overheating protection and a tip-over switch that automatically cuts off power if it falls.

How to clean the heater?

Unplug the device and let it cool down. Remove the protection grille and clean it with a dry cloth. Never use water or abrasive products.

Can I use the heater in a bathroom?

No, the heater is not designed for use in humid rooms. It must be used in a dry place away from water splashes.

How to adjust the temperature?

Turn the thermostat knob to the desired position. When the room temperature reaches that level, the device stops automatically and restarts if the temperature drops.

Can the heater operate without heating?

Yes, it has a cool air mode (without heating) that can be used as a simple fan in summer.

What is the power consumption?

In full power mode, consumption is 2 kWh. In reduced mode (1000 W), it is 1 kWh. It is recommended not to use it continuously for a long time.

What to do if the device does not turn on?

First check that the socket works and the cable is not damaged. If the problem persists, consult the manual or contact after-sales service.

Where to find spare parts?

Spare parts are available from Orbegozo after-sales service. You can order them online or by phone.

USER MANUAL FHI 2000 Orbegozo

Red portable electric heater with black control knobs and a 2000 W power outlet, no visible text or symbols on the device itself.

FHI 2000

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

We congratulate you for having chosen our product.

Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use.

Read the Safety information's and safe positioning also carefully before using of the heater about to avoid any risk of fire or lives.

SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

4. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

IMPORTANT SAFETY INSTRUCTIONS:

• The meaning of figure ☑ in marking is “DO NOT COVER”. WARNING: In order to avoid overheating, do not cover the heater.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or

instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• The device should not be placed immediately below a socket base.
• Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.
• Do not use this heater in the immediate vicinity of a bath, shower or pool.
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!
• Allow ample space around the heater. A safe area to be left free is 100 cm at the front and at the sides and 100 cm at the top.
  • Always unplugged the heater after use.
• Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!

- Keep the mains cord at a safe distance from the air inlet and outlet grilles.

These instructions for use belong to the appliance and must be kept in a safe place. When changing owners, these instructions must be surrendered to the new owner!

Safe positioning

• The heater must not be located immediately below a socket outlet.
• Only use the fan heater when it is standing in a horizontal position. Do not place the heater on instable surfaces, such as bed, carpets etc. and do not use the heater on uneven position, where the heater can tip over – otherwise there is a risk of fire.
• The heater should be placed with a minimum distance from flammable objects, walls, structure etc. A safe area to be left free is 100 cm at the front and at the sides and 100 cm at the top. The appliance opening must not be obstructed in any way.
• For your own safety and that of others: water and electricity are a dangerous combination! Do not use this heater in a bathroom or near a swimming pool. Ensure that the appliance cannot fall into water (bath wash basin, shower cubicle, etc.)
• Please read also the safety information before using.
• Do not use the heater on extremely deep-pile carpets!

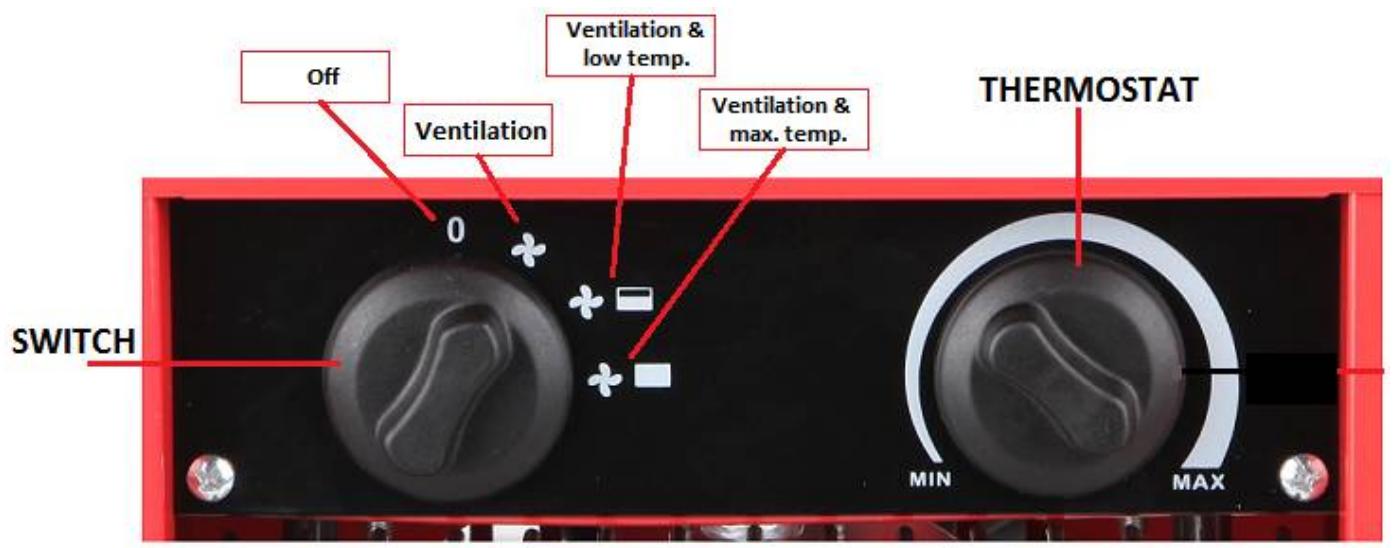

How to use the heater

1. Connect on the power.
2. Spin the switch, choose the suitable one: ventilation, , ventilation & low temperature ventilation & maximum temperature.
3. Turn the Thermostat to choose the temperature. The heater begins to work
4. Please turn the Thermostat to MIN place to let the Heater cooling 3 minutes before the machine turn off.

Overheating safety device

To prevent damage and risks due to overheating, the built-in overheating safety device cuts off the power as soon as the heating elements become too hot. If this should happen:

First ensure that it was not the thermostat which has switched off the heater. Set the thermostat to maximum position. If the heater does not switch on, the safety device has been activated.

• Remove the mains plug from the wall socket.
• Let the heater cool down for 30 minutes.
• Check if the heater had been placed correctly.
• Check if anything is obstructing the air flow.
• If necessary, clean the grilles with a vacuum cleaner.
• Replace the plug into the wall socket and switch the heater on again.

If the safety device again switches off the heater:

• Remove the mains plug from the wall socket.
• Have the heater inspected by a Service Centre or by your dealer.

Cleaning

We recommend that you clean your heater at least twice a year to remove accumulated dust and dirt.

• Remove the mains plug from the wall socket.
• Wait for the heater to cool down sufficiently.
• You may clean the outside of the heater with a damp cloth or brush. Do not use water or allow water to come into the appliance. Do not use any abrasive and caustic cleaning agents!
• Never touch the heater in water!
• Clean the air inlet and outlet grilles regularly with a vacuum cleaner, using the brush attachment.

Storage

Keep the original box in which the heater was packed to store it during the warmer months when it is not in use. Clean the heater according to the instructions. Pack the heater in the original box and store it in a cool, dry place.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
