Product type	Oil radiator
Brand	Orbegozo
Model	RH 1000
Rated power	1000 W
Minimum power	500 W
Power settings	3 positions: I (500W), II (500W), I+II (1000W)
Thermostat	Yes, mechanical
Control type	Mechanical thermostat
Number of fins	Not specified (finned oil radiator)
Material	Steel, dielectric oil
Castors	Yes, included (assembly required)
Power cord	With storage
Recommended use	Well-insulated rooms or occasional use
Safety	Do not cover; safety distance 90 cm; overheating protection
Cleaning	Damp cloth; do not use wax or shiny products
Storage	Remove castors; store in original packaging; cool and dry place
Compliance	Low Voltage Directive 2006/95/EC; EMC 2004/108/EC
Assembly	Assembly of castors and supports required
Use	Household only

Frequently Asked Questions - RH 1000 Orbegozo

How to assemble the castors of the radiator?

Place the radiator upside down on a soft surface. Pass the U-bolt between the last and second-to-last fin, attach the curved bracket with wing nuts, then screw on the castors. Repeat for the other side.

What are the available power settings?

The radiator offers three positions: I (500W), II (500W) and I+II (1000W). You can select them via the power switches.

How to use the thermostat?

Turn the thermostat knob clockwise to increase the temperature, and counterclockwise to decrease it to the desired temperature. An indicator light turns on when the device is heating.

Can I cover the radiator while it is operating?

No, never cover the device while it is operating to avoid any risk of fire. A 'DO NOT COVER' symbol is present on the label.

Is the radiator suitable for children?

Children under the age of 3 must be kept away. Children aged 3 to 8 can only turn the device on or off under supervision. Some parts heat up and can cause burns.

How to clean the oil radiator?

Always unplug the device before cleaning. Use a damp cloth for the outside, then a soft cloth to make it shine. Do not use wax or shiny products.

How to store the radiator in summer?

Keep the original box. Clean the radiator, remove the castors, place the radiator and castors in the box and store in a cool, dry place. You can also cover it without disassembling.

What to do in case of oil leak?

The radiator contains an exact amount of special oil. In case of leak, contact the manufacturer or their authorized service for repairs. Do not attempt to open the fins.

Can I use this radiator in the bathroom?

No, do not use it in the immediate vicinity of a bath, shower, or swimming pool. It must be installed so that switches and sockets cannot be touched by a person in the bathtub or shower.

What to do if the power cord is damaged?

If the cord is damaged, contact an authorized technical service to avoid any danger. Do not use it and do not pull on the cord to unplug it.

USER MANUAL RH 1000 Orbegozo

White portable electric heater with control panel and wheels (no visible text or symbols)

RH 1000

Sonifer, S.A. Avenida de Santiago, 86

30007 Murcia España

E-mail: [e-mail]

MADE IN P.R.C.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

This product is only suitable for well insulated spaces or occasional use.

Close-up of a white ergonomic chair with black legs and wheels, no visible text or symbols

PUESTA EN FUNCIONAMIENTO DEL RADIADOR

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

4. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].
13. WARNING: In case of misuse, there is a risk of possible injury.

Specific:

1. The meaning of figure ☑ in marking is "DO NOT COVER". WARNING: In order to avoid overheating, do not cover the heater.
2. Children of less than 3 years should be kept away unless continuously supervised.
3. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
4. CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
5. The device should not be placed immediately below a socket base.

6. Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.

7. Do not use this heater in the immediate vicinity of a bath, shower or pool.

8. This radiator is filled with an exact amount of special oil. Repairs that require opening the container of oil should only be undertaken by the manufacturer or its authorized service, which should be notified if your radiator is leaking oil.
9. Regulations concerning the disposal of the oil when scraping the appliance have to be followed.
10. Always disconnect the heater from the main supply when not in use and when cleaning.
11. Keep the heater a distance of at least 90cm from any combustible material such us furniture, curtains, bedding, cloths or papers.
12. Do not attempt to open any part of the oil fins.
13. Keep the heater clean. Do not allow objects to enter the ventilation, as this may cause electric shock, fire or damage the heater.

The pictures in this manual are only for your reference. The product you purchased may vary thereof.

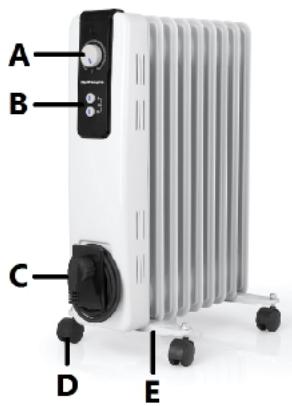

PARTS DESCRIPTION

A. Thermostat
B. Power setting switches
C. Cord storage
D. Castors
E. Supports

ASSEMBLY RH 1000

The oil radiator is packed with the wheels not assembled. Please make sure that they are right assembled before turning the device on.

Remove the heater and all the accessories from the carton.

1- Turn the radiator upside down carefully and place it over a carpet or any other soft surface in order not to damage the unit.
2- Pass the "U bolt" in between the last and next-to-last fin and make it fit the holes of the curved support. Screw the U bolt to the curved support with the help of the wing nuts. Then, screw the wheels to the support. See picture below.
3- Repeat step 2 in between the first and the second fin, using the curved support.
4- Turn the heater the right way up. The unit should be as shown in the picture in "parts description" section.

Close-up of a white plastic stand with black wheels and metal frame, no visible text or symbols

USING THE THERMOSTAT AND POWER SWITCHES

1. Select the power of the radiators by pressing the switches:

	I	II	I + II (III)
RH 1000	500W	500W	1000W

1. Room temperature can be adjusted using the thermostat. Simply turn the thermostat knob clockwise, to increase the heat, and anti-clockwise to decrease the temperature, until you reach the desired temperature.
2. The power switches light up when activated.
3. The thermostat control knob lights up when the unit is heating up. Once it reaches the set temperature, the light will come off.
4. Once you have finished using your heater, unselect the power switches, and turn the thermostat control switch to the "0" position, and unplug from the mains supply.

Note: This radiator heater is oil filled, and will cool down slowly after the power is shut off. Allow the radiator heater to cool prior to any movement; the built carry handle should be used for easy movement. Do not cover the heater at any time during operation. There is a risk of fire if the heater is covered.

CLEANING YOUR OIL RADIATOR

1. Always disconnect the heater from the mains supply before cleaning.
2. Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth.
3. DO NOT use waxes or polishes as these may react with the heater and cause discolouration.

STORING YOUR OIL RADIATOR

1. Save the box for off season storage.
2. Clean the heater following the cleaning instructions above.
3. Remove the wheel base assemblies.
4. Place the radiator, and wheel assemblies in the original box, and store in a cool and dry place.
5. If you choose to store your heater fully assembled, be sure to cover it to protect it from dust.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers

should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.

This product is only suitable for well insulated spaces or occasional use

Item RH 1000	Symbol		Value	Unit		Item RH 1000	Unit
Heat output						Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom		1.0	KW		manual heat charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	P_min		0.5	KW		manual heat charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	P_max,c		1.0	KW		electronic heat charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption						fan assisted heat output	N/A
At nominal heat output	el_max		0	KW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min		0	KW		single stage heat output and no room temperature control	NO
In standby mode	el_SB		0	W		Two or more manual stages, no room temperature control	NO
						with mechanic thermostat room temperature control	YES
						with electronic room temperature control	NO
						electronic room temperature control plus day timer	NO
						electronic room temperature control plus week timer	NO
						Other control options (multiple selections possible)
						room temperature control, with presence detection	NO
						room temperature control, with open window detection	NO
						with distance control option	NO
						with adaptive start control	NO
						with working time limitation	NO
						with black bulb sensor	NO
Contact details info		SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.
