USER MANUAL DLA-VS2200G JVC

For Customer use:

Enter below the serial No. which is located on the side of the cabinet. Retain this information for future reference.

Model No. DLA-VS2200ZG

DLA-VS2200G

Serial No.

This product has a High Intensity Discharge (HID) lamp that contains mercury. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org.

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

WARNING: THIS APPARATUS MUST BE EARTHED.

CAUTION: To reduce the risk of electric shock, do not remove cover. Refer servicing to qualified service personnel.

This projector is equipped with a 3-blade grounding type plug to satisfy FCC rule. If you are unable to insert the plug into the outlet, contact your electrician.

MACHINE NOISE INFORMATION (Germany only)

Changes Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 20 dB (A) according to ISO 7779.

For the customers in Taiwan only

Waste batteries please recycle

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. In case where the strong electromagnetic waves or magnetism are near the signal cable, the picture will contain noise. In such cases, please keep the cable away from the sources of the disturbance.

About the installation place

Do not install the projector in a place that cannot support its weight securely. If the installation place is not sturdy enough, the projector could fall or overturn, possibly causing personal injury.

FCC INFORMATION (U.S.A. only)

CAUTION:

Changes or modification not approved by JVC could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use and service. Please read these Important Safeguards carefully before use.

• All the safety and operating instructions should be read before the product is operated.
• The safety and operating instructions should be retained for future reference.
• All warnings on the product and in the operating instructions should be adhered to.
• All operating instructions should be followed.
• Place the projector near a wall outlet where the plug can be easily unplugged.
• Unplug this product from the wall outlet before cleaning.
• Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
• Do not use attachments not recommended by the product manufacturer as they may be hazardous.
• Do not use this product near water. Do not use immediately after moving from a low temperature to high temperature, as this causes condensation, which may result in fire, electric shock, or other hazards.
• Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. The product should be mounted according to the manufacturer's instructions, and should use a mount recommended by the manufacturer.

- When the product is used on a cart, care should be taken to avoid quick stops, excessive force, and uneven surfaces which may cause the product and cart to overturn, damaging equipment or causing possible injury to the operator.

PORTABLE CART WARNING (symbol provided by RETAC)

S3126A

• Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the product and protect it from overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the product on bed, sofa, rug, or similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instructions have been adhered to.)
• To allow better heat dissipation, keep a clearance between this unit and its surrounding as shown below. When this unit is enclosed in a space of dimensions as shown below, use an air-conditioner so that the internal and external temperatures are the same. Overheating can cause damage.

- Power source indicated on the label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

- This product is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.

- Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.

- For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges.

- Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.

- Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

- Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages and other hazards. Refer all service to qualified service personnel.

- Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions:

a) When the power supply cord or plug is damaged. b) If liquid has been spilled, or objects have fallen on the product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the Operation Manual, as an improper adjustment of controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. e) If the product has been dropped or damaged in any way. f) When the product exhibits a distinct change in performance, this indicates a need for service.

- When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

- Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

- The product should be placed more than one foot away from heat sources such as radiators, heat registers, stoves, and other products (including amplifiers) that produce heat.

- When connecting other products such as VCR's, and DVD players, you should turn off the power of this product for protection against electric shock.

• Do not place combustibles behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas lighters that present special hazards when over heated.
• Do not look into the projection lens while the illumination lamp is turned on. Exposure of your eyes to the strong light can result in impaired eyesight.
• Do not look into the inside of this unit through vents (ventilation holes), etc. Do not look at the illumination lamp directly by opening the cabinet while the illumination lamp is turned on. The illumination lamp also contains ultraviolet rays and the light is so powerful that your eyesight can be impaired.
• Do not drop, hit, or damage the light-source lamp (lamp unit) in any way. It may cause the light-source lamp to break and lead to injuries. Do not use a damaged light source lamp. If the light-source lamp is broken, ask your dealer to repair it. Fragments from a broken light-source lamp may cause injuries.
• The light-source lamp used in this projector is a high-pressure mercury lamp. Be careful when disposing of the light-source lamp. If anything is unclear, please consult your dealer.
• Do not ceiling-mount the projector to a place which tends to vibrate; otherwise, the attaching fixture of the projector could be broken by the vibration, possibly causing it to fall or overturn, which could lead to personal injury.
• Use only the accessory cord designed for this product to prevent shock.
• Once every three years, please perform an internal test. This unit is provided with replacement parts needed to maintain its function (such as cooling fans). Estimated replacement time of parts can vary greatly depending on frequency of use and the respective environment. For replacement, please consult your dealer, or the nearest authorized JVC service center.
• When fixing the unit to the ceiling, please note that we do not take any responsibility, even during the warranty period, if the product is damaged due to use of metal fixtures used for fixation to the ceiling other than our own or if the installation environment of said metal fixtures is not appropriate. If the unit is suspended from the ceiling during use, please be careful in regard to the ambient temperature of the unit. If you use central heating, the temperature close to the ceiling will be higher than normally expected.
• Video images can burn into the electronic component parts. Please do not display screens with still images of high brightness or high contrast, such as those found in video games and computer programs. Over a long period of time, they might stick to the picture element. There is no problem with the playback of moving images, e.g., normal video footage.

- Please power it on and let it run occasionally. Please avoid using the unit in a room where cigarettes are smoked. It is impossible to clean optical component parts if they are contaminated by nicotine or tar. This might lead to performance degradation.

* DO NOT allow any unqualified person to install the unit.

Be sure to ask your dealer to install the unit (e.g., attaching it to the ceiling) since special technical knowledge and skills are required for installation. If installation is performed by an unqualified person, it may cause personal injury or electrical shock.

POWER CONNECTION

For USA and Canada only Use only the following power cord.

Power cord

The power supply voltage rating of this product is AC110V – AC240V. Use only the power cord designated by our dealer to ensure safety and EMC. Ensure that the power cable used for the projector is the correct type for the AC outlet in your country. Consult your product dealer.

Power cord

For United Kingdom

For European continent countries

WARNING:

Do not cut off the main plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter or consult your dealer. If nonetheless the mains plug is cut off, dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply. If a new main plug has to be fitted, then follow the instruction given below.

WARNING:

THIS APPARATUS MUST BE EARTHED.

IMPORTANT (Europe only):

The wires in the mains lead on this product are colored green and yellow in accordance with the following cord:

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As these colors may not correspond with the colored marking identifying the terminals in your plug, proceed as follows:

The wire which is colored green-and-yellow must be connected to the terminal which is marked with the letter E or the safety earth symbol or colored green or green-and-yellow. The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black.

The wire which is colored brown must be connected to the terminal which is marked with the letter L or colored red.

POWER CONNECTION (United Kingdom only)

IMPORTANT (Europe only):

When replacing the fuse, be sure to use only a correctly rated approved type, re-fit the fuse cover.

IF IN DOUBT — CONSULT A COMPETENT ELECTRICIAN.

Open the fuse compartment with the blade screwdriver, and replace the fuse.

(* An example is shown in the illustration below.)

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety.

European representative of JVC KENWOOD Corporation is:

JVC Technical Services Europe GmbH

Information for Users on Disposal of Old Equipment and Batteries

Products

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

GERMAN

Safety Precautions 2

Accessories/Optional Accessories 11

Check the Accessories 11

Optional Accessories 11

Controls and Features 12

Main Unit - Front 12

Main Unit - Bottom 12

Main Unit - Rear 13

Main Unit - Input Terminals 14

Remote control (sold separately, model no. RM-MH13G) 15

Loading Batteries into the Remote Control (Sold Separately) 16

Effective Range of Remote Control (Sold Separately) 16

Set up

Installing the Projector 17

Precautions during Installation 17

Precautions during Mounting 19

Adjusting the Position 20

Connecting the Projector 21

Connecting to the HDMI Input Terminal (Digital Input) 21

Connecting to the LAN Terminal 22

Connecting to the RS-232C Terminal 22

Connecting to the REMOTE Terminal 22

Connecting the Power Cord (Supplied Accessory) 23

Operate

Viewing Videos 24

Adjust/Set

Adjustments and Settings in the Menu 26

List of Menu Items 26

Picture Adjust 28

Input Signal 32

Installation 34

Display Setup 40

Function 41

Information 42

Maintenance

Replacing the Lamp 43

Lamp Replacement Procedure 43

Replacing the Attachment 45

Resetting the Lamp Time 50

Maintaining the Cabinet and Remote Control (Sold

Separately) 50

Cleaning and Replacing the Filter 51

Troubleshooting

Troubleshooting 52

When the following messages appear.... 54

Others

External Control 55

RS-232C Specifications 55

TCP/IP Connection 55

Command Format 56

Remote Control Code 57

Communications Example 58

Specifications 59

Index 65

Symbols used in this manual

ZG indicates a function that is supported by DLA-VS2200ZG.

G indicates a function that is supported by DLA-VS2200G.

Items not marked with any of the above symbols are supported by all models.

Accessories/Optional Accessories

Check the Accessories

Power cord (for USA) (approx. 2 m) .... 1 piece

Power cord (for EU) (approx. 2 m) .... 1 piece

Lamp attachment "UPPER 45-90 & REVERSE" (Use Area: B, Refer to p. 17) and Installation verification seal .... 1 piece

• INSTRUCTIONS (this book), warranty card, and other printed material are also included.

Optional Accessories

• Remote control: Model no. RM-MH13G
• AAA-size battery
• Replacement lamp: model PK-L2313U

Controls and Features

Main Unit - Front

① Lens ZG

This is a projection lens. Do not look through the lens while an image is projected.

- For G, the lens is sold separately.

② Lens sheet

③ Remote Sensor (front)

Please aim the remote control (sold separately) at this area when using it.

* There is also a remote sensor at the rear.

④ Indicator

Refer to "Indicator Display on the Main Unit" (p. 62).

⑤ Exhaust vent

Warm air is discharged to cool down the internal temperature.

Do not block the vents.

Main Unit - Bottom

⑥ Inlets (at 3 points on the rear/bottom)

The inlets take in air to cool down the internal temperature.

Do not block or prevent the outflow of hot air. Doing so may cause the unit to malfunction.

* There are two inlets on the right and left sides at the rear of the unit.

⑦ Feet

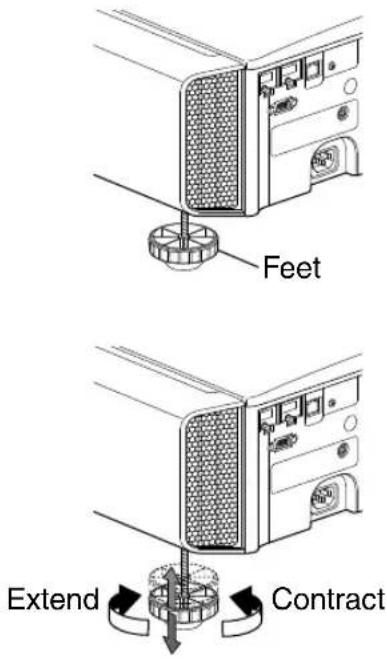

The height and angle of the projector can be adjusted by turning the foot. (0 to 5 mm) (p. 20)

When the foot is removed, it can be used as the mounting holes for the ceiling mount bracket.

Main Unit - Rear

⑧ Input terminals

For details on the terminals, refer to "Main Unit - Input Terminals" p. 14.

⑨ Lamp cover

When replacing the light source lamp, remove this cover.

⑩ Operation panel

For more details, please refer to the "Operation panel" in the diagram below.

⑪ Remote Sensor (rear)

Please aim the remote control (sold separately) at this area when using it.

* There is also a remote sensor at the front.

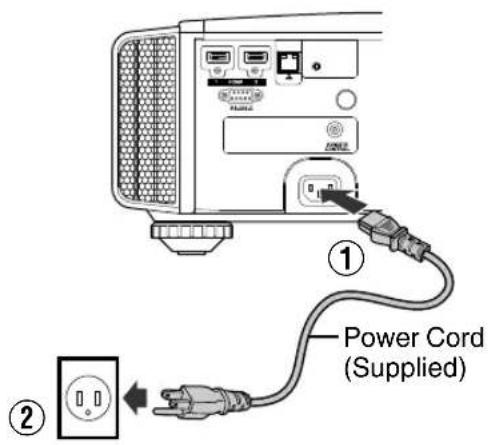

⑫ Power input terminal

Connect the supplied power cord to this terminal.

Operation panel

Main Unit - Input Terminals

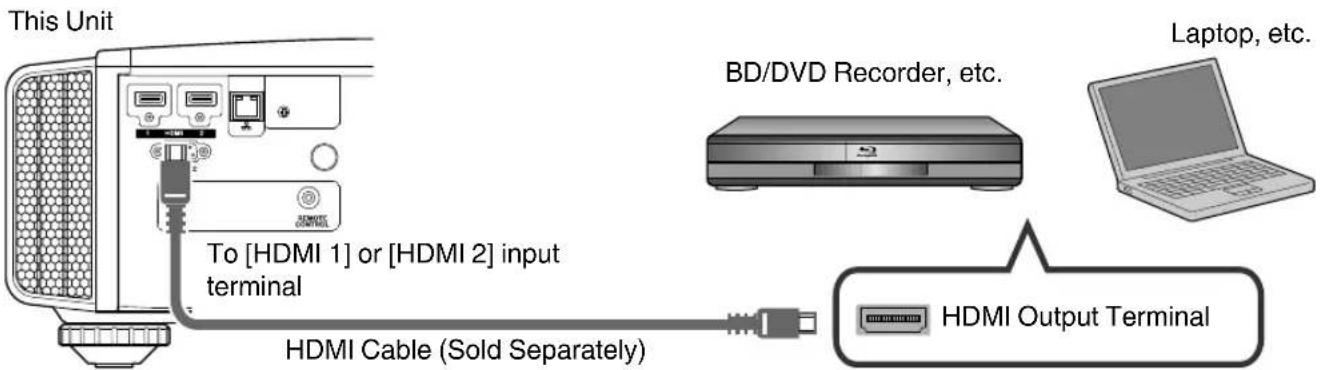

① [HDMI 1] input terminal ② [HDMI 2] input terminal

For connecting to devices that support HDMI output. (p. 21)

It is fitted to the M3 lock hole. The depth of the screw hole is 3 mm.

③ [LAN] terminal (RJ-45)

The projector can be controlled by connecting it to a PC through the computer network for control commands to be sent to the projector.

④ [RS-232C] terminal (D-sub 9-pin male)

The projector can be controlled by connecting a PC to this terminal.

* The LAN and RS-232C terminals cannot be used at the same time. (p. 41)

⑤ [REMOTE] terminal (stereo mini jack)

This terminal is used to connect the remote control directly to the projector with the cable.

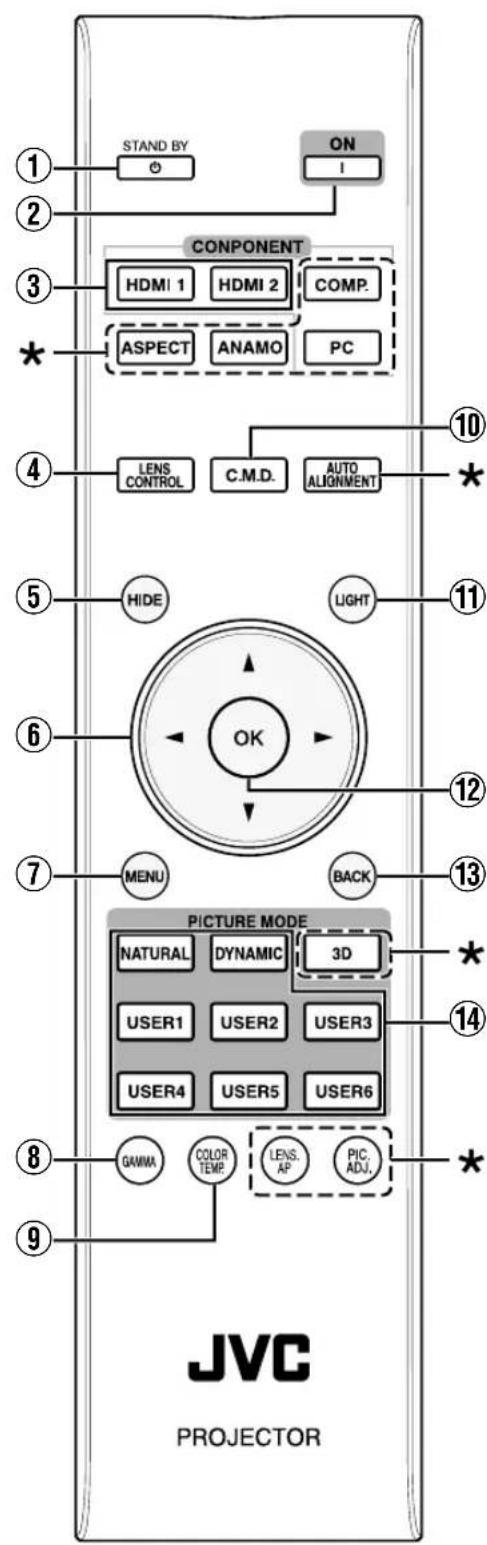

Remote control (sold separately, model no. RM-MH13G)

① ⏻ [STAND BY]

Turns off the power. (p. 25)

② I [ON]

Turns on the power. (p. 24)

③ [COMPONENT]

Select either the [HDMI 1] or [HDMI 2] input. (p. 24)

④ [LENS

CONTROL] ZG

For adjusting focus, zoom, and shift. (p. 34)

⑤ [HIDE]

Hides the image temporarily. (p. 24)

⑥ [▲▼◀▶] keys

For selecting an item.

⑦ [MENU]

Displays the menu, or hides the menu if it is displayed.

⑧ [GAMMA]

For setting the gamma level. (p. 29)

⑨ [COLOR TEMP]

For setting the color temperature. (p. 29)

CAUTION

- Buttons marked by * are not available for use on this unit.

⑩ [C.M.D.]

For setting frame interpolation. (p. 31)

⑪ [LIGHT]

Illuminates the buttons on the remote control.

⑫ [OK]

Confirms a selected item.

⑬ [BACK]

Returns to the previous menu.

⑭ [PICTURE MODE]

Switches the Picture mode to [NATURAL], [DYNAMIC], [USER1] to [USER6]. (p. 28)

Loading Batteries into the Remote Control (Sold Separately)

• If the remote control has to be brought closer to the projector to operate, it means that the batteries are wearing out. Replace the batteries with new ones (AAA).
• Insert the batteries according to the ⊕ ⊖ marks. Be sure to insert the ⊖ end first.
• If an error occurs while using the remote control, remove the batteries and wait for five minutes. Load the batteries again and operate the remote control.

Effective Range of Remote Control (Sold Separately)

When aiming the remote control toward the sensor on this unit (front or rear), ensure that the distance to the sensor is within 7 m.

If the remote control fails to work properly, move closer to this unit.

Control through reflection off a screen, etc.

Ensure that the total of distance A (between this unit and the screen) and distance B (between the remote control and the screen) is within 7 m.

* As the efficiency of signals reflected from the remote control unit varies with the type of screen used, the operable distance may decrease.

CAUTION

- Do not put the remote control in a place with an exposure to direct sun light or high temperature.

Installing the Projector

Precautions during Installation

Please read the following carefully before installing this unit.

Do not install at the following

This unit is a precision device. Please refrain from installing or using it at the following locations. Otherwise, it may cause fire or malfunction.

• Dusty, wet and humid places - Places subject to oily smoke or cigarette smoke - On top of a carpet or bedding, or other soft surfaces - Places exposed to direct sunlight - Places with a high or low temperature - Do not install this unit in a room that is oily or subject to cigarette smoke. Even a small quantity of smoke or oiliness can have a long-term impact on this unit.

* This unit produces a great amount of heat, and is designed to take in cool air to cool its optical components. Using the unit at the above locations may cause dirt to attach to the light path, thereby resulting in dark images or dull colors.

* Dirt that sticks to the optical components cannot be removed.

Maintain clearance from the wall, etc.

As the unit discharges a large amount of heat, install it with adequate clearance from the surroundings as shown below.

Leave the front area of the unit unblocked. If there is any obstructing object in front of the exhaust vent, hot air will flow back to the unit and cause it to heat up. Hot air flowing out of the unit may cause shadows on the screen (heat haze phenomenon).

Using the projector

This unit uses a projection lamp, which will heat up when in use.

Please refrain from projecting in the following circumstances. Otherwise, it may cause fire or malfunction.

- Projection with the unit stood vertically

- Projection with the unit inclined at an angle Horizontal direction: within ±10°

As shown in the illustration, this unit can be installed with a tilted angle, but for some areas there might be other conditions. Moreover, depending on the angle of installation, it may be necessary to have a hanging metal mount and secure installation base depending on the angle of the installation.

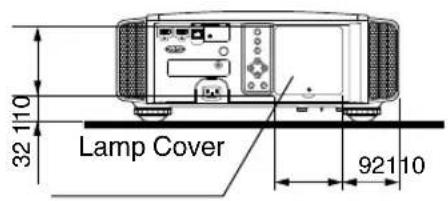

Area A : Use the factory-installed lamp. The lamp is attached to the Area A attachment (○ mark and "0°" marking).

Area B : Replace with the supplied attachment (+ mark and "90°" marking). Refer to p. 45 on the replacement procedures.

Installing the screen

Install the unit and the screen such that they are perpendicular to each other.

• Please choose a screen material with non-uniform patterns. Uniform patterns such as checks may cause interference patterns to occur.
• In this case, you can change the size of the screen to make the interference patterns less noticeable.

Using the projector at a high altitude

When using this unit at a location that is higher than 900 m above sea level (low air pressure), set the “High Altitude Mode” to “On”. (p. 41)

Precautions during Mounting

Securing (mounting) the projector

• When this unit is to be mounted to a fixed position for use, install it horizontally.
• Make sure to secure the main unit to prevent accidents such as during an earthquake.

Securing with screws

Remove the four feet at the bottom, and fasten using the screws (M5 screws, 13 to 23 mm).

* Using screws other than those designated may cause the unit to break down. * Leave a clearance of at least 10 mm from the bottom surface of the unit to allow it to take in cool air.

Securing the projector (ceiling mount)

• Special expertise and techniques are required for mounting this unit to the ceiling. Make sure that you get the authorized dealer or a specialist to install it. • Take the necessary actions to prevent the main unit from falling off such as during an earthquake.
• Regardless of the warranty period, JVC is not liable for any product damage caused by mounting the unit with non-JVC ceiling fittings or to an environment that is not suited for ceiling mount.
• When using the unit with it suspended from a ceiling, pay attention to the surrounding temperature. When a heater is in use, the temperature around the ceiling may be higher than expected.

Adjusting the Position

Adjusting the elevation angle of the projector

The height and inclination of the unit (0 to 5 mm) can be adjusted by turning the feet.

Lift the unit and adjust the four feet.

Adjusting the position of the image

By using the lens shift feature of this unit, you can shift the image upward/downward or to the left/right. Set it to your preferred position.

Horizontal Position

Vertical Position: 0% (Center)

■ Vertical Position

Horizontal Position: 0% (Center)

Lens shift Range

• The maximum vertical shift varies with the amount of horizontal shift. Similarly, the maximum horizontal shift also changes with the amount of vertical shift.
• The values on the graph are intended as a guide. Use them for reference during installation.
• To adjust the screen position, it is recommended to wait until the position becomes stable after projection before adjusting. The position may change after projection depending on the attitude of the projector.

Connecting the Projector

• Do not turn on the power until connection is complete.
• The connection procedures differ according to the device used. For details, please refer to the instruction manual of the device to be connected.
• This projector is used for projecting images. To output the audio of connected devices, please connect a separate audio output device, such as an amplifier or speaker.
• The images may not be displayed depending on the devices and cables to be connected. Use only HDMI cables (sold separately) that are HDMI-certified.
• Some cables cannot be connected to this unit due to the size of their connector cover.

Connecting to the HDMI Input Terminal (Digital Input)

Connecting via HDMI cable

• If noise occurs, move the laptop away from this unit.
• For a transmission bandwidth in compliance with the HDMI standard, a 340 MHz cable is recommended.
• If the video is not displayed, try to reduce the length of the cable.

Connecting via HDMI-DVI conversion cable

• If noise occurs, move the desktop PC away from this unit.
• If the video is not displayed, try to reduce the length of the cable.

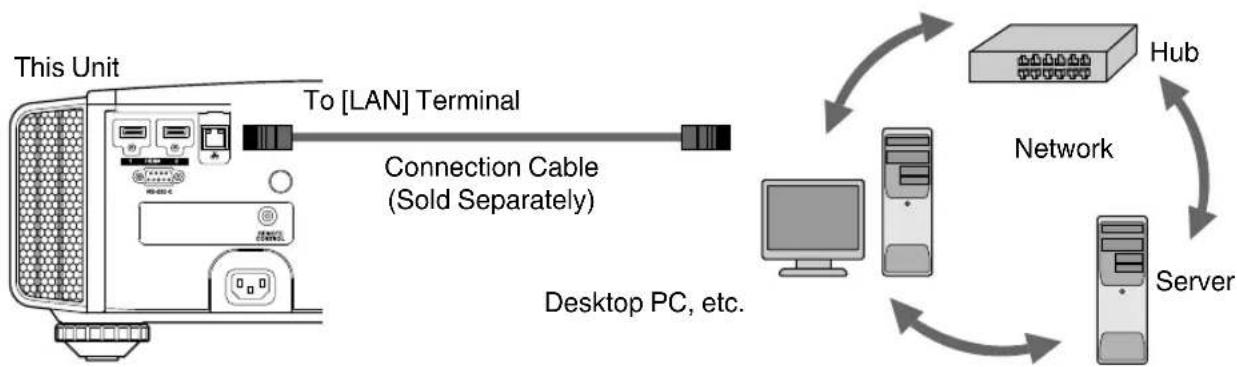

Connecting to the LAN Terminal

• The network is used to control this unit. It is not used for sending or receiving video signals.
• Please contact your network administrator for information concerning the network connection.
• For more information on control, please refer to "External Control" (p. 55).

Connecting to the RS-232C Terminal

For more information on control, please refer to "External Control" (p. 55).

Connecting to the REMOTE Terminal

For more information on the external infrared sensor and connecting cable, please contact your dealer.

Connecting the Power Cord (Supplied Accessory)

1. Connect the supplied power cord to the power input terminal on the main unit. 2. Insert the supplied power plug into the wall outlet.

Precautions to prevent fire and electric shock

• The voltage capacity of this unit is large. Please connect it directly to the wall outlet.
• When you are not using the equipment, please unplug the power cord from the outlet.
• Connect it using only the power cord supplied.
• Do not use a voltage other than the indicated power voltage.
• Do not damage, break, or modify the power cord. Do not place a heavy object on the power cord, or heat or pull it. Doing so may damage the power cord.
• Do not unplug the power cord with wet hands.

Viewing Videos

MEMO

• When using this unit, be sure to remove the lens sheet.
• Connect the power cord, and ensure that the "STANDBY/ON" indicator lights up in red.

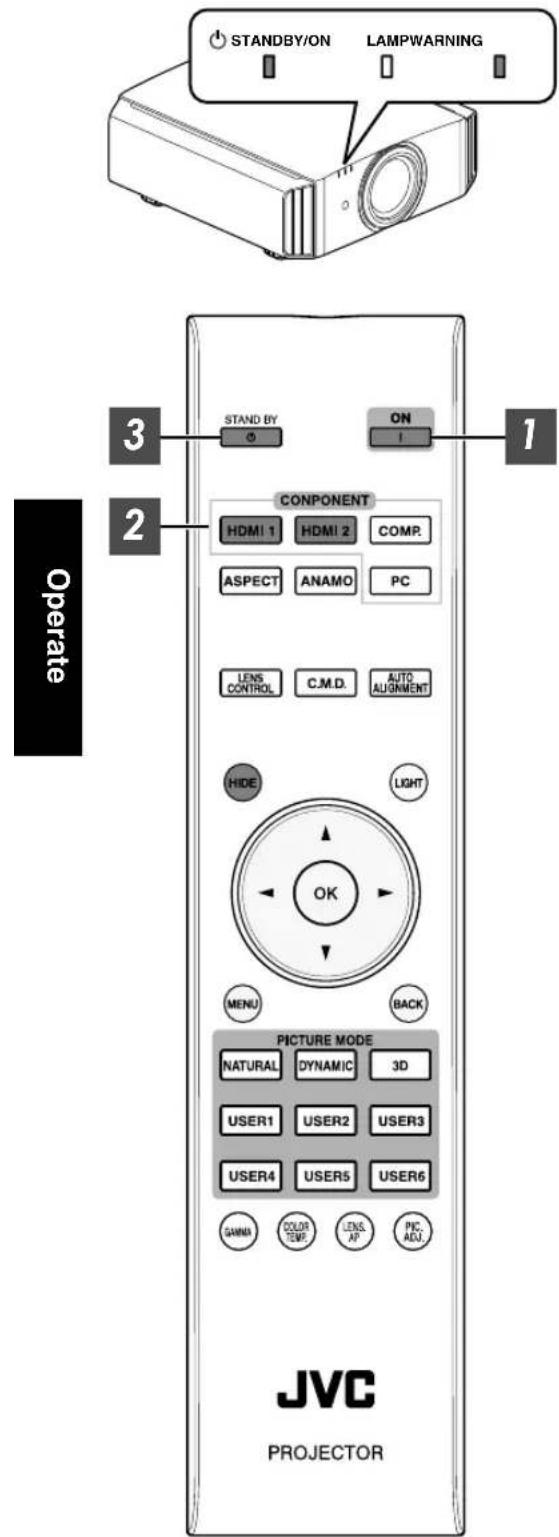

1 Turn on the power

Projector unit: press the ⏻/I [STANDBY/ON] button

Remote control (sold separately): press the I [ON] button

- The "STANDBY/ON" indicator light switches from red to green (light goes off after the unit starts up).

"STANDBY/ON" lights up (red) In standby state

"STANDBY/ON" lights up (green) During lamp startup

STANDBY/ON

LAMPWARNING

STANDBY/ON

LAMPWARNING

2 Choose the image to project

Projector unit: press the [INPUT] button (pressing the button each time switches the mode)

Remote control (sold separately): press the [INPUT] button ([HDMI 1] or [HDMI 2])

- Play back the selected device to project the image.

To hide the image temporarily

Press the [HIDE] button on the projector unit or remote control (sold separately)

• The "STANDBY/ON" indicator light starts to blink in green.
• Press the [HIDE] button again to resume display of the image.
• The power cannot be turned off when the image is temporarily hidden.

3 Turn off the power

Projector unit: press the ⏻/I [STANDBY/ON] button

Remote control (sold separately): press the ⏻ [STAND BY] button

• While the "Are you sure you want to turn off?" message is displayed, press the button again.
• The lamp turns off, and the "STANDBY/ON" indicator switches from a green light to a red blinking light.
• After the light goes off, the fan will run for about 120 seconds to cool down the lamp (Cool-down mode). Do not disconnect the power cable while cooling is in progress.
• After about 120 seconds, the "STANDBY/ON" indicator switches from a blinking red to a solid red light.

"STANDBY/ON" blinking (red) In the Cool-down mode

"STANDBY/ON" lights up (red) In standby state

CAUTION

• The power cannot be turned off within approximately 150 seconds after it has been turned on.
• After the light goes off, the fan will run for about 120 seconds to cool down the lamp (Cool-down mode). Do not disconnect the power cable while cooling is in progress.
• The power cannot be turned on again while cooling is in progress (120 seconds).
• Pull out the power plug when the unit is not to be used for a prolonged period of time.

Adjustments and Settings in the Menu

Pressing the [MENU] button displays the menu.

Press the [▲▼◀▶] keys to select an item, followed by pressing the [OK] button to confirm the selection.

List of Menu Items

Picture Adjust

▶Picture Mode ...... p. 28 ▶Contrast ...... p. 28 ▶Brightness ...... p. 28 ▶Color ...... p. 28 ▶Tint ...... p. 28 ▶Color Temp. p. 29 ▶Gamma ...... p. 29 ▶Advanced p. 30 → Sharpness ...... p. 30 → Color Management ...... p. 30 → Clear Motion Drive ...... p. 31 → Aperture ...... p. 31 → Lamp Power ...... p. 31 ▶Reset p. 31

Input Signal

▶HDMI p. 32 ▶Picture Position ...... p. 32 ▶Mask ...... p. 33 ▶Short Delay ...... p. 33

Installation

▶Lens Control ...... p. 34 → Focus ...... p. 34 →Zoom p. 34 → Shift ...... p. 34 → Image Pattern ...... p. 35 ↔ Lock p. 35 → Lens Center ...... p. 35 ▶Pixel Adjust ...... p. 35 ▶Installation Style ...... p. 36

Display Setup

▶Back Color ...... p. 40 ▶Menu Position ...... p. 40 ▶Menu Display p. 40 ▶Line Display p. 40 ▶Source Display ...... p. 40 ▶Logo p. 40

Function

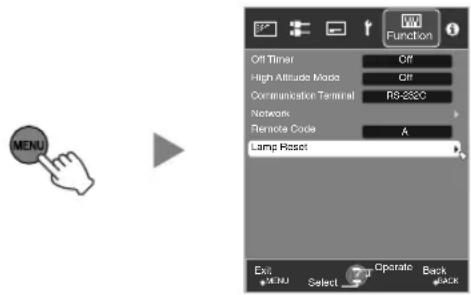

▶Off Timer ...... p. 41 ▶High Altitude Mode ...... p. 41 ▶Communication Terminal ...... p. 41 ▶Network ...... p. 41 ▶Remote Code ...... p. 41 ▶Lamp Reset p. 50

Information

▶Information ...... p. 42

Picture Adjust

Picture Mode

You can adjust the image quality according to the type of video image you are viewing.

Item Description
Natural Image quality that focuses	on natural color and gradation reproduction. Suitable for drama footage, etc.
Dynamic This is the picture setting	best suited for viewing the picture in a room that cannot be made completely dark.
User 1 to User 6 Enables user-defined image quality data to be saved and retrieved.

Contrast

For adjusting the difference in brightness to produce an image with contrast.

- Setting range: -50 (little difference in brightness) to +50 (large difference in brightness)

Brightness

For adjusting the brightness of the video image.

- Setting range: -50 (darker) to +50 (brighter)

Color

For adjusting the color density of the video image.

- Setting range: -50 (lighter) to +50 (deeper)

Tint

For adjusting the hue of the video image.

- Setting range: -50 (reddish) to +50 (greenish)

Color Temp.

For setting the color temperature of the video image.

Preset

Setting Description
5500K, 6500K, 9500K Increasing the value enhances the blue tone of the video image, while decreasing the value enhances the red tone.* Select only when “PictureMode” is set to “Natural”/“User1,2,3”.
High Bright Color temperature that gives priority to brightness.* When “PictureMode” is “Dynamic”, it is set only in “HighBright”.
Custom 1 to Custom 3 The color temperature of video images can be adjusted manually and saved as one of the three customized settings.* Select only when “PictureMode” is set to “Natural”/“User1 to 6”.

Custom

Setting Description
Gain Red, Gain Green, Gain Blue Adjusts each	color in the bright parts of the video image. Setting range: -255 (reduces the red/green/blue tone) to 0 (enhances the red/green/blue tone) * Only “HighBright” and “Custom1,2,3” can be adjusted.
Offset Red, Offset Green, Offset Blue	Adjusts each color in the dark areas of the video image. Setting range: -50 (reduces the red/green/blue tone) to +50 (enhances the red/green/blue tone)

Gamma

You can adjust the output value of the projected image with respect to the video signal input.

Setting	Description
Normal Recommended setting for normal viewing.* When “PictureMode” is “User4,5,6”, it is set only in “Normal”.
Custom 1 to Custom 3 Adjustable to a preferred gamma setting.

Advanced

For fine-tuning the image quality.

Sharpness

Setting Description
Sharpness Emphasizes the outline of the video image.	• Setting range: 0 (blurry) to +50 (sharp)
Detail Enhance Brings out details in the image, such as the hair or pattern of the clothes.	• Setting range: 0 (weak) to +50 (strong)

Color Management

Each of the colors is adjustable according to the user's preference.

① Select the item to set (Custom 1 to Custom 3), and press the [OK] button. ② Select "Pause" and press the [OK] button to set the background for the current adjustment.

• While adjustment is in progress, the input image is displayed as the background.
• "On": pauses when inputting the video images.
• "Off": does not pause when inputting the video images.

* If "Short Delay" is set to "ON", "Pause" is not available.

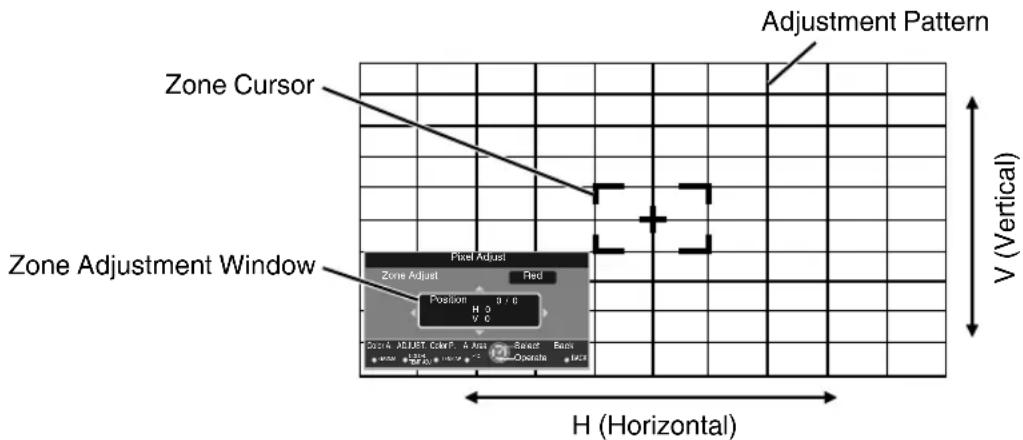

③ Select "Color Selection", and press the ◀▶ keys to select the color to adjust.

• For color adjustment, select the color from the following: "Red", "Orange", "Yellow", "Green", "Cyan", "Blue", "Magenta".
• Pressing the [HIDE] button enables you to check the image before adjustment.

④ Adjust the selected color.

Item	Setting Range	Description
Axis Position -30 to 30	Fine-tune	the position of the central axis of the selected color.
Hue -30 to 30	Adjusts the hue (color tone).
Saturation -30 to 30	Adjusts the color saturation (vividness). -30 (dull) to +30 (vivid)
Brightness -30 to 30	Adjusts the brightness. -30 (dark) to +30 (bright)

- Selecting "Reset" resets all the adjustment data.

Clear Motion Drive

For reducing the after-image, which occurs in a fast-moving scene.

• For some scenes, interpolation may cause distortion in the image. In this case, set to "Off".
• Pressing the [C.M.D.] button each time switches the mode in the following sequence: "Off"→"Mode1"→"Mode2"→"Off"...

Setting Description
Off Interpolation is not performed.
Mode1 Black insertion weak.
Mode2 Black interpolation strong.

* C.M.D. is the abbreviation for Clear Motion Drive. * The [C.M.D.] button is positioned differently on the remote control depending on the model in use. (p. 15)

Aperture

For adjusting the amount of opening of the optical iris.

• Stopping down the iris reduces the brightness, while opening it up increases the contrast.
• Setting range: -15 (stops down) to 0 (opens up) ZG
• Setting range: -7 (stops down) to 0 (opens up)

Lamp Power

The brightness of the lamp can be set to "Low" or "High".

• The factory setting varies with the "Picture Mode".
• Continuous use at the "High" setting may cause the lamp to darken faster.

Reset

For restoring the image quality adjustment settings to the factory default.

Input Signal

HDMI

Setting is enabled when the HDMI input terminal is selected.

Input

For setting the dynamic range (gradation) of the video input.

- If the dynamic range is not appropriate, the bright areas become overexposed, and the dark areas become underexposed.

Setting Description
0-255 (PC) Select this setting if you are inputting PC signals (dynamic range: 0 - 255).
16-235 (Video) Select this setting if you are inputting video signals (dynamic range: 16 - 235).

Level Check

For checking the dynamic range of the video input.

Color Space

For setting the color space of the input signal.

Setting	Description
Auto Detects “YCbCr(4:4:4)”, “YCbCr(4:2:2)”, and “RGB” automatically.
YCbCr(4:4:4) Select this setting when inputting YCbCr(4:4:4) video signals.
YCbCr(4:2:2) Select this setting when inputting YCbCr(4:2:2) video signals.
RGB Select this setting when inputting RGB video signals.

Picture Position (Horiz./Vert.)

Adjust the position if the edges of the image are partially missing due to the timing of horizontal and vertical synchronization signals.

* If "Short Delay" is set to "ON", "Picture Position" is not available.

Mask

For hiding the peripheral area of the image with a mask (black strip).

Off

Setting Description
Off Not masked.
2.5% Masks about	2.5% of the peripheral area of the image.
5% Masks about 5.	0% of the peripheral area of the image.
Custom Masks about	0% to 5% of the four sides of the image.

On

Mask: black strip around the periphery

Short Delay

Supports only 1080p50/60 signals.

The interval time of the source signal and the projector image is shortened.

- If "Short Delay" is set to "ON", "Picture Position" is not available.

Installation

Lens Control ZG

Focus / Zoom / Shift

For adjusting the lens according to the projection position

① Press the [LENS CONTROL] button, and use the [▲▼◀▶] keys to adjust Focus, Zoom (screen size), and Shift (screen position)

- Pressing the [LENS CONTROL] or [OK] button each time switches the mode in the following sequence: "Focus" → "Zoom" → "Shift" → "Focus"...

Focus Adjustment

Zoom (Screen Size) Adjustment

Shift (Screen Position) Adjustment

② Press the [BACK] button once, or the [MENU] button twice, to end adjustment.

Image Pattern

Setting Description
On Displays the lens adjustment pattern.
Off Displays external signals, and does not display the lens adjustment pattern.

Lock

Setting Description
On Locks the lens to prevent any errorous operation on the adjustments.Operation of the lens control feature is disabled when “On” is selected.
Off Does not lock the lens.

The focus, zoom, and shift settings can be saved or retrieved, so you can switch easily to a different aspect ratio (screen size) according to the image.

Lens Center

Returns the lens position to the center.

Pixel Adjust

Adjust

For setting the adjustment feature to "On" or "Off".

Adjust Area

Setting Description
Whole Adjusts the entire image.
Zone Enables fine adjustment of each zone by dividing the screen into 11 vertical x 11 horizontal zones.

Adjust Color

For selecting the color to adjust ("Red" or "Blue").

Adjust Pattern Color

For setting the adjustment pattern color to "White" or "Yellow / Cyan".

Adjust(Pixel)

When “Adjust Area” is set to “Whole”, adjustment can be made by moving in units of one pixel on the screen of the color selected in “Adjust Color”.

→ "Operation procedure for Whole Adjust (Pixel)" (p. 37)

* Adjustment cannot be made when "Adjust Area" is set to "Zone".

Setting	Description
H (Horizontal) Setting range: -2 (moves red/blue to the left) to +2 (moves red/blue to the right)
V (Vertical) Setting range: -2 (moves red/blue downward) to +2 (moves red/blue upward)

Adjust (Fine)

When “Adjust Area” is set to “Whole”, adjustment can be made by moving in units of 1/16 pixel on the screen of the color selected in “Adjust Color”.

→ "Operation procedure for Whole Adjust (Fine)" (p. 38)

When “Adjust Area” is set to “Zone”, the screen is divided into 11 vertical x 11 horizontal zones, and fine adjustment of each zone is possible.

→ "Operation procedure for Zone Adjust" (p. 39)

Setting Description
H (Horizontal) Setting range: -31 (moves red/blue to the left) to +31 (moves red/blue to the right)
V (Vertical) Setting range: -31 (moves red/blue downward) to +31 (moves red/blue upward)

Reset

Restores all pixel adjustment data to the factory default.

Installation Style

For setting to “Front”, “Ceiling Mount (F)”, “Rear”, or “Ceiling Mount (R)” according to the installation status of the projector.

• “Front” or “Ceiling Mount (F)” is set when projector is installed in the front with respect to the screen.
• “Rear” or “Ceiling Mount (R)” is set when projector is installed in the rear with respect to the screen.

Operation procedure for Whole Adjust (Pixel)

For making general adjustments to slight color fringing in the horizontal/vertical directions of the video image.

① Set "Adjust Area" to "Whole" ② Select "Adjust Color" and "Adjust Pattern Color" ③ Select "Adjust(Pixel)", and press the [OK] button

- The selected adjustment pattern and Adjustment (Pixel) window are displayed.

④ Press the [OK] button to enter the Adjustment mode ⑤ Use the [▲▼◀▶] keys to move and adjust the pixels in the vertical and horizontal directions across the entire screen.

- The adjustment setting appears at the center of the Adjustment (Pixel) window.

⑥ After adjustment is complete, press the [BACK] button to exit the Adjustment mode

Remote Control Operation Guide

Button Name	Description of Operation
[GAMMA] Changes “Adjust Color”.
[COLOR TEMP.] Switches between “Adjust(Pixel)” and “Adjust(Fine)”.• Switches to “Adjust(Pixel)” when “Adjust Area” is set to “Zone”.
[LENS.AP] Changes “Adjust Pattern Color”.
[PIC ADJ.] Switches “Adjust Area”.• A zone cursor appears on the adjustment pattern when the “Zone” setting is selected.

Operation procedure for Whole Adjust (Fine)

For making general adjustments on the misalignment of the entire screen using "Adjust(Pixel)", followed by making fine adjustments.

① Set "Adjust Area" to "Whole" ② Select "Adjust Color" and "Adjust Pattern Color" ③ Select Adjust(Fine), and press the [OK] button

• The selected adjustment pattern and Fine window are displayed.
• The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.

④ Press the [OK] button to enter the Adjustment mode ⑤ Use the [▲▼◀▶] keys to move and adjust the pixels in the vertical and horizontal directions across the entire screen.

- The adjustment setting appears at the center of the Fine window.

⑥ After adjustment is complete, press the [BACK] button to exit the Adjustment mode

MEMO

• If both the maximum overall screen misalignment of H (horizontal direction) and V (vertical direction) are "31", you cannot select a value that is larger than the displayed setting even when the adjustment setting is lower than the maximum value.
• If the minimum overall screen misalignment is "-31", you cannot select a value that is smaller than the displayed setting even when the adjustment setting is higher than the minimum value.

Operation procedure for Zone Adjust

For fine-tuning misalignments on a part of the screen after adjusting the overall screen misalignment using "Adjust(Pixel)" and "Adjust(Fine)".

- The screen can be divided vertically and horizontally into 10 sections for partial adjustments to be made.

① Set "Adjust Area" to "Zone" ② Select "Adjust Color" and "Adjust Pattern Color" ③ Select Adjust(Fine), and press the [OK] button

• The selected adjustment pattern and Zone Adjustment window are displayed.
• The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.

④ Press the [▲▼◀▶] keys to move the cursor to the point to be adjusted ⑤ Press the [OK] button to enter the Adjustment mode ⑥ Use the [▲▼◀▶] keys to move and adjust the pixels in the vertical and horizontal directions across the entire screen.

- The adjustment setting appears at the center of the Zone Adjustment window.

⑦ After adjustment is complete, press the [BACK] button to exit the Adjustment mode

Display Setup

Back Color

For setting the color of the background to "Blue" or "Black" when there is no input signal.

Menu Position

For setting the display position of the menu.

Menu Display

Setting Description
15sec The menu display disappears if it is not operated for 15 seconds.
On Displays the menu at all times.

Line Display

Setting Description
5sec Shows the input terminal for 5 seconds when input is switched.
Off Not displayed.

Source Display

Setting Description
On Displays the signal when input is switched.
Off Not displayed.

Logo

Setting Description
On Displays the “D-ILA” logo for 5 seconds during startup.
Off Not displayed.

Function

Off Timer

For setting the timing to power off the unit automatically (“1 Hour”, “2 Hours”, “3 Hours”, or “4 Hours”) when it is not operated for a period of time.

High Altitude Mode

Set to “On” when using the projector at a location of low atmospheric pressure (higher than 900 m above sea level).

Communication Terminal

For setting the external control terminal to be used to "RS-232C" or "LAN".

Network

Setting Description
DHCP Client On Obtains	ins the IP address automatically from the DHCP server inside the connected network.
	Off For configuring the network settings manually.
IP Address For configuring the IP address.
Subnet Mask For configuring the subnet mask.
Default Gateway For configuring the default gateway.
MAC Address Displays the MAC address of the unit.
Set Applies the network settings.

Remote Code

For changing the remote control code.

• You need to configure the remote control according to the settings of this unit. On the remote control unit, press the [MENU] and [BACK] buttons at the same time for three seconds or longer to switch the code.
• The backlight of the remote control blinks 3 times: change the remote control code to "A"
• The backlight of the remote control blinks 2 times: change the remote control code to "B"

Setting Description
A Change the remote control code	from “B” to “A”.
B Change the remote control code	from “A” to “B”.

Lamp Reset

For resetting the lamp time to "0".

→ "Resetting the Lamp Time" (p. 50)

Glossary of Network Terminology

DHCP : Abbreviation for Dynamic Host Configuration Protocol. This is a protocol for the network to assign an IP address automatically to the connected device.

IP Address : Numeric characters for identifying the device that is connected to the network.

Subnet Mask : Numeric characters that define the bit count used for the network address that is a segment of the IP address.

Default Gateway : Server for communicating beyond the network that is divided by the subnet mask.

MAC Address : Abbreviation for Media Access Control address. This is a number that is unique to each network adapter. Each of the network adapters is assigned with a unique MAC address.

Information

During video signal input

Setting Description
Input Displays video input terminal.
Source Displays the input source.
Deep Color Displays the color bit depth of the input video signal.• Displayed when Deep Color information is received from the source device.
Lamp Time Displays the lamp time.
Soft Ver. Displays the firmware version.

During PC signal input

Setting Description
Input Displays video input terminal.
Resolution Displays the image resolution.
H Frequency Displays the horizontal frequency.
V Frequency Displays the vertical frequency.
Deep Color Displays the color bit depth of the input video signal.• Displayed when Deep Color information is received from the source device.
Lamp Time Displays the lamp time.
Soft Ver. Displays the firmware version.

Replacing the Lamp

The lamp is a consumable item. If the image appears dark or the lamp goes out, replace the lamp unit.

- When the lamp replacement time approaches, the user is notified with a message displayed on the screen and by the indicator. (p. 62)

Lamp Replacement Procedure

CAUTION

• Do not insert your hands into the opening of the lamp. This could cause significant deterioration in the performance of the equipment, or lead to injury and electric shock.
• Do not replace the lamp immediately after the unit has been used. Allow a cooling period of at least one hour before replacement. The temperature of the lamp is still high, and may cause burn injuries.
• Do not subject the lamp unit to shock. Doing so may cause lamp blowout.
• Do not use a flammable air duster to clean the internal parts of the unit. Doing so may cause fire.
• Use only genuine replacement parts for the lamp unit. Also, never attempt to reuse an old lamp unit. This may cause the unit to malfunction.
• Do not touch the surface of a new lamp. Doing so may shorten the lamp life and cause lamp blowout.
• When replacing the lamp, be careful not to injure yourself as the lamp may be broken.
• When replacing the lamp of a projector suspended from the ceiling, work at height is required. This is a dangerous operation. Please consult our service center.

1 Remove the power plug from the outlet

2 Remove the lamp cover

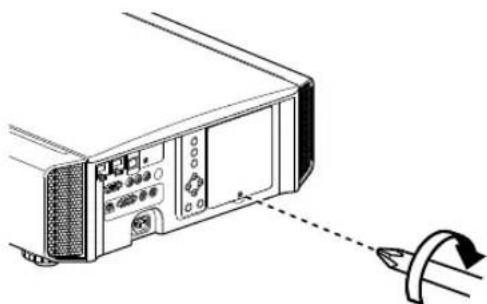

- Remove the screw with a Phillips screwdriver

Loosen the screws of the lamp unit

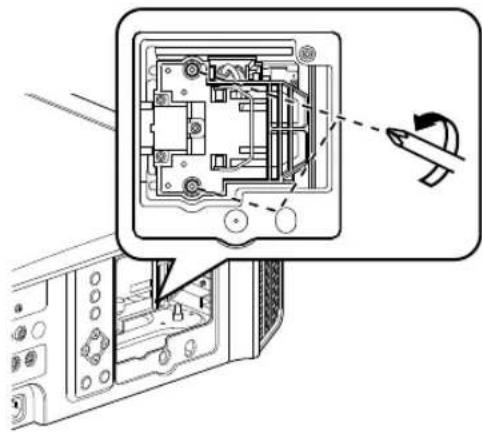

- Loosen the screws with a Phillips screwdriver.

Pull out the lamp unit

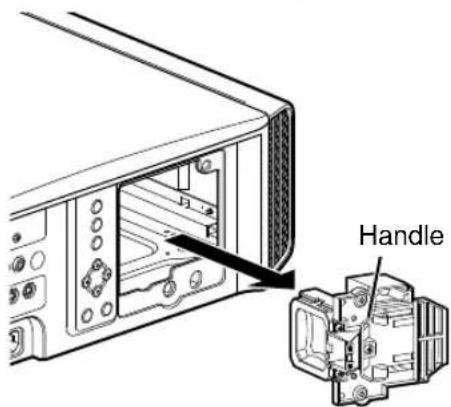

- Grasp the handle and pull out the lamp unit.

Replace the lamp

- For more details, refer to "Replacing the Attachment" p. 45.

6 Install the new lamp unit

7 Tighten the screws of the new lamp unit

- Tighten the screws with a Phillips screwdriver.

8 Attach the lamp cover

• Insert the two tabs at the top and bottom of the lamp cover into the unit.
• Tighten the screws with a Phillips screwdriver.

MEMO

Usable lamp life

• When the lamp is used with "Lamp Power" set to "Low", the lamp life on this unit is approximately 4000 hours. This is the average usable time and not a guaranteed value.
• The lamp life may not reach 4000 hours depending on the operating conditions.
• When the lamp has reached the end of its usable life, deterioration progresses rapidly.
• When the video image appears dark, when the color tone looks unnatural, or when the image flickers, replace the lamp unit with a new one promptly.

Purchasing a lamp unit

Please consult your authorized dealer or nearby service center.

- Lamp unit Product no.: PK-L2313U

*Lamps with a different product number or those for other projector models cannot be used.

Information about the lamp

An ultra-high pressure mercury lamp with a high internal pressure is used in the projector.

Due to the characteristics of this lamp, it may blow out with a loud noise or go out when it is subject to shock or after using for a prolonged period of time (the time before the lamp blows out or goes out varies considerably with each lamp as well as the operating conditions).

After replacing the lamp

• Do not place the removed lamp unit at a place that is within reach by children or anywhere near inflammable items.
• Dispose used lamp units in the same way as fluorescent lamps. Follow the regulations of your local community for disposal.

Replacing the Attachment

Attachment and the placement area

- By default, an attachment for Area A (with a "○" hole and a "0°" stamp) is attached to the lamp. Use the lamp as is if you use it within the angle range of Area A. Also, stick the Installation Verification Seal on the lamp cover to prevent incorrect positioning. Refer to p. 49 for instructions on how to apply the Installation Verification Seal.

- Replace with the supplied attachment (with a "+" hole and a "90°" stamp) if you use the lamp in Area B. In this case, replace the Installation Verification Seal as well. - After replacement, keep the removed seal and attachment together.

Area A Attachment

Area B Attachment

Lamp attachment removal procedure

1. Bend the clasp coupling of the lamp attachment vertically (see Figure 2).

- If you remove it without bending it vertically, it will be difficult to install the next time.

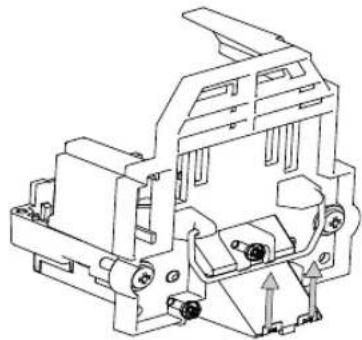

Figure 1

Figure 2

2. Remove the clasp coupling of the lamp unit and the lamp attachment in the direction of the arrow.

Figure 3

3. Make sure that the clasp is removed from the lamp attachment.

Figure 4

4 Remove the clasp coupling of lamp attachment on the reverse side and the lamp unit

Figure 5

Lamp attachment replacement procedures

1 Insert the “a” section of the lamp attachment into the “A” section of the lamp unit. Hang the lamp attachment into the clasp-shaped part of the lamp unit

Figure 1-2 Figure 2

Figure 3

CAUTION

In case the lamp attachment is bent in any direction other than stated in the written instructions, or if it is modified, or remodeled, the lamp attachment will be damaged or break off. This may lead to failure of the main unit of the projector. Moreover, in case it is repeatedly installed and removed, it may be possible that the "a" section of the clasp section breaks off. In this case, please purchase and use a new replacement lamp attachment. As the folding section of the "b" section is fragile, please be careful when bending it in the direction of the arrow.

2 Fit the "b" section of the lamp attachment (see Figure 1-2) into the clasp-shaped part of the lamp unit by pressing the former into the latter

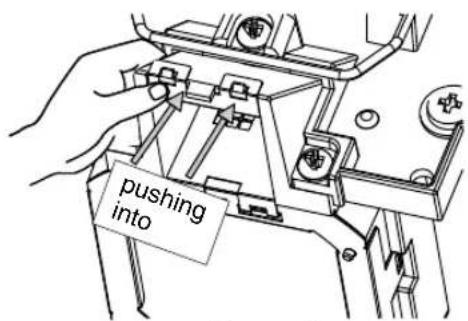

Figure 4

3 As shown in Figure 5, make sure that the lamp attachment is coupled with the clasp of the lamp unit

Figure 5

4 Bend the "c" section of the lamp attachment (see Figure 5) by pressing it in the direction of the lamp unit

Figure 6

5

As shown in Figure 7, make sure that the lamp attachment is coupled with the clasp of the lamp unit.

Figure 7

- When replacing the lamp, do not forget to remove the lamp attachment.

Attachment of the installation verification seal

1. After replacing the lamp, attach the "installation verification seal" on the lamp cover.

- Attach the installation verification seal at the bottom right of the lamp cover.

• The installation verification seal states "DOWN45° - 90°".
• When the lamp attachment is removed, peel off the attached verification seal and keep it for further use.

Resetting the Lamp Time

Resetting the lamp time from the menu screen

1. Press the [MENU] button to display the menu.

2. Select "Function" → "Lamp Reset" from the menu.

3. On the "Reset Lamp Time?" screen, select "Yes" and press the OK button.

• The lamp time is reset to zero.

Resetting the lamp time using the remote control

1 Insert the power plug into the power outlet

2 remote control in the Standby mode (the power plug is inserted into the outlet, but the power is not turned on)

• Press in the order as shown.
• Make sure that you press a button within two seconds after the last button is pressed. Press the last button for at least two seconds.

Press for 2 seconds or longer

- The “LAMP” indicator and “STANDBY/ON” indicator blink alternately for three seconds. After that, the unit switches to the Standby mode.

MEMO

- Reset the lamp time only when you have replaced the lamp. If the lamp time is reset while a lamp is in use, you may lose track of the timing for replacing the lamp. Doing so may result in using the lamp beyond the estimated limit, thereby causing lamp blowout.

Maintaining the Cabinet and Remote Control (Sold Separately)

• Gently wipe off dirt on the cabinet with a soft cloth.
• If it is extremely dirty, wet a cloth in water, wring dry and use it to wipe off the dirt, followed by wiping again with a dry cloth.
• Pay attention to the following as the cabinet may deteriorate in condition or the paint may come off.
• Do not wipe with thinner or benzine
• Do not allow prolonged contact with rubber or plastic products
• Do not spray volatile chemicals such as insecticide

Cleaning and Replacing the Filter

Clean the filter regularly. Otherwise, the air intake efficiency may deteriorate, and malfunction may occur.

CAUTION

• Make sure that you pull out the power plug from the outlet before cleaning or replacing the filter.
• Before turning this unit upside down and placing it on the floor or a table, make sure that you lay a soft rag in advance to prevent the projector from being scratched.

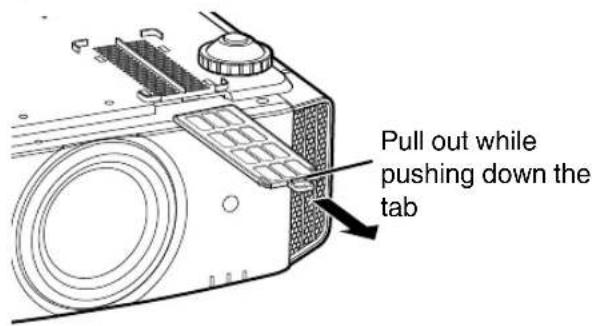

Remove the inner filter.

Clean the filter.

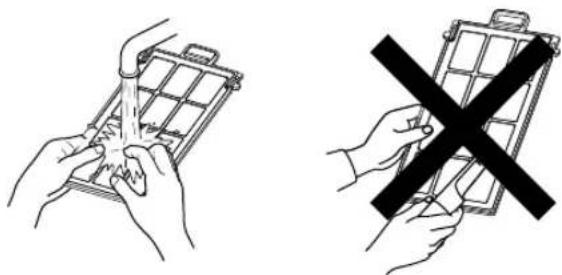

• Wash the filter with water and dry it in a shaded area.
• If the filter is extremely dirty, clean it with a neutral detergent. Put on rubber gloves when using a neutral detergent.
• After washing the filter with water, make sure that it is completely dry before reinstalling. Otherwise, electric shock or malfunction may occur.
• Do not clean the filter with a vacuum cleaner or air duster. The filter is soft and may be easily damaged.

Reinstall the inner filter.

Check that the left and right tabs are locked onto the unit.

If the filter is damaged or too dirty to be cleaned.

• Replace with a new filter. A dirty filter will dirty the internal parts of the unit and cause shadows to appear on the video image.
• To purchase a new filter or when there is dirt in the internal parts of the unit, consult your authorized dealer or nearby service center.
• Inner filter (exchangeable filter) Product no.: PC010661199

Troubleshooting

Before sending the unit to your authorized dealer for repair, please check the following points.

The following symptoms are not malfunctions.

You do not need to worry about the following symptoms if there is no abnormality on the screen.

• A part of the top or front surface of the unit is hot. • A creaking sound is heard from the unit
• An operating sound is heard from the inside of the unit. • Color smear occurs on some screens

This unit is a digital device. This unit may become unable to operate normally due to external static or noise. Perform the following operations when such malfunctions occur.

① If the unit is in the Standby mode, pull out the power plug, followed by inserting it again ② Press the ⏻/I [STANDBY/ON] button on the main unit to turn on the power again

If “High Altitude Mode” is set to “On”, the fan spins at a higher speed when “Lamp Power” is set to “High” and produces a louder sound than normal.

Power is not supplied

Check Action Refer to
Is the power cord disconnected? Insert the power cord (plug) firmly. p. 23
Is the lamp cover properly shut? If the unit is in the Standby mode, remove the power plug and close the lamp cover properly. After that, insert the plug again.		p. 44
Is the lamp in the Cool-down mode? After exiting the Cool-down mode, turn on the power again. p.		25

The unit works when power is turned on, but stops abruptly after a few minutes

Check Action Refer to
Are the air inlets and exhaust vent blocked?	Leave proper clearance when installing the unit p. 12, 13	p. 17
Is the filter dirty? Clean the filter. p. 51

Video image does not appear

Check Action Refer to
Is the correct external input selected? Select the correct external input terminal. p. 24
Is the power of the AV device turned on?	Turn on the power of the AV device and play the video. p. 21
Is the AV device properly connected? Connect the AV device properly. p. 21
Are the correct signals being output from the AV device?	Set the AV device properly. p. 21
Is the cable in use an HDMI-certified cable?	Use an HDMI-certified high-speed cable. Also, use as short a cable as possible.	p. 21
Is the video image temporarily hidden?	Press the [HIDE] button	p. 24

Remote control does not work

Check Action Refer to
Are the batteries correctly loaded?	Match the polarities (⊕⊖) correctly when loading the batteries.	p. 16
Are the batteries exhausted? Replace with new batteries. p. 16
Is there an obstructing object between the remote control and remote sensor?	Remove any obstructing object. p. 16
Is the remote control held too far away from the unit?	Hold the remote control closer to the sensor during use. p.	16

Color does not appear or looks unnatural

Check Action Refer to
Is the AV device properly connected? Connect the AV device properly. p. 21
Is the image correctly adjusted? Adjust “Color” and “Tint” accordingly. p. 28

Video image is fuzzy

Check Action Refer to
Is the focus correctly adjusted? Adjust the focus. p. 34
Is the unit placed too near or too far away from the screen?	Set the unit at a correct distance from the screen. p. 60

Video images are missing

Check Action Refer to
Has screen mask been configured? Set	“Mask” to “Off”.	p. 33
Is the display position misaligned?	Alter the “Picture Position” value so that the entire image appears on the screen.	p. 32

Projected image is dark

Check Action Refer to
Is the lamp near exhaustion? Check the	amp time in the “Information” menu. Prepare a new lamp unit or replace as soon as possible when the lamp is near exhaustion.	p. 42p. 43
Is the image quality correctly adjusted?	Adjust “Picture Adjust” and “Aperture”.	p. 31

Power is cut off suddenly

Check Action Refer to
Has “Off Timer” been configured? Set “Off Timer” to “Off”. p. 41

The internal cooling fan emits a loud noise

Check Action Refer to
Is the exhaust vent blocked?Is the unit used near a heater or air-conditioner?	Check the condition of installation. p. 17

There are small black or colored dots on the screen

The D-ILA device is manufactured using high-precision technologies, but there may be some (less than 0.01%) missing pixels or pixels that remain permanently lit. This is not a malfunction.

When the following messages appear...

Message Description	Action
	No device is connected to the input terminalThe input terminal is connected but there is no signal	Input the video signals.
	A video signal that cannot be used with this unit has been input (the names of input terminals such as “HDMI 1” will be displayed in yellow)	Input video signals that can be used.

External Control

It is possible to control this unit by connecting it to a PC using an RS-232C cross cable (D-sub 9-pin).

The projector can be controlled by connecting it to a PC through the computer network with a LAN cable for control commands to be sent to the projector.

- Please use it after you have gained proper understanding from professional books or consulting the system administrator.

RS-232C Specifications

Pin No. Signal Function Signal Direction
2 RxD Receive data PC → This unit
3 TxD Transmission data This unit → PC
5 GND Signal ground			—
1, 4, 6 - 9 N/C		—	—

• PC refers to the controller, such as a personal computer.

Mode Non-synchronous
Character length 8 bit
Parity None
Start bit 1
Stop bit 1
Data rate 19200 bps
Data format	Binary

TCP/IP Connection

Before controlling via LAN, it is necessary to establish connection of the TCP layer by a "3-way handshake", followed by sending out "PJREQ" and receiving "PJACK" within five seconds after the projector sends out "PJ_OK" for connection authentication.

If you are unable to complete sending within five seconds, or when "PJ_NG" or "PJNAK" is received, check the operating status of the projector, followed by performing the steps again starting from establishment of a TCP connection,

Command Format

The command between this unit and the computer consists of "Header", "Unit ID", "Command", "Data" and "End".

- Header (1 byte), Unit ID (2 bytes), Command (2 bytes), Data (n bytes), End (1 byte)

Header

This binary code indicates the start of communication.

Binary Code Type	Description
21 Operating command	PC → This unit
3F Reference command	PC → This unit
40 Response command	This unit → PC
06 ACK This unit → PC	(returns to PC after the	command is accepted without error)

Unit ID

This is a code that specifies the unit. The binary code is fixed at "8901".

Command and data

Operating command and data (binary code)

Command Type Description
0000 Connection check		Check whether communication is enabled between this unit and the PC during standby.
5057	Power supply	During standby31: Turns on the powerWhen power is on30: Turns off the power (Standby mode)
4950	Input When power is on36: HDMI 137: HDMI 2
5243 Remote control		Sends the same code as the supplied remote control.“Remote Control Code”p. 57

Operating command and data (binary code)

Command Type Description
5057 Power	supply	During standby or when power is on30: Standby mode31: When power is on32: In the Cool-down mode34: When error occurs on this unit
4950 Input When power is on		36: HDMI 137: HDMI 2

End

This code indicates the end of communication. The binary code is fixed at "0A".

Remote Control Code

Binary code is sent during communication.

- The following applies to the case when the remote control code is "A". In the case of "B", add "36" to the beginning of the code.

Remote Control Button Name Binary Code
STAND BY 37 33 30 36
ON 37 33 30 35
HDMI 1 37 33 37 30
HDMI 2 37 33 37 31
LENS CONTROL 37 33 33 30
Aperture 37 33 32 30
HIDE 37 33 31 44
▲	37 33 30 31
▼	37 33 30 32
▶	37 33 33 34
◀	37 33 33 36
OK 37 33 32 46

Remote Control Button Name Binary Code
MENU 37 33 32 45
BACK 37 33 30 33
NATURAL 37 33 36 41
DYNAMIC 37 33 36 42
USER 37 33 44 37
C.M.D. 37 33 38 41
INFO 37 33 37 34
GAMMA 37 33 37 35
C. TEMP 37 33 37 36
PIC. ADJ. 37 33 37 32

Communications Example

This section shows the communication examples of RS-232C.

Operating command

Type Command Description
Connection check PC	→ This unit: 21 89 01 00 00 0AThis unit → PC: 06 89 01 00 00 0A	Connection check
Power (On) PC → This	unit: 21 89 01 50 57 31 0AThis unit → PC: 06 89 01 50 57 0A	When power is turned on from the Standby mode
Power (Off) PC → This	unit: 21 89 01 50 57 30 0AThis unit → PC: 06 89 01 50 57 0A	When power is turned off (Standby mode) from power-on mode
Input (HDMI 1) PC → T	This unit: 21 89 01 49 50 36 0AThis unit → PC: 06 89 01 49 50 0A	When video input is set to HDMI 1
Remote control (MENU)	PC → This unit: 21 89 01 52 43 37 33 32 45 0AThis unit → PC: 06 89 01 52 43 0A	When the same operation as pressing the [MENU] button on the remote control is performed

Reference command

Type Command Description
Power (On) PC → This	unit: 3F 89 01 50 57 0AThis unit → PC: 06 89 01 50 57 0AThis unit → PC: 40 89 01 50 57 31 0A	When information on the power-on state is acquired
Input (HDMI 1) PC → This	This unit: 3F 89 01 49 50 0AThis unit → PC: 06 89 01 49 50 0AThis unit → PC: 40 89 01 49 50 36 0A	When information on HDMI 1 input is acquired

Specifications

Product Name D-ILA Projector
Model Name DLA-VS2200ZG, DLA-VS2200G
Display Panel/Size D-ILA device *1, 2		0.7" (1980 x 1080 pixels) x 3 (total no. of pixels: approx. 6.22 million)
Projection Lens 2.0 x power zoom lens (1.4:1 to 2.8:1), motorized zoom and focus
Light-source Lamp 230 W ultra-high pressure mercury lamp [model no.: PK-L2313U]Average lifespan: 4000 hours ("Low" mode)
Screen Size Approx. 60" to 200" (Aspect ratio of 16:9) ZG
Projection Distance Refer to p. 60. ZG
Input Compatibility Signal Refer to p. 62.
Display Resolution 1920 x 1080 pixels
HDMI Input Terminal Dual, HDMI 19-pin x 2 (HDCP-compatible) *3
Control Terminal	RS-232C Terminal 1 system,	D-sub 9-pin (male) (external control)
	Remote Terminal 1 system,	stereo mini jack (remote control)
	LAN Terminal 1 system, RJ-45 plug
Power Requirements AC 110 to 240 V, 50/60 Hz
Power Consumption 360 W (during standby mode: 0.8 W)
Operation Environment Temperature: 5°C to 35°C; humidity: 20% to 80%; storage temperature: -10°C to 60°C
Installation Height		Below 5000 ft (1524 m)
Dimensions (Width x Height x Depth)		Approx. 455 mm x 179 mm x 472 mm (excluding feet and protrusions)
Mass		14.7 kg (ZG)13.5 kg (G)
Accessories		Refer to p. 11.

*1 D-ILA is the abbreviation for Direct drive Image Light Amplifier. *2 D-ILA devices are manufactured using extremely high-precision technology with a pixel effectiveness of 99.99%. Only 0.01% or less of the pixels are either missing or would remain permanently lit. *3 HDCP is the abbreviation for High-bandwidth Digital Content Protection system. The image of the HDMI input terminal may not be displayed in some cases due to changes in the HDCP specifications.

• Design and specifications are subject to change without prior notice.
• This projector is designed for use in Japan only, and cannot be used in any other country due to the different power voltage. This projector is designed for use in Japan only and can not be used in any other country.
• Please note that some of the pictures and illustrations may have been abridged, enlarged or contextualized in order to aid comprehension. Images may differ from the actual product.
• This unit is a "JIS C61000-3-2-compliant device".

About Trademarks and Copyrights

HIGH-DEFINITION MULTIMEDIA INTERFACE

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LCC.

Screen Size and Projection Distance

When a 16:9 screen is used ZG

Screen Size Projection Distance
Diagonal (Model) Width	(mm) Height (mm)	Wide-end (m) Tele-end (m)
60 1328 747 1.78 3.66
70 1549 872 2.09 4.28
80 1771 996 2.4 4.89
90 1992 1121 2.7 5.51
100 2214 1245 3.01 6.13
110 2435 1370 3.31 6.75
120 2656 1494 3.62 7.36
130 2878 1619 3.92 7.98
140 3099 1743 4.23 8.60
150 3320 1868 4.53 9.22
160 3542 1992 4.84 9.84
170 3763 2117 5.14 10.45
180 3984 2241 5.45 11.07
190 4206 2366 5.75 11.68
200 4427 2490 6.06 12.30

When a 4:3 screen is used ZG

Screen Size Projection Distance
Diagonal (Model) Width (mm) Height (mm) Wide-end (m) Tele-end (m)
60 1219 914 2.22 4.49
70 1422 1067 2.60 5.24
80 1626 1219 2.98 6.00
90 1829 1372 3.36 6.75
100 2032 1524 3.74 7.51
110 2235 1676 4.11 8.26
120 2438 1829 4.49 9.02
130 2642 1981 4.87 9.77
140 2845 2134 5.25 10.53
150 3048 2286 5.63 11.28
160 3251 2438 6.00 12.04

* Projection to a 4:3 screen larger than 163" is equivalent to a size that is larger than 200" in the 16:9 format, and is beyond our guarantee coverage.

When a 2.35:1 screen is used ZG

Screen Size Projection Distance
Diagonal (Model) Width (mm) Height (mm) Wide-end (m) Tele-end (m)
60 1402 597 1.95 3.91
70 1636 696 2.28 4.56
80 1870 796 2.60 5.21
90 2103 895 2.93 5.86
100 2337 995 3.26 6.51
110 2571 1094 3.58 7.16
120 2805 1193 3.91 7.81
130 3038 1293 4.23 8.47
140 3272 1392 4.56 9.12
150 3506 1492 4.88 9.77
160 3740 1591 5.21 10.42
170 3973 1691 5.53 11.07
180 4207 1790 5.86 11.72
190 4441 1890 6.19 12.37
200 4674 1989 6.51 13.02

Types of Possible Input Signals

Video

Digital Video Signal 480p/60 Hz, 576p/50 Hz, 720p/50 Hz, 720p/60 Hz, 1080p/50 Hz, 1080p/60 Hz

PC signal (HDMI)

No.	Designation Res	solution fh [kHz]	fv [Hz]		dot CLK [MHz]	Total No. of Dots [dot]	Total No. of Lines [line]	No. of Effective Dots [dot]	No. of Effective Lines [line]
1 VGA	60 640×480	31,500 60,000	25,200 800	525 640 480
2 VGA	59.94 640×480	31,469 59,940	25,175 800	525 640 480

Indicator Display on the Main Unit

Meaning of the lighting figures

The indicator appears blinking. The indic

Operation mode display

Displays using the different colors and solid/blinking light of the "STANDBY/ON" indicator.

"STANDBY/ON" lights up (red) In standby state

"STANDBY/ON" blinking (red) In the Cool-down mode

"STANDBY/ON" lights up (green) During lamp startup

"STANDBY/ON" blinking (green) When the video image is temporarily hidden (HIDE is on)

All lights off During projection

Estimated timing for lamp replacement

Displays using the solid/blinking light of the "LAMP" indicator. The "STANDBY/ON" indicator, which shows the operating mode of the unit, is displayed simultaneously as described above.

"LAMP" lights up (orange)

STANDBY/ON

□

AMPWARNING

0

When lamp replacement is near (lamp time has exceeded 2900 hours)

Warning display

You can tell the details of a warning from the (repeated) displays of the "WARNING" and "LAMP" indicators. The "STANDBY/ON" indicator, which shows the operating mode of the unit, is displayed simultaneously as described above.

The Warning mode is activated once the message is displayed. Projection is interrupted, and the cooling fan is turned on for about 120 seconds.

The power cannot be turned on again while cooling is in progress. Check the following after cooling is complete.

Indicator Status (Solid/Blinking)	Blinking Frequency	Description Check and	Countermeasure
Display M	x1 Abnormality in the power supply		Check that nothing is blocking the air inlets.Check that the external temperature is normal.Countermeasure: Leave the unit unoperated until it cools down.After that, turn on the power again.
	x2 Cooling fan stopped abnormally
	x3 Internal temperature is abnormally high
	x4 External temperature is too high
	x5 Abnormal circuit operation
Mode (Orange) (Red)Display Blinking Simultaneously	x1 Abnormal circuit operation
	x2
	x3
	x4 Abnormal operation of the automatic lens cover		Check that nothing is blocking the auto lens cover.Countermeasure: Turn on the power again.
Mode (Orange) (Red)Display	x1 Lamp does not light up and unit is unable to project		Check that the lamp unit and lamp cover are correctly installed.Countermeasure: Turn on the power again.
	x2 Lamp goes out during projection
	x3 Lamp cover is removed

If the Warning mode is activated again, wait for the cooling fan to stop, followed by pulling out the power plug from the outlet.

Request for repair at your authorized dealer or a nearby service center.

(*) If the scheduled time for lamp replacement is exceeded, the indicator may light up.

Dimensions

(Unit: mm)

Top Surface

Bottom Surface

Front

Rear Surface

• The dimensions are identical for all the models.

Index

A Accessories 11 Advanced Setting for Image Quality 30 Projection Screen Adjustment 34 Adjustment and Setting by the Menu 26 Adjustment of the Image Quality 28 Advanced Menu 30 Aperture 31

B Back Color 40

Basic Setting for Image Quality 28

Brightness 28

C C.M.D (Clear Motion Drive) 31

Ceiling Mount 19

Cleaning and Replacing the Filter 51

Clear Motion Drive 31

Color Density 28

Color Management 30

Color Shade 28

Color Space 32

Color Temperature 29

Communication Terminal 41

Connection 21

Contrast 28

Controls and Features 12

D Dimensions 64 Display Position 32

E External Control 55

F Filter Product no. 51

Filter Replacement 51

Focus 34

Frame Interpolation 31

G GAMMA 29

Gamma Adjustment 29

H HDMI Input Level 32

HDMI Input Link 32

HDMI Input Terminal 21

HIDE 24

High Altitude Mode 41

I Indicator Display 62

Input Resolution 42, 62

Input Signal 42, 62

Input terminals 14

Installation Method 17

L Lamp 11

Lamp Power 31

Lamp Time 42

Lens 12

Lens Control 34

Lens sheet 12

Lens Shift 34

Line Display 40

Logo Display 40

M Menu Display 40

Menu Items 26

Menu Position 40

Network 41

Off Timer 41

Optional Accessories 11

PIC. ADJ. 28

Picture Mode 28

Precautions during Installation 17

Projection Distance 60

Remote Control 15

Replacing the Lamp 43

Resetting the Lamp 41

RS-232C 22

Screen Mask 33

Screen Size and Projection Distance 60

Sharpness 30

Shift 34

Signal Display 42

Software Ver. 42

Specifications 59

T Troubleshooting 52

V Viewing Videos 24

W When the following messages appear... 54

Z Zoom 34

JVC

Information

Manufacture

JVC KENWOOD Corporation

3-12, Moriyacho, Kanagawa-ku, Yokohamashi, Kanagawa 221-0022, Japan

Importer (EU only)

JVC Professional Europe Ltd.

JVC House

JVC Business Park

12 Priestley Way, London NW2 7BA, United Kingdom
