USER MANUAL CEED SPORTY WAGON KIA

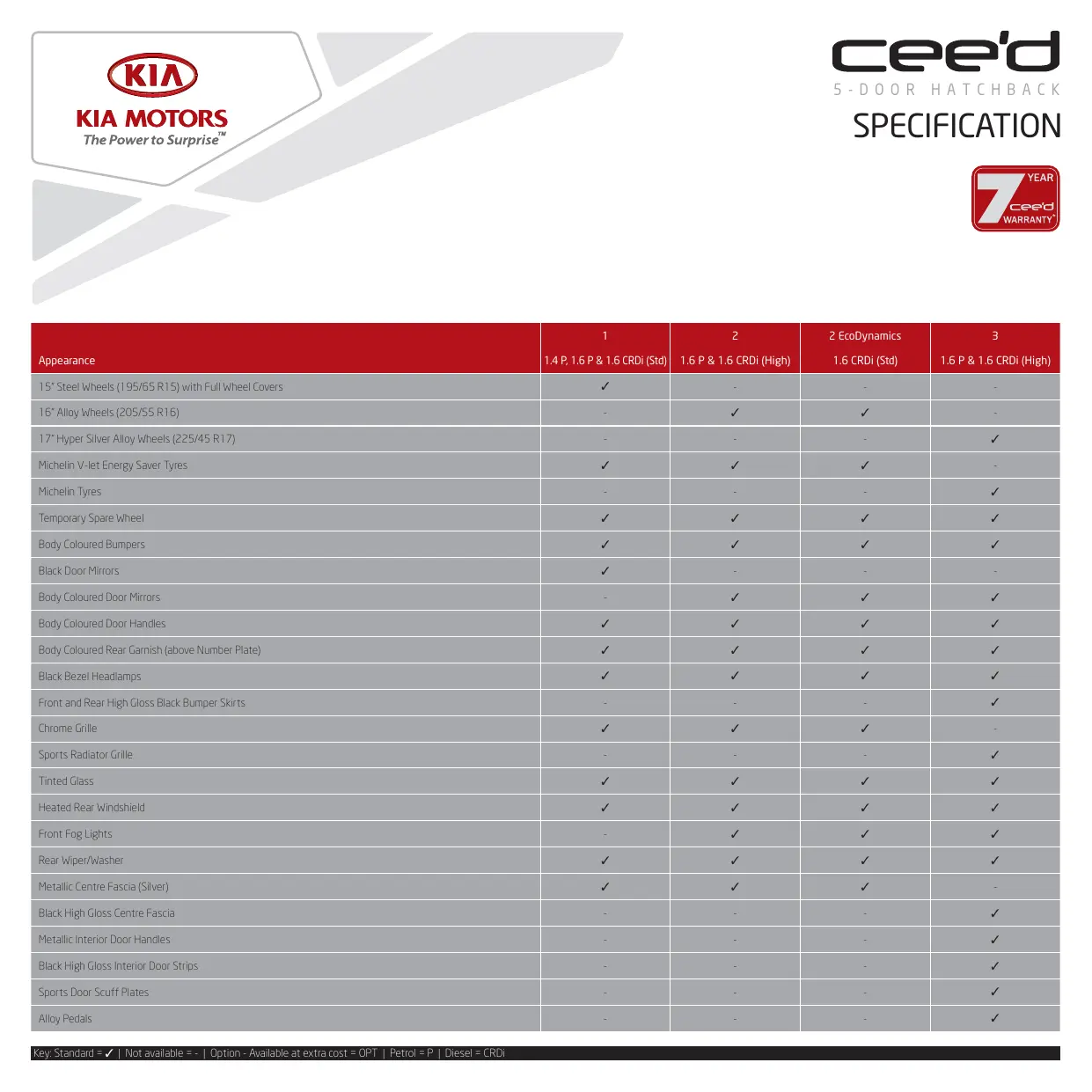

| Appearance | 1 1.4 P, 1.6 P & 1.6 CRDi (Std) | 2 1.6 P & 1.6 CRDi (High) | 2 EcoDynamics 1.6 CRDi (Std) | 3 1.6 P & 1.6 CRDi (High) |
| 15" Steel Wheels (195/65 R15) with Full Wheel Covers | ✓ | - | - | - |
| 16" Alloy Wheels (205/55 R16) | - | ✓ | ✓ | - |
| 17" Hyper Silver Alloy Wheels (225/45 R17) | - | - | - | ✓ |
| Michelin V-let Energy Saver Tyres | ✓ | ✓ | ✓ | - |
| Michelin Tyres | - | - | - | ✓ |
| Temporary Spare Wheel | ✓ | ✓ | ✓ | ✓ |
| Body Coloured Bumpers | ✓ | ✓ | ✓ | ✓ |
| Black Door Mirrors | ✓ | - | - | - |
| Body Coloured Door Mirrors | - | ✓ | ✓ | ✓ |
| Body Coloured Door Handles | ✓ | ✓ | ✓ | ✓ |
| Body Coloured Rear Garnish (above Number Plate) | ✓ | ✓ | ✓ | ✓ |
| Black Bezel Headlamps | ✓ | ✓ | ✓ | ✓ |
| Front and Rear High Gloss Black Bumper Skirts | - | - | - | ✓ |
| Chrome Grille | ✓ | ✓ | ✓ | - |
| Sports Radiator Grille | - | - | - | ✓ |
| Tinted Glass | ✓ | ✓ | ✓ | ✓ |
| Heated Rear Windshield | ✓ | ✓ | ✓ | ✓ |
| Front Fog Lights | - | ✓ | ✓ | ✓ |
| Rear Wiper/Washer | ✓ | ✓ | ✓ | ✓ |
| Metallic Centre Fascia (Silver) | ✓ | ✓ | ✓ | - |
| Black High Gloss Centre Fascia | - | - | - | ✓ |
| Metallic Interior Door Handles | - | - | - | ✓ |
| Black High Gloss Interior Door Strips | - | - | - | ✓ |
| Sports Door Scuff Plates | - | - | - | ✓ |
| Alloy Pedals | - | - | - | ✓ |
| Convenience | 1 1.4 P, 1.6 P & 1.6 CRDi (Std) | 2 1.6 P & 1.6 CRDi (High) | 2 EcoDynamics 1.6 CRDi (Std) | 3 1.6 P & 1.6 CRDi (High) |
| Motor Driven Power Steering | ✓ | ✓ | ✓ | ✓ |
| Cruise Control | - | - | - | ✓ |
| Lane Change Signal on Indicator | ✓ | ✓ | ✓ | ✓ |
| Electrically Adjustable & Heated Door Mirrors (Driver Wide View) | - | ✓ | ✓ | ✓ |
| Steering Wheel Mounted Trip Control (Distance, Fuel Consumption, Speed, Time) | ✓ | ✓ | ✓ | ✓ |
| Front Seatbelt Reminder Warning (Centre Console) | ✓ | ✓ | ✓ | ✓ |
| Rear Seatbelt Reminder Warning (Centre Console) (not available on 1.4 engine) | ✓ | ✓ | ✓ | ✓ |
| Front Floor Console Storage Box | ✓ | - | - | - |
| Front Floor Console Storage Box with Armrest | - | ✓ | ✓ | ✓ |
| Front Cupholders | ✓ | ✓ | ✓ | ✓ |
| Rear Cupholders | - | ✓ | ✓ | ✓ |
| 12V Power Outlet (Centre Console) | ✓ | ✓ | ✓ | ✓ |
| Luggage Net Hooks | - | - | - | ✓ |
| Dual Horn | - | - | - | ✓ |
| Low-level Washer Fluid Warning | - | - | - | ✓ |
| Variable Intermittent 2-speed Wipers | ✓ | ✓ | ✓ | ✓ |
| Audio | ||||
| Integrated CD Audio with MP3 Player | ✓ | ✓ | ✓ | ✓ |
| Steering Wheel Mounted Audio Controls | ✓ | ✓ | ✓ | ✓ |
| 4 Speaker Audio System | ✓ | - | - | - |
| 6 Speaker Audio System | - | ✓ | ✓ | ✓ |
| USB & AUX Port | ✓ | ✓ | ✓ | ✓ |
| Bluetooth Functionality with iPod Connectivity | - | - | ✓ | ✓ |
| Aerial - Parabolic Roof Type (200mm) | ✓ | ✓ | ✓ | ✓ |
| Ventilation & Visibility | ||||
| Air Conditioning | ✓ | ✓ | ✓ | - |
| Air Filter | ✓ | ✓ | ✓ | ✓ |
| Dual Zone Climate Control | - | - | - | ✓ |
| Cooled Glovebox | ✓ | ✓ | ✓ | ✓ |
| Multi Speed Heater System - Rotary Type | ✓ | ✓ | ✓ | ✓ |
| Front Electric Windows (+ 30 Sec Time Lag) | ✓ | - | - | - |
| Front Electric Windows + Safety (Auto Up and Down with Sensor) | - | ✓ | ✓ | ✓ |
| Rear Electric Windows + Safety (Auto Up and Down with Sensor) | - | - | - | ✓ |
| Comfort | ||||
| 60/40 Split Folding Rear Seats | ✓ | ✓ | ✓ | ✓ |
| Full Cloth Seats (Silver Inserts) | ✓ | ✓ | ✓ | - |
| Carbon Sports Cloth Seats (Tyre Tread Style) | - | - | - | ✓ |
| Silver Stitching Lines (Seats, Steering Wheel, Front Armrest) | - | - | - | ✓ |
| Driver's Seat Height & Lumbar Adjust with Active Headrest | ✓ | ✓ | ✓ | ✓ |
| Driver's Footrest | ✓ | ✓ | ✓ | ✓ |
| Tilt & Telescopic Steering Wheel | ✓ | ✓ | ✓ | ✓ |
| Comfort (Continued) | 1 1.4 P, 1.6 P & 1.6 CRDI (Std) | 2 1.6 P & 1.6 CRDI (High) | 2 EcoDynamics 1.6 CRDI (Std) | 3 1.6 P & 1.6 CRDI (High) |
| Sliding & Reclining Front Passenger Seat | ✓ | ✓ | ✓ | ✓ |
| Front Passenger Seat Active Headrest | ✓ | ✓ | ✓ | ✓ |
| Front Passenger Seat Lumbar Support | ✓ | ✓ | ✓ | ✓ |
| Height Adjustable Headrests (x5) | ✓ | ✓ | ✓ | ✓ |
| Digital Clock & Calendar (Centre Console Display) | ✓ | ✓ | ✓ | ✓ |
| Outside Temperature Gauge (Centre Console Display) | ✓ | ✓ | ✓ | ✓ |
| Sunvisors with Vanity Mirrors (Sliding Mirror Covers) | ✓ | ✓ | ✓ | ✓ |
| Sunvisor Ticket Holders | ✓ | ✓ | ✓ | ✓ |
| Illuminated Vanity Mirrors | - | - | - | ✓ |
| 3 Grab Handles (Front & Rear) | ✓ | ✓ | ✓ | ✓ |
| Rear Coat Hook (x1) | ✓ | ✓ | ✓ | ✓ |
| Centre Cabin Light | ✓ | ✓ | ✓ | ✓ |
| Door Map Pockets | ✓ | ✓ | ✓ | ✓ |
| Luggage Area Light | ✓ | ✓ | ✓ | ✓ |
| Front Door Courtesy Reflectors | ✓ | ✓ | ✓ | ✓ |
| Illuminated Ignition | - | - | - | ✓ |
| Rheostat | - | ✓ | ✓ | ✓ |
| Safety & Security | ||||
| Anti-Lock Braking System (ABS) with Electronic Brake Force Distribution (EBD) | ✓ | ✓ | ✓ | ✓ |
| Electronic Stability Control (ESC), Brake Assist System (BAS), Hill Start Assist Control (HAC) and Vehicle Stability Management (VSM) | OPT | OPT | OPT | ✓ |
| Intelligent Stop and Go (ISG) | - | - | ✓ | - |
| Immobiliser | ✓ | ✓ | ✓ | ✓ |
| Remote Central Door Locking with Alarm and Folding Key | ✓ | ✓ | ✓ | ✓ |
| Internal Fuel Flap Release | ✓ | ✓ | ✓ | ✓ |
| Deadlocks | ✓ | ✓ | ✓ | ✓ |
| Visible VIN | ✓ | ✓ | ✓ | ✓ |
| Impact Sensing Automatic Door Unlocking | ✓ | ✓ | ✓ | ✓ |
| Centre Fascia Mounted Door Locking Switch | ✓ | ✓ | ✓ | ✓ |
| Six Airbags (Twin Front, Front Side and Full-Length Curtain) | ✓ | ✓ | ✓ | ✓ |
| Passenger Airbag Cut-Off Switch | ✓ | ✓ | ✓ | ✓ |
| Front Seatbelt Height Adjustment | ✓ | ✓ | ✓ | ✓ |
| Front Seatbelt Pre-tensioners and Load-limiters | ✓ | ✓ | ✓ | ✓ |
| ISOFIX Top Tethers and Lower Anchor Points | ✓ | ✓ | ✓ | ✓ |
| Headlight Levelling Device | ✓ | ✓ | ✓ | ✓ |
| Packs | ||||
| Leather Pack (Leather Steering Wheel, Gearshift, Parking Lever & Armrest Console) | - | ✓ | ✓ | ✓ |
| Chrome Pack (Metallic Finish to Steering Wheel Audio Controls, Gearshift & Parking Brake Button) | - | ✓ | ✓ | ✓ |
| Transmission | ||||
| Automatic | - | OPT Petrol | - | OPT Diesel |
TECHNICAL INFORMATION
| 1.4 Petrol | 1.6 Petrol | 1.6 CRDi Standard Power | 1.6 CRDi ISG | 1.6 CRDi High Power | |||
| Engine Data | 5 Spd Manual | 5 Spd Manual | 4 Spd Automatic | 6 Spd Manual | 6 Spd Manual | 4 Spd Automatic | |
| Emissions Standard | Euro IV | ||||||
| Engine Type | 1.4 CVVT 16 VALVE | 1.6 CVVT 16 VALVE | 1.6 WGT | 1.6 VGT | |||
| Capacity (cc) | 1,396 | 1,591 | 1,582 | ||||
| Bore & Stroke (mm) | 77 x 74.99 | 77 x 85.44 | 77.2 x 84.5 | ||||
| Compression Ratio | 10.5 | 17.3 | |||||
| Max. Power (kW) | 66 @ 6,000 | 92.7 @ 6,300 | 66 @ 4,000 | 85 @ 4,000 | |||
| Max. Power (bhp) | 89 @ 6,000 | 124 @ 6,300 | 89 @ 4,000 | 113 @ 4,000 | |||
| Torque (Nm) | 137 @ 5,000 | 154 @ 4,200 | 235 @ 1,750-2,500 | 255 @ 1,900-2,750 | |||
| Torque (Ibs/ft) | 101 @ 5,000 | 113 @ 4,200 | 173 @ 1,750-2,500 | 188 @ 1,900-2,750 | |||
| 0-60mph (in seconds) | 11.2 | 10.4 | 11.4 | 13.5 | 11.1 | 11.8 | |
| Top Speed mph (kph) | 112 (180) | 119 (192) | 116 (187) | 107 (172) | 117 (188) | 112 (180) | |
| Transmission | |||||||
| 1st | 3.769 | 3.615 | 2.919 | 3.636 | 2.919 | ||
| 2nd | 2.045 | 1.962 | 1.551 | 1.962 | 1.551 | ||
| 3rd | 1.370 | 1.000 | 1.189 | 1.000 | |||
| 4th | 1.036 | 0.713 | 0.844 | 0.713 | |||
| 5th | 0.839 | - | 0.723 | 0.702 | - | ||
| 6th | - | 0.633 | 0.596 | - | |||
| Reverse | 3.545 | 2.480 | 3.583 | 2.480 | |||
| Final Gear Ratio | 4.400 | 4.267 | 4.619 | 3.706 | 3.941 | 3.532 | |
| Bodystyle & Seats | |||||||
| 5 Door Hatchback | |||||||
| 5 Seats | |||||||
| Suspension | |||||||
| Front | Independent Macpherson Strut with Coil Spring and Anti-Roll Bar | ||||||
| Rear | Independent Multi Link and Trailing Arm Type with Anti-Roll Bar | ||||||
| Steering Wheel Lock to Lock Turns | |||||||
| System | Rack and Pinion Type with Electric Motor Assistance | ||||||
| Steering Wheel Lock to Lock Turns | 2.69 | ||||||
| 1.4 Petrol | 1.6 Petrol | 1.6 CRDI Standard Power | 1.6 CRDI ISG | 1.6 CRDI High Power | |||
| Brakes | 5 Spd Manual | 5 Spd Manual | 4 Spd Automatic | 6 Spd Manual | 6 Spd Manual | 4 Spd Automatic | |
| System | Diagonally Split System, Power Assisted with ABS and EBD | ||||||
| Front | Disc Brakes (Ventilated Front) | ||||||
| Rear | Disc Brakes (Solid Rear) | ||||||
| Dimensions (mm) | |||||||
| Overall Length | 4,260 | ||||||
| Overall Width | 1,790 | ||||||
| Overall Height | 1,480 | ||||||
| Wheelbase | 2,650 | ||||||
| Turning Circle (m) (Radius) | 5.17 | ||||||
| Headroom Front / Rear | 1,020 / 980 | ||||||
| Max. Leg Room Front | 1,105 | ||||||
| Min. Leg Room Rear | 900 | ||||||
| Weights & Capacities | |||||||
| Luggage Capacity (l): Seats in Normal Position | 340 | ||||||
| Luggage Capacity (l): Rear Seats Folded | 1,300 | ||||||
| Max. Kerb Weight (kg) | 1,355 | 1,373 | 1,468 | 1,475 | |||
| Min. Kerb Weight (kg) | 1,263 | 1,291 | 1,367 | 1,374 | |||
| Gross Vehicle Weight (kg) | 1,710 | 1,730 | 1,820 | 1,840 | |||
| Max. Tow Weight (kg): Braked | 1,200 | 1,400 | 1,300 | ||||
| Max. Tow Weight (kg): Unbraked | 550 | ||||||
| Tow Ball Weight | 55 | 75 | |||||
| Max. Roof Weight (kg) | 80 | ||||||
| Fuel Tank Capacity (l) | 53 | ||||||
| Fuel Consumption | 16" Wheels | 17" Wheels | 16" Wheels | 17" Wheels | |||
| (Official Government Test Figures) mpg (l/100 km) | |||||||
| Urban | 39.2 (7.2) | 36.6 (7.8) | 35.8 (7.9) | 34.0 (8.3) | 56.5 (5.0) | 60.1 (4.7) | 53.3 (5.3) |
| Extra-Urban | 55.4 (5.1) | 54.3 (5.2) | 53.3 (5.3) | 49.6 (5.7) | 72.4 (3.9) | 70.6 (4.0) | |
| Combined | 48.9 (5.8) | 46.3 (6.1) | 44.8 (6.3) | 42.8 (6.6) | 65.7 (4.3) | 67.3 (4.2) | 62.8 (4.5) |
| Emissions | |||||||
| CO2 (g/km) | 139 | 146 | 149 | 158 | 113 | 110 | 118 |
MODEL COMPARISON
| EXTERIOR COLOURS | 1 | 2 / EcoDynamics | 3 |
| Arctic White (Solid) | ✓ | ✓ | ✓ |
| Silver Storm (Metallic) | ✓ | ✓ | ✓ |
| Sirius Silver (Metallic) | - | ✓ | - |
| Phoenix Silver (Metallic) | - | ✓ | ✓ |
| Infra Red (Metallic) | ✓ | ✓ | ✓ |
| Astral Blue (Metallic) | - | ✓ | ✓ |
| Phantom Black (Metallic) | ✓ | ✓ | ✓ |
| CLOTH | |||
| Silver Cloth | Carbon Tyre Cloth | ||
| WHEELS | |||
| 15" Steel 5-Spoke 195/65R | 16" Alloy 5-Spoke 205/55R | 17" Alloy 5-Spoke 225/45R | |
Metallic and mica body colours available at extra cost. Please check with your dealer for colour availability by grade.
KIA WARRANTY OFFER
Over the years, Kia has become one of the most successful car manufacturers in Europe. The key to our success? We give our customers that little bit extra: better service by qualified technicians, regular product innovation and superior warranty coverage.
7-YEAR VEHICLE WARRANTY
Our high quality standards are what make superior warranty coverage possible: 3 years/ unlimited mileage and 4-7 years/ 100,000 mile full manufacturer's warranty.*
12-YEAR ANTI-PERFORATION WARRANTY
Your new Kia cee'd comes with a 12-year anti-perforation warranty.**
ENVIRONMENT
Kia Motors creates innovative products, ensuring state-of-the-art Design for Recycling (DfR) guidelines. Wherever possible, recycled and recyclable materials are being used in the production of Kia cars, all major plastic parts being chosen for ease of disassembly and stamped with a composition code.
Even at the end of a vehicle's life, one of Kia Motors' environmental targets is the eco-friendly take-back and treatment of End-of-Life Vehicles. Operating a rigid process, Kia Motors has selected partners across Europe that guarantee environmental protection in the treatment of harmful waste substances.
These are then recycled or recovered, ensuring the highest level of environmental protection. Kia Motors (UK) Ltd has appointed autogreen as our partner to manage the take-back, treatment and recycling of End-of-Life Vehicles in accordance with Directive 2000/53/EC. They can provide advice on whether or not your vehicle qualifies for free take-back and the location of your nearest take-back facility.
*For full warranty coverage including terms and conditions please refer to your Kia dealer.
**An annual bodywork inspection is required, for which a charge may apply.
Kia Motors (UK) Limited,
2 The Heights, Brooklands, Weybridge, Surrey, KT13 0NY
Freephone:0800775777
www.kia.co.uk
Images are for illustrative purposes only and may not be to UK specification.
All information and illustrations are based on data available at the time of
publication and are subject to change without notice. Contact your local Kia
dealer for current information.
