Product type	Electric hedge trimmer
Brand	GARDENA
Model	EHT 410
Motor power	410 W
Blade length	60 cm
Tooth spacing	22 mm
No-load cutting speed	3,400 rpm
Battery type	Without battery (corded)
Supply voltage	230 V ~ 50 Hz
Power cable length	0.5 m (with connector)
Weight	3.5 kg
Sound power level (LWA)	96 dB(A)
Sound pressure level (LpA)	85 dB(A)
Vibration (hand-arm)	2.5 m/s² (typical value)
Anti-pinch protection	Integrated blade protector
Handle	Ergonomic handle with safety trigger
Maximum cutting capacity	22 mm
Maintenance	Clean after each use and sharpen blades regularly
Spare parts available	Blades, handles, guards (see after-sales service)
Protection rating	IPX1 (protection against water drops)
Warranty	2 years (subject to conditions)

Frequently Asked Questions - EHT 410 GARDENA

How do I start the GARDENA EHT 410 hedge trimmer?

Plug in the device, press the unlock button, then press the safety trigger while holding the rear handle.

What is the blade length of the EHT 410?

The blade is 60 cm long, ideal for medium-sized hedges.

Is the power cable long enough?

The integrated cable is short (0.5 m), but an extension cord can be used (with sufficient cross-section).

How to maintain the blades of the hedge trimmer?

Clean the blades after each use with an oily cloth and sharpen them regularly with an appropriate file.

Is the device dangerous if it comes into contact with water?

The EHT 410 has IPX1 protection, resistant to splashes, but avoid any immersion.

Can I cut thick branches with this model?

The tooth spacing is 22 mm, allowing cutting of branches up to 22 mm in diameter.

What to do if the blade jams?

Immediately unplug the device, remove stuck debris with a stick (not hands), and check that the blade is not bent.

Is the noise level high?

The sound pressure level is 85 dB(A). Always wear hearing protection.

How to replace the blade of the EHT 410?

Unplug the device, unscrew the fixing screws, remove the old blade and install the new one in reverse order. Consult the manual.

Where can I find spare parts?

Contact GARDENA consumer service or an authorized dealer. Blades and handles are available.

USER MANUAL EHT 410 GARDENA

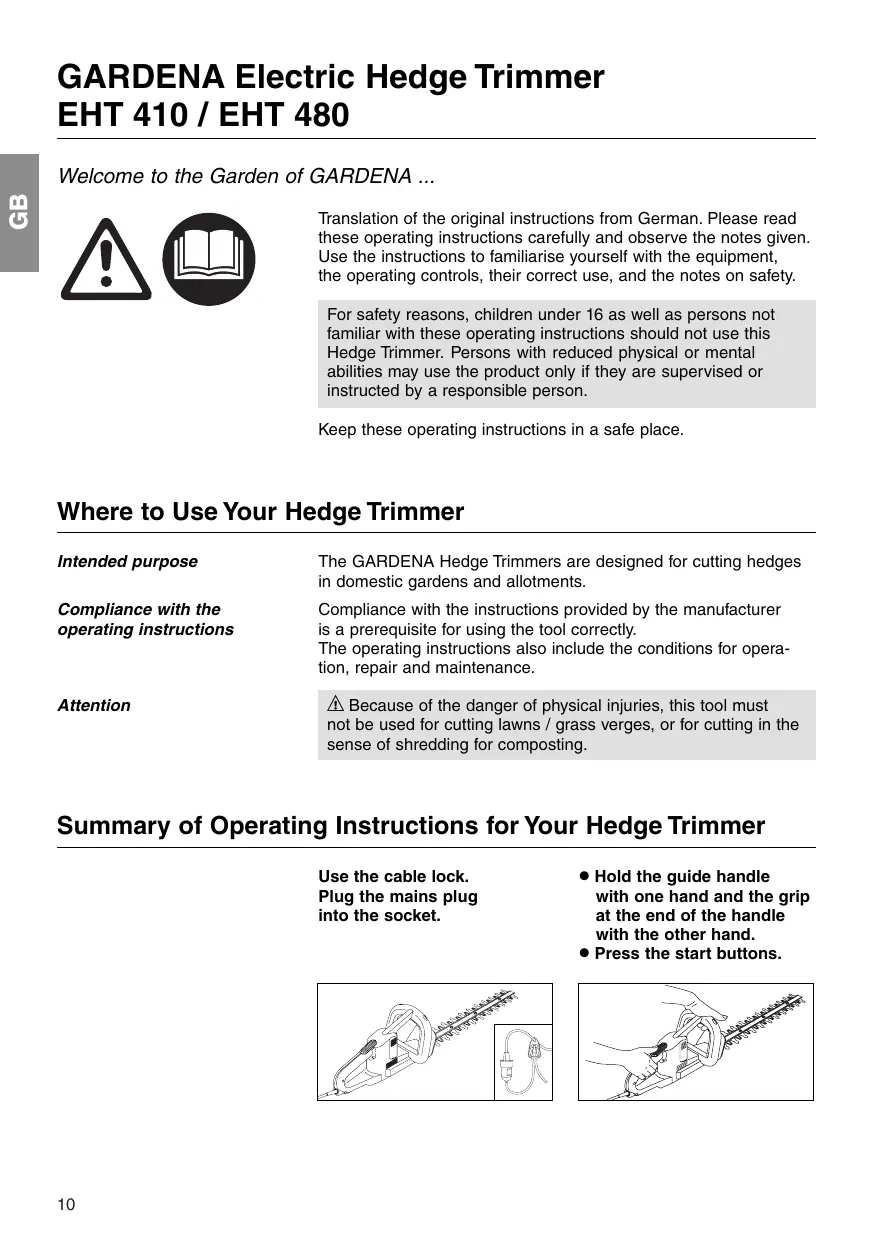

GB Operating Instructions

Electric Hedge Trimmer

F Mode d'emploi

Welcome to the Garden of GARDENA ...

Translation of the original instructions from German. Please read these operating instructions carefully and observe the notes given. Use the instructions to familiarise yourself with the equipment, the operating controls, their correct use, and the notes on safety.

For safety reasons, children under 16 as well as persons not familiar with these operating instructions should not use this Hedge Trimmer. Persons with reduced physical or mental abilities may use the product only if they are supervised or instructed by a responsible person.

Keep these operating instructions in a safe place.

Where to Use Your Hedge Trimmer

Intended purpose

The GARDENA Hedge Trimmers are designed for cutting hedges in domestic gardens and allotments.

Compliance with the operating instructions

Compliance with the instructions provided by the manufacturer is a prerequisite for using the tool correctly. The operating instructions also include the conditions for operation, repair and maintenance.

Attention

Because of the danger of physical injuries, this tool must not be used for cutting lawns / grass verges, or for cutting in the sense of shredding for composting.

Summary of Operating Instructions for Your Hedge Trimmer

Use the cable lock. Plug the mains plug into the socket.

• Hold the guide handle with one hand and the grip at the end of the handle with the other hand.
• Press the start buttons.

Please note by using your Electric Hedge Trimmer following principle safety hints in order to avoid electric shock, injury and fire risk:

Inspections before each use	Inspect the unit before each use. Do not use the Hedge Trimmer, if safety devices (two-hand switch, blade stop, impact protection) and/or the blades are damaged or worn. Never bypass safety devices.
Inspect the area to be cut before beginning work	Inspect the area to be cut before and during work. Remove any foreign objects.
Remove obstacles	If, in spite of care, there is an obstruction when cutting, turn off the Hedge Trimmer and remove it.
Use/responsibility	This Hedge Trimmer can cause serious injuries! Use the unit only for the purposes specified in these operating instructions.
Do not overload the Hedge Trimmer	Do not overload the Hedge Trimmer – to work better and safer do not exceed the given power consumption.
Keep the guide-handle dry	Keep the guide-handle dry and free from oil and grease.
Concentrate and work with care	Concentrate and work with care. You are responsible for safety in the area of work. Keep the area of work tidy. Untidiness in the area of work can cause accidents.
Keep others away from the working area	Make sure that there are no other people (especially children) or animals anywhere near the working area.
Wear protective clothing	Do not wear loose clothes, jewellery, etc. They could get caught in the trimmer. Wear non-slip shoes, gloves and an eye protection. Wear long trousers to protect your legs.
Secure foothold and stable body position	Ensure you have a secure foothold during operation of the machine, especially when using steps. The extension cable should always be kept away from the cutting area. Attention! Take extra care when walking backwards. You may stumble.
Keep the motor casing and ventilation clear	Keep the motor casing and ventilation free from obstructions, leaves and other similar things. Do not use the Hedge Trimmer in the vicinity of flammable liquids and gases.
Jammed blades → turn off the Hedge Trimmer	If the blades get jammed, please disconnect the unit and remove the object (thick branch, foreign body).

Initial Operation

Visibility	Only work when visibility is good.
If you stop working	Never leave the Hedge Trimmer unattended in the working place. If you stop work, store the Hedge Trimmer in a safe place. Disconnect the mains plug!
	Should you stop work in order to get to another working place, always switch off the Hedge Trimmer to go there. Disconnect the mains plug!
	Always attach the blade protection for transport and storage of the unit.
Familiarise yourself with the surroundings	Make yourself familiar with the surroundings and look out for dangers which you may not detect due to machinery noise.
Never use in rain or damp/wet areas	Never use the unit when it rains or in damp/wet areas. Do not operate the Hedge Trimmer near swimming pools and garden ponds.
Electrical safety – check for damage	Check the power cable regularly for damage and signs of wear and tear. The power cable must only be exchanged by an authorised electrician. Please contact your GARDENA Service Centre.
Mains cable	The Hedge Trimmer must only be operated with an undamaged electrical cable. If the mains- or extension cable is damaged, disconnect the mains plug immediately.
Waterproof extension cable socket	The socket of an extension cable should be waterproof.
Extension cable	Only use extension cables designed for outdoor use. → Ask your electrician.
Using portable units outdoors	For portable units which are used outdoors, we recommend to use a residual-current device having a residual-current rating ≤ 30 mA.
For Switzerland	In Switzerland use of a residual-current device is obligatory.
Never carry the Hedge Trimmer by its cable	Never carry the Hedge Trimmer by its cable. Never use the cable to pull the connector plug out of the mains socket. Protect the cable from heat, oil and sharp edges.

Cable lock / Extension Cable

Make part of the extension cable into a loop and clip into the cable lock.

prevents the cables being unplugged by accident.

Then:

Connect the mains and extension cables.

Two-hand safety switch

Starting the Hedge Trimmer

Stopping the Hedge Trimmer

The Hedge Trimmer is fitted with a two-hand safety switch to prevent the tool being turned on by accident. To turn the Hedge Trimmer on, simultaneously press the start button on the guide handle and on the grip at the end of the handle.

1. With one hand, hold the guide handle and press the start button.
2. Then use the other hand to hold the grip at the end of the handle and press the start button.
   The Hedge Trimmer starts moving.

To stop the Hedge Trimmer, simply release one of the start buttons either on the guide handle or the grip at the end of the handle. In accordance with safety regulations, an additional safety device ensures that the blade motion stops within 1 sec.

Impact protection

Safety Clutch (Slip-Clutch)

The projecting guide (impact protection) prevents any kick-back if the hedge trimmer hits a solid object.

Safety devices

The safety clutch protects motor, gear and blades from mechanical damage caused by the blades jamming.

If the blades are jammed by an object:

disconnect the trimmer from the power supply and remove the object.

The safety devices installed by the manufacturer must not be removed and/or bypassed, e.g. by tying down a switch in the handle.

Never use a tool which is not complete or which has been modified from its original design.

To prevent the Hedge Trimmer starting by accident, never carry the Hedge Trimmer by the start buttons on the guide handle.

Ergonomic Working Position

Use the belt clip.
- Hold the grip at the end of the handle

when cutting high hedges

when cutting low hedges

when using the Hedge Trimmer to cut the sides of hedges

Always disconnect the Hedge Trimmer before performing any repairs, inspection or maintenance work.
Repairs must only be carried out by GARDENA Service Centres, or dealers authorised by GARDENA.
The Hedge Trimmer blades should be cleaned after each use and lubricated with an oil of low viscosity (e.g. spray-oil).
Note:1. Do not clean your Hedge Trimmer with water (→ risk of corrosion).2. Never clean your Hedge Trimmer under running water.
Store your Hedge Trimmer in a dry place away from frost and put on the blade protection.
▲ Keep your Hedge Trimmer out of the reach of children.
▲ Danger!	The safety clutch is a strong spring-loaded device and must not be disassembled.
Damage	Inspect the cutting devices at regular intervals for damage. Ensure that all damage is properly repaired immediately.
Disposal: (in accordance with RL2002/96/EC)	The product must not be added to normal household waste. It must be disposed of in line with local environmental regulations.→ Important: Make sure that the unit is disposed of via your municipal recycling collection centre.
Information
Complaints/repairs	If you have any problems with your Hedge Trimmer, please contact our Service or return the defective unit together with a short description of the problem – in case of guarantee, with the warranty card duly completed and signed – postage paid to one of the GARDENA Service Centres listed on the back of this leaflet.
Product liability	We expressly point out that, in accordance with the product liability law, we are not liable for any damage caused by our units if it is due to improper repair or if parts exchanged are not original GARDENA parts or parts approved by us, and, if the repairs were not carried out by a GARDENA Service Centre or an authorised specialist. The same applies to spare parts and accessories.

Type		EHT 410	EHT 480
Art. No.		2591	2592
Power consumption, motor	W	380	380
Mains voltage / frequency	V / Hz	230 / 50	230 / 50
No. of strokes	1/min.	3,200	3,200
Cutting length / blade length	cm	41	48
Weight	kg	2.6	2.7
Working area related emission characteristic value \( L_{pA}{}^{1)} \)	dB(A)	79	78
Noise level \( L_{WA}{}^{2)} \)	dB(A)	95 measured	94 measured
		97 guaranteed	97 guaranteed
\( Vibrations\ a_{vhw}{}^{1)} \)	ms-2	< 2.5	< 2.5

Measuring method according to 1) EN 774 2) directive 2000/14/EC

Safety Instructions on the Casing

Warning!

Read instruction handbook!

Do not use in rain or wet conditions!

If cable is damaged pull the plug from the mains before examining!

EU Certificate of Conformity

The undersigned

GARDENA Manufacturing GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm

hereby certifies that, when leaving our factory, the units indicated below are in accordance with the harmonised EU guidelines, EU standards of safety and product specific standards.

This certificate becomes void if the units are modified without our approval.

Description of the units:

Hedge Trimmers

Types:EHT410/EHT480

Art.No.:2591/2592

EU directives:

Machinery Directive

98/37/EC:1998

2006/42/EC:2006

Electromagnetic Compatibility

2004/108/EC

Low Voltage Directive

2006/95/EC

Directive 93/68/EC

Directive 2000/14/EC

Harmonised

European standards:

EN 774

EN 50144-1 and 2-15

Noise level:

EHT 410 measured 95 dB (A)

guaranteed 97 dB (A)

EHT 480 measured 94 dB (A)

guaranteed 97 dB (A)

Year of CE marking:

1999

Ulm, 11.01.2002

Thomas Heinl

Technical Dept. Manager

GARDENA guarantees this product for 3 years (from date of purchase). This guarantee covers all serious defects of the unit that can be proved to be material or manufacturing faults. Under warranty we will either replace the unit or repair it free of charge if the following conditions apply:

• The unit must have been handled properly and in keeping with the requirements of the operating instructions.
• Neither the purchaser or a non-authorised third party have attempted to repair the unit.

The blade and eccentric drive are wearing parts and are not covered by the guarantee.

This manufacturer's guarantee does not affect the user's existing warranty claims against the dealer/seller.

In case of claim, please return the faulty unit together with a copy of the receipt and a description of the fault, with postage paid to one of the GARDENA Service Centres listed on the back of these operating instructions.
