USER MANUAL 300 GARDENA

GB Operating Instructions

Cylinder Lawnmower

F Mode d'emploi

Tondeuse helicoidale

Welcome to the Garden of GARDENA...

Translation of the original instructions from German.

Please read these operating instructions carefully and observe the notes given. Use these instructions to familiarise yourself with the cylinder lawnmower, its correct use and the notes on safety.

For safety reasons, children under the age of 16 as well as persons not familiar with these operating instructions should not use this cylinder lawnmower.

Contents

Please keep these operating instructions in a safe place.

1. Where to Use Your GARDENA Cylinder Lawnmower 8
2. For Your Safety 8
3. Assembly 9
4. Operation 9
   5.Putting into Storage 10
   6.Maintenance 10
5. Troubleshooting 10
6. Accessories 12
7. Technical Data 12
8. Service 12

1. Where to Use Your GARDENA Cylinder Lawnmower

Correct use:

The GARDENA Cylinder Lawnmower has been designed for cutting lawn and grass areas of private houses.

Compliance with these instructions provided by GARDENA is a prerequisite for using the cylinder lawnmower correctly.

Please note

The cylinder lawnmower may not be used for cutting climbing plants or grass on roofs, due to the danger of bodily harm.

2. For Your Safety

Checks before each operation:

Before use, an inspection is always to be performed In order to determine that all nuts, bolts and working tools are not worn down or damaged. Worn down or damaged blades are to be replaced in sets.

Inspect the surface on which the lawn mower is to be used be-forehand. Stones, pieces of wood and wires as well as other solid matter are to be removed.

Objects, which are contacted by the cutting tools, could be thrown out uncontrollably.

Proper use / Responsibility

WARNING!

Take note that the rotating blade cylinder could cause injuries.

Never place your hands or feet on or under moving parts.

Do not use the lawnmower while people, especially children, or animals are nearby. The operator is liable for damages.

The safety distance between the blade cylinder and the operator that is created by the guiding spar is to be always maintained.

When mowing embankments and slopes, special care must be taken:

Make sure you always keep a safe distance and wear shoes with a non-slip sole.

Always cut diagonally to the slope.

Take special care when moving backwards and when pulling the lawn mower. Danger of stumbling!

If the cutting tools or the lawnmower run into an obstruction and/or solid objects, the lawn mower should be properly and thoroughly inspected.

Only work when visibility is good.

Never leave the lawnmower unattended.

If your work is interrupted, store the mower in a safe place.

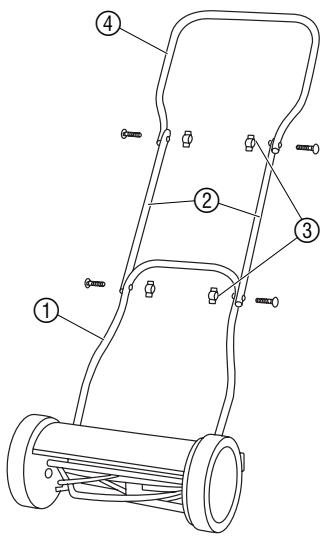

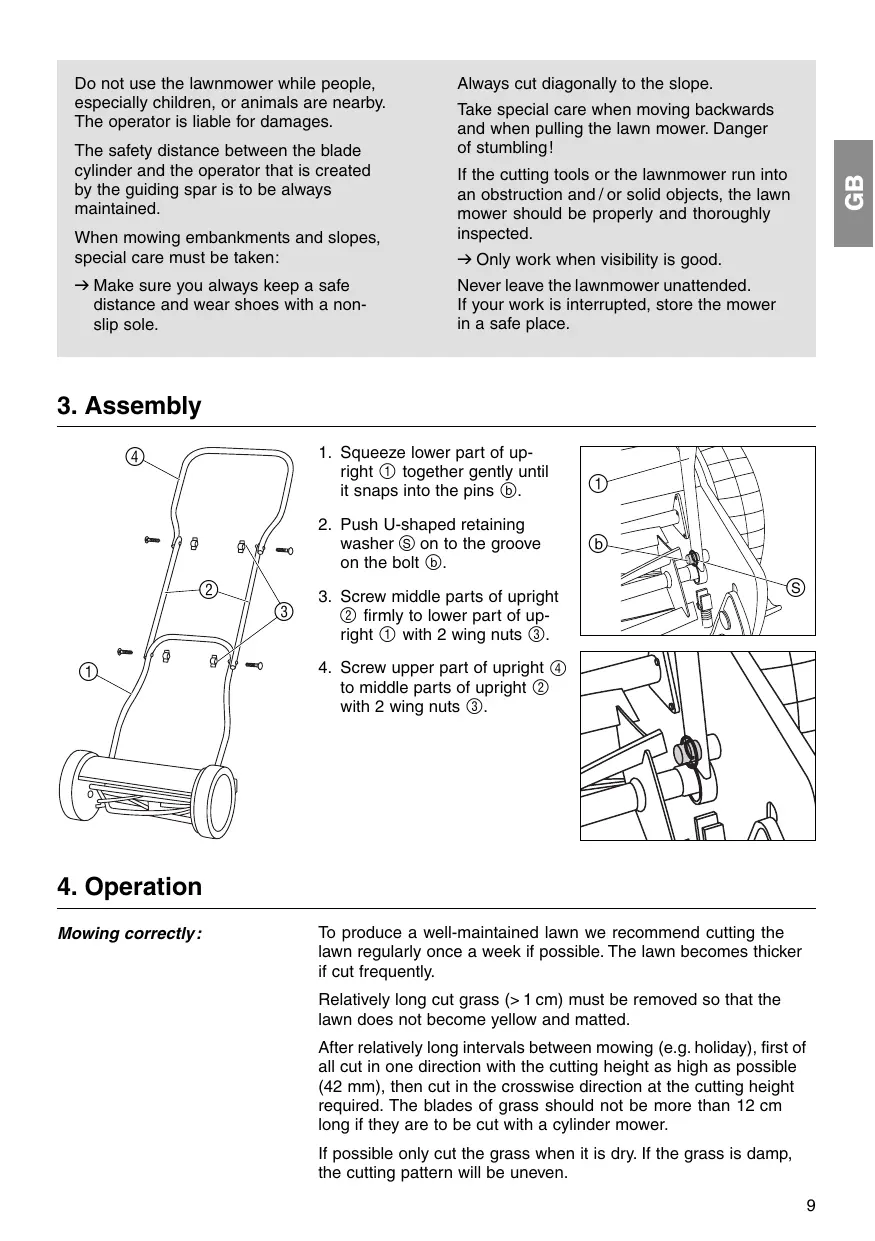

3. Assembly

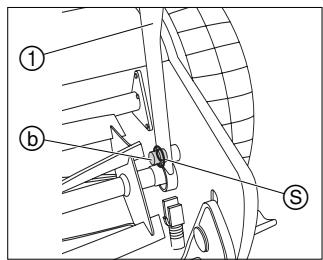

1. Squeeze lower part of upright ① together gently until it snaps into the pins ⑥

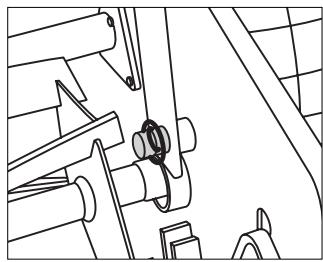

2. Push U-shaped retaining washer ⑤ on to the groove on the bolt ⑥
3. Screw middle parts of upright ② firmly to lower part of upright ① with 2 wing nuts ③
4. Screw upper part of upright ④ to middle parts of upright ② with 2 wing nuts ③.

4. Operation

Mowing correctly:

To produce a well-maintained lawn we recommend cutting the lawn regularly once a week if possible. The lawn becomes thicker if cut frequently.

Relatively long cut grass (>1cm) must be removed so that the lawn does not become yellow and matted.

After relatively long intervals between mowing (e.g. holiday), first of all cut in one direction with the cutting height as high as possible (42 mm), then cut in the crosswise direction at the cutting height required. The blades of grass should not be more than 12 cm long if they are to be cut with a cylinder mower.

If possible only cut the grass when it is dry. If the grass is damp, the cutting pattern will be uneven.

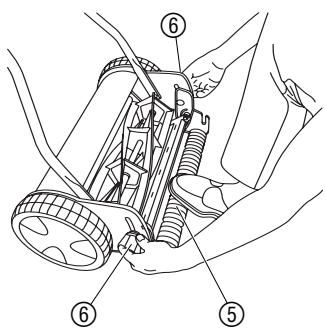

Adjusting the cutting height:

The cutting height can be set to any position between 12mm and 42mm .

1. Stand behind the cylinder mower with one foot on the roller ⑤.
2. Release the two locking screws ⑥ and adjust to the correct height in the inspection window ⑦ .
3. Tighten the two locking screws ⑥ on both sides to the same height.

The locking screws ⑥ must always be set to the same height on both sides.

The mower may only be adjusted to a depth in which the lower blade does not touch the ground when it is uneven.

5. Putting into Storage

Storage:

Clean cylinder mower before storage (see 5. Maintenance) and store in a dry place.

To save space the cylinder mower can be collapsed by opening up the clamping nuts.

6. Maintenance

Cleaning the mower:

DANGER! Cutting mechanism can cause injuries!

Wear suitable work gloves when undertaking maintenance.
WARNING! Damage to cylinder lawnmower.
Never clean your cylinder lawnmower with running water, in particular with water under high pressure.

Always keep the lawnmower clean and remove grass deposits. Deposits affect the cutting result as well as discharge of grass clippings. Residual dirt and grass is easily removed immediately after mowing.

1. Remove grass deposits with a brush and a cloth.
2. Oil the red cutting mechanism lightly with thin oil (e.g. sprayed oil).

7. Troubleshooting

DANGER! Cutting tool can cause injuries!
Wear suitable work gloves when rectifying faults.

Fault	Possible Cause	Rectification
Abnormal Noises	Screws / components loose.	→ Tighten screws.
	Foreign bodies on the blade.	→ Remove foreign bodies.
	Notch in the blade.	→ Remove notches with grindstone.
	Blades are striking each other too hard.	→ Adjust cutting mechanism.
Lawn is not cleanly cut	Blade adjustment incorrect.	→ Adjust cutting mechanism.
	Blade blunt.	→ Regrind or replace blade.
	Grass too long (e.g. after a relatively long absence).	→ Cut lawn shorter with a sickle.

Adjusting the cutting mechanism:

The cutting gear of your lawn mower was optimally adjusted before leaving our company. If, after longer use, a clean cut of the grass is no longer possible or the blade roller contacts the lower blade, then the lower blade should be adjusted as follows:

1. Unhook upright and clean cylinder mower.
2. Check cylinder ⑨ and lower blade ⑩ for notches and remove these with a grindstone if necessary.
3. Unscrew internal hexagon screws with an internal hexagon wrench (5 mm) anticlockwise until the cylinder ⑩ turns freely.

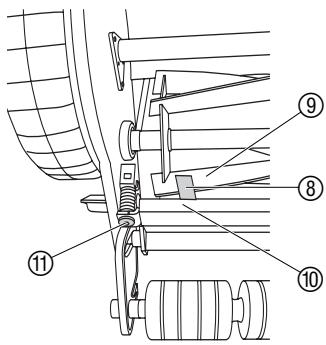

4. Push the feeler gauge supplied (thin strip of metal) ⑧ between one blade ⑨ on the cylinder and the lower blade ⑩.
5. Tighten left internal hexagon screw ① with an internal hexagon wrench (5 mm) until the feeler gauge ⑧ is held gently.
6. Continue turning the cylinder until the blade ⑨ , already adjusted on the left side, is exactly above the lower blade ⑩ on the right side.
7. Tighten the right internal hexagon screw ① with an internal hexagon wrench (5 mm) until the feeler gauge ⑧ is held gently.
8. Rotate cylinder ⑨. If a banging noise is produced during this, open up the internal hexagon screw ⑪ slightly on the side affected. When the cylinder and the lower blade can hardly be heard touching each other, the cutting mechanism has been adjusted correctly.

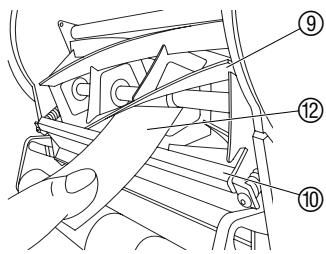

9. Cutting test: Place a strip of paper ② in such a way on the lower blade ⑩ that it points towards the spindle of the cylinder ⑨.
10. Turn cylinder ⑨ carefully. If the lower blade is set correctly ⑩ the paper will be cut off as if with scissors.
11. Repeat the cutting test on the other blades ⑨.

Please contact GARDENA Service if it is necessary to replace the cutting tool, which will only become blunt after several years use if well-maintained. Repairs to the cylinder mower and the installation of the blades can be undertaken by suitable specialist workshops.

Have the cylinder mower checked over in the autumn if possible so that it is ready for use immediately when the next lawn-mowing season starts.

If you have any problem with your cylinder mower, please contact our Customer Service.

8. Accessories

GARDENA Grass collecting bag

Saves raking up the cut grass.

Art. No. 4029

9. Technical Data

	300 (Art. No. 4020)	380 (Art. No. 4023)
Cutting width / Cutting height	30 cm / 12 - 42 mm	38 cm / 12 - 42 mm
Cutting height adjustment	infinitely variable	infinitely variable
Weight	8.0 kg	8.5 kg

10. Warranty

GARDENA guarantees this product for 2 years (starting from the date of purchase). This guarantee covers all serious defects of the unit that can be proved to be material or manufacturing faults. Under warranty we will either replace the unit or repair it free of charge if the following conditions apply:

• The unit must have been handled properly and in keeping with the requirements of the operating instructions.
• Neither the purchaser or a non-authorised third party have attempted to repair the unit.

The wearing parts blade cylinder (complete) and lower blade are excluded from the warranty.

This manufacturer's guarantee does not affect the user's existing warranty claims against the dealer/seller.

If a fault occurs with your Cylinder Lawn Mower, please return the faulty unit together with a copy of the receipt and a description of the fault, with postage paid to one of the GARDENA Service Centres listed on the back of these operating instructions.
