ME330 - Electric lawn mower MOUNTFIELD - Free user manual and instructions

Product Type	Petrol Lawn Mower
Brand	Mountfield
Model	ME330
Engine Power	3.3 kW (4.4 HP)
Engine Displacement	130 cc
Fuel Type	Unleaded Petrol
Cutting Width	33 cm (13 inches)
Cutting Height Adjustment	Central, 5 positions (20-75 mm)
Grass Collection Bag Capacity	40 L
Mulching Capability	Yes, with mulching plug
Drive Type	Self-propelled, rear-wheel drive
Weight	28 kg
Dimensions (L x W x H)	140 x 50 x 100 cm
Sound Level (LWA)	96 dB(A)
Vibration Level	6.5 m/s²
Oil Type	SAE 30 or 10W-30
Oil Capacity	0.5 L
Fuel Tank Capacity	1.0 L
Spindle Type	Steel blade disc
Blade Type	Lift blade, replaceable
Safety Features	Operator presence control, blade brake
Maintenance Intervals	Oil change every 25 hours, air filter cleaning every 10 hours
Warranty	2 years limited

Frequently Asked Questions - ME330 MOUNTFIELD

What type of oil should I use for the Mountfield ME330?

Use a high-quality SAE 30 or 10W-30 engine oil. The oil capacity is approximately 0.5 L. Always check the dipstick and avoid overfilling.

How do I start the Mountfield ME330 lawn mower?

Ensure the fuel tank is filled with unleaded petrol and the oil level is correct. Set the throttle to 'start', engage the blade brake control, pull the starter rope firmly. After starting, release the brake slowly.

Why is my Mountfield ME330 not picking up grass properly?

Check if the grass bag is full or the discharge chute is blocked. Also ensure the blade is sharp and the cutting height is appropriate for the grass length. For wet grass, consider mulching.

How often should I sharpen the blade on the ME330?

Sharpen the blade at least once per season or every 25 hours of use. A dull blade tears grass, leading to discolouration. Remove the blade, grind it evenly, and balance it before reinstallation.

What is the cutting width of the Mountfield ME330?

The cutting width is 33 cm (13 inches), which is ideal for small to medium-sized lawns.

Can I mulch with the Mountfield ME330?

Yes, the ME330 supports mulching. Use the mulching plug (included) to close the discharge chute. Mulching returns fine grass clippings to the lawn as natural fertilizer.

How do I adjust the cutting height on the ME330?

The cutting height is adjusted centrally using a single lever. There are 5 positions ranging from 20 mm to 75 mm. Choose a higher setting for rough terrain and lower for fine lawns.

What safety features does the Mountfield ME330 have?

The mower includes an operator presence control that stops the blade if the handle is released, and a blade brake that halts the blade within 3 seconds. Always keep hands and feet away from the cutting deck.

How do I clean the Mountfield ME330 after use?

Turn off the engine and disconnect the spark plug. Use a hose or brush to remove grass clippings from the deck, but avoid directing water at the engine or air filter. Dry before storage.

Where can I find spare parts for the Mountfield ME330?

Spare parts are available from Mountfield dealers or online retailers. Common replacements include blades, air filters, spark plugs, and belts. Always use genuine parts for safety and compatibility.

USER MANUAL ME330 MOUNTFIELD

Please Read These Instructions Before Using Your Mower

Mountfield

Operating Instructions

for models ME330, ME370 Electric Lawnmowers

Product Codes:

297330068

297370068

Do not return this product to store, please call the Service Link Helpline.

Supported by

For all your Warranty,

Parts and Service needs

0800 121 6585

www.servicelink.org.uk

EN ENGLISH (Original instructions)

• Safety precautions....3
• Know your mower ....4
• How to start mowing 6
• Maintenance....9
• Fault Finding ....9

GUARANTEE 11

Thank you for purchasing a Mountfield lawnmower. This machine will give you many years of safe and reliable service if operated in accordance with these instructions. Please read and understand these operating instructions before using your mower. Failure to do so could result in personal injury or damage to the equipment.

SAFETY PRECAUTIONS

Your lawnmower should be used with due care and attention. Symbols have therefore been placed on various parts of the machine to remind you of the main precautions to be taken. Their meaning is explained below. You are also asked to carefully read the safety regulations in the applicable chapter of this handbook

1. Warning: Read the instruction manual before using the machine.
2. Beware of thrown objects: Keep other people at a safe distance whilst working.
3. Beware of cutting: Moving blades. Do not put hands or feet near the blades. Disconnect from the mains supply before carrying out any repairs or maintenance.

DESCRIPTION OF SYMBOLS ON CONTROLS (where applicable)

1. Grass catcher content indicator up (a) = empty / down (b) = full

Maximum noise and vibration levels		ME330 ME370
Acoustic pressure level	dB(A)	75	76
- Measurement uncertainty	dB(A)	3	3
Measured acoustic power level	dB(A)	86	89,7
- Measurement uncertainty	dB(A)	0,45	0,58
Guaranteed acoustic power level	dB(A) 87 91
Vibrationlevel	m/s2	1,45	2,3
- Measurement uncertainty	m/s2	0,64	0,7

IDENTIFICATION LABEL

1. Sound power level
2. Conformity marking
3. Month / Year of manufacture
4. Type of machine
5. Serial number
6. Name and address of Manufacturer
7. Article code
8. Motor nominal power and maximum operating speed
9. Weight in kg
10. Power voltage and frequency
11. Electrical protection rating

As soon as you have purchased the machine, do not forget to write the identification numbers (3-4-5-7) in the spaces on the last page of the manual.

KNOW YOUR MOWER

The following safety precautions must be observed at all times. Please read them carefully.

TRAINING

1) Read the instructions carefully. Get familiar with the controls and proper use of the equipment. Learn how to stop the motor quickly.
2) Only use the lawnmower for the purpose for which it was designed, i.e. for cutting and collecting grass. Any other use can be hazardous, causing damage to the machine. Examples of improper use may include, but are not limited to:

• transport of people, children or animals on the machine
  – being transported by the machine
• using the machine to tow or push loads
  – using the machine for leaf or debris collection
  – using the machine to trim hedges, or for cutting vegetation other than grass
  – use of the machine by more than one person
  – using the blade on surfaces other than grass

3) Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations may restrict the age of the operator.
4) Never use the lawnmower:

- When people, especially children, or pets are nearby

– If the operator has taken medicine or substances that can affect his ability to react and concentrate

5) Remember that the operator or user is responsible for accidents or hazards occurring to other people or their property.

PRELIMINARY OPERATIONS

1) Whilst mowing, always wear sturdy footwear and long trousers. Do not operate the lawnmower when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or has hanging cords or ties.
2) Thoroughly inspect the entire work area and remove anything that could be thrown by the machine or damage the cutting unit or motor (stones, branches, iron wire, bones, etc.).
3) Before use, always inspect generally and in particular to see that the blade, screws and cutting unit are not worn or damaged. Replace damaged or worn blades and screws in their entirety to preserve balance. Replace damaged or unreadable labels.
4) Before use check the supply and extension cord for signs of damage or ageing. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the machine if the cord is damaged or worn.

OPERATION

1) Mow only in daylight or good artificial light.
2) Avoid mowing wet grass or when it is raining.
3) Make sure you have a steady foothold on slopes.
4) Never run, always walk; do not let the lawnmower pull you.
5) Always mow transversely on slopes and never up and down.
6) Be extremely carefully when changing directions on slopes.
7) Never mow on overly steep slopes.
8) Be extremely careful when pulling the lawnmower towards you.
9) Immobilise the blade if the lawnmower must be inclined for transport, when moving over surfaces other than grass and when the lawnmower is transported from or to an area that must be cut.
10) Never operate the lawnmower with damaged guards or without the grass collector or discharge guards.
11) Start up the motor carefully according to the instructions, keeping feet away from the blade.
12) Do not incline the lawnmower when starting the motor, unless necessary for start up. In this event, do not incline it more than is absolutely necessary and only lift the part that is far from the operator. Always ensure that both hands are in the working position before lowering the lawnmower again.
13) Do not start the machine when standing in front of the discharge opening.
14) Never place your hands and feet near or under rotating parts. Keep away from the discharge opening.
15) Do not lift or transport the lawnmower when the motor is running.
16) Stop the machine and remove plug from the socket. Make sure that all moving parts have come to a complete stop:

• when transporting the machine;
• whenever you leave the machine;
  – before clearing blockages or unclogging the chute;

– before checking, cleaning or working on the machine;
- after striking a foreign object. Inspect the machine for damage and make repairs before restarting and operating the machine;

If the machine starts to vibrate abnormally (check immediately):

• inspect for damage;
  – replace or repair any damaged parts at a Mountfield authorised service dealer;
  – check for and tighten any loose parts.

17) Stop the motor:

• whenever you remove or reattach the grass collector;
  – whenever you adjust the cutting height.

18) When mowing, always keep a safe distance from the rotary blade, given by the length of the handle.

19) WARNING - If something breaks or an accident occurs during mowing, turn off the motor immediately and move the machine away to prevent further damage; if an accident occurs with injuries or third parties are injured, carry out the first aid measures most suitable for the situation immediately and contact the medical authorities for any necessary health care. Carefully remove any debris that might cause damage or harm to persons or animals should it not be seen.

MAINTENANCE AND STORAGE

1) Keep all nuts and screws tight to be sure the machine is always in a safe working condition. Routine maintenance is essential for safety and for maintaining a high performance level.
2) Check the discharge guards and the grass collector frequently for wear or deterioration.
3) Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.
4) Always allow the machine to cool down before storing.
5) When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved.
6) For safety reasons, never use the machine when it has worn or damaged parts. Parts must be replaced and not repaired. Use original spare parts. Parts that are not of the same quality can damage the equipment and impair your safety.
7) To reduce fire hazards, keep the lawnmower and in particular, the motor, free of grass, leaves, or excessive grease. Never leave containers with cut grass inside a storage area.

TRANSPORTATION AND HANDLING

1) Whenever the machine is to be handled, raised, transported or tilted you must:

- wear strong working gloves.

– grasp the machine at the points that offer a safe grip, taking account of the weight and its distribution.

– use an appropriate number of people for the weight of the machine and the characteristics of the vehicle or the place where it is to be placed or collected.

2) During transport, fasten the machine securely with ropes or chains.

HOW TO START MOWING

Carefully remove the mower from the carton and read these Operating Instructions. An Owner's Manual for the engine is also included. Please read this before starting the engine.

WARNING - Unpacking and completing the assembly should be done on a flat and stable surface, with enough space for handling the machine and its packaging, always making use of any suitable equipment.

Disposal of the packaging should be done in accordance with the local regulations in force.

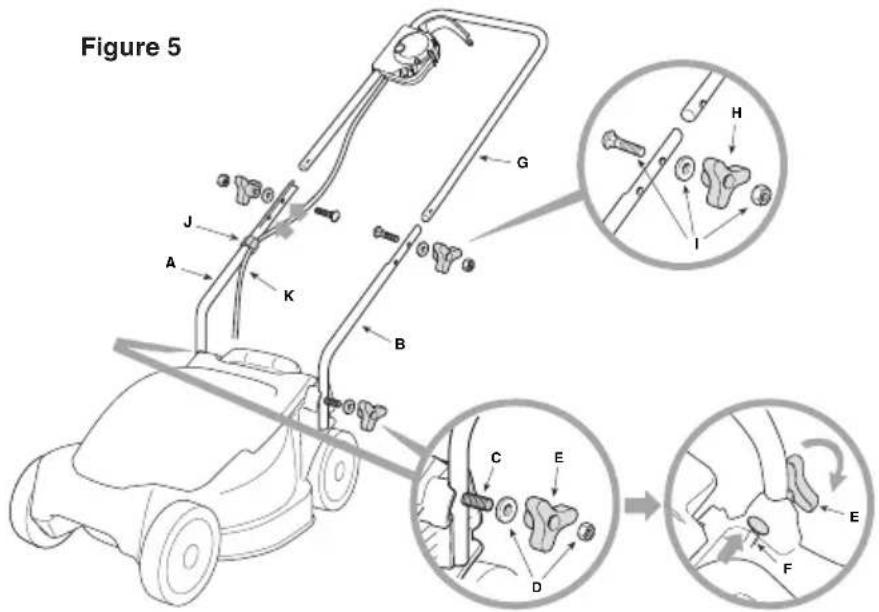

HANDLE ASSEMBLY

• Assemble the lower right (Fig.5.A) and left (Fig.5.B) parts of the handle onto the screws (Fig.5.C) protruding from the chassis.
• Fasten the knobs (Fig.5.E) using the supplied nuts and bolts (Fig.5.D).
• Tighten the knobs until the plastic piece holding the screw in position snaps (Fig.5.F).
• Fasten the top of the handle (Fig.5.G) to the bottom parts using the knobs (Fig.5.H) and the supplied nuts and bolts (Fig.5.I) as shown, using one of the two holes provided for adjusting the height of the handle to the operator's stature.
• Fit the cable clamp (Fig.5.J) in the indicated position and clamp the cable (Fig.5.K) holding it in place along the inside of the machine.

GRASS COLLECTOR

• Fit the cloth base by fastening the plastic bars onto the frame (it may help to use a screwdriver as shown in the drawing) and hook the handle in place (Figure 6).
  • To fit the grass collector onto the mower, lift the rear safety deflector flap and hook the collector onto the pegs.

Figure 6

STARTING YOUR MOWER

Read and understand the Safety Precautions before using your mower.

- The motor is controlled by a dual-action switch to prevent accidental start ups. Press the button (A) and pull the lever (B) for start up. The motor will automatically stop when the lever (B) is released (Figure 7).

• Whilst mowing, make sure the electric cable is always behind you and on the side of the lawn that has already been cut. The appearance of the lawn will improve if you alternate cutting in both directions at the same height.
• When the grass collector is too full, grass collection is no longer efficient and the sound of the lawnmower changes.

To remove and empty the grass collector,

• release the switch lever and wait for the blade to stop;
• lift the rear discharge guard, grasp the handle and remove the grass collector keeping it in a tilted position.

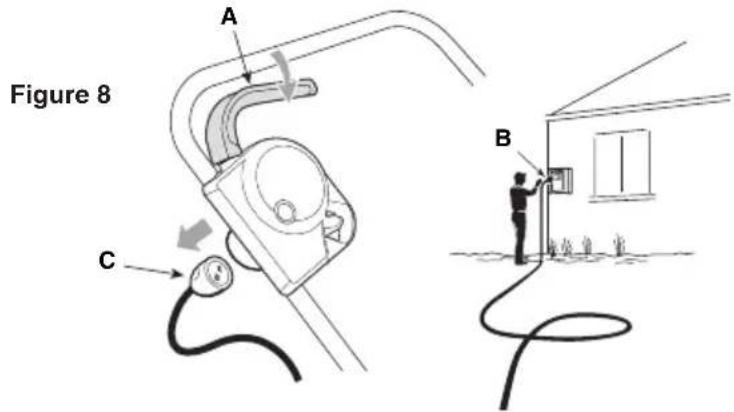

STOPPING YOUR MOWER (Figure 8)

• When finished mowing, release the lever (A).
• Disconnect the extension cable FIRST from the general socket (B) THEN from the side of the lawnmower switch (C).

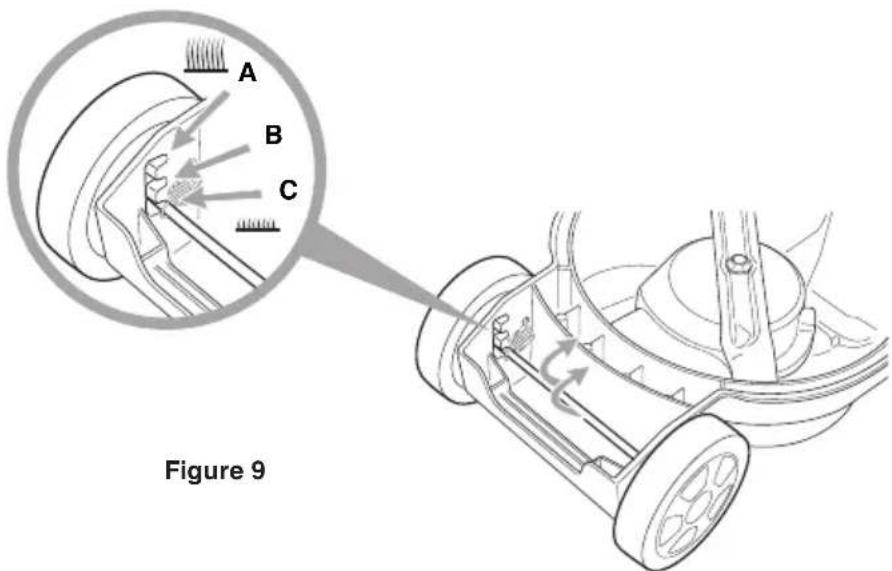

ADJUSTING THE HEIGHT OF CUT

Lower or raise the chassis to cut the grass at different heights.

Do this when the cutting blade is stationary.

To adjust the cutting height:

1. Tilt the machine on one side.
2. Use both hands to position the wheel axle in one of the grooves on the inside of the chassis.
3. The height must be the same for both axes.

Do not tilt the wheel axle during this operation, so that it slots simultaneously one of the grooves provided.

A. Ground position: The cutting height is in the highest position (Fig.9.A).
B. Intermediate position: The cutting height is in the intermediate position (Fig.9.B).
C. High position: The cutting height is in the lowest position (Fig.9.C).

MAINTENANCE

BEFORE EACH USE

• Always ensure that the mower is in a safe working condition.
- Inspect the cutter blade for damage; check safety devices and guards; check that all nuts, bolts and screws are secure.
• Always make sure the air intakes are free of debris.

CUTTER BLADE

Examine the cutter blade regularly for wear or damage.

• A slightly worn blade can be re-sharpened by your local authorised Mountfield service dealer.
• If the blade is damaged it should be replaced. Replacement blade kits are available from your local authorised Mountfield service dealer.

If in doubt refer to your local authorised Mountfield service dealer, or telephone [phone].

STORAGE

A little time spent on your mower after use will ensure many years of reliable mowing.

To access the underside of the cutter deck, ensure that the mower is disconnected from the mains supply. Lift the front wheels by lowering the handle until it rests on the ground.

AFTER EACH USE

• Remove any grass pulp from the underside of the cutter deck using a non-metallic instrument such as a piece of wood. Take care not to damage the paintwork.
• Examine the cutter blade for any damage. A damaged blade may upset the balance of your mower and cause excessive vibration. If in doubt refer to your authorised Mountfield service dealer.
• Inspect the grass collector and clean it if necessary. If the mesh becomes clogged airflow will be reduced and impair grass collection.

STORAGE

When the machine is to be stored away:

• Wait for the motor to cool.
• Clean the machine thoroughly.
• Check the machine for any damage. If necessary, contact the authorised Mountfield service dealer.

Store the machine:

• In a dry place.
  • Protected from inclement weather.
  • Covered with a sheet where possible.
  • In a place where children cannot get to it.

- Making sure that keys or tools used for maintenance are removed.

FAULT FINDING

PROBLEM PROBABLE CAUSE SOLUTION
The electric lawnmower doesn't work T	The machine has no power supply Check the electrical connection
The electric lawnmower trips the power supply.	The mains socket amperage is insufficient	Connect the machine to a mains socket with sufficient amperage
	Other electrical appliances are being used	Do not connect other appliances to the same mains socket at the same time
The cut grass is not collected in the grass collector	The cutting blade has collided with a foreign object and received a knock	Check for damage and contact an authorised Mountfield service dealer for the replacement of the cutting blade if necessary
	The inside of the chassis is dirty Clean the inside of the chassis to ease the grass discharge towards the grass collector
Irregular grass cutting	The cutting blade is not in good condition	Contact an authorised Mountfield service dealer for the sharpening or replacement of the cutting blade
Excessive noise and/or vibration is experienced whilst working	Damaged or loose parts Stop the m	machine and disconnect the plug from the socket. Inspect for damage. Check for and tighten any loose parts. Have all checks, repair work and replacements carried out by an authorised Mountfield service dealer
	Cutting blade fittings are loose or the cutting blade is damaged	Stop the machine and disconnect the plug from the socket, Contact an authorised Mountfield service dealer for checks, replacements or repairs

This product is supported by Service Link. If you have been unable to find the information you require above please call the Service Link helpline. Here you will find 1-2-1 help and advice from garden machinery repair specialists.

Service link

What is Service Link? Service Link is an aftersales help and advice helpline with a national network of gardenmachinery repair specialists.
How can we help you? Here at Service Link we can help with all your trouble shooting, warranty, parts and service needs. Call us and speak to one of our advisors and if required, visible of our 450 centres across the UK and Ireland.
How can you contact us? If in the unlikely event that this product does require our help please visit the Service Link website at www.servicelink.org.uk or alternatively contact the helpline on 0800 121 6585 in the UK or 1800806149 in ROI.

CERTIFICATE OF CONFORMITY

A certificate of conformity is enclosed with the documentation as separate document. An EXAMPLE is here on the bottom.

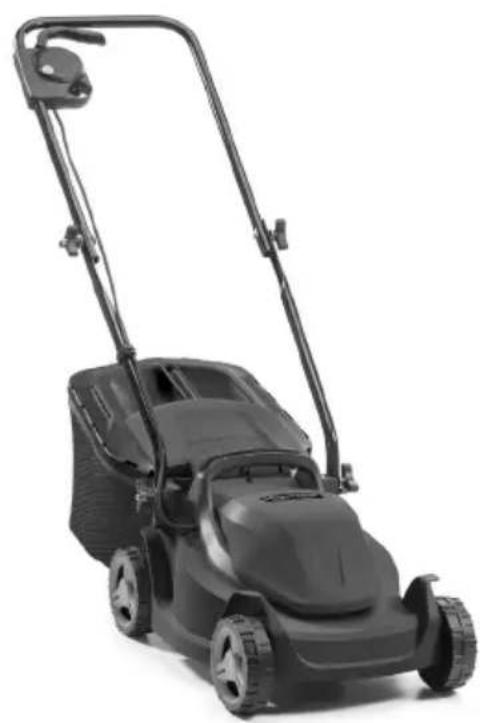

Congratulations on the purchase of your Mountfield lawnmower. This product has been manufactured to the highest quality standards and is guaranteed for domestic use against faulty parts or manufacture for a period of 12 months. Please note that if the machine is used commercially the guarantee period is 90 days from the date of purchase. If you experience any problem with your Mountfield lawnmower please call our technical helpline on 0800 121 6585 and our operators will endeavour to solve your problem. In the event your problem cannot be resolved over the phone the operator will refer you to one of our local authorised service dealers.

This warranty is subject to the following terms;

• This warranty is not transferable. An original proof of purchase will be required in the event of a claim.
• Please phone [phone] to locate your nearest Mountfield service dealer or visit www.servicelink.org.uk. Parts subject to fair wear and tear (for example wheels, cables, blade) are not covered under this warranty.
• Delivery and collection of the machine is your responsibility and not covered under this warranty.
• The warranty does not cover any breakages or damage that are a result of the following; misuse, alteration, improper assembly or adjustment, neglect or accident.
• Expenses and costs incurred from loss of utility will not be compensated.
• The warranty does not cover machines that are transported outside of the UK & Eire.

This warranty is in addition to and does not detract from your contractual rights under statute or common law.

On delivery of your new Mountfield mower, we suggest that you complete the box to the right.

The information for your machine is on the serial number label, which is fixed on the cutter deck at the base of the handles. You will be asked for these details if you have any problems or require spare parts.

Please keep your receipt, proof of purchase will be required in the event of a claim.

STIGA LTD Unit 8, Bluewater Estate, Bell Close, Plympton, Plymouth, Devon, PL7 4JH, England.

Manufactured by ST. S.p.A. Via del Lavoro, 6 I-31033 Castelfranco Veneto (TV) Italy
