IMPORTANT NOTES AND WARNINGSCONTINUES ...

before use and at least annually serviced & inspected by a qualified & licenced service person.

• Do not perform maintenance until heater has been turned off, power disconnected, and heater temperature has cooled to room temperature.
• Check for damage to the appliance regularly. If damage to the appliance is suspected, discontinue use immediately and contact the supplier or qualified person to repair.
• If the supply cord is damaged, it must be replaced by anauthorised and licenced person in order to avoid a hazard.
• At the end of this product's useful life, it must not be disposed of as domestic waste, but must be taken to a collection centre for waste electrical and electronic equipment. It is the user's responsibility to dispose of this appliance through the appropriate channels at the end of its useful life. Failure to do so may incur the penalties established by laws governing waste

disposal. Proper differential collection, and the subsequent recycling, processing and environmentally compatible disposal of waste equipment avoids unnecessary damage to the environment and possible related health risks, and also promotes recycling of the materials used in the appliance. For further information on waste collection and disposal, contact your local waste disposal service, or the place of purchase.

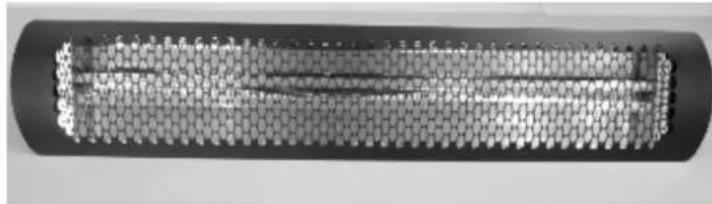

PRODUCT OVERVIEW

Model 2000W 30	00W 4000W	4000W 6000W	6000W
Part no.	BH0420002	BH0420003	BH0420004	BH0420034	BH0420005	BH0420035
No. of Elements	Single element	Single element	Double element	Double element	Double element	Double element
Bracket Length	6.5"	6.5"	9.5"	9.5"	9.5"	9.5"
Heat Output (Watts)	1.8 - 2.0kW	2.8 - 3.0kW	3.4 - 3.9kW	3.4 - 3.9kW	5.4 - 5.9kW	5.4 - 5.9kW
Heating Area*	up to 64ft 2	up to 100ft 2	up to 120ft 2	up to 120ft 2	up to 144ft 2	up to 144ft 2
Power connection required (Volts/Amps)	230-240V - a.c. - 50/60Hz/8.3 A	230-240V - a.c. - 50/60Hz/12.5 A	230-240V - a.c. - 50/60Hz/16.6 A	- 50/60Hz/18.75 A	230-240V - a.c. - 50/60Hz/25 A	- 50/60Hz/28.4 A
Dimension (WxDxHmm)	44" x 8.5" x 3.5"	56" x 8.5" x 3.5"	44" x 8.5" x 3.5"	44" x 8.5" x 3.5"	56" x 8.5" x 3.5"	56" x 8.5" x 3.5"
Weight (kg)	19.8lbs	22lbs	19.8lbs	19.8lbs	22lbs	22lbs
Finish	Black High Temperature Coating

*Heating areas are based on protected environment with mounting height of 96"(8'). For unprotected and extremely cold and windy environments heating areas can be less. Please contact Bromic Heating for further advice.

PRODUCT FEATURES

• The Tungsten Smart-Heat Electric heaters are designed to provide efficient spot heating for commercial and residential applications.
• Suitable for indoor and outdoor heating applications such as restaurants, cafes, bars and clubs, factories, office spaces, designated smoking areas, public areas, hotels and more.
• The heaters are available in 2000W, 3000W, 4000W and 6000W models to suit a range of environments.
  • High temperature corrosion-resistant coating.

• IPX4 water ingress protection rating.
- Soft glow infrared heating element - No harsh glare.
- Wall and ceiling mounting brackets allowing adjustable angle of the heating direction.
- Heater is equipped with spectral reflector for excellent radiant heat output.
• Patent Pending & Registered Design

① Mounting Hole Centres & Heater Position
2000W & 4000 Models

3000W & 6000 Models

① Mounting Hole Centres & Heater Position

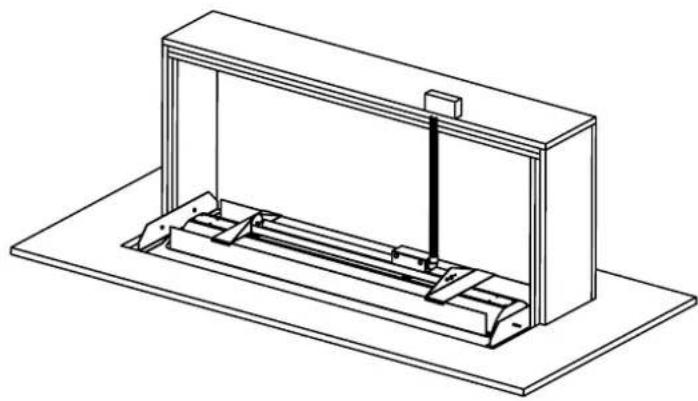

CEILING RECESS KIT (SOLD SEPARATELY)

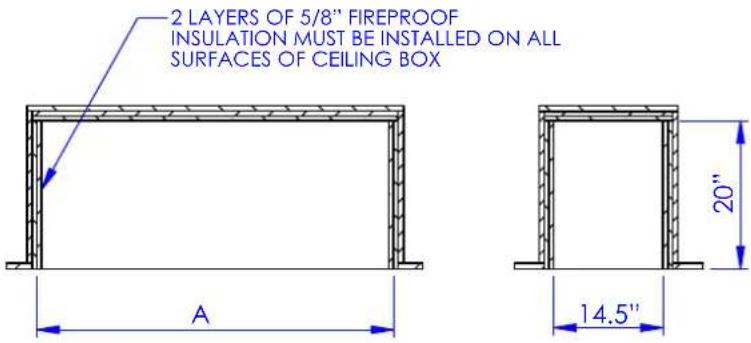

1. Prepare ceiling cut out & ceiling box. Minimum ceiling box dimensions must be as shown in table. Heater must be installed with heater surface at least 2400mm above the floor level.

MODEL	DIMENSION "A"
2000W & 4000W	46"
3000W & 6000W	57.5"

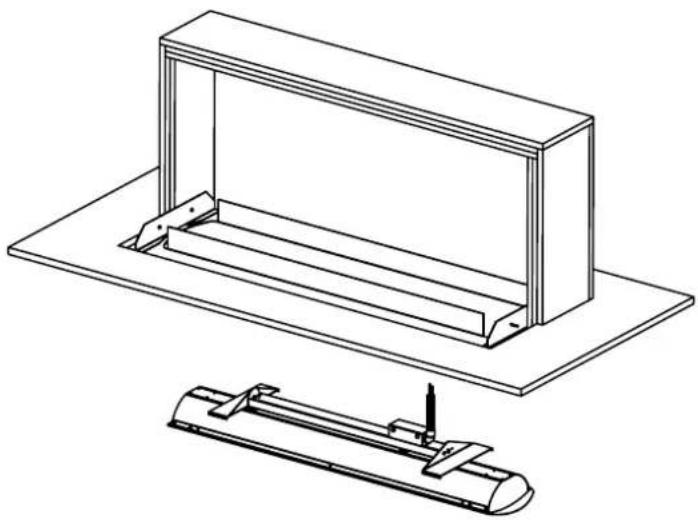

1. From below, bring ceiling frame up and into ceiling cut out.

2. Fasten ceiling frame to ceiling box through mounting holes with fasteners (not supplied).

3. Prepare heater for installation. Attach mounting brackets to both ends of heater with supplied fasteners.

HEATER INSTALLATION CONTINUED...

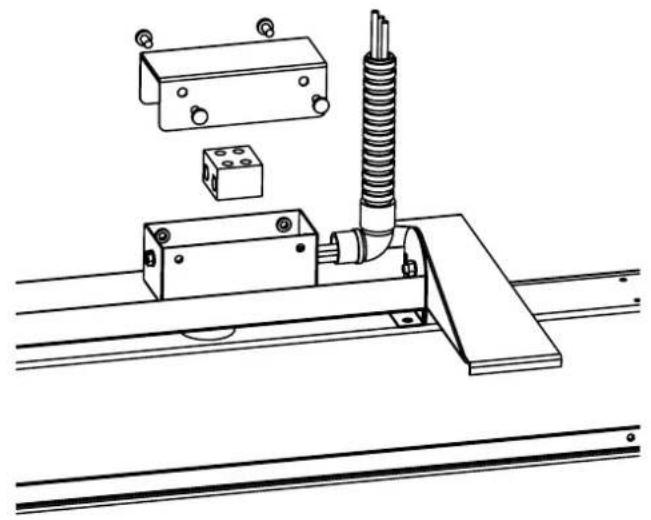

1. Assemble supplied terminal blocks, wire, conduit & junction box cover.

The Ceiling Recess Kit is supplied with 5 wires & 2 terminal blocks. Not all parts are required for all installations.

See wiring diagrams for installation options.

For double element heater models the elements can be wired to be turned on independently or together.

1. Raise one side of heater up into the ceiling box & then raise whole heater into cavity.

1. Rotate the heater into horizontal position in the ceiling box & then lower down onto the ceiling frame.

2. Ensure all four side mounting brackets are hooked over the ceiling frame & centre the heater inside the frame.

3. Make electrical connection from heater to power supply as per electrical installation instructions in this manual. Connection to be made outside the ceiling box on the side or top of the ceiling box.

WIRING DIAGRAM

TUNGSTEN SMART-HEAT ELECTRIC

STANDARD INSTALLATION

2000W & 3000W MODELS*

WARNING

AC Single Phase Heater must be permanently installed and hard wired by an authorised/licenced person.

WIRING DIAGRAM

TUNGSTEN SMART-HEAT ELECTRIC STANDARD INSTALLATION 4000W & 6000W MODELS*

WARNING

AC Single Phase Heater must be permanently installed and hard wired by an authorised/licenced person.

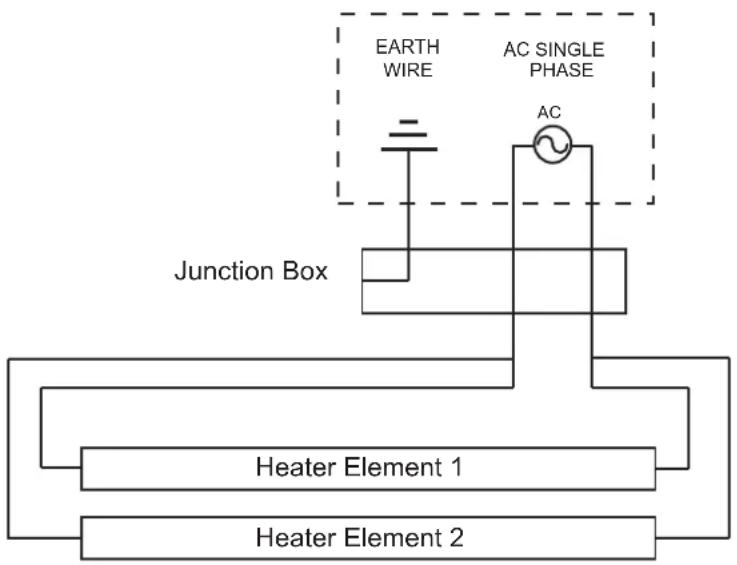

WIRING DIAGRAM

TUNGSTEN SMART-HEAT ELECTRIC OPTIONAL INSTALLATION 4000W & 6000W MODELS*

WARNING

AC Single Phase Heater must be permanently installed and hard wired by an authorised/licenced person.

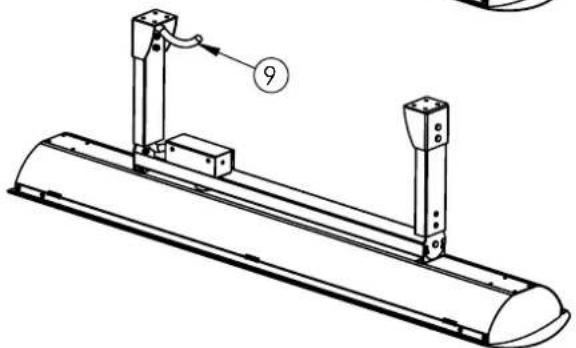

REPLACEMENT PART LIST

		(2000W)	(3000W)	(4000W)	BH0420034(4000W)	(6000W)	BH0420035(6000W)

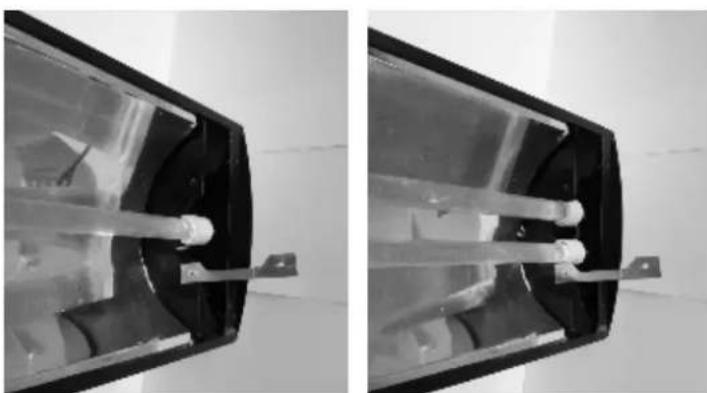

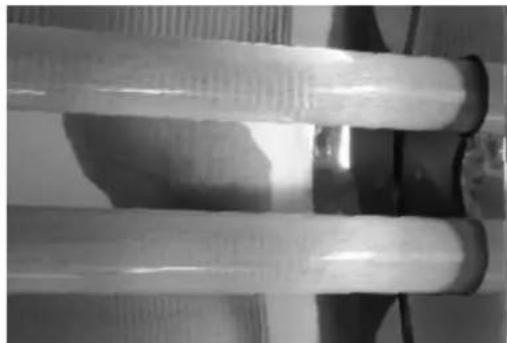

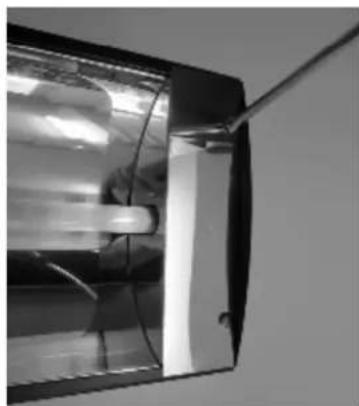

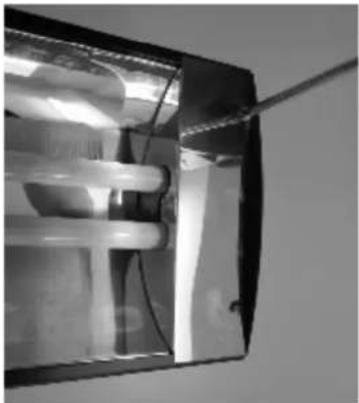

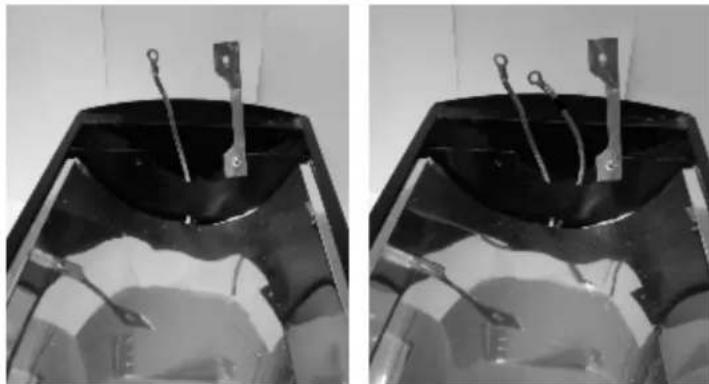

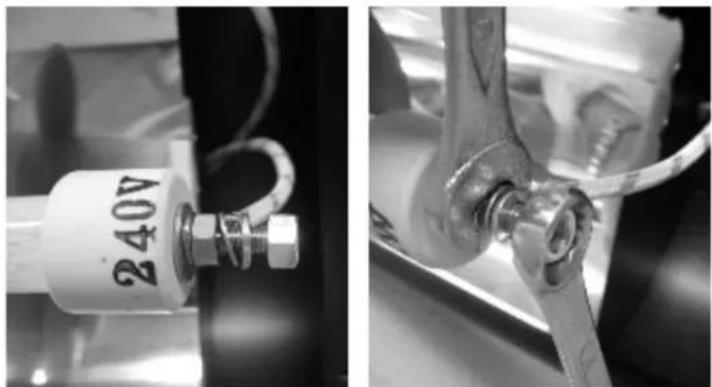

1 Tube	Element BH8180001 BH8180002	BH8180001 BH8180001	BH817 BH8180002	BH8180016
2 Front	Cover BH8180003 BH8180004 BH8180003	BH8180003 BH8180003	BH8180004 BH8180004
3 Element	End Cover Set BH8180005 BH8180006	BH8180005 BH8180006	BH8180005 BH8180006
4 Junction	Box Cover & Seal Set BH8180007	BH8180007 BH8180007	BH8180007 BH8180007	BH8180007 BH8180007
5 Mounting Bracket Set (Short) BH8180008	BH8180008 BH8180008	BH8180008 BH8180008	BH8180008 BH8180008	BH8180008 BH8180008
6 Mounting Bracket Set (Long) BH8180009	BH8180009 BH8180009	BH8180009 BH8180009	BH8180009 BH8180009	BH8180009 BH8180009
7	Ceiling Recess Kit	BH8180010	BH8180011	BH8180010	BH8180010	BH8180011	BH8180011
8	Tube Suspension Kit	BH8180012	BH8180012	BH8180012	BH8180012	BH8180012	BH8180012
9	Chain Suspension Kit	BH8180013	BH8180013	BH8180013	BH8180013	BH8180013	BH8180013

TROUBLESHOOTING

SYMPTOM	POSSIBLE CAUSE (S)	CORRECTIVE ACTION
Element does not energize	1. Defective element2. Improper connection	1. Replace element2. Check connection to power outlet
Not enough heat	1. Heater too small for application2. Heater mounted too high or too far3. Incorrect voltage connected to heater	1. Add additional heater(s)2. Decrease mounting height or distance3. Check correct supply voltage is provided
Too much heat	1. Heater too large for application2. Heater mount too low or too close3. Incorrect voltage connected to heater	1. Replace with smaller heater2. Increase mounting height or distance3. Check correct supply voltage is provided
Hot spot in Tube	1. Heater is not level2. Grease or moisture on tube	1. Adjust to level mount2. Clear tube-replace if problem persists
