USER MANUAL E905 SENNHEISER
ENGLISH High-quality dynamic microphone with cardioid pick-up pattern. The 905 has been specially developed for snare drum miking but is also suitable for use with percussion instruments and toms. Due to its compact design, the microphone is easy to position. Features y Rich, powerful sound y Hum compensating coil protects against electromagnetic interference y Shock-mounted capsule y Compact design y Extremely rugged sound inlet basket, replaceable y Gold-plated XLR connector y Integral stand mount Delivery includes 905 microphone Pouch Instructions for use Warranty Certificate
Pin assignment of XLR-3 connector

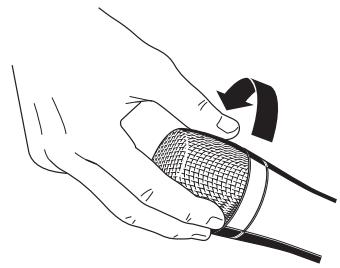

balanced symmetrisch Removing the sound inlet basket
6,3 mm Positioning the microphone Snare drums, drums and percussion instruments Position Resulting sound Commentary more fundamental tone, little overtones Position on the drum: 3 – 5 cm above the drumhead and directed towards the center of the drumhead, the fundamental tone to overtones ratio can be adjusted via the angle. less fundamental tone, many overtones Snare pick-up using two microphones Position Commentary Use of a second microphone for picking up the bottom of the drumhead. If necessary, activate phase reversing for one of the microphones. In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 135°).

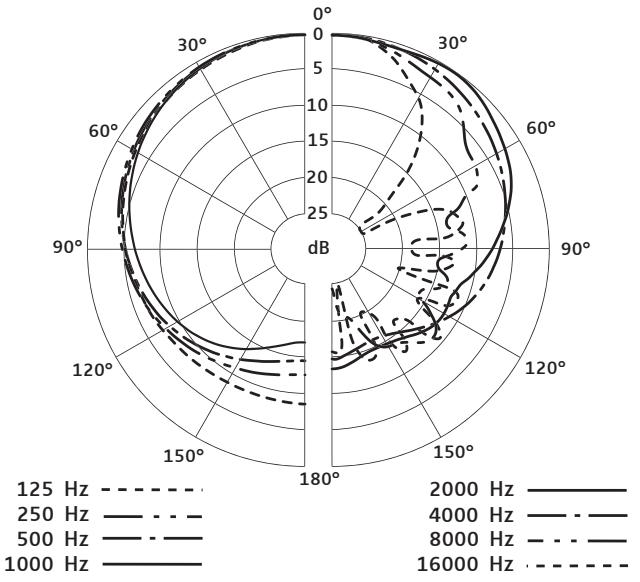

90° 120° 120° 150° 150°

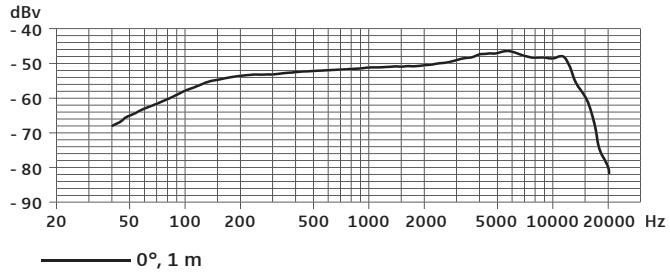

Frequency response curve dBv
5000 10000 20000 Hz Accessories The following accessories are available for the 905: Microphone clamp MZH 604 (Cat. No. 05299) Specifications Transducer principle Frequency response Pick-up pattern Sensitivity (free field, no load) Nominal impedance (at 1 kHz) Min. terminating impedance Connector Weight Dimensions dynamic 40 − 18,000 Hz cardioid
2.6 mV/Pa (at 1 kHz)
350 Ω 1 kΩ XLR-3 210 g diam.: 41 mm, length: 116 mm
Choirs Studio, acoustic instruments
Cymbals Percussion Overheads
e945 Vocals e935 e914 e908D e908B e906 e905 e904 Application e902 Variant e901 Overview of microphone applications
Cymbale Percussions Overhead
e945 Chant e935 e914 e908D e908B e906 e905 e904 Application e902 Modèle e901 Kick Drum (tamburo a cornice)
Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 08/04 94257/A01
