USER MANUAL E845 S SENNHEISER
Thank you for buying this Sennheiser Evolution microphone. We wish you much satisfaction and enjoyment from its use.
Made from the highest quality materials and components, this has been manufactured to the same exacting standards that have become the hallmark of SENNHEISER products over the last fifty years and made them reference equipment for broadcast, studio and stage, the world over.

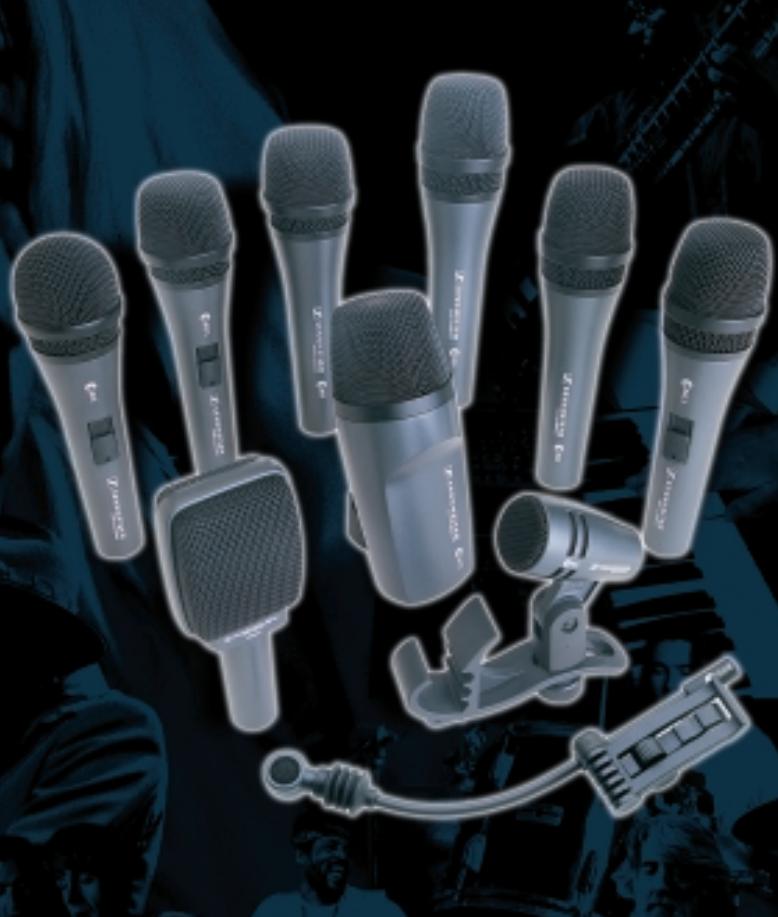

The family of ten Evolution mics shown opposite cover every vocal and instrument application and provide you with the most comprehensive range to select from, whatever your requirement.
Amazing SPL in excess of 150 dB on all models
Outstanding feedback rejection.
e Advanced shock-mount design minimises handling noise.
Rugged road-proof construction.
e Designed and made in Germany.
...and they sound great!
Evolution The Microphone Series

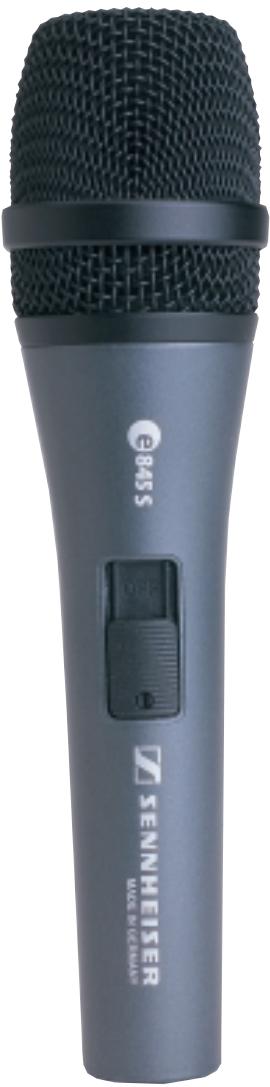

845 S/845
High quality, powerful performance, vocal mic.
Extended high frequency response and super-cardioid pick-up pattern for higher signal output, cuts through high on-stage sound levels. Smooth warm tonal response and full dynamic range, with presence lift for vocal clarity and projection. Consistent on/off axis and proximity response maintains sound quality with moving, providing greater on-stage freedom.
Full metal construction and extensive suspension and shock-mounting minimises handling noise and signal interference. High output performance microphone, offering power, clarity and projection.
Also available without ON/OFF switch. (C835).
Connection
On/Off Switch

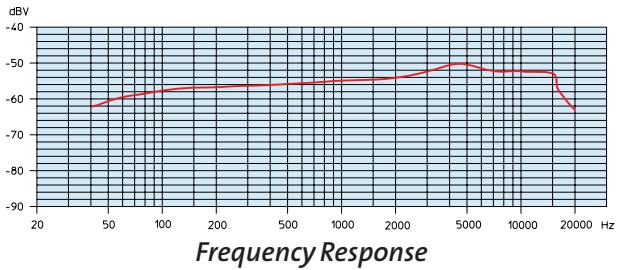

| Frequency response | 40Hz...16kHz | |
| Transducer principle | Pressure gradient receiver | |

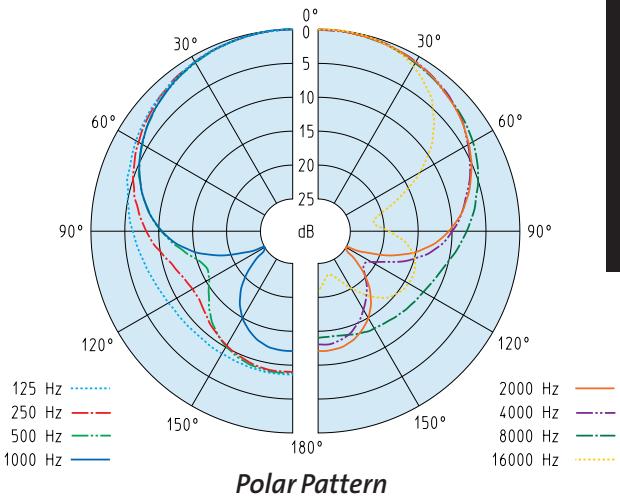

| Pick-up pattern | Super-cardioid | |
| Front-to-back-rejection at 1kHz at 120° | >25dB |
| Sensitivity (free field, no load) 1kHz | |
| 1.8mV/Pa | ≈-55dB (odB=1V/Pa) | |
| ≈-75dB (odB=1V/μbar)(USA) | |
| Nominal impedance at 1kHz | 350Ω | |
| Min. terminating impedance | 1kΩ | |
| Sensitivity to magnetic field at 50Hz | ≤1μV/μT | |
| Weight | 330g | |
| Dimensions | ∅ 46, l=185mm | |
| Delivered with pouch and mic clip | |
Die Mikrofon-(R)EVOLUTION
...and they sound great!
Evolution The Microphone Series
845 S/845
Evolution The Microphone Series
845 S/845
Evolution The Microphone Series
845 S/845
Evolution The Microphone Series
845 S/845
Amazing SPL in excess of 150 dB on all models
Outstanding feedback rejection.
e Advanced shock-mount design minimises handling noise.
Rugged road-proof construction.
e Designed and made in Germany.
...and they sound great!
Evolution The Microphone Series
845 S/845
