Brand	SENNHEISER
Model	E845
Category	Dynamic stage microphone
Operating principle	Pressure gradient
Polar pattern	Supercardioid
Frequency response	40 Hz – 16 kHz
Sensitivity (free field, no load, 1 kHz)	1.8 mV/Pa ≈ -55 dB (0 dB = 1 V/Pa)
Nominal impedance (1 kHz)	350 Ω
Minimum load impedance	1 kΩ
Magnetic field sensitivity (50 Hz)	≤ 1 μV/μT
Maximum sound pressure level	150 dB SPL
Connector	XLR-3 (balanced wiring)
On/Off switch	Yes
Construction	All-metal, shock-mounted capsule
Dimensions (diameter x length)	Ø 46 mm x 185 mm
Weight	330 g
Included accessories	Case and clip
Country of manufacture	Germany
Power supply	None (passive microphone)
Recommended use	Spoken or sung voice on stage
Maintenance	Clean with a soft, dry cloth

Frequently Asked Questions - E845 SENNHEISER

What is the polar pattern of the Sennheiser E845?

The Sennheiser E845 features a supercardioid polar pattern, offering excellent rejection of lateral and rear sounds, ideal for stage performances.

Does the E845 microphone require phantom power?

No, the E845 is a passive dynamic microphone and does not require any external power. It works directly on a standard microphone input.

What type of connector does the Sennheiser E845 use?

The microphone uses an XLR-3 connector with balanced wiring (pin 2: +, pin 3: -, pin 1: ground).

Does the Sennheiser E845 have an on/off switch?

Yes, the E845 model is equipped with an On/Off switch located on the microphone body to easily mute the sound.

What is the frequency response of the E845?

The frequency response is 40 Hz to 16 kHz, providing a balanced and warm reproduction of the voice, with presence in the highs.

How to clean the Sennheiser E845?

Use a soft, dry cloth to wipe the surface. Avoid solvents or abrasive products. For the grill, you can unscrew it and clean it with warm soapy water.

What is the impedance of the E845 microphone?

The nominal impedance is 350 Ω at 1 kHz. For optimal performance, use an input with an impedance of at least 1 kΩ.

Is the Sennheiser E845 suitable for instruments?

Although primarily designed for voice, its high output level and supercardioid polar pattern also make it suitable for some instruments like guitar amplifiers or percussion.

What is the weight of the Sennheiser E845?

The microphone weighs 330 g, making it solid yet comfortable to hold thanks to its balance.

How to reduce handling noise with the E845?

The microphone features a sophisticated shock mount for the capsule that effectively reduces handling noise and vibrations.

USER MANUAL E845 SENNHEISER

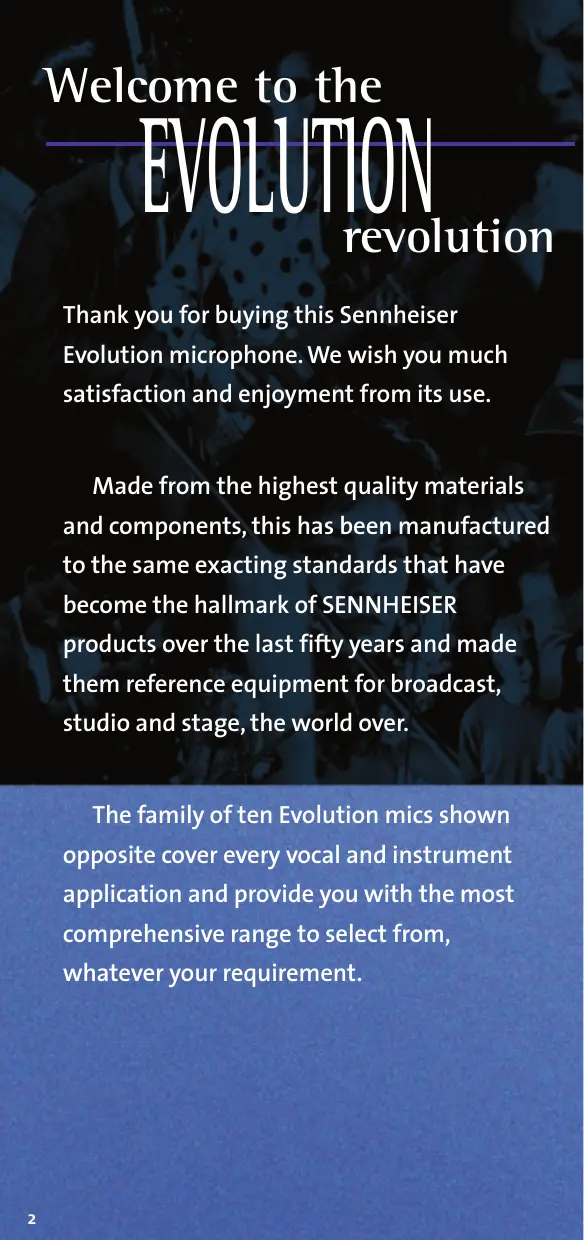

Thank you for buying this Sennheiser Evolution microphone. We wish you much satisfaction and enjoyment from its use.

Made from the highest quality materials and components, this has been manufactured to the same exacting standards that have become the hallmark of SENNHEISER products over the last fifty years and made them reference equipment for broadcast, studio and stage, the world over.

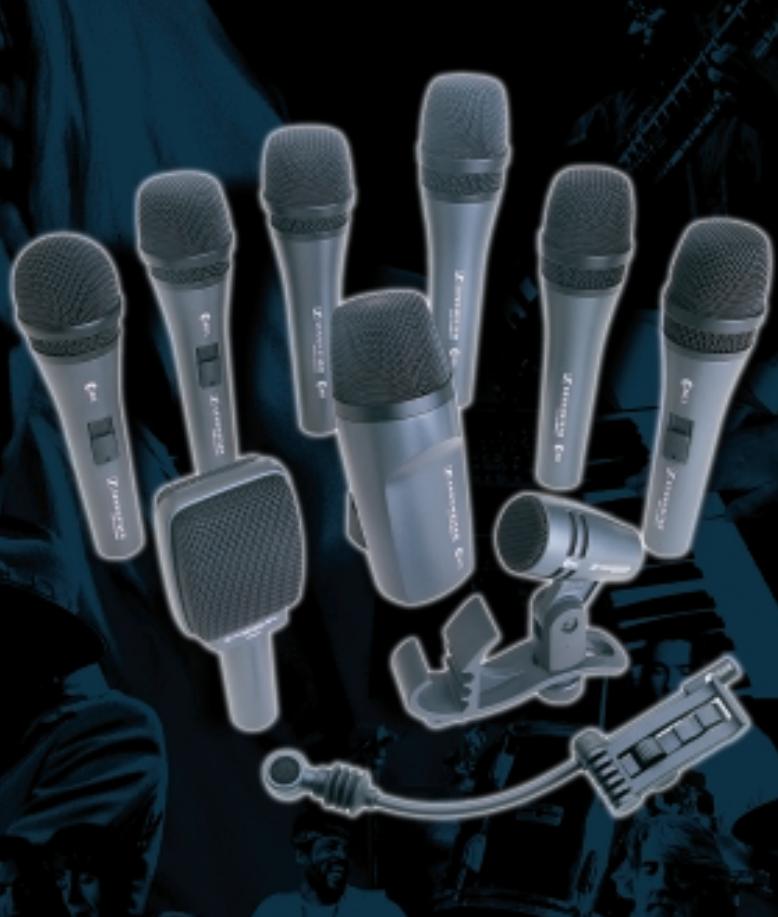

The family of ten Evolution mics shown opposite cover every vocal and instrument application and provide you with the most comprehensive range to select from, whatever your requirement.

A new family of microphones for new standards of performance

Amazing SPL in excess of 150 dB on all models
Outstanding feedback rejection.
e Advanced shock-mount design minimises handling noise.
Rugged road-proof construction.
e Designed and made in Germany.

...and they sound great!

Evolution The Microphone Series

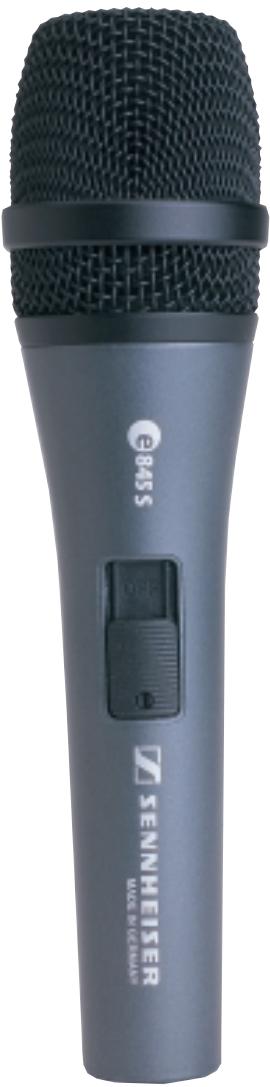

845 S/845

High quality, powerful performance, vocal mic.

Extended high frequency response and super-cardioid pick-up pattern for higher signal output, cuts through high on-stage sound levels. Smooth warm tonal response and full dynamic range, with presence lift for vocal clarity and projection. Consistent on/off axis and proximity response maintains sound quality with moving, providing greater on-stage freedom.

Full metal construction and extensive suspension and shock-mounting minimises handling noise and signal interference. High output performance microphone, offering power, clarity and projection. Also available without ON/OFF switch. (835).

Connection

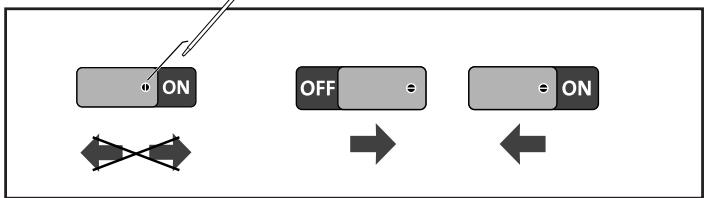

On/Off Switch

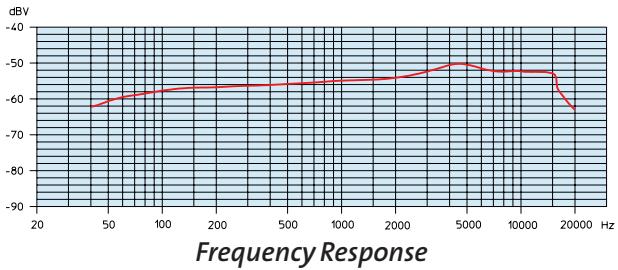

Frequency response	40Hz...16kHz
Transducer principle	Pressure gradient receiver

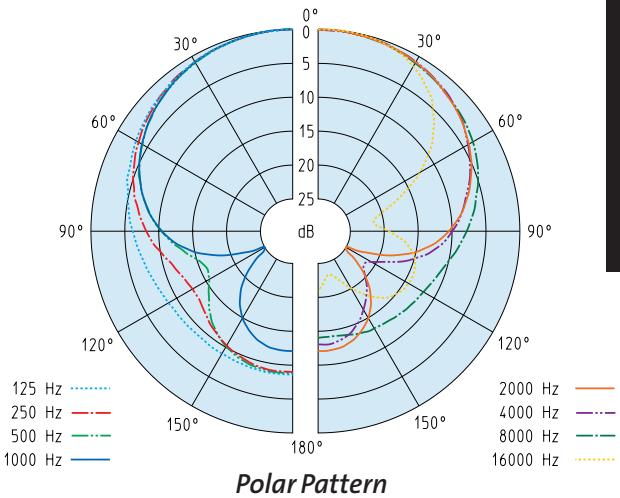

Pick-up pattern	Super-cardioid
Front-to-back-rejection at 1kHz at 120°		>25dB
Sensitivity (free field, no load) 1kHz
1.8mV/Pa	≈-55dB (odB=1V/Pa)
	≈-75dB (odB=1V/μbar)(USA)
Nominal impedance at 1kHz	350Ω
Min. terminating impedance	1kΩ
Sensitivity to magnetic field at 50Hz	≤1μV/μT
Weight	330g
Dimensions	∅ 46, l=185mm
Delivered with pouch and mic clip

Die Mikrofon-(R)EVOLUTION

...and they sound great!

Evolution The Microphone Series

845 S/845

Evolution The Microphone Series

845 S/845

Evolution The Microphone Series

845 S/845

Evolution The Microphone Series

845 S/845

A new family of microphones for new standards of performance

Amazing SPL in excess of 150 dB on all models
Outstanding feedback rejection.
e Advanced shock-mount design minimises handling noise.
Rugged road-proof construction.
e Designed and made in Germany.

...and they sound great!

Evolution The Microphone Series

845 S/845
