| Product type | Cardioid dynamic microphone |
| Brand | SENNHEISER |
| Model | E835 S |
| Operating principle | Pressure gradient (dynamic) |
| Directivity | Cardioid |
| Frequency response | 40 Hz – 16 kHz |
| Typical rear rejection (1 kHz, 180°) | > 20 dB |
| Sensitivity (free field, no load, 1 kHz) | 2.7 mV/Pa (–51.4 dB re 1 V/Pa) |
| Nominal impedance (1 kHz) | 350 Ω |
| Minimum load impedance | 1 kΩ |
| Magnetic field sensitivity (50 Hz) | ≤ 1 μV/μT |
| Dimensions | Ø 48 mm × L 180 mm |
| Weight | 330 g |
| Power supply | None (dynamic microphone, does not require phantom power) |
| Connector | XLR-3 (balanced) |
| Included accessories | Carrying case, stand clamp |
| Manufacturing | Designed and manufactured in Germany |
| Construction | Robust metal, shock-mount to reduce handling noise |
| Maintenance and cleaning | Clean the grille with a dry cloth, avoid moisture and liquids. Remove the grille if necessary to clean the capsule with a soft brush. |
| Safety | Use indoors only, avoid shocks and extreme temperatures. Do not expose to rain or moisture. |
| Spare parts and repairability | Spare parts available from the manufacturer. Repair by an authorized Sennheiser service center. |
| General information | Microphone intended for sound reinforcement of spoken or sung voice, ideal for stage and live performance. |
Frequently Asked Questions - E835 S SENNHEISER
User questions about E835 S SENNHEISER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microphone in PDF format for free! Find your manual E835 S - SENNHEISER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. E835 S by SENNHEISER.
USER MANUAL E835 S SENNHEISER
Thank you for buying this Sennheiser Evolution microphone. We wish you much satisfaction and enjoyment from its use.
Made from the highest quality materials and components, this has been manufactured to the same exacting standards that have become the hallmark of SENNHEISER products over the last fifty years and made them reference equipment for broadcast, studio and stage, the world over.

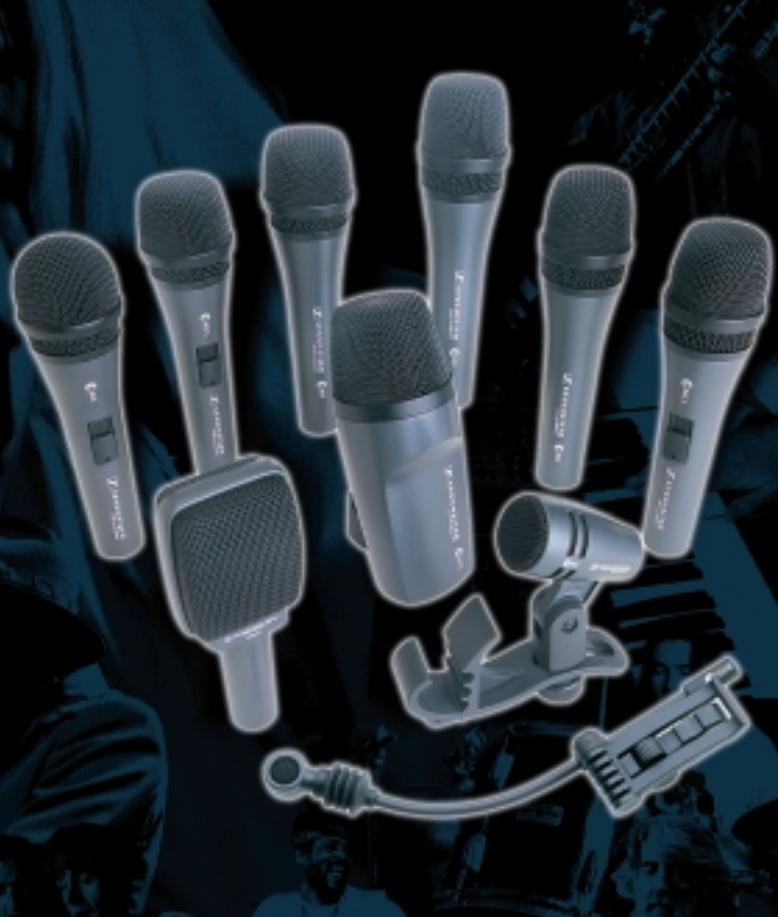

The family of ten Evolution mics shown opposite cover every vocal and instrument application and provide you with the most comprehensive range to select from, whatever your requirement.
A new family of microphones for new standards of performance
Amazing SPL in excess of 150 dB on all models
Outstanding feedback rejection.
e Advanced shock-mount design minimises handling noise.
Rugged road-proof construction.
e Designed and made in Germany.
...and they sound great!
Evolution The Microphone Series

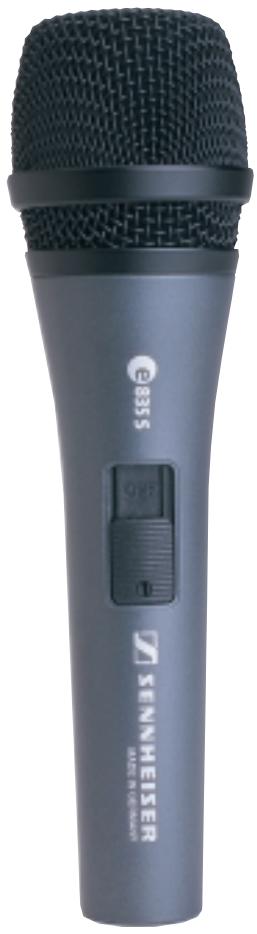

835 S/835
Quality vocal mic with performance and build characteristics never before available at this price.
Uniform frequency pick-up pattern maintains signal quality when moving on and off axis during performance. Gentle presence boost to even tonal response ensures clarity and projection. Minimal proximity effect provides consistently clear bass end performance when singing closer to or further from capsule.
Cardioid pick-up pattern provides good signal isolation and feedback rejection, enabling higher sound levels to be obtained. Metal construction and internal shockmount system minimises handling noise. Lead vocal stage mic, designed to perform under pressure. Also available without ON/OFF switch (835).
Connection
On/Off Switch

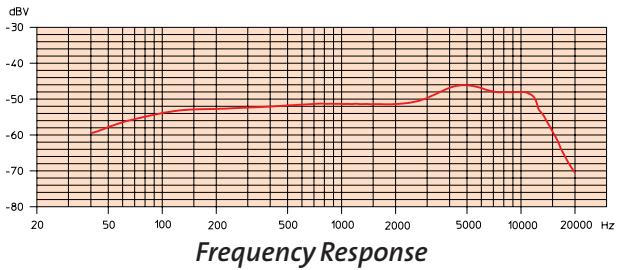

| Frequency response | 40Hz...16kHz | |
| Transducer principle | Pressure gradient receiver | |

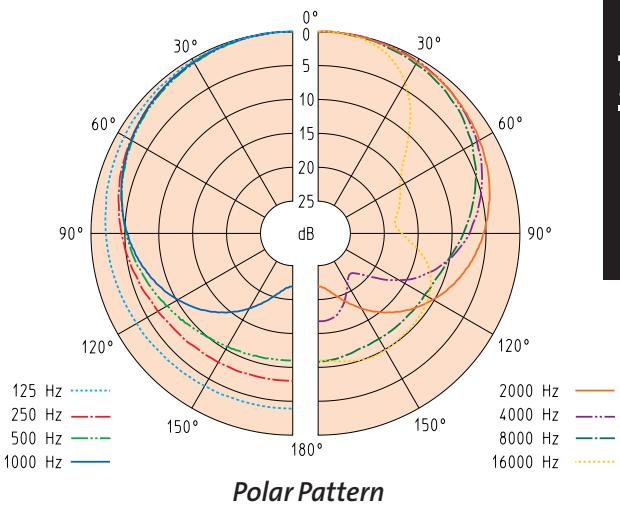

| Pick-up pattern | Cardioid | |
| Front-to-back-rejection at 1kHz at 180° | >20dB | |
| Sensitivity (free field, no load) 1kHz | ||
| 2.7mV/Pa | ≈-51.4dB (odB=1V/Pa) | |
| ≈-71.4dB (odB=1V/μbar)(USA) | ||
| Nominal impedance at 1kHz | 350Ω | |
| Min. terminating impedance | 1kΩ | |
| Sensitivity to magnetic field at 50Hz | ≤1μV/μT | |
| Weight | 330g | |
| Dimensions | ∅ 48, l =180mm | |
| Delivered with pouch and mic clip | ||
Die Mikrofon-(R)EVOLUTION
...and they sound great!
Evolution The Microphone Series
835 S/835
Evolution The Microphone Series
835 S/835
Evolution The Microphone Series
835 S/835
Evolution The Microphone Series
835 S/835
A new family of microphones for new standards of performance
Amazing SPL in excess of 150 dB on all models
Outstanding feedback rejection.
e Advanced shock-mount design minimises handling noise.
Rugged road-proof construction.
e Designed and made in Germany.
...and they sound great!
Evolution The Microphone Series
835 S/835
