E 905 - Microphone SENNHEISER - Free user manual and instructions

Brand	SENNHEISER
Model	E 905
Product type	Dynamic microphone
Polar pattern	Cardioid
Frequency response	40 Hz - 18 kHz
Sensitivity (free field, no load)	2.6 mV/Pa (1 kHz)
Nominal impedance	350 Ω
Minimum load impedance	1 kΩ
Connector	XLR 3-pin (gold-plated)
Weight	210 g
Dimensions (diameter × length)	41 mm × 116 mm
Main applications	Snare drum, toms, percussion
Special features	Hum compensating coil, suspended capsule, removable head, integrated stand adapter
Included accessories	Microphone, case, user manual, warranty card
Optional accessory	MZH 604 clamp (ref. 05299)
Maintenance	Clean with a dry, soft cloth. Avoid solvents.
Safety	Complies with CE standards. Do not expose to moisture.
Repairability	Spare parts available through Sennheiser after-sales service.

Frequently Asked Questions - E 905 SENNHEISER

How to position the E 905 microphone on a snare drum?

Place the microphone 3–5 cm above the head, aimed at the center. Adjust the angle to set the fundamental/harmonics ratio.

What types of sound sources can the E 905 capture?

It is specially designed for snare drums, toms and percussion. Can also be used on congas and other percussion instruments.

How to avoid interference from other acoustic sources?

Orient the microphone so that the unwanted source is in the maximum attenuation angle of the cardioid polar pattern (approximately 180° behind the capsule).

What is the polar pattern of the E 905 microphone?

The E 905 has a cardioid polar pattern, which rejects sounds from the rear and favors the front source.

Which accessories are compatible with the E 905?

The recommended accessory is the MZH 604 clamp (ref. 05299). The microphone comes with a case, manual and warranty card.

How to clean the E 905 microphone?

Use a dry, soft cloth. Never use solvents or abrasive products. Avoid wetting the capsule.

What is the minimum load impedance required?

The minimum load impedance is 1 kΩ to ensure optimal performance.

Can the E 905 microphone be used for vocals?

No, this model is designed for instruments, especially percussion. For vocals, use the E 935 or E 945 series.

How to connect the E 905 to an audio system?

Use a standard XLR cable (3-pin). The gold-plated connector ensures reliable signal transmission.

What to do if the microphone produces a hum?

The E 905 is equipped with a hum compensating coil. If the problem persists, check for sources of electromagnetic interference nearby.

USER MANUAL E 905 SENNHEISER

Instructions for use

Notice d'emploi

High-quality dynamic microphone with cardioid pick-up pattern.

The 905 has been specially developed for snare drum miking but is also suitable for use with percussion instruments and toms.

Due to its compact design, the microphone is easy to position.

Features

Rich, powerful sound
- Hum compensating coil protects against electromagnetic interference
- Shock-mounted capsule
- Compact design
- Extremely rugged sound inlet basket, replaceable
Gold-plated XLR connector
- Integral stand mount

Delivery includes

905 microphone

Pouch

Instructions for use

Warranty Certificate

Pin assignment of XLR-3 connector

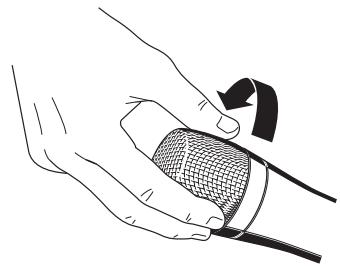

Removing the sound inlet basket

Positioning the microphone

Snare drums, drums and percussion instruments

Position	Resulting sound	Commentary
	more fundamental tone, little overtones	Position on the drum: 3 – 5 cm above the drumhead and directed towards the center of the drumhead, the fundamental tone to overtones ratio can be adjusted via the angle.
	less fundamental tone, many overtones

Snare pick-up using two microphones

Position	Commentary
	Use of a second microphone for picking up the bottom of the drumhead. If necessary, activate phase reversing for one of the microphones.

In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 135^ ).

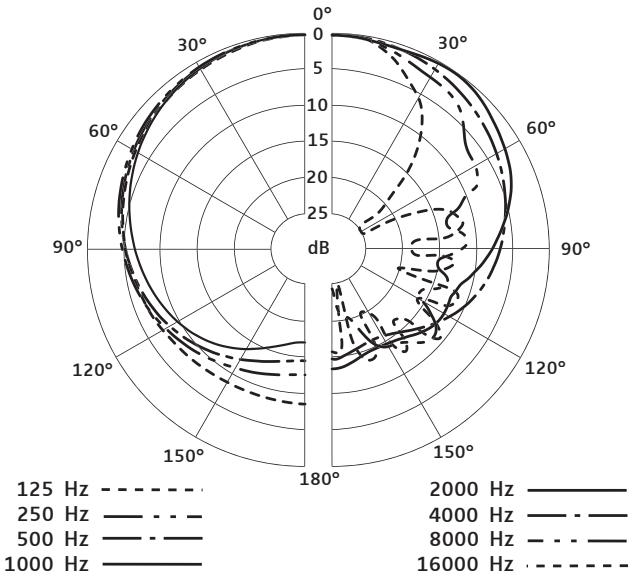

Polar diagram

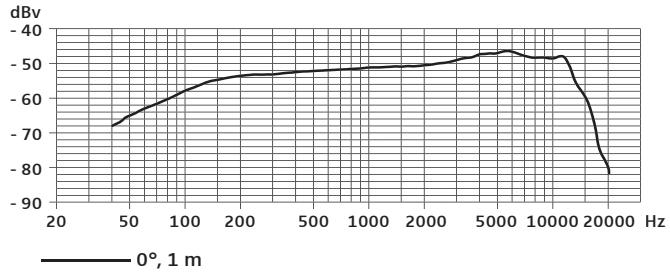

Frequency response curve

Accessories

The following accessories are available for the 905:

Microphone clamp MZH 604 (Cat. No. 05299)

Specifications

Transducer principle dynamic

Frequency response 40-18,000 Hz

Pick-up pattern cardioid

Sensitivity (free field, no load) 2.6 mV/Pa (at 1 kHz)

Nominal impedance (at 1 kHz) 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Weight 210g

Dimensions diam.: 41 mm, length: 116 mm

Overview of microphone applications

Variant Application	e901	e902	e904	e905	e906	e908B	e908D	e914	e935	e945
Vocals									x	x
Choirs								x
Studio, acoustic instruments					x			x
Orchestra								x
Brass / Saxophone		x	x			x
Acoustic guitar								x
Acoustic bass								x
Guitar amplifiers					x
Bass amplifiers		x
Leslie	x	x	x	x
Piano, grand piano	x							x
Kick drums	x	x
Snare drums			x	x	x		x
Rack toms			x	x	x		x
Floor toms		x	x	x	x		x
Congas			x		x	x	x
Cymbals								x
Percussion			x	x	x	x	x	x
Overheads								x

FRANÇAIS

Conector Conector XLR-3

Peso 210g

Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations.

Certification

30900 Wedemark, Germany
