Product type	Dynamic microphone
Brand	SENNHEISER
Model	E 902
Polar pattern	Cardioid
Frequency response	40 – 16,000 Hz
Sensitivity (free-field, no load)	0.6 mV/Pa (at 60 Hz) / 0.2 mV/Pa (at 1 kHz)
Nominal impedance	350 Ω
Minimum load impedance	1 kΩ
Connector	XLR-3 (gold-plated)
Weight	440 g
Dimensions	Diameter 60 mm, length 128.5 mm
Transducer principle	Dynamic
Included accessories	E 902 microphone, case, user manual, warranty card
Main applications	Bass drum, bass amp, tuba, other low instruments
Special features	Hum compensating coil, internal suspension, removable head
Maintenance and cleaning	Wipe with a soft, dry cloth; avoid solvents or abrasive products. Clean the grille if necessary.
Safety	Compliant with CE standards
Repairability and spare parts	Contact SENNHEISER customer service for any repairs; the removable head makes replacement easier.

Frequently Asked Questions - E 902 SENNHEISER

How to position the E 902 microphone on a bass drum?

For a dry sound with plenty of attack, place the microphone a few centimeters from the batter head. For a warmer, fuller sound, position it at the height of the resonant head. For balance, place it midway between the two heads.

What are the polar pattern characteristics of the E 902?

The E 902 has a cardioid polar pattern, which provides good isolation from lateral and rear sound sources. To avoid interference, place unwanted sources in the maximum attenuation angle (approximately 180° behind the microphone).

What type of connector does the E 902 use?

The microphone is equipped with a gold-plated XLR-3 connector, ensuring reliable transmission and good corrosion resistance.

Is the E 902 suitable for recording instruments other than bass drum?

Yes, it is designed for low instruments such as bass guitar amps, tubas, double basses, and can also be used on toms or low percussion.

What is the minimum load impedance required for the E 902?

The minimum load impedance is 1 kΩ. Make sure your preamp or mixing console meets this value for optimal operation.

How to maintain the E 902 microphone?

Clean the exterior with a soft, dry cloth. If the grille is dirty, you can gently dust it. Avoid solvents and never immerse the microphone in water.

Does the E 902 have an internal suspension?

Yes, it features a suspension capsule that reduces handling noise and vibrations transmitted through the stand.

What accessories are included with the microphone?

The package contains the E 902 microphone, a transport case, a detailed user manual, and a warranty card.

Can the E 902 be used for vocals?

No, this microphone is specialized for low instruments. For vocals, Sennheiser recommends models from the 900 series such as the E 935 or E 945.

Is the E 902 compatible with wireless systems?

The microphone is wired with an XLR connector. For wireless use, you can use a compatible XLR transmitter. Check compatibility with your system.

USER MANUAL E 902 SENNHEISER

Instructions for use

Notice d'emploi

High-quality dynamic microphone with cardioid pick-up pattern, especially suitable for use with kick drums, bass guitar cabs, tubas and other low frequency instruments.

The extremely thin, high-strength diaphragm delivers a very low bass response and fast transient signals. Incidental rear noise is effectively rejected.

Features

Frequency response optimized for kick drum miking
- Fast attack
- Very dry and precise low-bass response
- Shock-mounted capsule
Hum compensating coil
- Extremely rugged sound inlet basket, replaceable
- Gold-plated XLR connector
- Integral stand mount

Delivery includes

902 microphone

Pouch

Instructions for use

Warranty Certificate

Pin assignment of XLR-3 connector

Removing the sound inlet basket

Positioning the microphone

Kick drums

Position	Resulting sound	Commentary
	Much attack, little resonance, dry	Position the microphone at a distance of a few centimeters from the batter head.
	Less attack, much resonance, smooth, voluminous	Position the microphone at the level of the resonant head.
	Less attack	Position the microphone in the middle between the batter head and the resonant head. For less attack in all three positions, turn the microphone away from where the beater strikes.

In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 180^ ).

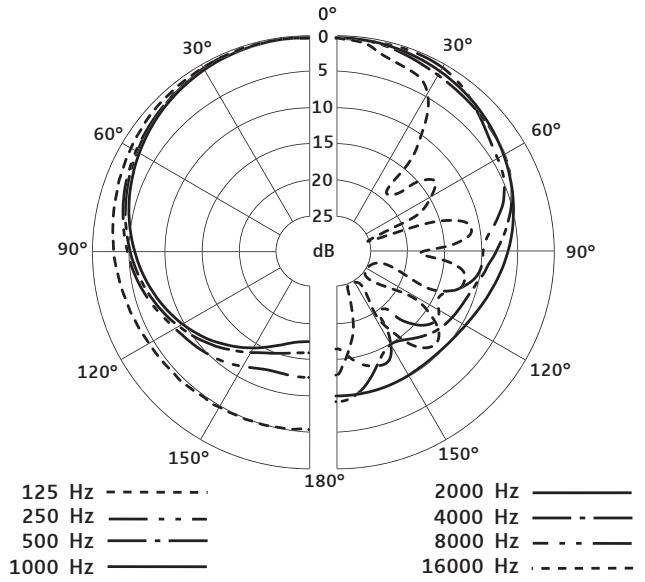

Polar diagram

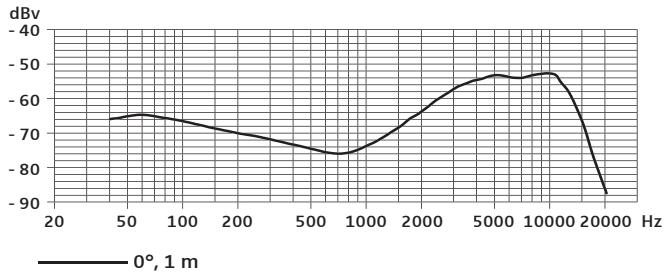

Frequency response curve

Specifications

Transducer principle	dynamic
Frequency response	40 – 16,000 Hz
Pick-up pattern	cardioid
Sensitivity	0.6 mV/Pa (at 60 Hz)
(free field, no load)	0.2 mV/Pa (at 1 kHz)
Nominal impedance (at 1 kHz)	350 Ω
Min. terminating impedance	1 kΩ
Connector	XLR-3
Weight	440 g
Dimensions	diam.: 60 mm, length: 128.5 mm

Overview of microphone applications

Variant Application	e901	e902	e904	e905	e906	e908B	e908D	e914	e935	e945
Vocals									x	x
Choirs								x
Studio, acoustic instruments					x			x
Orchestra								x
Brass / Saxophone		x	x			x
Acoustic guitar								x
Acoustic bass								x
Guitar amplifiers					x
Bass amplifiers		x
Leslie	x	x	x	x
Piano, grand piano	x							x
Kick drums	x	x
Snare drums			x	x	x		x
Rack toms			x	x	x		x
Floor toms		x	x	x	x		x
Congas			x		x	x	x
Cymbals								x
Percussion			x	x	x	x	x	x
Overheads								x

frequentefactor veld

Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regulations.
