USER MANUAL RCD102 LEXIBOOK

EMPLACEMENT DES CHES

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT. REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE: REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The graphic symbols on the back cover of the set mean the following: The lighining flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric Shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

DANGER: Invisible and hazardous laser radiation when open

and interlock failed or defeated. Avoid direct exposure to beam

+ To reduce the risk of fre or electric shock, do not expose this appliance to rain or moisture. + The apparatus shall not be exposed to dripping or splashing and that no objects filed with liquids, such as vases, shall be placed on the apparatus. + The mains plug is used as the disconnect device, the disconnect device shall remain readily operable. + In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. DANGER LASER SAFETY This unit employs an optical laser beam system in the CD mechanism, designed with built in safeguards. Do not attempt to disassemble, refer to qualified service personnel. Exposure to this invisible laser light beam may be harmful to the human eye: English

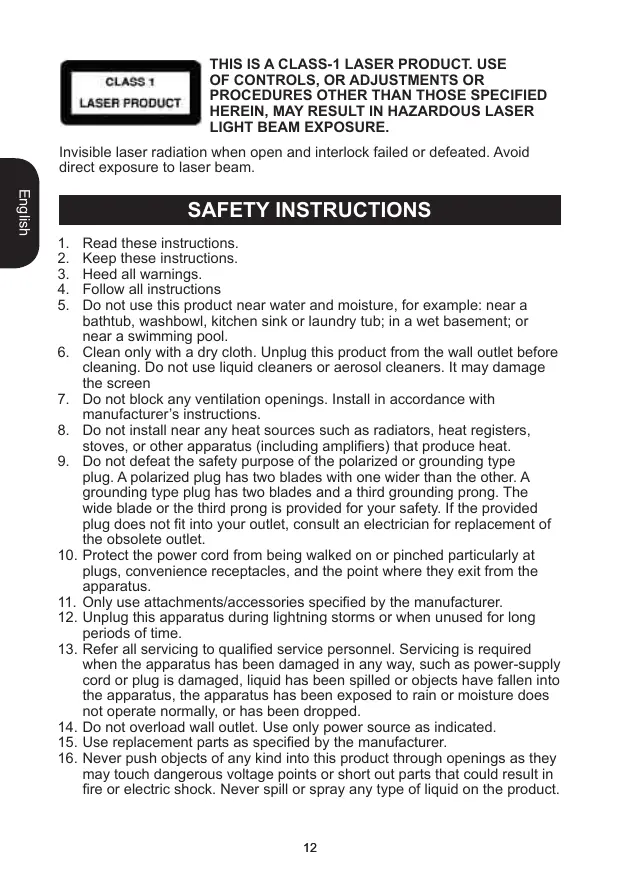

OF CONTROLS, OR ADJUSTMENTS OR

PROCEDURES OTHER THAN THOSE SPECIFIED

ASER PROD D HEREIN, MAY RESULT IN HAZARDOUS LASER LIGHT BEAM EXPOSURE. Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to laser beam. Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions Do not use this product near water and moisture, for example: near a bathtub, washbowl, kitchen sink or laundry tub: in a wet basement; or near a Swimming pool.

6. Clean only with a dry cloth. Unplug this product from the wall outlet before

cleaning. Do not use liquid cleaners or aerosol cleaners. lt may damage the screen

7. Do not block any ventilation openings. Install in accordance with

manufacturer instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding type

plug. À polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The Wide blade or the third prong is provided for your safety. If ihe provided plug does not fi into your outlet, consult an electrician for replacement of the obsolete outlet

10. Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for long

13. Refer all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in any way, such as power-Supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture does not operate normally, or has been dropped.

14. Do not overload wall outlet. Use only power source as indicated.

15. Use replacement parts as specified by the manufacturer.

16. Never push objects of any kind into this product through openings as they

may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spil or spray any type of liquid on the product. gswns

17. The product may be mounted to a wall only if recommended by the

18. Upon completion of any service or repairs to this product, ask the service

technician to perform safety checks.

When unpacking, ensure that the following elements are included 1 x Boombox CD Player 1 XAC cable 1 Xinstruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties

and tags are not part of this product and should be discarded POWER SOURCES The Radio CD Player operates on AC 230V — 50Hz or with 6 x 1.5V=—/C size batteries (not included). AG aperation Check that the unit is switched off.

mains power socket. Battery installation To install the batteries, open the battery compartiment located at the back of the unit by pressing in on the tabs, then lifting it off.

2. Insert 6 x 1.5V === /C size batteries (not included)

observing the polarity indicated in the compartment, and as per the diagram shown opposite.

3. Close the battery compartment

Note: The AC power cord must be disconnected from the AC socket on the rear of the unit in order for the product to operate on battery power. Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the product before being charged Rechargeable batteries are only to be charged under adult supervision Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the game for a long period of time:

WARNING: Malfunction or loss of memory may be caused by strong

frequency interference or electrostatic discharge. Should any abnormal function occur, remove the batteries and insert them again, or unplug the AC/ DC adapter from the mains socket and plug it back in

CARE AND MAINTENANCE

Caring for compact discs Treat the disc carefully. Handle the disc only by its © edges. Never allow your fingers to come in contact with the shiny, unprinted side of the disc. + Do not attach adhesive tape, stickers, etc. to the disc label + Clean the disc periodically with a soft lint-free, dry cloth. Never use detergents or abrasive cleaners to clean the disc. lfnecessary, use a CD cleaning kit + Ia disc skips or gets stuck on a section ofthe disc, itis probably dirty or damaged (scratched). RS + When cleaning the disc, wipe in straight \ lines from the centre of the disc to the outer edge of the disc. Never wipe in circular motions. + This unitis designed to play only compact discs bearing Hlist the identification logo as shown here. Other discs may not conform to the CD standard and may not play proper. + Discs should be stored in their cases after each use lo BIGITAL AUDIO avoid damage. + Do not expose discs to direct sunlight, high temperatures or dust, etc. + Prolonged exposure or extreme temperatures can warp the disc. + Do not stick or write anything on either side of the disc. Sharp writing instruments, or ink, may damage the surface. Cleaning the unit To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning. + The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use caution when cleaning and wiping the plastic parts. + Mild soap and a damp cloth may be used on the front panel

Refer to the image p.2

18. Battery compartment

19. AM-FM-FM ST BAND selector

1. Slide the FUNCTION selector to the RADIO position to turn the unit on.

2. Slide the BAND selector to select AM, FM or FM ST (stereo) for the

3. Use the RADIO TUNING knob to select the desired radio station.

4. Adjust the VOLUME control

5. To switch off the radio, slide the FUNCTION selector to the OFF position.

English Note: To ensure maximum FM tuner sensitivity, the FM antenna should be fully extended to obtain the best possible reception. Avoid close proximity to the speakers and other electrical appliances. For FM stereo reception, the FM stereo indicator will light steadily when a stereo program is being received. When tuning in AM reception, to ensure best AM sensitivity, try repositioning the unit until the best reception is obtained.

CD OPERATION Play a CD

1. Press the CD DOOR OPEN button and carefully place a disc on the

centre spindle with the printed label side facing up.

2. Close the CD DOOR OPEN button and slide the FUNCTION selector to

the CD position to turn the unit on. The LED display will show the total number of tracks on the disc.

3. Press PLAY/PAUSE and the PLAY indicator will light and the CD will start

playing from the first track. Adjust the VOLUME control to set the sound level. To suspend playing, press PLAY/PAUSE again. The track number will flash and the PLAY indicator will go off. To resume playing, press PLAY/ PAUSE once again.

6. To stop playing, press STOP.

SKIP FORWARDS / SKIP BACKWARDS buttons

1. When the CD is stopped, to play your favourite track direclly, locate the

desired track using SKIP FORWARDS or SKIP BACKWARDS and press PLAY/PAUSE.

2. When listening to a CD, press SKIP FORWARDS to play the next

track. Press SKIP BACKWARDS once to skip to the beginning of the track currently playing. Press the same button twice or more to play the previous tracks.

3. To search forward or backward through the playing track, press and hold

SKIP FORWARDS or SKIP BACKWARDS to locate a specific musical passage. The player will move forward or backward at high speed as long as the button is pressed. Stop pressing the button to retum to normal playback. Note: + lfa disc is installed incorrect, dirty or damaged, it will not play. + As each track is played, the track number is shown on the display. + To prevent damage to the disc, never open the CD door while the disc is rotating. Wait for the disc to stop before opening the CD door. Never touch the lens when the CD door is open + Do not use the carrying handle when playing CD. The product should only be used on a steady surface. Repeat

1. To repeat continuously a single track, press REPEAT once while in play

mode. The repeat indicator will flash.

2. To repeat all the tracks, press REPEAT tice while in play mode. The

repeat indicator will light steadily.

3. To cancel the repeat function, repeatediy press the REPEAT until the

repeat indicator goes off.

Use the program function to preselect the order in which a sequence of tracks will be played. Up to 20 tracks can be programmed

1. Slide the FUNCTION selector to the CD position

2. Press PROG. “01” will blink on the display.

3. Use SKIP FORWARDS or SKIP BACKWARDS to select the first track to

include in the programmed sequence. Press PROG. to confirm and store the track Repeat steps 3 and 4 to program the other desired tracks. Press PLAY to begin playback. The tracks will be played in the programmed order. The PLAY/PAUSE/PROG indicator flashes when the program function is in used. te: ons No! + To cancel the program function, press the STOP button until the PLAY/ PAUSE/PROG indicator goes off. + During program setting, press STOP or open the CD door.

You can play music through the speakers of this Radio CD Player by connecting ils AUX IN jack to your MP3 or other digital audio player.

1. Plug one end of an audio cable (not included) into the AUX IN jack

located at the back of the unit, and the other end of the cable to the line out jack of the device you want to connect. Slide the FUNCTION selector to the CD or the RADIO position Adjust the VOLUME control to your desired listening level Use the function keys of your audio device to pause and resume the playback, adjust the volume and select the next or the previous track. MAINTENANCE To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning. The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use a soft, clean cloth moistened with plain, lukewarm water to clean the exterior of the unit. Use caution when cleaning and wiping the plastic parts. Mild soap and a damp cloth may be used on the front panel

WARRANTY This product is covered by our 2-year warranty. For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference. In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging. NOTE: Please keep this instruction manual, it contains important information. Reference: RCD102series Designed in Europe — Made in China ©2009 Lexibook® LEXIBOOK UK ltd, Unit 10 Petersfield Industrial Estate, Bedford Road, Petersfield, Hampshire, GU32 3QA, United Kingdom Helpline: 0808 100 3015 htip://wwwr lexibook.com Environmental Protection Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by retuming this appliance to a collection centre eg (if available).

19. Selector da Banda AM-FM-FM ST
