USER MANUAL DJ045-01 LEXIBOOK

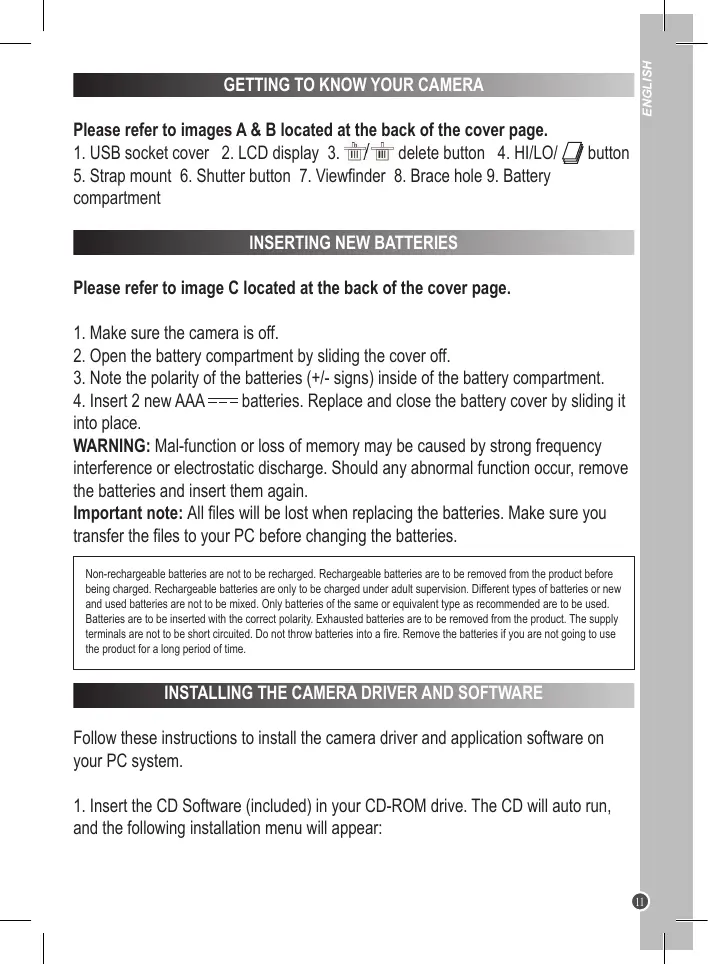

GETTING TO KNOW YOUR CAMERA

Please refer to images A & B located at the back of the cover page.

1. USB socket cover 2. LCD display 3.

delete button 4. HI/LO/

5. Strap mount 6. Shutter button 7. Viewfinder 8. Brace hole 9. Battery

INSERTING NEW BATTERIES

Please refer to image C located at the back of the cover page.

1. Make sure the camera is off.

2. Open the battery compartment by sliding the cover off.

3. Note the polarity of the batteries (+/- signs) inside of the battery compartment.

4. Insert 2 new AAA

batteries. Replace and close the battery cover by sliding it into place.

WARNING: Mal-function or loss of memory may be caused by strong frequency

interference or electrostatic discharge. Should any abnormal function occur, remove the batteries and insert them again. Important note: All files will be lost when replacing the batteries. Make sure you transfer the files to your PC before changing the batteries. Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the product before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the product for a long period of time.

INSTALLING THE CAMERA DRIVER AND SOFTWARE

Follow these instructions to install the camera driver and application software on your PC system.

1. Insert the CD Software (included) in your CD-ROM drive. The CD will auto run,

and the following installation menu will appear:

ENGLISH Click on “Install AP” on the “Digital Camera Install Menu” window and select a language from the drop down list. Click on “Install PhoTags Express” and follow the instructions to install PhoTags Express and WebCam Express. PhoTags Express and WebCam Express software offer many applications for photo editing and printing. When the installation is completed, a confirmation window will be displayed. Untick the “Start the application” option and click the “Finish” button to close the window and go back to the installation menu. Now you can install the camera driver.

2. Click on “Install Driver”, and then follow the instructions to install it. You will need

to reboot your computer after the driver installation. Notes:

• You must install the driver before downloading pictures from the camera.
• If you are using Windows VISTA™, please download the driver update from the Lexibook website at: www.lexibook.com.
• If the CD does not auto run, click Start Run, type in “D:\autorun.exe” in the Run dialog text box (where D:\ is your CD-ROM drive).

TURNING THE CAMERA ON AND OFF

Press the Shutter button [6] for 5 seconds to turn the camera ON. Note: The camera will auto power off after 60 seconds of inactivity.

SELECTING THE PHOTO RESOLUTION

There are 2 resolution modes: High resolution: pictures of 1280*960 pixels. The camera can store about 90 pictures in this mode. Low resolution: pictures of 640*480 pixels. The camera can store about 200 pictures in this mode. Press the HI/LO/ button [4] to select HI (high) or LO (low) resolution on the upper left corner of the LCD screen. TAKING PHOTOS To take a photo, press and hold the Shutter button [6] for about 2 seconds, until you hear a “beep” sound. The number of pictures you took is shown on the LCD screen. Note: make sure there is a reasonable level of lighting when taking photos. If there is not enough light, you will hear a “double beep” sound indicating the picture hasn’t been taken. DELETING FILES Deleting the last picture taken Press the button [3] to select the lower trash can icon as shown on the LCD screen. Press the Shutter button [6] within 5 seconds to delete the last picture taken. You will hear a “beep” sound each time you delete a picture. Deleting all files Press the button [3] twice to select the upper trash can icon as shown on the LCD screen. Press the Shutter button [6] within 5 seconds to delete all the pictures stored in the camera. Note: if you press the button by mistake, just wait 5 seconds to cancel this operation. Continuous Picture Shots This mode allows you to take a succession of quick shots which the camera will save as short video clips in AVI format.

ENGLISH Press and hold the HI/LO/ button [4] to select the icon on the LCD screen. Keep the Shutter button [6] pressed to take several photos continuously and automatically.

DOWNLOADING YOUR PHOTOS

1. Connect the camera to your computer via the USB

cable provided. You will hear a small beep sound and the LCD screen will turn on when the camera is connected to your PC.

2. Launch the “PhoTags Express” program.

A widow will appear and you will have the choice to: - click on “register online” and then fill in the informations required. The Main Menu will open and this window will not appear anymore. - click on “continue”. The Main Menu will open and this window will appear at your next use.

3. Click on the “Get Photos” button on the Main Menu.

4. The “Get Photos Wizard - Device Selection” window will appear. Select the “Dual

Camera” driver from the list of Active Devices on the left of the screen. Note: Make sure you have selected the “Dual Camera” driver or you won’t be able to download your pictures.

5. Select the “Custom” or the “Express” copy method and click on the “Next” button.

6. With the “Custom” method, you can sort the photos by name, keyword and categories. Click on the “Next” button to continue. With the “Express” copy method, you will go directly to the following step.

7. Choose where to place your photos. Click the “Browse” button to select the

destination folder where you want all your photos to be saved.

8. Click the “Finish” button to transfer the photos from your camera to the destination

PC CAM MODE

Connected to your PC, your camera can be used as a webcam. In PC Cam mode, you can also capture short video clips and take snapshots.

1. Connect the camera to your computer via the USB cable.

2. In “My Computer”, double click on a new drive called “Dual Camera” or double

click the Webcam Express icon on your desktop to launch the Webcam Express software. You will be in webcam mode. Capture a video clip

1. Connect the camera to your computer via the USB cable.

2. Launch the Webcam Express software.

3. Click on the « Capture » button

to start the video capture.

4. Click on the « Stop » button to stop the video capture.

1. Launch the Webcam Express software.

2. In « Capture » mode, click the « Snapshot » button to take a snapshot.

1. Set your digital video camera to PC Cam mode.

2. Run the video conference software Microsoft NetMeeting on your computer.

3. Input the IP address of the computer you wish to dial in the address bar.

4. Select tool/accept/transfer options. When the other parties have accepted your

call, you can now hold a video conference. MSN Chat

1. Make sure the digital video camera is OFF.

2. Press and hold the Power/Shutter button [7]. Plug the USB jack into the USB port

3. Sign in MSN.

4. Connect the digital video camera to your computer using the USB cable.

5. On the MSN interface, select Action/Start a video conversation.

6. Select the person you want to chat with, and press OK.

TROUBLESHOOTING « Can I use the digital camera with my Mac? » Unfortunately, the camera is compatible with Windows only. There is no Mac driver available.

ENGLISH « Can I use the digital camera with Windows VISTA™? » If you have an old version of the driver and want to use the camera with Windows VISTA™, please download the camera driver update from Lexibook website: www.lexibook.com. « I can’t install the software and the camera driver on my computer. »

• Make sure you have followed carefully all the steps listed in p.11 to install the software and the camera driver.
• Make sure you have enough free space available on your hard drive. If necessary, free up some space. « I can’t display or download the pictures on my computer. »
• Try to plug the camera to all the USB ports available on your computer.
• Make sure you have selected the correct source (Dual Camera) from the “Active Devices” list. Lexi Wim Tho Wim Unit For Help © 20 www « Can I use a flash with the digital camera? » There is no flash available on the DJ045_01Series. Please make sure there is a reasonable level of lighting when taking photos.

ENGLISH WARRANTY NOTE: Please keep this instruction manual, it contains important information. This product is covered by our one-year warranty. To make use of the warranty or the after-sales service, please contact your retailer and supply proof of purchase. Our warranty covers material or installation-related defects attributable to the manufacturer, with the exception of wear caused by failure to respect the instructions for use or any unauthorised work on the equipment (such as dismantling, exposure to heat or damp, etc.). Lexibook UK Ltd, Wimbledon Village Business Centre, Thornton House, Thornton Road, Wimbledon, London SW19 4NG United Kingdom For any further information, please call Helpline 0808 1003015 © 2010 Lexibook® www.lexibook.com Designed and developed in Europe – Made in China This product is not a toy. Environmental Protection Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
