USER MANUAL DMPTV1SPFR LEXIBOOK

Play/Pause (lecture/pause)

Safety instructions 22

Important safety instructions 22

Product description 23

Remote control 24

Installation 25

First installation 26

Keys function 27

Navigating through the menus 29

Mini TV settings 29

TV and Radio channels setting 32

Channels management 33

Default settings 35

Multimedia 35

Troubleshooting 37

Specifications 37

Maintenance 38

Warranty 38

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The graphic symbols on the back cover of the set mean the following:

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
• In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the unit.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this unit during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as the following: the power-supply cord or plug has been damaged; liquid has been spilled or objects have fallen into the unit; and/or the unit has been exposed to rain or moisture, does not operate normally, has changed its performance or has been dropped.
14. Do not overload wall outlet. Use only power source as indicated.
15. Use replacement parts as specified by the manufacturer.
16. The product may be mounted to a wall only if recommended by the manufacturer.
17. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks.

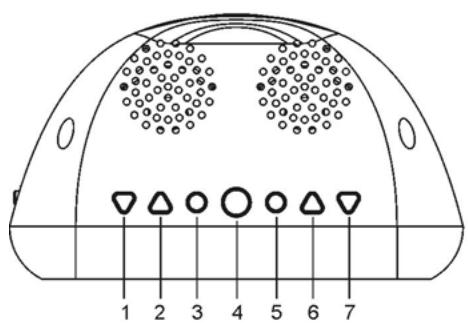

PRODUCT DESCRIPTION

1. VOL-/LEFT key
2. VOL+/RIGHT key
3. MENU/ENTER key
4. POWER ON/OFF key
5. RETURN key
6. CH+/UP key
7. CH-/DOWN key

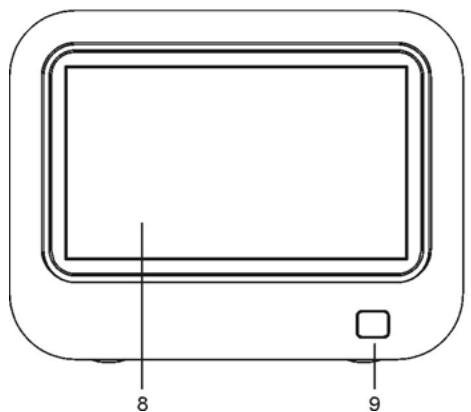

8. LCD screen (TFT)
9. Infrared remote control sensor

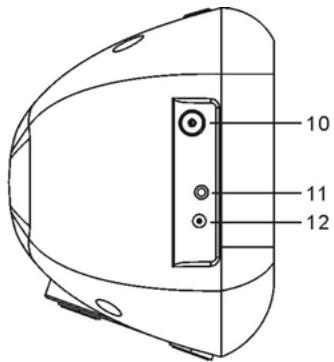

10. ANT socket (antenna)
11. HEADPHONE jack
12. DC IN 5V --- adapter jack
13. USB port
14. SD/MMC card slot

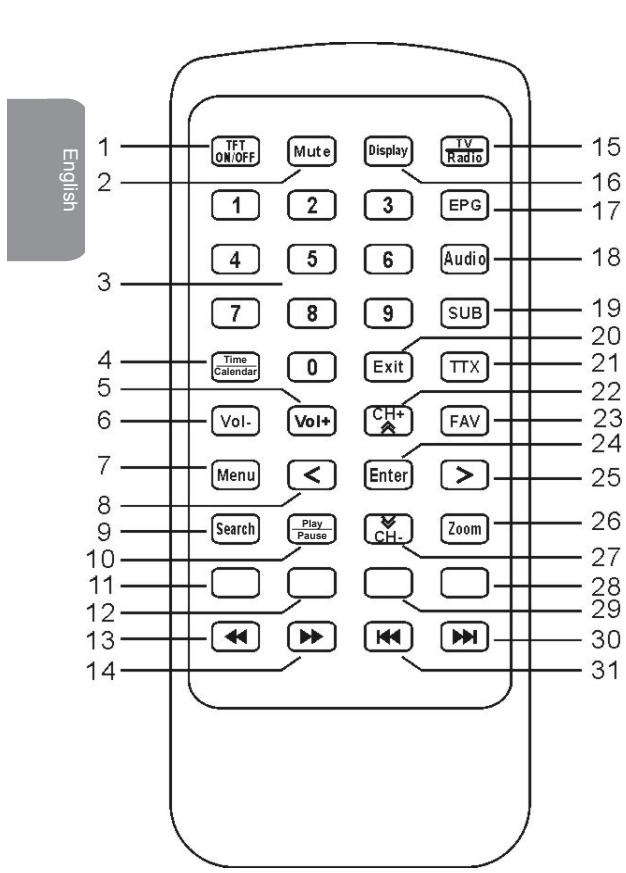

REMOTE CONTROL

1. TFT ON/OFF key
2. Mute key
3. Numeric keys
4. TIME/CALENDAR key
5. Vol+ key
6. Volkey
7. Menu key
8. < (left) key
   9.SEARCH key
9. PLAY/PAUSE key
10. RED key
11. GREEN key
12. Scan backward key
13. Scan forward key
14. TV/Radio key
15. Display key
16. EPG key
17. Audio key
18. SUB (subtitles) key
    20.Exit key
19. TTX (teletext) key
20. CH+/UP key
21. FAV (favorite) key
22. Enter key
23. > (right) key
24. ZOOM key
25. CH-/DOWN key
26. BLUE key
27. YELLOW key
28. NEXT key
29. PREVIOUS key

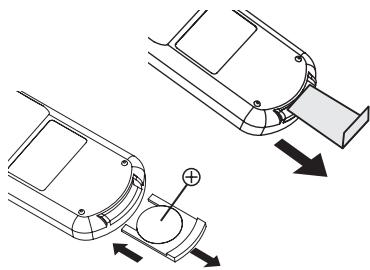

Battery installation

1. The first time you use the remote control, remove the battery tab located at the rear of the unit.
2. Open the battery compartment cover by pressing the unlock switch to the right and then sliding the battery holder out.
3. Insert 1 lithium CR2025 3V -- type battery (included) as illustrated and slide the battery cover in until it clicks firmly into place.

Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the product before being charged. Rechargeable batteries are only to be charged under adult supervision. Different types of batteries or new and used batteries are not to be mixed. Only batteries of the same or equivalent type as recommended are to be used. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. The supply terminals are not to be short circuited. Do not throw batteries into a fire. Remove the batteries if you are not going to use the product for a long period of time.

WARNING: Malfunction or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, remove the battery and insert it again.

Using the remote control

• When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light shines on the remote sensor of the unit, the remote operation may be unstable.
• When the battery becomes weak, the operating distance of the remote control reduces significantly and you need to replace the battery.

INSTALLATION

Unpacking the device

When unpacking, ensure that the following elements are included:

1 x mini TV video player
1 x remote control
1 x CR2025 lithium type battery
1 x AC/DC adapter
1 x portable antenna
1 x instruction manual

WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.

Note: Before using this product for the first time, remove the static label on the LCD screen.

Setting up the Mini TV

Place the unit on a sturdy, horizontal, vibration-free surface. The product must not be subjected to vibrations or shocks. Please observe the conditions in the safety instructions.

To operate the TV, you can use the keys on the top of the LCD screen, or the remote control's keys. Use the input and output connections on the right and left sides of the TV to connect other devices to the unit.

Antenna connection

Connect your outdoor antenna or the portable antenna provided to the antenna socket located on the left side of the unit.

WARNING: In order to get the best TV reception, it is recommended to use a roof antenna. If you cannot use a roof antenna, use the antenna provided with the product, placing it near or outside a window.

Mains connection

Do not connect your mini TV to the mains supply before finishing all other connections. Insert the plug into a wall outlet (AC 220-240V~50Hz) close to the unit.

Note: The socket-outlet shall be installed near the equipment and shall be easily accessible.

WARNING: Malfunction or loss of memory may be caused by strong frequency interference or electrostatic discharge. Should any abnormal function occur, unplug the AC / DC adapter from the mains socket and plug it back in.

FIRST INSTALLATION

This section describes how to set up your mini TV when using it for the first time. When you have done all the connections, press the POWER ON/OFF key located on the top of the TV to switch it on, then follow the on screen instructions to complete the first settings.

OSD language setup

1. Press > , then use the CH+ and CH- keys to select a language.
2. Press Enter to confirm.

Country (area) setup

Select the country where the unit will be used.

1. Press the CH- key to select "Area", then press >.
2. Use the CH+ and CH- keys to select a country and press Enter to confirm.

Automatic channel search

1. Once you have selected the OSD language and the country, press Enter to launch the automatic TV and radio channels search.
2. Use the < and > keys to select "Yes" and press Enter.
3. The unit will search for TV and radio channels available in your country and store them automatically in the database.

Note: If the mini TV does not find any channel, "Database empty" will be displayed on the screen.

Note: The mini TV is not compatible with radio channels in AC3 format.

KEYS FUNCTION

POWER ON/OFF

Once the unit is connected to the mains power, use the POWER ON/OFF located on the top of the screen to switch on or switch off the mini TV.

TFT ON/OFF

When the mini TV is switched on, press the TFT ON/OFF to switch on or switch off the TFT screen.

Volume setting

1. Press the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Volkeys on the remote control to turn the volume up or down.
2. To turn the sound off completely, press Mute on the remote control.
3. Press Mute again to turn the sound back on.

Note: if you don't turn off the sound off completely, you will hear the sound of the TV when navigating in the menus and making the settings. You can use the Mute key in TV mode to turn it off.

Program selection

1. Press the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Volkeys on the remote control to toggle the channels upwards or downwards.
2. The numeric keys of the remote control can be used to enter the channel number directly.

Display

Press once the Display key on the remote control to display information about the current program (channel number, current program, next program...).

If you are navigating through menus, press this key to display information about the navigation keys.

Press the Return key on the mini TV or the Exit key on the remote control to remove the information.

TV/Radio

Use the TV/Radio key to toggle between TV and radio channels.

EPG (electronic program guide)

The electronic program guide (or EPG) allows you to display information about the programs broadcasted on the different channels available.

Press the Return key on the mini TV or the Exit key on the remote control to remove the information.

Audio

1. Press the Audio key, then:
2. use the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Vol- keys on the remote control to select a stereo, mono right or mono left audio system.
3. use CH+ and CH- to select the audio language of the program you are watching.

Note: The availability of this function depends on the program.

1. Press Enter to confirm your selection and exit the program.

Note: To exit the program, press the Return key on the mini TV or the Exit key on the remote control.

SUB (subtitles)

1. Press the SUB key to enter the subtitles menu.
2. Use the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Vol- keys on the remote control to activate or deactivate the subtitles for the current program. You can select "Off", "Subtitles" or "TTX Subtitles".
3. Use the CH+ and CH- keys to select the subtitle language desired.

Note: The availability of this function depends on the program.

Time/Calendar

Press this key once to display the clock (the time will appear on the top right corner of the screen), twice for the calendar (the calendar will be displayed in full screen) and three times to remove the information.

Exit

Use this key to go back to the previous step or exit a menu and go back to the current program.

TTX (teletext)

Press this key to display or remove the teletext (the teletext format may vary according to your provider).

1. Use the numeric keys to display the teletext page desired.
2. Press the CH+ or CH- keys to display the next or previous page.
3. Press < to go backward 100 pages or > to go forward 100 pages.

FAV (favourite)

Press the FAV key to display a list of your favourite channels.

Note: you must add at least one channel to the list of favourite to be able to use this key.

To add channels to your list of favourite, refer to the "Channel Management" paragraph of the "Organizing the channel list" section.

Menu

Use this key to enter the main menu and the submenus.

Search

In TV mode, press this key to launch directly an automatic search of the TV and radio channels.

Play/Pause

When playing a video or a MP3 file (saved on a USB key or a SD/MMC card), use this key to start or pause the playback.

Zoom

Press this key to activate the zoom. Press the key repeatedly to zoom in or the key to zoom out.

Press the Zoom key again to turn off the zoom function.

RED, GREEN, YELLOW, BLUE keys

Use these keys to do the settings (refer to the "Organizing the channel list" section below for more information).

When playing a video or a MP3 file (saved on a USB key or a SD/MMC card), use these keys to search forward or backward.

1. Press either key repeatedly during playback to change the search speed ("x2", "x4", "x8" and "x20").
2. Press the Play/Pause key to resume normal playback.

When playing a video or a MP3 file (saved on a USB key or a SD/MMC card), use these keys to go back to the previous video/MP3 file or play the next video/MP3 file.

NAVIGATING THROUGH THE MENUS

Press the Menu key to access the main menu.

1. Use the CH+ or CH keys to select the desired menu: "Digital TV", "Movie", "Music", "Photo" or "Setup". Press Enter to confirm.
2. Use CH+ , CH and Enter to select a submenu and the corresponding options.
3. Press the < and > keys to modify the settings, activate and deactivate the functions.
4. Press the Return key on the mini TV or the Exit key on the remote control to go back to the previous step or exit the configuration menu.

MINI TV SETTINGS

This section describes how to set up the different options of your television (menu' language, image and audio settings...) using the "Setup" menu.

"OSD" menu

1. Press the Menu key to enter the main menu.
2. Press the CH+ or CH- keys to select "Setup" then press Enter.
3. Press the CH+ or CH- keys to select "Configuration" then press Enter.
4. Press the CH+ or CH- keys to select "OSD" then press Enter.

OSD timer

You can adjust the display time of the messages between 1 and 5 seconds.

1. In the "OSD" menu, press the CH+ or CH- keys to select "OSD Timeout" then use the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Vol- keys on the remote control to adjust the display time.

2. When you have finished your settings, press Enter to confirm.

OSD transparency

To adjust the OSD messages contrast:

1. In the "OSD" menu, press the CH+ or CH- keys to select "OSD Trans".
2. Press the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Volkeys on the remote control to adjust the transparency value (from 0 to 60% ) and press Enter to confirm.

OSD language

1. In the "OSD" menu, press the CH+ or CH- keys to select "OSD Language".
2. Press the VOL-/LEFT and VOL+/RIGHT on the mini TV or the Vol+ and Vol- keys on the remote control to select a language and press Enter to confirm.

Audio language setup

To adjust the audio languages:

1. In the "OSD" menu, press the CH+ or CH- keys to select "1st Audio Language" or "2nd Audio Language".
2. Press the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Volkeys on the remote control to select the desired audio language and press Enter to confirm the settings.

"TV" menu

1. Press the Menu key to enter the main menu.
2. Press the CH+ or CH- keys to select "Setup" then press Enter.
3. Press the CH+ or CH- keys to select "Configuration" then press Enter.
4. Press the CH+ or CH- keys to select "TV" then press Enter.

TV image settings

1. Press the CH+ or CH to select an option, then use the VOL-/LEFT and VOL+ /RIGHT keys on the mini TV or the Vol+ and Vol- keys on the remote control to adjust the settings:
2. "Brightness": select this option then press the VOL+/RIGHT key on the mini TV on the > key on the remote control. Use the CH+ or CH- keys to select a value (from "0" to "100 %") then press Enter.
3. "Contrast": select this option then press the VOL+/RIGHT key on the mini TV or the > key on the remote control. Use the CH+ or CH- keys to select a value (from "0" to "100 %") then press Enter.
4. "HUE": select this option then press the VOL+/RIGHT key on the mini TV or the > key on the remote control. Use the CH+ or CH- keys to select a value (from "-6" to "6") then press Enter.

5. "Saturation": select this option then press the VOL+/RIGHT key on the mini TV or the > key on the remote control. Use the CH+ or CH- keys to select a value (from "0" to "12") then press Enter.

6. When you have finished your settings, press Return or Exit to exit the menu.

"System Setup" menu

1. Press the Menu key to enter the main menu.
2. Press the CH+ or CH- keys to select "Setup" then press Enter.
3. Press the CH+ or CH- keys to select "Configuration" then press Enter.
4. Press the CH+ or CH- keys to select "System Setup" then press Enter.

Equaliser setup

To setup the equaliser:

1. Press the CH+ or CH- keys to select "EQ Setup" and press the VOL+/RIGHT key on the mini TV or the > key on the remote control.
2. Press the CH+ or CH- keys to select "Standard", "Classic", "Rock", "Jazz" or "POP" and press Enter.

Photo slideshow setting (JPEG AutoPlay Dur)

To adjust the display time of your pictures when launching a slideshow:

1. Press the CH+ or CH- keys to select "JPEG AutoPlay Dur" and press the VOL+/RIGHT key on the mini TV or the > key on the remote control.
2. Press the CH+ or CH- keys to select a delay (between 5 seconds and 2 minutes). Select "Off" to cancel the function. Press Enter to confirm the settings.

Country setting

To select the country where you will use the mini TV (this option allows you to do the TV and radio channels automatic search):

1. Press the CH+ or CH- keys to select "Area" and press the VOL+/RIGHT key on the mini TV or the > key on the remote control.
2. Press the CH+ or CH- keys to select a country then press Enter to confirm the settings.

"Parental lock" menu

1. Press the Menu key to enter the main menu.
2. Press the CH+ or CH- keys to select "Setup" then press Enter.
3. Press the CH+ or CH- keys to select "Configuration" then press Enter.
4. Press the CH+ or CH- keys to select "Parental lock" then press Enter.

Change the password

To change the system password:

1. Use the numeric keys on the remote control to enter the old password (the default password is "0000").
2. Enter the new password, then re-enter it to confirm.
3. The new password is saved and you will exit the menu automatically.

TV AND RADIO CHANNELS SETTING

Note: The mini TV is not compatible with radio channels in AC3 format.

This section describes how to search and receive TV and radio channels.

1. Press the Menu key to enter the main menu.
2. Press the CH+ or CH- keys to select "Digital TV" then press Enter.
3. Press the CH+ or CH- keys to select "Installation" then press Enter.
4. Press the CH+ or CH- keys to select "Auto Search", "Manual Search" or "Area Search" then press Enter.

Automatic Search

The automatic search function will scan the default frequencies and bandwidths according to the country setting (refer to the "Country setting" paragraph of the "Mini TV settings" section).

The TV will automatically store the channels available. Select "Auto Search" and press Enter to start the TV and radio channels automatic search.

Note: You can exit the automatic search at any time by pressing the Exit key.

Manual Search

To use the manual search function, you must know the frequencies and bandwidths you want to use for the scan.

1. Select "Manual Search" and press Enter.
2. Press the CH+ or CH- keys to select "Freq (KHz)" then use the numeric keys on the remote control to enter a frequency.
3. Press the CH+ or CH- keys to select "BandWidth" then use the < or > keys to choose a value for the bandwidth (in MHz): "6M", "7M" or "8M".
4. Press Enter to start the search or Exit to go back to the installation menu.

Area Search

This option allows you to make a more precise manual research by indicating a frequency for the beginning and the end of the search. The unit will complete the search between the two frequencies you entered.

1. Select "Area Search" and press Enter.
2. Press the CH+ or CH- keys to select "Start Freq (KHz)" then use the numeric keys on the remote control to enter a frequency for the beginning of the search.
3. Press the CH+ or CH- keys to select "End Freq (KHz)" then use the numeric keys on the remote control to enter a frequency for the end of the search.
4. Press the CH+ or CH- keys to select "BandWidth" then use the < or > keys to choose a value for the bandwidth (in MHz): "6M", "7M" or "8M".
5. Press Enter to start the search or Exit to go back to the installation menu.

IMPORTANT NOTE: To be able to launch a channel search (auto, manual or by area), you must connect the mini TV to an antenna (your outdoor antenna, the portable antenna provided with the unit or other).

ORGANIZING THE CHANNEL LIST

The options available in the "Channel Manager" menu allow you to delete, move, organize or lock the channels stored in the unit's database. You can manage the TV and radio channels independently.

1. Press the Menu key to enter the main menu.
2. Press the CH+ or CH- keys to select "Digital TV" then press Enter.
3. Press the CH+ or CH- keys to select "Channel Manager" then press Enter.

Channel management

1. In the "Channel Manager" menu, select "Channel Organizer" then press Enter.

2. Press the CH+ or CH- keys to select a channel "Digital TV" then use the colored keys to do the settings:

3. RED key: press this key to add or remove the channel from your list of favourite.

4. GREEN key: press this key to delete the channel from the database or to cancel the deletion. If you didn't delete or lock any channel before, you will need to enter the password ("0000" by default) to confirm the deletion.
5. YELLOW key: press this key to move the channel in the list or to cancel the move.
6. BLUE key: press this key to lock or unlock the channel. If you didn't delete or lock any channel before, you will need to enter the password ("0000" by default) to confirm the locking.
7. To change the channel name, press the < or > , then use the numeric keys on the remote control to enter the new name.
8. Once you have finished your settings, press Enter to confirm and use the Return key on the mini TV or the Exit key on the remote control to exit the menu.

Sorting channels

1. In the "Channel Manager" menu, select "Channel Sorting" then press Enter.
2. Press the CH+ or CH- keys to select one of the parameters available to sort the channels, then use the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Vol- keys on the remote control to adjust the settings. You can sort the channels:
3. by country (1st parameter). Press Enter to confirm your choice.
4. by sorting the free channels and the encrypted channels (2nd parameter, you can select "All", "Free" or "Crypted"). Press Enter to confirm your choice.
5. by alphabetical order ("A to Z" or "Z to A"). Press Enter to confirm your choice.
6. Once you have finished your settings, press Enter, then select "Yes" to confirm.
7. Use the Return key on the mini TV or the Exit key on the remote control to exit the menu.

Grouping channels

This option allows you to group the TV and radio channels in 8 different categories.

1. In the "Channel Manager" menu, select "Channel Grouping" then press Enter.
2. Press the CH+ or CH- keys to select a channel then use the numeric keys 1 to 8 on the remote control to place the channel in one of the 8 categories available: "1.None", "2.News", "3.Science", "4.Sports", "5.Movie", "6.Kids", "7.Music", "8.Fashion".
3. Once you have finished your settings, press Enter to confirm and use the Return key on the mini TV or the Exit key on the remote control to exit the menu.

Editing channels

This option allows you to add, delete and rename channels.

1. In the "Channel Manager" menu, select "Edit Channels" then press Enter.
2. To add a channel, press the RED key on the remote control.

3. Use the CH+ or CH- keys to select one of the options available and add a new channel to the database.

4. "Area": select this option then press the > key and use the CH+ and CH- keys to select a country. Press Enter to confirm.

5. "Carrier": select this option and press VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Vol- keys on the remote control to select a carrier.
6. "Channel name": select this option and press VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Vol- keys on the rename the channel (refer to step 3 of the "Channel management" paragraph above).
7. "Audio PID", "PID Video", "PCR PID": select these options then use the numeric keys on the remote control to enter the desired values.
8. To edit a channel, press the YELLOW key on the remote control. You will have access to the same options described above.
9. Once you have finished your settings, press Enter to confirm and add the channel to the database. Use the Return key on the mini TV or the Exit key on the remote control to exit the menu.

Delete channels

To delete channels from the database:

1. In the "Channel Manager" menu, select "Delete All" then press Enter.
2. Use the CH+ or CH- keys to select "All TV Channels" or "All Radio Channels" and press Enter.
3. Use the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Volkeys on the remote control to select "Yes" (or "No" if you want to cancel the deletion) then press Enter.

DEFAULT SETTINGS

To reset your mini TV system and restore the factory settings:

1. Press the Menu key to enter the main menu.
2. Press the CH+ or CH- keys to select "Setup" then press Enter.
3. Press the CH+ or CH- keys to select "Factory Default" then press Enter.
4. Use the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Volkeys on the remote control to select "Yes" (or "No" if you don't want to reset the system) then press Enter to confirm.

Note: All the setup options will return to their default settings. The database will also be deleted.

Firmware version

To display information about the current firmware, the date, hour....

1. Press the Menu key to enter the main menu.
2. Press the CH+ or CH- keys to select "Setup" then press Enter.
3. Press the CH+ or CH- keys to select "Version" then press Enter.
4. Press the Exit key on the remote control or the Return key on the mini TV to remove the information.

MULTIMEDIA

You can use your mini TV to play movies (in MPEG-4/AVI and DiVx format), display your pictures (JPEG and BMP format) or listen to music files (MP3 format). Copy the files to your USB key or your SD/MMC card then connect the device to the mini TV.

Movie

You can use your mini TV to play movies in MPEG-4/AVI and DiVx format.

1. Connect the device where you copied the video files to the mini TV. Use the USB port or the SD/MMC card reader.
2. Press the Menu key to enter the main menu.
3. Press the CH+ or CH- keys to select "Movie" then press Enter.
4. Select the device then press Enter to confirm.
5. Use the CH+ or CH- keys to browse through the folders and files stored on the USB key or the SD/MMC card and select the desired video file. Press Enter to start the playback.
6. During playback, use the Play/Pause key to pause or resume, the and keys to scan backward or forward, the and keys to play the previous or next video.
7. Press Exit to stop playback and go back to the files list.

Music

You can also use your mini TV to listen to MP3 files.

1. Connect the device where you copied the audio files to the mini TV. Use the USB port or the SD/MMC card reader.
2. Press the Menu key to enter the main menu.
3. Press the CH+ or CH- keys to select "Music" then press Enter.
4. Select the device then press Enter to confirm.
5. Use the CH+ or CH- keys to browse through the folders and files stored on the USB key or the SD/MMC card and select the desired audio file. Press Enter to start the playback.
6. During playback, use the Play/Pause key to pause or resume, the and keys to scan backward or forward, the and keys to play the previous or next video.
7. Press Exit to stop playback and go back to the files list.


You can use your mini TV to display your photos in JPEG and BMP format.

1. Connect the device where you copied the pictures to the mini TV. Use the USB port or the SD/MMC card reader.
2. Press the Menu key to enter the main menu.
3. Press the CH+ or CH- keys to select "Photo" then press Enter.
4. Select the device then press Enter to confirm.
5. Use the CH+ or CH- keys to browse through the folders and files stored on the USB key or the SD/MMC card and select the desired image file. Press Enter to display it in full screen mode.
6. Use the and keys to display the next or previous image. Press the VOL-/LEFT and VOL+/RIGHT keys on the mini TV or the Vol+ and Vol- keys on the remote control to flip or rotate the photo. You can also use the ZOOM key to zoom in or zoom out on the picture.
7. Press Exit to go back to the files list.

TROUBLESHOOTING

Problem	Solution
The unit does not switch on.	- Check that the main plug is correctly connected to an outlet. - Check that the unit has been switched on by pressing the POWER ON/OFF key on the top of the screen. - Check the brightness and contrast settings.
No picture.	- Check the antenna connection. - Try other channels. - Make sure the LCD screen is switched on by using the TFT ON/OFF key on the remote control. - No channel is preset, start an automatic search.
Low quality picture.	- Check the antenna connection. - Move the antenna to an open area or near a window.
The unit does not recognize the USB key or the SD/MMC card.	- Make sure the devices have been correctly connect to the unit.
The unit does not play the video files saved on the USB key or the SD/MMC card.	- The video files may not be compatible with the unit: use video in AVI format.

SPECIFICATIONS

GENERAL SECTION

Power Source: DC 5V---.2.2A

Screen dimensions: 7'' (17.8 cm)

Screen resolution: 480 × 234 pixels

Dimensions: 206x158.5x123mm

Net Weight: 769g

ADAPTER

Power input: AC 100V - 240V ~ 50/60Hz, 0.4 - 0.5A

Output: DC 5V---,2.2A

MAINTENANCE

To prevent fire or shock hazard, disconnect your unit from the AC power source when cleaning. The finish on your unit may be cleaned with a dust cloth and cared for as other furniture. Use a soft, clean cloth moistened with plain, lukewarm water to clean the exterior of the unit. Use caution when cleaning and wiping the plastic parts. Mild soap and a damp cloth may be used on the front panel.

WARRANTY

This product is covered by our 1-year warranty.

For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.

In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.

NOTE: Please keep this instruction manual, it contains important information.

Reference: DMPTV1FR

Designed and developed in Europe – Made in China

©2009 LEXIBOOK®

Lexibook UK Ltd,

Wimbledon Village Business Centre,

Thornton House, Thornton Road,

Wimbledon, London SW19 4NG

UK

For any further information, please call Helpline 0808 1003015

www.lexibook.com

WARNING: Prolonged use at full power of this product might damage the ear of the user.

This product is not a toy

Environmental Protection

Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).

CONTENIDO

Lexibook Ibérica S.L.

Para regular as linguas de audio:
