Product Type	Washing Machine
Brand	Teka
Model	TFL7D35
Capacity (kg)	7 kg
Height (cm)	85 cm
Width (cm)	60 cm
Depth (cm)	55 cm
Weight (kg)	68 kg
Energy Efficiency Class	A+++
Spin Speed (rpm)	1400 rpm
Number of Programs	15
Noise Level Washing (dB)	48 dB
Noise Level Spinning (dB)	72 dB
Water Consumption per Cycle (L)	45 L
Annual Energy Consumption (kWh)	175 kWh
Annual Water Consumption (L)	9900 L
Child Lock	Yes
Overflow Protection	Yes
Delayed Start Timer	Yes (up to 24 hours)
Display Type	LED
Drum Material	Stainless Steel
Power Supply	220-240 V, 50 Hz
Power Consumption (W)	2000 W
Maintenance	Clean pump filter regularly; descale every 3 months
Spare Parts Availability	Up to 10 years after purchase

Frequently Asked Questions - TFL7D35 TEKA

What is the maximum load capacity of the Teka TFL7D35?

The maximum load capacity is 7 kg for cotton programs.

How do I clean the pump filter on the TFL7D35?

Open the lower cover, rotate the filter knob counterclockwise, pull out the filter, clean it under running water, and reinsert. Ensure no water remains by placing a towel underneath.

What should I do if the machine displays an error code?

Refer to the manual's error code chart. Common codes like E01 (door lock issue) or E03 (drain problem) can be resolved by checking the door seal or cleaning the drain pump filter.

Can I install the washing machine under a counter?

Yes, the TFL7D35 has dimensions of 85 cm height, 60 cm width, and 55 cm depth, suitable for under-counter installation. Ensure proper ventilation.

How do I activate the child lock?

Press and hold the Child Lock button for 3 seconds until the lock icon appears on the display. To deactivate, repeat the process.

What is the recommended detergent for this machine?

Use low-sudsing detergent designed for front-loading machines. For hard water areas, add a water softener or use a multifunctional tablet.

Why is my machine not spinning properly?

Check if the load is unbalanced; redistribute clothes evenly. Also, ensure the drain hose is not kinked and the pump filter is clean.

How often should I descale the machine?

Descaling is recommended every 3 months using a suitable descaling agent. In areas with hard water, more frequent descaling may be necessary.

What is the energy efficiency rating of the TFL7D35?

The machine has an A+++ energy rating, making it highly energy-efficient with an annual consumption of approximately 175 kWh.

How do I use the delayed start timer?

Select the desired program, press the Delay Start button repeatedly to set the delay (1-24 hours), then press Start/Pause. The machine will begin after the set delay.

USER MANUAL TFL7D35 TEKA

Safety Precautions 3

Overview of Washer Dryer Machine 8

Install Washer Dryer....9

Operate Washer Dryer.... 12

Checklist and Preparation before Washing Clothes 12

View of Control Panel.... 17

Select the procedure....18

Table of Washing and Drying Procedures 22

Maintenance 23

Cleaning and Maintenance of Washer Dryer Machine Cabinet 23

Troubleshooting.... 26

Remove the Problems 27

Appendix 28

Care Label 28

Product Specifications 29

Safety Precautions

Safety Precautions

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

The new hose-sets supplied with the appliance are to be used, and old hose-sets should not be reused.

This washer dryer machine is for indoor use only.

The ventilation openings must not be obstructed by a carpet.

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Pull out its plug from the power socket before cleaning or maintenance.

Make sure that all pockets are emptied.

Sharp and rigid items such as coins, brooches, nails, screws, or stones may cause serious damage to this machine.

Pull out its plug and cut off the water supply after operation.

Please check whether the water inside the drum has been drained before opening its door. Do not open the door if any water is visible.

Pets and kids may climb into the machine. Check the machine before every operation.

The glass door may be very hot during operation. Keep kids and pets far away from the machine during operation.

Take care that the power voltage and frequency shall be identical to those of the washer dryer machine.

- Do not use any socket with rated current less than that of

Safety Precautions

• Do not use any socket with rated current less than that of the washer dryer machine. Never pull out the power plug with wet hands.
• To ensure your safety, the power cord plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed.
• Children under 3 years should be kept away unless continuously supervised.
• Children should be supervised to ensure that they do not play with the machine.
• Packing materials may be dangerous to children. Please keep all packing materials (plastic bags, foams, etc.) far away from children.
• The washer dryer machine shall not be installed in bathrooms or very wet rooms, as well as in rooms with explosive or caustic gases.
• Make sure that the water and electrical devices are connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.
• Before operating this machine, all packages and transport bolts must be removed. Otherwise, the washer dryer machine may be seriously damaged while washing clothes.
• Before washing clothes for the first time, the washer dryer machine shall be operated for one round of the whole procedures without clothes inside.
• The washing machine with a single inlet valve can only be connected to the cold water supply. The washer dryer machine with double inlet valves can be connected to both hot and cold water supplies.
• Your washer dryer machine is only for home use and is only designed for textiles suitable for machine washing.
• Flammable, explosive, or toxic solvents are forbidden.

Safety Precautions

Gasoline and alcohol etc. shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.

• It is forbidden to wash carpets.
• Be careful of burning when washing machine drains hot washing water.
• Never refill the water by hand during washing.
• After the program is completed, please wait for two minutes to open the door.
• Please remember to disconnect water and power supply immediately after the clothes are washed.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the excessive clothes are put in or distributed well.
• Cautions during Handling Machine
• Transport bolts shall be reinstalled to the machine by a specialized person.
• The accumulated water shall be drained out of the machine.
• Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door can not be used as the handle during the conveyance.
• That the hands shall not be inserted into running water -extracting tub.
• The washer dryer is not to be used if industrial chemicals have been used for cleaning.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape,

Safety Precautions

the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer, they should first be washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
• Do not dry unwashed items in the washer dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the washer dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the washer dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• The final part of a washer dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches before using the appliance.
• WARNING: Never stop a washer dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Safety Precautions

• The openings must not be obstructed by a carpet.
• The exhaust air must not be discharged into a flue which is for exhausting fumes from appliances burning gas or other fuels.
• The appliance must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the washer dryer.
• The washer dryer shall not be installed in a humid place.
• The household washer dryer is not intended to be built-in.
• The washer dryer whose lid can be opened during water extraction takes 15 seconds or more for the complete stop of the water extracting chamber tub.

Overview of Washing Machine

Components

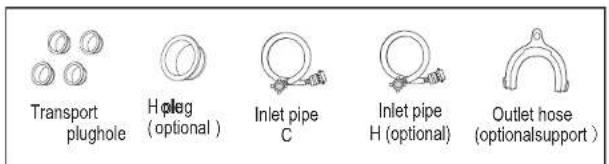

Accessories

Install Washer Dryer Machine

Unpacking the washer dryer machine

Unpack your washer dryer machine and check if there is any damage during transportation.

Also make sure that all the items (as shown on Page 5) in the attached bag are received.

If there is any damage to the washing machine during transportation, or any item is missing, please contact the local dealer immediately.

Dispose of the packing materials

The packing materials of this machine may be dangerous to kids. Please dispose of them properly and avoid easy access by kids. Please dispose of the related packing materials according to the relevant local regulations. Please do not throw the packing materials away together with other daily living rubbish.

Remove transport bolts

Before using this washer/dryer

bolts must be removed from the backside of

this machine. Please take the following steps to remove the bolts:

1. Loosen all bolts with a spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.

■ Select the location

Before installing the machine, a location characterized as follows shall be selected:

- Rigid, dry, and level surface (if not level, please make it level with reference to the following figure "Adjust Leg")

- Avoid direct sunlight

- Sufficient ventilation

- Room temperature is above 0°C

- Keep far away from heat sources such as coal or gas.

Make sure that the washed cylinder does not stand on the power cord.

Do not install the washing machine on a carpeted floor.

■ Adjust Leg

1. When positioning the washer, please

first check if the legs are closely attached to the cabinet. If not, turn them to their original positions with your hand or a spanner, and tighten the nuts with a spanner.

1. After positioning the machine dryer

pass over the cover of

the machine. If the washing machine

is stable when pressed, this leg shall be

adjusted.

Install Washer Dryer Machine

1. Ensure the positioning status of the washer dryer machine. Loosen the lock nut with a spanner and turn the leg by hand until it closely contacts the floor. Press the leg with one hand and fasten the nut closely to the cabinet with the other hand.
2. After being locked properly, press the four corners again to make sure they have been adjusted properly. If it is still unstable, repeat Steps 2 and 3.
3. Place a solid cylinder (e.g., pop cans) oppositely on the top cover of the washing machine in the front and back directions. If the cylinder stays stable, the machine is level. If it rolls, the machine is not level. The rolling direction indicates the lower ground surface. Then, raise the two legs in that direction at the same time until the machine is level. Repeat Steps 1-3 to make the bottom legs closely contact the floor and lock the nuts tightly.

Connect inlet pipe

Connect the inlet pipe as indicated in the figure. For the model which has hot valve, please connect the hot valve to hot water tap. Energy will decrease automatically for some programs.

■ Install inlet pipe

1. Connect the elbow to tap and fasten it clockwise.
2. Connect the other end of inlet pipe to the inlet valve at the backside of washing machine and fasten the pipe tightly clockwise.

Notes: after connection, if there is any leakage with hose, then repeat the steps to connect inlet pipe. The most common type of tap shall be used to supply water. If tap is square or too big, then standard tap shall be changed.

Place outlet hose

There are two ways to place the end of outlet hose: 1. Put it beside the water trough.

Install Machine Washer Dryer

1. Connect it to the branch drain pipe of the trough.

- It can drain the water up and down, outlet hose shall not be installed at a height beyond 100cm and its end shall not be immersed in water.

Position outlet hose properly so that the floor will not be damaged by water leakage. Notes:

If the machine has outlet hose support, please install it like the following pictures.

- When installing outlet hose, fix it properly with a rope. - Position outlet hose properly so that the floor will not be damaged by water leakage.

- If outlet hose is too long, do not force it into washer dryer machine as it will cause abnormal noises.

Electrical Connection

• As the maximum current through the unit is 10A when using its heating function, please ensure that the power supply system (current, voltage, and wiring) at your home can meet the normal loading requirements of the electrical appliances.
• Connect the power to a socket that is correctly installed and properly earthed.
• Make sure the power voltage at your location matches the voltage indicated on the machine's rating label.
• The power plug must match the socket, and the cabinet must be properly and effectively earthed.
• Do not use multi-purpose plugs or sockets as extension cords.
• Do not connect or pull out the plug with wet hands.
• When connecting or pulling out the plug, hold the plug firmly and pull it out. Do not pull the power cord forcibly.
• If the power cord is damaged or shows any signs of breakage, a special power cord must be selected or purchased from the manufacturer or service center for replacement.

Install Washer Dryer

WARNING

1. This machine must be properly earthed. In the event of a short circuit, earthing reduces the risk of electrical shock. This machine is equipped with a power cord that includes a plug and an earthing wire at the earthing terminal.
2. The washer dryer should be operated on a circuit separate from other electrical appliances. Otherwise, the power protector may trip or the fuse may burn out.

Operate Washer Dryer

Checklist and Preparation before Washing Clothes

Please read this operation method carefully to avoid troubles with the washing machine and damage to clothes.

Check if the first-washed clothes will be decolorized.

After a white towel touched with liquid detergent is used to wash the invisible corners of the clothes, check if the white towel is stained with the clothes' original color.

As for scarves and those clothes that easily get decolorized among imported clothes, please wash them separately before washing. For stains on sleeves, collars, and pockets, use liquid detergent and brush gently. Finally, put them into the washer dryer machine to achieve more ideal washing effects. As for temperature-sensitive clothes, they shall be washed as required in the labels. Otherwise, it may cause color change or distortion.

Keep in Mind:

Never put the clothes to be washed in the washer dryer machine for a long period of time. Otherwise, it may get moldy and cause spots. Therefore, please wash the clothes in time. The clothes may also get color changed or distorted if they are not washed according to the stated washing temperature.

Clothes that cannot be washed by the washer dryer machine

Clothes that may get distorted if immersed in water: Ties, waistcoats, western-style clothes, outer garments, etc. may have obvious shrinkage if immersed in water; decolorized clothes such as blended spinning clothes of artificial fiber, etc.

Operate Machine Washer Dryer

Wrinkle-style clothes, embossed clothes, resin clothes, etc. may get distorted when immersed in water. Among cotton and wool materials, the clothes that easily get distorted are wrinkle-style silk, fur products, and fur decorations.

Clothes with decoration, long dresses, and traditional clothes, etc., are products that get decolorized easily.

Please do not wash clothes without material labels and washing requirements. Never wash clothes stained with chemicals such as gasoline, petroleum, benzene, paint thinner, and alcohol.

Please pay attention with regard to detergents

"Low bubble" detergent or washing powder, or washing powder special for drum washing machines, shall be selected according to fiber types (cotton, synthetic fiber, soft products, and wool products), colors, washing temperatures, dirty degrees, and types. Otherwise, excessive bubbles may be generated and overflow out of the drawer so that accidents may take place.

Bleacher belongs to the alkali type and can damage clothes, so it is suggested to use as little as possible.

Powder detergents can easily leave residues in clothes, which can generate bad smells, so they should be rinsed thoroughly.

Detergent may not dissolve completely if too much is used or if the water temperature is quite low. It can remain in clothes, pipes, and washing machines, polluting the clothes.

Washing should follow the weight of the clothes, the degree of dirtiness, local water hardness, and the recommendations from detergent manufacturers. If you are unsure about water hardness, please consult the water company.

Notes:

Keep detergents and additives in safe, dry places out of the reach of children.

■ Checklist and Preparation Before Washing Clothes

Please remove items from pockets.

Check the pockets of the clothes to be washed and empty out hard items such as decorations and coins; otherwise, the washing machine may be damaged or have abnormal issues.

For the clothes to be washed, sort them according to the following characteristics:

Care label symbols: classify clothes into cotton, blended fiber, synthetic fiber, silk, wool, and artificial fiber.

Operate the Washer Dryer

Color: separate white and colored items. All new colored items should be washed separately.

Size: wash items of different sizes together to improve washing effectiveness. Sensitivity: wash delicate items separately. For new pure wool textiles, curtains, and silks, select the gentle wash cycle. Check the labels on all items.

Sort clothes before putting them into the washing machine. For curtains with hooks, remove the hooks before washing.

Decorations on clothes may damage the washing machine. For clothes with buttons or embroidery, turn them inside out before washing.

Clean up fasteners:

Zips shall be zipped close and buttons or hooks shall be fixed. The loose band or ribbon shall be bound together.

It is suggested to put bras into the pillow slip with zip or buttons sealed to prevent the steel wire from popping out of bras into the drum and damaging the machine.

Especially delicate textiles such as laced curtains, straight jackets, small articles (tight socks, handkerchiefs, ties etc.) shall be put into string bag for washing.

When washing a single big and heavy dress such as Turkish towels, jeans, wadded jackets etc., it may easily cause great eccentricity and give alarm due to great unbalance. Therefore it is suggested to add one or two more clothes to be washed together so that draining can be done smoothly.

Clean away dusts, stains and pet hairs from the clothes.

The clothes may be damaged and disturb washing effects during the friction between dusts, stains and clothes.

To protect baby skin

Baby articles (baby clothes and towels) including napkins shall be washed separately. If they are washed together with the adults' clothes, they may be infected. Rinsing times shall be increased to ensure the thorough rinsing and cleaning without the detergent residues.

It is suggested that the parts that are easily stained such as white sockets, collars and sleeves etc. shall be hand washed before being put into washing machine to achieve more ideal washing effects.

Please use powder or liquid detergents. The residues of the soap could remain in the gaps of the clothes if soap is used.

Operate MachineWasher Dryer

Pre-wash cotton cloth

New-developed washing machine together with new-developed detergent can make washing perfect, which can save energy, time, water and detergent. But if cotton cloth is very dirty, albumen-based detergent can be used for pre-washing.

Confirm the washing capacity:

Do not overload the washer; otherwise, it may affect the washing results. Please confirm the maximum load capacity according to the following table.

Fiber Type	Maximum Loading Capacity
	7.0kg
Cotton	7.0kg
Synthetic	3.5kg
Wool	2.0kg

Note: The rated capacity is the maximum capacity. Make sure that the dry clothes loaded into the appliance do not exceed the rated capacity each time.

Clothes that easily produce lint should be turned inside out for washing.

Clothes that easily produce lint should be washed separately; otherwise, other items may be stained with dust and lint. Preferably, black clothes and cotton clothes should be washed separately because they can easily get stained with lint of other colors when washed together.

Please check before washing.

The washing machine should not be used to wash waterproof materials (ski suits, outer diaper pads, curtains).

For fiber products that water cannot easily penetrate, such as waterproof cushions and clothes, it is better not to wash them. Otherwise, water may burst out or abnormal vibration may occur during rinsing and draining, which could also damage the clothes. (Such as outer diaper pads, raincoats, umbrellas, ski suits, car covers, sleeping bags, etc.)

Cautions during Draining

Draining of normal clothes:

Moisture from washings is drained through the drain hole. Draining of waterproof clothes and fiber products:

In the normal washing and draining state, moisture from waterproof clothes and fiber products cannot be drained, and washing water may gather in one direction, causing excessive eccentricity in the washing machine, leading to vibration or movement.

Drying hints

Clothes can be dried after spinning.

Please do not press the speed button during spinning to ensure the clothes spin properly.

For synthetic textiles, the appropriate spin speed should be selected before drying them.

To ensure quality drying of the textiles, please classify them according to their kind and the drying temperature.

Synthetic items should preferably be taken out before they are completely dry to protect them, and please set the appropriate drying time according to the load.

Operate Machine Washer Dryer

If you want to iron the clothes after drying, please leave them for a while to allow the humidity to diffuse within the clothes.

Garments not suitable for drying

Particularly delicate items such as synthetic curtains, woolen and silk garments, garments with metal inserts, nylon stockings, bulky garments such as anoraks, bedcovers, quilts, sleeping bags, and duvets must not be machine dried.

Garments padded with foam rubber or materials similar to foam rubber must not be machine dried; they represent a fire hazard.

Also, fabrics containing residues of setting lotions, hair sprays, nail solvents, or similar solutions must not be machine dried to avoid the formation of harmful vapors.

Operate Machine Washer Dryer

■ View of Control Panel

The control panel line chart is for reference only. Please refer to the actual product as the standard. 2. The control panel could be changed without written notice. Please visit the website of the washing machine or call the service line for details. 3. When the lights of Speed (600, 800, 1000, 1200, 1400) are off, it means the speed is 0. 4. The programme with can be chosen for the Dry function.

Operate Machine Washer Dryer

■ Washing Clothes at First Time

Before washing clothes for the first time, the washing machine shall be operated for one round of the whole procedures without clothes as follows:

1. Connect power source and water.
2. Put a little detergent into the box and close it.
3. Press the button "On/Off".
4. Press the button "Start/Pause".

The drawer is separated as follows:

I: Pre-detergent or washing powder.

II: Main detergent, softener, pre-dip,

bleaching or decontaminating products.

: Washing additive, such as fabric softener or tackifier.

- Put detergent into washing machine.

1. Pull out the drawer.
2. Fill pre-detergent into Case I (when necessary).
3. Fill detergent into Case II.

Option 1: detergent (powder). Option 2: (liquid).

1. Fill softener into Case ☑ (when necessary).

Notes:

- As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.

- Please choose suitable type of detergent for the various washing temperature to get the best washing effect with less water and energy consumption.

■ Start up washing machine

Connect the power. Check if water pipes are connected properly. Open the tap completely. Put in the clothes to be washed and fill in the detergent and tackifier. Then press the button "On/Off", Select the proper procedures and functions and press the button "Start/Pause".

■ Select the procedure

The proper washing procedures shall be selected according to the types, quantities, and dirtiness of the clothes to be washed in combination with the following washing temperature table.

90 °C	Seriously besmirched, pure white cotton or flax (for example: coffee table cloths, canteen table cloths, towels, bed sheets)
60 °C	Moderately besmirched, colorful flax, cotton and synthetic articles with certain decolorizing degree (for example: shirts, night pajamas; Slightly besmirched, pure white flax (for example: underwear)
40 30.2°C.°CCold water	Normally besmirched articles ( synthetic and wool)for example:

Operate Machine Washer Dryer

First, turn the rotary switch to select the corresponding procedures according to the types of textiles.

Second, select the proper temperature according to the dirtiness. Generally, the higher the temperature, the more power is consumed.

Last, select the proper spin speed. Normal textiles are recommended at 1000~1200 rpm, and delicate textiles at 600~800 rpm. The higher the spin speed, the drier the textiles become, but the noise also increases. Delicate textiles may wrinkle, and the washing machine's lifespan may be shortened.

PLEASE NOTE: To protect clothes, select a lower spin speed for delicate textiles. The main washing procedures depend on the types of clothes to be washed. The main washing programs can be selected as follows:

- Cotton

You can select this program to wash daily washable clothes. The washing cycle is quite long with strong washing action. It is recommended for daily cotton items, such as bed sheets, quilt covers, pillowcases, gowns, and underwear.

- Synthetic

You can select this program to wash quite delicate clothes. The cycle is shorter than that for cotton, and the washing action is gentle. It is recommended for synthetic items, such as shirts, coats, and blends. For curtains and laced textiles, select the "Synthetic" program. When washing knitted textiles, reduce the detergent amount due to their loose construction and tendency to form bubbles.

- Baby Care

You can select this program to wash your baby's clothes. It makes the baby's wear cleaner and improves rinsing to protect baby's skin.

- Jeans

This program is specially designed for washing jeans.

- Mix

You can select this program to wash tough clothes that need more time and strength. It is used for daily cotton clothes, such as sheets, quilts, pillowcases, bathrobes, and underwear.

- Color

You can choose this program to wash brightly colored clothing; it helps protect the bright colors better.

- Refresh

During this cycle, only hot air is ejected from inside the drum to wash the clothing, rather than water.

- Cotton ECO

To increase the washing effects, the main additional washing time is increased.

It is recommended to wash clothes for babies or worn by persons with allergic skin.

- Dry

Select Dry by revolving the knob (the drying temperature is different).

Select the drying time according to the load.

Operate Machine Washer Dryer

- Sport Wear

You can select this procedure to wash the Sport Wear.

- Quick

This procedure is suitable for washing few and not very dirty clothes quickly.

- Delicate

You can select this procedure to wash your delicate clothes. Its washing intention is gentler and the revolution speed is less compared with the procedure "Synthetic". It is recommended for the articles to be washed softly.

- Wool

You can select this procedure to wash wool textiles labeled with "Machine Wash".

Please select the proper washing temperature according to the label on the articles to be washed. Furthermore, the proper detergent shall be selected for wool textiles.

- Spin Only

Separate spin only procedure. Soap water or rinse water shall be drained out before spinning.

- Rinse&Spin

Separate Rinse&Spin Procedure.

- My Cycle

Press Temp. button 3sec. for my cycle to memory the procedure. The default my cycle is cotton.

The main function can be selected as follows:

- Prewash

The Prewash function can get an extra wash before main wash.

- Extra Wash

So dirty clothes can choose this function. It can select the prewash function to increase the washing effect, you need to put detergent into the Case (I) when using pre-wash function.

- Extra Rinse

The laundry will undergo an extra rinse once after you select it.

- Less Iron

The anti-crease function can be used to reduce wrinkles in clothes.

- Delay

The delay function can be set with this button; the delay time is 0-24 hours.

To set the delay function:

1. Select a programme.
2. Press the Delay button to choose the time.
3. Press Start/Pause to commence the delay operation.

To cancel the delay function: Press the Delay button until the display shows 0H. This should be done before starting the programme. If the programme has already started, press the On/Off button.

Note: If there is a power interruption while the machine is operating, a special memory stores the selected programme. When power is restored, press the Start/Pause button to continue from the remaining time.

Operate the machine: Washer Dryer

- Reload

This operation can be executed during the washing procedure. When the drum of the washing machine is still rolling and there is a large amount of water with high temperature in the drum, the state is unsafe and the door cannot be opened forcefully. To press 《Start/Pause》 for 3 seconds, to reload, and start the clothes adding in the midway function. Please follow the steps as below:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes needs are loaded and repress the 《Start/Pause》 button. Notes:

- Child Lock

To avoid that the washing procedure cannot operate normally due to the misoperation by kids during the washing procedure, you can select this function. In this case, the other buttons except On/Off button cannot work. At this state, the machine powers off when pressing the On/Off button. The machine remembers the program and child lock during power off, and when pressing the On/Off button again, the program resumes.

Press Function and Select together for 3 seconds during the running procedure, the buzzer will beep, and the Start/Pause button as well as the rotary switch are locked. Press the two buttons for 3 seconds together and the buzzer will beep to release the locking. But if the power supply is cut off, the child protection is also released. The child protection will not be cancelled after all procedures are completed.

- Suppression of the acoustic signals

This is an additional buzzer function on your appliance. After deactivating the buzzer function, the buzzer will be closed.

After starting the machine, press the "Temp. and Dry" button for 3 seconds and you will hear a beep, then the buzzer will be closed. To restart the buzzer function, press the "Temp. and Level" button again for 3 seconds. The setting will be kept until the next reset.

- Bubble Removal Function

Bubble Check Function: Redundant bubbles will occur when there is excessive detergent, which will affect wash and rinse effects. The procedure will check automatically and one bubble removal procedure will be added automatically to remove bubbles when excessive bubbles are checked.

Operate Machine Washer Dryer

■ Table of Washing and Drying Procedures

Energy test program: Cotton ECO 60°C; Speed: the highest speed; Other as the default. Half load for 7.0Kg machine: 3.5Kg. "Cotton Eco 60°C" are the "standard Cotton 60°C" programme and the standard washing programs to which the information in the label and the data sheet relates, and they are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption for washing that type of cotton laundry. The actual water temperature may differ from the declared cycle temperature. Notes: The parameters in this table are only for user's reference. The actual parameters may be different from the parameters in the above mentioned table.

Maintenance

Before your maintenance starts, please pull out the power plug or disconnect power and close the tap.

WARNING

• Solvents are forbidden to avoid that the washer dryer machine is damaged, and toxic gases are generated or exploded.
• Never use water to sprinkle and wash the machine.
• It is forbidden that the detergents containing PCMX are used to clean the machine.

■ Cleaning and Maintenance of Washing Machine Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. No sharp items are allowed to strike the cabinet.

Notes: formic acid and its diluted solvents or equivalent are forbidden.

■ Clean Internal Drum

The rusts left inside the drum by the metal articles shall be removed immediately with chlorine-free detergents.

Never use steel wool.

Dispose a Frozen Washer Dryer Machine

When the temperature drops below zero and your washer dryer machine gets frozen, you may:

1. Disconnect the power supply for the machine. 2. Wash the tap with warm water to loosen inlet pipe.
2. Take down inlet pipe and immerse it in warm water.
3. Pour warm water into washing drum and wait for 10 minutes.
4. Reconnect inlet pipe to the tap and check whether inlet and outlet are working normally. Notes: when the washing machine is reused, make sure the ambient temperature is above 0°C.

Anti-freeze

If your machine is located in the room where it can get frozen easily, please drain the remaining water inside drain pipe and inlet pipe thoroughly.

Remove the remaining water in inlet pipe:

1. Close the tap.
2. Screw off the inlet pipe from tap and put its end into the container.
3. Start up any procedure except single Wash or Drain procedure. Water will be drained out of inlet pipe if any for about 40 seconds.
4. Reconnect the inlet pipe to tap.

Remove the remaining water in drain pump

WARNING

To avoid burning, it shall be done after the hot water inside the machine cools down.

inside the machine cools down.

Maintenance

■ Clean detergent box and grooves

Clean detergent drawer and grooves

1. Press down the arrow location on softener cover inside the drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.

3.Restore the softener cover and push the drawer into position.

■ Clean inlet filter

Inlet filter shall must be cleaned if there is not any or insufficient water in when the tap is opened.

Clean the tap filter:

1. Close the tap.
2. Select any procedure except "Wash" or Rinse&Spin" procedure.
3. Press the "START/PAUSE" button and keep the procedure running for about 40 seconds.
4. Remove the inlet pipe from the tap.
5. Use water to wash the filter. 6. Reconnect the inlet pipe. Washing the filter in washer dryer machine:
6. Screw off the inlet pipe from the backside of the machine.
7. Pull out the filter with long nose pliers and reinstall it back after being washed.
8. Reconnect the inlet pipe. 4. Open the tap and make sure there is no water leakage. 5. Close the tap.

Notes: Generally, the tap filter is washed first and then the filter in washing machine will be washed.

If only the filter in washing machine is washed, then the steps 1~3 in cleaning the tap filter shall be repeated.

Maintenance

WARNING

Pull out the power plug to avoid electrical shock before washing.

After using the washing machine, pull out the power cord and close the door tightly to avoid pinching the kids.

■ Remove foreign matters

Drain Pump Filter:

Drain pump filter can filter the yarns and small foreign matters from the washings.

Clean the filter periodically to ensure the normal operation of the washing machine.

WARNING

According to the soil level within the cycles and the frequency of the cycles, you have to inspect and clean the filter regularly.

The pump should be inspected if the machine does not empty and/or spin.

The machine makes an unusual noise during draining due to objects such as safety pins, coins, etc. blocking the pump.

The service panel proceed as follows:

1. After the power is disconnected, use hand to open the filter cover.
2. Turn the filter down as shown with the figure and take out sundries matters.
3. Reinstall each part back after sundries matters are removed.

Warning!

When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely retightened.

Troubleshooting

Troubles	Reason	Solution
Washing mach ine cannot start up		Check if the door is closed tightly.Check if power plug is inserted well.Check if water supply lap is opened.Check if button "Start/Pause" is pressed.Check if button "On/Of" is pressed.
Door cannot be opened	Machine's safety protection and design is working.	Disconned the power.
Heating fault	NTC is damaged and heating pipe is aging.	Can normally wash the clothes.Only cannot wash with heating.Shall contact the service center promptly.
Water leakage	The connection between in let pipe or outlet hose a nd lap or washing machine is not tight.Drain pipe in the room is blocked.	Check and fasten water pipes.Clean up outlet hose and ask a specialized person to repair if when necessary .
Water is overflowed from the bottle m'd the machine	The inlet pipe is not connected firmly.Outlet hose has water-leakage .	Fix the inlet pipe.Replace the drain hose .
In dicator or display does no light .	Power is disconnected.PC board has problems.Harmass has connection problem .	Check if the power is shut down and power plug is connected correctly.If not, please call up service line.
Delergent residues in the box	Washing powder is dampaned and agglomerated.	Clean and wipe the box.Use liquid detergents or the detergents special for drum.
Washing effects are not good	The cloth es are too dirty.Insufficient detergent quantity.	Select a proper procedure.Add the proper detergent quantity according to the instructions in detergent package.
Abnormal noise Great vibration		Check if the fixing (bo ts) has been removed.If cabin et is installed on the solid and level floor.Check if the re are any barrelles or metal articles inside.Check if the legs in the washing machine are a adjusted level.

Remove the problems

Display LED	Description	Reason	Solution
E30	Door lock problem	Door is not closed properly.	Restart after the door is closed.
		Please call up service line if there are still troubles.
E10	Water injecting problem while washing	Tap is not opened or water flows too slowly.Inlet valve filter is blocked.Inlet pipe is twisted.If water is not supplied	Open the tap or wait till the water supply becomes normal.Check inlet valve filter.Straighten the water pipeCheck the other taps in the room.
		Please call up service line if there are still troubles.
E21	Drain problem while washing	Outlet hose is blocked or twistedDrain pump is blocked	Wash and straighten outlet hose.Wash drain pump filter
		Please call up service line if there are still troubles.
Please call up the service line if there is any other problem.

Appendix

Care Label

The label and sign on the fabric can help you to choose the best way to launder your clothes.

Normal washGentle wash

Hand washDo not wash

BleachDo not bleach

Chlorine bleachmay be usedClChlorine bleachnot be used

Tumble dry, Medium(max 100°C)Tumble dry, Low heat(max 110°C)

IronDo not iron	Cool increase 110 °C.)Warm iron, medium (max 150 °C.)	Dry cleanDo not dry clean	Dry clean normal cycle with dry solventA	Tumble dry normal	Drip dry
			Dry clean normal cycle periodic solvent dry	Dry flat	Hang to dry /Line dry

Iron with clothSteam Iron

Dry after washLine Dry in shade

Warmly dry cleanDo not tumble dry

No WrtngLine Dry

No machine wash

Electrical Warning

To avoid fire, electrical shock and other accidents, please remember the following reminding:

• Only the voltage indicated in power label can be used. If you are not clear of the voltage at home, please contact the local power bureau.
• When you are using the heating function, the maximum current through the washing machine will reach 10A. Therefore, please make sure the power supply units (current, voltage and cable) can meet the normal load requirements for the machine.
• Protect the power cord properly. Power cord shall be fixed well so that it will not trip the people or other things and be damaged. Special attention shall be paid to the socket. It shall be plugged into the sockets easily and attention shall be paid to the plug location.
• Do not make the wall-mounted socket overloaded or cable extended. Overloading of the wiring may cause fire or electrical shock. Do not pull out power plug with wet hand.
• To ensure your safety, power plug shall be inserted into an earthed three-pole socket. Carefully check and ensure that your socket is properly and reliably earthed.

Product Specifications

Parameter
Washing Capacity	7.0kg
Drying Capacity	3.5kg
Dimension(W* D*H)	595* 565* 850
Weight	78kg
Rated Power	2100W
Drying Power	1300W
Power Supply	220-240V~50Hz
MAX. Current	10A
Standard Water Pressure	0.05MPa~1MPa

Testing methods

ADDITIONAL INFORMATION FOR Standard performance TESTING:

(AS/NZS 2040.1:2005+Amdt1-2007+Amdt2-2009)

1. Water connections: Cold & hot water connection
2. Water supply pressure: 320 kPa
3. Warm wash Program: Cotton Eco 60°C Display: 5:00

Cold wash program: Cotton Cold (no temperature display is cold wash)

1. Detergent type: Drum detergent
2. Detergent quantity: Default
3. Adding detergent:

The detergent is dissolved and added as Paragraph B7.3 of AS/NZS 2040.1

The detergent shall be dissolved in 1 L of water

1. Anti-sudsing agent: Max
2. Test load mass: 7.0kg
3. Water consumption: 72
4. Test Voltage: 220-240V~, 50Hz

TFL7DW35

Warranty

11. WARRANTY TERMS & CONDITIONS

-TEKA LAUNDRY APPLIANCES

This document sets out the terms and conditions of the product warranties for Residential Group Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. IN THIS WARRANTY

a) 'acceptable quality' as referred to in clause 10 of this warranty has the same meaning referred to in the ACL;

b) 'ACL' means Trade Practices Amendment (Australian Consumer Law) Act (No.2) 2010;

c) 'Appliance' means any Residential Group product purchased by you accompanied by this document;

d) 'ASR' means Residentia Group authorised service representative;

e) 'Residentia Group' means Residentia Group Pty Ltd of 7/32 Wangaratta Street, Richmond, Victoria 3121, ACN 600 546 656 in respect of Appliances purchased in Australia;

f) 'major failure' as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Residential Group, at its discretion, to repair an Appliance during the Warranty Period;

g) 'Warranty Period' means:

i) where the Appliance is used for personal, domestic or household use (i.e. normal single family use) as set out in the instruction manual, the Appliance is warranted against manufacturing defects for 24 months, following the date of original purchase of the Appliance:

h) 'you' means the purchaser of the Appliance not having purchased the Appliance for re-sale, and 'your' has a corresponding meaning.

1. This warranty only applies to Appliances purchased and used in Australia and is in addition to (and does not exclude, restrict, or modify in any way) any non excludable statutory warranties in Australia.
2. During the Warranty Period Residential Group or its ASR will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Residential Group or its ASR may use remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Residential Group. This warranty does not apply to light globes, batteries, filters or similar perishable parts.
3. Parts and Appliances not supplied by Residential Group are not covered by this warranty.
4. You will bear the cost of transportation, travel and delivery of the Appliance to and from Residential Group or its ASR. If you reside outside of the service area, you will bear the cost of:

a) travel of an authorised representative;

transportation and delivery of the Appliance to and from Residentia Group or its ASR, in all instances, unless the Appliance is transported by Residentia Group or its ASR, the Appliance is transported at the owner's cost and risk while in transit to and from Residentia Group or its ASR.

1. Proof of purchase is required before you can make a claim under this warranty.

Instruction Manual

1. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Residentia Group is not liable in the following situations (which are not exhaustive):

a) the Appliance is damaged by:

i) accident

ii) misuse or abuse, including failure to properly maintain or service

iii) normal wear and tear

iv) power surges, electrical storm damage or incorrect power supply

v) incomplete or improper installation

vi) incorrect, improper or inappropriate operation

vii) insect or vermin infestation

viii) failure to comply with any additional instructions supplied with the Appliance;

b) the Appliance is modified without authority from Residentia Group in writing;

c) the Appliance's serial number or warranty seal has been removed or defaced;

d) the Appliance was serviced or repaired by anyone other than Residentia Group, an authorised repairer or ASR.

1. This warranty, the contract to which it relates and the relationship between you and Residentia Group are governed by the law applicable where the Appliance was purchased.
2. To the extent permitted by law, Residentia Group excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.
3. For Appliances and services provided by Residential Group in Australia, the Appliances come with a guarantee by Residential Group that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which the warranty relates.
4. At all times during the Warranty Period, Residentia Group shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.
5. To enquire about claiming under this warranty, please follow these steps:

a) carefully check the operating instructions, user manual and the terms of this

warranty:

b) have the model and serial number of the Appliance available;

c) have the proof of purchase (e.g. an invoice) available;

d) telephone the numbers shown below.

1. You accept that if you make a warranty claim, Residentia Group and its ASR may exchange information in relation to you to enable Residentia Group to meet its obligations under this warranty.

IMPORTANT! Before calling for service, please ensure that the steps in point 12 have been followed.

Telephone contacts:

Service Centre;

Spare Parts:

1300 11 HELP (4357)

1300 11 SPARE (7277)

The Australian Consumer Law requires the inclusion of the following statement with this warranty: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
