CKF3146V - Refrigerator Elvita - Free user manual and instructions

Product type	Freestanding fridge with freezer
Brand	Elvita
Model	CKF3146V
Total net capacity	314 L
Fridge net capacity	220 L
Freezer net capacity	94 L
Energy class	E
Annual energy consumption	245 kWh
Noise level	42 dB(A)
Climate class	SN-ST
Dimensions (H x W x D)	1800 x 600 x 650 mm
Weight	65 kg
Power supply	220-240 V ~ 50 Hz
Refrigerant	R600a
Number of shelves	4 adjustable glass shelves
Number of freezer drawers	3
Door hinge	Right, reversible
Defrost type	Auto defrost fridge, manual defrost freezer
Cooling features	Static cooling, LED interior light
Storage time during power failure	12 hours
Freezing capacity	4 kg/24h
Cleaning and maintenance	Clean interior with mild detergent; defrost freezer when ice exceeds 3 mm; clean condenser coils annually
Safety features	Child lock (control panel), automatic door alarm
Spare parts availability	Shelves, drawers, door seals available from manufacturer

Frequently Asked Questions - CKF3146V Elvita

How do I adjust the temperature in the fridge and freezer?

Use the control panel. Press the Fridge or Freezer button repeatedly to cycle through settings. Recommended: fridge at 4°C, freezer at -18°C.

Why is my fridge not cooling properly?

Check if the door is closed properly. Ensure the condenser coils are clean. Allow 24 hours after initial setup for temperature to stabilize. Place the fridge away from heat sources.

How often should I defrost the freezer?

Defrost when ice layer reaches 3-5 mm thick. Do not use sharp tools. Remove all food, switch off, and let ice melt. Dry thoroughly before restarting.

Can I reverse the door opening direction?

Yes, the door is reversible. Unscrew hinges, swap handles and hinges to the opposite side. Refer to the manual for detailed steps or hire a professional.

What does the alarm sound mean?

The door alarm sounds if the door is left open for more than 60 seconds. Close the door to stop it. A temperature alarm indicates internal temperature is too high; check if door was left open or power failure.

How do I clean the interior and exterior?

Unplug the appliance. Clean interior with warm water and mild detergent. Avoid abrasive cleaners. Wipe exterior with a damp cloth. Clean condenser coils with a vacuum brush annually.

Is the fridge suitable for a garage?

Check the climate class: SN-ST (10°C to 38°C). If garage temperature falls below 10°C, refrigeration may be affected. Avoid using in unheated spaces during winter.

What should I do if the fridge is making unusual noises?

Normal sounds include humming (compressor), gurgling (refrigerant), and clicking (thermostat). Ensure the fridge is level and not touching walls. If loud or continuous, contact customer support.

How long will food stay cold during a power outage?

The fridge keeps food cool for about 4-6 hours, freezer for 12 hours. Keep doors closed. Use ice packs to extend coldness.

Where can I find spare parts like shelves or door seals?

Order from Elvita authorized service centers or online parts stores. Use model number CKF3146V for accurate parts. Shelves and drawers are commonly available.

USER MANUAL CKF3146V Elvita

CKF3146V - 2025-07-17

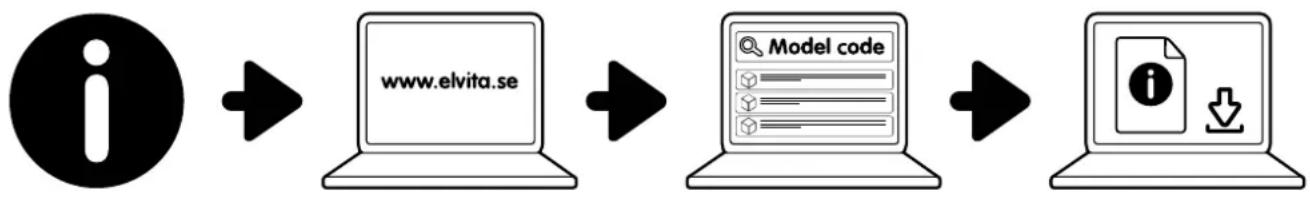

You can find the latest updated manual online. Please go to elvita.se and use the search function and the product's model code to find the manual.

CONTENTS/INNEHÅLL/INHALT/INDHOLD/INNHOLD/SISÄLLYSLUETTELO/EFNISYFIRLIT

ENGLISH 2

SVENSKA 62

DEUTSCH 122

DANSK....184

NORSK 244

SUOMI 304

ÍSLENSKA 364

Contents

SAFETY 4

Safety overview 4

Admonitions 4

Intended use 4

Safety for children and people with disabilities.... 4

General safety 5

Safety during installation 6

Safety during operation 6

Safety during maintenance 7

Disposal.... 8

QUICK START 9

GETTING STARTED 10

Getting to know your fridge freezer.... 10

Accessories.... 10

Fridge compartment.... 10

Freezer compartment.... 11

Find the model code.... 11

Before first use 11

USING YOUR FRIDGE FREEZER 14

Turn on and turn off the fridge freezer 14

Settings and modes 16

Change the temperature 16

Storing food.... 17

Store food in the fridge.... 17

Store food in the freezer.... 18

CLEANING AND MAINTENANCE 20

Clean the exterior.... 20

Clean the interior.... 22

Clean the door seals 27

Defrost the fridge freezer 28

Prepare for longer periods of non-use 32

Replacing the LED light.... 34

TROUBLESHOOTING 38

Fridge freezer is not working correctly.... 38

Odour from the compartments 38

Noise from the fridge freezer 38

Motor runs continuously 39

Layer of frost in the compartment 39

Temperature inside is too warm 39

Temperature inside is too cold 39

Doors cannot be closed easily 39

Water on the floor 40

Light is not working.... 40

INSTALLATION 41

Installation area 41

Unpack the fridge freezer 43

Level the fridge freezer 45

Remove and install the doors 46

Reverse the doors.... 52

SPECIFICATIONS 58

Technical specifications.... 58

Dimensions.... 59

EU directives and standards.... 59

Climate classes.... 59

General storage recommendations.... 59

SAFETY

Safety overview

Carefully read the instructions before you install and use the product. Save the instructions and keep them near the product for future reference. All kinds of warranties shall be invalid if these instructions are not followed.

Admonitions

DANGER!

Used when there is a risk for personal injury or death.

WARNING!

Used when there is a risk for personal injury.

CAUTION!

Used when there is a risk for damage to the product.

NOTE!

General information that you should be aware of.

Helpful tips that you may find useful.

Intended use

This product is only intended for:

- Indoor use in a household or a similar environment such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

- Household use, such as storage of food and beverages.

This refrigerating product is not intended to be used as a built-in product.

Safety for children and people with disabilities

WARNING!

Only let the following groups use the product if they are supervised or if instructions are provided to them about how to use the product in a safe way. They must understand the hazards involved.

• Children 8 years and older. (Children younger than 8 years must be continuously supervised, or be kept away from the product.)
• Children aged 3 to 8 years are allowed to load and unload the product.
• People with reduced physical, sensory or mental capabilities. • People with a lack of experience and knowledge.

WARNING!

• Do not let children or pets play with the product.
• Do not let children clean the product without supervision.
• Do not let children or pets enter or climb inside the product, otherwise they may suffocate or fall.

WARNING!

Keep all packaging away from children as there is a risk of suffocation.

General safety

WARNING!

Do not place hands, feet, or metal objects under or behind the product. There is a risk of crushing, and sharp edges can cause injury.

WARNING!

• Take care when moving the product. The product is heavy. Do not stand on any parts of the product or use any parts of the product as supports.

WARNING!

Risk of electric shock!

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• If the power socket is loose, do not plug in the power plug. There is a risk of electric shock and fire.
• Do not pull on the power cord when you unplug the product. Grab the power plug firmly and pull it out of the power socket.
• Do not damage or crush the power cord, and do not use it if it is damaged or worn. Any damage to the cord may cause a short circuit, fire, and electric shock.

WARNING!

Risk of fire!

The following symbol can be found on the product. It is a warning and indicates that the refrigerant and insulation blowing gas are flammable.

• During transportation and installation of the product, ensure that none of the components of the refrigerant circuit become damaged. The refrigerant, isobutane (R600a), contained within the refrigerant circuit is flammable.
• If the refrigerant circuit is damaged, avoid open flames and sources of ignition and thoroughly ventilate the area surrounding the product.
• Do not alter the specifications or modify the product in any way.
• If the power socket is loose, do not plug in the power plug. There is a risk of electric shock or fire.
• Do not damage or crush the power cord, and do not use it if it is damaged or worn. Any damage to the cord may cause a short circuit, fire, and electric shock.

Safety during installation

WARNING!

• Always use personal protective equipment (gloves etc.) during installation, maintenance and repair. There is a risk of injury.
• Do not damage the refrigerant circuit.
• When positioning the product, ensure the power cord and power plug are not trapped or damaged. A damaged power plug may overheat and cause a fire.
• When positioning the product, ensure the power plug is accessible.
• Do not install the product in a location with direct sunlight.
• Do not install the product in areas with moisture or where it can get splashed with water, as it can harm the electrical insulation properties.
• Keep ventilation openings outside the product clear of obstruction.
• Do not install the product without sufficient space and air ventilation around the product. This leads to overheating.
• Do not install the product close to radiators or cookers.
• The surface that the product is installed on should be strong enough to support a fully loaded product.
• Adjust the feet until all feet make contact with the floor and the product is level. This prevents the product from moving, tipping over and risk of injury.
• Do not install the back of the product too close to a wall. There is a risk of fire if the compressor gets overheated.

WARNING!

• Do not connect the product to the power socket if the product is damaged. Contact the retailer from which you purchased the product.
• Use a dedicated power socket, meaning that the power socket must not be shared with other products.
• Do not locate multiple portable socket outlets or portable power supplies behind the product.
• Make sure to connect the power plug to an earthed socket. Check carefully to ensure that your socket is properly and reliably earthed.
• Do not use extension cords and do not lengthen the power cord.
• After positioning the product, it is recommended to wait at least 4 hours before connecting the product to the mains. This allows the oil to flow back in the compressor.
• If the fluctuation of voltage in the installation area exceeds the single phase alternating current of 220\~240V/50Hz, use an AC automatic voltage regulator of more than 350W.

NOTE!

Contact Elvita support if you need help with the installation of your product.

Safety during operation

WARNING!

• Do not store explosive substances in this product, such as aerosol cans that contain a flammable propellant.
• Do not store flammable gas or liquids in the product, there is a risk of an explosion.

WARNING!

Keep burning candles, lamps and other items with naked flames away from the product to avoid the risk of fire.

WARNING!

• Do not remove or place food or containers in the freezer compartment with wet hands when the fridge freezer is running, especially metal containers, to avoid the risk of skin abrasions and ice burns.
• Do not consume frozen food, such as ice popsicles and ice cubes, straight from the freezer. This may cause ice burns.

WARNING!

• Keep ventilation openings inside the product clear of obstruction.
• Do not use electrical appliances inside the food storage compartments of the product, other than those recommended by the manufacturer.
• Do not overload the shelves, door racks or put too much food in the crisper drawers to avoid items falling and causing injury or damage to the product.

WARNING!

Do not operate the product without the interior lighting lamp cover.

CAUTION!

• Do not place hot items near the plastic components of the product.
• Do not place food products directly against the air outlet on the rear wall.

CAUTION!

Warnings for food safety!

To avoid contamination of food, please follow these instructions:

• Avoid prolonged door openings: Keeping the door open for long periods can cause a significant increase in the temperature inside the compartments.
• Regular cleaning: Clean surfaces that come into contact with food and accessible drainage systems regularly.
• Water dispenser maintenance: For models with a water dispenser: If the water dispenser has not been used for 48 hours, clean it before use. If the water system is connected to a water supply and has not been used for 5 days, flush it before consumption.
• Proper storage of raw meat and fish: Store raw meat and fish in suitable containers in the compartments to prevent contact with or dripping onto other food.

• Star-rated compartments:

• Two-star frozen food compartments are suitable for storing pre-frozen food, preserving ice cream, and making ice cubes.
• One-star, two-star, and three-star compartments are not suitable for freezing fresh food.

- Long-term storage precautions: If the refrigerating product is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mould from developing inside.

- The storage recommendations should be strictly adhered to.

- Food needs to be packed into bags before it is put into the fridge. Liquids need to be stored in bottles or capped containers in order to avoid a spill, as the design structure of the product is not easy to clean.

- Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

- Do not freeze frozen food again once it has thawed out. Once the food has thawed, it may slowly lose quality or spoil.

- Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure in the container, which may cause it to explode and damage the product.

Safety during maintenance

WARNING!

• Any electrical work must be performed by a qualified electrician or a person with comparable qualifications.
• This product must only be serviced by an authorised service centre, and only genuine spare parts must be used.
• Do not try to repair, disassemble or modify the product by yourself.

WARNING!

Before any cleaning or performing any maintenance of the product, unplug the product from the power socket.

WARNING!

Do not use tools or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING!

Do not replace the lamps in the product. If the lamps are broken, contact the support.

CAUTION!

• Do not use metal objects, steam cleaner, thinner, car detergent, clorox, ethereal oil, abrasive cleansers or organic solvent such as benzene for cleaning. They may damage the surface of the product and may cause fire.
• Do not use sharp objects to remove frost from the product. Use a plastic scraper.
• Do not use sponges and rough cleaning cloths. They may cause scratches.
• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Ensure that frozen food does not increase in temperature during manual defrosting, maintenance or cleaning. This may result in reduced storage time.

Disposal

WARNING!

• To prevent children from getting trapped inside, remove the doors before disposing of the product.
• Some older models have a spring lock on the door. Make the spring lock unusable before disposing of the product.
• To prevent children from getting an electric shock, unplug the power cord and cut it as close to the product as you can before disposing of the product.

WARNING!

• Ensure that the tubing of the refrigerant circuit is not damaged prior to disposal.
• Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally at an authorised waste disposal centre as they may cause eye injuries or ignition. The refrigerant and insulation blowing gas are flammable. Do not expose to flame.

Dispose of packaging in an environmentally-friendly manner. Recycling packaging, while observing national and local regulations, can reduce the consumption of raw materials and the amount of waste in landfill sites.

This product is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). The symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact the relevant municipal body in charge of waste management, your household waste disposal service or the store where you purchased the product.

QUICK START

Changing temperature in the fridge freezer

1

2

Storing food in the fridge

1

●

●

Storing food in the freezer

1

GETTING STARTED

Getting to know your fridge freezer

Accessories

A. Egg holder B. Ice cube tray C. Upper hinge cover

Egg holder For storing eggs in the fridge.

Ice cube tray For making ice cubes in the freezer.

Upper hinge cover For covering the hinge on the upper left side of the fridge.

Fridge compartment

A. Shelves B. Vegetable drawer C. Door shelves

The fridge compartment is suitable for storing a variety of fruits, vegetables, beverages and other food for consumption in the short term.

Shelves To store and organise your food and drinks.

Door shelves To store and organise your food and drinks.

Vegetable drawer

To store and organise different types of food such as fruits and vegetables.

NOTE!

This product is most energy efficient with all shelves and drawers in their original position.

NOTE!

This product contains a LED light source of energy efficiency class G.

Freezer compartment

The freezer compartment can keep food fresh for a long time and is suitable for storing meat, fish, ice cream and other food that is not intended to be consumed in the short term.

The compartment consists of one shelf.

NOTE!

This product is most energy efficient with all shelves and drawers in their original position.

Find the model code

The model code is printed on a label on the product. You need the code to find the complete and most recent information, service, and support for your product model.

NOTE!

This product and label text are examples. Your product and text may have a different look and content.

Before first use

Prepare the fridge freezer for the first use before plugging it in and storing food.

WARNING!

• Do not connect the product to the power socket if the product is damaged. Contact the retailer from which you purchased the product.
• If the power socket is loose, do not plug in the power plug. There is a risk of electric shock or fire.
• Do not damage the power cord or use the power cord if it is damaged or worn. Any damage to the cord may cause a short circuit, fire, and electric shock.
• Make sure the fridge freezer is unpacked and placed properly.

1. Leave the fridge freezer to stand for at least 4 hours before plugging it in.

1. Plug in the power cord.

1. Let the fridge freezer run empty for 1-2 hours.

Your fridge freezer is ready for use.

NOTE! Do not store anything in the fridge or freezer before it is cold.

NOTE!

• The recommended temperature is 4 °C in the fridge and -18 °C in the freezer. Make sure the recommended temperature setting 5.5-5.9 is selected.
• Storing too much food when your fridge freezer is first turned on may affect the refrigerating performance negatively.

USING YOUR FRIDGE FREEZER

Turn on and turn off the fridge freezer

WARNING!

- Do not connect the product to the power socket if the product is damaged. Contact the retailer from which you purchased the product.

- If the power socket is loose, do not plug in the power plug. There is a risk of electric shock or fire.

- Do not damage the power cord or use the power cord if it is damaged or worn. Any damage to the cord may cause a short circuit, fire, and electric shock.

Turn on the fridge freezer

1. Plug in the fridge freezer.

1. Open the fridge door.

NOTE! When the fridge door is open, the internal light turns on.

1. Turn the temperature-control knob in the fridge to the preferred temperature level, then close the door.

NOTE! The recommended temperature is 4 °C in the fridge and -18 °C in the freezer. The recommended temperature setting is 5.5-5.9.

Turn off the fridge freezer

1. Turn the temperature selector knob to 0.

1. Unplug the fridge freezer.

Settings and modes

Change the temperature

Set the temperature level for both the fridge and freezer compartments.

CAUTION!

• A high temperature setting will accelerate food waste.
• A lower temperature setting than necessary wastes energy.
• For optimum food preservation, a medium setting is the most suitable.
• Open the fridge door.

1. Turn the temperature selector knob to select a temperature level (1, 2, 3, 4, 5, 6, 7 - the higher the number, the colder the temperature).

NOTE!

• The recommended temperature setting is 5.5-5.9, resulting in 4.0 °C in the fridge and -18.0 °C in the freezer.
• Only use temperature settings 6 to 7 for up to 1 hour when you have recently loaded the fridge to cool it quickly.

Using temperature levels 6 to 7 for an extended period of time can cause freezing temperatures in the fridge.

NOTE!

Temperatures inside each compartment may vary, depending on how much food is stored and where the food is placed. The room temperature may also affect the temperature inside the fridge freezer.

Storing food

Store food in the fridge

WARNING!

Do not overload the shelves, door racks or put too much food in the drawers to avoid items falling and causing injury or damage to the fridge freezer.

CAUTION!

• Always follow food storage times and expiration dates suggested by manufacturers. - Opening the door for long periods can cause a significant increase of the temperature in the compartments. - Store raw meat and fish in suitable containers in the fridge, so that it is not in contact with or drip onto other food.

CAUTION!

Do not close the door while any shelves are extended or drawers are open. It may damage the shelves, drawers and door.

NOTE!

To avoid wasting energy:

• Do not store warm food or evaporating liquid in the fridge freezer. Placing hot food directly into the fridge or freezer causes the internal temperature to rise, resulting in the compressor having to work harder and therefore consume more energy. Warm food and beverages must cool down to room temperature before storing them.
• Do not keep the doors open for longer periods.

Use the following tips and recommendations when storing food in the fridge.

When refrigerating fresh food:

• Cover or wrap the food, particularly if it has a strong flavour.
• Place the food so that air can circulate freely around it.

Other refrigerating recommendations:

Food Recommendation

Meat (all types) Wrap in polythene and place on the glass shelf above the drawer for fruit and vegetables

Cooked food, cold dishes etc. Cover and place on any shelf

Fruit and vegetables Store in the drawer for fruit and vegetables

Butter and cheese Wrap in airtight foil or plastic film wrap

Milk bottles, other bottled drinks, and canned liquids Ensure bottles have a lid and store in the door racks

Eggs and packed foods Store in the door racks, put eggs in the egg holder

Store food in the freezer

WARNING!

• Do not place food or containers in the freezer compartment with wet hands when the fridge freezer is running, especially metal containers, to avoid the risk of skin abrasions and ice burns.
• Do not consume frozen food, such as ice popsicles and ice cubes, straight from the freezer. This may cause ice burns.

CAUTION!

• Always follow food storage times and use by dates suggested by manufacturers. - Opening the door for long periods can cause a significant increase of the temperature in the compartments. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure in the container, which may cause it to explode and damage the product. - Make sure that bottles are not left in the freezer for longer than needed. Freezing may cause the bottles to break.

CAUTION!

Do not close the door while any drawers are open. It may damage the drawers and the door.

Use the following tips and recommendations when storing food in the freezer.

• Prepare food in small portions to enable it to be rapidly and completely frozen and in turn make it possible to thaw only the quantity required. Once defrosted, food will deteriorate rapidly and should not be frozen again. When food freezes too slowly, it can lose quality or go bad.
• Wrap up the food in aluminum foil or polyethylene food wraps which are airtight. Wipe containers dry before placing them in the freezer.
• Label and date each frozen package in order to keep track of the storage time.
• Remove as many items as needed at one time. Opening the compartment frequently may lead to increased temperature, energy consumption and food being spoiled.
• Do not allow fresh unfrozen food to touch the food which is already frozen to avoid temperature rise of the latter.
• Ensure that frozen food has been stored correctly by the food retailer.

CLEANING AND MAINTENANCE

Clean the exterior

Clean the exterior every two months. This will help maintain a good appearance of the fridge freezer.

WARNING!

- Unplug the fridge freezer before cleaning. There is a risk of electric shock. - Do not use metal objects, sharp objects, steam cleaner, thinner, car detergent, clorox, ethereal oil, abrasive cleansers or organic solvent such as benzene for cleaning. They may damage the surface of the product and may cause fire.

CAUTION!

Regularly clean surfaces that can come in contact with food and accessible drainage systems.

1. Turn the temperature selector knob to 0.

1. Unplug the fridge freezer.

1. Clean the doors, handles and cabinet surfaces with a soft cloth dampened with, for example, mild detergent.

Spray water onto the cleaning cloth instead of spraying directly on the surface of the freezer. This helps ensure an even distribution of moisture on the surface.

1. Wipe the doors, handles and cabinet surfaces dry with a soft cloth.

1. Plug in the fridge freezer.

1. Turn the temperature-control knob in the fridge to the preferred temperature level and close the door.

NOTE! The recommended temperature is 4 °C in the fridge and -18 °C in the freezer. The recommended temperature setting is 5.5-5.9.

Clean the interior

Clean the interior every two months. It will be easier to clean when food stocks are low.

WARNING!

• Unplug the fridge freezer before cleaning. There is a risk of electric shock.
• Do not use metal objects, sharp objects, steam cleaner, thinner, car detergent, clorox, ethereal oil, abrasive cleansers or organic solvent such as benzene for cleaning. They may damage the surface of the product and may cause fire.

CAUTION!

• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Do not rinse directly with water or other liquids to avoid damaging the product, short circuits or affect electrical insulation.
• Do not use cleaning products (such as soap, detergent, scrub powder, spray cleaner, etc.) to clean the interior. They may cause odour and may contaminate food.
• Turn the temperature selector knob to 0.

1. Unplug the fridge freezer.

1. Remove food from the fridge freezer.

1. Remove shelves and drawers.

NOTE! To remove a door shelf, lift the right side of the door shelf while holding the left side. When the notch the shelf is detached from the fridge door, lift the shelf off the door completely.

1. Wipe the control panel with a clean, soft cloth.

1. Use a soft cloth or sponge to wipe the inside of the fridge freezer using a weak solution of bicarbonate of soda.

1. Rinse with warm water using a wrung-out sponge or cloth.

1. Wipe the interior dry or let it stand to dry with the doors open.

1. Clean the shelves and drawers with a soft cloth dampened with soapy water or diluted detergent.

1. Wipe the shelves and drawers dry.

1. Install the shelves and drawers.

NOTE! To install a door shelf, repeat the steps to remove it in reverse order.

1. Plug in the fridge freezer.

1. Turn the temperature-control knob in the fridge to the preferred temperature level and close the door.

NOTE! The recommended temperature is 4 °C in the fridge and -18 °C in the freezer. The recommended temperature setting is 5.5-5.9.

1. Place the food back in the fridge freezer.

Clean the door seals

Check and clean the door seals regularly to make sure there is no debris. Sticky food and drinks can cause the seals stick to the cabinet and tear when you open the door.

WARNING!

- Unplug the fridge freezer before cleaning. There is a risk of electric shock.

- Do not use metal objects, sharp objects, steam cleaner, thinner, car detergent, clorox, ethereal oil, abrasive cleansers or organic solvent such as benzene for cleaning. They may damage the surface of the product and may cause fire.

- Do not plug the fridge freezer back into the mains socket unless the door seals are completely dry.

1. Unplug the fridge freezer.

1. Wash the seals with a mild detergent and warm water.

1. Rinse and dry the seals thoroughly after cleaning.

1. Plug in the fridge freezer.

Defrost the fridge freezer

Defrosting in the fridge compartment is automatic. Water from defrosting is drained into a drip tray through a drain pipe at the back of the fridge.

The freezer needs to be defrosted if the frost is too thick (more than 10 mm). Defrost the freezer once a month. If the freezer door is opened frequently or the freezer is used in extreme humidity, defrost every two weeks. Try to defrost when the freezer is nearly empty.

WARNING!

• Unplug the fridge freezer before defrosting the freezer. There is a risk of electric shock.
• Do not plug the fridge freezer back into the power socket unless the interior is completely dry.
• Do not use tools or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

CAUTION!

• Do not use metal objects or sharp objects to remove frost from the freezer interior. They may damage the surface of the product.
• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Do not heat the freezer chamber directly with hot water or a hair dryer while defrosting. It can cause deformation of the inner case.
• Do not scrape off ice/frost or separate food from the containers which have been congealed together with the food using sharp tools or wooden bars. It can damage the inner casing or the surface of the evaporator.

Defrost the freezer

1. Turn the temperature selector knob to 0 to turn off the fridge freezer.

CAUTION! While defrosting the freezer, the fridge may warm up. It is recommended to remove food and drinks from the fridge.

1. Remove the food from the freezer and unplug the product.

1. Open the freezer door and leave it open.

1. Remove the shelf from the freezer.

1. Leave the fridge freezer to defrost.

NOTE!

- Ventilate the room thoroughly to accelerate the process.

- To speed up the defrosting process, put a bowl of warm water (about 50 °C) in the freezer chamber. Scrape away the ice with a defrosting spatula. Set the temperature selector knob to its original position.

1. Wipe the freezer compartment dry.

1. Clean the inside of the freezer. See section "Clean the interior", page 22.

1. Plug in the fridge freezer.

1. Turn the temperature-control knob in the fridge to the preferred temperature level and close the door.

NOTE! The recommended temperature is 4 °C in the fridge and -18 °C in the freezer. The recommended temperature setting is 5.5-5.9.

1. When the freezer is sufficiently cold, place the shelf back in the freezer.

Prepare for longer periods of non-use

When switching off the fridge freezer for an extended period of time, some preparations need to be made to keep the product in good condition and prevent mould.

1. Turn the temperature selector knob to 0.

1. Unplug the fridge freezer.

1. Remove food from the fridge freezer.

1. Clean the fridge freezer. See section "Clean the exterior", page 20 and see section "Clean the interior", page 22.

1. Leave the doors open to prevent odour.

When starting the fridge freezer after a period of non-use, let the fridge freezer run at least 2 hours on low temperature settings before putting food in the compartment.

Replacing the LED light

CAUTION!

The LED light should not be replaced by the user. If the LED light is damaged, contact the Elvita support.

WARNING!

- Any electrical work required to service the product should be carried out by a qualified electrician or competent person. - This product must be serviced by an authorised service center, and only genuine spare parts must be used.

NOTE!

The LED panel light source should be 220-240 V, MAX 2 W

1. Turn the temperature selector knob to 0.

1. Unplug the fridge freezer.

1. Remove the screw.

1. Pull out the lamp cover.

1. Unplug the lamp panel from the lamp cover. To install, plug in the new lamp panel.

1. Install the cover using the screw.

1. Plug in the fridge freezer.

1. Turn the temperature-control knob in the fridge to the preferred temperature level and close the door.

NOTE! The recommended temperature is 4 °C in the fridge and -18 °C in the freezer. The recommended temperature setting is 5.5-5.9.

TROUBLESHOOTING

Fridge freezer is not working correctly

WARNING!

• Only authorised technicians may carry out repairs.
• If you experience problems with the product, see if the user instructions and troubleshooting information can help you find a solution. If the problem persists, contact an authorised technician, qualified electrician or the retailer where the product was purchased.

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Power supply is not working

1. Check the fuse and circuit of the power supply.
2. If it is not in working condition contact an authorised electrician.

Main plug is not inserted

Connect main plug to power outlet.

Ambient temperature is too low

Lower the temperature in the fridge freezer. See section "Change the temperature", page 16.

Voltage is too low

The mains voltage must correspond to the voltage specified on the rating plate.

Odour from the compartments

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Interior is not clean

Clean the interior. See section "Clean the interior", page 22.

Food, containers or wrapping are causing odours

Use a different container, wrap food properly, or remove food from the fridge freezer.

Noise from the fridge freezer

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Noise is normal during operation

The following noises are normal during operation:

• Clicking noise before the compressor starts.
• Noise from the compressor running. • Gurgling sound similar to water boiling.
• Popping noise during automatic defrosting.

Cabinet is not level

Level the fridge freezer. See section "Level the fridge freezer", page 45.

Back of the fridge freezer touches the wall

Move the fridge freezer so that it has sufficient space around it. See section "Installation area", page 41.

Bottles or containers fall or roll

Check if any bottles or containers have fallen or rolled.

Motor runs continuously

Normal to hear the sound of the motor

It is normal to frequently hear the sound of the motor. The motor will need to run more when:

• the temperature setting is set colder than necessary;
• a large quantity of warm food has recently been stored;
• the temperature outside the fridge freezer is too high;
• the doors are kept open too long or too often;
• the fridge freezer is recently installed or it has been switched off for a long time.

Layer of frost in the compartment

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Air outlet is blocked or ventilation is not sufficient

Check that the air outlets are not blocked by food and ensure food is placed to allow sufficient ventilation. Remove the frost. See section "Defrost the fridge freezer", page 28.

Door is not closed properly

Make sure that the door is fully closed. Remove the frost. See section "Defrost the fridge freezer", page 28.

Temperature inside is too warm

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Doors are left open too long or too frequently

Make sure that the door is fully closed. Check that the doors are not kept open by some obstacle.

Fridge freezer does not have sufficient space around it

Move the fridge freezer so that it has sufficient space around it. See section "Installation area", page 41.

Temperature inside is too cold

Temperature setting is set to too cold

Increase the temperature. See section "Change the temperature", page 16.

Doors cannot be closed easily

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Something inside is preventing the doors from closing

Remove the item preventing the doors from closing.

Fridge freezer is not tilted backward slightly

Tilting the fridge freezer backward allows for the doors to slowly close on their own. See section "Level the fridge freezer", page 45.

Water on the floor

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

Water pan (located at the rear bottom of the cabinet) is not properly leveled

This may cause the water to not be directed into the water pan as intended and spill onto the floor instead. Pull the fridge freezer away from the wall to check the pan and spout. Remove dirt and debris.

Draining spout (located underneath the top of the compressor depot) is not properly positioned or is blocked

This may cause the water to not be directed into the water pan as intended and spill onto the floor instead. Pull the fridge freezer away from the wall to check the pan and spout. Remove dirt and debris.

Fridge freezer is powered off for a long time

This may cause ice or frost in a compartment to melt into water and drip onto the floor.

Light is not working

WARNING!

• Only authorised technicians may carry out repairs.
• If you experience problems with the product, see if the user instructions and troubleshooting information can help you find a solution. If the problem persists, contact an authorised technician, qualified electrician or the retailer where the product was purchased.

The problem can have different causes. Follow the instructions for the suggested causes to solve the problem.

LED light is damaged

Do not replace the LED light. If the LED light is damaged, contact the support. Contact Elvita support if you need help with your product.

LED light is disabled by the control system due to the door being kept open too long

Close and open the door to reactivate the light.

INSTALLATION

Follow the instructions in this section to install your product.

DANGER!

Before installing or adjusting accessories, make sure that the product is unplugged from the power socket.

WARNING!

Read the safety information and the full instructions before installing or using this product.

WARNING!

• This product is not intended for use as a built-in product.
• Do not damage the refrigerant circuit.
• When positioning the product, ensure the power cord is not trapped or damaged. A damaged power plug may overheat and cause a fire.
• Do not locate multiple portable socket outlets or portable power supplies behind the product.
• Do not connect the product to the power socket if the product is damaged. Contact the retailer from which you purchased the product.
• Use a dedicated power socket, meaning that the power socket must not be shared with other products.
• The plug must be plugged into an appropriate power socket that is installed and earthed in accordance with all local laws and regulations.
• Make sure the connection parameters of the product match the mains electricity supply. This information (fuse rating, voltage and frequency) is found on a label on the product. If in any doubt, consult a qualified electrician.
• Do not use extension cords and do not lengthen the power cord.

CAUTION!

Take care when handling the product to ensure that it does not fall and cause injury.

NOTE!

If you have any concerns about the installation, contact the support. Contact Elvita support if you need help with your product.

Installation area

WARNING!

• When positioning the product, ensure the power cord and power plug are not trapped or damaged. A damaged power plug may overheat and cause a fire.
• When positioning the product, ensure the power plug is accessible.
• Keep ventilation openings outside the product clear of obstruction.
• Do not install the product without sufficient space and air ventilation around the product. This leads to overheating.
• Do not install the back of the product too close to a wall. There is a risk of fire if the compressor gets overheated.

CAUTION!

This product performs well within the climate class from N to ST. See section "Climate classes", page 59. The product may not work properly if it is exposed to temperatures above or below temperature ranges spanning from 16°C to 38°C for a long period.

Keep the following in mind when choosing a location to install the fridge freezer:

• Avoid direct sunlight, rain or frost.
• Keep away from heat sources, such as cookers, ovens, fires, heaters or radiators.
• Position in a well-ventilated indoor location.
• Do not install the fridge freezer in a damp or wet location. The surface should be rigid, dry and level.
• Leave enough space to allow the doors and drawers to open easily, in accordance with the dimensions.

To level the fridge freezer properly and allow air to circulate in the lower rear of the fridge freezer, the feet may need to be adjusted. See section "Level the fridge freezer", page 45.

You can save energy and improve the efficiency of the cooling system by installing the fridge freezer with sufficient space around it. This ensures good ventilation.

Unpack the fridge freezer.

1. Check the packaging for any damage. If the packaging is damaged, do not unpack the product and contact the retailer where the product was purchased.

1. Remove the cardboard box and styrofoam packaging.

1. Turn the fridge freezer to remove it from the base packaging.

1. Remove the plastic wrapping.

1. Remove the tape holding the doors shut.

1. Remove the protective film on the shelves and on the drawers.

1. Check the product for any damage. If the product is damaged, do not connect the product to the power supply, keep the packaging and contact the retailer where the product was purchased.

Level the fridge freezer

Adjust the bottom feet when needed for sufficient leveling and air circulation in the lower rear section of the fridge freezer.

1. Check if there are any feet not touching the floor.

1. If any foot is not touching the floor: screw out the foot, by hand or using a suitable spanner, until it makes contact with the floor.

To make the doors close slowly on their own, tilt the top of the fridge freezer backwards by about 10-15 mm.

1. Use a spirit level to check if the fridge freezer is level and adjust the feet again if needed.

Remove and install the doors

WARNING!

Do not have the product connected to the power socket when removing and installing the doors.

Remove the doors

1. Turn the temperature selector knob to 0.

1. Unplug the fridge freezer.

1. Remove the door racks.

NOTE! To remove a door shelf, lift the right side of the door shelf while holding the left side. When the notch on the shelf is detached from the fridge door, lift the shelf off the door completely.

1. Remove the upper hinge cover.

1. Remove the screws with an 8mm socket wrench. Remove the upper hinge. CAUTION! Hold the upper door by hand to prevent it from falling.

1. Carefully lift the upper door upward to remove it. Place the door on a smooth surface with the front panel facing upward.

NOTE! When removing the door, check for any washers positioned between the center hinge and the bottom of the upper door as these washers may adhere to the door surface.

1. Remove the screws and the middle hinge.

1. Lift the lower door upwards to remove it from the lower hinge. Place the door on a smooth surface with the front panel facing upward.

NOTE! When removing the door, check for any washers positioned between the bottom hinge and the bottom of the lower door as these washers may adhere to the door surface.

Install the doors

1. To install the doors, mount the lower door on the bottom hinge.

1. Install the middle hinge.

1. Mount the upper door on the middle hinge.

1. Install the upper hinge.

1. Install the upper hinge cover.

1. Install the door racks.

NOTE! To install a door shelf, repeat the steps to remove it in reverse order.

1. Plug in the fridge freezer.

1. Turn the temperature-control knob in the fridge to the preferred temperature level and close the door.

NOTE! The recommended temperature is 4 °C in the fridge and -18 °C in the freezer. The recommended temperature setting is 5.5-5.9.

Reverse the doors

You can change at which side the door opens if the installation site requires it.

WARNING!

Do not have the product connected to the power socket when reversing the doors.

1. Remove the doors from the hinges. See section "Remove and install the doors", page 46.

1. Remove the screw hole cover and install it on the opposite side of the fridge freezer.

1. For both doors, remove the screw and the stop block and install it on the other side using the same stop block and screw.

1. On the middle cover plate, remove the screw hole cover and install it on the opposite side of the fridge freezer.

1. Tilt the fridge freezer slightly back in order to gain access to the front feet and lower hinge.

CAUTION! Rest the fridge freezer on soft foam packaging or similar material to avoid damaging the backboard.

1. Screw out the two front feet fully.

1. Remove the screws and hinge assembly.

1. Install the hinge assembly on the opposite side of the fridge freezer, fix the assembly using the screws.

1. Install the two front feet.

1. Mount the lower door on the bottom hinge and then tighten the bolts.

1. Install the middle hinge on the opposite side of the fridge freezer.

NOTE! The middle hinge needs to be flipped 180° when the doors are installed on the opposite side.

1. Mount the upper door on the middle hinge.

1. Install the upper hinge on the opposite side of the fridge freezer.

CAUTION! Hold the upper door by hand to prevent it from falling. NOTE! The upper hinge needs to be flipped 180° when the doors are installed on the opposite side.

1. Install the upper hinge cover on the opposite side of the fridge freezer. NOTE! Store the other hinge cover in a safe place.

1. Put the drawers and shelves back into the fridge freezer.

SPECIFICATIONS

Technical specifications

Product model code See section "Find the model code", page 11
Height 1434 mm
Width 550 mm
Depth 542 mm
Total volume 206 l
Fridge volume 165 l
Freezer volume 41 l
Recommended temperature setting for optimised food storage, fresh food	4°C
Recommended temperature setting for optimised food storage, 4-star	-18°C
Freezing capacity 2.0 kg / 24 h
Defrosting type Manual
Minimum ambient temperature, for which the refrigerating product is suitable	6°C
Maximum ambient temperature, for which the refrigerating product is suitable	8°C
Power supply	220~240 V, 50 Hz

Energy efficiency

You can find information about the energy efficiency of this product in EPREL, the European product registry for energy labelling. Go to the EPREL website and use the model identifier to find the information. The model identifier can be found on the energy label accompanying the product.

EPREL website: https://eprel.ec.europa.eu/

ENERG

SUPPLIER'S NAME

MODEL IDENTIFIER

Dimensions

EU directives and standards

This product fulfils the applicable EU directives and regulations and carries the CE mark. If not included with the product, a copy of the EU Declaration of Conformity is available on request.

The performance of the product has been tested in compliance with standard EN 60335 for refrigerating appliances.

Climate classes

Class Symbol Ambient temperature range
Temperate N +16°C to +32°C
Subtropical ST +16°C to +38°C

• Temperate: This refrigerating product is intended to be used at ambient temperatures ranging from 16°C to 32°C.
• Subtropical: This refrigerating product is intended to be used at ambient temperatures ranging from 16°C to 38°C.

General storage recommendations

Store different foods according to the recommended compartments and target storage temperature of the food products. Do this to ensure the best preservation over the longest period and to avoid food waste.

CAUTION!

• Two-star (**) frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-star (*), two-star (**), and three-star (***) compartments are not suitable for the freezing of fresh food.

NOTE!

Some fridge freezers may not have all compartment types listed in the table below.

Compartment type Target storage temperature (°C) Appropriate food
Fridge +2 ~ +8 Eggs, cooked food,	packaged food,	fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing.
(***)*-Freezer ≤ -18 Seafood (fish, shrimp, shellfish),		freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
***-Freezer ≤ -18 Seafood (fish, shrimp, shellfish),		freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
**-Freezer ≤ -12 Seafood (fish, shrimp, shellfish),		freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
*-Freezer	≤ -6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 month, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
0-star	-6 ~ 0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no later than 3 days). Partially encapsulated processed foods (non-freezable foods).
Chill	-2 ~ +3	Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no later than 2 days). Seafood (less than 0 °C for 15 days, it is not recommended to store above 0 °C)
Fresh Food 0 ~ +4 Fresh pork, beef, fish, chicken, cooked		food, etc. (Recommended to eat within the same day, preferably no later than 3 days)
Wine +5 ~ +20 Red wine, white wine, sparkling wine		etc.

Contents

SAFETY 64

Safety during installation

WARNING!

2

●

●

GETTING STARTED

!

NOTE!

NOTE!

Clean the interior

1. Wipe the control panel with a clean, soft cloth.

1. Remove the shelf from the freezer.

1. Dry the freezer compartment.

1. Remove the screw.

1. Pull out the lamp cover.

TROUBLESHOOTING

Installing the doors

Reversing the doors

SPECIFICATIONS

Technical specifications

2

●

●

FIRST STEPS

NOTE!

NOTE!

TROUBLESHOOTING

Installing the doors

Reversing the doors

SPECIFICATIONS

2

●

●

Storing food in the freezer

1

GETTING STARTED

!

NOTE!

1. Open the refrigerator door.

NOTE!

Clean the inside

1. Remove the screw.

1. Disconnect the lamp panel from the lampshade. Install by connecting the new lamp panel.

TROUBLESHOOTING

1. Remove the cardboard box and Styrofoam packaging.

1. Remove the plastic wrap.

Mount the doors

Reverse the doors

1. For both doors, remove the screw and the stop block, and mount the same screw and stop block on the opposite side.

1. Mount the two front feet.

SPECIFICATIONS

Technical specifications

2

●

●

Store food in the freezer

1

GETTING STARTED

A. Egg holder B. Ice cube tray C. Upper hinge cover

1. Let the combined refrigerator stand for at least 4 hours before connecting it.

1. Insert the power cord.

!

NOTE:

Turn off the combined refrigerator

1. Turn the temperature selector to 0.

NOTE:

1. Connect the combined refrigerator.

Clean the inside

1. Remove the food from the combined refrigerator.

1. Wipe the control panel with a clean, soft cloth.

1. Wipe the inside of the combined refrigerator-freezer with a soft cloth or sponge moistened with a weak mixture of water and baking soda.

1. Go over it with a sponge or cloth that has been rinsed in warm water and is well wrung out.

1. Connect the combined refrigerator-freezer.

1. Connect the combined refrigerator-freezer.

Defrost the combined refrigerator-freezer

The refrigerator section defrosts automatically. Water from defrosting runs down into a drip tray via a drain pipe on the back of the refrigerator.

1. Remove the shelves in the freezer.

1. Let the combined refrigerator-freezer defrost.

NB:

1. Wipe the inside of the freezer with a cloth.

1. Connect the combined refrigerator-freezer.

1. Put the shelves back in the freezer when it is sufficiently cold.

1. Take out the food in the combined refrigerator-freezer.

1. Remove the screws.

1. Pull out the lamp cover.

1. Mount the door with the screw.

1. Connect the combined refrigerator.

TROUBLESHOOTING

1. Remove the cardboard box and the polystyrene packaging.

1. Remove the plastic film.

Level the combined refrigerator

1. Take out the door shelves.

Mount the doors

1. Mount the middle hinge.

1. Mount the upper hinge.

1. Mount the door shelves.

1. Connect the combined refrigerator.

Reverse the doors

1. Install the two front feet.

SPECIFICATIONS

2

●

●

STARTING

1. Connect the power cord.

!

NOTE!

1. Open the refrigerator door.

Settings and modes

Change temperature

NOTE!

1. Remove the screw.

1. Pull out the lamp cover.

1. Remove the lamp panel from the lamp holder.

1. Install the cover with the screw.

VIANMÄÄRITYS

1. Remove the plastic wrap.

1. Remove the door shelves.

Install the doors

1. Install the doors by placing the lower door on the lower hinge.

1. Install the middle hinge.

1. Install the upper hinge.

1. Install the door shelves.

1. Install both front feet.

TECHNICAL DATA

Technical data

2

Storage of food in the refrigerator

1

●

Storing food in the freezer

1

GETTING STARTED

A. Egg tray B. Ice cube tray C. Upper hinge cover

1. Plug the power cord into the outlet.

NOTE!

NOTE!

Clean the interior

1. Remove shelves and drawers.

1. Rinse with hot water using a sponge or cloth that has been wrung out.

1. Put the shelves and drawers back in.

1. Put the food back in the refrigerator and freezer.

1. Let the refrigerator and freezer defrost on their own. NOTE!

1. Remove the screw.

TROUBLESHOOTING

The refrigerator and freezer are not working properly

WARNING!

1. Remove the upper hinge cover.

Place the doors

1. Place the middle hinge.

1. Place the upper hinge.

1. Place the door racks.

Doors reversed

1. Place the drawers and shelves back into the refrigerator and freezer.

TECHNICAL SPECIFICATIONS

Technical specifications
