USER MANUAL EHBQW5519E HAIER
WARNING: Risk of fire/flammable material
The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.
21 Care and cleaning
23 Troubleshooting
27 Installation
34 Technical data
36 Customer service
Before first use 5
Installation 5
Daily use 6
Lock/unlock panel 13
Adjust the temperature for fridge 13
Adjust the temperature for freezer 14
Wi-Fi function 15
Holiday function 15
Super Cool function 16
Super Freeze function 16
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.
Accessories
Check the accessories and literature in accordance with this list:
Ice cube tray
Egg tray
Energy label
Warranty card
Safety Warning Manual
Screw Cover
Sponge block Slide guide Slide asm.
Fixed plate Hinge cover Fixed plate II
Bottom fixed plate
Top fixed plate
Bottom cover
Bottom side cover
Seal strip
Seal sponge
Bottom hinge cover
Disposal
Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
WARNING!
Risk of injury or suffocation!
Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets from getting closed in the appliance.
Before switching on the appliance for the first time, read the following safety hints!
WARNING!
Before first use
▶ Make sure there is no transport damage. - Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient. ▶ Handle the appliance always with at least two persons because it is heavy. Remove all packaging materials, keep them out of children's reach and dispose of them in an environmentally friendly manner. ▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. ▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION. ▶ Precool the compartments at high settings before loading with food. The function Power-Freeze helps to cool down the compartments quickly. The refrigerator temperature and freezer temperature are automatically set to 5°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.
Installation

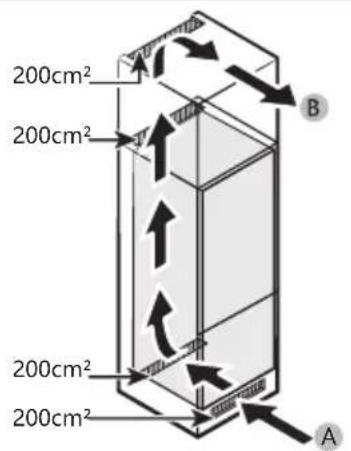

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance. ▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. ▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters). ▶ Install and level the appliance in an area suitable for its size and use. ▶ Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. ▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. ▶ Do not use multi-plug adapters and extension cables. ▶ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. ▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.
WARNING!
Use a separate earthed socket for the power supply which is easily accessible. The appliance must be earthed. Only for UK: The appliance's power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible. Do not damage the refrigerant circuit.
Daily use
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances. Keep away children under 3 years of age from the appliance unless they are constantly supervised. Children shall not play with the appliance. If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance. Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range. Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water. Do not pull on the door shelves. The door may be pulled slant, the bottle rack may be pulled away, or the appliance may topple. Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.
WARNING!
Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity. Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures. Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. Check the condition of food if a warming in the freezer has taken place. Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst. Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. First aid: keep immediately under running cold water. Do not pull away! Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface. Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor. Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning: Make sure children are supervised if they carry out cleaning and maintenance. Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
WARNING!
Hold the plug, not the cable, when unplugging the appliance. Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service. Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption. Do not spray or flush the appliance during cleaning. Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
WARNING!
The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.
In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.
Intended use
This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.
Standards and directives
This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE or UKCA marking.
NOTICE
Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

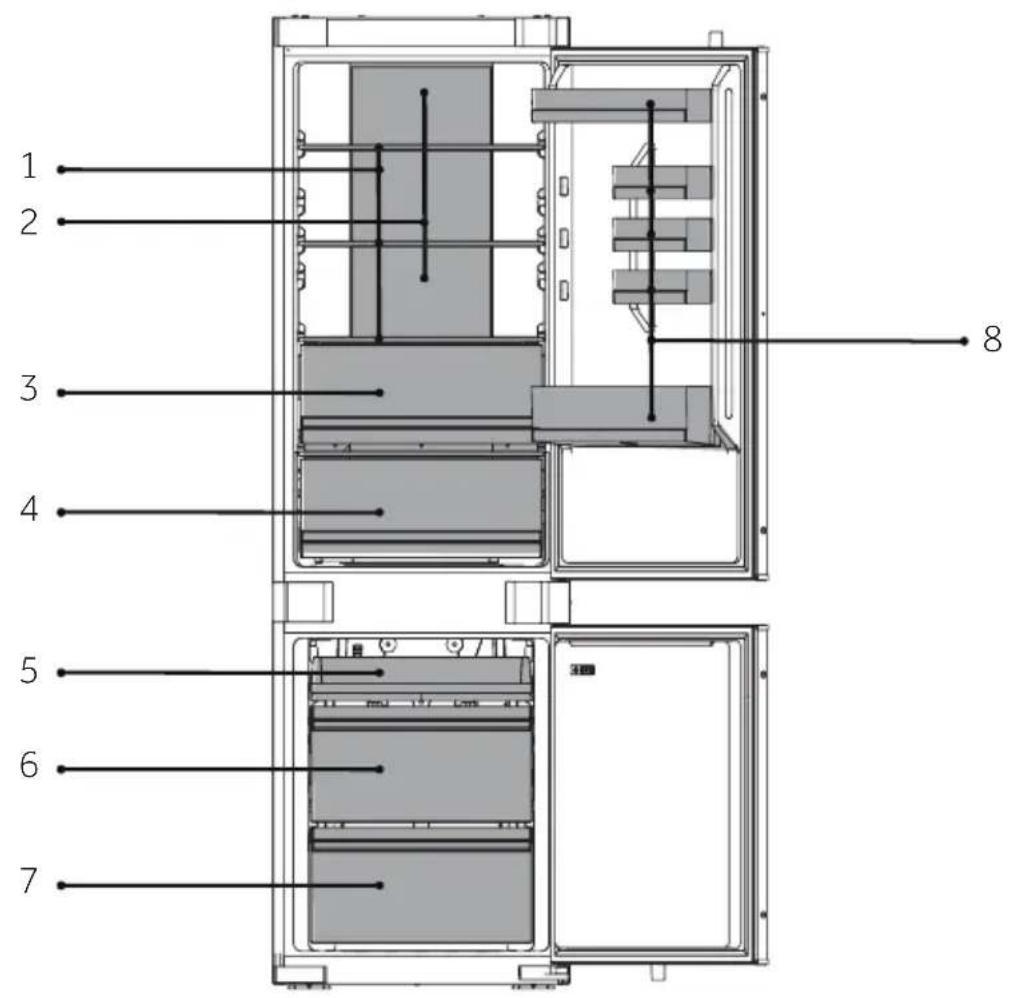

EHBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/EHQE1855BCMW
A: Refrigerating chamber
1 Ordinary shelves 2 Refrigerated air duct 3 Humidity Zone drawer 4 Fresh Box drawer 8 Bottle holder
B: Freezing chamber
5 Upper freezer tray 6 Middle freezer drawer 7 Lower freezer drawer
NOTICE
Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

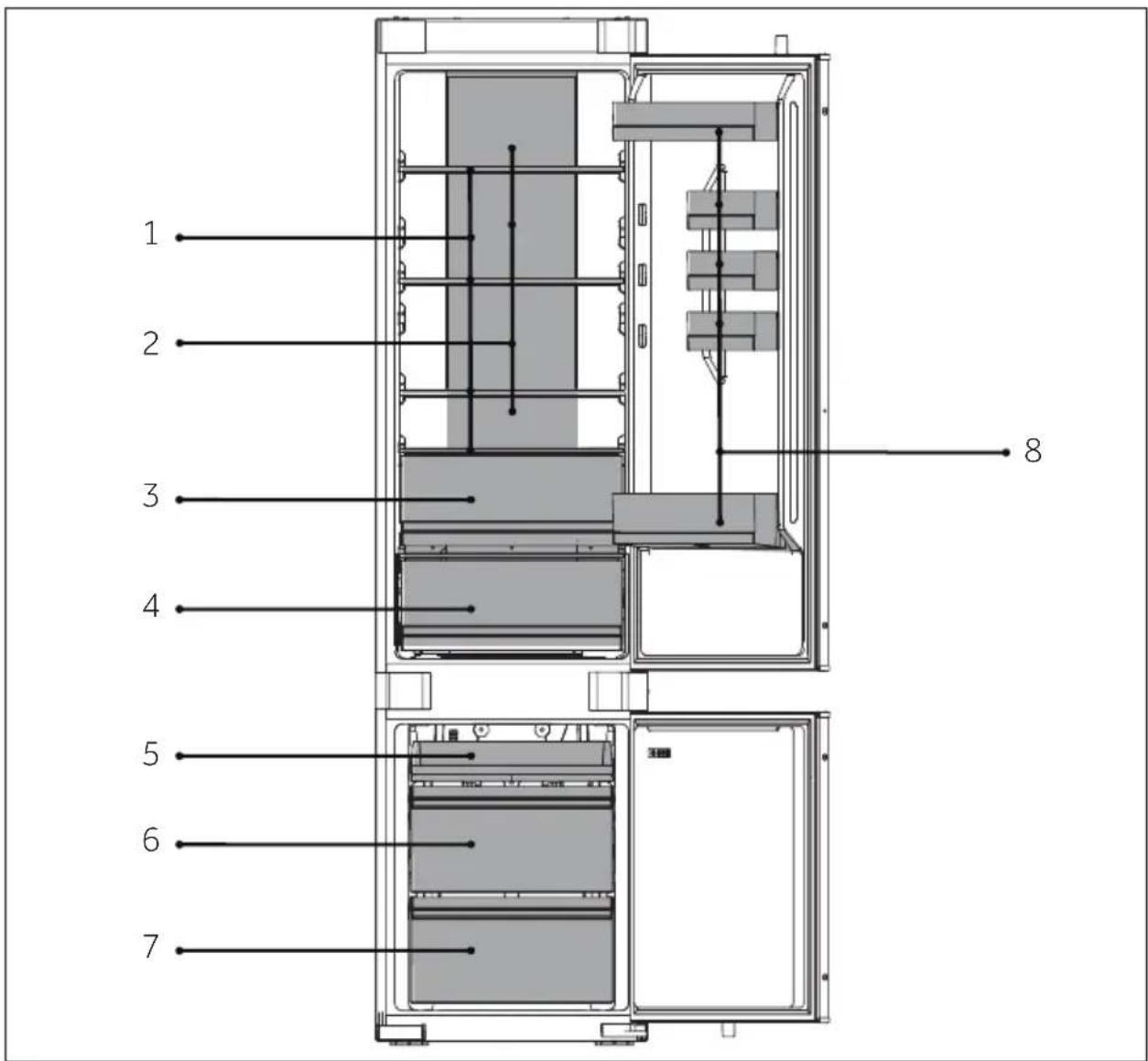

HBQW5519E/HBQW5519EK/EHBQW5519E/EHBQW5519ECM
A: Refrigerating chamber
1 Ordinary shelves 2 Refrigerated air duct 3 Humidity Zone drawer 4 Fresh Box drawer 8 Bottle holder
B: Freezing chamber
5 Upper freezer tray 6 Middle freezer drawer 7 Lower freezer drawer

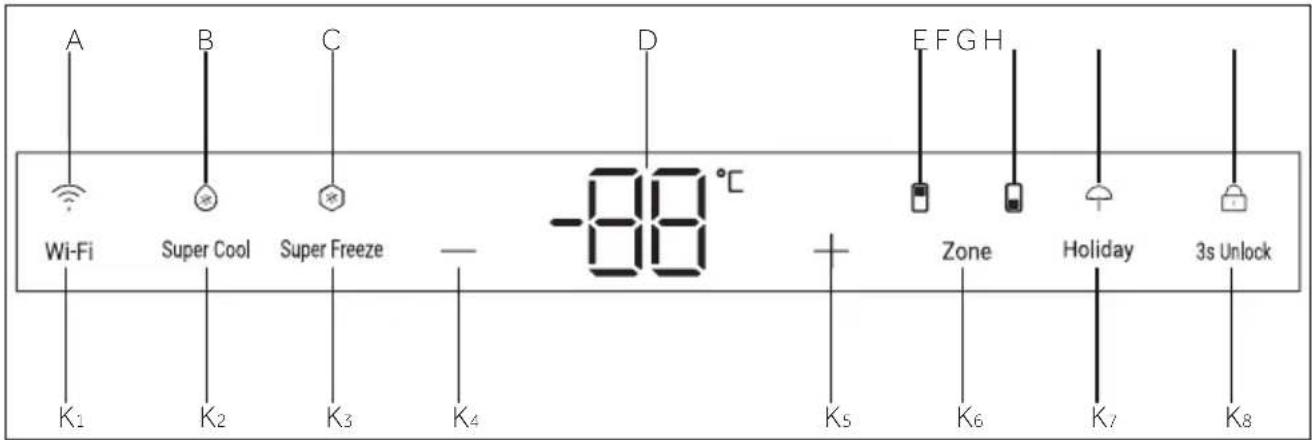

Control panel
Indicators:
A Wi-Fi function B Super Cool function C Super Freeze function D Temperature display E Fridge indicator F Freezer indicator G Holiday function H Lock and Unlock
Buttons:
K1 Wi-Fi setting button K2 Super Cool select button K3 Super Freeze select button K4 Temperature adjustment button "-" K5 Temperature adjustment button "+" K6 Zone select button K7 Holiday function button K8 Lock and Unlock button
Sensor keys
The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger.
Switch on/off the appliance
The appliance is in operation as soon as it is connected to the power supply.
When the refrigerator is first powered on, the indicator "D" (Temperature display) illuminates. The fridge temperature and freezer temperature are automatically set to 5°C and -18°C respectively.
NOTICE
When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.
Empty the appliance before switching off. To switch off the appliance, pull the power cord out of the power socket.
Lock/unlock panel
Automatic lock: When the fridge door and freezer door are closed and there is no key operation within 30 seconds, the display screen will be automatically extinguished and locked.
Manual lock: When the display screen is unlocked, press the button "K88" (3S Unlock) and hold for 3 seconds, the buzzer rings once, the indicator "H" (Panel lock) illuminates, and the display is locked.
Unlock: When the display screen is locked, press the button "K88" (3S Unlock) and hold for 3 seconds, the buzzer rings once, the indicator "H" (Panel lock) goes off, and the display is unlocked.
Adjust the temperature
The indoor temperatures are influenced by the following factors:
Ambient temperature, frequency of door opening, amount of stored foods, installation of the appliance.
Adjust the temperature for fridge
When the display screen is unlocked, press the button "K6" (Zone selector). The buzzer rings once, the indicator "E" (Fridge indicator) illuminates, and then here comes the temperature setting mode of the fridge.
Press the button "K4" (Temperature adjustment button "-") every time, the buzzer rings once, the set temperature of the fridge will be reduced by 1. The fridge temperature will display in the sequence of "9°C -> 8°C -> 7°C -> 6°C -> 5°C -> 4°C -> 3°C -> 2°C -> 1°C -> 0°C".
Press the button "K5" (Temperature adjustment button "+") every time, the buzzer rings once, the set temperature of the fridge will be increased by 1. The fridge temperature will display in the sequence of "1°C -> 2°C -> 3°C -> 4°C -> 5°C -> 6°C -> 7°C -> 8°C -> 9°C".
NOTICE
After setting the temperature, if there is no operation within 5 seconds, the system will be automatically determined and save the set temperature.
Adjust the temperature for freezer
When the display screen is unlocked, press the button "K6" (Zone selector). The buzzer rings once, the indicator "F" (Freezer indicator) illuminates, and then here comes the temperature setting mode of the freezer.
Press the button "K4" (Temperature adjustment button "-") every time, the buzzer rings once, the set temperature of the freezer will be reduced by 1. The freezer temperature will display in the sequence of "-14°C -> -15°C -> -16°C -> -17°C -> -18°C".
"-> -19°C -> -20°C -> -21°C -> -22°C -> -23°C -> -24°C".
Press the button "K5" (Temperature adjustment button "+") every time, the buzzer rings once, the set temperature of the freezer will be increased by 1. The freezer temperature will display in the sequence of "-24°C -> -23°C -> -22°C -> -21°C -> -20°C".
"-> -19°C -> -18°C -> -17°C -> -16°C -> -15°C -> -14°C".
NOTICE
After setting the temperature, if there is no operation within 5 seconds, the system will be automatically determined and save the set temperature.
Step 1: Download the hOn-App from the stores.
Step 2: Create your account in the hOn-App or log in if you already have an account.
Step 3: Follow pairing instructions in the hOn-App.
Wi-Fi function
- Follow the instructions in the App to configure the Wi-Fi.
- Once the Wi-Fi is configured and the connection is established, the Wi-Fi icon "A" is bright and fixed.
- If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information when the Wi-Fi is turned on.
- To turn off the Wi-Fi, press the Wi-Fi button "K1" and the Wi-Fi icon "A" turns off.
- To turn on the Wi-Fi and start the configuration, press the Wi-Fi button "K1" and the Wi-Fi icon "A" starts flashing slowly. If you want to configure the Wi-Fi function, press the button "K1" for 3 seconds, the Wi-Fi icon flashes quickly and enters the configuration mode. If you want to turn off the Wi-Fi function, press button "K1" once. The above steps are repeated.
- If the product has been configured and the Wi-Fi function was turned off, the refrigerator will not enter the configuration mode after reconnecting the power.
Holiday function
- When the display screen is unlocked, press the button "K7" (Holiday function button), the buzzer rings once, the indicator "G" (Holiday function) illuminates, and then the Holiday function will be turned on.
- When the display screen is unlocked, press the button "K7" (Holiday function button), the buzzer rings once, the indicator "G" (Holiday function) goes off, and then the Holiday function will be turned off.
NOTICE
- The Holiday function is mainly used for short-term travel and other life scenes, and the fridge room must be emptied when using the holiday function.
- In the Holiday function, the temperature of the fridge room will be higher (about 17°C). Please pay attention to empty the food in the fridge room to avoid food deterioration.
Super Cool function
- When the display screen is unlocked, press the button "K2" (Super Cool selector), the buzzer rings once, the indicator "B" (Super Cool function) illuminates, and then the Super Cool function will be turned on.
- When the indicator "B" (Super Cool function) illuminates, press the button (Super Cool selector), the buzzer rings once, the indicator "O" (Super Cool function) goes off, and then the Super Cool function will be turned off.
- After the Super Cool function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature. If you want to exit manually, you can press the button "K₂" (Super Cool selector) to turn it off.
NOTICE
- Under Super Cool state, the fridge temperature cannot be adjusted. If either button "K4" (Temperature adjustment button "-") or button (Temperature adjustment button "+") is pressed to adjust the temperature of the fridge, the indicator "B" (Super Cool indicator) will flash with a prompt sound to indicate that this operation cannot be carried out.
- In the state of Super Cool function, the Auto-set function cannot be turned on at the same time due to different modes. When you choose one function that conflicts with another function, the original function will automatically exit.
- This function will be automatically disabled after 6 hours.
Super Freeze function
- When the display screen is unlocked, press the button "K3" (Super Freeze selector), the buzzer rings once, the indicator "C" (Super Freeze function) illuminates, and then the Super Freeze function will be turned on.
- When the indicator "C" (Super Freeze function) illuminates, press the button (Super Freeze selector), the buzzer rings once, the indicator "C" (Super Freeze function) goes off, and then the Super Freeze function will be turned off.
- After the Super Freeze function is turned on, the refrigerator will automatically turn off the function when it reaches the set temperature. If you want to exit manually, you can press the button "K3" (Super Freeze selector) to turn it off.
NOTICE
- Under Super Freeze state, the freezer temperature cannot be adjusted. If either button "K4" (Temperature adjustment button "-") or button 5" (Temperature adjustment button "+") is pressed to adjust the temperature of the freezer, the indicator "C" (Super Freeze indicator) will flash with a prompt sound to indicate that this operation cannot be carried out.
- Super Freeze function is designed to keep the nutritional value of frozen food; it will freeze food in the shortest time. If large quantities of frozen food are to be frozen at one time, Super Freeze function should be set 24 hours in advance to make the freezer have a relatively low temperature and put food in. At this time, the freezing speed of the freezer is improved, food can be frozen quickly, the nutrition of food is effectively kept, and the storage becomes quite convenient.
- The Super Freeze function will automatically switch off after 50 hours. The appliance is then operated at the previously set temperature.
Humidity Zone drawer
In this compartment the humidity level is higher than in the fridge compartment. It is controlled automatically by the system and is suitable for storing fruits, vegetables, salads, etc.
NOTICE
- Do not remove the plastic cover inside the zone.
- They maintain the humidity.
- Cold-sensitive fruits like pineapple, avocado, bananas, grapefruits are not recommended to be stored in the drawer.

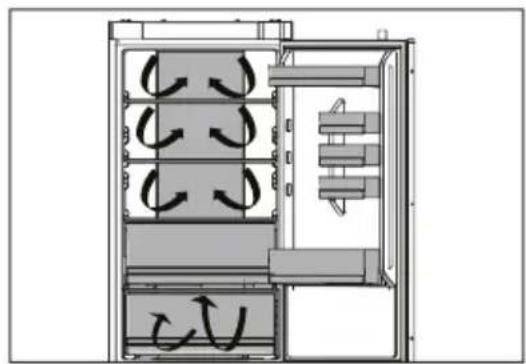

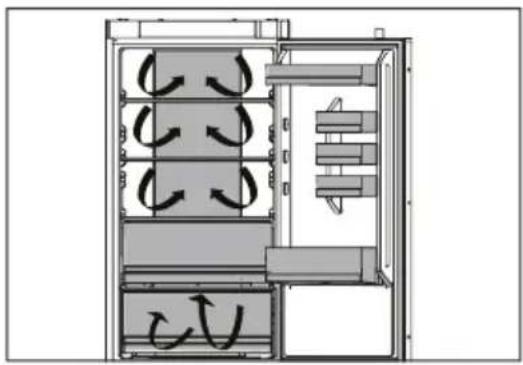

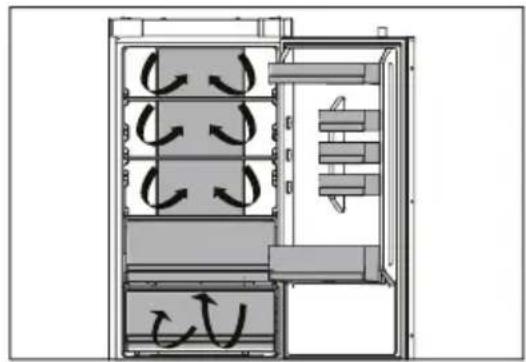

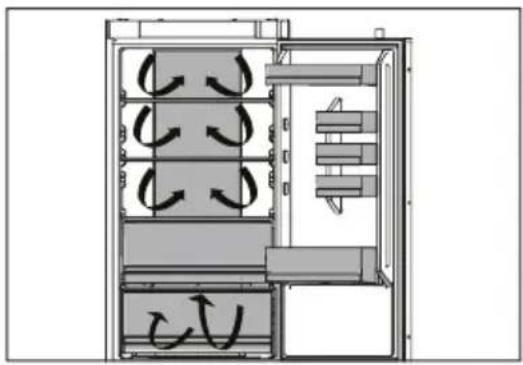

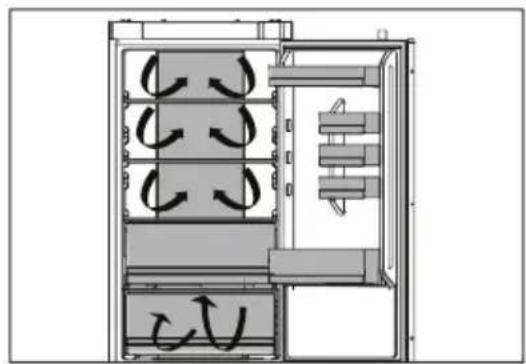

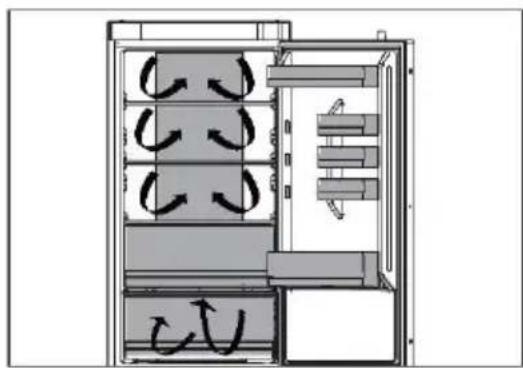

Multi-air-flow
- The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.
Adjustable shelves
- The height of the shelves can be adjusted to fit your storage needs.

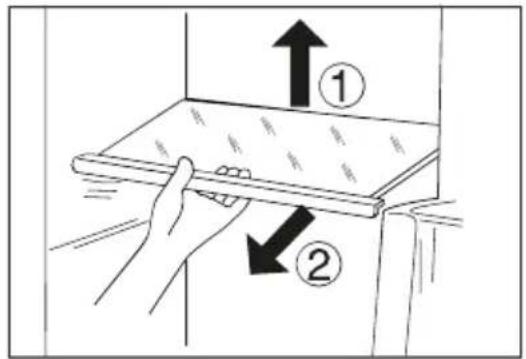

- To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②
- To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides
NOTICE
Ensure that all ends of a shelf are level.

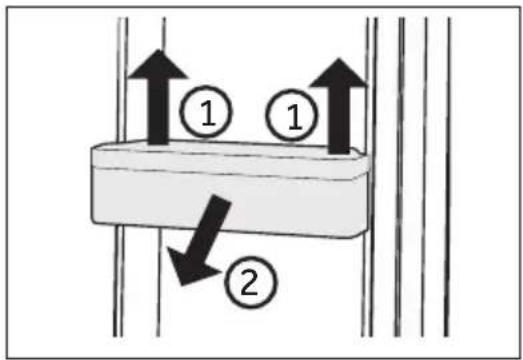

Removable door racks/bottle holder
- The door racks can be removed for cleaning:
- Place your hands on each side of the rack, lift it upwards ① and pull it out ②.
- To insert the door rack, follow the above steps in reverse order.
NOTICE
When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.
Removable drawer

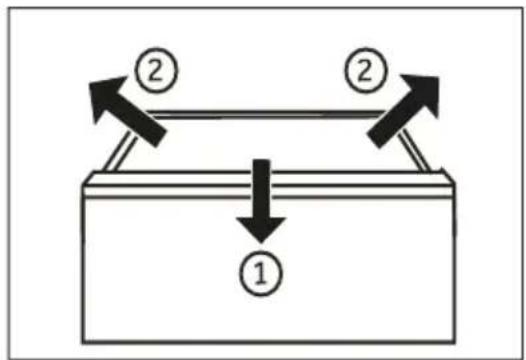

To remove the drawer, pull it out to the maximum extent ①, then lift and remove ②.
To insert the drawer, follow the above steps in reverse order.
The Light
The LED interior light comes on when the door is opened. The performance of the lights is not affected by any of the appliance's other settings.
Energy saving tips
▶ Make sure the appliance is properly ventilated (see INSTALLATION). ▶ Do not install the appliance in direct sunlight or near heat sources (e.g., stoves, heaters). ▶ Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature is set. ▶ Functions like Super Freeze consume more energy. ▶ Allow warm food to cool down before placing it in the appliance. ▶ Open the appliance door as little and as briefly as possible. ▶ Do not overfill the appliance to avoid obstructing the air flow. ▶ Avoid air within the food packaging. ▶ Seal food so that the door always closes correctly. ▶ Defrost frozen food in the fridge storage compartment. The most energy-saving configuration requires the appliance to keep drawers, food boxes, and shelves in factory-fresh condition, and food should be placed as far as possible without blocking the air outlet of the duct.
WARNING!
Disconnect the appliance from the power supply before cleaning.
Cleaning
Clean the appliance when only little or no food is stored.
The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.
WARNING!
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage. ▶ Do not spray or flush the appliance during cleaning. ▶ Do not use water spray or steam to clean the appliance. ▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. ▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. ▶ In case of heating, check the condition of frozen goods.
▶ Always keep the door gasket clean. - Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent. ▶ 1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).
▶ 2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge. ▶ 3. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge. ▶ 4. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service. ▶ Rinse and dry with soft cloth. ▶ Do not clean any of the parts of the appliance in a dishwasher. ▶ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.
Defrosting
The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.
Replacing the LED-lamps
WARNING!
Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.
The lamps adopt LED as their light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.
Parameters of the lamps:
Refrigerator compartment: 12 V max 2W
Freezer compartment: 12 V max 2 W
Non-use for a longer period
If you do not use the appliance for a long time, and you do not want to use the Holiday function:
Take out the food.
Unplug the power cord.
Clean the appliance as described above.
Keep the doors open to prevent the creation of bad odours inside.
NOTICE
Turn the appliance off only if strictly necessary.
Moving the appliance
- Remove all food and unplug the appliance.
- Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
- Do not tilt the refrigerator more than 45 degrees to avoid damaging the refrigerating system.
WARNING!
Do not lift the appliance by its handles. Never place the appliance horizontally on the ground.
Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.
WARNING!
Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages. A damaged supply cord should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
| Problem Possible Cause Possible Solution | |
| The compressor does not work. | Mains plug is not connected in the mains socket.The appliance is in the defrosting cycle | Connect the mains plug.This is normal for an automatic defrosting |
| The appliance runs frequently or runs for a too long period of time. | The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mis-matched.The required air circulation is not guaranteed. | In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation. |
| The inside of the refrigerator is dirty and/or smells. | The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator. | Clean the inside of the refrigerator.Wrap the food thoroughly.. |
| It is not cold enough inside the appliance. | The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long. | Reset the temperature.Always cool down goods be-fore storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently. |
| It is too cold inside the appli-ance. | The temperature is set too low.The Super Freeze/Su-per Cool function is activated or is running too long. | Reset the temperature.Switch off the Super Freeze/Su-per Cool function |
| Moisture forma-tion on the inside of the refrigerator compartment. | The climate is too warm and toodamp.A door/drawer of the appli-ance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open. | Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids. |
| Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer. | The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates. | This is normal in damp climate and will change when the hu -midity decreases.Ensure that he door/drawer is tightly shut. |
| Display light work, but do not feel cool. | It is in the demo mode. | Please note what condition it is in,if it is in Demo mode, exit it.Exit:Open the refrigerator door, in the locked state, press the second button on the right for 8S within 12 hours of power-on. |
| Problem Possible Cause Possible Solution | |
| Strong ice and frost in the freezer compartment. | The goods were not adequately packaged.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.The door/drawer gasket is dirty, worn, cracked or mismatched.Something on the inside prevents the door/drawer to close properly. |
| The sides of the cabinet and door strip get warm. | This is normal. |
| The appliance makes abnormal sounds. | The appliance is not located on level ground.The appliance touches some object around it. |
| A slight sound is to be heard similar to that of flowing water. | This is normal. |
| You will hear an alarm beep. | The fridge storage compartment door is open. |
| You will hear a faint hum. | The anti-condensation system is workingMains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order. |
| The interior lighting or cooling system does not work. |
To contact technical assistance, visit our website: https://corporate.haier-europe.com/en/
Under the "website" section, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact technical assistance.
Power interruption
In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:
▶ Open the door/drawer as few times as possible. ▶ Do not put additional food into the appliance during a power interruption. ▶ If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment. ▶ An inspection of the goods is required immediately after the interruption. As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.
Memory function during power interruption
After restoration of power, the appliance continues with the settings that were set before the power failure.
Unpacking
WARNING!
The appliance is heavy. Always handle with at least two persons. Keep all packaging materials out of children's reach and dispose of them in an environmentally friendly manner. ▶ Take the appliance out of the packaging. ▶ Remove all packaging materials.
Environmental conditions
The room temperature should always be between 10°C and 43°C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

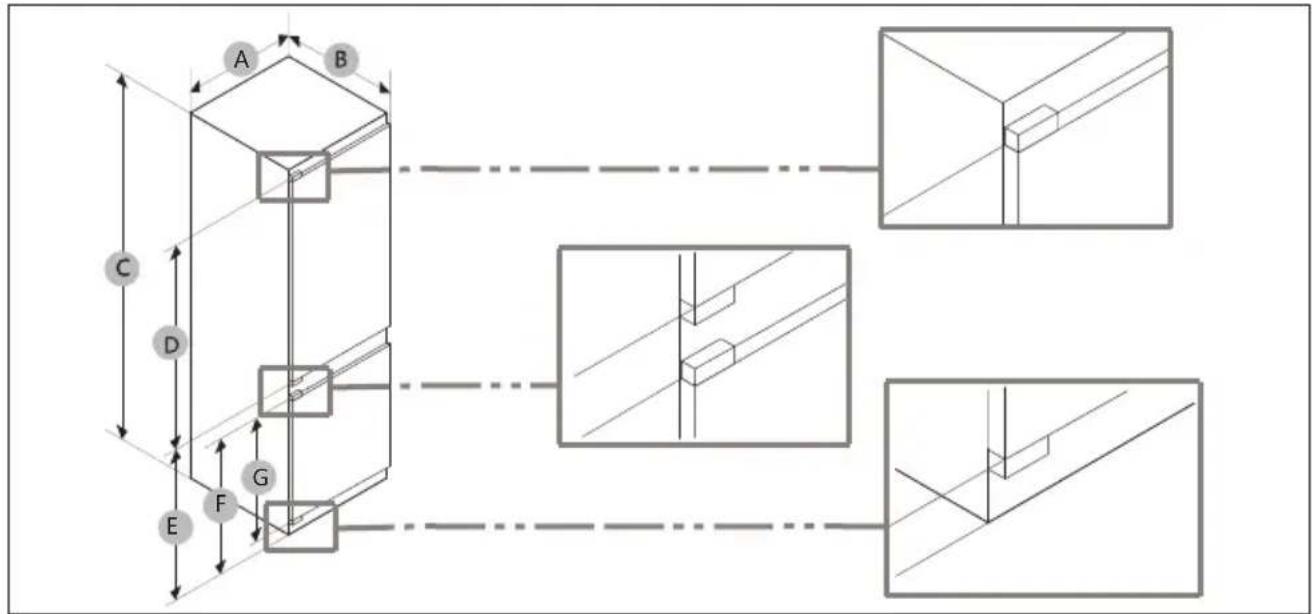

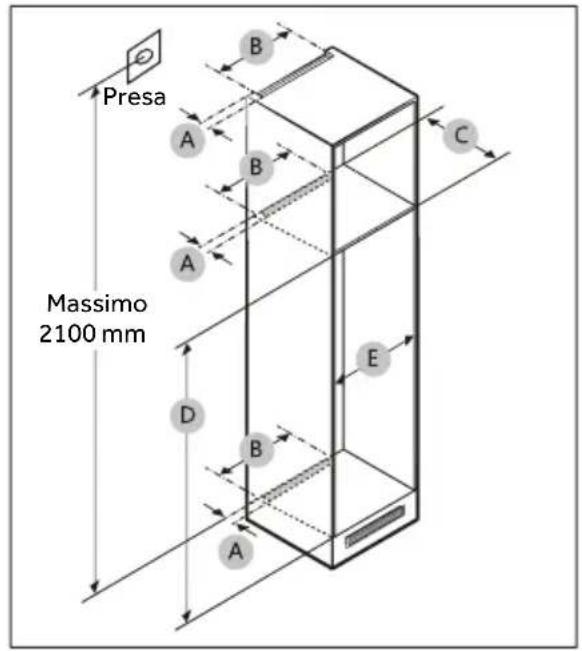

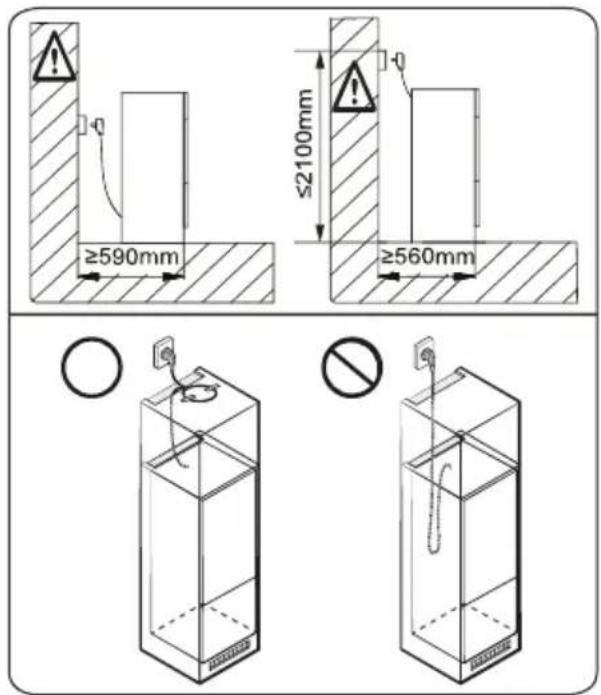

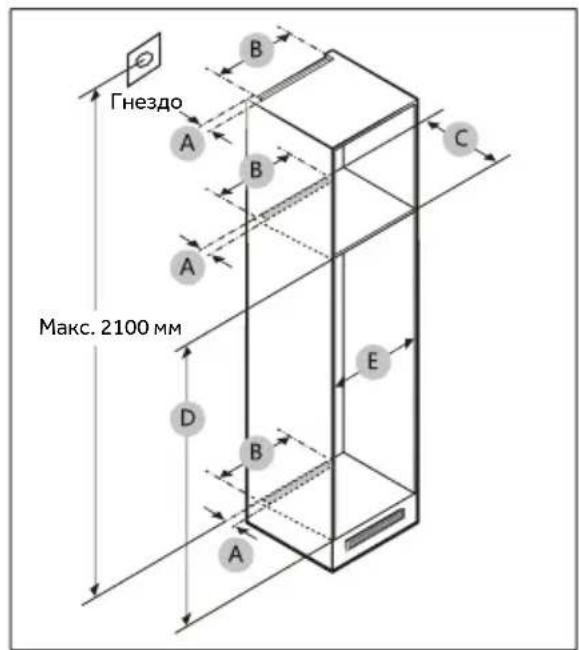

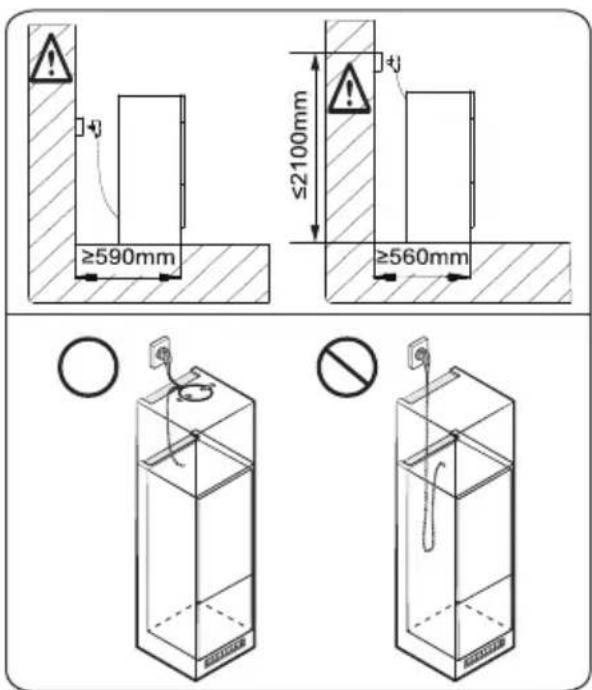

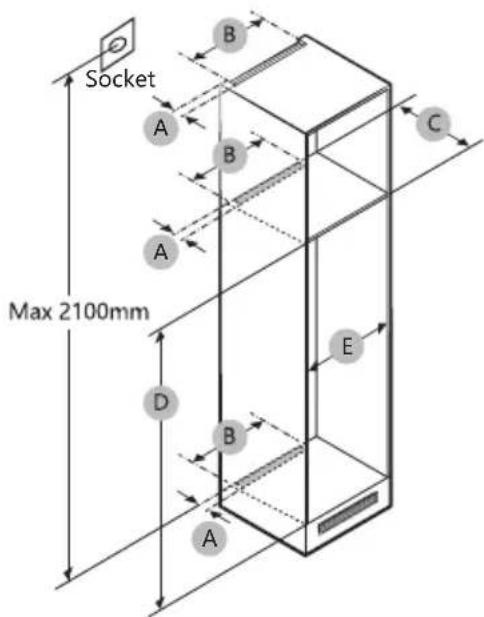

Space requirement
Required space when door is opened (Without cabinet door panel)
| Model | EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | HBQW5519EHBQW5519EKHEBQW5519EEHBQW5519ECM |
| 01 * | 10 (Min.) / 30 (Recommended) | 10 (Min.) / 30 (Recommended) |
| 02 | 95°(Recommended) | 95°(Recommended) |
| 03 | 43 | 43 |
| 04 | 583 | 583 |
| 05 | 515 | 515 |
| 06 | -3 | -3 |
| 07 | 1060 | 1060 |
Product dimension
| Model | A(mm) B(mm) | C(mm) D(mm) | E(mm) F(mm) G(mm) | |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2550 ± 21772 ± 2745662 | 970 | | 618 |
| HBQW5519EHBQW5519EKHEBQW5519EEHBQW5519ECM | 540 ± 2550 ± 21935 ± 21133745662 | | | 618 |
NOTICE
- The specified energy consumption is based on the condition of a 10 mm gap from cabinet to rear of product. The product will work properly even with a gap which is less than 10 mm but it consumes slightly more energy. • We recommend using a cabinet that is 18mm thick with hinges less than 20mm thick. • The measurements in the above table may differ, depending on the measuring method.
- For built-in installation, the Installation Guide.
Ventilation cross-section
To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.
A: Ventilation Options B: Air outlet ≥200cm²; Ventilation options B1
B2
A1
A2
Cabinet dimension
CAUTION!
Any product failure due to the following is not covered by the Warranty.
- Improper site conditions or incorrect cabinet sizes.
- Defective cabinet.
- Mistakes by the installer or the user.
Clearance
See the pictures and tables below for space requirements for installation.
| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | Remark |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | Min. | 50400 | | 560177 | 8 | 560 | Hinge7mm |
| Recommend | 580 | 1780 | 562 | |
| Max. | - | 1782 | 568 | |
| HBQW5519EHBQW5519EKHBQW5519EEHBQW5519ECM | Min. | 50400 | | 5601941 | | 560 | Hinge7mm |
| Recommend | 580 | 1943 | 562 | |
| Max. | - | 1945 | 568 | |
NOTICE
- If the width of a cabinet is larger than 568 mm, the gasket (between the refrigerator and the cabinet) can become loose.
- If the cabinet is higher than the maximum dimension (1782 mm), you must use other finishing materials to fill the gap. (for EHBQW5518E/HBQW5518E/EK/EHQE/HQE1855BCMW)
- If the cabinet is higher than the intrusion dimension (1945 mm), use other finishing materials to fill the gap. (for HBQW5519E/EK/EHBQW5519E/ECM)
NOTICE
To install a cabinet requiring a 4 mm gap (0.3), see the cabinet reference table below.
Fitted unit fronts that exceed the permissible weight may cause damage and result in functional impairment of the hinges.
Weight (kg)
| 1500-1750 mm | 22 |
| 720-1400 mm | 19 |
| A1 | 15 |
| A2 | 15 |
Consideration for socket outlet location and required space
NOTICE
If you install the refrigerator in a cabinet with a 560 mm depth, make sure the power cord is arranged on a side of the refrigerator before plugging into a power socket. If the power cord is in the rear of the refrigerator it could decrease the energy efficiency.
Waiting time
The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.
Electrical connection
Before each connection check if:
▶ power supply, socket and fusing are appropriate to the rating plate. ▶ the power socket is earthed and no multi-plug or extension. ▶ the power plug and socket are strictly according.
Connect the plug to a properly installed household socket.
WARNING!
To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).
Product fiche according to regulation EU No. 2019/2016
| Brand | Haier |
| Model name/identifier | EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | HBQW5519EHBQW5519EKHEBQW5519EEHBQW5519ECM |
| Category of the model | Refrigerator freezer | Refrigerator freezer |
| Energy efficiency class | E | E |
| Annual energy consumption(kWh/year)(1) | 229 | 229 |
| Total volume(L) | 268 | 285 |
| Volume refrigerator(L) | 194 | 211 |
| Volume freezer(L) | 74 | 74 |
| Volume chiller section(L) | / | / |
| Volume auto ice maker(L) | / | / |
| Star rating | 4 | 4 |
| Temperature of other compartments>14°C | Non applicable | Non applicable |
| Frost-free system | Yes | Yes |
| Freezing capacity(kg/24h) | | |
| Climate rating(2) | SN/N/ST/T | SN/N/ST/T |
| Noise emission class and airborne acoustical noise emissions(db(A)re1pW) | B(35) | B(35) |
| Temperature rise time(h) | 12 | 12 |
| Ice making capacity | / | / |
| Type of appliance | Built-in | Built-in |
| Model name | Energy efficiency class |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | E |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | E |
Explanations:
- Yes, featured
(1) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance. (2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C
Additional technical data
| Voltage / Frequency | 220-240V ~/ 50Hz |
| Input current (A) | 1.2 |
| Main fuse (A) | 16 |
| Coolant | R600a |
| Dimensions (H/W/D in mm) | EHBQW5518E/HBQW5518E/EKEHQE/HQE1855BCMW: 1773/540/555 |
| HBQW5519E/EK/EHBQW5519E/ECM: 1935/540/555 |
We recommend our Haier Customer Service and the use of original spare parts. If you have a problem with your appliance, please first check section TROUBLE-SHOOTING.
If you cannot find a solution there, please contact
▶ your local dealer or ▶ our European Call Service-Center (see listed phone numbers below) or ▶ the Service & Support area at www.haier.com where you can activate the service ▶ claim and also find FAQs.
To contact our Service, ensure that you have the following data available. The information can be found on the rating plate.
Model ____
Serial No. ____
Also check the Warranty Card supplied with the product in case of warranty.
| European Call Service-Center |
| Country* | Phone number Costs |
| Haier Italy (IT) | 199 100 912 | |
| Haier Spain (ES) | 902 509 123 | |
| Haier Germany (DE) | 0180 5 39 3999 | • 14 Ct/Min Landline• max 42 Ct/Min Mobile |
| Haier Austria (AT) | 0820 001 205 | • 14,53 Ct/Min Landline• max 20 Ct/Min all others |
| Haier United Kingdom (UK) | 0333 003 8122 | |
| Haier France (FR) | 0980 406 409 | |
* For other countries please refer to www.haier.com
Haier Europe Trading S.r.l
Branch UK
Westgate House, Westgate, Ealing
London, W5 1YY
*Duration of the guarantee of the refrigerating appliance:
Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.
*The period of spare parts for the repair of the appliance:
Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.
Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.
*For further information about the product, please consult https://eprel.ec.europe.eu/ or scan the QR on the energy label supplied with the appliance.
Haier
2024 Version A
Haier
User Manual
Freezer - selected
EHBQW5518E
HBQW5518E
HBQW5518EK
HQE1855BCMW
EHQE1855BCMW
HBQW5519E
HBQW5519EK
EHBQW5519E
EHBQW5519ECM
Bottom cover
Upper fixed panel
Lower hinge cover
Sealing sponge
Sealing strip
Warning
Note
Environmental information
Product disposal
Warning!
Super Cool function "B"
Notice
Notice
| G)ρ | F)ρ | E)ρ | D)ρ | C)ρ | B)ρ | A)ρ | الطراز |
| 618 | 662 | 745 | 970 | 2±1772 | 2±550 | 2±540 | EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW |
| 618 | 662 | 745 | 1133 | 2±1935 | 2±550 | 2±540 | HBQW5519EHBQW5519EKEHBQW5519EEHBQW5519ECM |
Notice ⓘ
Standby
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
Haier
Lower cover
Lower side cover
Sealing strip
Sealing sponge
Disposal
Wi-Fi function
NOTE
NOTE
| Модел | A (мм) | B (мм) | C (мм) | D (мм) | E (мм) | F (мм) | G (мм) |
| ЕНВQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| НВQW5519EHBQW5519EKЕНВQW5519EEНВQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
NOTE
Cabinet size
NOTE
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024, Version A
Haier
Refrigerator-freezer
EHBQW5518E
HBQW5518E
HBQW5518EK
HQE1855BCMW
EHQE1855BCMW
HBQW5519E
HBQW5519EK
EHBQW5519E
EHBQW5519ECM
Bottom cover
Lower side cover
Sealing strip
Sponge gasket
Lower hinge cover
Disposal
Wi-Fi function
WARNING
Adjustable shelves
WARNING
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
WARNING
WARNING
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
Version A 2024
Haier
User Manual
Refrigerator-Freezer
EHBQW5518E
HBQW5518E
HBQW5518EK
HQE1855BCMW
EHQE1855BCMW
HBQW5519E
HBQW5519EK
EHBQW5519E
EHBQW5519ECM
Disposal
NOTE
Multi Air Flow
Adjustable shelves
NOTE
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKHEBQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
NOTE
in NOTE
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024 version A
Haier
User manual
Disposal
EHBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/EHQE1855BCMW
A: Refrigerator compartment
Wi-Fi function
Multi-airflow
NOTE
| Modell | A (mm) | B (mm) | C (mm) | T (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKHEBQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
NOTE
NOTE
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024 Version A
Haier
User Manual
Refrigerator-Freezer
EHBQW5518E
HBQW5518E
HBQW5518EK
HQE1855BCMW
EHQE1855BCMW
HBQW5519E
HBQW5519EK
EHBQW5519E
EHBQW5519ECM
Bottom cover
Sealing strip
Sealing sponge
Disposal
EHBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/EHQE1855BCMW
A: Cooling chamber
Wi-Fi function
Multi airflow
NOTICE
| Μοντέλο | A (mm) | B(mm) | C(mm) | D(mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
NOTICE
NOTICE
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024 Edition A
Haier
User manual
Bottom cover
Lower side cover
Sealing strip
Sealing sponge
Bottom hinge cover
Disposal
EHBQW5518E/ HBQW5518E/ HBQW5518EK/ HQE1855BCMW/ EHQE1855BCMW
Wi-Fi function
WARNING
Adjustable shelves
WARNING
| Modelo | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
WARNING
WARNING
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024 version A
Haier
User manual
Refrigerator-freezer
EHBQW5518E
HBQW5518E
HBQW5518EK
HQE1855BCMW
EHQE1855BCMW
HBQW5519E
HBQW5519EK
EHBQW5519E
EHBQW5519ECM
4 Safety information
9 Intended use
10 Product description
12 Control panel
13 Operation
18 Appliance introduction
Disposal
EHBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/EHQE1855BCMW
A: Freezer compartment
Wi-Fi function
Note.
Note.
| Mudel | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKHEBQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
Note.
i Note.
Westgate House, Westgate, Ealing
London, W5 1YY
* Refrigerator warranty duration:
Haier
- year version A
Haier
User Manual
Refrigerator-Freezer
EHBQW5518E
HBQW5518E
HBQW5518EK
HQE1855BCMW
EHQE1855BCMW
HBQW5519E
HBQW5519EK
EHBQW5519E
EHBQW5519ECM
EHBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/EHQE1855BCMW
A: Refrigerator compartment
Wi-Fi function
NOTE
Multi-air flow
Adjustable shelves
NOTE
| Malli | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
NOTE
Cabinet dimensions
NOTE
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024 Version A
Haier
Lower cabinet
Sealing strip
Sealing foam
Disposal
Wi-Fi function
Multi-air flow
The light
| Modèle | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024 version A
Haier
Bottom cover
Sealing strip
Sealing sponge
Bottom hinge cover
WARNING -
important safety information
Disposal
Helps protect the environment and human health. Place packaging in appropriate containers to recycle it. Help recycle waste from electrical and electronic devices. Do not dispose of devices marked with this symbol together with household waste. Return the product to a local recycling facility or contact your municipal office.
WARNING!
EHBQW5518E/ HBQW5518E/ HBQW5518EK/ HQE1855BCMW/ EHQE1855BCMW
A: Refrigerator compartment
Wi-Fi function
- Follow the instructions in the app to configure the Wi-Fi network.
- After the Wi-Fi network is configured and the connection is established, the Wi-Fi icon “A” will remain lit.
- If the Wi-Fi network has already been configured, it automatically reconnects according to the configuration information when Wi-Fi is turned on.
- To turn off the Wi-Fi function, press the Wi-Fi button “K₁” and the Wi-Fi icon “A” will turn off.
- To turn on the Wi-Fi function and start configuration, press the Wi-Fi button “K₁” and the Wi-Fi icon “A” will start blinking slowly. To reconfigure the Wi-Fi function, press and hold the Wi-Fi button “K₁” for 3 seconds – the Wi-Fi icon will start blinking rapidly and enter configuration mode. To turn off the Wi-Fi function, press the Wi-Fi button “K₁” once. The above steps repeat.
- If the device is configured and the Wi-Fi function is turned off, the refrigerator will not enter configuration mode after reconnecting to power.
Holiday function
NOTICE
- In Super Freeze mode, the freezer temperature cannot be adjusted. If you press the “K₄” button (temperature setting “-” button) or the “K₅” button (temperature setting “+” button) to adjust the freezer temperature, the “C” indicator (Super Freeze function indicator) will blink accompanied by a rapid sound indicating that this operation cannot be performed.
- The Super Freeze function is designed to preserve the nutritional value of frozen food – it will freeze food in the shortest possible time. If you need to freeze large quantities of frozen food at once, the Super Freeze function should be set 24 hours in advance so that the freezer reaches a relatively low temperature before placing the food. At that time, the freezing speed of the freezer is improved, food can be frozen quickly, nutritional properties are effectively preserved, and storage becomes very practical.
- The Super Freeze function will automatically turn off after 50 hours. The appliance then operates at the previously set temperature.
Humidity Zone drawer
In this section, the humidity level is higher than in the refrigerator section. The system controls it automatically, and it is suitable for storing fruits, vegetables, salads, etc.
NOTICE
- Do not remove the plastic cover inside the zone.
- It maintains humidity.
- Fruits sensitive to acidification such as pineapples, avocados, bananas, and grapefruits are not recommended to be stored in the drawer.
Adjustable shelves
NOTICE
When the appliance is turned on, it may take up to 12 hours for the appropriate temperatures to be reached.
Removable drawer
When removing the drawer, pull it out all the way ①, lift it up, and take it out ②.
When reinstalling the drawer, perform the described steps in reverse order.
Light
▶ The door gasket must always be clean. ▶ Clean the interior and exterior of the appliance with a sponge moistened with warm water and neutral detergent. ▶ 1. Clean the interior and exterior surfaces of the refrigerator, including door gaskets, door shelves, glass shelves, drawers, and so on. Use a soft towel or sponge soaked in warm water (you can add neutral detergent to the warm water).
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
NOTICE
- The stated energy consumption is based on a gap of 10 mm between the cabinet and the rear of the product. The product will operate correctly even if the gap is less than 10 mm, but it will consume slightly more energy.
- We recommend using a cabinet with a thickness of 18 mm and hinges with a thickness of less than 20 mm.
- The measurements in the table above may vary depending on the method.
- For installation instructions for the built-in version, refer to the Installation Guide.
Front elements of the installed unit that exceed the permitted weight can cause damage and result in functional impairment of the hinge.
Weight
(kg)
| 1500 - 1750 mm | 22 |
| 720 - 1400 mm | 19 |
| A1 | 15 |
| A2 | 15 |
Taking into account the location of the socket and the required space
NOTICE
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
Version A for 2024
Haier
Bottom panel
Lower side panel
Sealing strip
Sealing foam
Lower hinge cover
Disposal
EHBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/EHQE1855BCMW
A: Refrigerator compartment
Wi-Fi function
NOTE
Adjustable shelves
NOTE
The lighting
| Modell | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
NOTE
NOTE
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024, Version
Haier
User Manual
Fridge-Freezer
EHBQW5518E
HBQW5518E
HBQW5518EK
HQE1855BCMW
EHQE1855BCMW
HBQW5519E
HBQW5519EK
EHBQW5519E
EHBQW5519ECM
Bottom cover
Sealing strip
Sealing sponge
Disposal
Wi-Fi function
WARNING
WARNING
NOTICE
| Modello | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
NOTICE
Cabinet dimensions
WARNING!
NOTICE
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024 Version A
Haier
User Manual
Bottom Cover
Bottom Side Cover
Sealing Strip
Sealing Foam
Disposal
EHBQW5518E / HBQW5518E / HBQW5518EK / HQE1855BCMW / EHQE1855BCMW
A: Refrigerator Compartment
Wi-Fi Function
NOTE
NOTE
| Modelis | A (mm) | B (mm) | C (mm) | G (mm) | E (mm) | F (mm) | G(mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
NOTE
NOTE
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024 m. A versija
Haier
Apakšējais pārsegs
Blīvējuma sloksne
Blīvējuma sūklis
Utilizācija
EHBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/EHQE1855BCMW
Wi-Fi funkcija
PAZIÑOJUMS
PAZINOJUMS
Regulējami plaukti
PAZINOJUMS
| Modelis | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
NOTICE
NOTICE
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
- Version A
Haier
Disposal
Wi-Fi function
Adjustable shelves
CAUTION
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKEBHQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
CAUTION
CAUTION
Westgate House, Westgate, Ealing
Haier
2024 Version A
Haier
User Manual
Refrigerator-Freezer
EHBQW5518E
HBQW5518E
HBQW5518EK
HQE1855BCMW
EHQE1855BCMW
HBQW5519E
HBQW5519EK
EHBQW5519E
EHBQW5519ECM
EHBQW5518E/HBQW5518E/HBQW5518EK/HQE1855BCMW/EHQE1855BCMW
A: Refrigerator compartment
B: Freezer compartment
1 Regular shelves 2 Cool air duct 3 Humidity Zone drawer 4 Fresh Box drawer 8 Bottle holder
5 Upper freezer shelf
6 Middle freezer drawer
7 Lower freezer drawer
NOTE
Wi-Fi function
Multi-air flow
Adjustable shelves
| Modell | A (mm) | B (mm) | C(mm) | D (mm) | E (mm) | F (mm) | G (mm) |
| EHBQW5518EHBQW5518EHBQW5518EKHQE1855BCMWEHQE1855BCMW | 540 ± 2 | 550 ± 2 | 1772 ± 2 | 970 | 745 | 662 | 618 |
| HBQW5519EHBQW5519EKHEBQW5519EEHBQW5519ECM | 540 ± 2 | 550 ± 2 | 1935 ± 2 | 1133 | 745 | 662 | 618 |
Westgate House, Westgate, Ealing
London, W5 1YY
Haier
2024 version A
Haier
Instruction manual
Bottom cover
Bottom side cover
Disposal
EHBQW5518E/ HBQW5518E/ HBQW5518EK/ HQE1855BCMW/ EHQE1855BCMW
