DCR100 - Milk frother Cremesso - Free user manual and instructions

Product Type	Milk Frother
Brand	Cremesso
Model	DCR100
Color	White
Material	Stainless steel, plastic
Dimensions (W x H x D)	20 x 12 x 10 cm
Weight	0.8 kg
Power Consumption	500 W
Voltage	220-240 V~
Frequency	50/60 Hz
Capacity	200 ml
Functions	Froth cold and hot milk, heat milk
Operation	One-touch buttons
Milk Container	Removable with non-stick coating
Whisk	Detachable for easy cleaning
Safety Features	Auto shut-off, overheat protection
Cleaning	Hand wash recommended; container dishwasher safe
Maintenance	Descale regularly
Accessories Included	Whisk, measuring spoon
Warranty	2 years
Certifications	CE, EMC

Frequently Asked Questions - DCR100 Cremesso

How do I use the Cremesso DCR100 milk frother?

Fill the container with milk up to the max line, select hot or cold froth mode using the button, and press start. The device will automatically shut off when finished.

Can I froth non-dairy milk like almond or soy?

Yes, but results may vary due to different protein and fat content. For best froth, choose barista-style plant milks.

What is the maximum capacity of the milk frother?

The maximum capacity is 200 ml for frothing and 150 ml for heating only. Do not overfill.

How do I clean the milk frother?

After each use, rinse the container and whisk under warm water. The container is dishwasher safe, but the whisk should be hand washed to avoid damage.

Why is my milk not frothing properly?

Ensure the whisk is properly attached and the milk is cold (below 5°C). Also check that the container is clean and the max fill line is not exceeded.

Does the DCR100 have an auto shut-off feature?

Yes, the device automatically switches off after operation to prevent overheating and ensure safety.

Can I heat milk without frothing?

Yes, select the hot milk function without the whisk attached to heat milk only.

How often should I descale the milk frother?

Descale every 2-3 months depending on water hardness. Use a descaling solution or vinegar, then rinse thoroughly.

What spare parts are available for the DCR100?

Replacement whisks and containers can be purchased. Contact Cremesso customer service or check the official website.

Is the Cremesso DCR100 covered by warranty?

Yes, it comes with a 2-year warranty covering manufacturing defects. Retain your purchase receipt for claims.

USER MANUAL DCR100 Cremesso

Inhalt

Safety instructions 7

Overview 32

Button function/illumination......33

Getting ready....34

Preparation 35

Cleaning....36

Disposal....38

Technical data....38

This manual is an integral part of your product.

Please read the manual thoroughly before set-up, installation or use and keep it for future reference.
▶Always hand this manual over to future owners or users of the product.

The manufacturer cannot be held responsible for damage or defects caused by disregarding this instruction manual.

Intended use

This appliance is used to foam and warm up milk.

This appliance may only be used as described in this manual. Using it for other purposes is abusive and dangerous.

This appliance is intended for domestic use. This appliance is not intended in other similar areas, such as:

• in kitchens for use by employees
• in offices and other commercial areas
• in agricultural holdings
• in hotels, motels, boarding houses and

similar residential type environments

The appliance is not suitable for commercial use.

The appliance is not designed for outdoor use.

The appliance must not be used in a non-stationary location (e.g. on ships, in vehicles, in trains, etc.).

The manufacturer assumes no liability for consequences resulting from improper use.

Requirements on the location

▶Use the appliance only in dry rooms.
- Do not use the appliance within cupboards.
- Maintain a distance of 60 cm from the sink and 50 cm from an open flame (a mains water connection is not permitted).
▶Ensure the appliance and power cable are not located next to hobs, gas cookers, open flames or similar hot surfaces.
▶Never place the appliance on hot surfaces.
- Place the appliance on a dry, horizontal, stable and flat surface.

Requirements for the target group

This appliance can be used by children aged from 8 years and above under supervision if they have been given instruction concerning use of the appliance in a safe way and understand the hazards involved.

Cleaning and maintenance must not be carried out by children unless they are 8 years or older and are supervised.

The appliance and power cable must not be accessible for children under 8 years old.

Persons with limited physical, sensory or mental abilities, or lack of experience and knowledge, must be supervised or given instruction concerning use of the appliance in a safe way. They must have understood the dangers associated with its use.

Children must not play with the appliance. The appliance must be kept out of the reach of children.

Requirements for the user

Do not move the appliance during operation.
Before removing the pitcher from the base station, make sure that the appliance is turned off.
- Avoid spillage on the connector.
▶Potential injury may cause from misuse.

• Disconnect the plug from the power socket if you want to move or clean the appliance, or you don't plan on using it for a longer period of time.
• Keep packaging materials (plastic bags, film, cardboard boxes, etc.) away from children.
  Before setting up the appliance, check it for any visible damage. Do not attempt to use an appliance that has been damaged.
  Before connecting the appliance to the mains supply, make sure that the rating on the data plate corresponds to the voltage and frequency of the household supply. These data must correspond in order to avoid the risk of damage to the machine. Consult a qualified electrician if in any doubt.
  The electrical safety of this appliance can only be guaranteed when correctly earthed. If in any doubt, have the electrical installation tested by a qualified electrician.
• Do not connect the appliance to the mains electricity supply by an extension lead or multiple socket.
  Use the appliance only at ambient temperatures between +16°C and +38°C.

Only use original accessories and have them repaired professionally. Only use the appliance with the original base station. Otherwise, this will invalidate the guarantee and product warranty liability.

Requirements for cleaning

▶Pull out the power plug and allow the machine to cool down completely before re-positioning, cleaning or carrying out maintenance work.
▶Never immerse the pitcher or base station completely or partially in water or any other liquid.
▶Never hold the bottom side of the appliance or the base station under running water.
▶Use only clean cleaning materials to clean the appliance.
Do not use strong or abrasive cleaning detergents or solvents.
- Use a soft, damp cloth to clean the appliance surface.
- Keep the bottom side of the appliance and the base station dry. Never spray them with water or clean them with a wet cloth.
- Do not wash the pitcher or base station in the dishwasher.

Only use cleaning agents recommended by the manufacturer. Avoid contact with eyes, skin and other surfaces.
▶Details for cleaning, please refer to page 36.

Residual risks

Risk of injury from electric shock

▶Ensure that the power supply cable is not pinched and does not rub against sharp edges.
- Do not use the appliance in connection with a transformer.
▶Never touch the power plug with wet hands.
If you want to pull the plug from the power outlet, always pull directly on the plug. Never pull on the cable.
▶ Damaged power cables must be replaced immediately and only by the customer service centre.

Risk of injury from sharp edges

The edges of the metal housing may be sharp. Do not reach into the pitcher with your hands.
▶Use a brush or cloth for cleaning.

Risk of injury from scalding

Machine parts can be very hot during and after operation. Risk of burns on the metal housing.

Do not touch.

▶Only touch the plastic handle on the appliance.

Risk of injury from stumbling

Make sure that the power cable does not hang.

Risk of injury by touching live parts

Do not open the housing of the appliance.

Do not alter the electrical and mechanical design.

Risk of injury due to damage to the device

- Do not use the appliance after it has been dropped, if it is exhibiting a malfunction, has a damaged power cable or is damaged in any other way.

▶Pull out the power plug immediately if malfunctions, damage or anomalies (e.g. smell of burning) occur.

In the event of a malfunction, have the machine checked by the customer service centre.

Risk of damage to the machine due to overheating

▶Ensure there is adequate ventilation and exhaust extraction from the machine. Do not cover the machine with cloths or similar whilst it is in operation.

Übersicht Overview Descripción general

1 Whisk attachment
2 Frother

3 Lid
4 Pitcher
5 On button, with control indicator

6 Base station with power cable/plug

The button lights up depending on the operating mode:

Warm milk foam

▶ Press 1x.

Button lights up red.

Warm milk

▶ Press 2x.

Button flashes red.

Cold milk foam

▶ Press for 2 seconds.

Button lights up blue.

Button fl ashes red/blue: No milk.

The device is overheated. Automatic switch-off.

Caution! Risk of scalding due to hot milk.

Do not exceed the maximum fill level.

Place the base station on a dry surface that is waterproof and heat-proof.

▶ Attach the milk frother.

Maintain a distance of 60 cm from the sink and 50 cm from an open flame.

Insert power plug in an earthed socket.

Insert the whisk attachment.

▶ Add milk.

Fill level:

For warm milk: . 300 ml

For cold/warm milk foam:

Max. 150 ml

Put on the lid.

Caution! Risk of scalding due to hot milk splashing.

When using the appliance, make sure that the lid always stays on and that the appliance is not moved.

▶ Press the button [icon] 1x. Button lights up red.

Warm milk

▶ Press the button [icon] 2x. Button flashes red.

Cold milk foam

▶ Press the button [icon] for 2 seconds. Button lights up blue.

The appliance stops automatically.

Remove the lid.
Pour the milk.

Tip:

Remove the lid when pouring milk:

• The foam will pour out of the pitcher better.
• The cover will not fall off out of your control.

Tip:

For the best results and hygienic operation, clean the appliance immediately after use ( → page 36).

ReinigungCleaningLimpieza

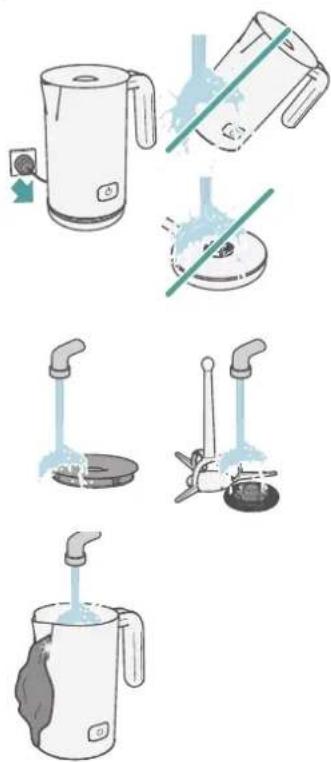

Caution! Always pull out the power plug first before cleaning!

Attention! Never immerse the base station or the bottom side of the appliance in water! Never wash under running water! Keep contacts dry!

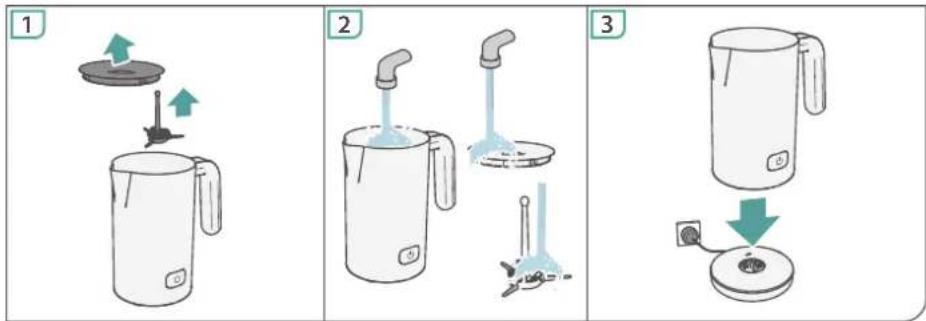

Remove the appliance from the base station.
Remove the frother.
Clean the lid and frother thoroughly with warm water and washing-up liquid.
▶ Only clean the outside of the pitcher with a wet, non-abrasive cloth.

Risk of injury from sharp edges; the edges of the metal housing may be sharp.

▶ Do not clean the pitcher with your hands.
▶ Use a brush or cloth for cleaning.
▶ Clean the inside of the pitcher thoroughly with warm water and washing-up liquid.

The appliance components are not dishwasher safe!

▶ Dispose of worn-out appliances according to the regulations in your country.
▶Do not dispose of worn-out appliances with household waste (environmental protection).

Worn-out machines can be returned to your dealer for professional disposal free of charge.

Rated voltage 220-240 V,50/60 Hz
Rated power 420-500 W
Dimensions(mm) (W × H × D)	107 × 190 × 165
Weight withbase	780 g
Radio interferen-ce suppression	acc. to EU stan-dard
Approval/com-pliance	CE, EAC, RoHS,WEEE
