Product type	Pedestal fan
Brand	Cecotec
Model	EnergySilence 620 Flow Control
Blade diameter	62 cm
Maximum height	145 cm
Base diameter	35 cm
Net weight	4.2 kg
Power supply	220-240 V ~ 50 Hz
Power consumption	55 W
Number of speeds	3 speeds + silent mode
Main functions	Horizontal oscillation, programmable timer (up to 8 h), infrared remote control, adjustable airflow
Control type	Touch panel + remote control
Oscillation angle	90°
Maximum noise level	38 dB(A)
Blade material	ABS
Grille material	Painted metal
Safety	Close protective grille, anti-tip base, automatic shut-off in case of tipping
Maintenance and cleaning	Unplug before cleaning; use a soft dry cloth; do not immerse in water; disassemble the grille to clean the blades
Available spare parts	Remote control, front grille, motor, fixing screws
Repairability	Motor and components replaceable by a professional
Warranty	2 years (parts and labor)

Frequently Asked Questions - EnergySilence 620 Flow Control CECOTEC

How to clean the fan without damaging it?

Unplug the appliance, remove the front grille by unscrewing the fixing screws. Clean the blades and grille with a soft slightly damp cloth. Never use abrasive products or immerse the motor.

The remote control no longer works, what to do?

First check the batteries (CR2025 type). Replace them if necessary. Make sure there is no obstacle between the remote and the receiver. If the problem persists, contact after-sales service.

The fan makes an abnormal noise, is this normal?

A slight motor noise is normal. If the noise is loud or irregular, check that the blades are not warped or the grille is not loose. If the noise persists, stop the appliance and consult a repairer.

How to adjust the oscillation?

Press the Oscillation button on the control panel or on the remote control. The appliance will oscillate automatically at 90°. Press again to stop oscillation.

The timer does not stop at the set time, why?

Make sure you have set the desired duration (from 1 to 8 hours). The timer starts after a few seconds of inactivity. If it does not stop, reset the appliance by unplugging it for 10 seconds.

How to assemble the fan?

Attach the base to the foot, insert the telescopic tube, then attach the motor. Mount the blades one by one in the order indicated in the manual, then clip the front grille. Tighten the safety screws.

Can I use the fan outdoors?

No, this appliance is designed for indoor use only. Do not expose it to moisture, rain or direct sunlight.

How to store the fan in winter?

Disassemble it following the reverse steps of assembly. Clean the parts, place them in a dry and dust-free place. Keep the remote control and batteries separately.

What is the power consumption?

The maximum power is 55 W. At medium speed, consumption is about 40 W. Use the timer to reduce unnecessary consumption.

Is there a warranty and how to activate it?

Yes, the legal warranty of conformity is 2 years. Keep your sales receipt. To activate the warranty, register your product on the Cecotec website within 30 days of purchase.

USER MANUAL EnergySilence 620 Flow Control CECOTEC

Safety instructions 5

1. Parts and components 24
2. Before use 25
3. Assembly 25
4. Operation 26
5. Cleaning and maintenance 26
6. Technical specifications 27
7. Disposal of old electrical and electronic appliances 28
8. Technical support and warranty 28
9. Copyright 28

TABLE OF CONTENTS

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance.

Cleaning and user maintenance should not be carried out by unsupervised children.

- This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Make sure that the mains voltage matches the voltage stated on the appliance marking and that the wall outlet is earthed.

- Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.

- Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are completely dry before handling the plug or switching on the appliance.

- If the appliance falls accidentally into water, unplug it immediately. Do not touch the water!

- Do not operate the device if any fault or unusual sign is detected.

- Keep hair, loose clothing, fingers, and other parts of the body away from the openings and moving parts of the device.

- Make sure the appliance is placed on a flat and stable surface during operation.

- Do not use the device next to windows, as exposure to rain could cause electric shock.

- Do not operate the product under or next to curtains.

- Do not cover the grilles and do not place the product cord under carpets or other objects during operation. Keep the sides, front, and back of the appliance at a minimum safety distance of 20 cm from any object or wall.

- Always turn off and unplug the device when not in use and before moving it to a new location. Pull from the plug, not the cable, to disconnect it from the outlet.

SAFETY INSTRUCTIONS

1. Front grille
2. Cap
3. Blades
4. Nut
5. Rear grille
6. Control panel
7. Motor
8. Adjusting nut
9. Tube
10. Base

Control panel

Fig. 2 key:

1. Nature mode indicator light
2. Sleep mode indicator light
3. Timer indicator light
4. Oscillation indicator light
5. Power indicator light
6. Mode icon
7. Speed icon
8. Power icon
9. Timer icon
10. Oscillation icon

Remote control

Fig. 3 key:

1. Oscillation button
2. Mode button
3. Timer button
4. On/speed button
5. Off button

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

- This appliance is packaged to protect it during transport. Remove the device from its box and take off all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help prevent damage to the device when transporting it in the future. If the original packaging is disposed of, make sure all packaging materials are recycled accordingly.

- Make sure all parts and components are included and in good condition. If any piece is missing or in bad condition, contact the official Cecotec Technical Support Service immediately.

Box content

- Fan

- Remote control

- Instruction manual

3. ASSEMBLY

Assembling the fan. Fig. 4

1. First, remove the cap (by turning it clockwise) and the plastic nut (by turning it counterclockwise). Secure the rear grille so that it is perfectly aligned with the motor; then, tighten the plastic nut clockwise.
2. Insert the blades into the shaft and make sure that the shaft pin fits into the slot in the blades. Turn the cap counterclockwise to tighten the blades.
3. Secure the front and rear grilles to each other using the clip.

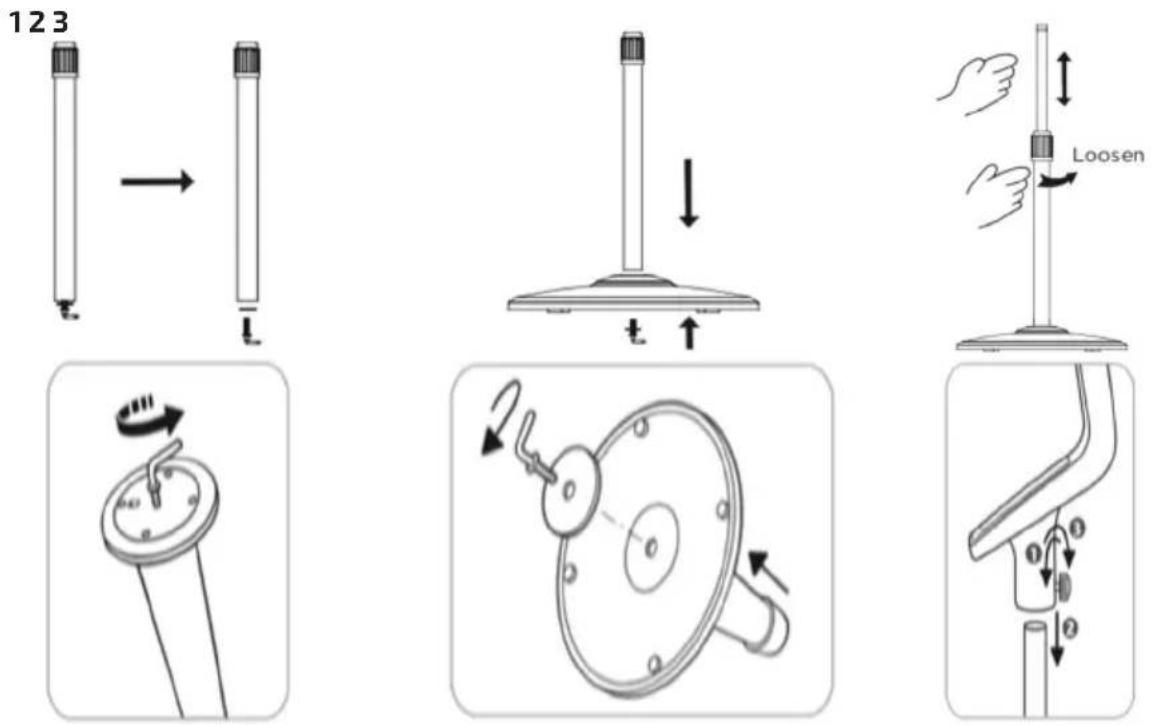

Assembling the base and tube. Fig. 5

1. Unscrew the bolt from the tube.
2. Insert the tube into the base and tighten the bolt.
3. Loosen the height adjustment knob. Next, place the inner tube at the desired height.

NOTE: if you cannot find the inner tube, it may be due to the fact that it is stuck in the tube. You will have to pull it out.

1. To fasten the fan body to the tube, slightly loosen the adjusting nut located at the bottom of the fan. Afterwards, place the fan in the tube and tighten the adjusting nut again.

WARNING: the height adjustment knob must be securely fastened before fitting the fan body.

ENGLISH

4. OPERATION

You can control the various functions of the fan via the control panel and the remote control:

Oscillation button

Press this button to activate or deactivate the fan oscillation function. When pressed, it allows the fan body to move from right to left to distribute the airflow over a wider area.

Mode button

Press this button to select between Nature mode and Sleep mode.

Timer button

By pressing this button, you can programme the operating time of the fan to switch off automatically after a pre-set period of time.

On/speed button

Press this button to select the desired speed.

Off button

Press this button to switch off the fan.

5. CLEANING AND MAINTENANCE

• Always unplug the product from the power supply before cleaning or repairing it. You can clean the fan with a slightly damp cloth. Fig. 6.
• It is suggested to clean the product with a mild cleaning agent and a soft and wet cloth. Do not use abrasive products such as solvents, acids, or alcohol to clean the plastic components, as these could be deformed or damaged.
• Do not allow water to enter the motor or touch the cord during cleaning.

6. TECHNICAL SPECIFICATIONS

Product reference: 08216

Product: EnergySilence 620 Flow Control

Power: 50 W

Voltage: 220 - 240 V

Frequency: 50 / 60 Hz

Description Symbol Value Unit
Fan maximum flow F 58.2 m			3 /min
Fan power consumption P 50.8 W
Service value SV 1.1 (m			3 /min)/W
Power consumption on standby mode	PSB	0.2 W
Fan sound power level	LWA	55	dB (A)
Maximum air speed	C 3.5	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones SL.Av. Reyes Católicos n°60, 46910,Alfafar (Valencia, Spain)

The power consumption in standby mode is 0.21 W using the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function, waiting for the standby mode to be activated.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

ENGLISH

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PARTS AND COMPONENTS

Image 1

Product: EnergySilence 620 Flow Control

Power: 50 W

Voltage: 220 - 240 V

Fig./Img./Abb./Afb./Rys.1

Fig. 2

Fig. 3

123

Fig. 4

Fig. 5

Fig. 6
