Bluetooth Audio Link 2in1 TxRx 450-12 - Receiver SANDBERG - Free user manual and instructions

Product Type	Bluetooth Audio Adapter 2-in-1 (Receiver/Transmitter)
Brand	Sandberg
Model	Bluetooth Audio Link 2in1 TxRx 450-12
Category	Receiver (also Transmitter)
Bluetooth Version	5.0
Wireless Range	Up to 10 meters
Audio Codecs	aptX Low Latency, SBC
Audio Input/Output	3.5mm stereo jack (AUX)
Power Supply	USB (5V, 500mA)
Battery Type	Built-in rechargeable lithium-ion
Battery Life	Up to 10 hours (receiver mode)
Charging Time	Approx. 2 hours
Dimensions	50 x 50 x 20 mm (approx.)
Weight	20 g (approx.)
Frequency Range	2.4 GHz
Operating Temperature	0°C to 40°C
Material	Plastic
Included Accessories	USB charging cable, 3.5mm audio cable, user manual
Certifications	CE, FCC
Compatibility	Smartphones, tablets, TVs, PCs, gaming consoles
Special Features	Switchable TX/RX mode, low latency audio
Maintenance & Care	Keep dry, clean with soft cloth, avoid extreme temperatures
Safety	Do not disassemble, avoid short circuits, use certified USB charger
Spare Parts & Repairability	No user-serviceable parts; contact Sandberg support for issues
General Information	Sandberg Bluetooth Audio Link 2in1 TxRx 450-12 is a versatile audio adapter that can both transmit and receive Bluetooth audio, allowing you to upgrade non-Bluetooth devices.

Frequently Asked Questions - Bluetooth Audio Link 2in1 TxRx 450-12 SANDBERG

How do I switch between transmitter (TX) and receiver (RX) modes?

Use the dedicated mode switch on the device. Typically, slide it to 'TX' for transmitter mode or 'RX' for receiver mode. The LED indicator will confirm the mode.

Can I connect this to my TV to use Bluetooth headphones?

Yes, set the adapter to transmitter (TX) mode. Connect it to your TV's audio output (headphone jack or RCA) using the included 3.5mm cable. Then pair your Bluetooth headphones.

How do I pair the adapter with my Bluetooth device?

Ensure the adapter is in the correct mode (TX or RX). Press and hold the pairing button for 2-3 seconds until the LED flashes rapidly. Then search for 'Sandberg 450-12' on your device and connect.

What is the battery life and how do I charge it?

The battery lasts up to 10 hours in receiver mode. To charge, use the included USB cable and connect to a USB power source. A full charge takes about 2 hours.

Does it support low latency audio for watching movies?

Yes, this adapter supports aptX Low Latency, which reduces audio delay to under 40ms, making it suitable for TV and movie watching.

Can I use this with my car's stereo system?

Yes, you can use it in receiver (RX) mode. Connect the adapter to your car's auxiliary input and pair your phone to stream music or calls.

How do I know which mode the adapter is in?

The LED indicator color shows the mode: blue blinking for transmitter (TX) and red blinking for receiver (RX). Solid light indicates pairing or connected.

Can I connect multiple pairs of headphones at once?

No, this adapter supports only one paired device at a time. To connect a different device, disconnect the current one and pair the new one.

What should I do if the device is not charging?

First, check the USB cable and power source. Try a different cable or charger. If the issue persists, the battery may be faulty. Contact Sandberg support for assistance.

Is the adapter compatible with game consoles like PlayStation or Xbox?

Yes, but you may need a suitable audio cable. For PS4/PS5, use the optical-to-analog converter (not included). For Xbox, connect via the controller's headphone jack. Set the adapter to receiver mode.

USER MANUAL Bluetooth Audio Link 2in1 TxRx 450-12 SANDBERG

Double Quality Tested

www.sandberg.world

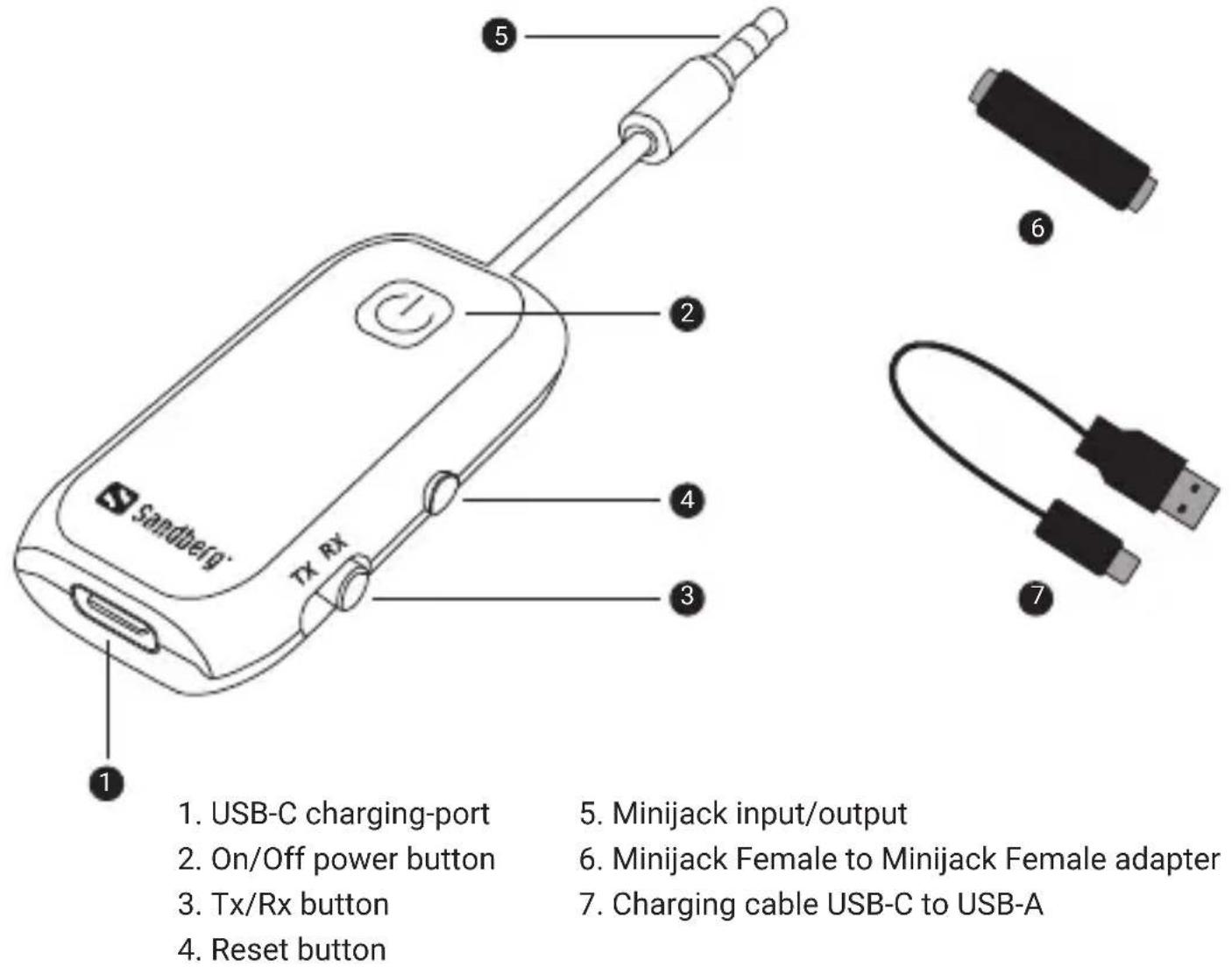

Product overview

1. USB-C charging-port
2. On/Off power button
3. Tx/Rx button

4. Reset button

5. Minijack input/output

6. Minijack Female to Minijack Female adapter
7. Charging cable USB-C to USB-A

Power button LED overview

Light Color Meaning
Blinking White/orange Pairing mode
Off after pairing None Connected
Blinking x3 /30 sec Red Battery low
Constant Red Charging
Off when charging None Fully charged

Power button functions

Press Function
3 sec ON when OFF

Reset button functions

Press Function
5 sec Reset pairing
Short Disconnect

Charging

• Use the enclosed USB-A to USB-C cable
• Charge the built in battery or keep it on the USB power
  • Auto power off after 5 minutes with no activity

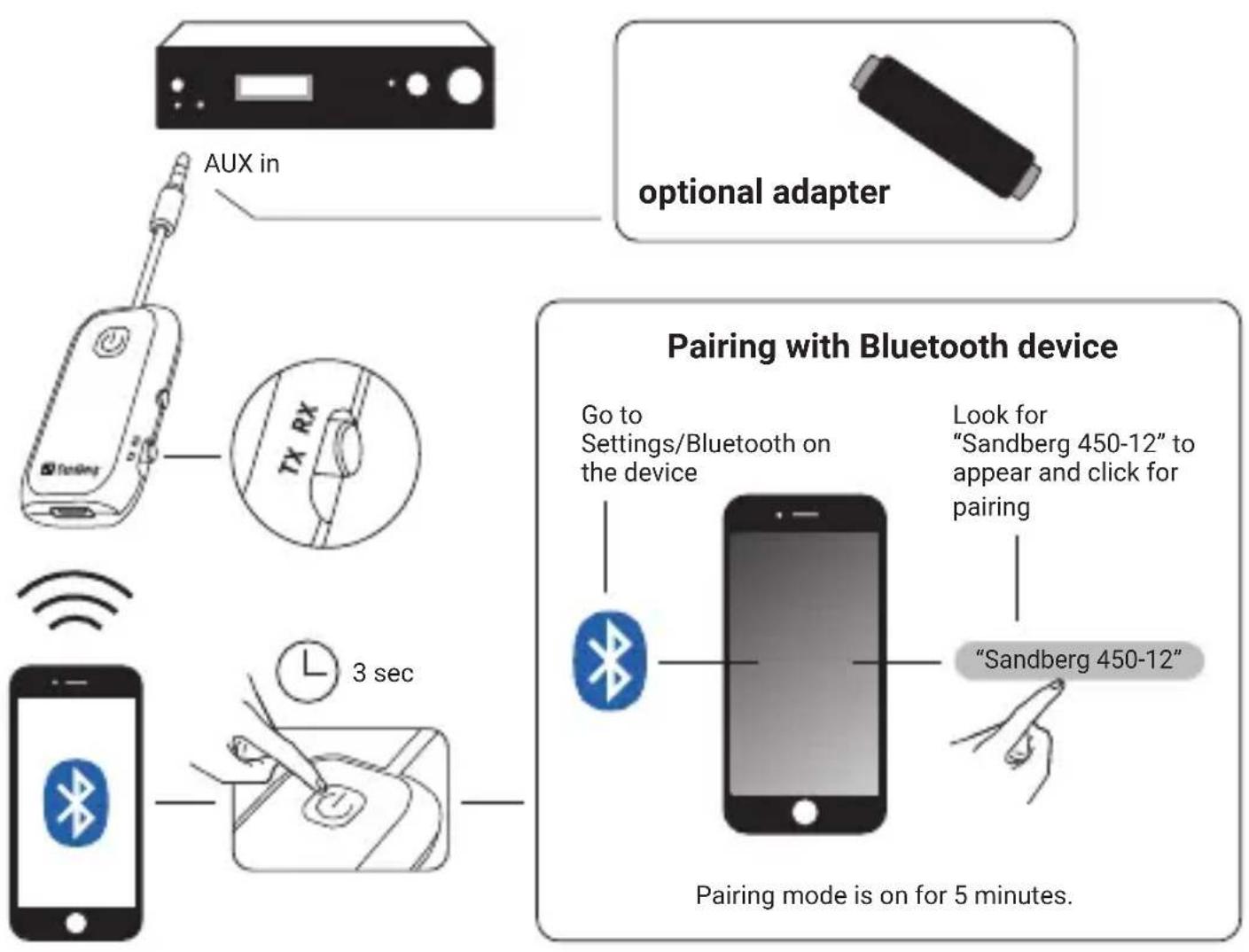

Set up as a Bluetooth receiver (Rx-mode)

Set up as a Bluetooth transmitter (Tx-mode)

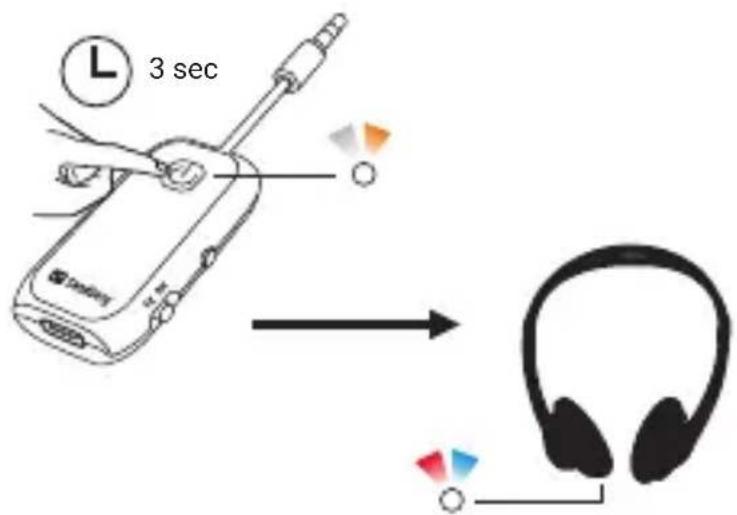

Bluetooth pairing for Tx-mode

Activate pairing mode on your headphones.

CE

Declaration of Conformity

Manufacturer: Sandberg A/S

Address: Bregneroedvej 133D, 3460 Birkenoed, Denmark

Product description: Bluetooth Audio sender+receiver

Product name/Type no: Sandberg Bluetooth Audio Link 2in1 TxRx 450-12

We declare under our sole responsibility that the products, to which this declaration relates, are in conformity with the Council Directives on the approximation of the laws of the EEC Member States relating to the following:

CE letter of conformity

(RED) 2014/53/EU

(RoHS 2.0) 2011/65/EU

Following standards were applied:

RED-EMC: EN 301 489-1 V2.2.3

EN 301 489-17 V3.2.4

RED: RED-EMF: EN 62479,2021

Date: 22 ^nd October 2021

Location: Birkeroed, Denmark

Name: Anders Petersen

Sandberg®

Support

http://helpdesk.sandberg.world

Warranty

There is a five-year warranty on your Sandberg product. Please read the warranty terms and register your new Sandberg product at www.sandberg.world/warranty

5

Years Warranty

For information on handling electronic waste, see www.sandberg.world/weee
