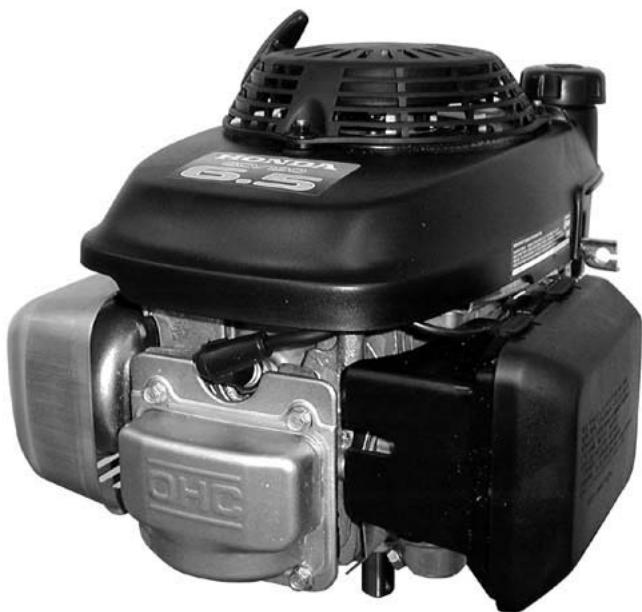

GENERAL PURPOSE ENGINE

GCV190A

PARTS CATALOGUE

1

GCV190A

FOREWORD INDEX

1

ENGINE GROUP

2

PART NUMBER INDEX

3

PART NAME INDEX

4

Instruction for use of parts catalogue

• This parts catalogue was prepared based on the latest information available as of January 10, 2003.
• See the parts catalogue news for any revision that is made after January 10, 2003.
• Always specify the part number when ordering a part.
• Check the model, type, serial numbers, color, maker, and the size as needed before ordering a part.
• Note that the illustrations (part drawings) can differ from the actual parts in shape.

They are given just to help you to refer to the parts.

• When modifications or additions to this parts catalogue are made, a revised edition will be issued at an appropriate time, with successively progressing revision numbers on the cover. We recommend obtaining such revisions in order to keep your parts catalogue up-to-date at all times. To check whether a parts catalogue revision has been issued, please contact your Honda distributor.

Initial version issue date January 10, 2003 Honda Motor Co., Ltd.

B 1

CONTENTS

Address

Page No.

• How to refer to the part information. 2 B 2
• Part catalogue structure 3 B 3
• When the parts were revised. 4 B 4
  Abbreviations used in the parts catalogue. 4 B 4
• How to check the part block and serial numbers...... 5 B 5
• Models, parts catalogue codes and applicable serial numbers 6 B 6
• Features of each type. 6 B 6
• Fuel hose, general purpose hoses and vinyl hose. 7 B 7
• How to use the flat rate time (F.R.T.) 8 B 8

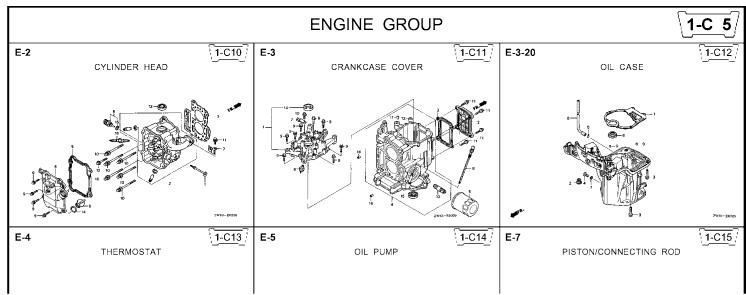

• Illustrated index 10 B10
• ENGINE GROUP. 12 C 1
  PART NO. INDEX 27 D1
  PART NAME INDEX 28 E1

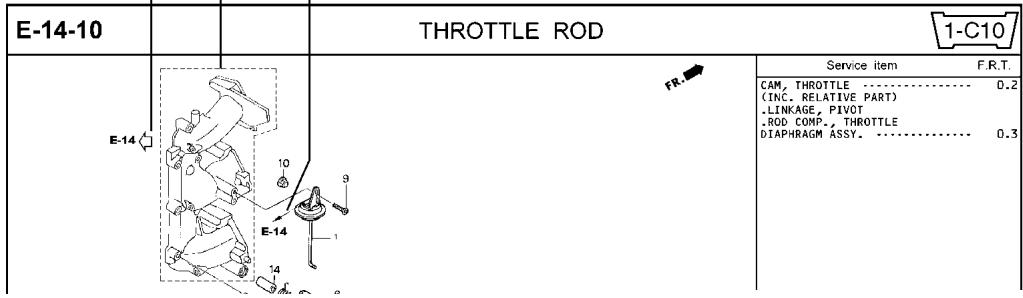

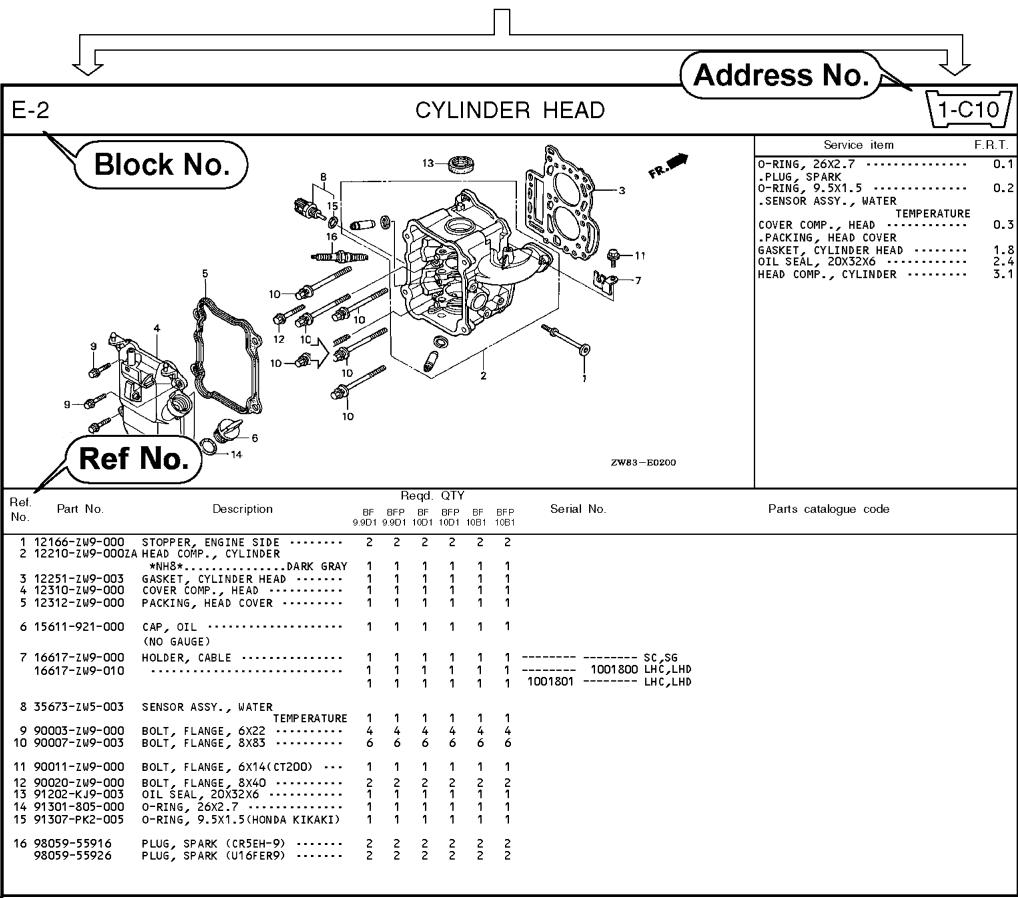

How to refer to the part information

A Reference with "Illustrated index"
B Reference with "Part number index"

PART NO. INDEX
Part Number	Address	Page	Ref	Part Number	Address	Page
06000				15212-ZW9-000	1-C14	30
				15220-ZW9-003	1-C14	30
06316-ZW9-000	1-G9	88	1	15332-ZW9-000	1-E8	55
				15332-ZW9-A30	1-E11	58
11000				15400-PFB-004	1-C11	27
				15422-ZW9-000	1-C14	30
11300-ZW9-405	1-C11	27	1	15473-881-000	1-C14	30
11300-ZW9-406	1-C11	27	1	15474-ZW9-000	1-C14	30
11340-ZW9-000	1-C11	27	2	15611-921-000	1-C10	26
11342-ZW9-000	1-C11	27	3	15655-ZW9-000	1-C11	27
11381-ZW9-003	1-C12	28	1	16000
12000				16010-ZV4-005	1-D4	36
				16011-ZV4-005	1-D4	36
12155-ZW4-A00	1-C13	29	1	16013-ZW9-003	1-D4	36
12166-ZW9-000	1-C10	26	1	16016-ZW9-003	1-D4	36
12209-GB4-681	1-C16	32	1	16016-ZW9-721	1-D4	36
12210-ZW9-405ZA	1-C10	26	2	16023-ZW9-003	1-D4	36
12216-ZE2-300	1-E8	55	1	16024-ZV4-650	1-D4	36
	1-E11	58	1	16028-ZV4-650	1-D4	36

PART NAME INDEX
Part name	Address	Page Ref.
[A]			BOLT,
ABSORBER ,FUEL.........	1-E15	62 5
ARMATURE ,COMP.........	1-D11	43 7	BOLT,
ARM ,COMP ,LINK JOINT.........	1-G6	85 18	BOLT,
ARM ,COMP ,SHIFT LINK.........	1-G6	85 14	BOLT,
ARM ,COMP ,TILT.........	1-F15	79 20
ARM ,FUEL PUMP ROCKER.........	1-C16	32 4
ARM ,REVERSE LOCK..........	1-F15	79 18
ARM ,SHIFT LINK..........	1-F11	74 7
ARM ,STOPPER..........	1-D1	33 12	BOLT,
ARM ,THROTTLE REMOTE..........	1-F11	74 6
ARM ,VALVE ROCKER..........	1-C16	32 3
[B]
BAG ,TOOL ,160MM..........	1-G5	84 10
BAND.........	1-G6	86 37
BAND B1 ,WIRE..........	1-F6	69 1
BAND ,CORD..........	1-F3	67 18	BOLT,
BAND ,TUBE CLIP ,11MM..........	1-E15	63 20
BAND ,TUBE CLIP ,12.5MM..........	1-E15	63 19	BOLT,

C Reference with "Part name index"

2000.09.20 E

Page No.

Part catalogue structure

16 15 17

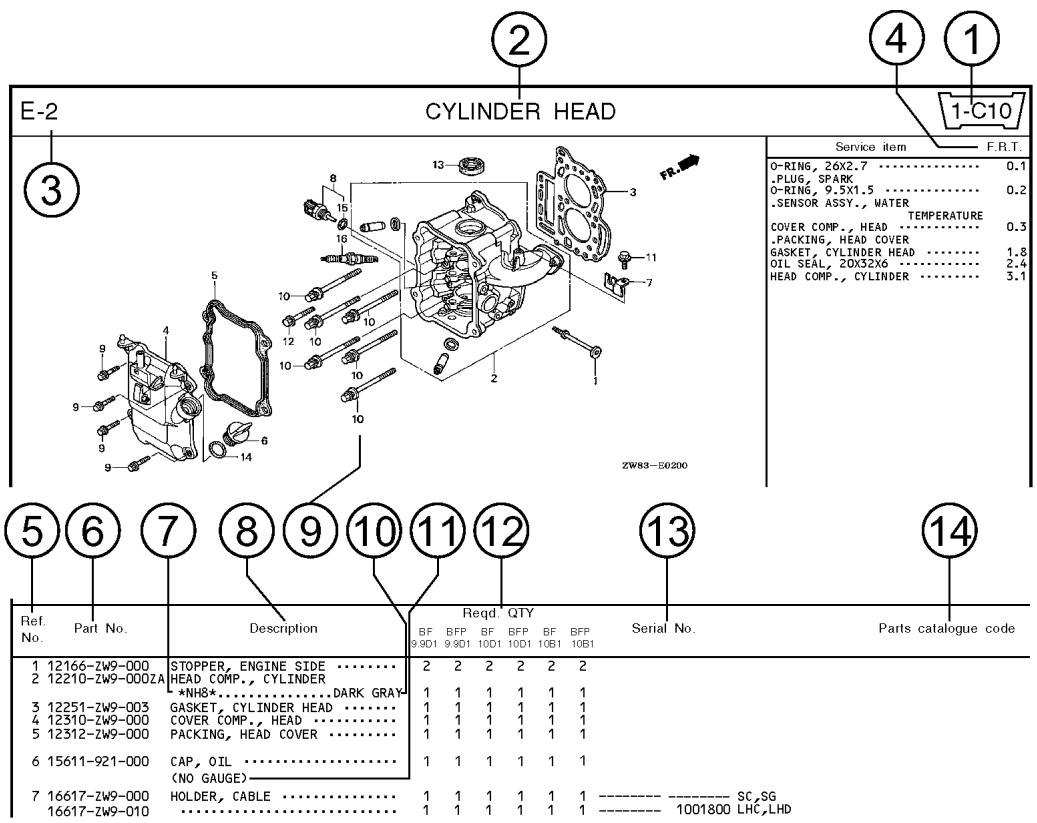

① Address number

• Address No. is provided (in place of the page No.) to help you refer to the part with the part No. or part name.

②Block title ③Block number

④Service item/Flat rate time

⑤Reference number

• Title number marked with the parenthesis or parentheses indicates that it continues from the previous page.

⑥Part number ⑦Honda color code

⑧ Description

⑨ Assemblies

• Sections framed with broken lines in the exploded view drawings are available as complete assemblies. (Their individual parts can also be obtained.)

Color description

① Note

• Notes are shown with the parentheses in the part name column.

Required quantity

• Required QTY shown in the parenthesis or parentheses indicates the optional part.

• Required QTY marked with "N" Indicates the optional part that should be selected as needed.

• Required QTY indicates the number of the part used in the block.

③Serial number

14Type

• When the type column is blank, it indicates that the part is applicable to all types.

• As the type of the actual unit may differ from the "parts catalogue, type" please refer to "Models, types and applicable serial numbers" for confirmation.

(5)

• Parts enclosed within a dotted line are covered in a different block.

16

• A hollow arrow indicates the block No. for the parts enclosed within a dotted line

17

• A solid arrow indicates the block No. the part in question is connected to.

When the parts were revised

Be sure to check the serial number!!

Ref. No.	Part No.	Description	Reqd. Qty						Serial No.
			BF 9.9D1	BFP 9.9D1	BF 10D1	BFP 10D1	BF 10B1	BFP 10B1
1	12166-ZW9-000	STOPPER, ENGINE SIDE	2	2	2	2	2	2
2	12210-ZW9-000ZA	HEAD COMP., CYLINDER*NH8*	1	1	1	1	1	1
3	12251-ZW9-003	GASKET, CYLINDER HEAD	1	1	1	1	1	1
4	12310-ZW9-000	COVER COMP., HEAD	1	1	1	1	1	1
5	12312-ZW9-000	PACKING, HEAD COVER	1	1	1	1	1	1
6	15611-921-000	CAP, OIL(NO GAUGE)	1	1	1	1	1	1
7	16617-ZW9-000	HOLDER, CABLE	1	1	1	1	1	1	SC,SG
	16617-ZW9-010		1	1	1	1	1	1	LHC,LHD
			1	1	1	1	1	1	LHC,LHD

The number has been used from the initial model without revision.

When shown at the left side, it is applicable to the models of No.1001801 and the subsequent numbers.

When shown at the right side, it is applicable to the models up to No.1001800.

Abbreviations used in the parts catalogue

• The following abbreviations are used in the parts name column.

A Ampere

FR.......Front

A.C. .... Alternating current

IN. Inlet

ASSY. .... Assembly

L (100L).Link (100 Links)

AT. Automatic transmission

L. Left

C.D.I. .... Capacitive discharge ignition

MT. .......Manual Transmission

D.C. ....... Direct current

P.T.O. ....Power take off

EX. Exhaust

R. ......Right

G.F.C.I ... Ground fault circuit interruptor

RR. .Rear

HEX. .... Hexagonal

STD. .......Standard

H.S.T. .... Hydrostatic transmission

T (22T) ...Tooth (22 Teeth)

V .Volt

W .........Watt

How to check the part block and serial numbers

Part block

Engine parts

E-3~

Carburetor parts

E-14~

Numbers needed

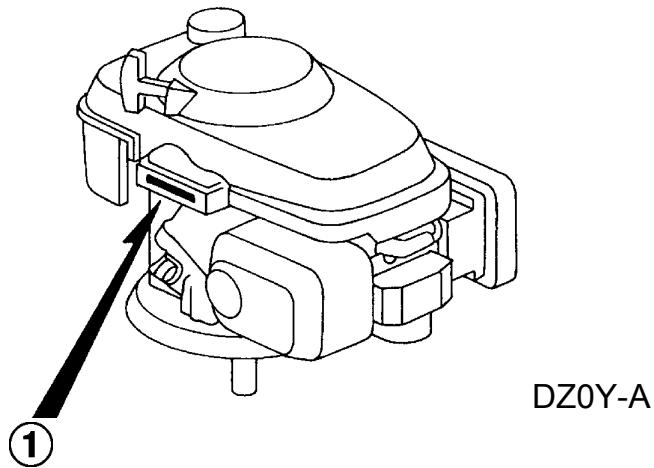

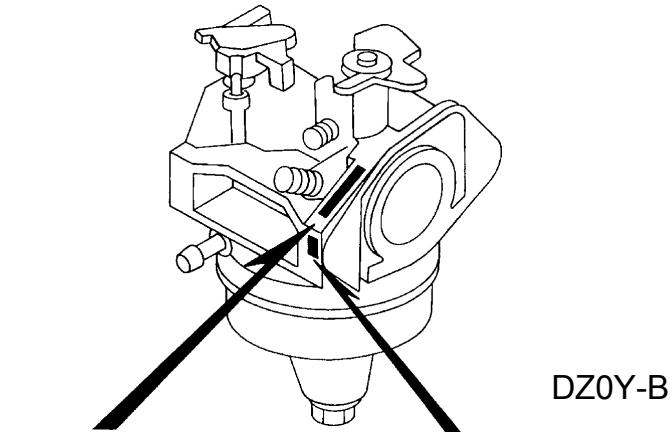

Stamped engine number

Stamped carburetor identification number

Check point

①

②

ENGINE SERIAL NUMBER

CARBURETOR
IDENTIFICATION NUMBER

CARBURETOR
IDENTIFICATION NUMBER

Models, parts catalogue codes and applicable serial numbers

• Models, parts catalogue codes and applicable serial Nos. given in this parts catalogue can be identified as follows.

Model	Type	Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	A1AE	A1AE	GJAAA-1000001~	BB62J A
	A1AF	A1AF
	A2G7	A2G7
	S1A	S1A		BB62K A

• Of carburetor identification numbers, only the portions underlined in the example below are used for registration.

BB 62J A KC + A B

Features of each type

• See the following table for the features of each type.

Specifications	Model Type	GCV190A
		A1AE	A1AF	A2G7	S1A

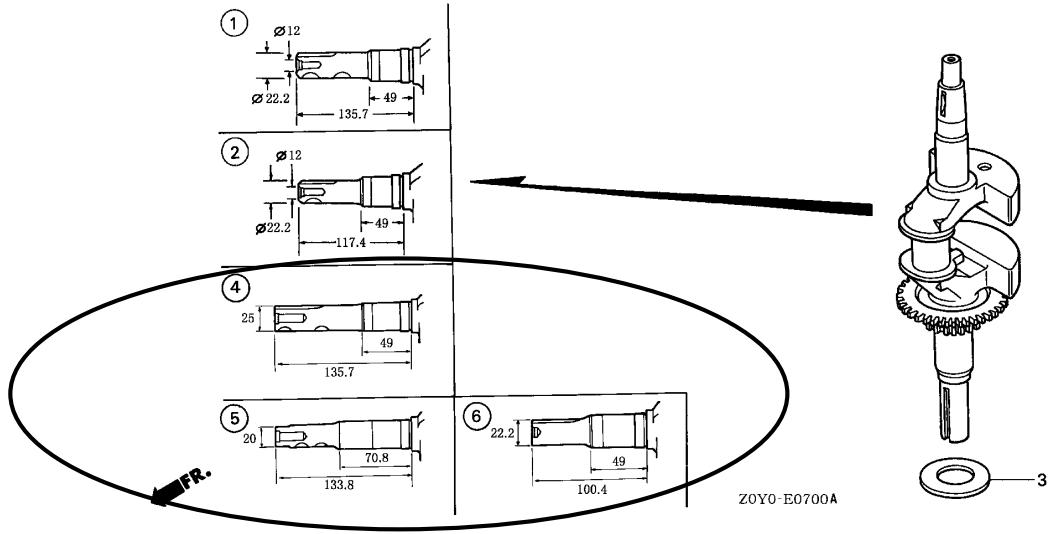

Crankshaft	N1 Type (Ø 22.2X135.7mm)	●	●		●
	N2 Type (Ø 22.2X117.4mm)			●
Recoil starter		●	●	●	●
Flywheel brake		●	●	●	●

Fuel hose, general purpose hoses and vinyl hose

• The standard part fuel hose, general purpose hose and vinyl hose may be substituted by the coiled bulk part.
• When ordering the standard part fuel hose, general purpose hose and vinyl hose use the bulk part number written in the parts catalog in brackets ( ) underneath the part name.
• When exchanging the hose, cut and use at the specified length as mentioned in the part name.

(For the method of cutting the bulk part, and method of filling out orders etc., please refer to the instructions issued with the bulk part.)

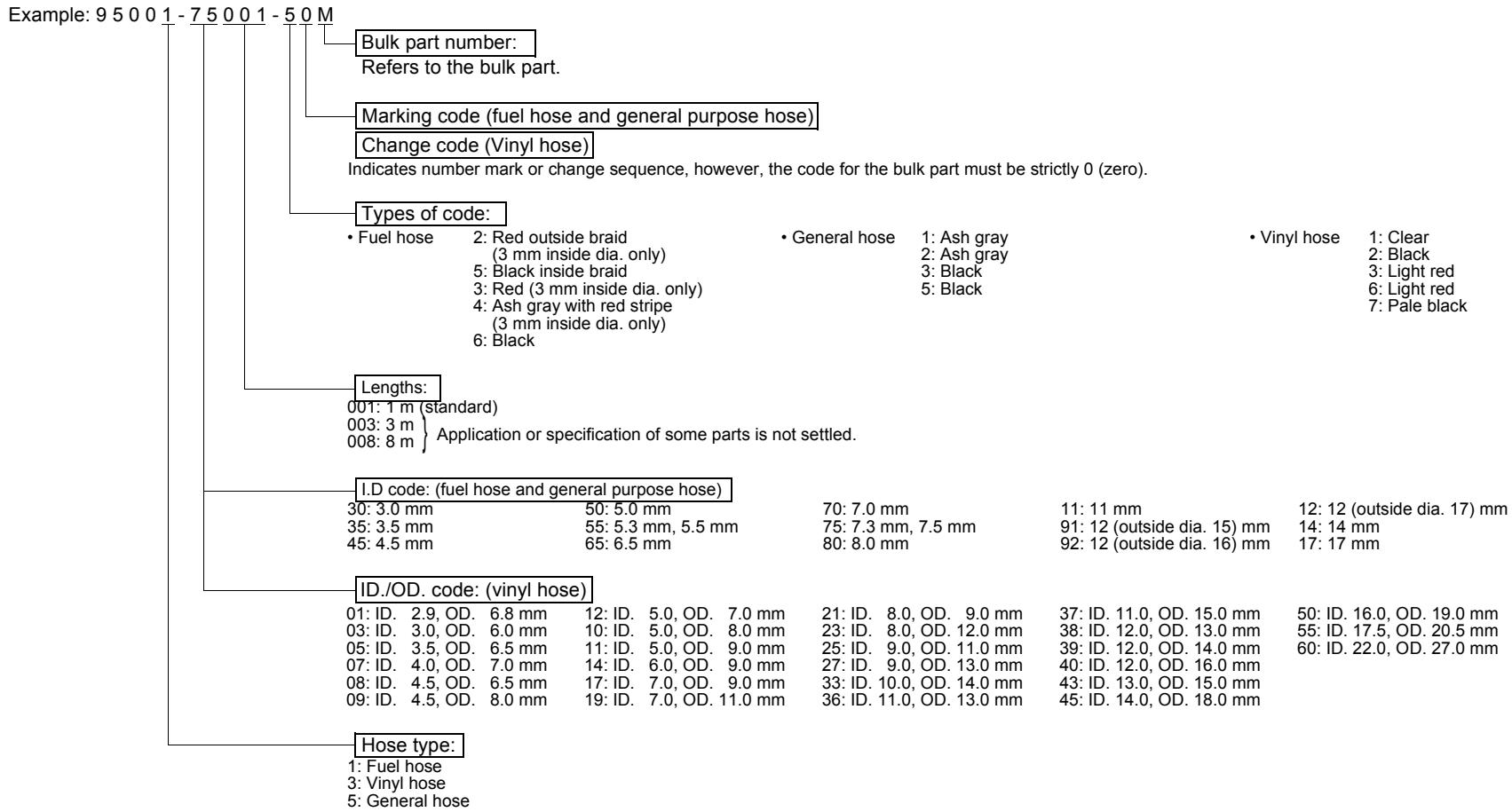

Bulk part number of fuel hose, general purpose hose and vinyl hose.

CAUTION: It is DANGEROUS to confuse the fuel hose with the general purpose hose or vinyl hose.

Never use a general purpose hose or vinyl hose in place of a fuel hose or vice versa. Always use the correct bulk part in the parts catalogue, according to the service manual or the instructions issued with the bulk part.

How to use the flat rate time (F.R.T.)

This F.R.T. (Flat Rate Time) is used to determine the standard labor time allowed for replacement of parts covered by the warranty during the period the warranty is in effect. The F.R.T. for those parts which are not listed herein should be determined from the operation closely related to the replacement of that part.

1. The F.R.T. is based on the following servicing conditions

a. A liberal allowance is added to the net servicing time.
b. Standard times specified are based on the condition that the necessary servicing tools listed in the service manual which describes the Honda service policy are available close at hand and the work performed by a mechanic with normal skill.
c. Time required for inspection and operational test following the servicing is included in the F.R.T.
d. The F.R.T. for “·” marked parts are same as the F.R.T. for the representative part above.
e. The F.R.T. shown with () includes engine removal and installation.

2. Method of computing

The job times are listed in tenth of an hour to simplify computation.

(Example) 0.3 = 18 minutes

5.6 = 5 hours and 36 minutes

CONVERSION CHART
Hours	Minutes	Hours	Minutes
0.1	6	0.6	36
0.2	12	0.7	42
0.3	18	0.8	48
0.4	24	0.9	54
0.5	30	1.0	60

3. Computing the F.R.T.

The following are only examples and do not reflect the actual F.R.T. for this product.

When several jobs are performed at the same time, make the calculation in the following manner.

a. Jobs of non duplicated nature

The F.R.T. for the job is obtained by totalling the F.R.T. for each part replaced.

(Example) Replacement of head cover gasket and oil filter.

Service item	F.R.T.
Packing, cylinder head cover	0.5
Cartridge, oil filter	0.5

The F.R.T. for the job is: 0.5 + 0.5 = 1.0

b. Jobs of duplicated nature

Take the F.R.T. for the last part to be replaced.

(Example) Replacement of piston and cylinder head gasket.

Service item	F.R.T.
Gasket comp., cylinder head	3.0
Piston	*5.0

The F.R.T. for the job is: 5.0

c. Jobs of partially related nature

Total up the F.R.T. for all of the parts replaced and then subtract the F.R.T. for the duplicated operation (i.e., cylinder head gasket service).

(Example) Replacement of valve and cylinder head.

Service item	F.R.T.
Valve	*3.0
Head assy., cylinder	*4.0
Gasket comp., cylinder head	*2.5

The F.R.T. for the job is: (3.0 + 4.0) - 2.5 = 4.5

• The F.R.T. shown with (^*) includes engine removal and installation.
• The parts, having the same number of man-hour, are identified by a mark “ ”, and classified under the title of their representative work.

4. Adjustment and cleaning

Item	Service item	F.R.T.
Adjustment	Valve clearance	0.3
	Carburetor	0.2
	Governor	0.2
Cleaning	Carburetor	0.6
	Air cleaner element	0.1
	Spark plug	0.1

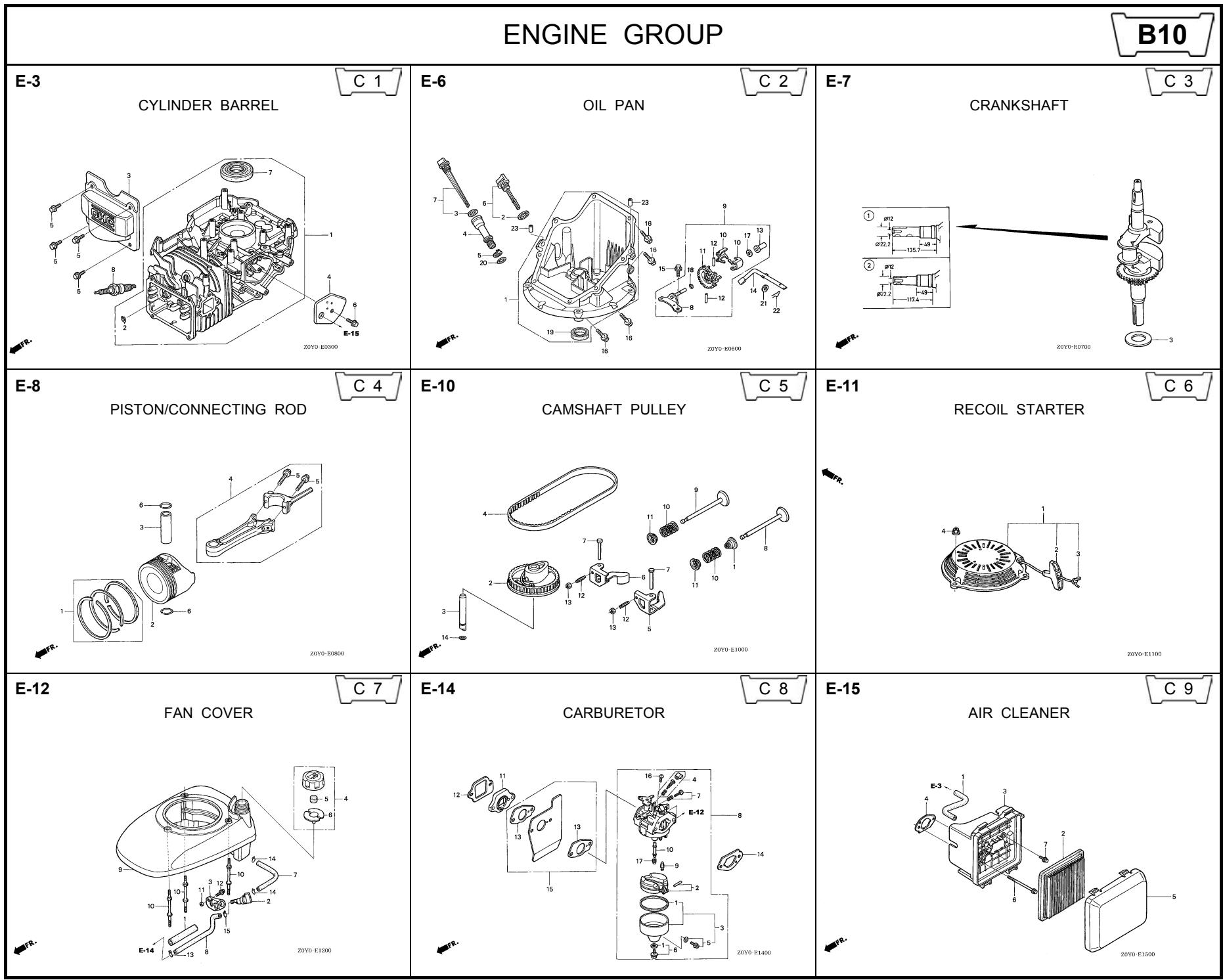

ENGINE GROUP B11

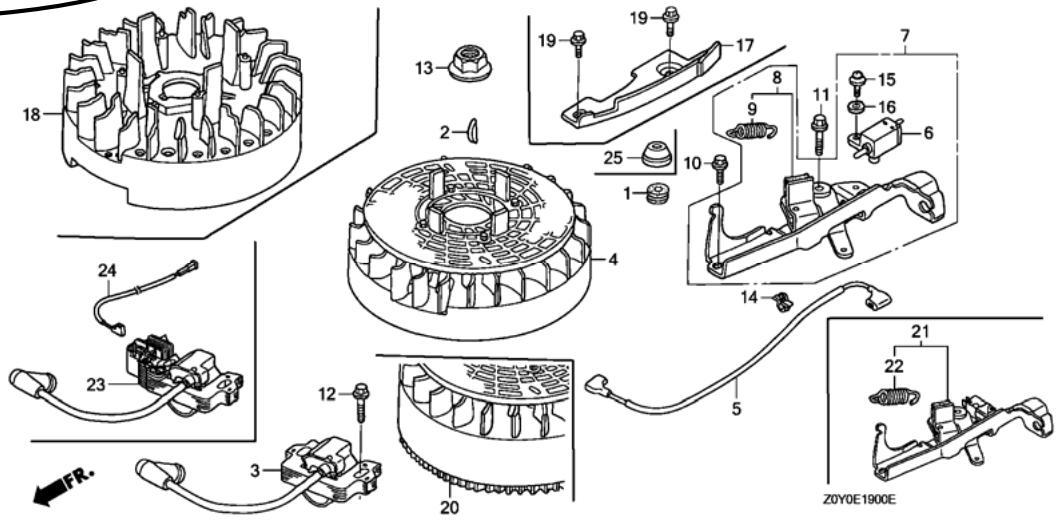

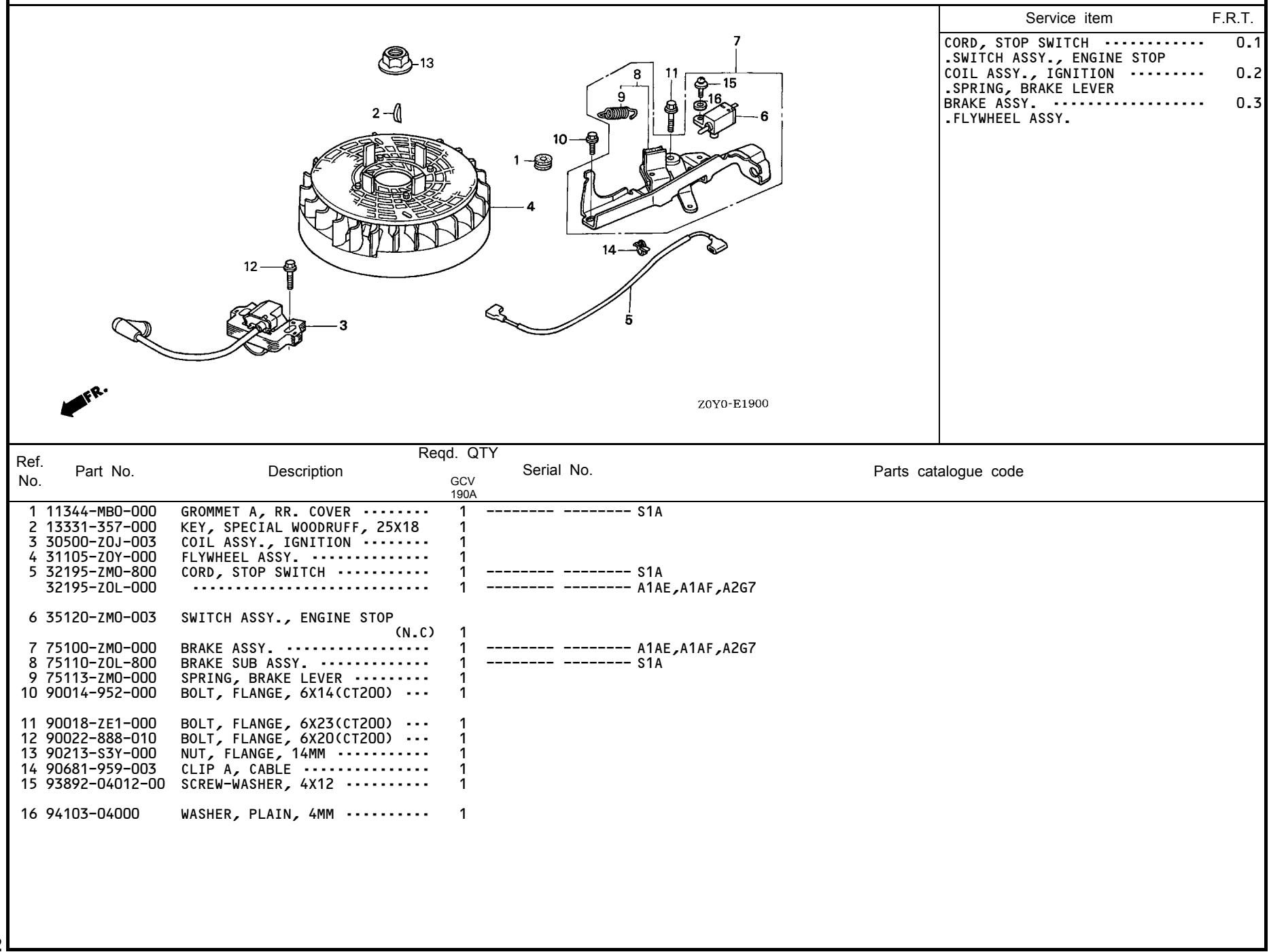

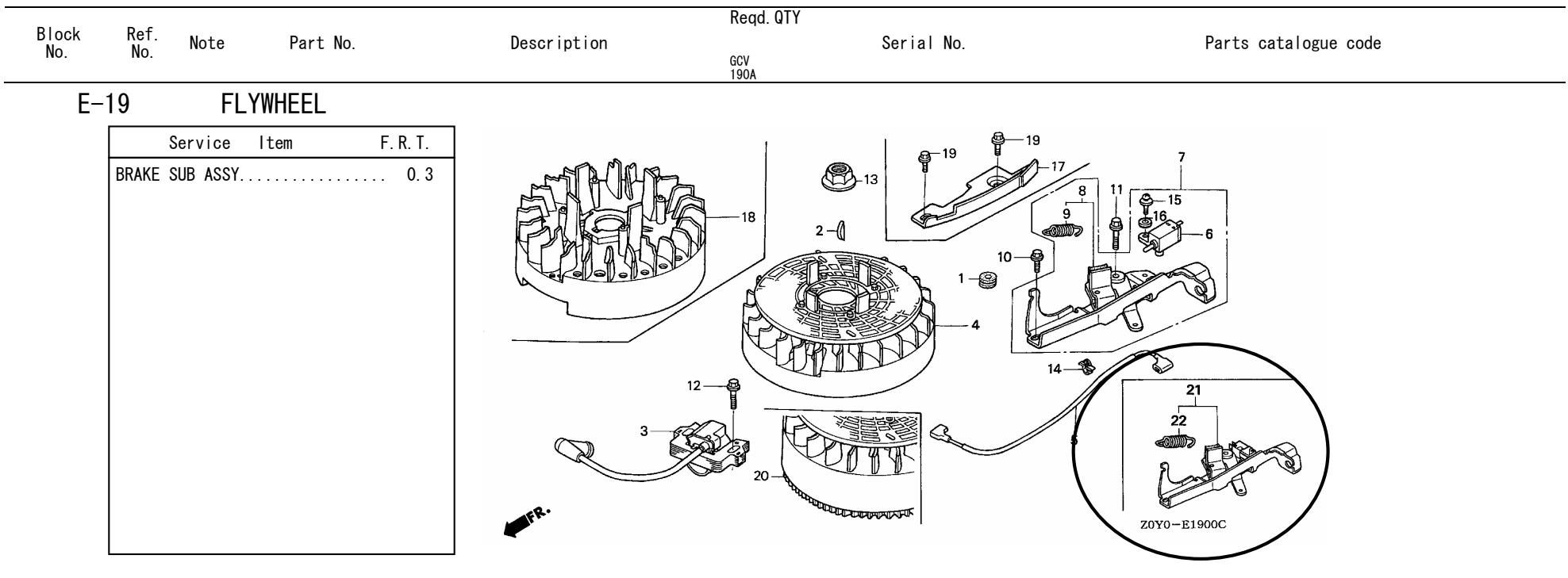

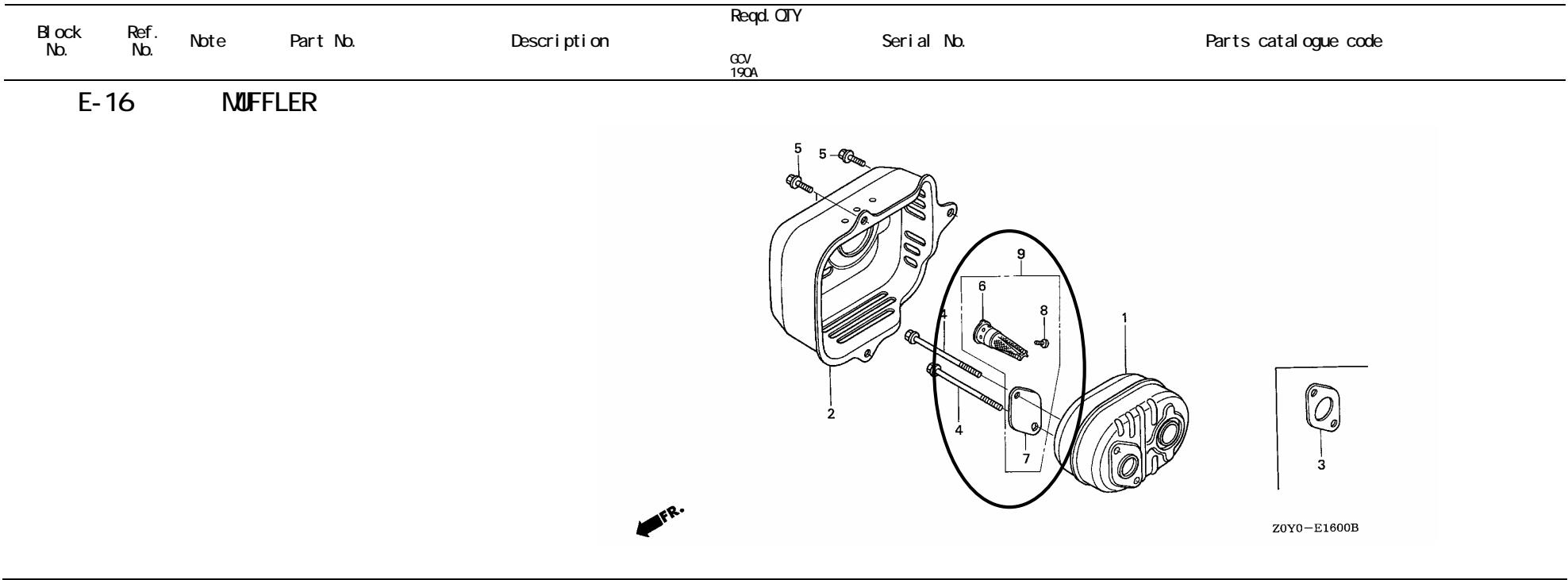

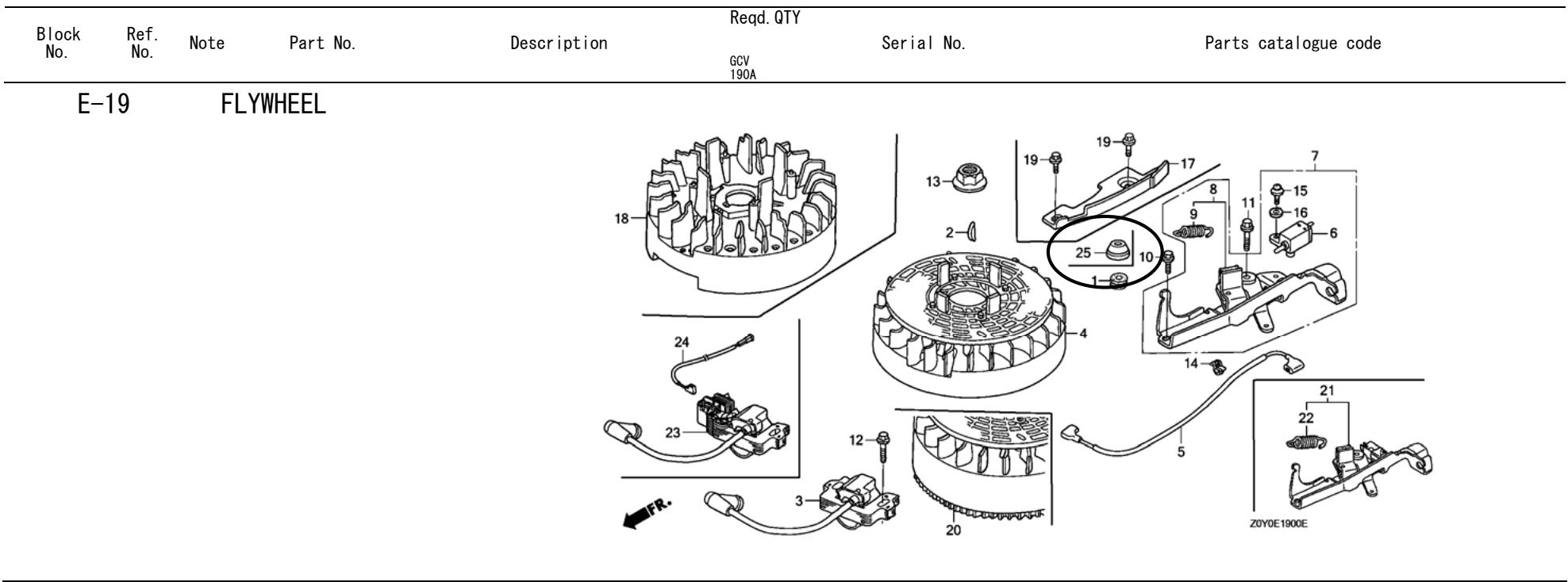

E-16 MUFFLER 20Y0-E1600	E-19 FLYWHEEL 20Y0-E3000	E-22 CONTROL(1) 20Y0-E3000	C12

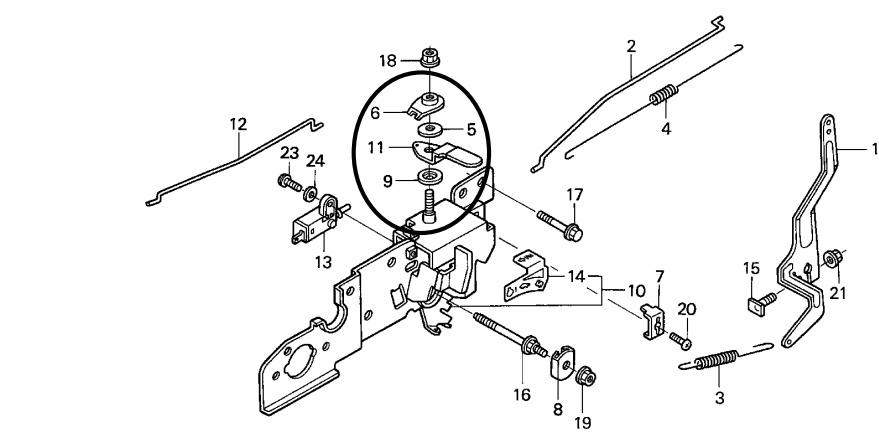

E-22-1 CONTROL(2) 20Y0-E2201	E-22-2 CHOKE BASE 20Y0-E2202	E-28 LABEL 20Y0-E2200	C15

E-3

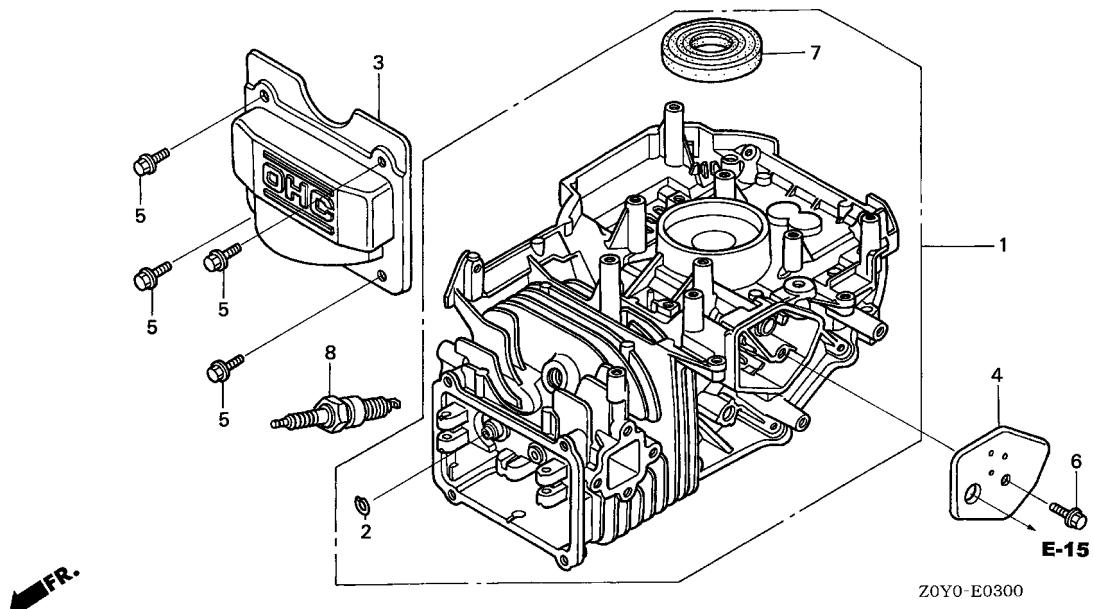

CYLINDER BARREL

Service item

F.R.T.

PLUG,SPARK 0.1
COVER COMP., BREATHER 0.2
_COVER, HEAD
OIL SEAL, 25.4X62X6 1.3
BARREL ASSY., CYLINDER 1.6

Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
			GCV 190A	Serial No.
1	12000-Z0Y-405	BARREL ASSY., CYLINDER	1
2	12216-ZE5-300	CLIP, VALVE GUIDE	1
3	12311-ZL8-000	COVER, HEAD	1
4	12355-ZL8-000	COVER COMP., BREATHER	1
5	90013-883-000	BOLT, FLANGE, 6X12(CT200)	4
6	90014-952-000	BOLT, FLANGE, 6X14(CT200)	1
7	91201-ZL8-003	OIL SEAL, 25.4X62X6	1
8	98079-56846	PLUG, SPARK (BPR6ES) (NGK)	1

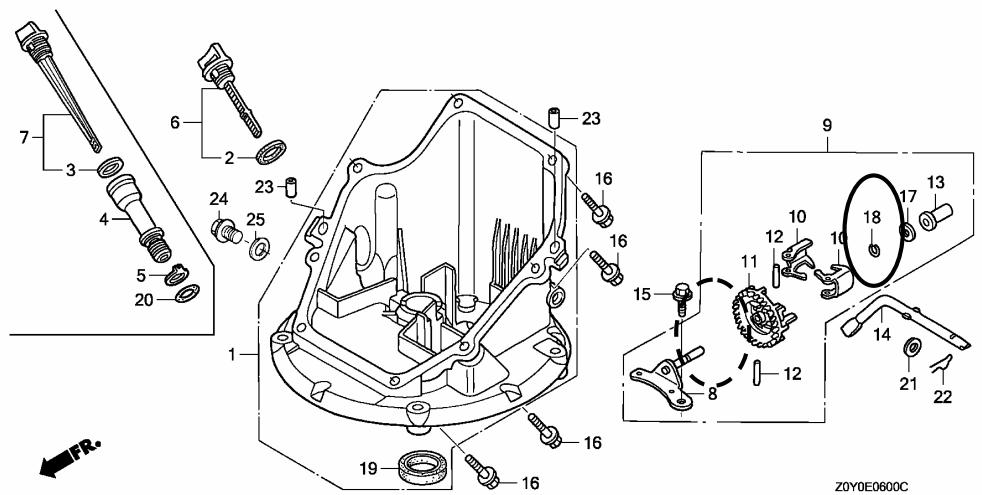

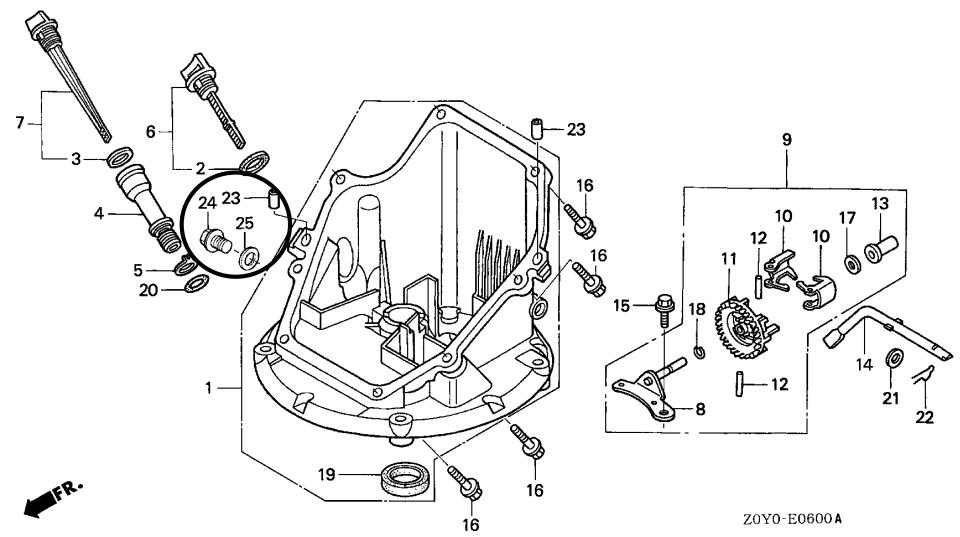

E-6 OIL PAN C2
7 3 6 1 23 16 15 14 13 12 11 10 9 ZOY0-E0600				Service item F.R.T.
				EXTENSION, OIL FILLER 0.1 .0-RING, 14.8x2.4 SHAFT, GOVERNOR ARM 0.4 HOLDER, GOVERNOR WEIGHT 0.5 (INC. RELATIVE PART) .0IL SEAL, 28X41.25X6 PAN ASSY., OIL 0.6
Ref. No. Part No. Description GCV 190A Serial No. Parts catalogue code
1 11300-Z0Y-406	PAN ASSY., OIL	1	A1AF,S1A
2 15625-ZE1-003	PACKING, OIL FILLER CAP	1	A1AE,A2G7
3 15625-ZE6-000	PACKING, OIL FILLER CAP	1	A1AE,A2G7
4 15631-ZM0-000	EXTENSION, OIL FILLER	1	A1AE,A2G7
5 15639-ZM0-000	WASHER, EXTENSION ROCK	1	A1AE,A2G7
6 15650-ZM0-003	GAUGE ASSY., OIL LEVEL	1	A1AF,S1A
7 15650-ZM0-801	GAUGE ASSY., OIL LEVEL	1	A1AE,A2G7
8 16508-ZM0-010	SHAFT COMP., GOVERNOR HOLDER	1
9 16510-ZM0-010	GOVERNOR ASSY.	1
10 16511-ZL8-000	WEIGHT, GOVERNOR	2
11 16512-ZM0-000	HOLDER, GOVERNOR WEIGHT	1
12 16513-ZE1-000	PIN, GOVERNOR WEIGHT	2
13 16531-ZE1-000	SLIDER, GOVERNOR	1
14 16541-ZM0-000	SHAFT, GOVERNOR ARM	1
15 90014-952-000	BOLT, FLANGE, 6X14(CT200)	1
16 90121-952-000	BOLT, FLANGE, 6X25	8
17 90451-ZE1-000	WASHER, THRUST, 6MM	1
18 90602-ZE1-000	CLIP, GOVERNOR HOLDER	1
19 91202-ZL8-003	OIL SEAL, 28X41.25X6	1
20 91303-KFO-003	O-RING, 14.8X2.4(ARAI)	1	A1AE,A2G7
21 94101-06800	WASHER, PLAIN, 6MM	1
22 94251-08000	PIN, LOCK, 8MM	1
23 94301-08200	DOWEL PIN, 8X20	2

E-7 CRANKSHAFT C3
1 13310-Z0Y-000 CRANKSHAFT COMP. (N1-TYPE) 1 A1AE,A1AF,S1A 2 13310-Z0Y-600 CRANKSHAFT COMP. (N2-TYPE) 1 A2G7 3 90402-ZL8-000 WASHER, THRUST 1
Ref. No. Part No. Description GCV 190A Serial No. Parts catalogue code
E-8 PISTON/CONNECTING ROD C4
ZOY0-E0800			Service item F.R.T.
			PIN, PISTON 1.0 .ROD ASSY., CONNECTING 1.1 .PISTON 1.1 .RING SET, PISTON
Ref. No. Part No. Description GCV 190A Serial No. Parts catalogue code
1 13010-Z0Y-004 RING SET, PISTON (TEIKOKU) 1
2 13101-Z0Y-000 PISTON 1
3 13111-Z0Y-000 PIN, PISTON 1
4 13200-Z0Y-000 ROD ASSY., CONNECTING 1
5 90001-ZE1-000 BOLT, CONNECTING ROD 2
6 90551-ZEO-000 CLIP, PISTON PIN, 13MM 2

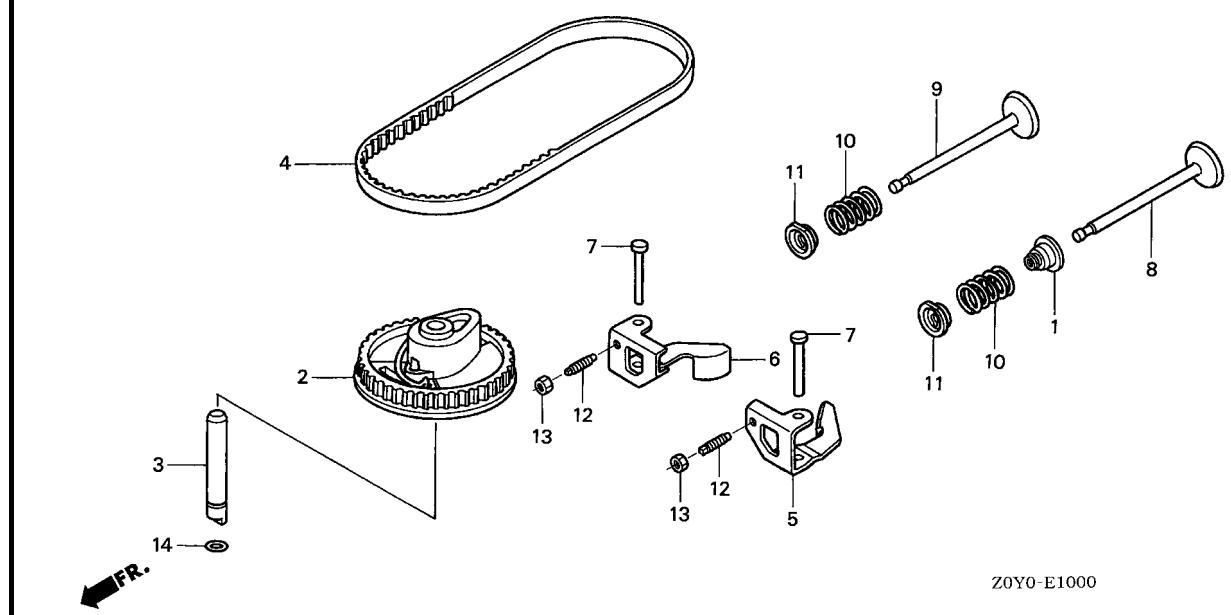

E-10

CAMSHAFT PULLEY

C 5

Service item

F.R.T.

ARM, IN. VALVE ROCKER 0.3

(ADD 0.1 FOR EACH.)

0-RING, 6.8X1.9 0.4

.PULLEY COMP., CAM

BELT, TIMING 1.0

SEAL, VALVE STEM 1.3

. VALVE

(ADD 0.1 FOR EACH.)

Ref. No.	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
			GCV 190A	1
1	12209-ZM0-003	SEAL, VALVE STEM	1
2	14320-Z0Y-000	PULLEY COMP., CAM	1
3	14324-ZL8-000	SHAFT, CAM PULSEY	1
4	14400-Z0J-014	BELT, TIMING (84HU7 G-200)	1
5	14431-ZL8-000	ARM, IN. VALVE ROCKER	1
6	14441-ZL8-000	ARM, EX. VALVE ROCKER	1
7	14461-ZL8-000	SHAFT, ROCKER ARM	2
8	14711-ZL8-000	VALVE, IN.	1
9	14721-ZL8-000	VALVE, EX.	1
10	14751-ZL8-000	SPRING, VALVE	2
11	14771-ZE1-000	RETainer, IN. VALVE SPRING	2
12	90012-333-000	SCREW, TAPPET ADJUSTING	2
13	90206-001-000	NUT, TAPPET ADJUSTING	2
14	91301-ZM0-V31	O-RING, 6.8X1.9(ARAI)	1

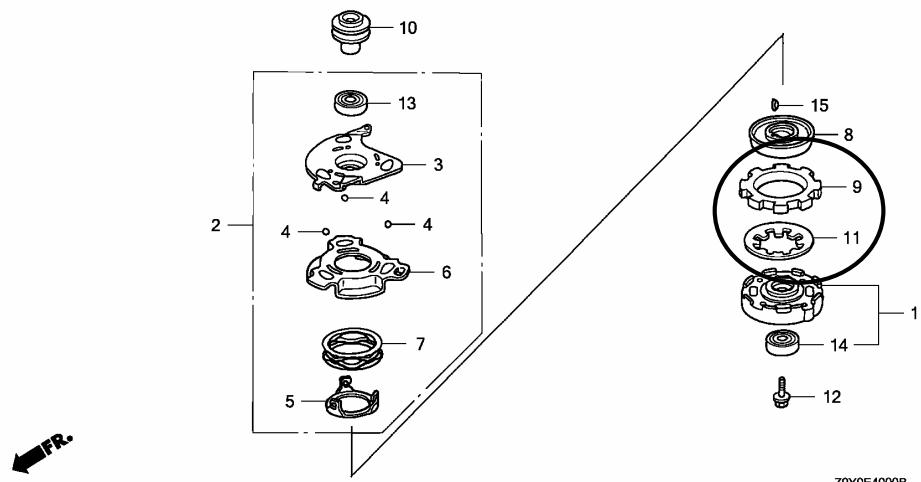

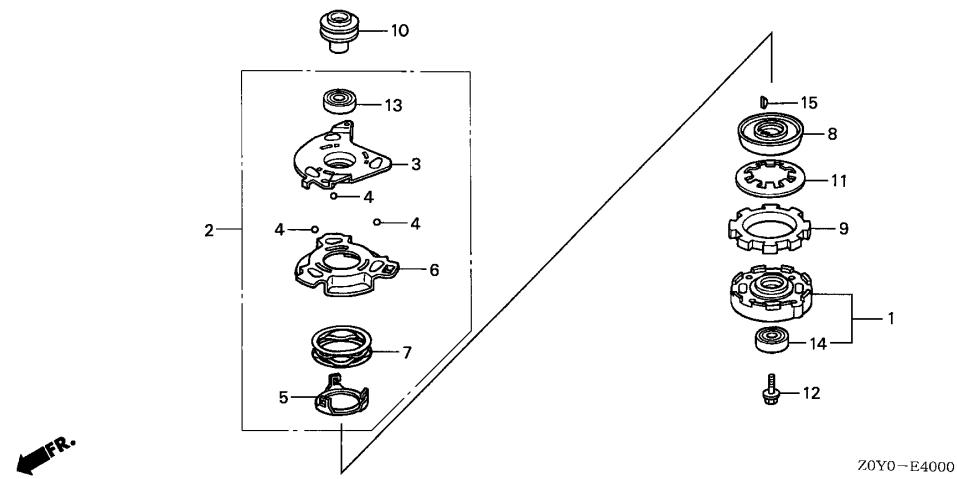

E-11 RECOIL STARTER C6
	Service item F.R.T.
	GRIP, STARTER 0.1 . STARTER ASSY, RECOIL ROPE, RECOIL STARTER 0.3
	ZOYO-E1100
Ref. No. Part No. Description Serial No. Parts catalogue code
1 28400-ZOY-003ZA STARTER ASSY., RECOIL *R280* POWER RED 1 28400-ZOY-003ZB *NH1* BLACK 1 2 28461-ZLB-003 GRIP, STARTER 1 3 28462-ZLB-631 ROPE, RECOIL STARTER 1 4 90201-ZMD-000 NUT, FLANGE, 6MM 3

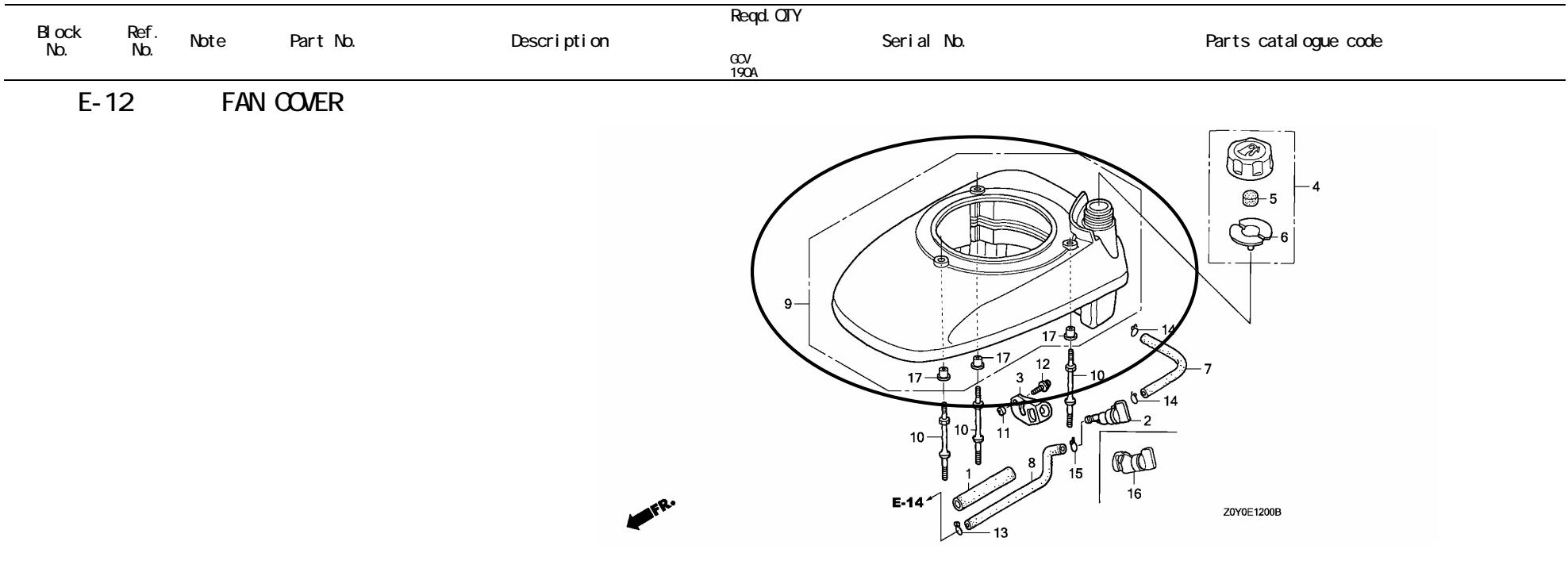

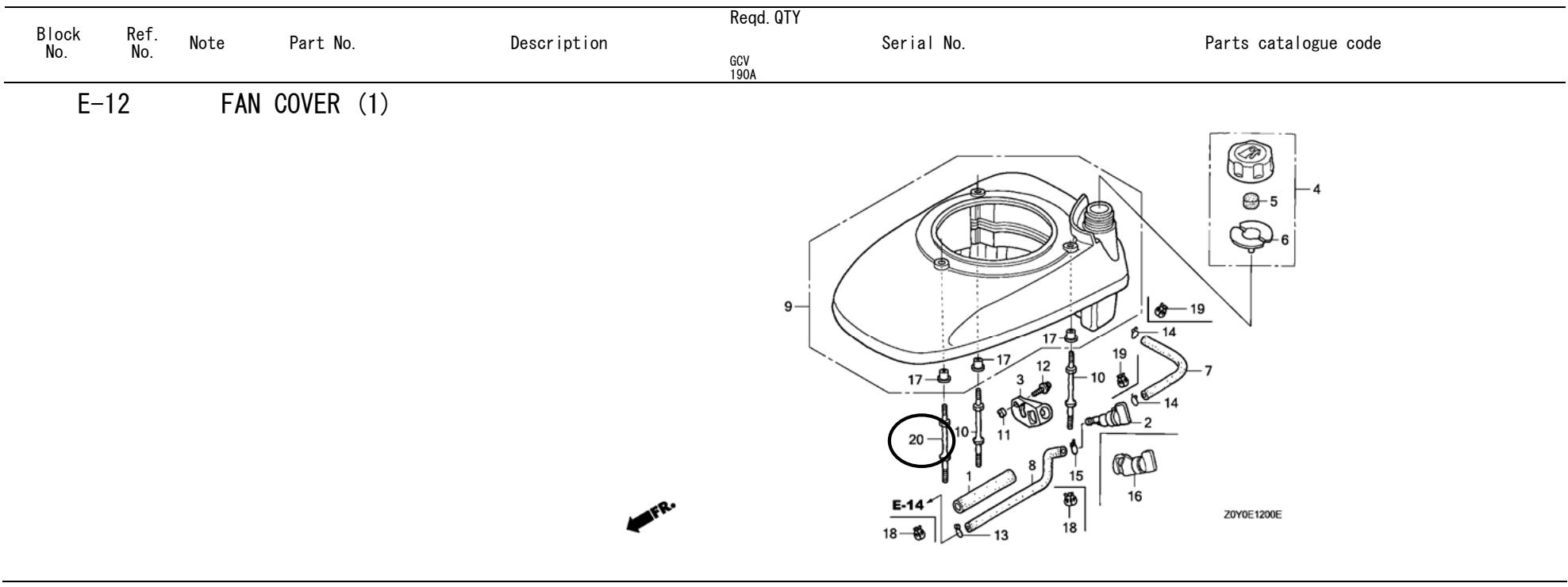

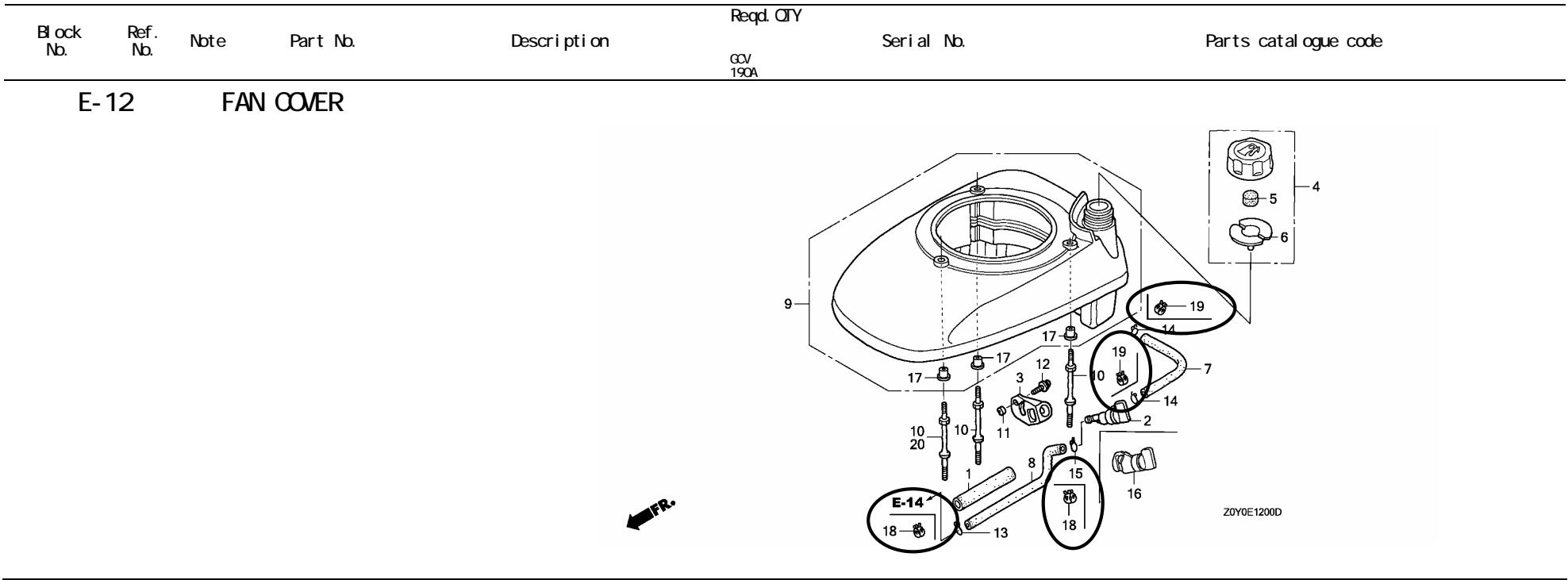

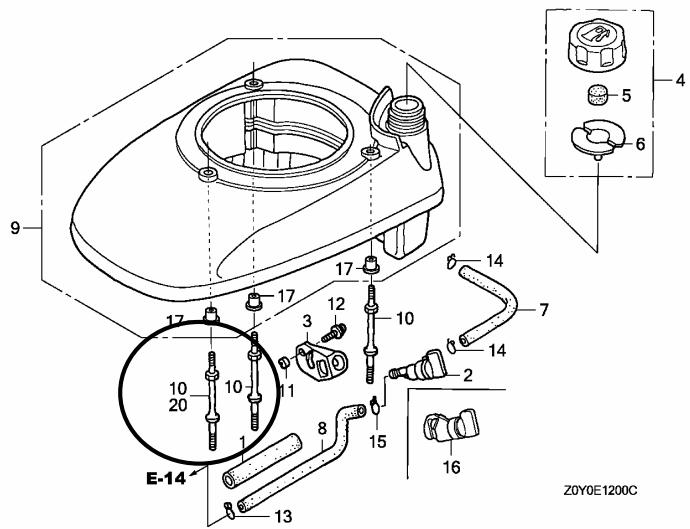

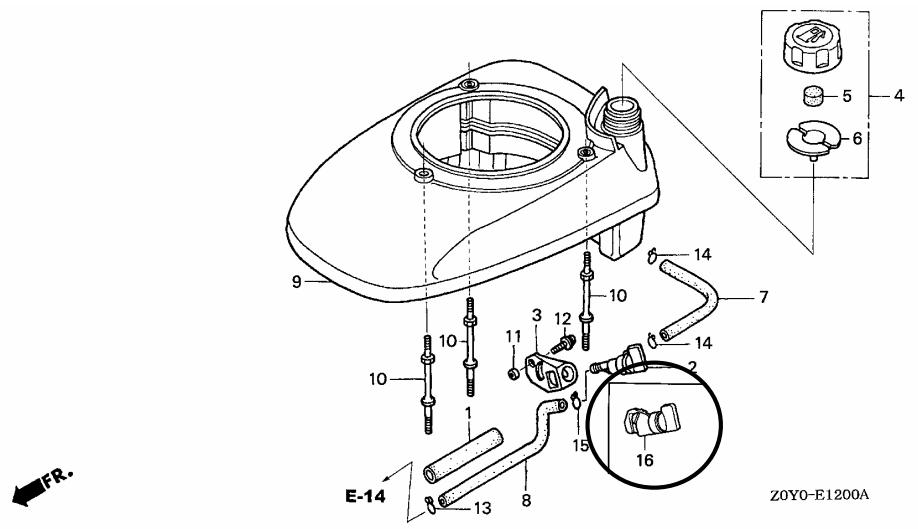

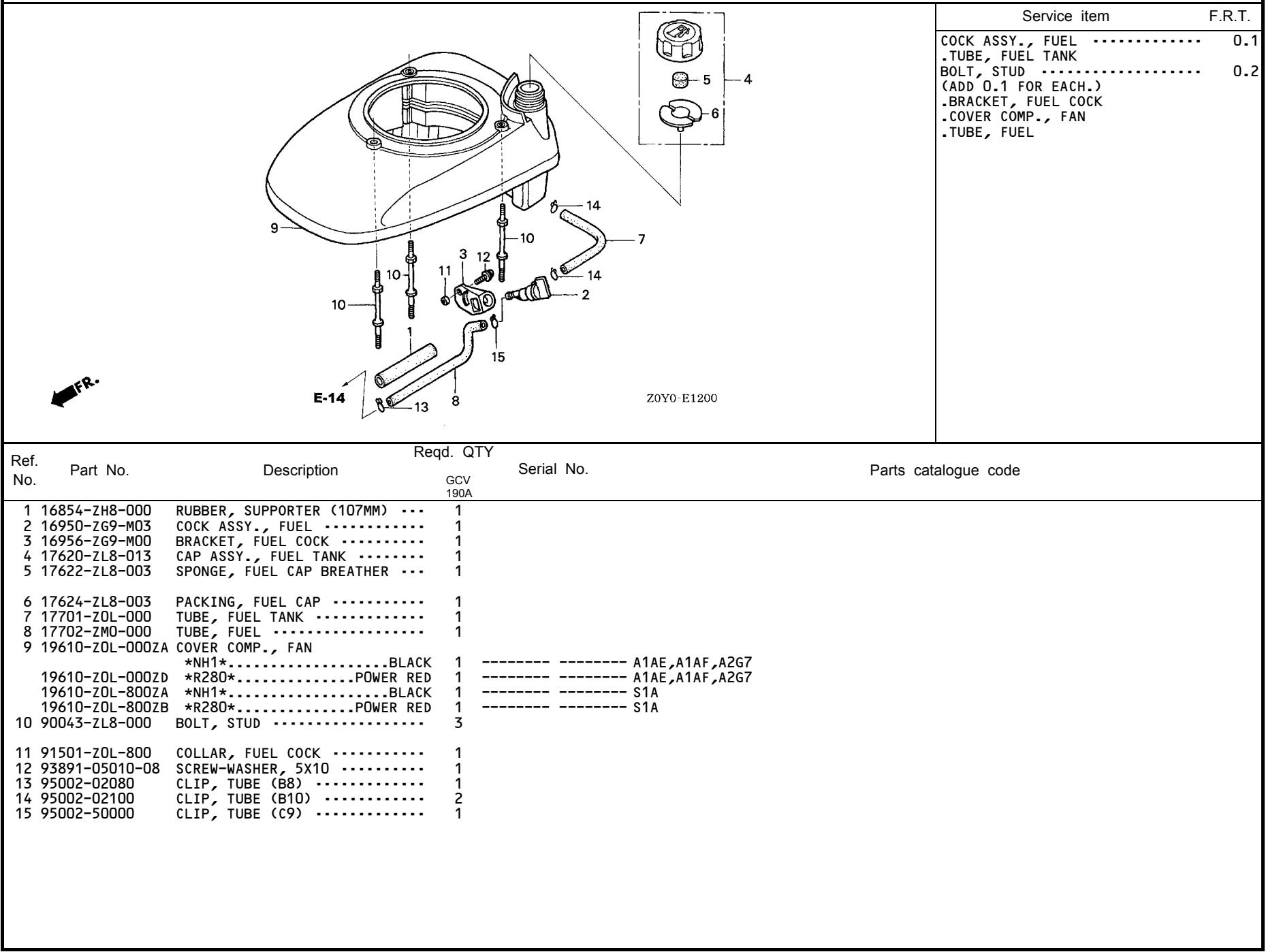

E-12

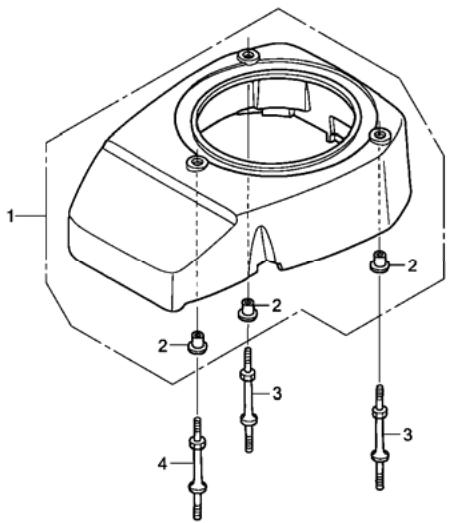

FAN COVER

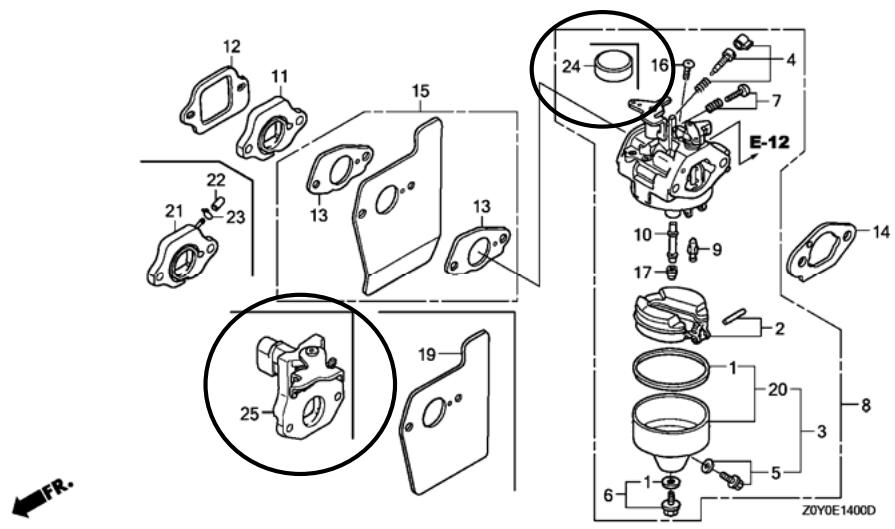

E-14 CARBURETOR C8
12 11 13 15 ZOY0-E1400				Service item F.R.T.
				SCREW SET 0.2 CARBURETOR ASSY. 0.3 GUIDE COMP., AIR INSULATOR, CARBURETOR PACKING, CARBURETOR PACKING, INSULATOR FLOAT SET 0.4 .JET, MAIN, .VALVE, FLOAT
Ref. No. Part No. Description GCV 190A Serial No. Parts catalogue code
1 16010-883-015 PACKING SET 1
2 16013-ZL1-003 FLOAT SET 1
3 16015-887-782 CHAMBER SET, FLOAT 1
4 16016-ZG0-W00 SCREW SET 1
5 16024-ZE1-811 SCREW SET, DRAIN 1
6 16028-ZEO-005 SCREW SET 1
7 16029-ZG0-901 SCREW SET 1
8 16100-Z0Y-003 CARBURETOR ASSY. (BB62J A) 1
16100-Z0Y-801 CARBURETOR ASSY. (BB62K A) 1
9 16155-ZMO-003 VALVE, FLOAT 1
10 16166-Z0Y-003 NOZZLE, MAIN 1
11 16211-ZL8-000 INSULATOR, CARBURETOR 1
12 16212-ZL8-000 PACKING, INSULATOR 1
13 16221-883-800 PACKING, CARBURETOR 2
14 16228-ZL8-000 PACKING, CARBURETOR 1
15 19650-ZMO-000 GUIDE COMP., AIR 1
16 93500-05006-1H SCREW, PAN, 5X6 1
17 99101-124-0700 JET, MAIN, #70 1
99101-124-0650 JET, MAIN, #65 1
99101-124-0680 JET, MAIN, #68 1

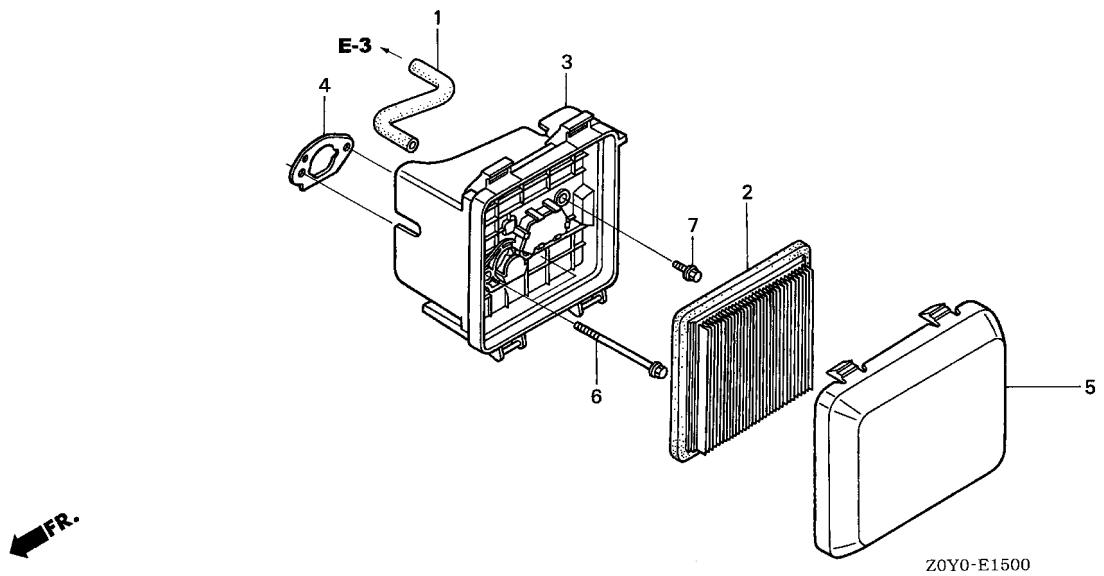

E-15

AIR CLEANER

Service item

F.R.T.

ELEMENT, AIR CLEANER 0.1

.TUBE, BREATHER

CASE ASSY., AIR CLEANER 0.2

.PACKING, AIR CLEANER

Regd. QTY

Ref.

Part No.

Description

Serial No.

Parts catalogue code

1 15721-ZMO-000 TUBE, BREATHER
2 17211-ZL8-003 ELEMENT, AIR CLEANER 1
3 17220-ZMO-000 CASE ASSY., AIR CLEANER 1
4 17228-ZMO-000 PACKING, AIR CLEANER 1
5 17231-ZOL-010 COVER, AIR CLEANER 1
6 90003-ZMO-000 BOLT, FLANGE, 6X86(CT200) 2
795701-06014-08 BOLT,FLANGE,6X14 1

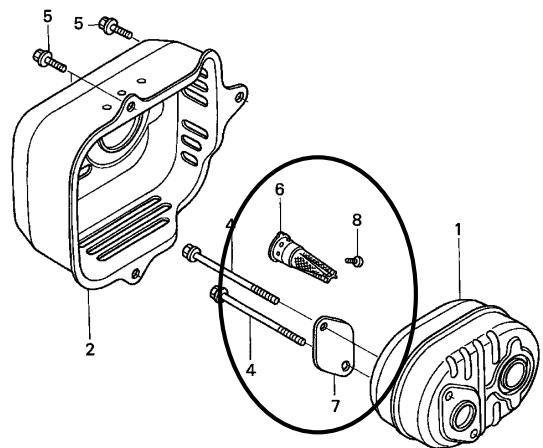

E-16 MUFFLER C10
5 4 ZOY0-E1600			Service item F.R.T.
			PROTECTOR, MUFFLER 0.1 GASKET, MUFFLER 0.2 .MUFFLER COMP.
Ref. No. Part No. Description Serial No. Parts catalogue code
1 18310-ZM0-000 MUFFLER COMP. 1 A2G7 18310-Z0Y-000 1 A1AE,A1AF,S1A 2 18321-ZLB-A00 1 A1AE 18321-ZLB-000 1 A1AF,A2G7,S1A 3 18381-ZLB-305 GASKET, MUFFLER (1) 4 90004-ZLB-000 BOLT, FLANGE, 6X79(CT200) 2 5 90013-883-000 BOLT, FLANGE, 6X12(CT200) 3

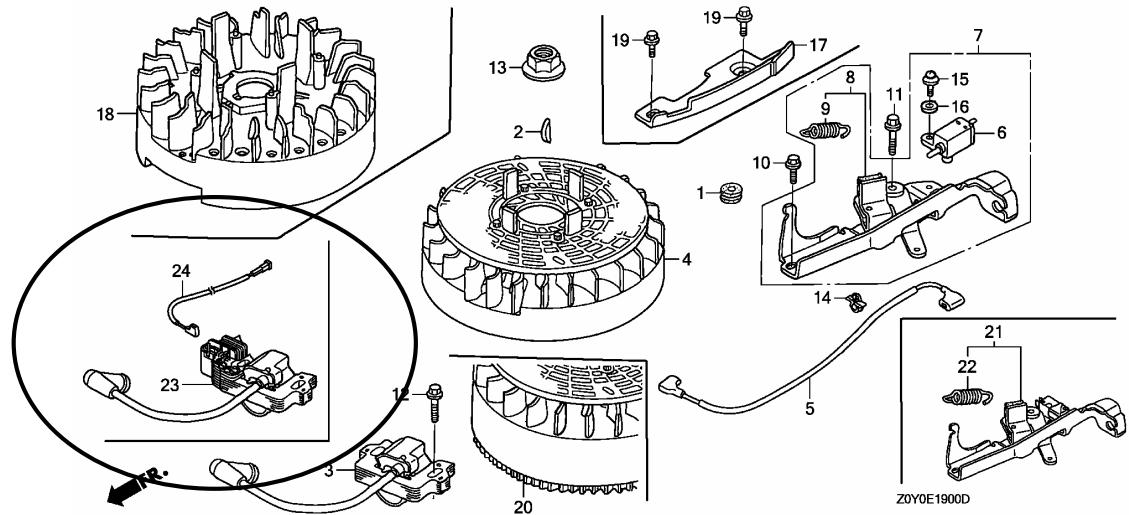

E-19

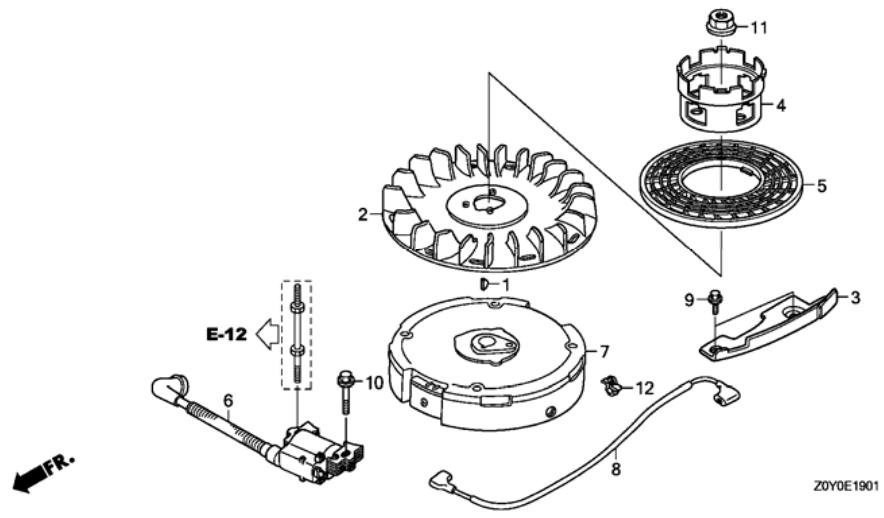

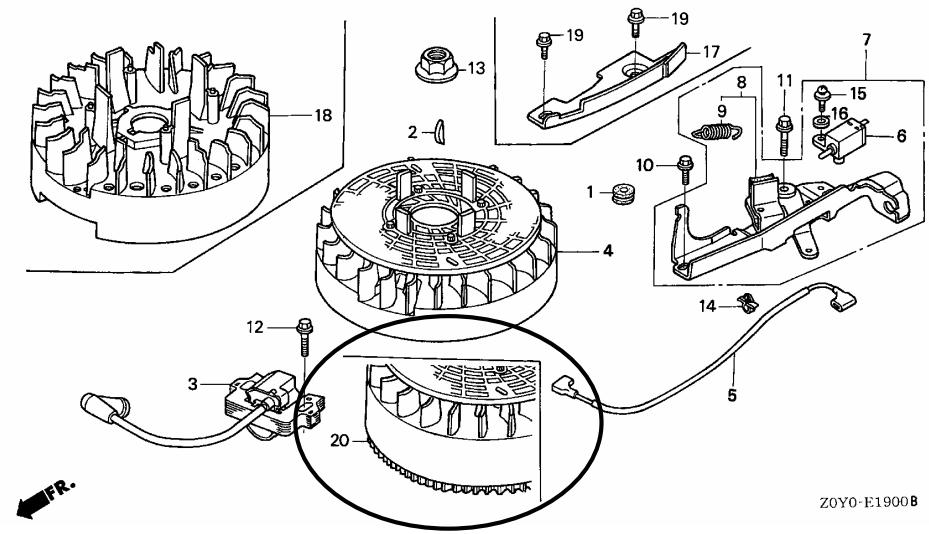

FLYWHEEL

C11

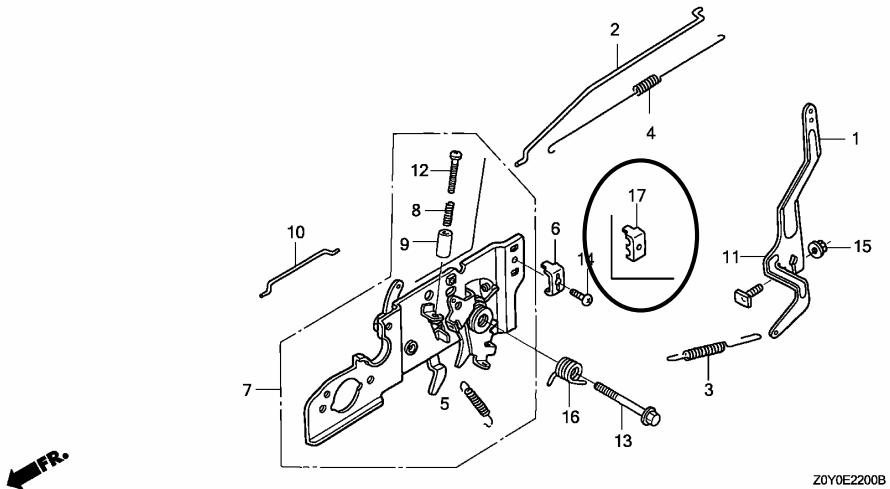

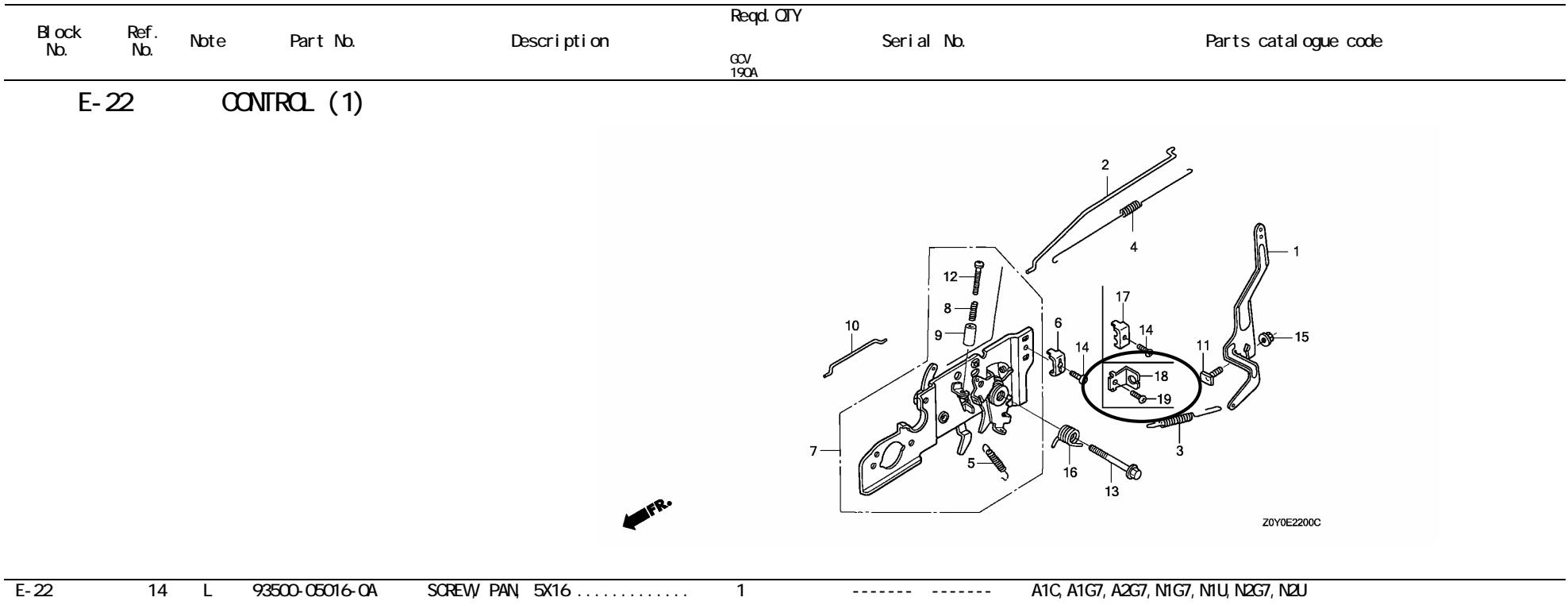

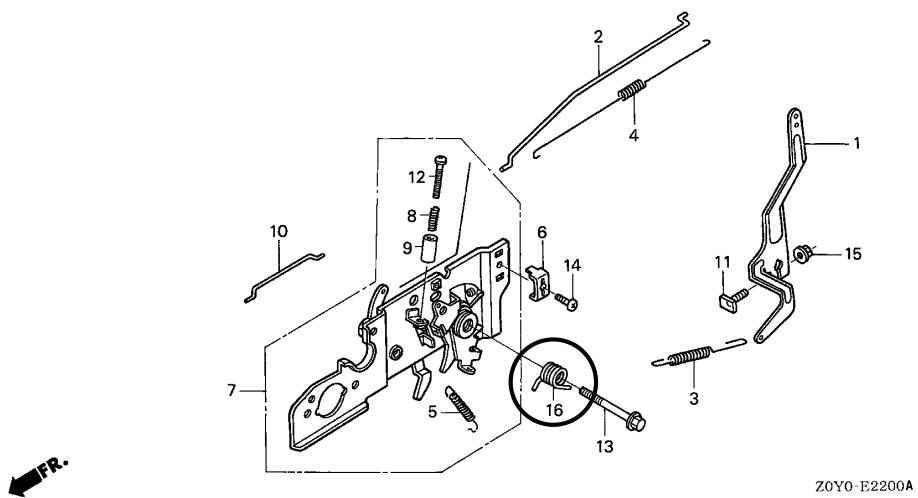

E-22 CONTROL(1) C12
ZOYO-E2200				Service item F.R.T.
				SPRING, GOVERNOR 0.1 .SPRING, LEVER 0.2 ARM, GOVERNOR 0.2 .ROD, GOVERNOR 0.3 .SPRING, THROTTLE RETURN 0.3 BASE COMP., CONTROL 0.3 .ROD, CHoke
Ref. No.	Part No.	Description	Reqd. QTY GCV 190A	Parts catalogue code
1	16551-ZM0-010	ARM, GOVERNOR	1	A2G7
2	16555-ZM0-000	ROD, GOVERNOR	1	A2G7
3	16561-ZM0-870	SPRING, GOVERNOR	1	A2G7
4	16562-ZM0-000	SPRING, THROTTLE RETURN	1	A2G7
5	16576-ZE7-300	SPRING, LEVER	1	A2G7
6	16576-891-000	HOLDER, CABLE	1	A2G7
7	16580-ZM0-871	BASE COMP., CONTROL	1	A2G7
8	16584-883-300	SPRING, CONTROL ADJUSTING	1	A2G7
9	16599-ZG1-M10	COLLAR, STOPPER	1	A2G7
10	16674-ZM0-000	ROD, CHoke	1	A2G7
11	90015-ZE5-010	BOLT, GOVERNOR ARM	1	A2G7
12	90016-ZE7-W00	SCREW, RECESSED, 5X28	1	A2G7
13	90016-ZM0-000	BOLT, FLANGE, 6X45(CT200)	1	A2G7
14	93500-05016-0A	SCREW, PAN, 5X16	1	A2G7
15	94050-06000	NUT, FLANGE, 6MM	1	A2G7

E-22-1

CONTROL(2)

C13

Z0Y0-E2201					Service item	F.R.T.
					SPRING, GOVERNOR	0.1
					ARM, GOVERNOR	0.2
					.ROD, GOVERNOR
					.SPRING, THROTTLE RETURN	0.3
					BASE COMP., CONTROL
					.ROD, CHOKE
Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
			GCV 190A	Serial No.
1	16551-ZMO-010	ARM, GOVERNOR	1	--------	A1AE,A1AF,S1A
2	16555-ZMO-000	ROD, GOVERNOR	1	--------	A1AE,A1AF
16555-ZOL-800			1	--------	S1A
3	16561-ZMO-000	SPRING, GOVERNOR	1	--------	A1AE,A1AF,S1A
4	16562-ZMO-000	SPRING, THROTTLE RETURN	1	--------	A1AE,A1AF,S1A
5	16578-ZOL-810	SPACER, CONTROL LEVER	1	--------	A1AE,A1AF
6	16580-ZOL-810	BASE COMP., CONTROL	1	--------	A1AE,A1AF,S1A
7	16612-ZOL-810	LEVER, CHOKE	1	--------	A1AE,A1AF
8	16613-893-000	GROMMET, CHOKE ROD	1	--------	A1AE,A1AF
9	16674-ZOL-810	ROD, CHOKE	1	--------	A1AE,A1AF
10	90015-ZE5-010	BOLT, GOVERNOR ARM	1	--------	A1AE,A1AF,S1A
11	90016-ZE8-000	BOLT, FLANGE, 6X45(CT200)	1	--------	A1AE,A1AF,S1A
12	94050-06000	NUT, FLANGE, 6MM	1	--------	A1AE,A1AF,S1A
13	94511-14000	CIRCLIP, EXTERNAL, 14MM	1	--------	A1AE,A1AF

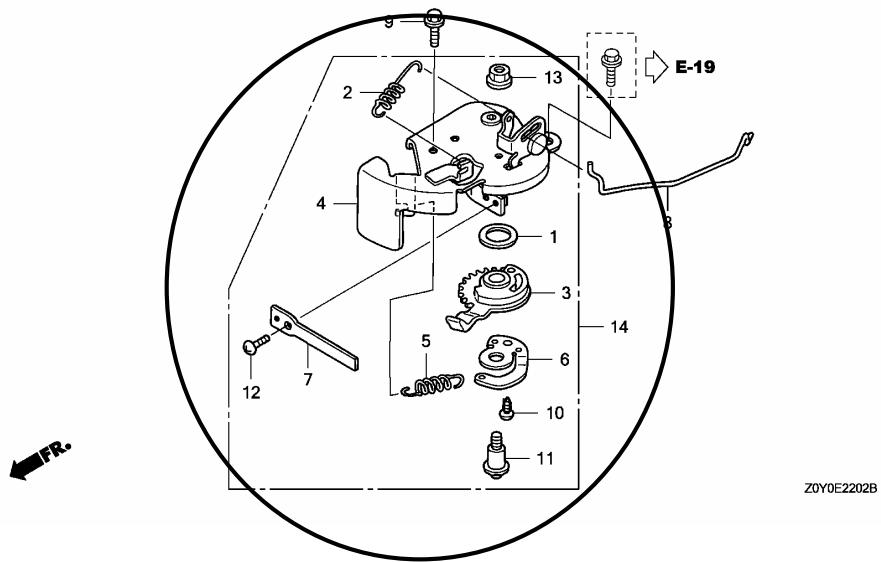

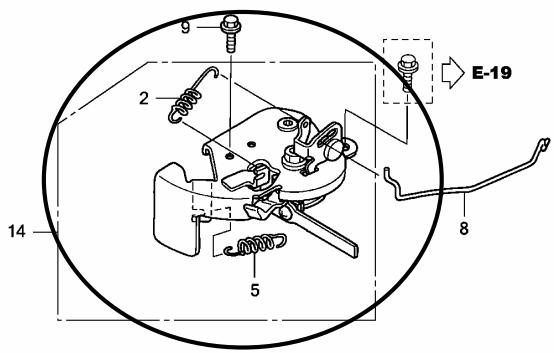

E-22-2 CHOKE BASE C14
ZOY0-E2202
Ref. No.	Part No.	Description	Reqd. QTY GCV 190A 16251-Z0L-800 16592-ZJ1-000 16612-Z0L-800 16613-Z0L-800 16614-Z0L-800 16616-Z0L-800 16619-Z0L-800 16632-Z0L-800 90022-888-010 90102-SP1-003 11 90141-KT8-000 12 93500-04008-OH 13 94050-05000	SEAL, CHoke LEVER SPRING, CABLE RETURN LEVER, CHoke BASE COMP., CHoke SPRING, CHoke LEVER HOOK, CHoke SPRING PLATE, CHoke ROD, STOP BOLT, FLANGE, 6X20(CT200) SCREW, TAPPING, 4X8(P0)	1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A 1 S1A	Parts catalogue code S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1 A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1A S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1	Servie item F.R.T. ROD, STOP 0.2 BASE COMP., CHoke 0.3 .LEVER, CHoke

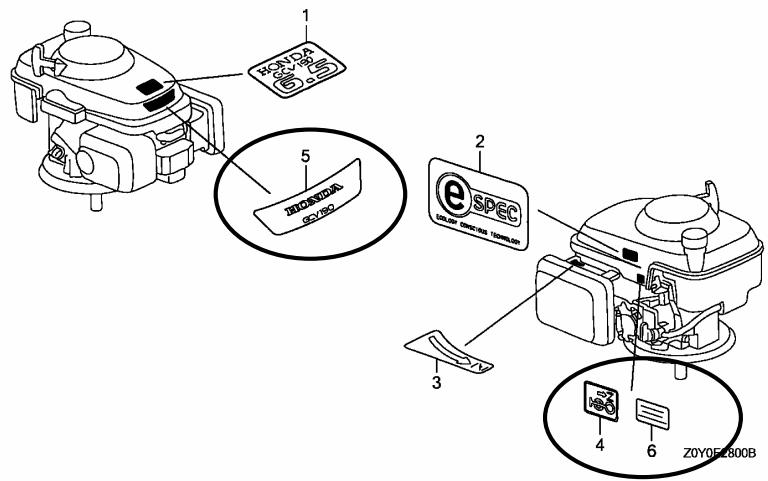

E-28	LABEL				C15
					Service item F.R.T.
					NOT INFORMATION
Ref. No.	Part No.	Description	Reqd. QTY GCV 190A	Serial No.	Parts catalogue code
1	87101-Z0Y-000	MARK, EMBLEM (6.5)	1	-------- A1AF,A2G7,S1A
2	87135-ZE2-010	LABEL (E-SPEC)	1	-------- A2G7
3	87528-Z0L-800	MARK, CHOKE INDICATION	1	-------- S1A

PART NO. INDEX D 1
Part Number	Address Page	Ref.	Part Number	Address Page	Ref.	Part Number	Address Page	Ref.	Part Number	Address Page	Ref.	Part Number	Address Page	Ref.	Part Number	Address Page	Ref.
11000			16211-ZL8-000	C8	19	11	18321-ZL8-000	C10	21	2	90015-ZE5-010	C12	23	11	99000
			16212-ZL8-000	C8	19	12	18321-ZL8-A00	C10	21	2		C13	24	10
11300-ZOY-406	C2	13	16221-ZL8-000	C8	19	13	18381-ZL8-305	C10	21	3	90016-ZE7-W00	C12	23	12	99101-124-0650	C8	19	17
11344-MB0-000	C11	22	16228-ZL8-000	C8	19	14					90016-ZE8-000	C13	24	11	99101-124-0680	C8	19	17
			16251-ZL8-800	C14	25	1	19000				90016-ZM0-000	C12	23	13	99101-124-0700	C8	19	17
12000			16508-ZM0-010	C2	13	8					90018-ZE1-000	C11	22	11
			16510-ZM0-010	C2	13	9	19610-ZL8-000ZA C7		18	9	90022-888-010	C11	22	12
12000-ZOY-405	C1	12	16511-ZL8-000	C2	13	10	19610-ZL8-000ZD C7		18	9		C14	25	9
12209-ZM0-003	C5	16	16512-ZM0-000	C2	13	11	19610-ZL8-800ZA C7		18	9	90043-ZL8-000	C7	18	10
12216-ZE5-300	C1	12	16513-ZE1-000	C2	13	12	19610-ZL8-800ZB C7		18	9	90102-SP1-003	C14	25	10
12311-ZL8-000	C1	12	16531-ZE1-000	C2	13	13	19650-ZM0-000	C8		19	15	90121-952-000	C2	13	16
12355-ZL8-000	C1	12	16541-ZM0-000	C2	13	14						90141-KT8-000	C14	25	11
			16551-ZM0-010	C12	23	1	28000					90201-ZM0-000	C6	17	4
13000				C13	24	1						90206-001-000	C5	16	13
			16555-ZL8-800	C13	24	2	28400-ZOY-003ZA C6		17	1		90213-S3Y-000	C11	22	13
13010-ZOY-004	C4	15	16555-ZM0-000	C12	23	2	28400-ZOY-003ZB C6		17	1	90402-ZL8-000	C3	14	3
13101-ZOY-000	C4	15	16555-ZM0-000	C12	23	2	28461-ZL8-003 C6		17	2	90451-ZE1-000	C2	13	17
13111-ZOY-000	C4	15	16561-ZM0-000	C13	24	3	28462-ZL8-631 C6		17	3	90551-ZEO-000	C4	15	6
13200-ZOY-000	C4	15	16561-ZM0-870	C12	23	3						90602-ZE1-000	C2	13	18
13310-ZOY-000	C3	14	16562-ZM0-000	C12	23	4	30000					90681-959-003	C11	22	14
13310-ZOY-600	C3	14	2	C13	24	4
13331-357-000	C11	22	16576-891-000	C12	23	6	30500-ZOJ-003	C11	22	3	91000
			16576-ZE7-300	C12	23	5
14000			16578-ZL8-810	C13	24	5	31000				91201-ZL8-003	C1	12	7
			16580-ZL8-810	C13	24	6						91202-ZL8-003	C2	13	19
14320-ZOY-000	C5	16	16580-ZM0-871	C12	23	7	31105-ZOY-000	C11		22	4	91301-ZMO-V31	C5	16	14
14324-ZL8-000	C5	16	16584-883-300	C12	23	8						91303-KF0-003	C2	13	20
14400-ZOJ-014	C5	16	16592-ZJ1-000	C14	25	2	32000					91501-ZL8-800	C7	18	11
14431-ZL8-000	C5	16	56599-ZG1-M10	C12	23	9
14441-ZL8-000	C5	16	66612-ZL8-800	C14	25	3	32195-ZL8-000	C11		22	5	93000
14461-ZL8-000	C5	16	76612-ZL8-810	C13	24	7	32195-ZMO-800	C11		22	5
14711-ZL8-000	C5	16	86613-893-000	C13	24	8						93500-04008-OH	C14	25	12
14721-ZL8-000	C5	16	96613-ZL8-800	C14	25	4	35000					93500-05006-1H	C8	19	16
14751-ZL8-000	C5	16	106614-ZL8-800	C14	25	5						93500-05016-OA	C12	23	14
14771-ZE1-000	C5	16	16616-ZL8-800	C14	25	6	35120-ZM0-003	C11		22	6	93891-05010-08	C7	18	12
			16619-ZL8-800	C14	25	7						93892-04012-00	C11	22	15
15000			16632-ZL8-800	C14	25	8	75000					94000
			16674-ZL8-810	C13	24	9
15625-ZE1-003	C2	13	26674-ZM0-000	C12	23	10	75100-ZMO-000	C11		22	7
15625-ZE6-000	C2	13	36854-ZH8-000	C7	18	1		75110-ZL8-800	C11		22	8	94050-05000	C14	25	13
15631-ZM0-000	C2	13	46950-ZG9-M03	C7	18	2		75113-ZMO-000	C11		22	9	94050-06000	C12	23	15
15639-ZM0-000	C2	13	56956-ZG9-MD0	C7	18	3							C13	24	12
15650-ZM0-003	C2	13	6
15650-ZM0-801	C2	13	7
15721-ZM0-000	C9	20	1
			17211-ZL8-003	C9	20	2
			17220-ZM0-000	C9	20	3
			17228-ZM0-000	C9	20	4
			17231-ZL8-010	C9	20	5
			17231-ZL8-813	C7	18	4
			17620-ZL8-838	C7	18	5
			17622-ZL8-838	C7	18	6
			17624-ZL8-838	C7	18	7
			17701-ZL8-838	C7	18	8
			17702-ZM0-800	C7	18	9
			17702-ZM0-800	C7	18	9
			17722-ZM0-800	C7	18	9
			17723-ZM0-800	C7	20	4
			17724-ZM0-800	C7	20	5
			17725-ZM0-800	C7	20	6
			17726-ZM0-800	C7	20	7
			17727-ZM0-800	C7	20	8
			17728-ZM0-800	C7	20	9
			17729-ZM0-800	C7	20	9
			17730-ZM0-800	C7	20	9

PART NAME INDEX E 1
Part name	Address	Page Ref.	Part name	Address	Page Ref.	Part name	Address	Page Ref.
[A]			CRANKSHAFT COMP.·········································································································································································································	14	12	[N]
ARM, EX. VALVE ROCKER······································································································································································································. ARM, GOVERNOR······································································································································································································ ARM, IN. VALVE ROCKER····························································································································································································. [B]			[ D ]			[ C ]			[ N ]
BARREL ASSY., CYLINDER······································································································································································································	12	1	ELEMENT, AIR CLEANER······································································································································································································		20	2	[ O ]
BASE COMP., CHoke························································································	14	25	EXTENSION, OIL FILLER··························································	C2	13	4	[ O ]
BASE COMP., CONTROL············································	12	23	[F ]			[ O ]
BELT, TIMING··············································	16	4	FLOAT SET······························	C8	19	2	[ O ]
BOLT, CONNECTING ROD······················	C4	15	FLYWHEEL ASSY.			[ O ]
BOLT, FLANGE, 6X12················	C1	12	5	C11	22	4	[ O ]
BOLT, FLANGE, 6X14············	C1	12	6	[G ]			[ P ]
C9	20	7	GASKET, MUFFLER.··············	C10	21	3	PACKING SET.··························	C8	19	1
C9	22	10	GAUGE ASSY., OIL LEVEL.······	C2	13	6	PACKING, AIR CLEANER.··················	C9	20	4
BOLT, FLANGE, 6X20············	C11	22	GOVERNOR ASSY.··········	C2	13	9	PACKING, CARBURETOR.················	C8	19	13
BOLT, FLANGE, 6X23··········	C11	22	GRIP, STARTER.······	C6	17	2	PACKING, FUEL CAP.··········	C7	18	6
BOLT, FLANGE, 6X25.········	C2	13	GROMMET A, RR. COVER.	C11	22	1	PACKING, INSULATOR.······	C8	19	12
BOLT, FLANGE, 6X45.······	C12	23	GROMMET, CHOKE ROD.	C13	24	8	PACKING, OIL FILLER CAP.······	C2	13	2
BOLT, FLANGE, 6X79.······	C10	21	GUIDE COMP., AIR.	C8	19	15	PAN ASSY., OIL.	C2	13	1
BOLT, FLANGE, 6X86.····	C9	20	[H ]			[ P ]
BOLT, GOVERNOR ARM.······	C12	23	HOLDER, CABLE.······	C12	23	6	PIN, LOCK, 8MM.	C2	13	22
BOLT, STUD.	C7	18	HOLDER, GOVERNOR WEIGHT.	C2	13	11	PIN, PISTON.	C4	15	3
BRACKET, FUEL COCK.	C7	18	HOOK, CHOKE SPRING.	C14	25	6	PLATE, CHOKE.	C14	25	7
BRACE ASSY.	C11	22	I.			[ PL ]
BRAKE SUB ASSY.	C11	22	INSULATOR, CARBURETOR.	C8	19	11	PULLEY COMP., CAM.	C5	16	2
[C ]			[ R ]
CAP ASSY., FUEL TANK.	C7	18	[J ]
CARBUSETOR ASSY.	C8	19	JET, MAIN.	C8	19	17	RETAINER, IN. VALVE SPRING.	C5	16	11
CASE ASSY., AIR CLEANER.	C9	20	JET, MAIN.	C8	19	17	RING SET, PISTON.	C4	15	1
CHAMBER SET, FLOAT.	C8	19	K ]
CIRCLIP, EXTERNAL, 14MM.	C13	24	[ K ]
CLIP A, CABLE.	C11	22	KEY, SPECIAL WOODRUFF, 25X18.	C11	22	2	ROD, CHOKE.	C12	23	10
CLIP, GOVERNOR HOLDER.	C2	13	LABEL.	C15	26	2	ROD, STOP.	C14	25	8
CLIP, PISTON PIN, 13MM.	C4	15	LEVER, CHOKE.	C13	24	7	ROPE, RECOIL STARTER.	C6	17	3
CLIP, TUBE.	C7	18	[ L ]
CLIP, VALVE GUIDE.	C1	12	LABEL.	C15	26	2	RUBBER, SUPPORTER.	C7	18	1
COCK ASSY., FUEL.	C7	18	LEVER, CHOKE.	C13	24	7	[S]
COIL ASSY., IGNITION.	C11	22	[M ]
COLLLAR, FUEL COCK.	C7	18	[ M ]
COLLL, STOPPER.	C12	23	MARK, CHOKE INDICATION.	C15	26	3	SCREW-WASHER, 4X12.	C11	22	15
CORD, STOP SWITCH.	C11	22	MARK, EMBLEM.	C15	26	1	SCREW-WASHER, 5X10.	C7	18	12
COVER COMP., BREATHER.	C1	12	MARK, EMBLEM.	C15	26	1	SCREW SET.	C8	19	4
COVER COMP., FAN.	C7	18	MUFFLER COMP.	C10	21	1	SCREW, DRAIN.	C8	19	5
COVER, AIR CLEANER.	C9	20	5				SCREW, PAN, 4X8.	C14	25	12
COVER, HEAD.	C1	12	3

PART NAME INDEX E 2
Part name	Address	Page Ref.	Part name	Address	Page Ref.	Part name	Address	Page Ref.
SCREW, PAN, 5X16	C12	23	14
SCREW, PAN, 5X19	C14	25	11
SCREW, PAN, 5X6	C8	19	16
SCREW, RECESSED, 5X28	C12	23	12
SCREW, TAPPET ADJUSTING	C5	16	12
SCREW, TAPPING, 4X8	C14	25	10
SEAL, CHOKE LEVER	C14	25	1
SEAL, VALVE STEM	C5	16	1
SHAFT COMP., GOVERNOR HOLDER	C2	13	8
SHAFT, CAM PULLEY	C5	16	3
SHAFT, GOVERNOR ARM	C2	13	14
SHAFT, ROCKER ARM	C5	16	7
SLIDER, GOVERNOR	C2	13	13
SPACER, CONTROL LEVER	C13	24	5
SPONGE, FUEL CAP BREATHER	C7	18	5
SPRING, BRAKE LEVER	C11	22	9
SPRING, CABLE RETURN	C14	25	2
SPRING, CHOKE LEVER	C14	25	5
SPRING, CONTROL ADJUSTING	C12	23	8
SPRING, GOVERNOR	C12	23	3
SPRING, LEVER	C13	24	3
SPRING, LEVER	C12	23	5
SPRING, THROTTLE RETURN	C12	23	4
SPRING, VALVE	C13	24	4
SPRING, VALVE	C5	16	10
STARTER ASSY., RECOIL	C6	17	1
SWITCH ASSY., ENGINE STOP	C11	22	6
[T]
TUBE, BREATHER	C9	20	1
TUBE, FUEL	C7	18	8
TUBE, FUEL TANK	C7	18	7
[V]
VALVE, EX.	C5	16	9
VALVE, FLOAT	C8	19	9
VALVE, IN.	C5	16	8
[W]
WASHER, EXTENSION ROCK	C2	13	5
WASHER, PLAIN, 4MM	C11	22	16
WASHER, PLAIN, 6MM	C2	13	21
WASHER, THRUST	C3	14	3
WASHER, THRUST, 6MM	C2	13	17
WEIGHT, GOVERNOR	C2	13	10

FOREWORD INDEX
2 ENGINE GROUP
PART NUMBER INDEX
PART NAME INDEX

HONDA

The Power of Dreams

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	001

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Parts catalogue code
					GCV 190A	Serial No.
E-15	5	E	17231-ZOL-010	*PARTS NO 删除	1
		D	17231-ZOL-020	COVER, AI CLEANER	1
E-19	4	E	31105-Z0Y-000	*PARTS NO 删除	1
		D	31105-Z0Y-010	FLYWHEEL ASSY.	1

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	002

Block

Ref.

No.

Note

Part No.

Description

Reqd. QTY

Serial No.

Parts catalogue code

GCV 190A

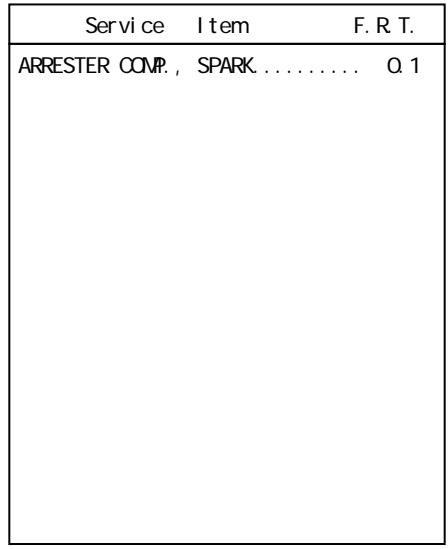

E-16 MUFFLER

ZOY0-E1600A

E-16

6

D

18350-ZL8-000

ARRESTER COMP.

SPARK (1

(1)

---

A1AE,A1AF,S1A

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. CRY			Parts catal ogue code
					GOV 190A	Serial No.
	7	D	18356-ZL8-000	PLATE, ARRESTER NUMBER	(1)	--------	A1AE, A1AF, S1A
	8	D	90055-ZE1-000	SCREW/ TAPPING 4X6	(1)	--------	A1AE, A1AF, S1A

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	003

GCV190A-A1C,A1G7,BHH,N1A,N1AF,N1G7,N1U,N2G7,N2U,N5A,N5AF and S3A TYPES sales parts information

NOTE: This Parts Catalogue News explains only the parts of the different model that is produced to conform to addition of the GCV190A-A1C, A1G7, BHH, NIA, NIAF,NIG7,NIU, N2G7, N2U, N5A, N5AF and S3A types. As for the parts not listed on this Parts Catalogue News, use the parts of the GCV190A-A1AE, A1AF, A2G7 and S1A types.

Model	Type		Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	A1AE	Base model	A1AE	GJAAA-1000001~	BB62J A
	A1C	Additional model	A1C
	A2G7	Base model	A2G7
	A1G7	Additional model	A1G7
	A1AE	Base model	A1AE
	BHH	Additional model	BHH
	A1AE	Base model	A1AE
	N1A	Additional model	N1A
	A1AF	Base model	A1AF
	N1AF	Additional model	N1AF
	A2G7	Base model	A2G7
	N1G7	Additional model	N1G7
	A1AE	Base model	A1AE
	N1U	Additional model	N1U
	A2G7	Base model	A2G7
	N2G7	Additional model	N2G7
	A1AE	Base model	A1AE
	N2U	Additional model	N2U
	A1AE	Base model	A1AE
	N5A	Additional model	N5A
	A1AF	Base model	A1AF
	N5AF	Additional model	N5AF
	S1A	Base model	S1A		BB62K A
	S3A	Additional model	S3A

BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GCV 190A	Base Part No.

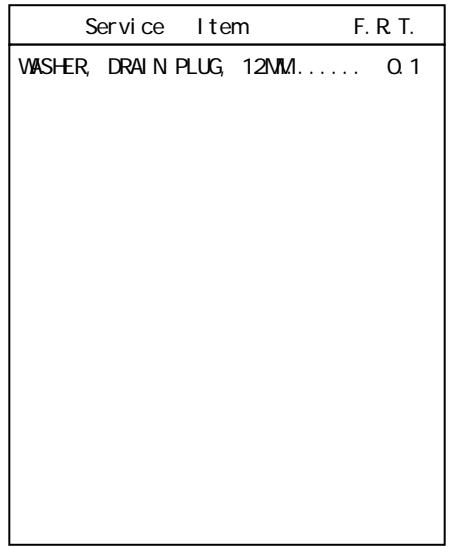

E-6 OL PAN

E-6	1	11300-Z0L-821	PAN ASSY., Q L (SAE)	1	11300-Z0Y-406	N1A, N1AF, N5A, N5AF
		11300-Z0Y-408	PAN ASSY., Q L	1	11300-Z0Y-406	N1U
	2		PACKING Q L FILLER CAP	0	15625-ZE1-003	S3A
		15625-ZE1-003		1		A1C, N1A, N5A
	3		PACKING Q L FILLER CAP	0	15625-ZE6-000	A1C, N1A, N5A
		15625-ZE6-000		1		S3A
	4		EXTENSION Q L FILLER	0	15631-ZM0-000	A1C, N1A, N5A
		15631-ZM0-000		1		S3A
	5		WASHER, EXTENSION ROCK	0	15639-ZM0-000	A1C, N1A, N5A
		15639-ZM0-000		1		S3A
	6		GAUGE ASSY., Q L LEVEL	0	15650-ZM0-003	S3A
		15650-ZM0-003		1		A1C, N1A, N5A

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY			Parts catalogue code
				GCV 190A	Base Part No.
	7		GAUGE ASSY., OL LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	O	15650-ZM0-801	A1C, N1A, N5A
		15650-ZM0-801		1		S3A
	19	91202-ZM0-V31	OL SEAL, 28X41. 25X6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20	O-RING, 14. 8X2 4(ARAI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91303-KF0-003	O	91303-KF0-003	A1C, N1A, N5A
	24	90131-883-000	BOLT, DRAI N PLUG, 12X15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 25	WASHER, DRAI N PLUG, 12MM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94109-12000	1	N1A, N1AF, N5A, N5AF N1A, N1AF, N5A, N5AF N1A, N1AF, N5A, N5AF

E-7 ORANKSHAFT

E-7	1	CRANKSHAFT COMP. (N1-TYPE) ...	0	13310-ZOY-000	BHH, N2U, N5A, N5AF, S3A
	13310-ZOY-000		1		A1G7, N1G7
2		CRANKSHAFT COMP. (N2-TYPE) ...	0	13310-ZOY-600	A1G7, N1G7
	13310-ZOY-600		1		N2U
4	13310-ZOY-610	CRANKSHAFT COMP. (N3-TYPE) ...	1		S3A

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. CNY		Base Part No.	Parts catalogue code
				GOV 190A	Base Part No.
	5	13310-Z0Y-640	CRANKSHAFT COMP. (HRD-TYPE) ...	1		BHH
	6	13310-Z0Y-650	CRANKSHAFT COMP. ...	1		NSA, NSAF
E-11	1		STARTER ASSY., RECOL *R280*......... POWER RED	0	28400-Z0Y-003ZA
		28400-Z0Y-801ZA	*NHI*......... BLACK	1	28400-Z0Y-003ZA	BHH S3A
		28400-Z0Y-801ZB	*R280*......... POWER RED	1	28400-Z0Y-003ZB	N1U, N2U
		28400-Z1A-003ZA	*NHI*......... BLACK	1	28400-Z0Y-003ZA	N1A, N1AF, N5A, N5AF
		28400-Z1A-003ZB	*R280*......... POWER RED	1	28400-Z0Y-003ZB	N1A, N1AF, N5A, N5AF
	3	28462-ZL8-003	ROPE, RECOL STARTER	1	28462-ZL8-631	N1A, N1AF, N1U, N2U, N5A, N5AF
E-12	9		COVER COMP., FAN *R280*......... POWER RED	0	19610-ZOL-000ZD
			*R280*......... POWER RED	0	19610-ZOL-800ZB	BHH
		19610-ZOL-000ZC	*T89*......... CRAFTSMAN RED	1	19610-ZOL-000ZA	BHH
		19610-ZOL-800ZC	*T89*......... CRAFTSMAN RED	1	19610-ZOL-800ZA	S3A
	11	33609-GK4-620	COLLAR, FR WINKER	1	91501-ZOL-800	A1C, A1G7, N1A, N1G7, N1U, N2G7, N2U, N5A
E-16	1	18310-ZMD-000	MUFFLER COMP.	1	18310-Z0Y-000	N1U, N2U
	2	18321-ZOL-JOO	PROTECTOR, MUFFLER	1	18321-ZL8-A00	BHH
		18321-ZOL-JOO	...	1	18321-ZL8-000	S3A
		18321-ZOL-000	...	1	18321-ZL8-A00	A1C, N1A, N1U, N2U, N5A
		18321-ZOL-000	...	1	18321-ZL8-000	A1G7, N1AF, N1G7, N2G7, N5AF
	6		ARRESTER COMP., SPARK	(O)	18350-ZL8-000	N1U, N2U
	7		PLATE, ARRESTER NUMBER	(O)	18356-ZL8-000	N1U, N2U
	8		SREW TAPP NG, 4X6	(O)	90055-ZE1-000	N1U, N2U

BOOKNo.:13ZOYOE1

E-19 FLYWHEEL
E-19	4	FLYWHEEL ASSY.	O	31105-Z0Y-010	NIA, N1AF, N2G7, N5A, N5AF
	31105-Z0Y-J11		1	31105-Z0Y-010	BHN, N1G7
	5	CORD, STOP SWITCH	O	32195-Z0L-000	N1AF, N5AF
	32195-ZMD-800		1	32195-Z0L-000	BHN, N1A, N1G7, N1U, N2G7, N2U, N5A
	6	SWITCH ASSY., ENGINE STOP (N O)	O	35120-ZMD-003	N1A, N1AF, N5A, N5AF
	35120-ZL8-003	SWITCH ASSY., ENGINE STOP (N O)	1	35120-ZMD-003	BHN, N1G7, N1U, N2G7, N2U
	7	BRAKE ASSY.	O	75100-ZMD-000	BHN, N1A, N1AF, N1G7, N1U, N2G7, N2U, N5A, N5AF
	9	SPRING, BRAKE LEVER	O	75113-ZMD-000	BHN, N1A, N1AF, N1G7, N1U, N2G7, N2U, N5A, N5AF
	10	BOLT, FLANGE, 6X14(CT200)	O	90014-952-000	BHN, N1A, N1AF, N1G7, N1U, N2G7, N2U, N5A, N5AF
	11	BOLT, FLANGE, 6X23(CT200)	O	90018-ZE1-000	BHN, N1A, N1AF, N1G7, N1U, N2G7, N2U, N5A, N5AF
	15	SCREWWASHER, 4X12	O	93892-04012-00	N1AF, N5AF

PARTS CATALOGUE NEVS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY
				GCV 190A	Base Part No.	Parts catalogue code
	16		WASHER, PLAIN 4MM.	O	94103-04000	N1AF, N5AF
	17	19612-ZMD-J20	PLATE, SI DE.	1		BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U, N5A, N5AF
	18	31110-Z0J-013	FLYWHEEL COMP.	1		N1A, N1AF, N2G7, N5A, N5AF
	19	90013-883-000	BOLT, FLANGE, 6X12(CT200)	2		BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U, N5A, N5AF

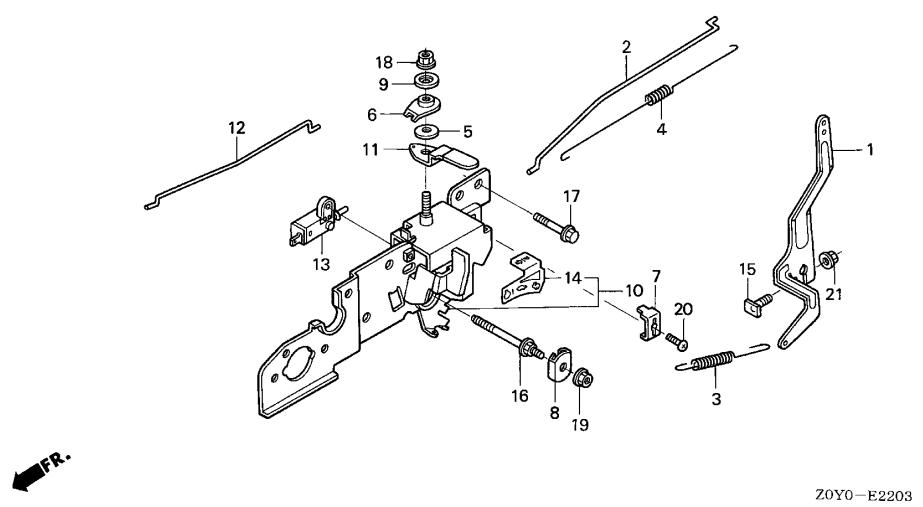

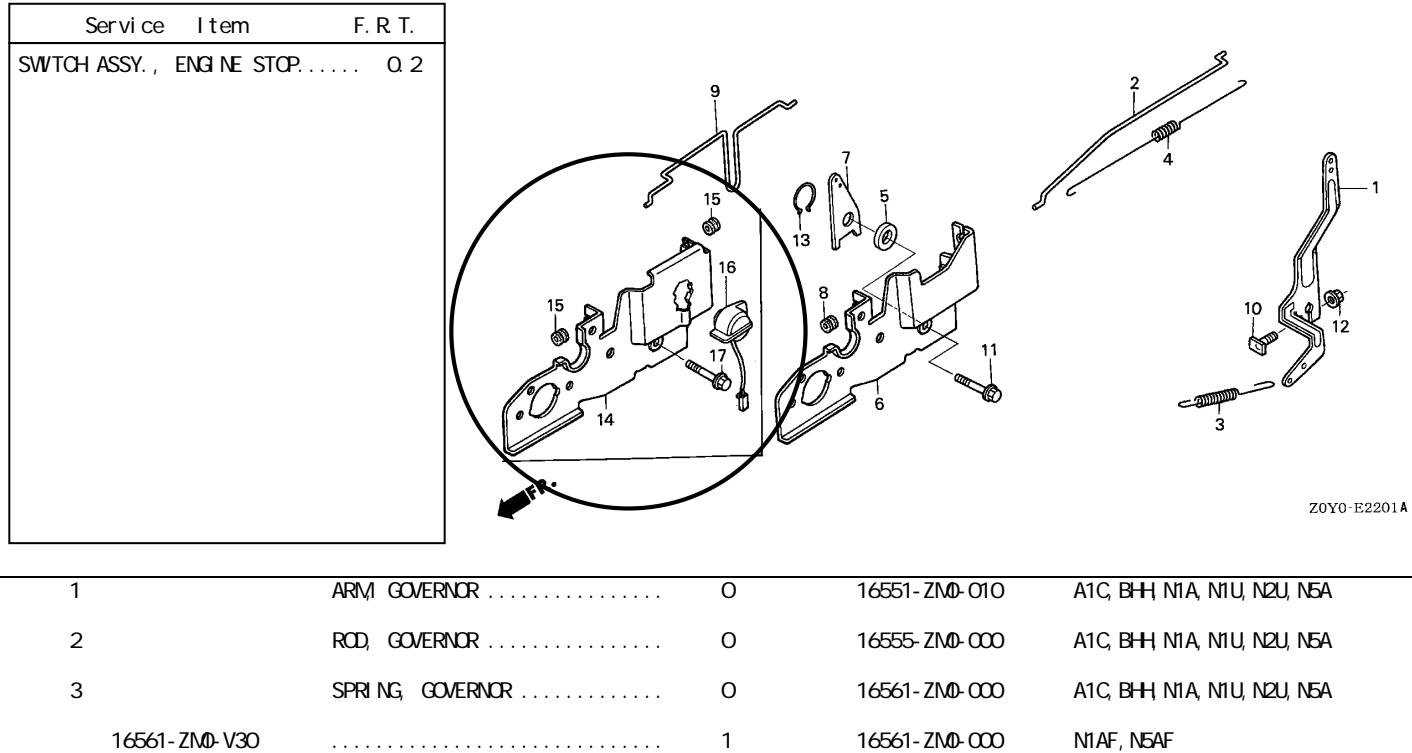

E- 22 CONTROL (1)

E-22	1	16551-ZMD-010	ARM GOVERNOR	1	A1C, BHH, NTU, NZU
	2	16555-ZMD-000	ROD, GOVERNOR	1	A1C, BHH, NTU, NZU
	3	16561-ZMD-000	SPRING, GOVERNOR	1	A1C, BHH, NTU, NZU
	4	16562-ZMD-000	SPRING, THROTTLE RETURN	1	A1C, BHH, NTU, NZU
	5	16576-ZE7-300	SPRING, LEVER	1	A1C, BHH, NTU, NZU
	6	16576-891-000	HOLDER, CABLE	1	A1C, BHH, NTU, NZU
	7	16580-ZMD-J22	BASE COMP., CONTROL	1	BHH
		16580-ZMD-020		1	A1C

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GOV 190A	Base Part No.
		16580-ZMD-802		1	N1U, N2U
		16580-ZMD-881		1	16580-ZMD-871	N1G7, N2G7
	10	16674-ZMD-000	ROD, CHOKE	1		A1C, BHH, N1U, N2U
	11	90015-ZE5-010	BOLT, GOVERNOR ARM.	1		A1C, BHH, N1U, N2U
	13	90016-ZMD-000	BOLT, FLANGE, 6X45(CT200)	1		A1C, BHH, N1U, N2U
	14	93500-05016-0A	SREW PAN, 5X16	1		A1C, BHH, N1U, N2U
	15	94050-06000	NUT, FLANGE, 6MM.	1		A1C, BHH, N1U, N2U
	16	16593-ZMD-000	SPRING, CONTROL LEVER RETURN.	1		BHH, N1U, N2G7, N2U

E-22-1 CONTROL (2)

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY
				GOV 190A	Base Part No.	Parts catalogue code
	4		SPRING, THROTTLE RETURN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	O	16562-ZM0-000	A1C, BHH NIA, N1U, NZU, N5A
	5		SPACER, CONTROL LEVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6	O	16578-ZOL-810	A1C, BHH NIA, N1AF, N1U, NZU, N5A, N5AF
	6		BASE COMP., CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7	O	16580-ZOL-810	A1C, BHH NIA, N1AF, N1U, NZU, N5A, N5AF
	7		LEVER, CHOKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 8	O	16612-ZOL-810	A1C, BHH NIA, N1AF, N1U, NZU, N5A, N5AF
	8		GROMNET, CHOKE ROD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 9	O	16613-893-000	A1C, BHH NIA, N1AF, N1U, NZU, N5A, N5AF
		16674-ZOL-800		O	16674-ZOL-810	A1C, BHH NIA, N1U, NZU, N5A
	10		BOLT, GOVERNOR ARM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -	O	90015-ZE5-010	A1C, BHH NIA, N1U, NZU, N5A
	11		BOLT, FLANGE, 6X45(CT200) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6X45(CT200) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12		90016-ZE8-000	O	94050-06000	A1C, BHH NIA, N1U, NZU, N5A
	13		NUT, FLANGE, 6MM. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14	O	94511-14000	A1C, BHH NIA, N1AF, N1U, NZU, N5A, N5AF
	14	16580-ZOL-800	BASE COMP., CONTROL . . . . . .	1		N1AF, N5AF
	15	16613-893-000	GROMNET, CHOKE ROD. . . . . . . . . . . . . . . . . . . . . . . 16	2		N1AF, N5AF
	16	35120-ZOL-801	SWITCH ASSY., ENGINE STOP. ...	1		N1AF, N5AF
	17	90016-ZE8-000	BOLT, FLANGE, 6X45(CT200) ...	1		N1AF, N5AF

BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GCV 190A	Base Part No.

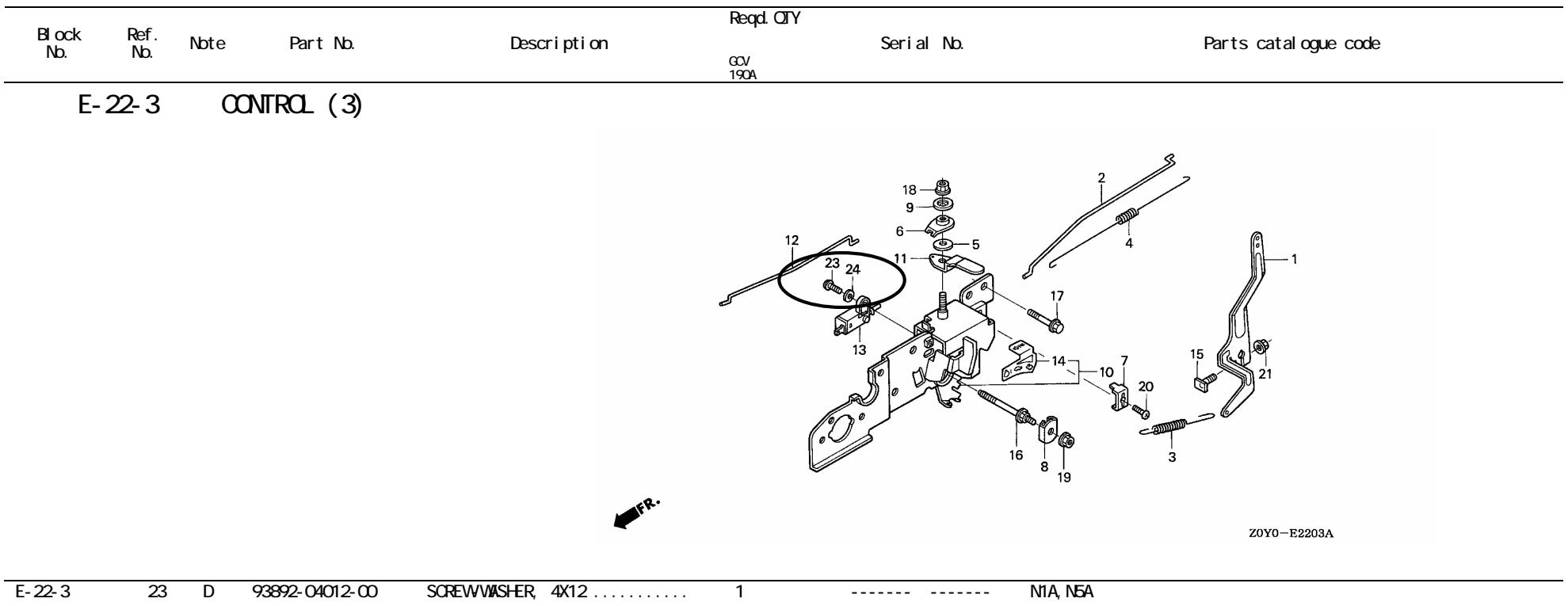

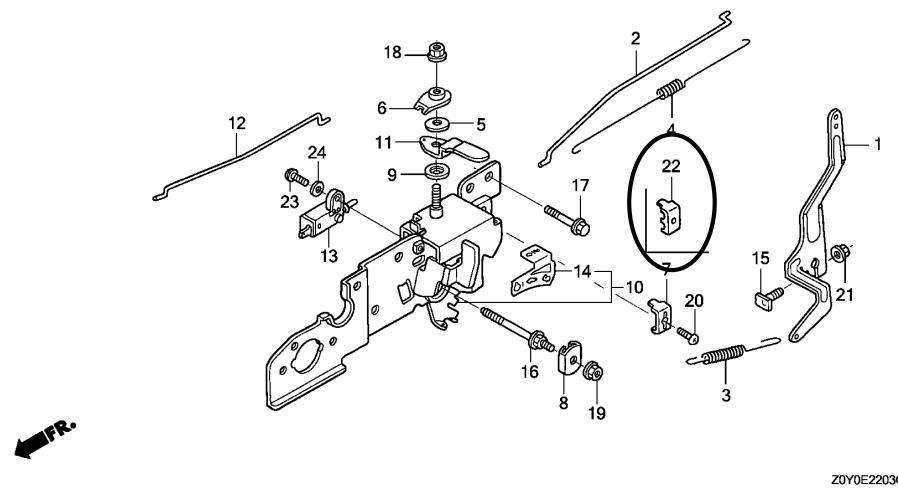

E-22-3 CONTROL (3)

Service Item	F. R. T.
SPRING GOVERNOR	0.1
SPRING LEVER
ARM GOVERNOR	0.2
ROD, GOVERNOR
SPRING THROTTLE RETURN
BASE CONP., CONTROL	0.3
ROD, CHoke

E-22-3	1	16551-ZM0-010	ARM GOVERNOR	1	NIA, N5A
	2	16555-ZM0-000	ROD, GOVERNOR	1	NIA, N5A
	3	16561-ZM0-V30	SPRING, GOVERNOR	1	NIA, N5A
	4	16562-ZM0-000	SPRING, THROTTLE RETURN	1	NIA, N5A
	5	16574-ZE1-000	SPRING, LEVER	1	NIA, N5A
	6	16575-ZE2-W00	WASHER, CONTROL LEVER	1	NIA, N5A
	7	16576-891-000	HOLDER, CABLE	1	NIA, N5A
	8	16577-ZM0-V30	PLATE, LEVER CENTER	1	NIA, N5A
	9	16578-ZE1-000	SPACER, CONTROL LEVER	1	NIA, N5A
	10	16580-ZM0-V30	BASE COMP., CONTROL	1	NIA, N5A
	11	16612-ZM0-V30	LEVER, CHoke	1	NIA, N5A
	12	16674-ZM0-V30	ROD, CHoke	1	NIA, N5A

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. CTV			Parts catalogue code
				GCV 190A	Base Part No.
	13	35120-ZL8-003	SWITCH ASSY., ENGINE STOP (N O)	1		NIA, N5A
	14	87532-ZMD-V30	MARK, THROTTLE I NDI CATI ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	1		NIA, N5A
	15	90015-ZE5-010	BOLT, GOVERNOR ARM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	NIA, N5A
	16	90016-ZMD-V30	BOLT, SPEC AL, 6X45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N1A, N5A
	17	90017-883-000	BOLT, FLANGE, 6X32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. N1A, N5A
	18	90114-SAO-000	NUT, SELF-LOCK, 6MM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . N1A, N5A
	19	90136-SM4-901	NUT, SELF-LOCK, 5MM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. N1A, N5A
	20	93500-05016-0A	SREW PAN, 5X16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . N1A, N5A
	21	94050-06000	NUT, FLANGE, 6MM. . . . . . . . . . . . . . . . . . . . . . . . . . . N1A, N5A
E-28	1		MARK, EMBLEM(6 5)	O	87101-Z0Y-000	S3A
		87101-Z0Y-000		1		A1C, N1A, N1U, N5A
	2	87135-ZE2-020	LABEL (E-SPEC)	1		N1U, N2U
		87135-ZE2-020		1	87135-ZE2-010	A1G7, N1G7, N2G7
	3	87528-ZL8-000	MARK, CHOKE	1		N1AF, N5AF
		87528-ZOL-V20	MARK, CHOKE I NDI CATI ON	1	87528-ZOL-800	S3A

BOOKNo.:13ZOYOE1

PARTS CATALOGUE NEWS

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GOV 190A	Base Part No.

E-40 BLADE HOLDER

Z0Y0-E4000

E-40 1 72600-VE1-G00 HOLDER ASSY., BLADE 1 BHH

2 75110-ZOL-000 PLATE ASSY., BALL CONTROL .1 BHH

3 75111-VE1-G01 PLATE, BALL CONTROL 1 BHH

4 75117-VE1-GOO BALL, STEEL 3 BHH

5 75127-VE1-GOO PLATE,SPRING HOOK 1 BHH

6 75130-ZOL-000 PLATE COMP. BRAKE 1 BHH

7 75132-VE1-G00 SPRING BALL PLATE 1 BHH

8 75141-VE1-RO0 DI SK, DRI VE 1 BHH

9 75150-VE1-ROO DI SK COVP. DRI VEN 1 BHH

10 75162-ZOL-000 PULLEY, DRIVE 1 BHH

11 75183-VE1-G01 SPRING CLUTCH 1 BHH

12 90101-VE1-G00 BOLT,FLANGE,10X24 1 BH

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Base Part No.	Parts catalogue code
				GCV 190A	1
	13	91051-VE1-G00	BEARNG RADI AL BALL, 6006 ...	1		BHH
	14	91052-VE1-G00	BEARNG RADI AL BALL, 6204 ...	1		BHH
	15	94401-16150	KEY, WOODRUFF, 16X15 ...	1		BHH

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	004

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A
E-16	2	E	18321-ZL8-A00	*PARTS NO 删除
		E	18321-ZL8-000	*PARTS NO 删除
		T	18321-Z0L-J00	PROTECTOR, MUFFLER	1	--------	--------	A1AE, BHH S3A
		T	18321-Z0L-000	--------	1	--------	--------	A1AF, A1C, A1G7, A2G7, N1A, N1AF, N1G7, N1U, N2G7, N2U, N5A, N5AF, S1A

July 06, 2003

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	005

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY				Parts catalogue code
					GCV 190A	Serial No.
E-40	13	D	91051-VE1-R00	BEARING, RADI AL BALL, 6006 (TSB)	1	--------	--------	BHH

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

August 31, 2008

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	006

Block No.	Ref. No.	Note	Part No.	Description	Reqd QTY		Serial No.	Parts catalogue code
					CV 190A	Serial No.
E-22	3	E	16561-ZMΦ 000	*PARIS NO DELEIION
		D	16561-ZOL-000	SPRING COVERNOR	1	--------	A1C, BH, N1U N2U
E-22-1	3	E	16561-ZMΦ 000	*PARIS NO DELEIION
		D	16561-ZOL-000	SPRING COVERNOR	1	--------	A1AE, A1AF, S1A, S3A

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	007

GCV190A-R1A and R3A TYPES sales parts information

NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV190A-R1A and R3A types.

As for the parts not listed on this Parts Catalogue News, use the parts of the GCV190A-S1A and S3A types.

Model	Type		Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	S1A	Base model	S1A	GJAAA-1000001~	BB62K A
	R1A	Additional model	R1A	GJAAA-8000001~
	S3A	Base model	S3A	GJAAA-1000001~
	R3A	Additional model	R3A	GJAAA-8000001~

PARTS CATALOGUE NEWS
BCQNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. CNY			Parts catalogue code
				GCV 190A	Base Part No.
E-3	1	12000-Z0Y-406	BARREL ASSY., CYLINDER	1	12000-Z0Y-405
E-6	2		PACKING OL FILLER CAP	0	15625-ZE1-003	R1A
	3	15625-ZE6-000	PACKING OL FILLER CAP	1		R1A
	4	15631-ZOL-820	EXTENSION OL FILLER	1		R1A
		15631-ZOL-820		1	15631-ZMΦ-000	R3A
	5	15639-ZMΦ-000	WASHER, EXTENSION LOCK	1		R1A
	6		GAUGE ASSY., OL LEVEL	0	15650-ZMΦ-003	R1A
	7	15650-ZOL-820	GAUGE ASSY., OL LEVEL	1		R1A
		15650-ZOL-820		1	15650-ZMΦ-801	R3A
	8		SHAFT CONP., GOVERNOR HOLDER	0	16508-ZMΦ-010
	10		WEIGHT, GOVERNOR	0	16511-ZL8-000
	11		HOLDER, GOVERNOR WEIGHT	0	16512-ZMΦ-000
	12		PHN GOVERNOR WEIGHT	0	16513-ZE1-000
	13		SLDER, GOVERNOR	0	16531-ZE1-000
	17		WASHER, THRUST, 6MM	0	90451-ZE1-000
	18		CLI P, GOVERNOR HOLDER	0	90602-ZE1-000
	20	91303-KFO-003	O-RING 14.8X2 4(ARAI)	1		R1A
E-10	5	14431-Z0J-000	ARM IN VALVE ROCKER	1	14431-ZL8-000
	6	14441-Z0J-000	ARM EX VALVE ROCKER	1	14441-ZL8-000
	11	14771-Z0J-000	RETAILER, VALVE SPRING	2	14771-ZE1-000
E-11	1	28400-Z0Y-003ZA	STARTER ASSY., RECOIL *R280*......... POWER RED	1		R3A
		28400-Z0Y-003ZC	*YR288R*......... WOLF ORANGE	1
E-12	9	19610-ZOL-830ZA	COVER CONP., FAN *NH1*......... BLACK	1	19610-ZOL-800ZA
				1		R1A

BCQNo.:13Z0Y0E1

PARTS CATALOGUE NEWS

Block No.	Ref. No.	Part No.	Description	Reqd. QTY			Parts catalogue code
				CCV 190A	Base Part No.
		19610-ZOL-830ZA	*NHI*	BLACK	1	19610-ZOL-800ZC	R3A
		19610-ZOL-830ZB	*R280*	POWER RED	1		R3A
		19610-ZOL-830ZB	*R280*	POWER RED	1	19610-ZOL-800ZB	R1A
		19610-ZOL-830ZC	*T89*	CRAFTSMAN RED	1
		19610-ZOL-830ZD	*T90*	EHP ORANGE	1
		19610-ZOL-830ZE	*Y166R*	WOLF YELLOW	1
E-15	2	17211-ZL8-013	ELEMENT, AI CLEANER	1	17211-ZL8-003

E-19 FLYWEEL

E-19	1	GROMNET A, RR COVER	0	11344-N80-000
	4	FLYWHEEL ASSY.	0	31105-Z0Y-010
	5 32195-ZOL-820	CORD, STOP SWITCH	1	32195-ZM0-800
	6	SWITCH ASSY., ENGINE STOP(N C)	0	35120-ZM0-003

PARTS CATALOGUE NEWS
BCQNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GOV 190A	Base Part No.
	8	75110-ZOL-820	BRAKE SUB ASSY.	1	75110-ZOL-800
	11	90002-ZOL-820	BOLT, FLANGE, 6X23(CT200)	1	90018-ZE1-000
	15		SREWMWASHER, 4X12	0	93892-04012-00
	16		WASHER, PLAIN 4NMM.	0	94103-04000
	20	31105-ZOL-820	FLYWHEEL ASSY.	1

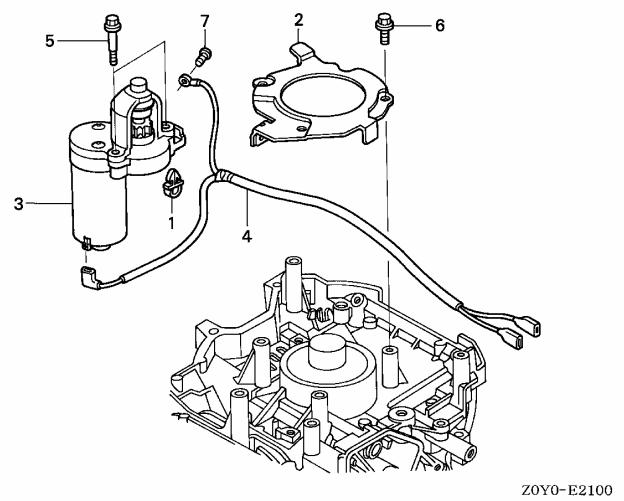

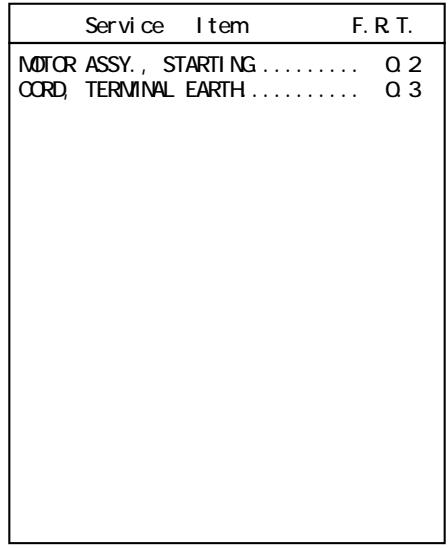

E-21 STARTER MOTOR

E-21 1 22534-ZOL-820 HOLDER, WRE 1

2 30549-ZOL-820 CLAMPER, CORD. 1

3 31200-ZL-821 MOTOR ASSY., STARTING. 1

4 32222-ZOL-820 CORD, TERMINAL EARTH 1

5 90001-ZL-820 BOLT, SPEC AL, 6MM. 2

6 90013-883-000 BOLT, FLANGE, 6X12(CT200) ... 2

7 93500-05008-0A SCREW PAN 5X8 1

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	008

BCQNo.:13ZOYOE1

PARTS CATALOGUE NEWS

Block No.	Ref. No.	Note	Part No.	Description	Reqd. CNY			Parts catal ogue code
					CCV 190A	Serial No.
	24	D	94103-04000	WASHER, PLA N 4MM.	1	--------	N1A, N5A

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	009

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Parts catalogue code
					GOV 190A	Serial No.
E-3	1	E	12000-Z0Y-405	*PARTS NO DELETION
		D	12000-Z0Y-415	BARREL ASSY., CYLINDER	1	--------	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF, S1A, S3A
	7	T	91201-ZL8-003	CL SEAL, 25.4X62X6	1	--------	R1A, R3A
		D	91201-Z0Y-003	--------	1	--------	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF, S1A, S3A

December 15, 2003

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	010

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Parts catalogue code
					GOV 190A	Serial No.
E-15	2	T	17211-ZL8-003	ELEMENT, AIR CLEANER	1
		E	17211-ZL8-013	*PARTS NO. DELETION

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	011

Printed in Japan

GCV190A-E1A2 TYPE sales parts information

NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV190A-E1A2 type.

As for the parts not listed on this Parts Catalogue News, use the parts of the GCV190A-A1AE type.

Model	Type		Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	A1AE	Base model	A1AE	GJAAA-1000001~	BB62J A
	E1A2	Additional model	E1A2	GJAAA-8000001~

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				CCV 190A	Base Part No.
E-3	1	12000-Z0Y-406	BARREL ASSY., CYLINDER	1	12000-Z0Y-415
	7	91201-ZL8-003	CL SEAL, 25.4X62X6	1	91201-Z0Y-003
E-6	4	15631-Z0L-820	EXTENSION CL FILLER	1	15631-ZM0-000
	7	15650-Z0L-820	GAUGE ASSY., CL LEVEL	1	15650-ZM0-801
E-10	5	14431-Z0J-000	ARM IN VALVE ROCKER	1	14431-ZL8-000
	6	14441-Z0J-000	ARM EX VALVE ROCKER	1	14441-ZL8-000
	11	14771-Z0J-000	RETAIL NER, VALVE SPRING	2	14771-ZE1-000

E-12 FAN COVER

E-12	2		COCK ASSY., FUEL	0	16950-ZG9-M03
	3		BRACKET, FUEL COCK	0	16956-ZG9-M00
	7	95001-55150-40	TUBE, FUEL, 5.3X150(95001-55001-60M)	1	17701-ZQL-000
	8	17702-ZM0-800	TUBE, FUEL	1	17702-ZM0-000

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				COV 190A	Base Part No.
	9	19610-ZOL-820ZA	COVER CONP., FAN *NHI* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	1	19610-ZOL-000ZA
		19610-ZOL-820ZB	*R280* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	0	19610-ZOL-000ZD
	15	95002-02080	CLIP, TUBE (B8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1	1	95002-50000
	16	16950-ZMD-003	COOK ASSY, FUEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1	1
E-15	2	17211-ZL8-013	ELEMENT, AI R CLEANER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1	1	17211-ZL8-003
E-16	2	18321-ZOL-000	PROTECTOR, MIFFLER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -	1	18321-ZOL-J00
	6		ARRESTER COMP, SPARK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (0)	18350-ZL8-000
	7		PLATE, ARRESTER NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . (0)	18356-ZL8-000
	8		SREW TAPPING 4X6. . . . . . . . . . . . . . (0)	90055-ZE1-000
E-19	4		FLYWHEEL ASSY. . . . . . . . . . . . . . 0	31105-Z0Y-010
	5		CORD STOP SWITCH. . . . . . . . 0	32195-ZOL-000
	6		SWITCH ASSY. , ENGINE STOP (N C) 0	35120-ZMD-003
	7		BRAKE ASSY. . . . . . 0	75100-ZMD-000
	8	75110-ZOL-820	BRAKE SUB ASSY. 1
	11	90002-ZOL-820	BOLT, FLANGE, 6X23(CT200) ... 1	90018-ZE1-000
	14		CLIP A, CABLE (N FOO) 0	90681-959-003
	15		SREWWASHER, 4X12. 0	93892-04012-00
	16		WASHER, PLA N 4MM. 0	94103-04000
	20	31105-ZOL-820	FLYWHEEL ASSY. 1

BOOKNo.:13Z0YOE1

E-21	STARTER MOTOR
				Z0Y0-E2100A
E-21	1 22534-Z0L-820	HOLDER, WRE	1
	2 30549-Z0L-820	CLAMPER, CORD	1
	3 31200-Z0L-821	MOTOR ASSY., STARTING	1
	4 32222-Z0L-820	CORD, TERMINAL EARTH	1
	5 90001-Z0L-820	BOLT, SPECIAL, 6MM	2
	6 90013-883-000	BOLT, FLANGE, 6X12(CT200)	3
	7 93500-05008-0A	SREW PAN 5X8	1
	8 51125-Z0L-003	HOLDER, WRE (FASTEX)	1
	90681-959-003	CLI P A, CABLE (N FCO)	1
E-22-1	3 16561-ZM0-000	SPRING, GOVERNOR	1	16561-Z0L-000

E-28 1 87101-ZOY-000 MARK, EMBLEM(6.5) 1

July 18, 2004

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	012

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A
E-10	8	T	14711-ZL8-000	VALVE, IN.	1	--------	--------	R1A, R3A
		D	14711-Z0J-000	--------	1	--------	--------	A1AE, A1AF, A1C, A1G7, A2G7, BHH, E1A2, N1A, N1AF, N1G7, N1U, N2G7 N2U, N5A, N5AF, S1A, S3A

November 04, 2004

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	013

E-19 8 E 75110-ZOL-820 *PARTS NO. DELETION

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GCV 190A	Serial No.
	9	T	75113-ZM0-000	SPRING, BRAKE LEVER	1	--------	--------	A1AE, A1AF, A1C, A1G7, A2G7, S1A, S3A
	21	D	75110-ZOL-821	BRAKE SUB ASSY.	1	--------	--------	E1A2, R1A, R3A
	22	D	75113-ZM0-000	SPRING, BRAKE LEVER	1	--------	--------	E1A2, R1A, R3A

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

November 21, 2004

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	014

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A
E-14	9	L	16155-ZMO-003	VALVE, FLOAT(CARBURETOR NO.)	1	-------- BB62J A	A1AE, A1AF, A1C, A1G7, A2G7, BHH, E1A2, N1A, N1AF, N1G7, N1U, N2G7N2U, N5A, N5AF
				(CARBURETOR NO.)	1	-------- BB62K A	R1A, R3A, S1A, S3A
		A	16155-ZMO-013	(CARBURETOR NO.)	1	BB62JB	A1AE, A1AF, A1C, A1G7, A2G7, BHH, E1A2, N1A, N1AF, N1G7, N1U, N2G7N2U, N5A, N5AF
				(CARBURETOR NO.)	1	BB62KB	R1A, R3A, S1A, S3A

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	015

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GOV 190A	Serial No.
E-3	1	E	12000-Z0Y-406	*PARTS NO 删除
		D	12000-Z0Y-416	BARREL ASSY., CYLINDER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	1	-----	-----	E1A2, R1A, R3A
	7	E	91201-ZL8-003	*PARTS NO 删除
		T	91201-Z0Y-003	Q L SEAL, 25.4X62X6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
E-11	1	E	28400-Z0Y-003ZA	*PARTS NO 删除
		E	28400-Z0Y-003ZB	*PARTS NO 删除
		E	28400-Z0Y-003ZC	*PARTS NO 删除
		D	28400-Z0Y-013ZA	STARTER ASSY., RECOI L *R280*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. Power RED	1	-----	-----	A1AE, A1AF, A1C, A1G7, A2G7, E1A2, N1G7, N2G7, R1A, R3A, S1A
		D	28400-Z0Y-013ZB	*NHI*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. BLACK	1	-----	-----	A1AE, A1AF, A1C, A1G7, A2G7, BHH, E1A2, N1G7, N2G7, R1A, R3A, S1A, S3A
		D	28400-Z0Y-013ZC	*YR288R*. . . . . . . . . WLF ORANGE	1	-----	-----	R1A, R3A
		E	28400-Z0Y-801ZA	*PARTS NO 删除
		E	28400-Z0Y-801ZB	*PARTS NO 删除
		D	28400-Z0Y-802ZA	*NHI*. . . . . . . . . . Black	1	-----	-----	N1U, N2U

BOOKNo.:13ZOYOE1

PARTS CATALOGUE NEWS

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GOV 190A	Serial No.
		D	28400-Z0Y-802ZB	*R280*.........Power RED	1	--------	N1U, N2U
		E	28400-Z1A-003ZA	*PARTS NO DELETEON
		E	28400-Z1A-003ZB	*PARTS NO DELETEON
		D	28400-Z1A-013ZA	*NHI*.........BLACK	1	--------	N1A, N1AF, N5A, N5AF
		D	28400-Z1A-013ZB	*R280*.........Power RED	1	--------	N1A, N1AF, N5A, N5AF
E-12	9	D	19610-Z0L-800ZD	COVER CONP., FAN *T93*.........HUSQ/ARNA GRAY	1	--------	S3A

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

February 13, 2005

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	016

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Parts catalogue code
					GOV 190A	Serial No.
E-15	5	E	17231-ZOL-020	*PARTS NO 删除	1
		D	17231-ZOL-030	COVER, AIR CLEANER	1

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	017

GCV190A-S3H2 TYPE sales parts information

NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV190A-S3H2 type.

As for the parts not listed on this Parts Catalogue News, use the parts of the GCV190A-S3A type.

Model	Type		Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	S3A	Base model	S3A	GJAAA-1000001	BB62K A
	S3H2	Additional model	S3H2		BB62K B

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GOV 190A	Base Part No.
E-10	5	14431-Z0J-000	ARM IN VALVE ROCKER	1	14431-ZL8-000
	6	14441-Z0J-000	ARM EX VALVE ROCKER	1	14441-ZL8-000
	11	14771-Z0J-000	RETAI NER, VALVE SPRING	2	14771-ZE1-000
E-12	2		COCK ASSY., FUEL	0	16950-ZG9-M03
	3		BRACKET, FUEL COOK	0	16956-ZG9-M00
	7	95001-55150-40	TUBE, FUEL, 5.3X150 (95001-55001-60M)	1	17701-ZOL-000
	8	17702-ZMD-800	TUBE, FUEL	1	17702-ZMD-000
	9		COVER COMP., FAN *T93*	0	19610-ZOL-800ZD
		19610-ZOL-800ZA	*NH1*	1	19610-ZOL-800ZC
	15	95002-02080	CLI P, TUBE (B8)	1	95002-50000
	16	16950-ZMD-003	COOK ASSY., FUEL	1
E-14	8	16100-Z0Y-802	CARBURETOR ASSY. (BB62K B) ...	1	16100-Z0Y-801
E-15	2	17211-ZL8-013	ELEMENT, AIR CLEANER	1	17211-ZL8-003
E-28	3	87528-ZOL-800	MARK, CHoke I NCI CATI ON	1	87528-ZOL-V20

June 27, 2005

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	018

Block

No

Ref.

No.

Part No.

Description

Reqd. QTY

Serial No.

Parts catalogue code

GCV 190A

E-22-3 CONTROL (3)

ILLUSTRATI ON CORRECTED

Z0Y0-E2203B

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	019

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. CNY			Parts catalogue code
					GCV 190A	Serial No.
E-16	6	T	18350-ZL8-000	ARRESTER CONP.,SPARK	(1)	--------	--------	A1AE,A1AF,A1C,BHH E1A2,N1A,N1AF,N5A,N5AF,R1A,R3A,S1A,S3A S3H2
	7	T	18356-ZL8-000	PLATE,ARRESTER NUMBER	(1)	--------	--------	A1AE,A1AF,A1C,BHH E1A2,N1A,N1AF,N5A,N5AF,R1A,R3A,S1A,S3A S3H2
	8	T	90055-ZE1-000	SCREW/TAPPI NG,4X6	(1)	--------	--------	A1AE,A1AF,A1C,BHH E1A2,N1A,N1AF,N5A,N5AF,R1A,R3A,S1A,S3A S3H2
	9	D	06180-ZOJ-000	ARRESTER KIT,SPARK	(1)	--------	--------	A1AE,A1AF,A1C,BHH E1A2,N1A,N1AF,N5A,N5AF,R1A,R3A,S1A,S3A

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	020

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Parts catalogue code
					GOV 190A	Serial No.
E-12	2	T	16950-ZG9-M03	COOK ASSY., FUEL	1	--------	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF, S1A, S3A
	3	T	16956-ZG9-M00	BRACKET, FUEL COOK	1	--------	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF, S1A, S3A
	7	T	17701-ZOL-000	TUBE, FUEL TANK	1	--------	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF, S1A, S3A
		T	95001-55150-40	TUBE, FUEL, 5.3x150 (95001-55001-60M)	1	--------	E1A2, R1A, R3A, S3H2
	8	T	17702-ZMD-000	TUBE, FUEL	1	--------	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF, S1A, S3A
		T	17702-ZMD-800	--------	1	--------	E1A2, R1A, R3A, S3H2
	15	T	95002-50000	CLI P, TUBE (C9)	1	--------	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF, S1A, S3A
		T	95002-02080	CLI P, TUBE (B8)	1	--------	E1A2, R1A, R3A, S3H2
	16	T	16950-ZMD-003	COOK ASSY., FUEL	1	--------	E1A2, R1A, R3A, S3H2

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	021

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GCV 190A	Serial No.
E-19	5	E	32195-ZOL-820	*PARTS NO 删除 ON
E-28	3	T	87528-ZOL-800	MARK, CHOKE I NDI CATI ON	1	--------	S1A, S3H2
		T	87528-ZOL-V20	--------	1	--------	R1A, R3A, S3A

December 18, 2005

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	022

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GOV 190A
E-10	5	E	14431-ZL8-000	*PARTS NO DELETION
		T	14431-ZOJ-000	ARM IN VALVE ROCKER	1
	6	E	14441-ZL8-000	*PARTS NO DELETION
		T	14441-ZOJ-000	ARM EX VALVE ROCKER	1
E-11	1		28400-ZOY-013ZB	STARTER ASSY., RECO L*NHI*	1	--------	--------	A1AE, A1AF, A1C, A1G7, A2G7, E1A2, N1G7, N2G7, R1A, R3A, S1A
					1	--------	1362872	BHH, S3A, S3H2
		A	28400-ZOY-V2OZA	*NHI*	1	1362873	--------	BHH, S3A, S3H2
	3		28462-ZL8-631	ROPE, RECO L STARTER (LONG TYPE)	1	--------	--------	A1AE, A1AF, A1C, A1G7, A2G7, E1A2, N1G7, N2G7, R1A, R3A, S1A
					1	--------	1362872	BHH, S3A, S3H2
		A	28462-ZOL-V20	ROPE, RECO L STARTER (BLACK)(LONG TYPE)	1	1362873	--------	BHH, S3A, S3H2
E-14	8		16100-ZOY-003	CARBURETOR ASSY. (BB62J A) ...	1	--------	--------	E1A2

PARTS CATALOGUE NEVS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GOV 190A	Serial No.
					1	-----	1225175	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF
		A	16100-Z0Y-013	CARBURETOR ASSY. (BB62J B) ...	1	1225176	-----	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF
		L	16100-Z0Y-801	CARBURETOR ASSY. (BB62K A) ...	1	-----	-----	R1A, R3A
					1	-----	1245690	S1A, S3A
		T	16100-Z0Y-802	CARBURETOR ASSY. (BB62K B) ...	1	-----	-----	S3H2
					1	1245691	-----	S1A, S3A

E-22 CONTROL (1)

E-22	2	16555-ZM0-000	RCD, GOVERNOR	1	----- 1407409	A1C, A1G7, A2G7, BHH, NIG7, N1U, N2G7, N2U
	A	16555-ZOL-800		1	1407410	A1C, A1G7, A2G7, BHH, NIG7, N1U, N2G7, N2U
	6 L	16576-891-000	HOLDER, CABLE	1	----- 1077417	A1C, A1G7, A2G7, BHH, NIG7, N1U, N2G7, N2U
	17 D	16617-VG3-000	HOLDER, CABLE	1	1077418	A1C, A1G7, A2G7, BHH, NIG7, N1U, N2G7, N2U
E-22-1	2 L	16555-ZM0-000	RCD, GOVERNOR	1	----- 1E1A2

BOOKNo.:13ZOYOE1

PARTS CATALOGUE NEVS

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GCV 190A	Serial No.
					1	-----	1407409	A1AE, A1AF, N1AF, NEAF
		T	16555-ZOL-800		1	-----	-----	R1A, R3A, S1A, S3A, S3H2
					1	1407410	-----	A1AE, A1AF, N1AF, NEAF

E-22-3 CONTROL (3)

E-22-3	2	16555-ZM0-000	RCD, GOVERNOR	1	----- 1407409	NIA, N5A
	A	16555-ZCL-800	-----	1	1407410	NIA, N5A
	7 L	16576-891-000	HOLDER, CABLE	1	----- 1077417	NIA, N5A
	22 D	16617-VG3-000	HOLDER, CABLE	1	1077418	NIA, N5A

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	023

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GCV 190A	Serial No.
E-22-1	2	T	16555-ZMD-000	ROD, GOVERNOR	1	-----	1407409	A1AE, A1AF, N1AF, N5AF
		T	16555-ZOL-800		1	-----	-----	E1A2, R1A, R3A, S1A, S3A, S3H2
					1	1407410	-----	A1AE, A1AF, N1AF, N5AF

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	024

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GOV 190A	Serial No.
E-14	8	T	16100-Z0Y-003	CARBURETOR ASSY. (BB62J A) ...	1	-----	1225175	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF
		T	16100-Z0Y-013	CARBURETOR ASSY. (BB62J B) ...	1	-----	-----	E1A2
					1	1225176	-----	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF
		T	16100-Z0Y-801	CARBURETOR ASSY. (BB62K A) ...	1	-----	1245690	S1A, S3A
		T	16100-Z0Y-802	CARBURETOR ASSY. (BB62K B) ...	1	-----	-----	R1A, R3A, S3H2
					1	1245691	-----	S1A, S3A
E-28	2	T	87135-ZE2-020	LABEL, E-SPEC (15.5x27.5) ...	1	-----	-----	N1U, N2U

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	025

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. CNY			Parts catalogue code
					CCV 190A	Serial No.
					1	-----	1077417	BHH
	17	T	16617-VG3-000	HOLDER, CABLE	1	1077418	-----	A1C, A1G7, A2G7, N1G7, N1U, N2G7, N2U
	18	D	16617-ZCL-800	HOLDER, CABLE	1	1077418	-----	BHH
	19	D	93500-05008-0A	SCREW/ PAN 5X8	1	1077418	-----	BHH

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

February 20, 2006

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE TITLE	GCV190A
NEWS NO.	026

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					COV 190A	Serial No.
E-6	2	E	15625-ZE1-003	*PARTS NO 删除	1	--------	--------	A1AF, A1C, N1A, N1AF, N5A, N5AF, S1A
		D	15625-Z2L-801	PACKING OL FILLER CAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	1	--------	--------	A1AF, A1C, N1A, N1AF, N5A, N5AF, S1A
	6	E	15650-ZMD-003	*PARTS NO 删除	1	--------	--------	A1AF, A1C, N1A, N1AF, N5A, N5AF, S1A
		D	15650-ZOL-000	GAUGE ASSY. , OL LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31105-ZOL-820	*PARTS NO 删除	1	--------	E1A2, R1A, R3A
E-19	20	E	31105-ZOL-820	FLYWHEEL ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31105-ZOL-821	FLYWHEEL ASSY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31105-ZOL=000	1	--------	E1A2, R1A, R3A

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	027

Block

No

Ref.

No.

Part No.

Description

Reqd. CNY

GCV 190A

Serial No.

Parts catalogue code

E-22-2 CHOCKE BASE

ILLUSTRATI ON CORRECTED

E-22-2

14

D

16610-ZQL-800

LEVER ASSY. OHKE

1

R1A,R3A,S1A,S3A,S3H2

June 12, 2006

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	028

E-12 17 D 19619-ZL8-300 COLLAR, FAN COVER 3

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	029

Block No.	Ref. No.	Note	Part No.	Description	Reqd. CNY		Parts catalogue code
					GCV 190A	Serial No.

E-40 BLADE HOLDER

ILLUSTRATION CORRECTED

Z0Y0E4000B

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	030

GCV190A-A2G4 TYPE sales parts information

NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV190A-A2G4 type.

As for the parts not listed on this Parts Catalogue News, use the parts of the GCV190A-A2G7 type.

• Models, parts catalogue codes and applicable serial numbers

Model	Type		Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	A2G7	Base model	A2G7	GJAAA-1000001~	BB62J A/B
	A2G4	Additional model	A2G4		BB62JB

●Features of each type		Base type	Additional type
Specifications	Model	GCV190A
	Type	A2G7	A2G4
Crankshaft	N1 Type (Ø 22.2 x 135.7mm)
	N2 Type (Ø 22.2 x 117.4mm)	●	●
Recoil starter		●	●
Flywheel brake		●	●

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GCV 190A	Base Part No.
E-10	8	14711-ZL8-000	VALVE, IN	1	14711-ZOJ-000
	11	14771-ZOJ-000	RETAI NER, VALVE SPRING	2	14771-ZE1-000
E-11	1		STARTER ASSY, RECO L *R280*	0	28400-ZOY-013ZA
			*NHI*	0	28400-ZOY-013ZB
	2		GRI P, STARTER	0	28461-ZL8-003
	3		ROPE, RECO L STARTER (LONG TYPE)	0	28462-ZL8-631
	4		NUT, FLANGE, 6MM	0	90201-ZMD-000

BOOKNo.:13ZOYOE1

E-11-1 RECOI L STARTER (2)
Service Item F.R.T.
GRI P, STARTER 0.1 . STARTER ASSY, RECOI L ROPE, RECOI L STARTER 0.3
ZOYOE1101
E-11-1	1	28400-ZM04B01	STARTER ASSY, RECOI L	1
	2	28461-ZL8-003	GRI P, STARTER	1
	3	28462-ZL8-003	ROPE, RECOI L STARTER	1
	4	66871-KY2-700	NUT, UPPER COVI	3
	5	90201-ZM0-000	NUT, FLANGE, 6MM	3
E-12	2		COOK ASSY, FUEL	0
	3		BRAKET, FUEL COOK	0
	7	95001-55150-40	TUBE, FUEL, 5.3X150 (95001-55001-60M)	1
	8	17702-ZM0-800	TUBE, FUEL	1
	15	95002-02080	CLIP, TUBE (BB)	1
	16	16950-ZM0-003	COOK ASSY, FUEL	1

BOOKNo.:13ZOYOE1

PARTS CATALOGUE NEWS

Block No.	Ref. No.	Part No.	Description	Reqd. Qty		Parts catalogue code
				GOV 190A	Base Part No.

E-28 LABEL

E-28 1 MARK, EMBLEM(6.5) 0 87101-ZOY-000

2 LABEL,E-SPEC(15.5X27.5) 0 87135-ZE2-020
5 87102-ZOY-V10 MARK, ENBLEM(GCV190) 1
6 87114-ZH7-840 LABEL,WARNING (NOT CERTI FI ED FOR SALE) 1

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	031

Block

No

Ref.

No.

Part No.

Description

Reqd. CNY

GCV 190A

Serial No.

Parts catalogue code

E-22-2 CHOKE BASE

Z0Y0E2202C

E-22-2

1

E

16251-Z0L-800

*PARTS NO

DELETEON

BOOKNo.:13ZOYOE1

PARTS CATALOGUE NEWS

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Parts catalogue code
					GOV 190A	Serial No.
	3	E	16612-ZOL-800	*PARTS NO DELETE ON
	4	E	16613-ZOL-800	*PARTS NO DELETE ON
	6	E	16616-ZOL-800	*PARTS NO DELETE ON
	7	E	16619-ZOL-800	*PARTS NO DELETE ON
	10	E	90102-SP1-003	*PARTS NO DELETE ON
	11	E	90141-KT8-000	*PARTS NO DELETE ON
	12	E	93500-04008-0H	*PARTS NO DELETE ON
	13	E	94050-05000	*PARTS NO DELETE ON

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	032

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Parts catalogue code
					GCV 190A	Serial No.

E-6 OL PAN

ILLUSTRATION CORRECTED

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	033

Printed in Japan

GCV190A-C1E,C2E,D1E AND D2E TYPES sales parts information

NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV190A-C1E,C2E,D1E and D2E types.

As for the parts not listed on this Parts Catalogue News, use the parts of the GCV190A-E1A2 type.

• Models, parts catalogue codes and applicable serial numbers

Model	Type		Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	E1A2	Base type	E1A2	GJAAA-8000001	BB62JB
	C1E	Additional type	C1E	GJAAA-1000001
	C2E		C2E
	D1E		D1E
	D2E		D2E

●Features of each type		Base type	Additional type
Specifications	Model	GCV190A
	Type	E1A2	C1E	C2E	D1E	D2E
Crankshaft	20mm Ø x 133.8mm Straight
	22.2mm Ø x 100.4mm Straight
	22.2mm Ø x 117.4mm Straight			●		●
	22.2mm Ø x 135.7mm Straight	●	●		●
	25mm Ø x 135.7mm Straight
Spark arrester		(●)
Flywheel brake		●	●	●
Starter motor		●	●	●	●	●
Engine stop switch

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY			Parts catalogue code
				CCV 190A	Base Part No.
E-7	1		CRANKSHAFT COMP.	O	13310-Z0Y-000	C2E, D2E
	2	13310-Z0Y-600	CRANKSHAFT COMP.	1		C2E, D2E
E-8	1	13010-Z0Y-014	RING SET, PI STON (STD) (TEI KOKU)	1	13010-Z0Y-004
	2	13101-Z0Y-010	PI STON	1	13101-Z0Y-000
	4	13200-Z0Y-010	ROD ASSY., CONNECTING	1	13200-Z0Y-000
E-10	8	14711-ZL8-000	VALVE, IN	1	14711-Z0J-000

E-12 FAN COVER

E-12	10 90043-ZL8-000	BOLT, STUD (H=42.5mm)	2	90043-ZL8-000
	20 90043-ZL-820	BOLT, STUD (H=37.5mm)	1
E-16	1 18310-ZM0-000	NUFFLER COMP.	1	18310-Z0Y-000
	6	ARRESTER COMP.,SPARK	(0)	18350-ZL8-000
	7	PLATE, ARRESTER NUMBER	(0)	18356-ZL8-000

BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GOV 190A	Base Part No.
	8		SREW/ TAPPING, 4X6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	(O)	90055-ZE1-000
	9		ARRESTER KIT, SPARK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (0)	06180-Z0J-000

E-19 FLWHEEL

E-19	3	COL ASSY., IGN TION (PHELON) (USE FOR F/WOF PHELON)	0	30500-Z0J-003
	5 32195-ZOL-800	CORD, STOP SWITCH	1		D1E, D2E
	10	BOLT, FLANGE, 6X14(CT200)	0	90014-952-000	D1E, D2E
	11	BOLT, FLANGE, 6X23(CT200)	0	90002-ZOL-820	D1E, D2E
	17 19612-ZMD-J20	PLATE, SIDE	1		D1E, D2E
	19 90013-883-000	BOLT, FLANGE, 6X12(CT200)	2		D1E, D2E
	20 31105-ZOL-831	FLYWHEEL ASSY. (PHELON) (USE FOR IGN COIL OF PHELON)	1	31105-ZOL-821	D1E, D2E
	21	BRAKE SUB ASSY.	0	75110-ZOL-821	D1E, D2E
	22	SPRING BRAKE LEVER	0	75113-ZMD-000	D1E, D2E

BOOKNo.:13ZOYOE1

PARTS CATALOGUE NEWS

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GOV 190A	Base Part No.
	23	30500-ZOL-821	COL ASSY., IGN TION	1
	24	32224-ZOY-830	CORD, CHARGE COL	1	D1E, D2E

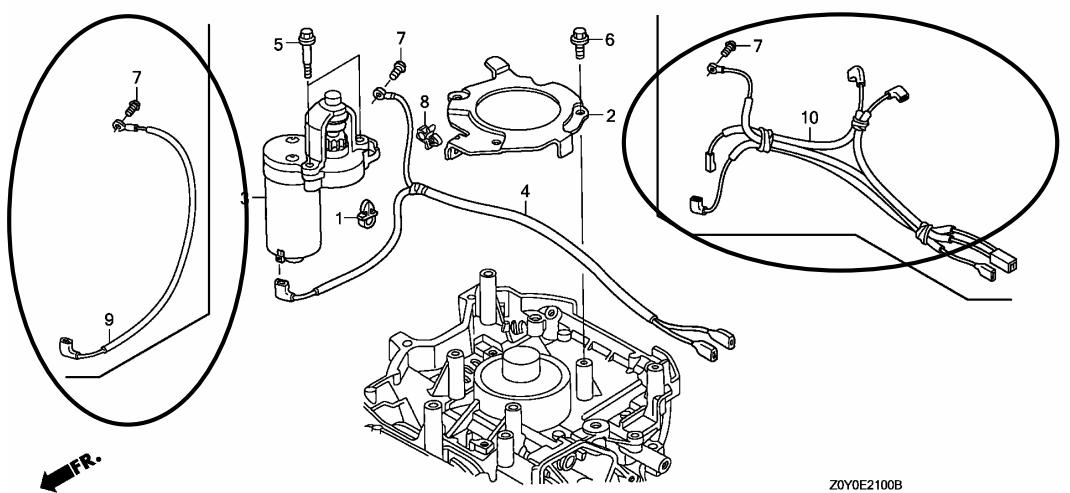

E-21 STARTER MOTOR

E-21	4	CORD, TERMINAL EARTH	0	32222-ZOL-820
	8	CLIP A, CABLE (N FCO)	0	90681-959-003	D1E, D2E
	22534-ZOL-820	HOLDER, WIRE	1	51125-ZOL-003	D1E, D2E
	22534-ZOL-820		1	90681-959-003	C1E, C2E
	9 32222-ZOL-830	CORD, TERMINAL EARTH	1		D1E, D2E
	10 32223-ZOL-820	CORD, CONB NATION	1		C1E, C2E
E-22	1 16551-ZMD-010	ARM, GOVERNOR	1
	2 16555-ZOL-800	ROD, GOVERNOR	1
	3 16561-ZMD-870	SPRING, GOVERNOR	1
	4 16562-ZMD-000	SPRING, THROTTLE RETURN	1

BOOKNo.:13ZOYOE1

PARTS CATALOGUE NEWS

Block No.	Ref. No.	Part No.	Description	Reqd. CNY		Parts catal ogue code
				GOV 190A	Base Part No.
	5	16576-ZE7-300	SPRING LEVER	1
	7	16580-ZM0-871	BASE COMP, CONTROL	1
	8	16584-883-300	SPRING CONTROL ADJUSTING	1
	9	16599-ZG1-M0	COLLAR, STOPPER	1
	10	16674-ZM0-000	ROD, CHOKE	1
	11	90015-ZE5-010	BOLT, GOVERNOR ARM	1
	12	90016-ZE7-W00	SREW RECESSED 5X28	1
	13	90016-ZM0-000	BOLT, FLANGE, 6X45(CT200)	1
	14	93500-05016-OA	SREW PAN 5X16	1
	15	94050-06000	NUT, FLANGE, 6MM	1
	17	16617-VG3-000	HOLDER, CABLE	1
E-22-1	1		ARM GOVERNOR	O	16551-ZM0-010
	2		ROD GOVERNOR	O	16555-ZOL-800
	3		SPRING GOVERNOR	O	16561-ZM0-000
	4		SPRING THROTTLE RETURN	O	16562-ZM0-000
	5		SPACER CONTROL LEVER	O	16578-ZOL-810
	6		BASE COMP, CONTROL	O	16580-ZOL-810
	7		LEVER, CHOKE	O	16612-ZOL-810
	8		GROMET, CHOKE ROD	O	16613-893-000
	9		ROD, CHOKE	O	16674-ZOL-810
	10		BOLT, GOVERNOR ARM	O	90015-ZE5-010
	11		BOLT, FLANGE, 6X45(CT200)	O	90016-ZE8-000
	12		NUT, FLANGE, 6MM	O	94050-06000
	13		CI ROLL P, EXTERNAL, 14MM	O	94511-14000

BOOKNo.:13ZOYOE1

PARTS CATALOGUE NEWS

Block No.	Ref. No.	Part No.	Description	Reqd. CNY GCV 190A	Base Part No.	Parts catal ogue code
E-28		LABEL
			MARK, ENBLEM(6.5)	O	87101-ZOY-000
			LABEL, WARNING (NOT CERTI FI ED FOR SALE)	1
			MARK, ENBLEM(GCV190)	1

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	034

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GOV 190A	Serial No.
E-11	1	D	28400-Z0Y-V20ZC	STARTER ASSY., RECO L *T98*......... MID RED	1	--------	S3A
E-12	9	T	19610-Z0L-000ZA	COVER CONP., FAN *NHI*......... BLACK	1	--------	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7 N2U, N5A, N5AF
		D	19610-Z0L-800ZE	*T98*......... MID RED	1	--------	S3A
		D	19610-Z0L-800ZF	*T98B*......... MID RED	1	--------	S3A

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

February 11, 2007

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	035

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GOV 190A	Serial No.
E-21	8	T	51125-ZOL-003	HOLDER, WIRE (FASTEX)	1	--------	E1A2

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	036

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GCV 190A	Serial No.
E-19	17	T	19612-ZMD-J20	PLATE, SIDE	1	--------	--------	D1E, D2E
		A	19612-ZOL-000		1	--------	--------	BHH, N1A, N1AF, N1G7, N1U, N2G7, N2U, N5A, N5AF
E-22-2	2	E	16592-ZJ1-000	*PARTS NO DELETION
		D	16592-Z2D-800	SPRING RETURN	1	--------	--------	R1A, R3A, S1A, S3A, S3H2
	5	E	16614-ZOL-800	*PARTS NO DELETION
		D	16614-Z2D-800	SPRING CHOKE LEVER	1	--------	--------	R1A, R3A, S1A, S3A, S3H2
	14	E	16610-ZOL-800	*PARTS NO DELETION
		D	16610-Z2D-801	LEVER ASSY., CHOKE	1	--------	--------	R1A, R3A, S1A, S3A, S3H2
E-28	6	D	87114-ZH7-810	LABEL, WARNING (NOT CERTI FIED FOR SALE)	1	--------	--------	N1U, N2U
		D	87114-ZH7-820		1	--------	1516950	S1A, S3A
		A	87114-ZH7-821		1	--------	--------	A1AE, A1AF, A1C, BHH, E1A2, N1A, N1AF, N5A, N5AF, R1A, R3A
					1	1516951	--------	S1A, S3A

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	037

BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Note	Part No.	Description	Repl. QTY		Parts catal. opaque code
					GOV 190A	Serial No.
E-12	2	L	16950-ZG9-M03	COOK ASSY., FUEL	1	-----	A1AE, A1AF, A1C, A1G7, A2G7, BHH, NIA, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF
					1	-----	S1A, S3A
	3	L	16956-ZG9-M00	BRACKET, FUEL COOK	1	-----	A1AE, A1AF, A1C, A1G7, A2G7, BHH, NIA, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF
					1	-----	S1A, S3A
	7	T	95001-55150-40	TUBE, FUEL, 5.3X150 (95001-55001-60N)	1	-----	A2G4, CIE, CZE, D1E, D2E, E1A2, R1A, R3A, S3H2
					1	-----	S1A, S3A
		A	91425-ZOL-801	TUBE, FUEL, 5.3X150(FKN)	1	1516951	S1A, S3A
	8	L	17702-ZM0-000	TUBE, FUEL	1	-----	A1AE, A1AF, A1C, A1G7, A2G7, BHH, NIA, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF
					1	-----	S1A, S3A
		D	17702-ZOL-801	TUBE, FUEL (FKN)	1	1516951	S1A, S3A
	13	L	95002-02080	CLIP, TUBE (B8)	1	-----	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, BHH C1E, C2E, D1E, D2E, E1A2, NIA N1AF, N1G7, N1U, N2G7, N2U, N5A, N5AF, R1A, R3A, S3H2
					1	-----	S1A, S3A
	14	L	95002-02100	CLIP, TUBE (B10)	2	-----	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, BHH C1E, C2E, D1E, D2E, E1A2, NIA N1AF, N1G7, N1U, N2G7, N2U, N5A, N5AF, R1A, R3A, S3H2
					2	-----	S1A, S3A
			95002-02100	CLIP, TUBE (C9)	2	-----	C1E, C2E, D1E, D2E
	15	L	95002-50000	CLIP, TUBE (C9)	1	-----	A1AE, A1AF, A1C, A1G7, A2G7, BHH, NIA, N1AF, N1G7, N1U, N2G7, N2U N5A, N5AF
					1	-----	S1A, S3A
	16	T	16950-ZM0-003	COOK ASSY., FUEL	1	-----	A2G4
					1	1516951	S1A, S3A
	18	D	95002-40800-08	CLAMP, TUBE (DB)	2	1516951	S1A, S3A

PARTS CATALOGUE NEWS
BOOKNo.:13ZOYOE1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. CNY			Parts catalogue code
					GOV 190A	Serial No.
	19	D	95002-41000-08	CLAMP, TUBE (D10)	2	1516951	--------	S1A, S3A
E-14	8		16100-Z0Y-802	CARBURETOR ASSY. (BB62K B)	1	--------	--------	R1A, R3A, S3H2
					1	1245691	1516950	S1A, S3A
		A	16100-Z0Y-821	CARBURETOR ASSY. (BB65C A)	1	1516951	--------	S1A, S3A

April 08, 2007

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	038

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY GCV 190A	Serial No.	Parts catalogue code
E-12	9	E	19610-ZOL-800ZF	*PARTS NO. DELETION

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	039

GCV190A-A3G7,A4G4,A4G7,C3E AND C4E TYPES sales parts information

NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV190A-A3G7,A4G4,A4G7,C3E and C4E types.

As for the parts not listed on this Parts Catalogue News, use the parts of the GCV190A-A1G7,A2G4,A2G7,C1E and C2E types.

• Models, parts catalogue codes and applicable serial numbers

Model	Type		Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	A1G7	Base type	A1G7	GJAA-1000001~	BB62J A/B
	A3G7	Additional type	A3G7		BB65B A
	A2G4	Base type	A2G4		BB62J B
	A4G4	Additional type	A4G4		BB65B A
	A2G7	Base type	A2G7		BB62J A/B
	A4G7	Additional type	A4G7		BB65B A
	C1E	Base type	C1E		BB62J B
	C3E	Additional type	C3E		BB65B A
	C2E	Base type	C2E		BB62J B
	C4E	Additional type	C4E		BB65B A

●Features of each type		Base type	Additional type	Base type	Additional type	Base type	Additional type	Base type	Additional type	Base type	Additional type
Specifications	Model	GCV190A
	Type	A1G7	A3G7	A2G4	A4G4	A2G7	A4G7	C1E	C3E	C2E	C4E
Crankshaft	20mm Ø X 133.8mm Straight (HRD TYPE)
	22.2mm Ø X 100.4mm Straight (N5 TYPE)
	22.2mm Ø X 117.4mm Straight (N2 TYPE)			●		●				●
	25mm Ø X 117.4mm Straight (N4 TYPE)				●		●				●
	22.2mm Ø X 135.7mm Straight (N1 TYPE)	●						●
	25mm Ø X 135.7mm Straight (N3 TYPE)		●						●
Spark arrester
Flywheel brake		●	●	●	●	●	●	●	●	●	●
Starter motor								●	●	●	●
Engine stop switch		●	●	●	●	●	●

BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY GCV 190A	Base Part No.	Parts catalogue code
E-7	CRANKSHAFT
E-7	1	CRANKSHAFT COMP.	0	13310-Z0Y-000	A3G7, C3E
	2	CRANKSHAFT COMP.	0	13310-Z0Y-600	A4G4, A4G7, C4E
	4	13310-Z0Y-610	CRANKSHAFT COMP.	1		A3G7, C3E
	7	13310-Z2D-620	CRANKSHAFT COMP.	1		A4G4, A4G7, C4E
E-8	1	13010-Z0Y-014	RING SET, PISTON (STD.)	1	13010-Z0Y-004	A3G7, A4G4, A4G7
			(TEIKOKU)
	2	13101-Z0Y-010	PISTON	1	13101-Z0Y-000	A3G7, A4G4, A4G7
	4	13200-Z0Y-010	ROD ASSY., CONNECTING	1	13200-Z0Y-000	A3G7, A4G4, A4G7
E-10	8	14711-ZL8-000	VALVE, IN. (TECHNOSTAR)	1		A3G7, A4G7
		14711-Z0J-000	VALVE, IN. (ROCKNEL)	1		A4G4, C3E, C4E
	11	14771-Z0J-000	RETainer, VALVE SPRING	2	14771-ZE1-000	A3G7, A4G7
E-11	1	STARTER ASSY., RECOIL *R280*......... POWER RED	0	28400-Z0Y-013ZA		A3G7, A4G7, C3E, C4E

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY			Parts catalogue code
				GCV 190A	Base Part No.
E-11-1	3	28462-ZL8-631	ROPE, RECOIL STARTER (LONG TYPE)	1	28462-ZL8-003	A4G4
	4	66871-611-000	NUT, CENTER PANEL	3	66871-KY2-700	A4G4
E-12	2		COCK ASSY., FUEL	0	16950-ZG9-M03	A3G7, A4G7
	3		BRACKET, FUEL COCK	0	16956-ZG9-M00	A3G7, A4G7
	4	17620-ZOM-000	CAP ASSY., FUEL TANK	1	17620-ZL8-013	A3G7, A4G4, A4G7
	5	17622-888-010	SPONGE, FUEL CAP BREATHER	1	17622-ZL8-003	A3G7, A4G4, A4G7
	6	17624-ZE7-000	PACKING, FUEL CAP	1	17624-ZL8-003	A3G7, A4G4, A4G7
	7	95001-55150-40	TUBE, FUEL, 5.3X150 (95001-55001-60M)	1	17701-ZOL-000	A3G7, A4G7
	8	17702-ZMO-800	TUBE, FUEL	1	17702-ZMO-000	A3G7, A4G7
	9		COVER COMP., FAN *R280* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	0	19610-ZOL-000ZD	A3G7, A4G4, A4G7
			*R280*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 16	95002-02080	CLIP, TUBE (B8)	1	95002-50000	A3G7, A4G7
			COCK ASSY., FUEL	1		A3G7, A4G7
E-14	8	16100-ZOY-811	CARBURETOR ASSY. (BB65B A)	1	16100-ZOY-013
E-22	7	16580-ZMO-872	BASE COMP., CONTROL	1	16580-ZMO-871
E-28	1		MARK, EMBLEM (GCV190 6.5)	0	87101-ZOY-000	A3G7, A4G7
	5	87102-ZOY-V11	MARK, EMBLEM (GCV190)	1	87102-ZOY-V10	A4G4
	6	87114-ZH7-840	LABEL, WARNING (NOT CERTIFIED FOR SALE)	1		A3G7, A4G7
	7	87101-ZOY-010	MARK, EMBLEM (GCV190)	1		A3G7, A4G7

June 10, 2007

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	040

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A
E-12	7	T	95001-55150-40	TUBE, FUEL, 5.3X150 (95001-55001-60M)	1	--------	--------	A2G4, A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D2E, S3H2
					1	--------	1489846	A1AE, A1AF, A1C, BHH, E1A2, N1A, N1AF, N5A, N5AF, R1A, R3A
					1	--------	1516950	S1A, S3A
		T	91425-Z0L-801	TUBE, FUEL, 5.3X150(FKM)	1	1489847	--------	A1AE, A1AF, A1C, BHH, E1A2, N1A, N1AF, N5A, N5AF, R1A, R3A
					1	1516951	--------	S1A, S3A
	8	T	17702-ZMO-800	TUBE, FUEL	1	--------	--------	A2G4, A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D2E, S3H2
					1	--------	1489846	A1AE, A1AF, A1C, BHH, E1A2, N1A, n1AF, N5A, N5AF, R1A, R3A
		T	17702-Z0L-801	TUBE, FUEL (FKM)	1	1489847	--------	A1AE, A1AF, A1C, BHH, E1A2, N1A, N1AF, N5A, N5AF, R1A, R3A
					1	1516951	--------	S1A, S3A
	13	L	95002-02080	CLIP, TUBE (B8)	1	--------	--------	A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D2EN1G7, N1U, N2G7, N2U, S3H2
					1	--------	1489846	A1AE, A1AF, A1C, BHH, E1A2, N1A, N1AF, N5A, N5AF, R1A, R3A
					1	--------	1516950	S1A, S3A

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A	Parts catalogue code
	14	L	95002-02100	CLIP, TUBE (B10)	2	--------	--------	A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D2E N1G7, N1U, N2G7, N2U, S3H2
					2	--------	1489846	A1AE, A1AF, A1C, BHH, E1A2, N1A, N1AF, N5A, N5AF, R1A, R3A
					2	--------	1516950	S1A, S3A
	15	T	95002-02080	CLIP, TUBE (B8)	1	--------	--------	A2G4, A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D2E, S3H2
					1	--------	1489846	A1AE, A1AF, A1C, BHH, E1A2, N1A, N1AF, N5A, N5AF, R1A, R3A
	18	T	95002-40800-08	CLAMP, TUBE (D8)	2	1489847	--------	A1AE, A1AF, A1C, BHH, E1A2, N1A, N1AF, N5A, N5AF, R1A, R3A
					2	1516951	--------	S1A, S3A
	19	T	95002-41000-08	CLAMP, TUBE (D10)	2	1489847	--------	A1AE, A1AF, A1C, BHH, E1A2, N1A, N1AF, N5A, N5AF, R1A, R3A
					2	1516951	--------	S1A, S3A
E-14	8	L	16100-Z0Y-013	CARBURETOR ASSY. (BB62J B)	1	--------	--------	A2G4, C1E, C2E, D1E, D2E
					1	--------	1489846	E1A2
					1	1225176	--------	A1G7, A2G7, N1G7, N1U, N2G7, N2U
					1	1225176	1489846	A1AE, A1AF, A1C, BHH, N1A, N1AF, N5A, N5AF
		L	16100-Z0Y-802	CARBURETOR ASSY. (BB62K B)	1	--------	--------	S3H2
					1	--------	1489846	R1A, R3A
					1	1245691	1516950	S1A, S3A
		T	16100-Z0Y-811	CARBURETOR ASSY. (BB65B A)	1	--------	--------	A3G7, A4G4, A4G7, C3E, C4E
					1	1489847	--------	A1AE, A1AF, A1C, BHH, E1A2, N1A, N1AF, N5A, N5AF
		T	16100-Z0Y-821	CARBURETOR ASSY. (BB65C A)	1	1489847	--------	R1A, R3A
					1	1516951	--------	S1A, S3A

July 16, 2007

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	041

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY GCV 190A	Serial No.		Parts catalogue code
E-28	6	T	87114-ZH7-840	LABEL, WARNING (NOT CERTIFIED FOR SALE)	1	--------	--------	A2G4, A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D2E
					1	1160623	--------	A1G7, A2G7, N1G7, N2G7, S3H2

July 22, 2007

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	042

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A
E-11-1	3	E	28462-ZL8-003	*PARTS NO. DELETION
		T	28462-ZL8-631	ROPE, RECOIL STARTER (LONG TYPE)	1	--------	A2G4, A4G4

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

August 09, 2007

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	043

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A
E-8	1	L	13010-Z0Y-004	RING SET, PISTON (STD.) (TEIKOKU)	1	--------	1575725	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7 N2U, N5A, N5AF, S1A, S3A, S3H2
					1	--------	8017196	E1A2, R1A, R3A
		T	13010-Z0Y-014	--------	1	--------	--------	A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D2E
					1	1575726	--------	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7 N2U, N5A, N5AF, S1A, S3A, S3H2
					1	8017197	--------	E1A2, R1A, R3A
	2	L	13101-Z0Y-000	PISTON	1	--------	1575725	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7 N2U, N5A, N5AF, S1A, S3A, S3H2
					1	--------		E1A2, R1A, R3A
		T	13101-Z0Y-010	--------	1	--------	--------	A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D2E
					1	1575726	--------	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, BHH, N1 A, N1AF, N1G7, N1U, N2G7 N2U, N5A, N5AF, S1A, S3A, S3H2
					1	8017197	--------	E1A2, R1A, R3A

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	044

Printed in Japan

GCV190A-D1EG TYPE sales parts information

NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV190A-D1EG type.

As for the parts not listed on this Parts Catalogue News, use the parts of the GCV190A-D2E type.

• Models, parts catalogue codes and applicable serial numbers

Model	Type		Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	D2E	Base type	D2E	GJAAA-1000001~	BB62JB
	D1EG	Additional type	D1EG		BB65BA

●Features of each type		Base type	Additional type
Specifications	Model	GCV190A
	Type	D2E	D1EG
Crankshaft	N1 Type (Ø 22.2mmX135.7mm)		●
	N2 Type (Ø 22.2mmX117.4mm)	●
Recoil starter		●	●
Flywheel brake

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GCV 190A	Base Part No.
E-3	8	98079-55846	PLUG, SPARK (BPR5ES) (NGK) .......	1	98079-56846
E-7	1	13310-Z0Y-000	CRANKSHAFT COMP. .......	1
	2		CRANKSHAFT COMP. .......	0	13310-Z0Y-600
E-10	8	14711-Z0J-000	VALVE, IN. (ROCKNEL) .......	1
E-11	1		STARTER ASSY., RECOIL *NH1* ... ... ... BLACK	0	28400-Z0Y-013ZB
		28400-ZL8-023ZA	*NH1* ... ... ... BLACK	1	28400-Z0Y-013ZA
	3	28462-ZL8-003	ROPE, RECOIL STARTER .......	1	28462-ZL8-631

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GCV 190A	Base Part No.
E-12	1		RUBBER, SUPPORTER (107MM)	0	16854-ZH8-000
	4		CAP ASSY., FUEL TANK	0	17620-ZL8-013
	5		SPONGE, FUEL CAP BREATHER	0	17622-ZL8-003
	6		PACKING, FUEL CAP	0	17624-ZL8-003
	7		TUBE, FUEL, 5.3X150 (95001-55001-60M)	0	95001-55150-40
	8		TUBE, FUEL	0	17702-ZM0-800
	9		COVER COMP., FAN *NH1*	BLACK	19610-ZOL-820ZA
			*R280*	POWER RED	19610-ZOL-820ZB
	10		BOLT, STUD (H=42.5MM)	0	90043-ZL8-000
	11		COLLAR, FUEL COCK	0	91501-ZOL-800
	13		CLIP, TUBE (B8)	0	95002-02080
	14		CLIP, TUBE (B10)	0	95002-02100
	15		CLIP, TUBE (B8)	0	95002-02080
	17		COLLAR, FAN COVER	0	19619-ZL8-300
	20		BOLT, STUD (H=37.5MM)	0	90043-ZOL-820

BOOKNo.:13Z0Y0E1

Bloi No.

Ref. No.

Part No.

Description

Reqd.QTY

Base Part No.

Parts catalogue code

GCV 190A

E-12-1

Ref.

(Relative ref. Number)

No. LON

Description

FRT

1 1141G8

COVER, ENGINE COOLING FAN 0.2

Z0Y0E1201

E-12-1

1 19611-Z0J-820ZA

COVER, FAN

1

*NH1*.

2 19619-ZL8-300

COLLAR. FAN COVER

3

3 90043-ZL8-000

BOLT, STUD (H=42.5MM)

2

4 90043-ZOL-820

BOLT, STUD (H=37.5MM)

1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY GCV 190A	Base Part No.	Parts catalogue code
E-14	CARBURETOR
	Ref. No. LON	(Relative ref. Number) Description	FRT
	15	(19)
	3111G8	GUIDE, CARBURETOR AIR	0.3
				1	16100-Z0Y-013
	13	PACKING, CARBURETOR	0	16221-883-800
	15	GUIDE COMP., AIR	0	19650-ZMO-000
	19	GUIDE, AIR	1
E-15	3	17220-ZMO-010	CASE ASSY., AIR CLEANER	1	17220-ZMO-000
	6	90003-ZMO-010	BOLT, FLANGE, 6X83.5 (GT200)	2	90003-ZMO-000
	7		BOLT, FLANGE, 6X14	0	95701-06014-08

BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY GCV 190A	Base Part No.	Parts catalogue code
E-17-10
	Ref. No. LON	(Relative ref. Number) Description	FRT
	2 3101H8	STRAINER, FUEL	0.1
	3 3101A3	COCK, FUEL	0.1
	4 3101V5	TUBE, FUEL	0.2
	6 3101F1	(FUEL COCK-CARBURETOR)	0.1
		TUBE, FUEL TANK	0.1
				ZOYOE1710
E-17-10	1	16854-ZH8-000	RUBBER, SUPPORTER (107MM)	1
	2	16910-ZV4-015	STRAINER COMP., FUEL	1
	3	16950-ZMO-003	COCK ASSY., FUEL	1
	4	17702-ZMO-800	TUBE, FUEL	1
	5	91501-ZOL-800	COLLAR, FUEL COCK	1
	6	95001-55150-40	TUBE, FUEL, 5.3X150 (95001-55001-60M)	1
	7	95002-02080	CLIP, TUBE (B8)	2
	8	95002-02100	CLIP, TUBE (B10)	2
	9	93891-05010-08	SCREW-WASHER, 5X10	1
E-19	17	19612-ZOL-000	PLATE, SIDE	1	19612-ZMO-J20
E-22	7	16580-ZMO-872	BASE COMP., CONTROL	1	16580-ZMO-871

February 25, 2008

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	045

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A	A1C, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, BHH, C1E, C2E, C3E, C4E, D1E D1EG, D2E, E1A2, N1A, N1G7, N1U, N2G7, N2U, N5A
	3	L	16015-887-782	CHAMBER SET, FLOAT	1	--------	--------	A1C, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, BHH, C1E, C2E, C3E, C4E, D1E
				(CARBURETOR NO.)	1	--------	BB65B A	A1AE, A1AF, N1AF, N5AF
				(CARBURETOR NO.)	1	--------	BB65C A	R1A, R3A, S1A, S3A, S3H2
	4	L	16016-ZGO-W00	SCREW SET	1	--------	--------	A1C, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, BHH, C1E, C2E, C3E, C4E, D1E
				(CARBURETOR NO.)	1	--------	BB65B A	A1AE, A1AF, N1AF, NF5AF
				(CARBURETOR NO.)	1	--------	BB65C A	R1A, R3A, S1A, S3A, S3H2
	5	L	16024-ZE1-811	SCREW SET, DRAIN	1	--------	--------	A1C, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, BHH, C1E, C2E, C3E, C4E, D1E
				(CARBURETOR NO.)	1	--------	BB65B A	A1AE, A1AF, N1AF, NB5AF
				(CARBURETOR NO.)	1	--------	BB65C A	R1A, R3A, S1A, S3A, S3H2
	7	L	16029-ZGO-901	SCREW SET (THROTTLE STOP)	1	--------	--------	A1C, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, BHH, C1E, C2E, C3E, C4E, D1E
				(CARBURETOR NO.)	1	--------	BB65B A	A1AE, A1AF, N1AF, NLAF
				(CARBURETOR NO.)	1	--------	BB65C A	R1A, R3A, S1A, S3A, S3H2
	20	D	16015-ZOL-881	CHAMBER SET, FLOAT	1	BB65M A	--------	A1AE, A1AF, N1AF, NLAF
				(CARBURETOR NO.)	1	BB65N A	--------	R1A, R3A, S1A, S3A, S3H2

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	046

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A	A1C, BHH, E1A2, N1A, N2U, N5A
E-14	3	L	16015-887-782	CHAMBER SET, FLOAT	1	--------	--------	A1C, BHH, E1A2, N1A, N2U, N5A
				(CARBURETOR NO.)	1	-------- BB65B A	A1AE, A1AF, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E D1E, D1EG, D2E, N1AF, N1G7, N1U, N2G7, N5AF
				(CARBURETOR NO.)	1	-------- BB65C A	R1A, R3A, S1A, S3A, S3H2
	5	L	16024-ZE1-811	SCREW SET, DRAIN	1	--------	--------	A1C, BHH, E1A2, N1A, N2U, N5A
				(CARBURETOR NO.)	1	-------- BB65B A	A1AE, A1AF, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, C1E, C2E, c3E, C4E D1E, D1EG, D2E, N1AF, N1G7, N1U, N2G7, N5AF
				(CARBURETOR NO.)	1	-------- BB65C A	R1A, R3A, S1A, S3A, S3H2
	20	T	16015-ZOL-881	CHAMBER SET, FLOAT (CARBURETOR NO.)	1	BB65B B	-------- A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D1EG D2E, N1G7, N1U, N2G7
				(CARBURETOR NO.)	1	BB65M A	A1AE, A1AF, N1AF, N5AF
				(CARBURETOR NO.)	1	BB65N A	R1A, R3A, S1A, S3A, S3H2

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	047

Block

No

Ref.

No.

Part No.

Description

Reqd.QTY

GCV 190A

Serial No.

Parts catalogue code

ENGINE SERIAL No. OF GCV190A CORRECTED

Model	Type	Parts catalogue type	Applicable engine serial No.
GCV190A	A1AE	A1AE	GJAAA-1000001~
	A1AF	A1AF
	A1C	A1C	GJAAA-1000001~7999999
	A1G7	A1G7	GJAAA-1000001~
	A2G4	A2G4
	A2G7	A2G7
	A3G7	A3G7
	A4G4	A4G4
	A4G7	A4G7
	BHH	BHH
	C1E	C1E
	C2E	C2E
	C3E	C3E
	C4E	C4E
	D1E	D1E
	D1EG	D1EG

Model	Type	Parts catalogue type	Applicable engine serial No.
GCV190A	D2E	D2E	GJAAA-1000001~
	E1A2	E1A2	GJAAA-8000001~9999999
	N1A	N1A	GJAAA-1000001~1607128
	N1AF	N1AF	GJAAA-1000001~
	N1G7	N1G7
	N1U	N1U
	N2G7	N2G7
	N2U	N2U	GJAAA-1000001~7999999
	N5A	N5A	GJAAA-1000001~
	N5AF	N5AF	GJAAA-1000001~1607128
	R1A	R1A	GJAAA-8000001~
	R3A	R3A
	S1A	S1A	GJAAA-1000001~
	S3A	S3A	GJAAA-1000001~1607128
	S3H2	S3H2	GJAAA-1000001~

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	048

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A
E-3	8	L	98079-56846	PLUG, SPARK (BPR6ES) (NGK) ....	1	--------	--------	A1C, E1A2, N1A, N1AF, N2U, N5A, N5AF, R1A, R3A, S3A
					1	--------	1693051	A1AE, A1AF, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, BHH, C1E, C2E, C3E C4E, D1E, D2E, N1G7, N1U, N2G7, S1A, S3H2
		T	98079-55846	PLUG, SPARK (BPR5ES) (NGK) ....	1	--------	--------	D1EG
					1	1693052	--------	A1AE, A1AF, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, BHH, C1E, C2E, C3E C4E, D1E, D2E, N1G7, N1U, N2G7, S1A, S3H2

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	049

Printed in Japan

GCV190A-N2K7 TYPE sales parts information

NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV190A-N2K7 type.

As for the parts not listed on this Parts Catalogue News, use the parts of the GCV190A-N2G7 type.

• Models, parts catalogue codes and applicable serial numbers

Model	Type		Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	N2G7	Base type	N2G7	GJAAA-1000001~	BB62J A/B
	N2K7	Additional type	N2K7		BB65B B

Features of each type		Base type	Additional type
Specifications	Model	GCV190A
	Type	N2G7	N2K7
Crankshaft	20mm Ø X 133.8mm Straight (HRD TYPE)
	22.2mm Ø X 100.4mm Straight (N5 TYPE)
	22.2mm Ø X 117.4mm Straight (N2 TYPE)	●	●
	25mm Ø X 117.4mm Straight (N4 TYPE)
	22.2mm Ø X 135.7mm Straight (N1 TYPE)
	25mm Ø X 135.7mm Straight (N3 TYPE)
Spark arrester
Flywheel brake
Starter motor
Engine stop switch		●	●

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GCV 190A	Base Part No.
E-8	4	13200-Z0Y-010	ROD ASSY., CONNECTING	1	13200-Z0Y-000
E-10	8	14711-ZL8-000	VALVE, IN. (TECHNOSTAR)	1	14711-Z0J-000
		14711-Z0J-800	VALVE, IN.	1
	11	14771-Z0J-000	RETainer, VALVE SPRING	2	14771-ZE1-000
E-11	1		STARTER ASSY., RECOIL *R280*.........POWER RED	0	28400-Z0Y-013ZA
E-12	2		COCK ASSY., FUEL	0	16950-ZG9-M03
	3		BRACKET, FUEL COCK	0	16956-ZG9-M00
	4	17620-Z0M-000	CAP ASSY., FUEL TANK	1	17620-ZL8-013
	5	17622-888-010	SPONGE, FUEL CAP BREATER	1	17622-ZL8-003
	6	17624-ZE7-000	PACKING, FUEL CAP	1	17624-ZL8-003
	7	95001-55150-40	TUBE, FUEL, 5.3X150 (95001-55001-60M)	1	17701-Z0L-000
	8	17702-ZM0-800	TUBE, FUEL	1	17702-ZM0-000
	9		COVER COMP., FAN *R280*.........POWER RED	0	19610-Z0L-000ZD
	15	95002-02080	CLIP, TUBE (B8)	1	95002-50000
	16	16950-ZM0-003	COCK ASSY., FUEL	1

BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY GCV 190A	Base Part No.	Parts catalogue code
E-14	CARBURETOR
E-14	8	16100-Z0Y-812	CARBURETOR ASSY. (BB65B B)	1	16100-Z0Y-013
	11		INSULATOR, CARBURETOR	0	16211-ZL8-000
	13		PACKING, CARBURETOR	0	16221-883-800
	15		GUIDE COMP., AIR	0	19650-ZM0-000
	19	19651-Z0L-000	GUIDE, AIR	1
	21	16210-ZL8-000	INSULATOR, CARBURETOR	1
	22	90634-ZL8-000	CAP, SEALING	1
	23	95002-02650	CLIP, TUBE (B6.5)	1
E-15	3	17220-ZMO-010	CASE ASSY., AIR CLEANER	1	17220-ZM0-000
	6	90003-ZMO-010	BOLT, FLANGE, 6X83.5 (CT200)	2	90003-ZM0-000
	7		BOLT, FLANGE, 6X14	0	95701-06014-08
E-22	2	16555-Z0L-801	ROD, GOVERNOR	1	16555-Z0L-800

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GCV 190A	Base Part No.
	7	16580-ZM0-882	BASE COMP., CONTROL	1	16580-ZM0-881
E-28	1		MARK, EMBLEM (GCV190 6.5)	0	87101-Z0Y-000
	7	87101-Z0Y-010	MARK, EMBLEM (GCV190)	1

May 19, 2008

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	050

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A
E-19	6	E	35120-ZL8-003	*PARTS NO. DELETION
	15	T	93892-04012-00	SCREW-WASHER, 4X12	1	--------	--------	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, S1A, S3A, S3H2
	16	T	94103-04000	WASHER, PLAIN, 4MM	1	--------	--------	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, S1A, S3A, S3H2

PARTS CATALOGUE NEWS

E-22	20	D	35120-ZL8-003	SWITCH ASSY., ENGINE STOP (N. 0)	1	--------	BHH, N1G7, N1U, N2G7, N2K7, N2U
	21	D	93892-04012-00	SCREW-WASHER, 4X12	1	--------	BHH, N1G7, N1U, N2G7, N2K7, N2U
	22	D	94103-04000	WASHER, PLAIN, 4MM	1	--------	BHH, N1G7, N1U, N2G7, N2K7, N2U

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

August 03, 2008

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	051

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GCV 190A	Serial No.
E-14	8	L	16100-Z0Y-013	CARBURETOR ASSY. (BB62JB) ...	1	--------	--------	E1A2
					1	--------	1489846	A2G4, C1E, C2E, D1E, D2E
					1	1225176	--------	N2U
					1	1225176	1489846	A1AE, A1AF, A1C, A1G7, A2G7, BHH, N1A, N1AF, N1G7, N1U, N2G7, N5AN5AF
		T	16100-Z0Y-811	CARBURETOR ASSY. (BB65BA) ...	1	--------	--------	A3G7, A4G4, A4G7, C3E, C4E, D1EG
					1	1489847	--------	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, BHH, C1E, C2E, D1E, D2E, N1A, N1AF N1G7, N1U, N2G7, N5A, N5AF

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	052

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Serial No.	Parts catalogue code
					GCV 190A
E-14	8	L	16100-Z0Y-811	CARBURETOR ASSY. (BB65B A) ...	1	--------	1834186	A3G7, A4G4, A4G7, C3E, C4E, D1EG
					1	1489847	--------	A1AE, A1AF, A1C, BHH, N1A, N1AF, N5A, N5AF
					1	1489847	1834186	A1G7, A2G4, A2G7, C1E, C2E, D1E, D2E, N1G7, N1U, N2G7
		T	16100-Z0Y-812	CARBURETOR ASSY. (BB65B B) ...	1	--------	--------	N2K7
					1	1834187	--------	A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D1EG D2E, N1G7, N1U, N2G7

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	053

Printed in Japan

GCV190A-S1G4 AND S4G4 TYPES sales parts information

NOTE: This Parts Catalogue News explains only the parts of the different model that are produced to conform to addition of the GCV190A-S1G4 and S4G4 types.

As for the parts not listed on this Parts Catalogue News, use the parts of the GCV190A-N1G7 and A4G4 types.

• Models, parts catalogue codes and applicable serial numbers

Model	Type		Parts catalogue type	Applicable engine serial No.	Applicable carburetor identification No.
GCV190A	N1G7	Base type	N1G7	GJAA-1000001~	BB62J A/B BB65B A/B
	S1G4	Additional type	S1G4		BB75A A
	A4G4	Base type	A4G4		BB65B A/B
	S4G4	Additional type	S4G4		BB75A A

●Features of each type		Base type	Additional type	Base type	Additional type
Specifications	Model Type	GCV190A
		N1G7	S1G4	A4G4	S4G4
Crankshaft	20mm Ø X 133.8mm Straight (HRD TYPE)
	22.2mm Ø X 100.4mm Straight (N5 TYPE)
	22.2mm Ø X 117.4mm Straight (N2 TYPE)
	25mm Ø X 117.4mm Straight (N4 TYPE)			●	●
	22.2mm Ø X 135.7mm Straight (N1 TYPE)	●	●
	25mm Ø X 135.7mm Straight (N3 TYPE)
Spark arrester
Flywheel brake				●	●
Starter motor
Engine stop switch		●	●	●	●

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY			Parts catalogue code
				GCV 190A	Base Part No.
E-8	4	13200-Z0Y-010	ROD ASSY., CONNECTING	1	13200-Z0Y-000	S1G4
E-10	8	14711-ZL8-000	VALVE, IN. (TECHNOSTAR)	1	14711-Z0J-000	S1G4
		14711-Z0J-800	VALVE, IN.	1		S1G4
		14711-Z0J-800		1	14711-Z0J-000	S4G4
	11	14771-Z0J-000	RETainer, VALVE SPRING	2	14771-ZE1-000	S1G4
E-11	1		STARTER ASSY., RECOIL *R280* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	0	28400-Z0Y-013ZA	S1G4
			*NH1* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	S1G4
	2		GRIP, STARTER	0	28461-ZL8-003	S1G4
	3		ROPE, RECOIL STARTER (LONG TYPE)	0	28462-ZL8-631	S1G4
	4		NUT, FLANGE, 6MM	0	90201-ZM0-000	S1G4
E-11-1	1	28400-Z0M-801	STARTER ASSY., RECOIL	1		S1G4
	2	28461-ZL8-003	GRIP, STARTER	1		S1G4
	3	28462-ZL8-631	ROPE, RECOIL STARTER (LONG TYPE)	1		S1G4
	4	66871-611-000	NUT, CENTER PANEL	3		S1G4
	5	90201-ZM0-000	NUT, FLANGE, 6MM	3		S1G4
E-12	2		COCK ASSY., FUEL	0	16950-ZG9-M03	S1G4
	3		BRACKET, FUEL COCK	0	16956-ZG9-M00	S1G4
	4	17620-Z0M-000	CAP ASSY., FUEL TANK	1	17620-ZL8-013	S1G4
	5	17622-888-010	SPONGE, FUEL CAP BREATHER	1	17622-ZL8-003	S1G4
	6	17624-ZE7-000	PACKING, FUEL CAP	1	17624-ZL8-003	S1G4
	7	95001-55150-40	TUBE, FUEL, 5.3X150 (95001-55001-60M)	1	17701-Z0L-000	S1G4
	8	17702-ZM0-800	TUBE, FUEL	1	17702-ZM0-000	S1G4

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY			Parts catalogue code
				GCV 190A	Base Part No.
	9		COVER COMP., FAN *R280* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Black	0	19610-ZOL-000ZD S1G4
		19610-ZOL-010ZA	*NH1*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Black	1	19610-ZOL-000ZA
	10	90043-ZL8-000	BOLT, STUD (H=42.5MM)	2	90043-ZL8-000	S1G4
	11	91501-ZOL-800	COLLAR, FUEL COCK	1	33609-GK4-620	S1G4
	15	95002-02080	CLIP, TUBE (B8)	1	95002-50000	S1G4
	16	16950-ZMO-003	COCK ASSY., FUEL	1		S1G4
	20	90043-ZOJ-900	BOLT, STUD (H=39.5MM)	1		S1G4

E-14 CARBURETOR

E-14	8	16100-Z0Y-871	CARBURETOR ASSY. (BB75A A) ...	1	16100-Z0Y-812
	11		INSULATOR, CARBURETOR	0	16211-ZL8-000
	13		PACKING, CARBURETOR	0	16221-883-800
	14	16228-Z0L-840	PACKING, CARBURETOR (CHOKE SIDE)	1	16228-ZL8-000

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY		Parts catalogue code
				GCV 190A	Base Part No.
	15		GUIDE COMP., AIR	0	19650-ZM0-000
	17	99101-124-0620	JET, MAIN, #62	(1)	99101-124-0700
		99101-124-0680	JET, MAIN, #68	1	99101-124-0680
	19	19651-Z0L-000	GUIDE, AIR	1
	24	16148-Z1L-851	CAP, CHOKE DUST	1
	25	16600-Z0L-840	CONTROL ASSY., CHOKE	1
E-15	3	17220-ZMO-010	CASE ASSY., AIR CLEANER	1	17220-ZM0-000
	6	90003-ZMO-010	BOLT, FLANGE, 6X85 (CT200)	2	90003-ZM0-000
	7		BOLT, FLANGE, 6X14	0	95701-06014-08
E-19	2		KEY, SPECIAL WOODRUFF, 25X18	0	13331-357-000	S1G4
	3		COIL ASSY., IGNITION (PHELON) (USE FOR F/W OF PHELON)	0	30500-Z0J-003	S1G4
		30500-ZL8-014	COIL ASSY., IGNITION (TEC) (USE FOR F/W OF TEC)	1	30500-Z0J-003	S4G4
	4		FLYWHEEL ASSY. (PHELON) (USE FOR IGN. COIL OF PHELON)	0	31105-Z0Y-J11	S1G4
		31105-Z0Y-800	FLYWHEEL ASSY. (TEC) (USE FOR IGN. COIL OF TEC)	1	31105-Z0Y-010	S4G4
	5		CORD, STOP SWITCH	0	32195-ZM0-800	S1G4
	7		BRAKE ASSY.	0	75100-ZM0-000	S4G4
	8	75110-Z0L-900	BRAKE SUB ASSY.	1		S4G4
	12		BOLT, FLANGE, 6X20 (CT200)	0	90022-888-010	S1G4
		90018-ZE1-000	BOLT, FLANGE, 6X23 (CT200)	1	90022-888-010	S4G4
	13		NUT, FLANGE, 14MM	0	90213-S3Y-000	S1G4
	14		CLIP A, CABLE (NIFCO) (3.8MM BLACK)	0	90681-959-003	S1G4
	17		PLATE, SIDE	0	19612-Z0L-000	S1G4

BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY			Parts catalogue code
				GCV 190A	Base Part No.
	19		BOLT, FLANGE, 6X12 (CT200) ....	0	90013-883-000	S1G4

E-19-1

Service Item	F.R.T.
CORD, STOP SWITCH	0.1
COIL ASSY., IGNITION	0.2
.FAN, COOLING
FLYWHEEL COMP.	0.3

E-19-1

1

13331-357-000

KEY, SPECIAL WOODRUFF, 25X18 .

1

S1G4

2

19511-Z0J-900

FAN, COOLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

S1G4

3

19612-Z0L-000

PLATE, SIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

28451-Z0J-900

PULLEY, STARTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..

5

28452-Z0J-900

GRID, SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6

30500-Z0J-004

COIL ASSY., IGNITION (TOYO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

31110-Z0J-004

FLYWHEEL COMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

32195-Z0L-900

CORD, STOP SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

90013-883-000

BOLT, FLANGE, 6X12 (CT200) . . . . . . . . . . .

10

90018-ZE1-000

BOLT, FLANGE, 6X23 (CT200) . . . .

11

90201-Z0T-800

NUT, SPECIAL, 14MM . . . .

S1G4

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Part No.	Description	Reqd. QTY			Parts catalogue code
				GCV 190A	Base Part No.
	12	90681-959-003	CLIP A, CABLE (NIFCO) (3.8MM BLACK)	1		S1G4
E-22	2	16555-Z0L-801	ROD, GOVERNOR	1	16555-Z0L-800
	7	16580-Z0Y-840	BASE COMP., CONTROL	1	16580-ZMO-872	S4G4
		16580-Z0Y-850		1	16580-ZMO-881	S1G4
	10		ROD, CHOKE	0	16674-ZMO-000
	16	16593-Z0L-000	SPRING, CONTROL LEVER RETURN.	1		S1G4

E-28 LABEL

E-28 1 MARK, EMBLEM (GCV190 6.5) .... 0 87101-ZOY-000 S1G4

5 87102-Z0Y-V11 MARK, EMBLEM (GCV190) 1 S1G4

8 87529-Z0Y-840 MARK, AUTO CHOKE 1

November 17, 2008

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	054

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GCV 190A	Serial No.
E-19	1	L	11344-MBO-000	GROMMET A, RR. COVER (8X16X6.6)	1	--------	S1A, S3A
					1	1877909	S3H2
		D	11344-ZOL-800	GROMMET A, RR. COVER (8X16X8)	1	1877909	S3H2
	7	L	75100-ZMO-000	BRAKE ASSY.	1	1877909	A1AE, A1AF, A1C
					1	1877909	A1G7, A2G4, A2G7, A3G7, A4G4, A4G7
	8		75110-ZOL-800	BRAKE SUB ASSY.	1	1877909	S1A, S3A
					1	1877909	S3H2
		T	75110-ZOL-900	--------	1	1877910	S4G4
					1	1877910	A1G7, A2G4, A2G7, A3G7, A4G4, A4G7
		A	75110-ZOY-000	--------	1	1877910	S3H2
	21		75110-ZOL-821	BRAKE SUB ASSY.	1	1877910	E1A2, R1A, R3A
					1	1877909	C1E, C2E, C3E, C4E
		A	75110-ZOL-822	--------	1	1877910	C1E, C2E, C3E, C4E
	25	D	91601-ZOL-300	GROMMET, BRAKE PLATE	1	1877910	S3H2

December 08, 2008

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	055

PARTS CATALOGUE NEWS
BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GCV 190A	Serial No.
E-12	10	K	90043-ZL8-000	BOLT, STUD (H=42.5MM)	2	--------	--------	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, BHH, C1E, C2E
								C3E, C4E, D1E, D2E, E1A2, N1A, N1AF, N1G7, N1U, N2G7, N2K7, N2U, N5AN5AF, R1A, R3A, S1A, S1G4, S3A, S3H2, S4G4
	20	D	90043-ZL8-000	BOLT, STUD (H=42.5MM)	1	--------	--------	A1AE, A1AF, A1C, A1G7, A2G4, A2G7, A3G7, A4G4, A4G7, BHH, E1A2, N1AN1AF, N1G7, N1U, N2G7, N2K7, N2U, N5AN5AF, R1A, R3A, S1A, S3A, S3H2S4G4
E-14	8	L	16100-Z0Y-802	CARBURETOR ASSY. (BB62K B)	1	--------	1489846	R1A, R3A
					1	--------	1611438	S3H2
					1	1245691	1516950	S1A, S3A
		T	16100-Z0Y-821	CARBURETOR ASSY. (BB65C A)	1	1489847	--------	R1A, R3A
					1	1516951	--------	S1A, S3A
					1	1611439	--------	S3H2

E-19

FLYWHEEL (ALUMINUM) /IGNITION COIL

BLOCK TITLE CORRECTED

BOOKNo.:13Z0Y0E1

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY		Parts catalogue code
					GCV 190A	Serial No.

E-19-1

FLYWHEEL (CAST IRON) /IGNITION COIL

BLOCK TITLE CORRECTED

HONDA

POWERPRODUCTS

PARTS CATALOGUE NEWS

Honda Motor Co., Ltd. Service Division

PARTS CATALOGUE - CORRECTED

Printed in Japan

February 22, 2009

CODE NO.	BOOKLET TYPE	13Z0Y0E1
	MICRO- FICHE	13Z0Y0EA/FA/GA
PARTS CATALOGUE NEWS	GCV190A
NEWS NO.	056

Block No.	Ref. No.	Note	Part No.	Description	Reqd. QTY			Parts catalogue code
					GCV 190A	Serial No.
E-22	6	T	16576-891-000	HOLDER, CABLE	1	--------	--------	S1G4, S4G4
					1	--------	1077417	A1C, A1G7, A2G7, BHH, N1G7, N1U, N2G7, N2U
	7	E	16580-Z0Y-840	*PARTS NO. DELETION
		D	16580-Z0Y-841	BASE COMP., CONTROL	1	--------	--------	S1G4, S4G4
		E	16580-Z0Y-850	*PARTS NO. DELETION
	16	T	16593-ZMO-000	SPRING, CONTROL LEVER RETURN.	1	--------	--------	BHH, N1U, N2G7, N2K7, N2U, S1G4
		E	16593-ZOL-000	*PARTS NO. DELETION
	17	T	16617-VG3-000	HOLDER, CABLE	1	--------	--------	A2G4, A3G7, A4G4, A4G7, C1E, C2E, C3E, C4E, D1E, D1EG, D2E, N2K7
					1	1077418	--------	A1C, A1G7, A2G7, N1G7, N1U, N2G7, N2U
