USER MANUAL THASN476TM4-S HAIER

IT 3

DE 11

EN 19

ES 27

FR 35

NL 43

PT 51

BG 59

HR 67

HU 75

SL 83

SR 91

CS 99

PL 107

RO 115

SK 123

UA 131

EL 139

DA 147

SV 155

FI 163

NO 171

IT

PROGRAMMA

(MAX)(vedere pannello di controllo)

DETERGENTE

LAVAGGIO NOTTURNO

EXTRA RISCIACQUO

IGIENE +

STIRATURA FACILE

LIVELLO MACCHIE

PARTENZARITARDATA

5kg

5,5kg

6kg

6,5kg

7kg

7,5kg

8kg

8,5kg

(MAX)

1 o 2

RAPIDO 44'

33

333,53,53,53,53,540°

●

●

/

○

/

/

○

RAPIDO 14'

11

11111

1,51,530°

●

●

/

○

/

/

○

MISTI & COLORATI 59'

55,566,577,588,540°

●

●

/

○

/

/

○

LANA / LAVAGGIO A MANO

11

11111

2230°

●

●

○

○

/

○

/

○

STIRATURA FACILE PLUS

1,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52

-

SCARICO & CENTRIFUGA

-

-

-

-

-

-

-

-

-

/

/

/

○

RISCIACQUO

-

-

-

-

-

-

-

-

-

△

●

/

/

/

○

STEAM HYGIENE PLUS

2,52,5333,53,54460°

●

●

/

○

/

/

○

[T86B]

BABY CARE

22222,52,52,52,52,540°

●

●

○

○

○

/

○

FRESH CARE

22222,52,52,52,52,540°

●

●

/

○

/

/

○

ECO 40-60

55,566,577,588,560°

●

●

/

/

/

○

○

20 °C

55,566,577,588,560°

●

●

○

○

/

○

○

[TSY7]

SINTETICI

2,52,5333,53,54460°

●

●

(●)

○

○

○

○

COTONE

55,566,577,588,590°

●

●

(●)

○

○

○

/

CONTROLLO REMOTO (Wi-Fi)Posizione da selezionare quando si desidera abilitare il controllo remoto tramite l'app (via Wi-Fi).

EN Washing machine Top loader

Before using the device, carefully read the safety instructions.

Before using the washing machine, it is absolutely necessary to remove the screws and transport lock spacers.

For detailed instructions on the removal procedure, see the Installation Instructions

Download the hOn App

1. Installation

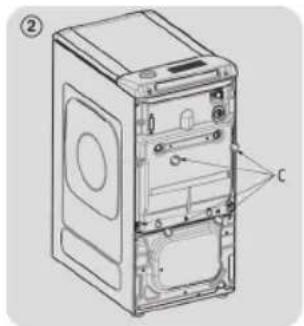

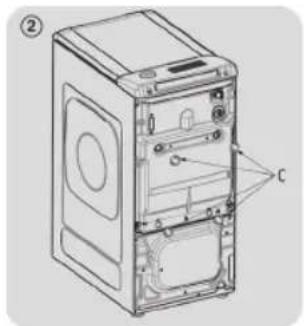

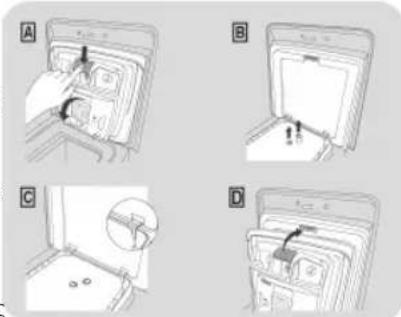

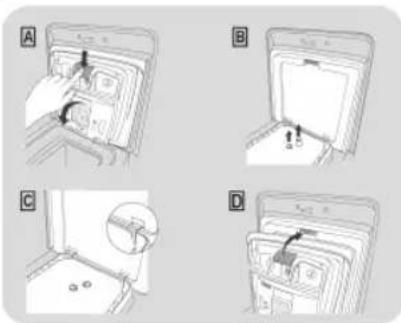

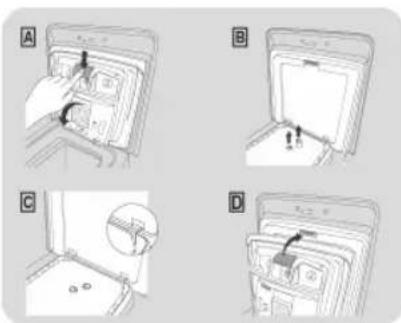

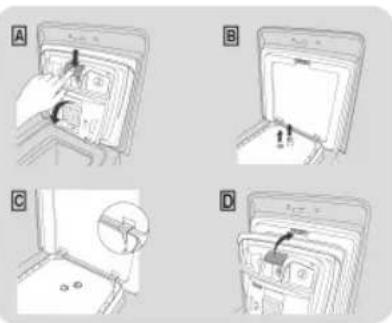

1.1 - Transportation bolts removal

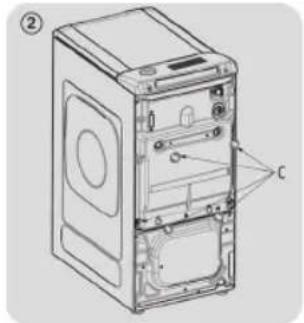

• Remove the 2 or 4 transportation screws (A) on the back and remove the 2 or 4 flat washers, rubber bungs and plastic spacer tubes (B) as illustrated in figure 1. • Fit the trims provided "C" (fig. 2).

1.2 - Carefully remove and dispose of the protective profile located under the washing machine door (as shown in Figure 3).

1.3 - Aligning the appliance

- Level the machine by adjusting the front feet (fig. 4).

a) Turn the nut clockwise to release the screw on the foot. b) Raise or lower the foot by rotating it until it stands firmly on the floor. c) Lock the foot in position by turning the nut anticlockwise until it comes up against the bottom of the washing machine.

• Check that the appliance is properly levelled.
• Check that the washing machine does not rock by trying to move two diagonally opposite top corners at the same time.
• If you move the washing machine from one place to another, you must level the feet again afterwards.

1.4 - Hydraulic connections

• The washing machine should be connected to the water mains via the new tube supplied with the appliance (inside the drum). Do not use the old tube for this purpose.
• Connect one end of the water inlet pipe with the elbow bend to the electrovalve (top rear part of the machine) and the other end to a tap or a plumbed-in 3/4" gas threaded connection
• Place the washing machine close to the wall, ensuring that there are no bends or kinks anywhere in the tube.

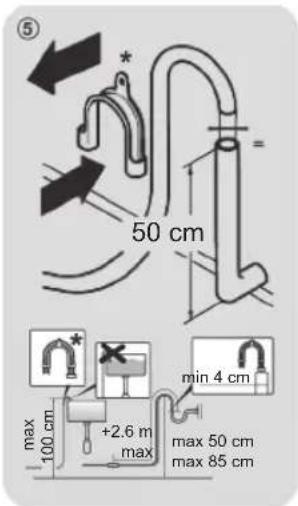

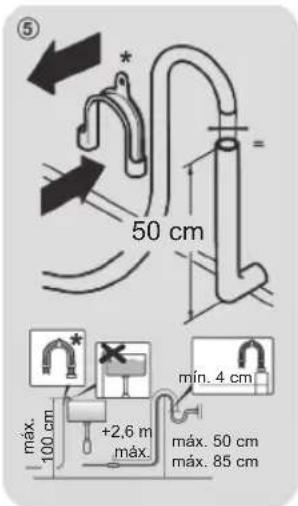

• Hook the outlet pipe to the edge of the sink or preferably to a fixed drainage outlet of a diameter greater than that of the outlet pipe and at a height of min. 50 cm and a maximum of 75 cm from the floor (fig. 5).
• If necessary, use the curved* accessory to attach and support the outlet pipe more securely.

* Accessory sold separately

• Connect the water hose to the water supply tap (fig. 6) only using the hose supplied with the appliance (do not reuse old hose-sets).
• Some models may include one or more of the following features:
• HOT&COLD (fig. 7): water mains connection settings with hot and cold water for higher energy savings. Connect the grey tube to the cold water faucet and the red one to the hot water faucet. The machine can be connected to the cold water faucet only: in this case, some programs may start a few minutes later.
• AQUASTOP (fig. 8): a device located on the supply tube that stops water flow if the tube deteriorates; in this case, a red mark will appear in the window "A" and the tube must be replaced. To unscrew the nut, press the one-way lock device "B".
• AQUAPROTECT - SUPPLY TUBE WITH GUARD (fig. 9): should water leak from the primary internal tube "C", the transparent containment sheath "D" will contain water to permit the washing cycle to complete. At the end of the cycle, contact the Customer Service Centre to replace the supply tube.

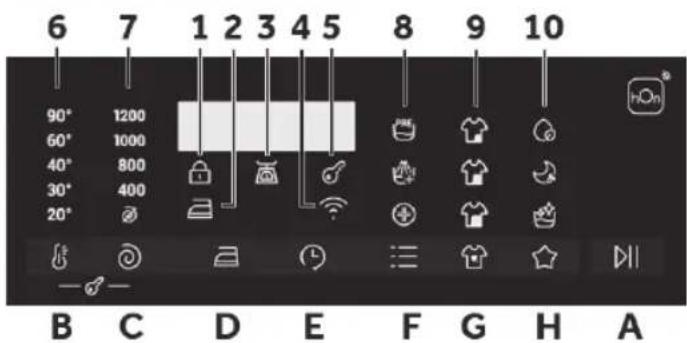

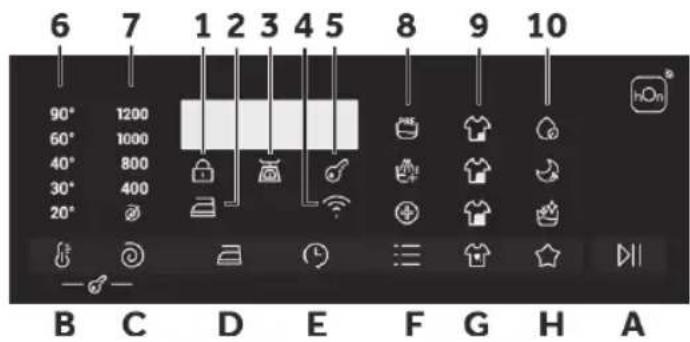

2. Control panel

Buttons

A Play/Pause

B Temperature selection

C Spin speed

D Easy iron

E Delay start

F Options

G Stain level/Steam level*

H Special programmes (only available on certain models)

B+C Child lock

* Steam level (only available on certain models)

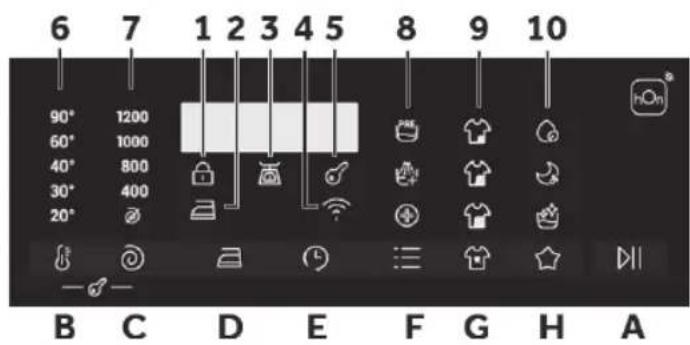

Icons

1 Door locked indicator 2 Easy iron indicator 3 Kg Load indicator light (active only on certain programmes)

4 Wi-Fi indicator 5 Child lock indicator 6 Wash temperature indicator 7 Spin speed indicator

8 Options indicator 9 Stain level indicators 10 Special programmes indicator

2.1 - Buttons

Play/Pause (A)

Close the door BEFORE selecting the button PLAY/PAUSE. To start the selected cycle with the preset parameters, press PLAY/PAUSE. When the programme is running, the display will show the time to elapse.

Temperature button (B)

This button allows you to change the temperature of the wash cycles. It is not possible to raise the temperature over the maximum allowed for the programme, in order to protect the fabrics. If you want carry out a cold wash all the indicators must be off.

Spin speed button (C)

By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled.

Easy iron button (D) (Available on some programmes only)

This function allows you to minimize creases as much as possible, eliminating the intermediate spins or reducing the intensity of the last one.

Delay start button (E)

This button allows you to pre-programme the wash cycle to delay the start of the cycle for up to 24 hours.

Options button (F)

This button allows you to choose between different options (depending on the selected programme):

Prewash (F) - This option allows you to make a prewash and it is particularly useful for heavily soiled loads (can be used only on some programmes). When activated, the indicator icon (E) lights up

Extra rinse (F) - This option allows you to add one rinse at the end of the washing cycle and is useful for people with delicate and sensitive skin. When activated, the indicator icon (F) lights up

Hygiene + (F) - Activated when you set 60°C of temperature. This option allows deep cleaning of your clothes by maintaining the same temperature for the whole wash.

Stain level (G)

This option allows you to choose between 3 levels of wash intensity modifying the length of the programme, depending on how much the fabrics are soiled (can only be used on some programmes as shown in the table of programmes).

Steam level (G) (only available on certain models)

After selecting the EASY IRON PLUS programme, you can use this button to choose between three steam treatments of different intensities, designed for dry or wet garments and depending on the type of fabric:

- COTTON (default selection)

This programme is used for cotton garments. On wet fabrics (e.g., after washing), it is suitable for relaxing creases after spinning; on dry fabrics it is instead designed to achieve the ideal humidity level for easier ironing.

- SYNTHETIC (press button once)

This programme is used for synthetic garments. On wet fabrics (e.g., after washing), it is suitable for relaxing creases after spinning; on dry fabrics it is instead designed to achieve the ideal humidity level for easier ironing.

- DELICATES (press button twice)

With the help of steam, the cycle refreshes and relaxes creases in garments after use. The programme consists of an initial phase in which the steam acts and a final phase in which the excess humidity is removed for immediate use. The cycle is suitable for dry fabrics.

Special programmes (H)

This button allows you to choose between different options (depending on the selected programme):

Single item (H) - This option (which can be set in several programs) optimizes the water and energy consumption of the selected program, maintaining the washing performance unchanged.

Night wash (H) - This option reduces the intermediate spin speed to 400 rpm, where applicable, increases the water level during rinsing and keeps the laundry immersed in water after the final rinse, in order to spread the fiber perfectly.

Drum clean (H) - Developed to clean the washing machine drum. Use only powder detergent. Do not start the programme with laundry in the washing machine. It is suggested that this is carried out after every 50 washing cycles. The option can only be selected for the DRAIN & SPIN programme.

Child lock (B+C)

- Pressing simultaneously the buttons "TEMPERATURE SELECTION" and "SPIN SPEED" for about 3 seconds, the machine allows you to lock the keys. In this way, you can avoid making accidental or unwanted changes if a button on the display is pressed accidentally during a cycle.

- The key lock can be simply cancelled by pressing the two buttons simultaneously again or turning off the appliance.

APPLIANCE PAIRING (ON APP)

NOTE: The frequency of the home Wi-Fi network has to be set on the 2.4 GHz band. (5 GHz band not allowed).

• Download the hOn App on your device by framing the following QR code or by the link: go.haier-europe.com/download-app • Create the user profile (or log-in) and pair the appliance following the instructions on the device display.

Download the App

A

B

2.4 GHz band only

C

Follow pairing instructions

D

E

F

TO ENABLE REMOTE CONTROL

- Close the door and turn the knob to the REMOTE CONTROL (Wi-Fi) position. You can now manage your product from the app.

TO DISABLE REMOTE CONTROL

- Turn the knob to any position other than REMOTE CONTROL (Wi-Fi), without going through the OFF. If there is a cycle underway, it will continue. From the app it is possible to view the status of the product but not to control it.

2.2 - Icons

Door lock indicator (1)

For safety reasons, the door is locked partially during the washing cycle. It is only possible to open the door at the end of the program or after the program has been cancelled correctly. In case of high water level, high water temperature, and during spinning, it is not possible to open the door.

Easy iron indicator light (2):

The indicator light shows the selection of the relevant option.

Kg Load indicator light (3): (active only on certain programmes).

Through every wash phase, "Kg Load" allows you to monitor information on the wash load in the drum, and in the first minutes of the wash it:

• adjusts the amount of water required; • determines the length of the wash cycle; • controls rinsing according to the type of fabric selected to be washed;
• adjusts the rhythm of drum rotation for the type of fabric being washed;
• recognises the presence of too much soap suds, and if necessary, adjusts the amount of rinse water.
• adjusts the spin speed according to the load, thus avoiding any imbalance.

Wi-Fi indicator light (4): On models equipped with Wi-Fi, it indicates the status of the connection. It could be.

Key lock indicator light (5): The indicator light shows that the keys are locked.

Wash temperature indicator light (6)

This shows the washing temperature of the selected programme, which can be changed (where allowed) by the relevant button. If you want to carry out a cold wash, all the indicators must be off.

Spin speed indicator light (7)

This shows the spin speed of the selected programme; you can reduce or omit it by the relevant button.

Options indicator light (8)

The indicator lights show the options that can be selected by the relevant button.

Stain level indicator light (9)

- Once the programme has been selected, the indicator light will automatically show the stain level set for that programme.

- Selecting a different stain level the relevant indicator will light up.

Special programmes indicator light (10) *Only available on certain models

The indicator lights show the options that can be selected by the relevant button.

3. Programmes

Yes

Yes by pressing the button

Optionals

No

Detergent compartment for:

② Detergent

Softener or care product

Prewash

PROGRAMME

(AZZH) (MAX.) (see control panel)

DETERGENT

NIGHT WASH

EXTRARINSE

HYGIENE+

EASY IRON

STAIN LEVEL

DELAY START

5kg

5.5kg

6kg

6.5kg

7kg

7.5kg

8kg

8.5kg

(MAX.)

1 or 2

[TX53]

(ACDH)

RAPID 44'

333

33.5

3.53

.53

.540°

●

●

/ ○

/ / /

○

RAPID 14'

111

111

1.51

.530°

●

●

/ ○

/ / /

○

MIXED & COLOURED 59'

55

.566

.577

.588

.540°

●

●

/ ○

/ / /

○

WOOL/HAND WASH

111

111

2230°

●

●

○

○

/ ○

/ ○

EASY IRON PLUS

1.51

.51

.51

.51

.51

.5-

/ / / /

○

[YXYK]

DRAIN & SPIN

-

-

-

-

-

-

-

-

-

/ / / /

○

RINSE

-

-

-

-

-

-

-

-

-

△

●

/ / / /

○

STEAM HYGIENE PLUS

2.52

.533

3.53

.544

.60°

●

●

/ ○

/ / /

○

BABY CARE

222

22.5

2.52

.52

.540°

●

●

○

○

○

/ ○

FRESH CARE

222

22.5

2.52

.52

.540°

●

●

/ ○

/ / /

○

ECO 40-60

55

.566

.577

.588

.560°

●

●

/ / / /

○

○

20°C

55

.566

.577

.588

.560°

●

●

○

○

/ / ○

○

[CE42]

SYNTHETICS

2.52

.533

3.53

.544

.60°

●

●

(●)

○

○

○

○

[2X26]

COTTON

55

.566

.577

.588

.590°

●

●

(●)

○

○

/ ○

[4XX6]

REMOTE CONTROL (Wi-Fi) Position that you have to select when you want to enable remote control through the App (via Wi-Fi).

3.1 - Program descriptions

	RAPID 44'	A complete washing cycle (wash, rinse and spin). This programme is particularly suited to slightly dirty cottons and mixed fabrics. With this programme it is recommended to use only 20% of the detergent normally used to avoid waste.
	RAPID 14'	A complete washing cycle (wash, rinse and spin). This programme is suited to slightly dirty cottons and mixed fabrics. With this programme it is recommended to use only 20% of the detergent normally used to avoid waste.
	MIXED & COLOURED 59'*	This programme offers you the freedom to wash all kinds of fabrics and non-fading colours together, with a full load, obtaining excellent results in only 59 minutes. With washing at medium temperature, this programme is recommended for laundry that is not particularly dirty.* Preset temperature of 20°C (modifiable by the relevant button). The washing cycle is also suitable for washing cotton fabrics.
	WOOL/HAND WASH	This programme performs a wash cycle dedicated to the wool fabrics that can be washed in a washing machine, the articles to be washed by hand or laundry items made from silk or specified as "Wash as Silk" on the fabric label.
	EASY IRON PLUS	This programme uses a steam treatment to relax creases and achieve the ideal degree of humidity for easier ironing. Three different intensity levels can be selected via the button, designed for dry or wet garments and depending on the type of fabric.
	DRAIN & SPIN	The program completes the drain and a maximum spin. It is possible to delete or reduce the spin through the SPIN SELECTION button.
	RINSE	This program performs 3 rinses with an intermediate spin (which can be reduced or excluded by using the appropriate button). It is used for rinsing any type of fabric, for example after a wash carried out by hand.
[X0AK]	STEAM HYGIENE PLUS	This washing programme is capable of reaching a temperature of 60°C for an extended period of time, combining the steam action with a powerful rinsing action for thoroughly clean and hygienic clothing. Recommended for cotton fabrics.
[H24B]	BABY CARE	This program allows you to wash all baby clothes getting a perfect clean and sanitizing effect, setting the temperature at 60°C minimum. To optimize the result of the sanitizing effect we recommend the use of powder detergent.
	FRESH CARE	This programme is designed to remove everyday stains with a refreshing action to guarantee outstanding laundry. Low temperature wash recommended for small loads.
	ECO 40-60	The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle. This programme is used to assess the compliance with the EU Ecodesign legislation (environmentally friendly products design).
	20°C	This innovative programme, allows you to wash different fabrics and colours together, such as cottons, synthetics and mixed fabrics at only 20°C and provides an excellent cleaning performance. Consumption on this program is about 40% of a conventional 40°C cottons wash.
[503B]	SYNTHETICS	This program is studied for synthetics fabrics (as Polyester, Viscos) or mixed cotton lightly dirty. The drum movements and rinses are set in order to optimize the washing phases. The delicate spin phase can decrease the creases on the clothes.
[TYWIT]	COTTON	This programme is suitable for washing coloured cotton garments at 40°C or for ensuring the highest degree of cleanliness for cotton resistant laundry washing at 60°C or 90°C. The final spin is at maximum speed that ensures excellent water removal.

4. Daily use

• Connect the washing machine to a power supply and water connection (see installation chapter in the user manual).
• Prepare the laundry: Sort clothes according to fabric (cotton, synthetics, wool, or silk, etc.) and how dirty they are. Check the labels on your garments. Separate white clothes from colored ones. Empty pockets of objects like keys, coins, etc., and remove harder decorative objects.
• Put in the laundry piece by piece, avoiding overloads (check the different maximum load capacity according to the program). Close the door carefully. Make sure no pieces of laundry are pinched.
• Select the detergent and softener (when needed) and pour it into the correct compartments of the dispenser.

Open the dispenser drawer; the following components can be seen (Fig. 4.1):

1. Compartment 1 is for powder detergent.
2. Compartment 2 is for liquid detergent.
3. The compartment ✿ is for fabric conditioners, scenting agents, and special additives such as starch, blueing, etc.

The recommendation on the type of detergents suitable for the various washing temperatures; please refer to the detergent manual (see ).

• Select a program by turning the knob, choosing the one that fits the most according to the loaded garments. The display will show the program name, the main options, and the duration estimate.
• Add or remove options and change the parameters according to your specific needs.
• Press the Start/Pause button to start the program.
• When the cycle is finished, "END" is shown on the display. Switch off the washing machine by turning the selector to OFF. Remove your laundry as soon as possible in order to prevent wrinkles, bad odors, and bacteria from proliferating.

5. Care and maintenance

5.1 - General machine cleaning

• Unplug the machine during cleaning and maintenance.
• Use a soft cloth with soap liquid to clean the machine case and rubber components.
• Do not use organic chemicals or corrosive solvents.

5.2 - Pump filter cleaning

It is recommended to clean the pump filter once a month.

Turn off and unplug the machine and open the cover on the bottom of the appliance. Prepare a flat container to catch leach water.

• Pull the drain hose out and hold its end above the container and open it. After complete drainage, close the drain hose and push it back into the machine.
• Unscrew and remove counter-clockwise the pump filter and clean it carefully.
• Put the filter back in the machine and close it carefully.

5.3 - Cleaning the detergent dispenser and its compartments

Always take care there are no detergent residues. Clean the drawer regularly:

• Press button (A).
• Hold down the button and turn the detergent dispenser outwards.
• Remove the dispenser and clean it.
• It is recommended to remove any remaining detergent in the compartments to avoid any build up that could cause blockages and restrict the water flow from the dispenser to drum.
• Pulling out and extract the trap/traps (B) that are located in the back part of the dispenser and clean them carefully.
• Remove any solid residue which could block the holes in the compartments.

5.4 - Cleaning the drum

• Remove accidentally washed items, especially metal parts such as pins, coins, etc. from the drum and the groove of the door gasket (rubber ring) because they cause rust stains and damage.
• Use a non-chloride cleaner for removing rust stains. Observe the warning hints of the cleaning agent manufacturer.
• Do not use any hard objects or steel wool for cleaning. • After the procedure, open the door, use a towel to clean the stains and foam around the gasket, and keep the inside and outside of the gasket clean.

Download and read the complete User Manual online for more details on Care&Maintenance

ES Lavadora de carga superior

Botones

FR Lave-linge top

Touches

ACTIVATION DU CONTRÔLE À DISTANCE

NL Washing machine, top loader

2. Control panel

Buttons

APPLIANCE PAIRING (IN THE APP)

Buttons

APPLIANCE PAIRING (IN THE APP)

5.4 - Drum cleaning

1.3 - Leveling the appliance

- Level the machine by adjusting the front feet (figure 4).

a) Turn the nut to the right to release the screw on the foot. b) Raise or lower the foot by turning it until it firmly touches the floor. c) Lock the foot in position by turning the nut to the left until it reaches the bottom of the washing machine.

• Check that the appliance is properly leveled. - Check if the washer rocks by trying to move two diagonally opposite top corners simultaneously. - If you move the washing machine from one place to another, you must re-level the feet afterwards.

1.4 - Water connections

Delay Start button (E)

With this button you can pre-program the wash cycle and delay the start of the cycle up to 24 hours.

Options button (F)

With this button you can choose between different options (depending on the selected program):

Pre-wash (F) - this option enables pre-washing and is especially useful for heavily soiled laundry (can only be used with some programs). When activated, the indicator icon (E) lights up

Extra rinse (F) - this option allows adding one rinse at the end of the wash cycle and is useful for people with sensitive skin. When activated, the indicator icon (F) lights up

2. Control panel

Buttons

A Start/Pause

1.3 – Leveling the appliance

2. Control panel

Buttons

A On/Off B Temperature selection C Spin speed D Easy iron E Delay start F Options G Soil level/steam level* H Special programs (available only on some models) B+C Child lock

* Steam level (available only on some models)

Icons

PROGRAM

(NAJVEČ)(glejte nadzorno ploščo)

DETERGENT

NOČNO PRANJE

DODATNO IZPIRANJE

HIGIENA +

ENOSTAVNO LIKANJE

STOPNJA UMAZANIJE

ZAKASNITEV VKLOPA

5kg

5,5kg

6kg

6,5kg

7kg

7,5kg

8kg

8,5kg

(NAJVEČ)

1 ali2

[SWZZ]

HITRI 44'

333

33,5

53,53

53,540°

●

●

/○

///○

[DWZB]

HITRI 14'

111

111

1,51

530°

●

●

/○

///○

[WCZS]

MEŠANO IN BARVNO 59'

55,

566,

577,

588,540°

●

●

/○

///○

[6486]

VOLNA/ROČNO PRANJE

111

111

2230°

●

●

○

○

/○

/○

[403D]

ENOSTAVNO LIKANJE PLUS

1,51

51,

51,51

51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,

1,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,51,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52,52.

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

IZPIRANJE

—

—

—

—

—

—

—

—

—

△

●

//////○

PARA HIGIENSKI INTENZIVNI

2,52,

5333

53,54460°

●

●

/○

///○

BABY PROGRAM

22222,

52,52,

52,52,540°

●

●

○

○

○

/○

○

[K0AC]

NEGA ZA SVEŽINO

22222,

52,52,

52,52,540°

●

●

/○

///○

[7433]

ECO 40-60

55,

566,

577,588,560°

●

●

//////○

○

[TS7X]

20°C

55,

566,

577,588,560°

●

●

○

○

///○

○

SINTETIKA

2,52,

5333

53,54460°

●

●

(●)

○

○

○

○

○

BOMBAŽ

55,

566,

577,588,590°

●

●

(●)

○

○

○

/○

DALJINSKO UPRAVLJANJE (Wi-Fi)Ta položaj izberite, će želite omogočiti daljinsko upravljanje z aplikacijo (preko Wi-Fi).

3.1 – Program description

SR Top-loading washing machine

1.3 - Leveling the appliance

Level the machine by adjusting the front feet (fig. 4).

* Additional equipment is sold separately

• Connect the water hose to the water supply tap (fig. 6) only using the hose supplied with the appliance (do not reuse old hose kits).
• Some models may have one or more of the following functions:
• HOT&COLD (fig. 7): settings for connection to the water supply with hot and cold water for greater energy savings. Connect the grey hose to the cold water tap and the red one to the hot water tap. The appliance can be connected only to the cold water tap: in that case, some programs may start a few minutes later.
• AQUASTOP (fig. 8): a device located on the inlet hose that stops the water flow if there is something wrong with the hose; in that case, a red mark appears in the "A" slot and the hose must be replaced. To unscrew the nut, press the safety catch "B".
• AQUAPROTECT – INLET HOSE WITH PROTECTOR (fig. 9): if water leaks from the primary inner hose "C", there will be water in the transparent protective sheath "D" to allow the washing cycle to complete. At the end of the cycle, contact the Customer Service Center to replace the inlet hose.

2. Control panel

Buttons

A Start/Pause

B Temperature selection

C Spin speed

D Easy ironing

E Delayed start

F Options

G Soiling level/steam level*

H Special programs (available only on certain models)

B+C Key lock

* Steam level (available only on certain models)

Icons

E

F

ACTIVATING WIRELESS CONTROL

- Close the door and turn the rotary knob to the WIRELESS CONTROL (Wi-Fi) position. You can now control the product from the app.

DEACTIVATING WIRELESS CONTROL

- Turn the rotary knob to any position other than WIRELESS CONTROL (Wi-Fi), without passing through OFF. If a cycle was in progress, it will continue. From the app, you can view the product status, but not control it.

2.2 - Icons

Door locked indicator (1)

2. Control panel

Buttons

2. Control panel

Buttons

RO

2. Control panel

Buttons

1.3 - Appliance alignment

Buttons

A Start/Pause B Temperature selection C Spin speed D Easy ironing E Delayed start F Options G Soiling level/steam level* H Special programs (available only for certain models) B+C Child lock * Steam level (available only for certain models)

Icons

E

F

ENABLE REMOTE CONTROL

UA

Buttons

E

F

DA Top-loading washing machine

2. Control panel

Buttons

MACHINE PAIRING (IN APP)

70027464

SV

1.3 - Level/adjust the appliance

2. Control panel

Buttons

A Start/Pause

B Temperature selection

C Centrifuging speed

D Iron dry

E Delayed start

F Options

E

F

ACTIVATE REMOTE CONTROL

2. Control panel

Buttons

B

C

E

F

NO

Top-loading washing machine

2. Control panel

Buttons

A Start / Pause

B Temperature selection

C Spin speed

D Easy iron

E Delayed start

F Options

Delayed start button (E)

APP CONNECTION (IN APP)
