Product Type	Rechargeable electric shaver
Brand	BRAUN
Model	7505
Power Source	Rechargeable via special very low voltage cord
Runtime	Up to 50 minutes of cordless shaving
Charge Time (first)	4 hours
Charge Time (normal)	About 1 hour
Battery Type	Nickel-metal hydride (NiMH)
Pivoting Head	Yes, with 3 positions (normal, fixed angle, trimmer)
Integrated Trimmer	For long hairs (position 3)
Indicators	Green charge indicator, connection indicator
Maintenance	Blow out hairs after use, weekly brushing
Replacement Parts	Foil and cutter block (ref. 7000)
Replacement Frequency	Every 18 months or as needed
Warranty	2 years (Canada, excluding foil and cutter block)
Charge Temperature	15°C to 35°C
Safety	Do not immerse, do not use in bath

Frequently Asked Questions - 7505 BRAUN

How to charge the Braun 7505 shaver for the first time?

Plug in the shaver using the special cord with the switch in position 0. Let it charge for at least 4 hours. The plug may become warm. Subsequent charges take about 1 hour.

What is the shaving runtime after a full charge?

A full charge provides up to 50 minutes of cordless shaving, depending on beard length.

Can I use the shaver while it is charging?

Yes, if the battery is depleted, you can use the shaver connected to the mains with the special cord. If the shaver does not work immediately, charge it in position 0 for about one minute.

How to clean the Braun 7505 shaver?

For quick cleaning, turn off the shaver, press the release buttons to lift the foil, then turn it on for 5-10 seconds to expel hairs. For a deep weekly cleaning, remove the foil, tap it on a flat surface and brush the cutter block and the inside of the head.

When should the foil and cutter block be replaced?

It is recommended to replace the foil and cutter block every 18 months or when worn. Use replacement part no. 7000.

Is the Braun 7505 shaver waterproof?

No, the shaver is not waterproof. Do not rinse it under water or immerse it. It must be cleaned dry with the brush.

How to activate the trimmer for long hairs?

Push the switch to position 3 to activate the integrated trimmer. Use it to trim sideburns, mustache and beard.

What are the important safety instructions?

Do not use the appliance in the bath or shower when plugged in. Do not immerse in water. Unplug if not used for a long time. Check the cord condition. If the foil is damaged, do not use to avoid injury.

How to maintain the battery in good condition?

Approximately every six months, fully discharge the shaver during normal use, then fully recharge it. Avoid temperatures above 50 °C.

What to do in case of shaving problems or irritation?

Allow a 14 to 21 day adaptation period. Shave before washing your face, dry skin allows a more precise shave. Hold the shaver at a right angle (90°) to the skin and shave in the opposite direction of hair growth.

USER MANUAL 7505 BRAUN

Thank you for purchasing a Braun product. We hope you are completely satisfied with your new Braun shaver.

If you have any questions, please call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

The world's # 1 selling foil shavers

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

DANGER

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.
2. Do not use while bathing or in a shower when the appliance is connected to an electrical outlet.
3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
4. When not using for a longer period of time, unplug this appliance from the electrical outlet.
5. Unplug this appliance before cleaning.
6. This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.

FOR HOUSEHOLD USE SAVE THESE INSTRUCTIONS

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children or invalids.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. The appliance should never be exposed to temperatures of less than 32^ / 0^ and more than 105^ / +40^ for longer than a few hours. Be sure to completely dry appliance after use. Keep cord and adapter dry at all times. Do not store in a damp environment. To avoid damage do not wind the cord around the appliance. It is important to check the cord for damage periodically particularly at each end where the cord enters the plug.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.
5. Keep the cord away from heated surfaces.
6. Never drop or insert any object into any opening.
7. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
8. Do not use this appliance with a damaged or broken foil, as serious facial injuries may occur.
9. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to «off», then remove plug from outlet.

Description

1 Foil protection cap
2 Shaver foil
3 Cutter block
4 Foil release button
5 Long hair trimmer
6 Switch
7 Charging light (green)
8 Pilot light
9 Shaver socket
10 Special cord set

Charging the shaver

• First charging: Using the special cord set, plug the shaver into an electrical outlet with the switch on position «0» and charge it for at least 4 hours (plug might get warm).
• Once the shaver is completely charged, shave without the cord until fully discharged. Then recharge to full capacity again (subsequent charges will take about 1 hour).
• A full charge will give up to 50 minutes of cordless shaving time depending on your beard growth. However, the maximum battery capacity will only be reached after several charging/discharging cycles.
• Best environmental temperature range for charging is 60^ to 95^ / 15^ to 35^ .

Indicator lights

• The pilot light shows that the shaver is plugged into the outlet properly.

• The green charging light shows that the shaver is being charged. When the rechargeable battery is fully charged, the charging light flashes or goes off.

If later on, the charging light comes on again, this indicates that the shaver is being recharged to maintain its full capacity.

Shaving

Switch positions

0 = Off (switch is locked) Press and push up the switch to operate the shaver:

1 = Shaving with the pivoting head
The pivoting cutting system automatically adjusts to every contour of your face
2 = Shaving with the pivoting head locked at an angle (to permit shaving in difficult areas, e.g. under thenose)
3 = The long hair trimmer is activated (for trimming sideburns, moustache and beard)

Shaving with the cord

If the rechargeable battery is discharged, you may also shave with the shaver plugged into the outlet via the special cord set.

(If the shaver does not run immediately, charge it with the switch on position «0» for approx. 1 minute.)

Tips for the perfect shave

• It can take up to 14-21 days for your beard to adjust to the new shaving system.
• Shave before washing your face or taking a shower, as skin tends to swell after washing.
• The drier the skin, the closer the shaving results will be.
• Hold the shaver at right angles (90^) to the skin. Stretch your skin and shave against the direction of beard growth.
• To maintain 100% shaving performance replace your foil and cutterblock every 18 month or when worn.

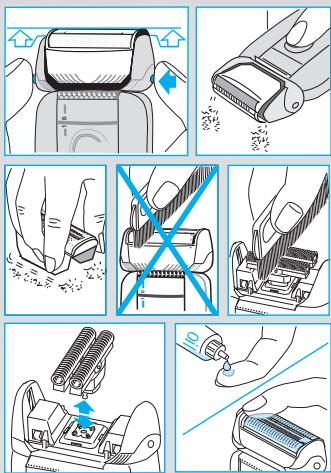

Keeping your shaver in top shape

Cleaning

For easy cleaning after each shave, switch the shaver off. Press the release buttons to lift the shaver foil (do not remove the foil completely). Switch on the shaver for approx. 5-10 seconds so that the shaved stubbles can fall out.

For a thorough cleaning (weekly), remove the shaving foil and tap it out on a flat surface. Using the brush, clean the cutter block and the inner area of the pivoting head.

If your skin is very dry and you notice a reduced operation time of the shaver, apply a drop of light machine oil onto the shaver foil.

Do not rinse the shaver in or under water.

Replacing the shaving parts

To maintain 100% shaving performance, replace your foil and cutter block every 18 months or when worn. Change both parts at the same time for a closer shave with less skin irritation.

Available at your dealer or Braun Service Centers: (Shaver foil and cutter block: part no. 7000)

Preserving the cell unit

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged (through normal use) every 6 months approximately. Then recharge the shaver to full capacity. Do not expose the shaver to temperatures of more than 122^ / 50^ for longer periods of time.

Environmental notice

This appliance is provided with a nickel-hydride cell unit. This cell does not contain any harmful heavy metals. Nevertheless, in the interest of recycling raw materials, please do not dispose of this appliance in the household waste at the end of its useful life. Disposal can take place at a Braun Service Center or appropriate collection sites.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

FOR USA ONLY

2 year limited warranty (foil and cutter block excluded)

Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you.

This warranty does not cover foils, cutter blocks or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging.

ALL IMPLIED WARRANTYES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

2 year limited warranty (foil and cutter block excluded)

In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.
