Product type	Built-in electric oven
Brand	DeLonghi
Model	EO40123.S
Dimensions (W x H x D)	595 x 595 x 550 mm
Useful volume	65 L
Net weight	32 kg
Power supply	220-240 V / 50-60 Hz
Total power	2800 W
Energy class	A
Number of functions	8
Main functions	Natural convection, fan-forced, grill, ventilated grill, defrost, pulsating heat, bottom heat, top heat
Cleaning type	Manual cleaning (catalytic wall optional)
Child safety	Yes, control lock
Cool door	Yes, double glazing
Interior lighting	Halogen lamp
Included accessories	Rack, drip tray, rotisserie support (depending on model)
Repairability	Repairability index: 7/10; spare parts available
Warranty	2 years (parts and labor)

Frequently Asked Questions - EO40123.S DELONGHI

How to preheat the EO40123.S oven?

Turn the function selector to the desired position and set the temperature with the thermostat. Wait until the preheating indicator light turns off, indicating that the temperature has been reached.

What to do if the oven does not heat up?

Check that the appliance is properly plugged in and that the circuit breaker has not tripped. Make sure the door is properly closed. If the problem persists, contact customer service.

How to use the grill function?

Select the grill function with the selector. Place food on the high rack and monitor cooking to avoid burning. Use the drip tray to collect juices.

How to clean the inside of the oven?

Use a damp cloth with mild soap. Avoid abrasive products. For stubborn stains, preheat the oven to 50°C to soften residue before cleaning.

The temperature indicator light stays on, is this normal?

Yes, the light turns on and off during cooking to maintain the set temperature. It flashes when the oven is heating and turns off when the temperature is stable.

How to set the timer?

Turn the timer knob clockwise to set the desired time (up to 120 minutes). At the end of the countdown, a beep sounds and the oven turns off automatically.

Can I use aluminum foil in the oven?

Yes, but do not cover the entire bottom and avoid direct contact with the heating elements. Use it to cover dishes and prevent splatters.

How to activate child safety lock?

Press the function buttons simultaneously for 3 seconds until you hear a beep. A lock symbol appears. To deactivate, repeat the same operation.

What does error code E4 mean?

The E4 code indicates a temperature sensor problem. Turn off the oven, wait a few minutes, and turn it back on. If the code persists, contact a technician.

How to change the oven light bulb?

Unplug the appliance. Remove the glass cover by turning counterclockwise. Replace the bulb with a new one of the same type (25W, 300°C). Reassemble the cover.

USER MANUAL EO40123.S DELONGHI

DeLonghi

pag. 4 page 7 page 10 S. 13

стр. 28 old. 31 str. 34 str. 37

str. 40 43 Бет.

Description of appliance

A Top heating element B Inside light (220-240V/15W/300°C) C Wire rack D Drip pan E Thermostat dial F Timer dial G Function selector dial H ON/OFF light (lights when the oven is on) I Rack/drip pan handle (some models only) L Glass door M Bottom element N Spit (some models only) O Spit handle (some models only) P Turnspit support (some models only) Q Turnspit mount (some models only)

Technical data

Voltage: See rating label on the appliance

Absorbed power: See rating label on the appliance

Size LxHxD: 51.5 x 36 x 44 cm

Weight: 10.1 Kg (max)

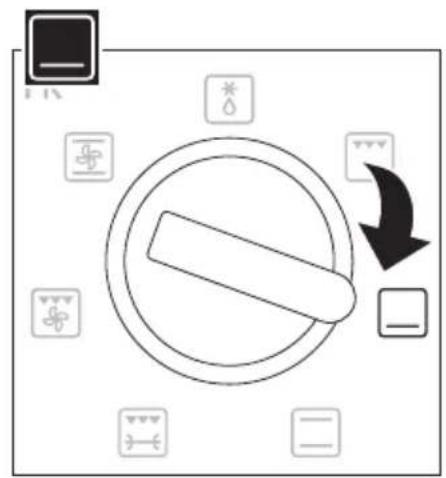

Functions

GRATIN FUNCTION ideal for browning food

(some models only)

GRILL FUNCTION ideal for grilling food

TRADITIONAL OVEN FUNCTION: ideal for all types of traditional cooking.

DEFROSTING FUNCTION: ideal for defrosting all products (some models only).

CONVECTION HEAT: ideal for quicker, more even cooking.

DELICATE COOKING FUNCTION: ideal for adding the finishing touches to cooking food, particularly at the bottom.

ROTISSERIE FUNCTION (some models only).

KEEPING FOOD WARM.

Important safeguards

Read all the instructions carefully before using the appliance. Keep these instructions.

Please note:

This symbol identifies important advice or information for the user.

• Before using the oven for the first time, remove any paper and other material inside the oven such as protective cardboard, booklets, plastic bags, etc.
• The appliance must be kept at a distance of at least 20 cm from the mains power socket to which it is connected.
• Before using for the first time, operate the oven empty with the thermostat at maximum for at least 15 minutes to eliminate the "new" smell and any smoke caused by the presence of protective substances applied to the heating elements before transport. Ventilate the room.
• Wash all accessories before and after use, by hand or dishwasher. Rinse in warm, soapy water. Use mild dish detergent. Rinse well with water and dry thoroughly.
• To set times less than 20 minutes, first turn the timer dial all the way round, then back to the desired time.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

• This oven is designed to cook food. It must never be used for other purposes, modified or tampered with in any way. After unpacking the appliance, make sure the door is undamaged and working correctly. The door is made from glass and is therefore fragile. If it is visibly chipped, scored or scratched, it should be replaced. While using, cleaning or moving the appliance, avoid slamming or knocking the door violently. Do not pour cold liquid onto the glass while the appliance is hot.
• Place the appliance on a horizontal surface at a height of at least 85 cm and out of reach of children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised

to ensure that they do not play with the appliance.

Cleaning and user maintenance shall not be made by children, unless they are more than eight years old and under constant supervision.

Keep the appliance and power cable away from children under eight years of age.

• Do not move the appliance while in use.
• Do not use the appliance if:
• The power cable is faulty
• The appliance has been dropped, is visibly damaged or malfunctioning.

In these cases, to avoid all risk take the appliance to your nearest authorised customer services.

• Never position the appliance near heat sources.
• Do not use the appliance as a heat source.
• Never place paper, cardboard or plastic inside the oven and never rest anything on top of the appliance (utensils, wire racks, other objects).
• Never insert anything into the ventilation openings. Make sure they are unobstructed.
• This oven is not designed for built-in installation.
• Do not rest heavy objects, boiling pans or containers on the open door.

Do not pull the handle downwards.

Professional or inappropriate use, or failure to observe the instruction for use absolves the manufacturer from all responsibility and invalidates the guarantee. This is a household appliance only.

It is not intended to be used in: staff kitchen areas in shops, offices and other working environments, farm houses, hotels, motels and other residential type environments, bed and breakfast type environments.

When not in use and before cleaning, always unplug the appliance.

• This appliance must not be operated by a timer or a separate remote control system.
• The appliance must be placed and operated with the back next to the wall.
• Before cleaning, always turn the appliance off by setting the timer to "0" and unplugging it from the mains socket.
• This product is not intended and engineered for food preservation.

Accessories for cooking are not suitable for acid food preservation. Avoid leaving for prolonged time acid substances as lemon juice or vinegar on surface of accessories. If left on surface of accessories for prolonged time, acid substances as lemon juice, tomato, vinegar and similar, may damage and impair the coating.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

- When in operation, the door and accessible external surfaces could become very hot. Always use the knobs, handles and buttons. Never touch metal parts or the glass. Use oven gloves if necessary.

• This electrical appliance operates at high temperatures which could cause burns.
• Do not leave inflammable products near the oven or under the work surface where it is located.
• Never operate the appliance under a wall cupboard or shelf or near inflammable materials such as curtains, blinds, etc.
• If food or other parts of the oven catch fire, never try and put out the flames with water.

Close the door, unplug from the mains and smother the flames with a damp cloth.

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• Before plugging into the mains, make sure that:
• The mains voltage corresponds to the voltage indicated on the rating plate.

- the mains socket is earthed and has a minimum rating of 16A.

The manufacturer declines all liability in the event that this important accident-prevention rule is not respected.

• Do not let the power cable dangle and avoid touching hot parts of the oven. Never unplug the appliance by pulling on the power cable.
• If you intend to use an extension, make sure it is in good condition, that the plug is earthed and that the cross section of the wires is at least equal to that of the power cable provided with the appliance.
• To avoid all risk of electric shock, never immerse the power cable, plug or appliance itself in water.
• If the power cable is damaged, it must be replaced by the manufacturer, the manufacturer's customer services or a qualified electrician in order to eliminate all risk.
• For your personal safety, never take the appliance to pieces on your own. Always contact customer services.

This appliance conforms to EC Regulation 1935/2004 on materials and articles intended to come into contact with food.

Disposal

The appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

For more information regarding the various functions and cooking tables, refer to the images on page 47-59.

Appliance description

	700g			180°C/ 200°C 30-40 min
	750g			230°C 25-35 min
***	450g			200°C/ 230°C 10-20 min
	500g			180°C/ 200°C 30-40 min
	1500g			200°C/ 230°C 30-40 min
				230°C 30-40 min
	1300g			230°C 80-100 min
				200°C/ 230°C 65-80 min
	1000g			200°C/ 230°C 60-70 min
	1000g			200°C/ 230°C 70-80 min
	1200g			200°C/ 230°C 60-70 min
	750g			230°C 20-30 min
	1000g			200°C/230°C 30-40 min
***	1200g			200°C/230°C 65-75 min
	1000g			200°C/230°C 65-75 min
	1000g			230°C 30-40 min
				200°C/230°C 30-40 min
	300g			180°C/200°C 15-25 min
***	6			180°C/200°C 20-30 min
	750g			180°C/200°C 30-40 min
	750g			180°C/200°C 30-40 min
	900g			180°C/200°C 35-45 min
	12			180°C/200°C 20-30 min
	900g			150°C/180°C 85-100 min
