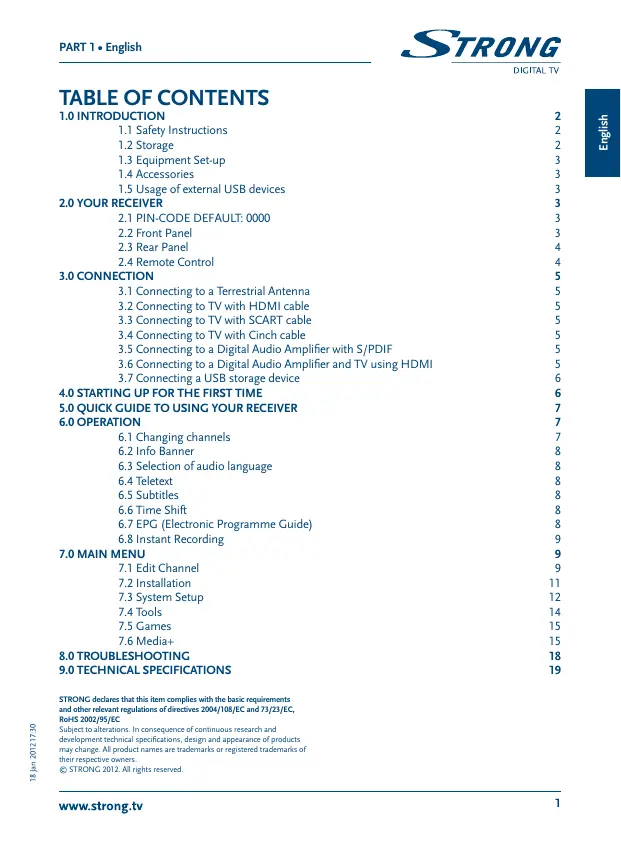

USER MANUAL SRT 8105 ECO STRONG

1.1 Safety Instructions

12 Storage 13 Equipment Setup 14 Accessories

1.5 Usage of external USB devices

3.1 Connecting to a Terestral Antenna

3.2 Connecting to TV with HDMI cable

323 Connecting to TV with SCART cable 344 Connecting to TV with Cinch cable

3.5 Connecting to a Digital Audio Amplifier with S/PDIF 5

3.7 Connecting a USB storage device

5.0 QUICK GUIDE TO USING YOUR RECEIVER

6.1 Changing channels

6.3 Selection of audio language

6.8 Instant Recording

1.1 Safety Instructions

DO NOT INSTALL YOUR RECEIVER: = In a losed or poorly ventilated cabinet; directly on top ofor under any other equipment, on a surface which might obstruct the ventilation slots. DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES: = To direct sunlight or any other equipment that generates heat to rain or intense moisture; to intense vibration and to any shock which may cause permanent damage to your receiver or to any magnetic objects, such as loudspeakers, transformens, ec. Do not use a damaged power cord. It may cause a fire or an electrical shock. Do not touch a power cord with wet hands. may cause an electric shock. When the receiver is not used for a long period oftime, you should unplug the power cord from the wall socket. = Do notuse alcohol or ammonia based liquids to clean the receiver. IF you wish, you may clean your receiver with a sof lintfree cloth slightly made damp with a mild soap solution, only after disconnecting from the mains voltage supply. Make sure no foreign objects fall through the ventilation slots because this could cause fre or an electric shock. Do not place any objects on top ofthe receiver because this might prevent proper cooling ofthe companents inside. Safety Precautions Never open the receiver cover. Doing so will void the warranty I is dangerous to touch the inside ofthe receiver due to high voltage currents and possible electrical hazarde. Refer al maintenance or servicing to qualifed service personnel. When you are connecting cables, be sure that the receiver is disconnected from the mains supph Wait a few seconds aller suitching ofthe receiver before you move the receiver or disconnect any equipment. Use only approved extension corde with compatible wiring that is suitable for the electrical power consumption ofthe installed equipment. Please ensure that the electrical power supply corresponds with the voltage on the electrical identification plate at the back ofthe receiver Ifthe receiver does not operate normal even afer strict following the instructions in this user manual, it is recommended to consult your dealer.

‘Your receiver and is accessories are stored and delvered in a packaging designed to protect against lectrc shocks and moisture. When unpacking i, make sure that all the parts are included and keep the packaging away from children. For transporing the receive from one place to another ri you are returming it under warranty conditions, make sure to repack the recever in is original packaging with its accessories. Faling to compy vith such packaging procedures could void your warranty. 2 wwwsstrong:tv

Par gun <STRON DIGITAL IV

1.3 Equipment Set-up

Ve recommend you consul a professional installer to set up your equipment. Othenwise, please follou the instructions belouc 1 Refer to the user manual of your TV and antenna. = Make sure that the HDMI cable and outdoor components are in a good condition = Use only a HDMI 1.3 cable or igher for maximum performance. = 1Fyou use TV SCART connection, use then well shielded SCART cable. This manual provides complete instructions for instaling and using this receiver. The following, symbols will serve as follout

WARNING: indicates warning information.

is: Indicates any other additional important or hepful information. MENU Represents a button on the remote control or the receive. (Bold Character Move to Represents à menuitem within a window (halic Character)

= User Manual = 1x Remote control unit m 2x Batteries (AAA type) NOTE: ‘The batteries should not be recharged, disassembled, electrical short drcuited, be mixed or used with other types ofbatteres.

1.5 Usage of external USB devices

1m lis recommended to use USB 2.0 storage devices or higher. I your device is not compatible to USB 2.0 speciications, recording, playback and other multimedia functions of the receiver might not iork proper Te ensure best performance of your USB storage device please format it by this receiver (menu “Medios") to FAT32 system. Other fl systems are not supparted by the receiver. However it is possible to use already NTFS formatted disk. STRONG cannot guarantee compatiblity with all types of USE storage devices. lis aduised not to store important information on USB storage deuices used vith the receiver. Alays make backups of data on your USB storage device before using it with this receiver. STRONG wil not take responsibility for any loss of information or cireumstances caused by loss of information

Indicates current channel number in OPERATING mode www.strongtv 3 English

Connector for USB devices. Point our remote control towards this sensor. RED indicates that the receiver is in STAND-BY mode. GREEN indicates that the receiver is in OPERATING mode. Fig.2 ‘To connect to your antenna for the reception of broadcast signal. ‘To connect to the terestrial antenna imput ofyeur TV set. ‘This connection will allow you to watch analogue terrestral programmes via the tuner in your TV. To connect your receiver t à digital audio amplifier. ‘To connect your receiver with your TV set using a HDMI cable. ‘To connect your receiver with your TV set using a SCART cable. ‘To connect your receiver with your TV set using a cinch cable. Audio L/R Connector To connect Your receiver with your TV set using a inch cable.

20.FILE 21.T7X Your receiver requires a voltage of 220 - 240 V AC (Auto. selectable), 50/60 Hz +/-5%. Check the local power specification before connecting your receiver to the wall outlet. Fig3 ‘Turns the receiver On/Standby Mutes audio output ofthe receiver Page up/doun and 10 channels steps in channel list mode No function Shows the actual channel information Volume up/down Opens the main menu, in menu you will get one step back Exits from the menu or sub-menu Menu OfF Change channel to previous/next. Menu On:Moves the cursor updoun. Menu OfE Increases/decreases the volume level Menu On: Change settings for specific Menus. Menu OfE Displays the current channel ist. Menu On: Activates the highighted menu item. Records the TV programme to the connected storage device Activates the time shif function Channel selection or value input Shows the EPG (Electronic Programme Guide) in TV mode Back to previous show channel Sets the current audio channel to ef, ight or stereo Toggles betvieen TV or RADIO mode Favourite group selection Shows the Media Player list Shows Teletext on OSD (On Screen Display) wwwsstrong:tv

22. SUBTITLE Shows list of subtile languages

23.4 Fast rewind/Fast forward

24. Coloured buttons For Multimedia and Teletext functions

3.1 Connecting to a Terrestrial Antenna

To receive broadcast signal your trrestral indoor or outdoor antenna must be connected to the ANT IN connector on the back ofthe receiver. Use a proper} shielded antenna cable and suitable connectors. The TO TV connector allous you to loop the antenna signal to a second receiver or TV set.

3.2 Connecting to TV with HDMI cable

Fig.4 The TV set shall be connected with the receiver using a good quality HDMI 1.3 or higher cable. This connection gives the highest possible qualit}.

3.3 Connecting to TV with SCART cable

Fig.4 SRT 8105 ECO is also equipped with a SCART connector altematively the TV set can be connected to the receiver using a good quality SCART cable.

3.4 Connecting to TV with Cinch cable

TV sets without SCART or HDMI input(s) can be connected to the receiver using suitable cinch cables. Connect one end ofthe cable to the Audio L, R and VIDEO connectors on the back of SRT 8105 ECO. Connect he other end to the respective imputs on your TV set.

3.5 Connecting to a Digital Audio Amplifier with S/PDIF

Fig.4 By connecting your receiver to a digital amplifier or home theatre system, you can enjoy the best possible sound quality and mul-channel audio (depending on broadcast}. Connect your Digital Audio Ampliier or home theatre system with a suitable cinch cable to the S/PDIF connector on the back oftne receive.

3.6 Connecting to a Digital Audio Amplifier and TV using

By connecting your receiver to the latest digital amplifers or home theatre systems with HDMI connections, you will enjoy the best possible sound qualit and mult.channel audio (depending on broadcast). Connect the HDMI output of the receiver to an input of your amplifier, and then connect the HDMI output oFthe amplifier to your TV set. Select the correct input on your amplifier to watch and listen to programmes. www.strongtv 5 English

<STRONG PART na DIEMALIV

3.7 Connecting a USB storage device

NOTE: Ve recommend the use of a hard disk drive USB 2.0 or higher for recording and play back OFTV events. For proper functioning of Time Shi and recording functions, a fast USB device [such as a hard disk drive) is needed. Interrupted playback or a distorted picture during playback or Time Shif are indications for a low device speed. STRONG cannot guarantee proper functioning of recoding and or Time Shi functions with all USB devices.

4.0 STARTING UP FOR THE FIRST TIME

IF jou use your eceiver for the first time, the Welcome “Easy install” menu appears. Use AV to move the highlight to the setting you wish to alter and use 4} to change values. Start by selecting your language using 4/3. Once you have selected your language, press W to move to the highlight next item and use 4/} to change. Language Select your language. Region: Select your region where this receiver is used. Sub: Select Normal to display subtiles per default, Select Hard of Hearing to show HoH subtiles per default. Select Offto hide subtiles per defaut. Aspect Mode: Use this option to select the aspect ratio of your TV and the preferred conversion method. Options are: Auto [automatic detection of aspect ratio), 43 Panscan (Displays 16 widescreen broadcasts full screen on your 43 TV), 43 lterbox (black bars on top and under the picture on a 4:3 TV) and 169 {use this seting for 169 TV sets). Scan mode: Select Alto store scrambled and free to air channel or select Fe to store oniy free to air channels. Note: Scrambled channels you cannot watch th this receiver. Connection: Use this option to select the connection to your TV set. Select HDMI or SCART. jou are using a cinch able then this selection s not important. Once all settings are made, move the highlight to OK and press OK to continue. The receiverwil now advance to the Ai Agjustment screen This par ofthe wizard is of great help en setting up your antenna system. Use A/Y to move the highlight to the setting you wish to alter and use {D to change values. The following settings are available Antenna Power. Set to On if you use an active antenma. When set to On, 5 V will be present on he ANT IN connector oFthe receive. Select Offor passive antennas. Besper Select On for an audible indication of signal reception. Offturns the becper of. Channel No. Select a channel that is know to carry a broadast in your region. The Signal Strength and Signal Quality bars give a visual indication ofthe reception. AAdjust your antenna to obtain maximum signal strength and quality. Once all settings are made, press OK to start scanning. The receiver will now search for all available channels. Once scanning is finished, the receiver switches to viewing mode. 6 wwwsstrong:tv

Par gun <STRON DIGTAL IV La In case the Welcome “Easy install” menu does not appear afer suitching on he receiver the first time, reset the receiver to factory settings by pressing the MENU button and selecting Load Factory Setting in submenu Tools. (Default PIN 0000)

5.0 QUICK GUIDE TO USING YOUR RECEIVER

Ve at STRONG understand that ou can't wait to enjoy your new high definition digital terestral receiver. The following quick guide will make you familiar with the basic operation of this device. We do, however, advice you to read the full manual to get the best performance fiom your receive. To tu your receiver ON or to Standby, use the À button on the remote control Choose the desired channel with the À /W buttons. Alternativel, you can digit the channel number with the 0-9 buttons on the remote control. Or press OK in viewing mode to display the channel ist The volume can be adjusted with the 4/3 buttons.

Your new recever is equipped with several features to make watching TV a true pleasure. This paragraph describes these features. Please also read chapter 7.0 to get familiar with the menu of your recever

6.1 Changing channels

To gain direct access to a certain channel, simply imput its number with the 0-9 keys on the remote control. Channel numbers can be up to four digis long. Entering a number with less than four digits is possible. Just wait a few seconds and your receiver will switch o the selected channel or press OK immediately aer selecting the channel number.

Press OK in viewing mode to display the Channel Lit. Use AW in the Channel List to highlight your channel of choice and press OK once to select the highlighted channel. Press OK again to leave the Channel List TP: Use 4) 10 toggle betveenthe AÏ Channel ist and Favourite lists or press FAV for a list of available Favourite ist.

6.1.3 Using the A/v or PG+Pc- keys

À switches to he next channel. 3 switches to the previous channel. PG+ switches to the next 10 channels PG: suitches to the previous 10 channels. www.strongtv 7 English

file watching TV you can press the INFO button any time to get information about the current channel and event. Press INFO twice for extended EPG deals about the curent channel. Press INFO three times for technical etals about the current channel Event information is displayed when available. Availabity depends on broadcast.

6.3 Selection of audio language

Some channels support a choice of audio formats and/or languages. To select another audio stream, press AUDIO in viewing mode. À lis th available audio streams will now be displayed. Use AV to Select the desired stream and confirm with OK. The audio channel as stereo, mono, lef and right can be selected with the 4/2 buttons.

Your recever includes a ful featured Teletex To access Teleteu, press the TTX button in vieuing, mode and use the 0-9 buttons to input the number ofthe page jou wish to see. The coloured buttons ofthe remote control allow you t jump to selected pages direct as indicated om the bottom fthe teleten screen, Use the AV buttons to select one page up or down, use AJ} buttons to select subpages. Press EXIT or TTX to get back to vieuing mode.

Some channels support a choice of subtile languages. Press SUBTITLE in viewing mode t display à lis of avalable subtil languages. Select your subtil ofchoice with A/W and press OK to conf. Press EXIT t leave without making changes.

Time Shi allous you t pause Ie broadeasts and resurne playback later. Press TIMESHIFT in viewing mode to activate this mode. On screen wil appear a message Timeshjf On, live TV keeps playing. To pause press I button and press D to resume Time shified playback. Press 4/9 for Fast rewind/Fastfonards. Press to return Lo ve TV. Press TIMESHIFT to ext Time Shi mode. NOTE: Time Shif needs a connected USB storage device with sufficient free space and sufficient speed in order to work proper.

6.7 EPG (Electronic Programme Guide)

‘The Electronic Programme Guide is a very useful function that allows you to view event schedules and information and to mark programmes for recording, To access the EPG, press the EPG button in viewing mode. Use A/Y to select the desired channel and 4/D to select the desired event. Press OKto display detailed information on the selected event. Use EXIT to qui the detailed information screen. Press RED to get to the Step Time function. Use 4} to select the desired step and OK to execute it. Press EXT to qui the Step Time function. Press GREEN to set a timer fo a selected event Refer to section 7.34 for details on the timer function. NOTE: Availability oFEPG data depends on broadcast Ü wstrongiv

Par gun <STRON DIGITAL IV

6.8 Instant Recording

Your new receive allows you to make an instant recording of the programme you are watching. Simphy press @ to star the recording. To enter the duration for the recording press @ again. Use the 0-9 keys to imput the desired recording time. During the recording a recording sign wil be show on the upper right of your TV screen. To stop the recording, press ML. Select Yes and press OK again to stop the recording. *Please connect an USB storage device with suficient fee space before you start a recording

‘The main menu gives you access to settings, multimedia functions and buil in games. To access the main menu, press MENU in vieng mode. The main menu consists of the following sub menus: Edit Channel, Installation, System Setup, Tool, Game and Media+ ‘Throughout he main menu, MENU or EXIT can be used to get back to the previous screen

Use A to select Ed Channel and press OK or D to enter. Use AY to highlight the desired sub menu and press OK to select Press EXIT or 4 to get backto the main menu.

7.1.1 TV Channel List

In Edit Channel menu select TV Channel List with A /W and press OK to enter. Use 4/3 to change the channel group [assumed you have already set up favourite groups) Select the desired channel with À W. Press OK to view the selected channel in the preview box.

7.1.1.1 Adding channels to favourite lists

Channels from the TV Channel List can be added to up to 8 different favourite groups. Press FAV while in TV Channel Lit to access this function. The FAV sign on the top ofthe screen ill move up 0 indicate that the Favourite function is selected. Use A/Y to select a channel you wish to add to 2 favourite group. When the highlight is on the desired channel press OK. À list with all available favourte lists will now pop up. Use AJ to select the favourite ist you wish to add the channel 10 and press OK, press EXIT t finalize the process. Favoured channels will be marked with a heart symbol. Once all changes are made, press EXIT tice. À confirmation banner wi pop up. Select es 0 save the changes or No to discard.

71.12 Locking channels

Locked channels can onl be watched afer entering ie pin code. (DEFAULT PIN: 0000) Te lock or unlock a channel press RED while in TV Channel Lit. The red Lock sign on the top ofthe screen vil move up to indicate that the Lock function is selected. Use AW to select the desred channel and press OK to lock or unlock. You are asked to imput the pin code. (DEFAULT PIN: 0000) Locked channel will be marked with the à symbol. Locking/unlocking multiple channels in one session is possible. Once al changes are made, press EXIT uice. À confirmation banner will pop up. Select Yes t save the changes or No to discard.Locking/unlocking multiple channels in one session is possible. www.strongtv 9 English

<STRONG PART na DIEMALIV

711.13 Skipping channels

Channels marked with Skp will be skipped when zapping channels with the AY buttons. Despite that, these channels are st available om the channel is. To mark channels for skipping, press GREEN wéile in TV Channel List. The Skip symbol on the top of the screen will move up to indicate that the Skip function is selected. Use AW to select the desred channel and press OK to mark or unmark it for skipping. Channels set fr skipping will be marked with the symbol Once aÏ changes are made, press EXIT vice. À confirmation Banner wil pop up. Select Yes t save the changes or No to discard.

71.14 Moving channels

To enable the Move function, press YELLOW ile in TV Channel Lis. The Move symbol on the top of the screen wi move up to indicate that the Mave function is selected, Use A/W to select the desired channel and press OK to select. You can now move the selected channel up or dou the channel lis using AY. Once the channel is on the desired position, press OK again. The channel is now fied on is new position. Once all changes are made, press EXT twice. À confirmation banner wi pop up. Select Yes to save the changes or No to discard.

7.1.1.5 Editing channels

he Edi function allows ou to So, Rene ar Delte channels, To enterthe Edit menu, press BLUE while in TV Channel List. The Edit Channel menu ill appear. Son Press RED 10 enter the Sort menu Use AJ to select the desired sorting method and press OK to confirm Possible methods are: Name (AZ) Soring in alphabetcal order from À to Z. Name (ZA) Soring in alphabetcal order from Z to A. Free/Scramble: First in the list will be Free-To-Air channels. Lock. All unlocked channels wi placed first in the list. Default Soring by searched Order (rom lowest to highest frequency or by LCN numbering). Rename Press GREEN in Ed Channel o enable the Rename function. The Renamne sign ll move up to indicate that Rename is selected. Use A W to highlight the desired channel and press OK to select. A txt field will mew pop up at the right oftne screen. Use 4/D AJ V to select the desired characters and enter them with OK. Once you have fiished edting, press BLUE to enter the changes. Once al changes are made, press EXIT vice. Select es to save the changes or No to discard Delete Press BLUE in Edit Channel to enable the Delete function. The Delete sign will move up t indicate that Delee is selected. Use AJ to highlight the desired channel and press OK to mark it for deletion. ‘The receiver asks you 10 enter the pin code. Once you have marked all channels you wish to delete, press EXIT tvice. À confirmation banner will be displayed. Select es to delete the marked channels or No to cancel. w wstrongiv

Par gun <STRON DIGITAL IV

7.1.2 Radio Channel List

Basical, the operation ofthe Radio Channel List is the same as in the TV Channel List, The only difference is that in Radio Channel List there is no video information, so it will always display the radio logo atthe right preview screen.

Use this menu to delete all stored channels. Select Delete Al with A JW and press OK. The receiver asks you to enter the pin code. (Defaul pin 20000). In the confirmation vindow select Yes with 4/2 and press OK to delete or select No to cancel

WARNING: ‘The Delete al function will permanently delete al current channels and all

favourte lists from your receiver, and you are not able to leave the menu until you search for channels again.

Use AJ to select Installation and press OK or D 10 advance. Select Auto Scan with AY and press OK to enter. Use 4/3 to toggle betueen FTA Only Yes or No. When FTA Onfyis set to Yes, scrambled channels won't be stored in the channel list. Use À/Y to highlight Search. Now press OK to star auto scan. ‘The receiver il store al newly found channels in the channel list.

Use AJ to select Installation, press OK or Be to advance. Use AY to select Channel Scan and press OK 10 enter. Use 4/3 to toggle betueen available scan modes: By Channel and 8y Frequency. IF By Channel is selected, use the cursor buttons to select Scan Band and Channel No. By Frequency is selected, use the cursor buttons to select Frequency and Bandvidth. Highlight Search and press OK Lo start scanning, Newiy found channels ll be stored in the channel list.

7.23 Aerial Adjustment

Use A/Y to select instalation press OK or D to advance Use A/Y to select Auril Afjusiment and press OK to enter Use A/Y move the highlight to the setting you wish to alter and use D to change values. The following setings are available Antenne Power: Set to On ifyou use an active antenna. When set to On, 5 V will be present on the ANT IN connector ofthe receiver. Select Of for passive antennas. Besper. Select On for an audible indication of signal reception. Offtums the beeper of. Channel No. Select a channel hat is known to carry a broadcast in your region. The Signal Strength and Signal Qualiy bars give a visual indication ofthe reception. AAdjust your antenna to obtain maximum signal strength and quai. Press EXIT to leave the Aeral Adusiment screen. www.strongtv n English

<STRONG PART na DIEMALIV

7.2.4 LCN (Logical Channel Numbering)

1FLCN (Logical Channel Numbeing) is activated and an LCN signal is provided bythe operator, channels vil be storedin an operator defined order, St LCN to On to activate operator defined channel numbering or Ofto store channels in found order

‘This menu allous you to manage the system settings of your recever. I consists oFthe following sub» menus: Lamguage, TV System, Local Time Seting, Timer Sting, Parental Lock, OSD Settng, Favourite and Auto Standby Press A JV to highlight desired menu and press OK advance to the next screen, Use A/W to move te highight to the desired seing. Values can be changed with 4/D. Press EXIT to leave.

‘This menu allous Jou to set up your language preferences. Language: Use 4h to select the desired language for the On Screen Display. First Audio: Use 4h to select the desired Audio language. Second Audio: Use 4h to select a language that will be played when the language selected at Fist Audi isn't avalable. Subtitle Lamguage : Use 4} to select the referred subtile language Subtitles: Use 4h to select the preferred subtile type to be displayed automatically. Teletext Use 4h to select the preferred teletext language (when available.)

Use this menu to match your receiver to your TV set. The following settings are available: Video Resolution: Toggles between 576i up to 1080p. Please use a setting that matches your TV's specifications. Afer a selection is made, you wall be asked to confirm. Note: Selection is only applicable on HDMI ‘Aspect Mode: Use this option to select he aspect ratio of jour TV and the preferred “conversion method. Options are: Auto (automatic detection of aspect ratio), 4:3 Panscan (Displays 16:9 widescreen broadcasts full screen on your 43 TV) 433 letterbox (black bars on top and under the picture on a 43 TV) and 16:9 {use this setting for 16:9 TV sets) Connection Use this option to select the connection to your TV set, Select HDMI or TV SCART. Digial Audio Output: | Toggles beteen PCM and Bistream output. When PCM is selected, all audio villbe converted to stereo audio. Bitstream enables multi.channel audio on the digital output.

7.3.3 Local Time Setting

Here you can set up Your region and time zone. Region Use 4 to select the region you live in GMT Usage Set to On for broadcaster defined time or to Offto input time and date manual, GMT Offer Allous You to adjust the time zone you live in. This option is only available vihen GMT Usage is setto On. The GMT Offéet range is “11:30 - 12.00" m2 wwwsstrong:tv

Par gun <STRON DIGITAL IV increasing by halfhours progressively, The cities matching the set GMT Offet are displayed at the bottom of the screen. Summer Time: Select Offor On to add one hour extra for summer time during the summer. Date: Date and Time settings are available only vhen GMT Usage is set to Of. Use the 0-9 buttons to enter the date. Press EXIT to proceed Time: Date and Time settings are available only vhen GMT Usage is set to Off Use the 0-9 buttons to enter the time. Press EXIT to proceed.

This menu allows you to set up 10 8 timed events for recording or waking up the receiver. Use AJV to select Timer Seting from the System Setup menu and press OK to enter. The receiver vil display a ist with 8 imers, followed by their respective status, Select the timer you wish t set or change with AV and press OK 1o proceed The timer setup menu will now be displayed The following setings are avalable: Timer Mode: Choose bemueen Of (Timer inactive), Once or Daily (Timer il be executed every day Timer Senice Choose betueen Channel (Timer will wake up the receiver) or Record {Timer wil start t record te scheduled event) Wokeup Channel Use 4h to select the channel the timer vil vake up with Wakeup Date Use the 0-9 buttons to imput the date for the timed event Wakeup Time: Use the 0-9 buttons to imput the desired start time. Duration: Use the 0-9 buttons to imput he timer duration. Once all settings are according to your wishes, use AJ to move the highlight to Save and press OK 0 confim. To quit the timer without saving your settings, move the highlight to Cancel

‘This menu allows you to protect the instalation menu and/or channels with a password. You can also enter a new password in the Parental Lock menu. Use AY to select Parental Lock from the System Setup menu and press OK to proceed. You will be asked to enter your pin code. (DEFAULT: 0000) Menu Lock: Locks the instalation menu. You can set Menu Lock to On or Of. Channel Lock Choose betueen: Off AGE 4, AGE 5, up to AGE 18. Channels with a parental rating above the chosen age wall be protected with a password (available in your local broadcast.) New Password Enter your new password (4 digits) here. Confirm Password: Re-enter your password here to confirm.

This menu allows you to change setings for OSD Timsout and OSD Trarsparenc} OSD imeour Sets the time fier which on screen banners and messages disappear. The range is 1-10 seconds. OSD Transpareney… To setthe OSD transparencyfom Of 40% with 10% steps Load Default OSD Serie Press OK to clear all OSD setngs and reset to defaut values www.strongtv LE English

‘This menu allows you to personalize the names ofthe 8 available Favourite lists. Use AY to select Favourite from the System Setup Menu and press OK 10 proceed. The names of all groups are now displayed. Select the desired Favourite group with A/ and press OK to edit its name. À text field will now pop up at the right ofthe screen, Use 4 AY to select the desired “characters and enter them with OK. Once you have finished editing, press BLUE to save the changes. Once all changes are made, press EXIT tic.

Auto Standby is a new feature that helps you with reducing power consumption. When set to On, the receiver will tum to standby ii doesn't receive any commands for three hours. Set Auto Stand to Ofio avoid the automatic switch doun.

Press MENU in viewing mode to enter the Main Menu. Select the Tools submenu with A/ Y and press OK or D to enter Use A to highlight the desired submenu and press OK proceed. Press EXIT to leave.

7.4.1 Receiver Information

‘This submenu shows receiver specific information such as hardware version and sofware version. I also displays our web address wawstrong.w. Please have the Receiver Information screen on hand when you call our hotline. The person who answers your call might ask for the information given in his screen.

7.4.2 Load Factory Setting

‘This option allows you to reset the receiver to factory settings, which clears al stored channels.

WARNING: By resetting your receive to factory defaul, al your settings and stored

“channels will be permanentiy deleted. Please use this option with care. Use AJ to select “Load Factory Seting” in the Tools menu and press OK. You are asked to input password. Input the correct password using the 0-9 buttons (default: 0000). À confirmation window is displayed. Select Yes to return t factory settings. Select No to cancel. Press EXIT to leave.

7.43 SJW Upgrade by OTA

7.4.4 Upgrade by USB

This feature allows you to upgrade your recevers sofare ia the USB port 1Fnew sofiware is avalble for your recever it can be dounloaded from our websitePaawstrongnf Place the sofiuare fie (urzipped) in the root directory of our USB storage device (HDD, memory stick ete and insert this deice int the USB port of the receive. Select Upgrade by USE from the Took menu and press OK t proceed. The upgrade menu vil now be displayed Use A/Y to select Upgrade Mode and choose option Allode Use AV to select Upgrade Fil and choose the file containing the new sofare. Once al setings are made, move the highlight to Stat and press OK 1o start te upgrade process. fier a feu seconds, he receiver ask: "Are You sure o burn flash? Select Yes to fnalize the upgrade or No to qui without upgrading.

WARNING: ‘fer an update the receiver restarts automatically, During the upgrade

process NEVER disconnect the receiver from the mains or switch ofthe poverl Doing so might damage your receiver and wil void warranty!

7.4.5 Remove USB device safely

Select Remove USB device safly from the tools menu and press OK. The receiver will display a message indicating that you can safely remove your storage device from the receiver. NOTE: fer performing this function, the USB device is no longer accessible from your receiver. To gain access to your storage device again, re insert or switch the receiver to standby and on again.

Your recever is equipped with two games which can be played on your TV sereen using the receiver remote control Use A/Y to select Game fiom the Main menu and press OK or to proceed Select one ofthe available games (Othello or Sudoku) using À | W and press OK to start he gare. Follow the directions on screen. Use EXIT to quit a game.

‘The Mediar menu consists ofthe following submenus: Media Player, Record Manager, DVR HDD Information, HDD Format, DVR Configuration and Jump. Use A to ighlight the desired menu and press OK to enter. Press EXIT to quit.

his function alows You to play MPEG, AVI, MP3, JPG many other type fes from connected storage device (see details in technical part) Select Media Player from the Medias menu and press OK to proceed www.strongtv English

<STRONG PART na DIEMALIV Use AY browse the connected USB device and use OK to open maps. Press OK to play the highlighted selection ‘The help banner atthe bottom ofthe screen explains ll buttons used in the Media player. Press EXIT- to quit. NOTE: You can also access the Media Player from viewing mode with the FILE key on the remote control.

7.6.2 Record Manager

The Record Manager gives you access to previous recorded events Select Record Manager from the Media+ menu and press OK to enter. Use AJ to highight the recording you wish t play and press OK start playback. Press EXT to ext. During plaÿback ii possible to perform the following actions:

Te pause the playback > Te resume playback FFJREW For fat forward or fast rewind during playback. RED Press to stop playback and return to Record Manager. When the timer banner is on screen (activated by pressing b or INFO), the following actions are possible AD and press OK t jump fonds and backvards in time during playback = Set marker point in play back, press again to delete make point. 2 Jump to next marker point. 3 Jump fonvards in time. (See details in 7.6.5 DVR Configuration under Step to) NOTE: You can also access the Record Manager from viewing mode with the RED Key on the remote control. The help banner at the bottom ofthe screen “explain all buttons used in this record manager to edit. Press EXITE to save the settings and quit the menu

7.6.3 DVR HDD Information

‘This option shows relevant information about the connected USB device. Select DVR HDD Information frorn the Media menu and press OK to enter. Press EXIT to leave.

‘The HDD farmat menu allows you to format the connected USE device.

WARNING: Formatting will permanent delete ALL data stored on the connected device.

Please make a backup copy of all data you wish to keep before entering the HDD Format menu. STRONG cannot be held responsible for loss of data from USB devices used with this receiver. Select HDD Fonna fiom the Media+ menu and press OK to enter. Use 4} to select the partition you wish to format (Partition 1 is set per default) and press W to highlight Format. Press OK to proceed, select FAT or Cancel, or press EXT t leave without formatting, NOTE: It is possible to use already NTFS formatted USB disk. 16 wwwsstrong:tv

‘This menu allows you to make settings for Time Shif, recording and playback. Select DVR Configuration from the Media menu and press OK to enter. Use AY to move the highlight and 4 to change settings. Press EXIT to qui. Time Shi On or Of. When Time Shif is set to Of Time Shift becomes inactive. Time Shifi to Record: … On or Of. When set to On, Time Shif is also possible during record Record Tipe: TS or PS. When TS is selected, recordings will also include subttles and eletext (uen available). PS makes recordings without these extras. Record Selection Select the partition whereta the receiver should record. Standby afer record On or Of. Select if receiver must go to standby mode after Timer record. Step to: 30:26 to 10 min. Set the time step you like to jump Forward vith the button 3 during playback of recorded les. www.strongtv 7 English

‘There may be various reasons for abnormal operation of the receiver Check the receiver according to the procedures shown below Fe receiver does not work proper} afier checking please contact your dealer or the local Service Hotline. Do NOT try to open or disassemble the receive. It may cause 2 dangerous situation and warranty will be void Problem Possible cause What to do LED indicator not it Mains lead unplugged Check mains plug No signal found Aerial is disconnected Aerial is damagedmisaligned Out of digital signal area Active antenna requires to switch ON antenna power/external power Check aerial lead Check aerial Check with dealer Switch receiver's Antenna Power ONJconnect extemal power No picture or sound env HDMI is not selected on your TV or Amplifer or s set to higher resolution as TV supports TV is not switched on Switch to correct TV input Select lower resolution on receiver Switch TV on Scrambled channel Message Channelis scrambled Select alternative channel No response to remote control Receiver of. Remote not aimed correct Front panel obstructed Remote batteries exhausted Plug in and turn on plug {im remote at front panel Check for obstructions Replace remote batteries Forgotten PIN code Contact local Service Hotine or send email o our Support via Afler moving the receiver Lo another r0om/area you are no longer able to receive digital reception Antenna signals are t00 weak Press the INFO button on remote 2x or 3x to cal up signal bars and adjust antenna for (maximurm) reception or rescan channels The receiver suitches of automaticalh. Auto Standby function enabled. Disable auto standby. See section

DIEMALIV General Data Supply Voltage: Power Consumption: Power consumption in Standby: 220-240 V AC (SMPS), 50/60 Hz

5.65 W (yp.), 12.00 W (max)

082W Operating Temperature: 0-40" Storage Temperature: 30-80°C Operating Hurnidity Range: 10-85%, RH, Non-condensing Size (WADXH) in mm: 1884 13544 Netweight 0.505 kg
