OVSAFSLCERA - Slicer Ovela - Free user manual and instructions

Brand	Ovela
Model	OVSAFSLCERA
Product Type	Electric Food Slicer
Dimensions (W x D x H)	40 x 25 x 30 cm
Weight	5 kg
Power	150 W
Blade Diameter	200 mm
Blade Material	Stainless Steel
Adjustable Thickness	0 to 15 mm
Food Pusher	Yes, with safety guard
Safety Switch	On/off lock
Non-Slip Feet	Yes
Carriage	Removable for cleaning
Materials	Aluminum housing, stainless steel blade
Dishwasher Safe Parts	Carriage and food pusher
Usage	Meat, cheese, bread, vegetables
Warranty	2 years
Included Accessories	Food pusher, cleaning brush, manual

Frequently Asked Questions - OVSAFSLCERA Ovela

How do I clean the slicer after use?

Unplug the slicer, remove the carriage and food pusher, and wash them in warm soapy water or place in the dishwasher. Wipe the main body with a damp cloth. Do not immerse the motor housing.

Can I slice frozen meat?

It is not recommended to slice frozen meat as it may damage the blade. Thaw the meat slightly for best results.

How do I adjust the slice thickness?

Turn the thickness adjustment knob located on the side of the slicer. The range is from 0 to 15 mm.

Is the blade removable for sharpening?

The blade is not designed for user removal. For sharpening, contact a professional or refer to the manual. Regular cleaning helps maintain sharpness.

What safety features does the slicer have?

The slicer includes a safety on/off switch, a food pusher with a guard to keep hands away from the blade, and non-slip feet for stability.

Can I slice cheese with this slicer?

Yes, the slicer works well with hard and semi-hard cheeses. Soft cheeses may be more difficult and should be chilled first.

How do I store the slicer?

Store the slicer in a dry place. Wrap the blade with the included blade cover or cardboard to protect it. Keep the cord wrapped neatly.

What is the maximum width of food I can slice?

The carriage can accommodate food up to 20 cm in length and 15 cm in width.

Does the slicer come with a warranty?

Yes, the Ovela OVSAFSLCERA comes with a 2-year warranty against manufacturing defects.

Can I buy replacement parts?

Yes, replacement parts such as the blade and carriage can be ordered from Ovela customer service or authorized dealers.

USER MANUAL OVSAFSLCERA Ovela

SAFE SLICE MANDOLINE SLICER

OVSAFSLCERA

SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference.

• Misuse of the mandoline slicer may lead to injuries.
• This mandoline slicer cannot be used by persons (including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the mandoline slicer, by a person responsible for their safety.
• Ensure to thoroughly wash the mandoline slicer prior to first use.
• This mandoline slicer is intended for indoor household use. Do not use this mandoline slicer for any other purpose.
• Adult supervision is required at all times when the mandoline slicer is being used by or around children.
• The blades on this mandoline slicer are sharp. Do not touch the blades or any other moving parts.
• Do not place the mandoline slicer near hot surfaces (for example, ovens, stoves).
• Do not add ingredients into the mandoline slicer if something else is being currently sliced.

COMPONENTS

A Mandoline slicer with cover

D Cleaning brush

B Container

C Feeder with pusher

E User guide

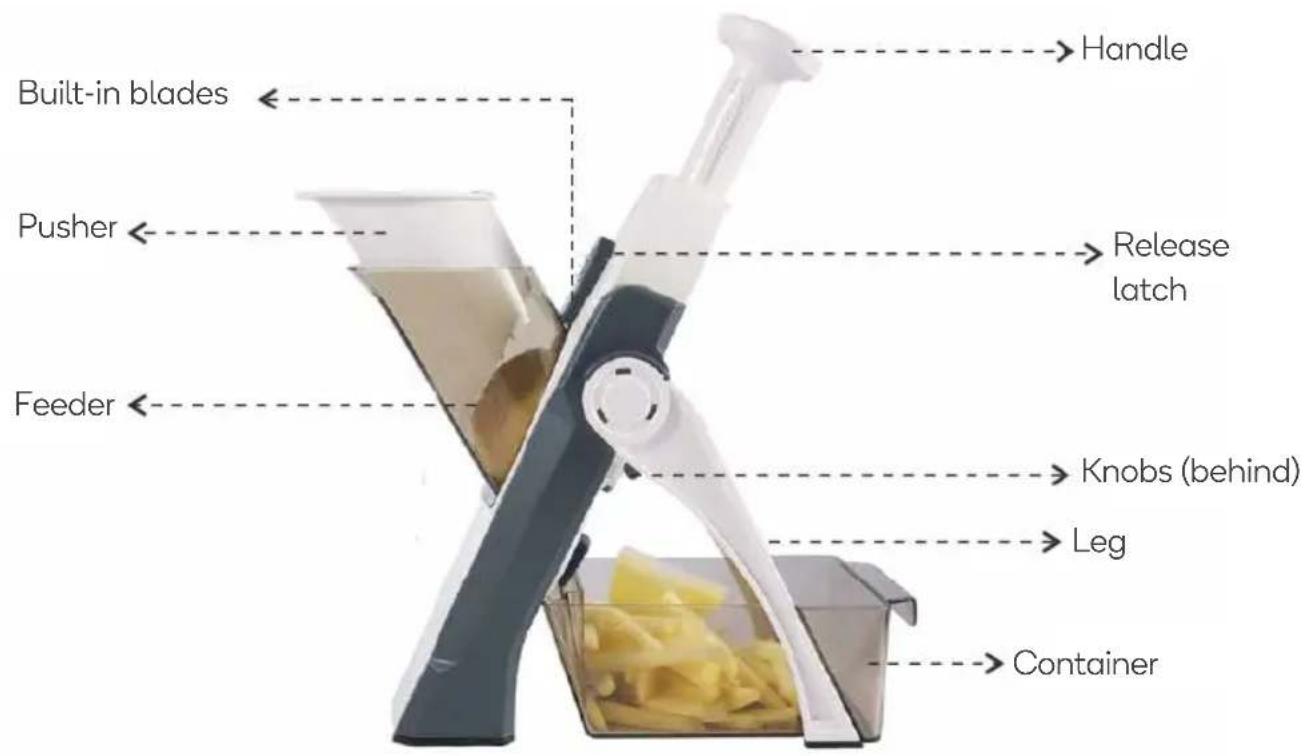

OVERVIEW

Side view

Rear view

Blade

Thickness adjustment knob

Shape adjustment knob

ASSEMBLY

1. Extend the leg out of the mandoline slicer until you hear a click on the notch, then place it on a dry stable surface.

1. Remove the cover then rotate and pull the handle up. Push the release latch up and secure the feeder with the pusher onto the mandoline slicer. It should lock into place.

1. Ensuring to align the grooves on the container with the back of the leg, insert the container under the blades. The mandoline slicer will then be ready for use.

OPERATION

Remove the pusher from the feeder.

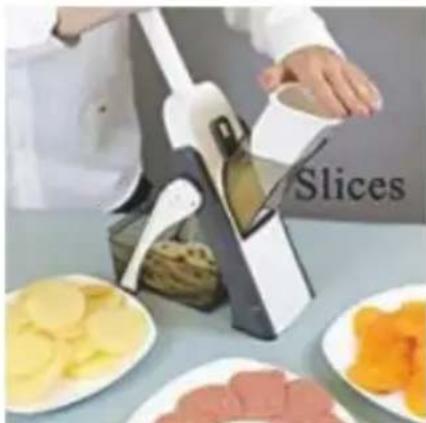

Slicing

Place a vegetable into the feeder. Whilst pushing and holding the vegetable down with the pusher, push and pull the handle up and down to start slicing.

Julienne

1. Lift and rotate both shape control knobs clockwise 360° before pushing them back down. Both sets of teeth should be protruding out of the blade.

2. Place a vegetable into the feeder. Whilst pushing and holding the vegetable down with the pusher, push and pull the handle up and down to start forming juliennes.

Cutting into strips

1. Lift and rotate one shape control knob clockwise 360° before pushing it back down. One set of teeth should be protruding out of the blade.

2. Place a vegetable into the feeder. Whilst pushing and holding the vegetable down with the pusher, push and pull the handle up and down to start forming juliennes.

Dicing

1. Use the previously outlined steps to first cut the vegetables into strips.

2. Rotate the shape control knob anti-clockwise 360° before pushing it back down. Both sets of teeth on the blade should be retracted.

3. Place the strips into the feeder. Whilst pushing and holding the vegetable down with the pusher, push and pull the handle up and down to dice.

Adjusting the thickness

To adjust the thickness of any cut, turn the thickness control knob to the desired setting (1–8). The higher the number, the thicker the cut.

Note:

If slicing, this mandoline slider is capable of slicing between 0.2–8mm in thickness.

CLEANING & CARE

Push the release latch up and detach the feeder.

Rinse the mandoline slicer under the tap and use the cleaning brush to remove any residue. Allow to dry completely before storing safely, out of reach of children.

NOTES

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
[EMPTY]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Since the OCR output incorrectly rendered a stylistic line as underscores (which should be ignored), this violates the rule. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
[EMPTY]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the background/stylistic line and produces no actual text, it complies with the “Stylistic/Background Lines (Ignore)” rule. Therefore, the OCR result is consistent with the Ground Truth.
[Non-Text]
[Non-Text]
____
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the background/stylistic line and produces no actual text, it complies with the “Stylistic/Background Lines (Ignore)” rule. Therefore, the OCR result is consistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Since the OCR output incorrectly rendered a stylistic line as underscores (which should be ignored), this violates the rule. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. This is a formatting error: the OCR should have output nothing for this line. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a ruled paper line or separator), not a placeholder for text. According to Rule 2, such stylistic/background lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. This correctly represents the absence of any textual content in the GT and correctly matches the visual line as a stylistic element. Therefore, the OCR output should have been empty or omitted this line entirely.
[Non-Text]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, continuous horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a fill-in-the-blank placeholder. Therefore, the OCR result is inconsistent with the Ground Truth.
[Non-Text]
Theorem 1.2. (Theorem of [10, Theorem 1.1]) Let be a finite field and let (x) be the set of all elements of such that
The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a ruled paper line). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the stylistic line, it complies with Rule 2. Therefore, the OCR result is consistent with the Ground Truth.
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a fill-in-the-blank placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
