Brand	Ovela
Model	OVWILLWBSWA
Product Type	Single Bed
Material	Wood (William Wood finish)
Dimensions (Approx.)	Standard single bed size (90 x 190 cm / 35.4 x 74.8 inches)
Weight (Approx.)	25 kg (55 lbs)
Power Source	None (manual assembly)
Main Function	Sleeping
Assembly Required	Yes
Tools Included	Allen key (H)
Tools Required (Not Included)	Phillips screwdriver
Hardware Included	50mm M6 screws (x16), 35mm M6 screws (x12), dowels (x8), 30mm M4 screws (x28)
Number of Parts	7 labeled parts (1-7)
Safety Warning	Do not use power tools; may damage components
Cleaning Instructions	Wipe with a damp cloth; avoid harsh chemicals
Spare Parts Availability	Contact Kogan customer service (help.kogan.com)
Warranty	Refer to Kogan warranty policy
Manual Format	PDF download available
Compatible Mattress	Standard single mattress (90 x 190 cm)

Frequently Asked Questions - OVWILLWBSWA Ovela

How long does assembly take?

Assembly typically takes 30-45 minutes with two people. Follow the step-by-step instructions carefully.

What tools do I need?

You will need the included Allen key (H) and a Phillips screwdriver (not included). Do not use power tools.

Is the bed suitable for a child?

Yes, it is a standard single bed suitable for children and adults. Ensure all screws are tight for safety.

Can I use a different mattress size?

The bed is designed for a standard single mattress (90 x 190 cm / 35.4 x 74.8 inches). Other sizes may not fit securely.

What is the weight capacity?

The weight capacity is approximately 150 kg (330 lbs) based on standard wood bed construction.

How do I clean the bed?

Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners or excessive moisture.

Can I buy replacement parts?

Yes, contact Kogan customer service via help.kogan.com for spare parts or missing hardware.

Is the bed easy to disassemble?

Yes, simply reverse the assembly steps. Keep all hardware for future moves.

What if I lose the instruction manual?

You can download a free PDF manual from notice-facile.com or help.kogan.com.

Does the bed require any maintenance?

Periodically check and tighten screws to prevent loosening. Avoid over-tightening.

USER MANUAL OVWILLWBSWA Ovela

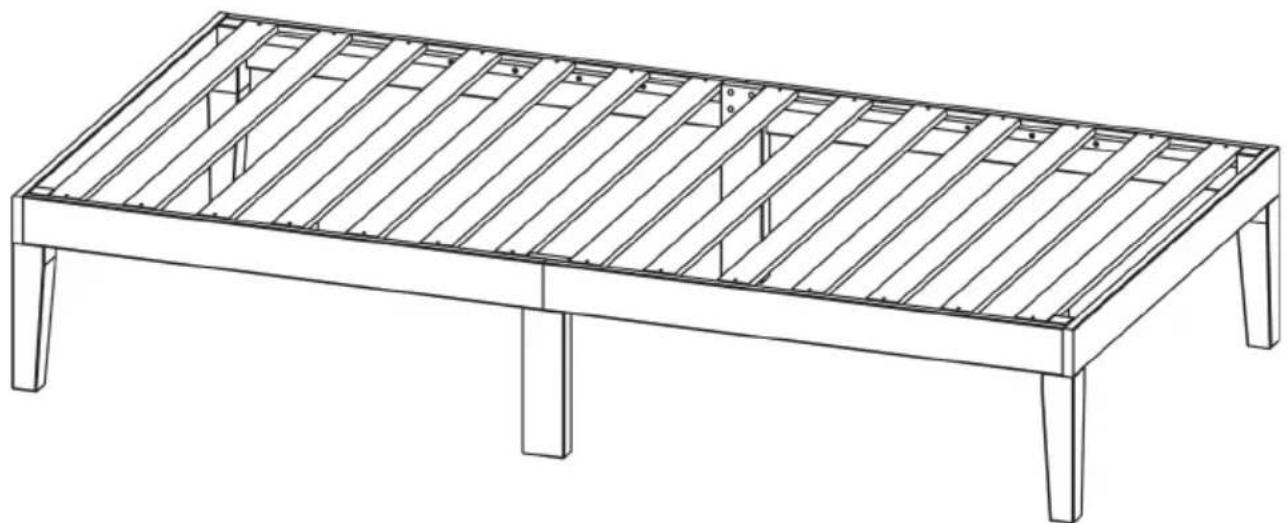

Line drawing of a wooden table frame with slatted sides and support legs (no text or symbols)

WILLIAM WOOD BED

SINGLE

OVWILLWBSNA, OVWILLWBSWA

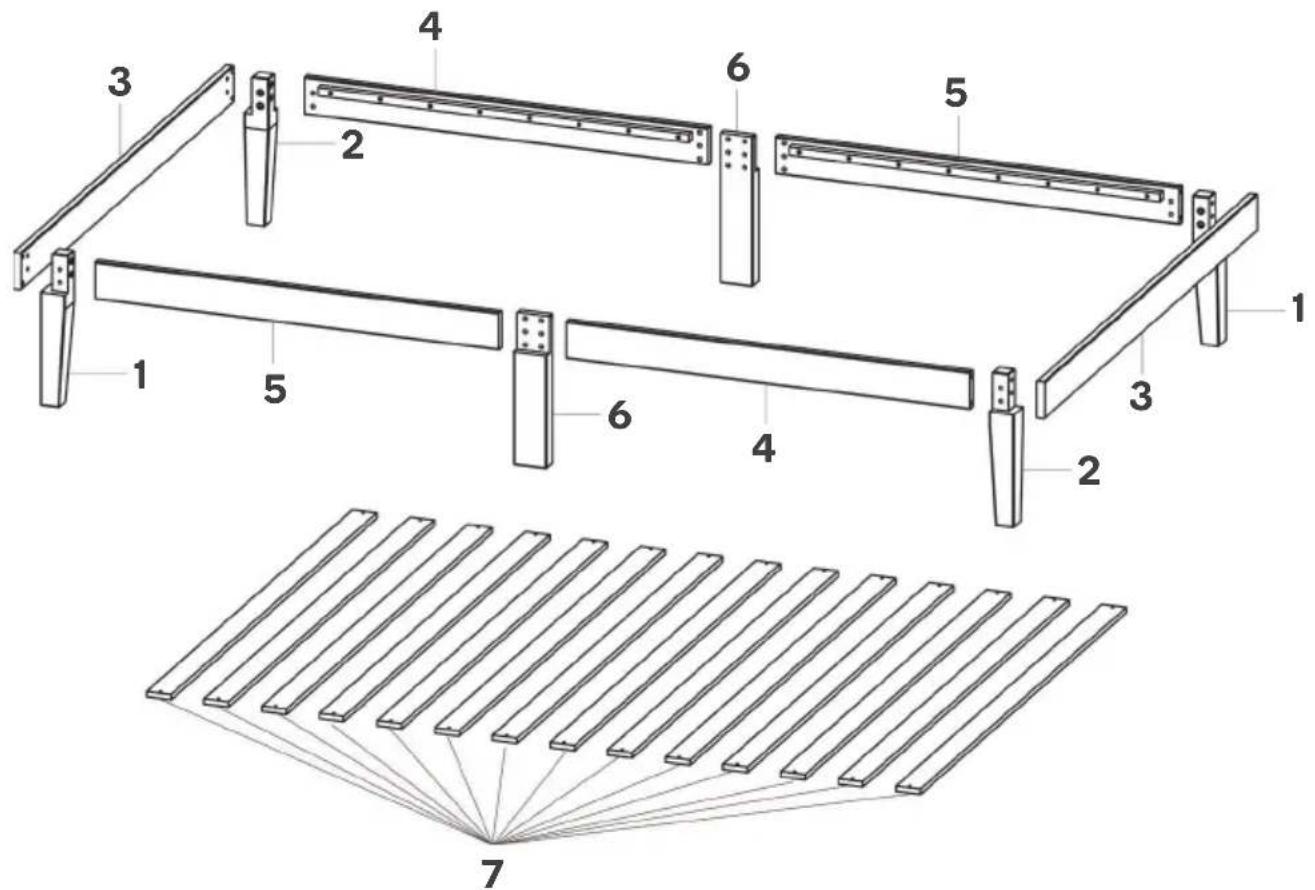

COMPONENTS

Hardware

A 50mm M6 screw (x16)

B 35mm M6 screw (x12)

C Dowel (x8)

D 30mm M4 screw (x28)

H Allen key (x1)

ASSEMBLY

Step 1: Align one part labelled 3 with parts labelled 1 and 2. Using the Allen key (H), secure the part labelled 3 to parts labelled 1 and 2 with 50mm M6 screws (A).

Repeat this process with the remaining parts labelled 1, 2 and 3. This will create two end assemblies.

Note:

Do not use power tools to assemble this bed as it may damage the components.

Two types of screws labeled A (x8) and H (x1), shown side by side without any text or symbols on the screws themselves.

Step 2: Align one each of the parts labelled 4 and 5 with one part labelled 6. Using the Allen key (H), secure the pieces (4, 5, 6) together with 35mm M6 screws (B).

Repeat this process with the remaining parts labelled 4, 5 and 6. This will create two side assemblies.

Step 3: Connect the holes on the side assemblies to those on the end assemblies using the dowels (C).

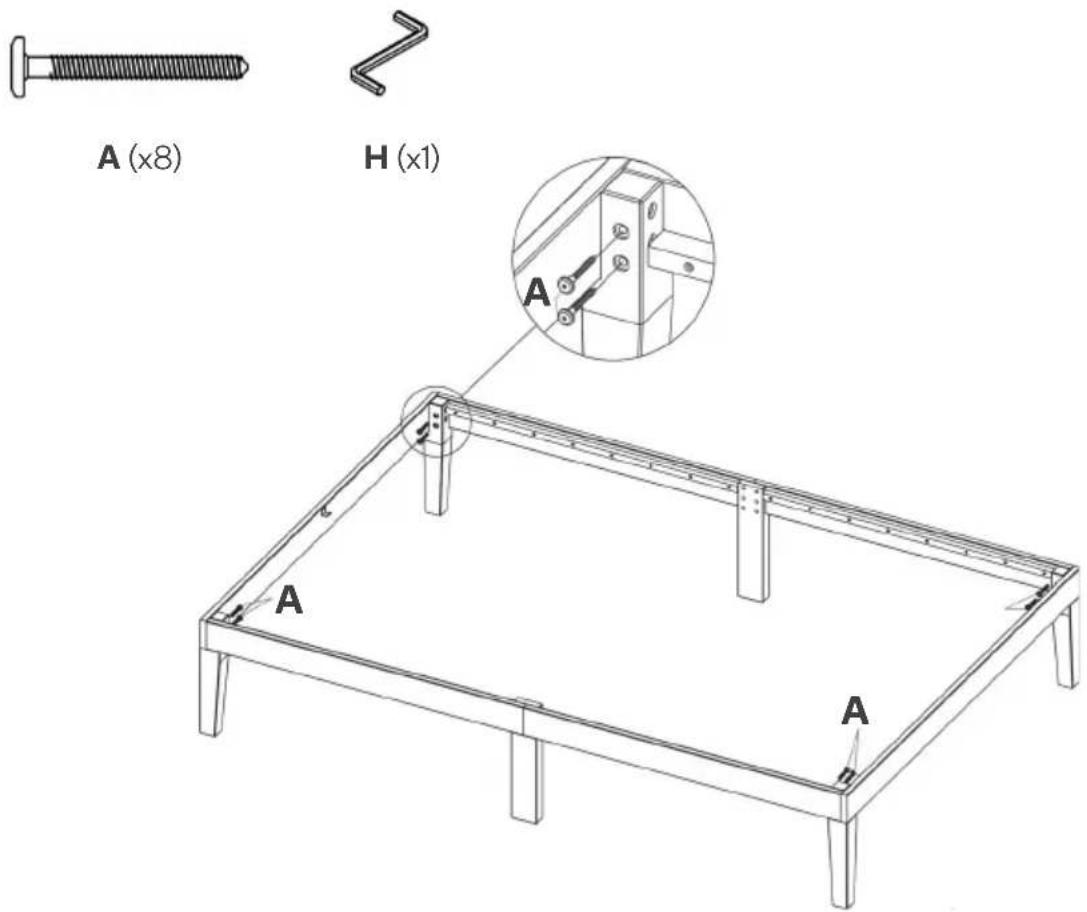

Step 4: Using the Allen key (H), secure each corner of the side and end assemblies with 50mm M6 screws (A).

Step 5: Using a Phillips screwdriver (not supplied), secure parts labelled 7 onto the bed with 30mm M4 screws (D).

D (x28)

Line drawing of a rectangular metal frame structure with supports and vertical ribs (no text or symbols)

Assembly complete.

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
