| Product Type | Compressor Refrigerator for RV or Marine |
| Model | RMF 8505 |
| Brand | Dometic |
| Width | 850 mm (approx.) |
| Height | 600 mm (approx.) |
| Depth | 600 mm (approx.) |
| Weight | 35 kg (approx.) |
| Power Supply | 12/24 V DC and 100-240 V AC, 50/60 Hz |
| Power Consumption | ~ 60-80 W (compressor running) |
| Refrigerant | R600a (isobutane) |
| Cooling Type | Compressor, automatic defrost |
| Temperature Range | +2°C to +8°C (fridge compartment) |
| Volume (Fridge) | Approximately 150 L |
| Door Hinge | Reversible (left or right) |
| Shelves | 3 adjustable glass shelves |
| Interior Light | Yes, LED |
| Installation | Built-in or free-standing, requires ventilation |
| Maintenance | Clean condenser coils every 6 months; defrost manually if needed |
| Safety Features | Electronic thermostat, overheat protection |
| Spare Parts Availability | Contact Dometic service centers for genuine parts |
Frequently Asked Questions - RMF 8505 DOMETIC
User questions about RMF 8505 DOMETIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual RMF 8505 - DOMETIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RMF 8505 by DOMETIC.
USER MANUAL RMF 8505 DOMETIC
RMF8500, RMF8501, RMF8505
EN
Absorber refrigerator
Operating manual
DE
Dometic Group is a customer-driven, world-leading provider of leisure products for the RV, automotive, truck and marine markets. We supply the industry and aftermarket with a complete range of air conditioners, refrigerators, awnings, cookers, sanitation systems, lighting, mobile power equipment, comfort and safety solutions, windows, doors and other equipment that make life more comfortable away from home.
Dometic Group supplies a wide range of workshop equipment for service and maintenance of built-in air conditioners. Dometic Group also provides specially designed refrigerators for hotel rooms, offices, wine storage and transport and storage of medical products.
Our products are sold in almost 100 countries and are produced mainly in wholly-owned production facilities around the world.
DEUTSCH
Operating instructions
Absorption Refrigerator with Refrigerated Drawer for Recreational Vehicles
RMF 8500 RMF 8501 RMF 8505
Record for future reference:
Model number ....
Product number ....
Serial number ....
CE
E 1
10 R - 047358
N 1-1
MBA 08/2014
EN
For your safety
WARNING!
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or have been given instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children.
DANGER!
Never use an unshielded flame to check gas bearing parts and pipes for leakage! There is a danger of fire or explosion.
WARNING!
Operating the appliance with gas is not permitted
■ at petrol stations ■ on ferry boats, and on board motor rail trains ■ while transporting the caravan/motor-home by a transporter or breakdown vehicle.
There is a danger of fire! Switch off the appliance.
It is imperative that the operating pressure of the pressure reducer on the gas system corresponds to the data specified on the rating plate of the refrigerator. If the values are different, the appliance can be damaged and a dangerous situation can be produced.
The refrigerator is not suitable for the proper storage of medication. Please observe in addition the instructions in the medication package inserts.
Leave the living area immediately if you smell ammonia. Switch off the appliance before leaving.
Never open the absorber cooling unit! It is under high pressure.
There is a danger of injury!
Work on gas equipment, exhaust system and electrical facilities must be carried out by authorised personnel only. Substantial damage to property and/or injury to persons can arise through unprofessional procedures.
WARNING!
Protect children:
When disposing of the refrigerator, detach all refrigerator doors and leave the storage racks in the refrigerator. In this way inadvertent entrappment and suffocation is prevented.
Making ice cubes:
Only use drinking water!
CAUTION!
The refrigerator unit becomes very hot during operation. Protect yourself against contact with high temperature parts when ventilation grilles are removed.
If the connection cable is damaged it must be replaced by the Customer Service at Dometic, or by respectively qualified personnel, in order to prevent any hazards.
As a basic rule, shut and lock the refrigerator before you start your journey!
CAUTION!
Changing the batteries:
■ Remove discharged batteries. - Replace the batteries completely. - Do not mix different types of batteries. - Observe the correct polarity! - Do not connect non-rechargeable batteries to a charger. ■ Remove rechargeable batteries from the battery compartment before charging. - Avoid short circuits on the contacts in the battery compartment! ■ Remove the batteries from the battery compartment if the refrigerator will not be used for a long time.
Operation with 230V~:
This option should only be selected where the supply voltage of the connection for power supply corresponds to the value specified on the data plate. Any difference in values may result in damage to the appliance.
Defrosting:
The layer of ice must never be removed forcibly, nor may defrosting be accelerated using a heat source!
Vehicle cleaning:
Do not use any water high-pressure cleaner for vehicle cleaning in the area of the ventilation grille.
Table of contents
1.0 General 6
1.1 Introduction 6 1.2 Guide to these operating instructions 6 1.3 Copyright protection 6 1.4 Explanation of symbols used in this manual 6 1.5 Warranty 7 1.6 Limitation of liability 7 1.7 Customer services 7 1.8 Spare parts 7 1.9 Environmental notices 8 1.9.1 Disposal 8 1.9.2 Energy-saving-tips 8 1.10 Declaration of conformity 8
2.0 Safety instructions 9
2.1 Application according to regulations 9 2.2 User's responsibility 9 2.3 Protection of children when disposing of the equipment 9 2.4 Working upon and checking the refrigerator 9 2.5 Information on coolant 10 2.6 Appliances with electronics (MES/AES) 10 2.7 Operating the refrigerator with gas 10 2.8 Safety instructions when storing foodstuffs 11
3.0 Description of model 12
3.1 Model identification 12 3.2 Refrigerator rating plate 12 3.3 Technical data 13 3.4 Description of refrigerator 14
4.0 Refrigerator operation 14
4.1 Cleaning 14 4.2 Maintenance 14 4.3 Electrical operation 14 4.4 Gas operation (liquid gas) 15 4.5 Explanation of operating controls 15 4.6 RMF 8500 models 16
4.6.1 Electrical operation 16 4.6.2 Gas operation 16 4.6.3 Setting of cooling compartment temperature 16 4.7 RMF 8501 models 18 4.7.1 Electrical operation 18 4.7.2 Gas operation 18 4.7.3 Setting of cooling compartment temperature 18 4.8 RMF 8505 models 18 4.8.1 Manual operation 18 4.8.2 Automatic operation 19 4.8.3 Setting of cooling compartment temperature 19 4.8.4 Refuelling while in AES mode operation 19 4.8.5 Additional features (MES and AES) 19 4.9 Self-contained gas operation and optional battery compartment 20 4.9.1 Inserting / changing the batteries 20
4.10 Door locking 21 4.10.1 Fastening and releasing the door lock hook when parking the vehicle 21 4.11 Lighting 21 4.12 Positioning the storage racks 21 4.13 Removable freezer compartment 22 4.14 Exchange of the igniter's battery (RMF 8500) 22 4.15 Refrigerated drawer 23 4.16 Storing food and making ice cubes 23 4.16.1 Storing products in the cooling compartment 23 4.16.2 Storing products in the freezer compartment 23 4.16.3 Making ice cubes 24 4.16.4 Refrigerator compartments 24 4.17 Shutting off the refrigerator 25 4.18 Defrosting 25 4.19 Operation during low outside temperatures 26 4.19.1 Assembling the winter covers 26 4.20 Changing the decor panel 27 4.21 Information on failure display and trouble-shooting 28 4.21.1 Status indicators 28 4.22 Troubleshooting 29
Dometic GmbH
You have made an excellent choice in selecting the Dometic Absorption Refrigerator. We are sure that you will be satisfied with your new refrigerator in all respects. The refrigerator, which works silently, meets high quality standards and guarantees the efficient utilisation of resources and energy throughout its entire life cycle, during manufacture, in use and when being disposed of.
1.2 Guide to these operating instructions
Before you start using the refrigerator, please read the operating instructions carefully.
These instructions provide you with the necessary guidance for the proper use of your refrigerator. Observe in particular the safety instructions. Observation of the instructions and handling recommendations is important for dealing with the refrigerator safely and for protecting you from injury and the refrigerator from damage. You must understand what you have read before you carry out a task.
Keep these instructions in a safe place close to the refrigerator so they may be referred to at any time.
1.3 Copyright protection
The information, texts and illustrations in these instructions are copyright protected and are subject to industrial property rights.
No part of these instructions may be reproduced, copied or utilized in any other way without written authorization by Dometic GmbH, Siegen.
1.4 Explanation of symbols used in this manual
Warning notices
Warning notices are identified by symbols. A supplementary text gives you an explanation of the degree of danger.
Observe these warning notices rigorously. You will thus protect yourself and other people from injury, and the appliance from damage.
DANGER!
DANGER indicates an imminent hazardous situation which, if not avoided, could result in death or serious injury.
WARNING!
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION!
CAUTION indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION!
CAUTION (used without the safety alert symbol) indicates a potentially hazardous situation which, if not avoided, may result in damage to the appliance.
Information
INFORMATION gives you supplementary and useful guidance when dealing with your refrigerator.
Environmental Tips
ENVIRONMENTAL TIPS gives you useful guidance for saving energy and disposing of the appliance.
1.5 Warranty
Warranty arrangements are in accordance with EC Directive 44/1999/CE and the normal conditions applicable for the country concerned. Please contact your dealer in the event of a warranty claim.
Any damage due to improper use is not covered by the warranty. The warranty does not cover any modifications to the appliance or the use of non-original Dometic parts. The warranty does not apply if the installation and operating instructions are not adhered to and no liability shall be entertained.
1.6 Limitation of liability
All information and guidance in these operating instructions were prepared after taking into consideration the applicable standards and regulations as well as the current state of the art. Dometic reserves the right to make changes at any time which are deemed to be in the interest of improving the product and safety.
Dometic will assume no liability for damage in the case of:
■ non-observation of the operating instructions ■ application not in accordance with the regulations or provisions ■ use of non-original spare parts ■ modifications and interferences to the appliance
1.7 Customer services
Find your authorised customer service centre by calling the phone number indicated in the EuroService Network book, EuroService Network - which accompanies every refrigerator. You can also obtain the address information of the nearest customer service from www.dometic.com. When contacting Dometic Customer Services, please state the model, product number and serial number together with the MLC code, if applicable. You will find this information on the rating plate inside the refrigerator. We recommend that you note this data in the field provided on the front page of this operation manual.
1.8 Spare parts
Parts can be ordered throughout Europe from our customer services.
Always give the model and product number when you contact the customer service! You will find this information on the rating plate inside the refrigerator.
1.9 Environmental notices
Ammonia (a natural compound of hydrogen and nitrogen) is used in the cooling unit as a coolant. Non-ozone-hazardous cyclopentane is used as a propellant for manufacturing PU foam insulation.
1.9.1 Disposal
In order to ensure that the recyclable packaging materials are re-used, they should be sent to the customary local collection system. The appliance should be transferred to a suitable waste disposal company that will ensure re-use of the recyclable components and proper disposal of the rest. For eco-friendly draining of the coolant from all absorber refrigeration units, a suitable disposal plant should be
Do not dispose of batteries in domestic waste. Take your used batteries to your dealer or a collection point.
1.9.2 Energy-saving tips
At an average ambient temperature of 25°C, it is sufficient to operate the refrigerator at middle thermostat setting. Where possible, always store precooled products. Do not expose the refrigerator to direct sunlight or any other heat source (e.g., heater). Ensure that air circulation of the refrigeration unit is not obstructed. Arrange the shelves evenly in the refrigerator (in the cooling compartment) in order to achieve the most efficient use of energy.
- Do not overfill the storage grids and compartments to prevent obstructing the internal air circulation.
- Maintain a clearance of approx. 10 mm between chilled products and post-evaporator ("cooling fins"). Defrosting at regular intervals saves energy (see section Defrosting).
- Open the refrigerator door only for a short period of time when removing products. Run the refrigerator for about 12 hours before filling it.
1.10 Declaration of conformity
DOMETIC
DECLARATION OF CONFORMITY
according to
LVD 2014/35/EU
EMC Directive 2004/108/EC, 2014/30/EU
Gas Appliance Directive 2009/142/EC
ECE R10, Rev. 4
| Type of equipment | Absorption Refrigerator |
| Brand Name | DOMETIC |
| Type family | C 40/110 |
| Manufacturer's (Factory) | |
| name | DOMETIC GmbH |
| address | In der Steinwiese 16, D-57074 Siegen |
| telephone no | INT+49 - 271 692 0 |
| telefax no | INT+49 - 271 692 304 |
The following harmonized standards or technical specifications (designations) which comply with good engineering practice in safety matters in force within the EEA have been practiced:
EN 60335-1;12 (IEC 60335-1; 5 ed., Am. 1, Am. 2),
EN 60335-2-24;10 (IEC 60335-2-24; 7 ed., Am. 1,)
EN 61000-3-2:06, A1, A2 EN 61000-3-3:08
EN 55014-1:06, A1, A2 EN 55014-2:97, A1, A2
EN 732:98 EN 60335-2-102:06
EN 30-1-1:10 A1 (Tectower-Models)
EN 30-2-1: 98 A1, A2 (Tectower-Models)
EN 50581:2010
The equipment conforms completely with the above stated harmonized standards or technical specifications.
By signing this document, the undersigned declares as manufacturer, or the manufacturer's authorized representative established within the EEA, that the equipment in question complies with the requirements stated above.
Date
2017.01.09
Signature
Position
General Manager
The current Declaration of Conformity can also be requested directly from Dometic GmbH, Siegen.
2.0 Safety instructions
2.1 Application according to regulations
This refrigerator is designed for installation in recreation vehicles such as caravans or motorhomes. The appliance has been type-approval tested for this application in accordance with the EC Gas Directive.
The refrigerator is to be used solely for storing foodstuffs.
WARNING!
The refrigerator is not suitable for the proper storage of medication. Please observe in addition the instructions in the medication package inserts.
2.2 User's responsibility
Anyone operating the refrigerator must be familiar with the safe handling and understand the advice in these operating instructions.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or have been given instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children.
[EN 60335-2-24, 7.12]
2.3 Protection of children when disposing of the equipment
WARNING!
When disposing of the refrigerator, detach all refrigerator doors and leave the storage racks in the refrigerator. In this way inadvertent entrapment and suffocation is prevented.
2.4 Working upon and checking the refrigerator
WARNING!
Work on gas equipment, exhaust system and electrical facilities must be carried out by authorised personnel only. Substantial damage to property and/or injury to persons can arise through unprofessional procedures.
DANGER!
Never use an unshielded flame to check gas bearing parts and pipes for leakage!
There is a danger of fire or explosion.
WARNING!
Never open the absorber cooling unit! It is under high pressure.
There is a danger of injury!
2.5 Information on coolant
Ammonia is used as a coolant.
This is a natural compound also used in household cleaning agents (1 litre of Salmiak cleaner contains up to 200g of ammonia - about twice as much as is used in the refrigerator). Sodium chromate is used for corrosion protection (1.8% by weight of the solvent).
If you smell ammonia:
WARNING!
Switch off the appliance. Open all windows and doors to ensure ventilation. Leave the living area. Inform the authorized Dometic customer service.
2.6 Appliances with electronics (MES/AES)
Car manufacturers often use a so-called battery management system, which provides the caravan with constant voltage in trailer mode.
If the car and trailer remain parked for more than 30 minutes with the engine switched off, the battery management system automatically switches off the permanent positive supply to the caravan (to prevent the battery from discharging). Fridges with control electronics (MES/AES) are then inoperative.
Check whether your drawing vehicle is equipped with a battery management system.
A permanent 12V power supply must be guaranteed for operation of the MES/AES fridges.
2.7 Operating the refrigerator with gas
It is imperative that the operating pressure of the pressure reducer on the gas system corresponds to the data specified on the rating plate of the refrigerator. Compare the operating pressure of the rating plate with the data specified on the pressure reducing valve of the liquid gas cylinder.
Dometic refrigerators are equipped for a connection pressure of 30 mbar. For connection to a 50 mbar gas system, use Truma VDR 50/30 medium pressure controller.
WARNING!
Operating the appliance with gas is not permitted
at petrol stations, on ferry boats, and on board motor rail trains, while transporting the caravan/motor-home by a transporter or breakdown vehicle.
There is the danger of fire!
Switch off the appliance.
If you smell gas:
■ Open all windows and leave the room. - Do not operate any electrical equipment and prevent the use of naked flames. - Contact authorised specialist personnel* for advice.
* authorised specialist personnel
Authorised specialist personnel are accredited experts who are able, by virtue of their training and knowledge, to vouch that the inspection and repair work has been carried out properly.
2.8 Safety instructions when storing foodstuffs
No refrigerator of any kind can improve the quality of the food; refrigerators can only maintain the food's quality for a short duration as from the time of storing it.
Please observe the following particular conditions for storing food in a refrigerator that is built into a vehicle:
■ A change in the climatic conditions such as temperature fluctuations - High temperatures inside the vehicle when it is closed and parked in direct sunlight (temperatures are possible up to 50°C) A refrigerator built in behind a window and exposed to direct sunlight ■ Storing the products too soon, i.e. shortly after starting up the appliance for use ■ Use of the refrigerator during travel with the power supply of 12V DC ■ Fluctuations in the power supply at the parking place when using the energy type 230V AC (mains voltage).
Under these particular conditions the refrigerator cannot guarantee reaching the temperature needed for perishables.
Perishables include all products with a stipulated use-by date and a minimum storage temperature of +4°C or less, especially for meat, poultry, fish, sausages, pre-packed foods.
Storing foodstuffs:
■ Pack raw and cooked foods separately
(e.g. in containers, aluminium foil, etc.).
- Only remove the outside packaging of single packs if all the necessary information, e.g. the use-by date, can also be read on the single packs.
- Please observe the instructions and information regarding the use-by date on the outside packaging of the food.
- Do not leave cooled goods outside the refrigerator for too long.
- Place the foods with the next use-by date at the front, accordingly.
- Pack away any left-over food and eat at the first opportunity. ■ Wash your hands before and after handling any food. ■ Regularly clean the inside of the refrigerator. Please observe section Cleaning of this instruction.
The cooling unit's performance is influenced by ambient temperatures. Please select the medium setting for ambient temperatures between +15°C and +25°C (refer to Setting of cooling compartment temperature). The unit operates within its optimum performance range. Dometic refrigerators work according to the absorption principle. For physical reasons, an absorption system responds slowly to changes made by the thermostat controller, by loss of cooling energy through opening the door or during storing food. The devices meet the cooling performance requirements of the Climatic Class SN acc. to EN/ISO 7371 in the temperature range of +10°C to +32°C ambient temperature.
Cold air can restrict the performance of the unit. Install the winter covers if you discover any loss of cooling performance when outdoor temperatures are low (see Operation during low outside temperatures). For ambient temperatures exceeding +32°C for a longer period of time, it is recommended installing Dometic additional fan (item no. 241 2985 - 01).
3.0 Description of model
3.1 Model identification
Example :
manual energy selection + manual ignition (battery igniter)
1
manual energy selection, automatic ignition (MES)
5
automatic and manual energy selection, automatic ignition (AES)
3.2 Refrigerator rating plate
The rating plate is located on the inside of the refrigerator. It contains all important details about the refrigerator. You can read off the model identification, product number, and serial number from it. You will need these details whenever you contact the customer service center or when ordering spare parts.
Example Fig. 2
1 Model number 2 Product number 3 Serial number 4 Electrical rating details 5 Gas pressure
3.3 Technical data
Gross contents (litres) 168
Freezer compartment (litres) 20
Gross content (without freezer comp.)..... 175
Gross contents (litres) drawer.... 55
Dimensions (mm) (mm)
(H x W x D) 1515x523x567
Electrical rating 230V (W) 250
Electrical rating 12 V (W) 170
Power consumption (ca.)
kWh / 24h* 4.2
Gas consumption (ca.)
g / 24h* 420
Net weight (kg)
RMF 8500, RMF 8501, RMF 8505..... 51.7
Subject to technical changes.
*Average consumption measured at an average ambient temperature of 25°C in pursuance of ISO Standard.
3.4 Description of refrigerator
Fig. 3
1 Operating controls 2 Freezer compartment (removable) 3 Post-evaporator for cooling compartment 4 Condensation water drain channel 5 Data plate 6 Vegetable bin 7 Refrigerated drawer 8 Door shelves 9 Lower door shelf with bottle holders
4.0 Refrigerator operation
The refrigerator is equipped to operate on three power modes:
■ Mains voltage (230V AC) ■ Direct-current voltage (12V DC) ■ Gas (liquid gas propane/butane)
Select the desired power mode by the energy selector switch (battery igniter type models) or the energy selector button (MES, AES).
Appliances with automatic energy selection (AES) are additionally provided with "automatic mode" function. Then the AES system automatically selects the best energy source for each particular situation.
i
- When the appliance is first put into operation, there may be a mild odour which will disappear after a few hours. ■ Park the vehicle level, particularly when starting up the refrigerator and filling with food before starting a journey. ■ The cooling unit is silent in operation. The refrigerator will take several hours to reach its operating temperature in the cooling compartment. The freezer compartment should be cold about one hour after switching on the refrigerator.
4.1 Cleaning
Before starting up the refrigerator, it is recommended that you clean it inside and repeat this at regular intervals.
Use a soft cloth and lukewarm water with a mild detergent. Then wipe out the appliance with clean water and dry thoroughly.
Keep the condensation water drain channel free of deposits.
To avoid material alterations, do not use soap or hard, abrasive or soda-based cleaning agents. Do not allow the door seal to come into contact with oil or grease.
4.2 Maintenance
In compliance with the applicable regulations, please note that the gas unit and the connected ventilation ducts must be checked by authorised technical personnel after first use and after every other year for compliance with the European Standard EN 1949. A test certificate has to be issued. It is the user's responsibility to arrange this test.
The gas burner must be inspected and cleaned as necessary at least once a year. When using liquefied petroleum gas (tank or refill cylinders) the maintenance interval is reduced to half-yearly or quarterly.
Keep the evidence of maintenance work carried out on your refrigerator.
■ Work on gas and electrical equipment shall be carried out by qualified personnel only.
It is recommended that this is carried out by an authorised customer services department.
We recommend maintenance following an extended shutdown of the vehicle. Please contact our customer services.
4.3 Electrical operation
12V-voltage (on-board power supply)
CAUTION!
The refrigerator should only be used in 12VDC operation while the vehicle's engine is running, otherwise the on-board battery would be discharged within a few hours!
Mains power (230V)
CAUTION!
This option should only be selected where the supply voltage of the connection for power supply corresponds to the value specified on the data plate. Any difference in values may result in damage to the appliance.
4.4 Gas operation (Liquid gas)
The refrigerator must be operated using liquid gas (propane, butane) (no natural gas or town gas). - When using LPG gas, please consider that the burner needs cleaning at shorter intervals due to the gas combustion method (2 - 3 times per year recommended). In Europe, gas operation is permitted while travelling only on the condition that the gas system of the vehicle is equipped with a hose rupture protection. The national regulations of the respective country must be observed. For physical reasons, gas ignition faults could occur starting from an altitude above sea level of approx. 3280 ft. / 1000 m (No malfunction!) On the initial refrigerator start-up or after a cylinder change, air may be trapped in the gas line. To purge the air from the lines, switch on the refrigerator and any other gas appliances (e.g. stove) for a short time. The gas ignites without delay. ■ Each refrigerator with manual ignition is equipped with an automatic flame safety valve which interrupts the gas supply automatically after approx. 30 seconds when the flame has extinguished.
WARNING!
As a basic rule, gas operation is prohibited in petrol stations!
Prior to starting the refrigerator in gas mode:
■ Open the gas cylinder valve. ■ Open the shut-off valve for gas supply to the refrigerator.
4.5 Explanation of operating controls
NOTE!
Proceed to the description that applies to YOUR model.
Manual energy selection / manual ignition battery igniter (RMF 8500):
1= Power On switch / Energy selector switch 2 = Temperature controller 3 Battery igniter (gas) 4 Flame indicator (galvanometer)
Fig. 4
Fig. 5
Manual energy selection / automatic ignition MES (RMF 8501):
Fig. 6
1 = Power ON/OFF switch 2 = Energy selector button 230V AC 3 = Energy selector button GAS 4 = Energy selector button 12V DC 6 = Temperature level selection 7 = Temperature level display ⑧ = Indicator LED failure / Reset button GAS FAILURE
Switching ON/OFF
■ Switch ON by pressing button (1), 2s ■ Switch OFF by pressing button (1), > 2s
230V AC operation
■ Select "Mains voltage" by pressing button (2) ■ Set temperature step by pressing button (6)
12V DC operation (vehicle's battery)
■ Select "Battery voltage" by pressing button (4) ■ Set temperature step by pressing button (6)
Gas operation
■ Select "Gas" by pressing button (3) ■ Set temperature step by pressing button (6)
Automatic energy selection / automatic ignition AES (RMF 8505):
Fig. 7
1 = Power ON/OFF switch 2 = Energy selector button 230V AC 3 = Energy selector button GAS 4 = Energy selector button 12V DC 5 = Selector button "AUTOMATIC" 6 = Temperature level selection 7 = Temperature level display 8 = Indicator LED failure / Reset button GAS FAILURE
Switching ON/OFF
■ Switch ON by pressing button (1), 2s ■ Switch OFF by pressing button (1), > 2s
Manual operation
■ Select energy source with buttons (2,3,4) ■ Set temperature step by pressing button (6)
Automatic operation
- Change over to "Automatic" with button (5) Automatical energy selection (if available) Sequence of priority: 1.) Solar (12V DC) 2.) 230V AC 3.) 12V DC 4.) Liquid gas
■ Set temperature step by pressing button (6)
4.6 RMF 8500 models
Appliances with battery igniter (manual energy selection)
4.6.1 Electrical operation
Fig. 8 Fig. 9
Switch on the appliance by turning the energy selection switch (1) clockwise to position :
230V operation,
12V operation.
4.6.2 Gas operation
Fig. 10 Fig. 11
- Turn the rotary selector switch (1) to position 🔒.
- Turn the temperature selector (2) clockwise and push. Keep the controller button depressed.
Fig. 12
- Then, press knob (3) of battery igniter down and keep it depressed. The ignition process is activated automatically.
- Once the flame ignites, the pointer of galvanometer (4) begins moving into the green range. The refrigerator is operational. Keep knob (2) depressed for approx. 15 seconds and finally release it.
4.6.3 Setting of cooling compartment temperature
Fig. 15
Select the desired cooling compartment temperature by turning the rotary knob (2).
The scale starts with MIN position (small bar = highest temperature) and climbs up to MAX position
(large bar = lowest temperature).
Note: The temperature levels do not relate to absolute temperature values.
Please select the medium setting (A) for ambient temperatures between +15°C and +25°C. The unit operates within its optimum performance range. ■ 12V operation: The refrigerator operates without thermostatic control (continuous operation).
4.7 RMF 8501 models
MES appliances (manual energy selection)
4.7.1 Electrical operation
Fig. 14
To start the refrigerator, press button (1) for 2 seconds.
The refrigerator starts with the last selected type of energy.
230V operation :
Press button (2):
12V operation :
Press button (4):
4.7.2 Gas operation
Fig. 15
Gas operation :
Press button (3):
The ignition process is activated automatically by means of an automatic igniter.
The flame extinguishes after reaching the pre-set cooling compartment temperature and ignites again if the cooling compartment temperature increases again. If the flame is not lit after the first ignition attempt, the automatic igniter repeats the ignition twice (duration 30 s) at time intervals of 2 minutes. If the flame is not lit afterwards, a fault is indicated.
4.7.3 Setting of cooling compartment temperature
Fig. 16
Select the desired cooling compartment temperature by pressing button (6).
The LED display (7) of the selected temperature setting is illuminated.
The scale starts with MIN position at the left LED position (small bar = highest temperature) and climbs up to MAX position at the right LED position (large bar = lowest temperature). Note: The temperature levels do not relate to absolute temperature values.
4.8 RMF 85x5 models
AES appliances (manual + automatic energy selection)
4.8.1 Manual operation
Fig. 17
To start the refrigerator, press button (1) for 2 seconds.
The refrigerator starts with the last selected type of energy.
230V operation :
Press button (2):
12V operation:
Press button (4):
Gas operation:
Press button (3):
4.8.2 Automatic operation
Fig. 18
To start the refrigerator, press button (1) for 2 seconds.
The refrigerator starts with the last selected type of energy.
Automatic operation:
Press button (5): A
Upon switching on, the electronics automatically selects one of the three possible energy types: 230V - 12V - liquid gas. The control electronics automatically ensures that the refrigerator is supplied with the optimum source of energy in each respective case.
Sequence of priority: 1.) Solar (12V -)
2.) 230V \~
3.) 12V -
4.) Liquid gas
If sufficient mains voltage is available (more than 195 V), this power source is selected as prime option. If a solar system capable of powering the refrigerator is installed, the solar 12V supply takes priority.
The 12V operation is otherwise only effective while the engine is running.
According to the sequence of priority, the electronics selects GAS as energy source only if both of the electrical energy sources are not available.
Manual operation is possible at any time.
4.8.3 Setting of cooling compartment temperature
See point 4.7.3 Setting of cooling compartment temperature.
4.8.4 Refuelling while in AES mode operation
In order to prevent unintended switching to gas operation during refuelling, the electronic system starts gas operation of the refrigerator after the motor has been turned off for 15 minutes. During this period, the appliance is ready for operation ("stand-by"). The temperature level LEDs do not light then, while all other indicators remain active.
WARNING!
The use of unshielded flames is prohibited in petrol station environments.
Should the refuelling stop last longer than 15 minutes, the refrigerator has to be switched off or switched over to another energy type.
4.8.5 Additional features (MES / AES)
The brightness of the display reduces after a few seconds if no other buttons are pressed. The indicator lights again if a button is pressed. Press the button again to activate the required function. ■ Failures are indicated by flashing of the failure indicator LED. - Should the door be kept open for too long (more than 2 minutes), an acoustic signal is initiated (pulsing whistle tone). - Should the electronic control detect any failure, an acoustic signal will sound (pulsing whistle tone). At the same time, the display starts flashing (please refer to section Information on failure display and troubleshooting).
4.9 Self-contained gas operation and optional battery compartment
An optional battery compartment (1) in the electronics case for internal (self-contained) power supply of the electronics is available for the model variants RMF 8501 (appliances with electronics).
Battery compartment Fig. 19
Batteries are not included!
Load the battery compartment with batteries (8 x AA 1.5 V) before operating the refrigerator.
Self-contained gas operation
All operating modes can be selected while the on-board 12 V DC power supply is active. The battery compartment is disconnected from the power supply.
If the vehicle on-board 12 V DC power supply is not present or there is an interruption of the mains power supply during operation, the electronics automatically switch to the appliance internal battery power supply.
The refrigerator can now only be operated in the gas mode.
All LED indicators except the GAS LED are not lit during operation with the batteries inside the appliance. The GAS LED flashes every 15 seconds.
If a button is pressed, the temperature level LEDs (7) also light.
If the voltage of the battery inside the appliance is too low, an acoustic signal (whistle tone) sounds every 15 seconds.
Then replace the batteries in the battery compartment
4.9.1 Inserting / changing the batteries
Switch off the refrigerator, as described in section Shutting of the refrigerator.
Opening battery compartment Fig. 20
Pulling out battery compartment Fig. 21
CAUTION!
■ Remove discharged batteries. - Replace the batteries completely. - Do not mix different types of batteries. - Observe the correct polarity! - Do not connect non-rechargeable batteries to a charger. ■ Remove rechargeable batteries from the battery compartment before charging. - Avoid short circuits on the contacts in the battery compartment! ■ Remove the batteries from the battery compartment if the refrigerator will not be used for a long time.
Protect the environment!
Do not dispose of batteries in domestic waste. Take your used batteries to your dealer or a collection point.
4.10 Door locking
CAUTION!
As a basic rule, shut and lock the refrigerator before you start your journey!
Fig. 22
Fig. 23
Open the door by pressing the locking button and pull open (see Fig. 22).
Shut the door again by pushing it to close. The snapping into the lock can be heard.
While the vehicle is parked, the locking hook may be fixed to facilitate opening of the door (Fig. 24-25).
4.10.1 Fastening and releasing the door lock hook when parking the vehicle
If the vehicle is parked for a longer period of time, the locking hook may be clamped by means of a lockbar. The door may now be opened by just pulling it without need of pressing the locking button.
Fastening
Fig. 24 Fig. 25
Releasing
Fig. 26 Fig. 27
4.11 Lighting
The interior lighting is controlled using a door contact. Should the door be kept open more than 2 minutes, an acoustic signal is initiated (pulsing whistle tone), except for models with battery igniter.
Fig. 28
Please contact the authorized Dometic Service if a failure occurs.
4.12 Positioning the storage racks
Fig. 29
The storage racks may be pulled out by smoothly lifting them and may be positioned as desired.
4.13 Removable freezer compartment
To enlarge the cooling compartment, just remove the freezer compartment.
- Unlock the freezer compartment door using a screwdriver (Fig. 31).
- Remove the freezer compartment door.
- Unlock the freezer compartment shelf on both sides.

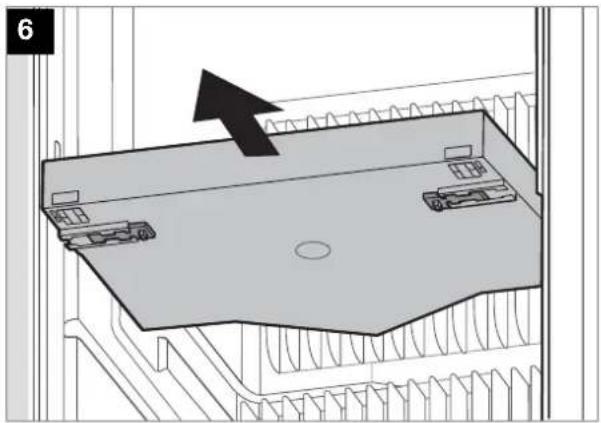

- Pull out the freezer compartment shelf.
Store the parts of the freezer compartment safely in order to prevent damage.
Perform the assembly in reverse order.
Fig. 30
Fig. 31
Fig. 32

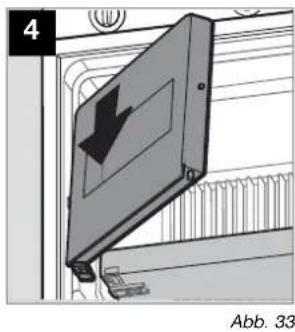

Fig. 33
Fig. 34
Fig. 35
4.14 Exchange of the igniter's battery
Appliances with battery igniter (RMF 8500)
Fig. 36
Fig. 37
Unlock the battery (2) by depressing and turning the button (1) approx. 90° counter-clockwise (by means of a suitable screw driver). After removing the cap, the battery (1.5 V AAA/R3/Micro) can be removed and replaced. Observe correct polarity!
Protect the environment!
Do not dispose of batteries in domestic waste. Take your used batteries to your dealer or a collection point.
4.15 Refrigerated drawer
The refrigerator has a separate drawer for storing vegetables and fruit or for cooling beverages. It provides space for, e.g. twelve 1-litre bottles.
Fig. 38
Fig. 39
Pull the handle of the drawer and press it slightly upwards while doing so to open the refrigerated drawer.
CAUTION!
Maximum load of the drawer: 20 kg
The drawer is cooled via the main cooling compartment of the refrigerator. Two switchable fans (1) provide the circulation of the cool air in the drawer.
Fig. 40
Fig. 41
The on/off switch (2) for the fans is in the main cooling compartment on the rear side.
Switch on the fans for continuous cooling of the drawer. Switch off the fans if no cooling in the drawer is required. The optimum temperature for cooling beverages in the drawer is
obtained by adjusting the temperature regulation between the middle and maximum position (see Setting of cooling compartment temperature).
4.16 Storing food and making ice cubes
4.16.1 Storing products in the cooling compartment
Switch the refrigerator on approximately 12 hours before filling it.
Always store pre-cooled foods in the refrigerator. Make sure that the food is well cooled when it is bought and also when transporting it. Use insulated cooling bags.
Open the refrigerator door only for a short period of time when removing products.
Products must be packed - best of all in closed containers, wrapped in aluminium foil or similar - and stored separately from each other, in order to prevent drying out or odours.
Allow foods that have been warmed up to cool down before storing.
Avoid storing products in the refrigerator that could emit volatile flammable gases.
Do not overfill the storage grids and compartments to prevent obstructing the internal air circulation.
Maintain a clearance of approximately 10 mm between chilled products and post-evaporator ("cooling fins").
Do not expose the refrigerator to direct sunlight. Please bear in mind that the temperature inside a closed vehicle increases sharply if exposed to sunlight and that this can reduce the efficiency of the refrigerator.
Ensure that air circulation of the cooling unit is not obstructed. Keep the ventilation grilles free from obstructions.
4.16.2 Storing products in the freezer compartment
- Do not keep carbonated drinks in the freezer. The freezer compartment is suitable for making ice cubes and for short-term storage of frozen food. It is not suitable as a means of freezing foods.
When ambient temperatures are lower than +10°C and the refrigerator is exposed to these temperatures for extended periods of time, an even regulation of freezer temperature cannot be guaranteed for system-related reasons. This can cause the temperature in the freezer to rise and the stored goods to melt.
4.16.3 Making ice cubes
Ice cubes are best frozen overnight. At night, the refrigerator has less work to do and the unit has more reserves.
Fig. 42
- Fill the ice cube tray with drinking water.
Fig. 43
- Place the ice cube tray in the freezer compartment.
WARNING!
Only use drinking water!
4.16.4 Refrigerator compartments
Fig. 44
① Freezer compartment: already frozen food (deep-frozen food) ② Middle compartment: Dairy products, convenience food ③ Bottom compartment: Meat, fish, food for defrosting ④ Vegetable compartment: Salads, vegetables, fruit ⑤ Top door shelf: Eggs, butter ⑥ Middle door shelf: Cans, dressings, ketchup, jam ⑦ Bottom door shelf: Drinks in bottles or bags ⑧ Refrigerated drawer (drinks compartment): Drinks in bottles or bags
4.17 Shutting off the refrigerator
Fig. 45
Fig. 46
For battery igniter models, set energy selector switch (1) to position "OFF". The appliance is switched off (Fig. 45). - Switch off MES and AES models by pressing button (2). Keep button (2) pressed for 3 seconds. The display disappears and the appliance is fully switched off (Fig. 46).
Fig. 47
Fig. 48
Release the locking mechanism of the door lock by pushing it and shifting it to the front. If the door is shut in this position, a small gap is nevertheless kept open to prevent formation of mildew.
Fig. 49
Fig. 50
Pull the drawer forward slightly and lock it with the latch (3).
If the refrigerator is to be taken out of service for an extended period of time, close the onboard shut-off valve and the cylinder valve.
4.18 Defrosting
As time goes by, frost builds up on the fins inside the refrigerator. A layer of frost thicker on one side may occur and does not represent a malfunction. When this layer of frost is about 3 mm (0.118 inches) thick, the refrigerator should be defrosted.
Switch off the refrigerator, as described in section Shutting of the refrigerator. Remove all food and the ice cube tray. Leave the refrigerator door open to allow air to enter and to prevent formation of mildew. After defrosting (freezer compartment and fins free of frost), wipe both cooling compartments dry with a cloth.
Note: Water thawing in the main compartment of the refrigerator runs into an appropriate container at the back of the refrigerator. From there, the water evaporates.
CAUTION!
The layer of ice must never be removed forcibly, nor may defrosting be accelerated using a heat source!
Condensation on the bottom of the refrigerated drawer can accumulate after shutdown and defrosting of the refrigerator. Remove this water using a dry cloth / sponge and dry the drawer.
4.19 Operation during low outside temperatures
Check regularly that the ventilation openings (1) (2) have not been blocked by snow, leaves or similar.
Cold air can restrict the performance of the unit. Install the winter covers (3) if you discover any loss of cooling performance when outdoor temperatures are low. This protects the unit against excessively cold air.
Fig. 51
Fig. 52
Fig. 53
4.19.1 Assembling the winter covers
Fig. 54
1 Roof exhaust R 500 2 Ventilation grille LS 300 3 Winter cover 4 Fixing screws
You should also attach the winter cover if the vehicle is taken out of service for a longer period of time or while it is being cleaned from the outside.
i
For the ventilation grille LS 300, Dometic provides the Winter Set EWS 300 which can be used at very low temperatures from +5 °C to -30 °C.
4.20 Changing the decor panel
Refrigerator (frameless decor panel)
Fig. 55
Fig. 56 Fig. 57
Fig. 58
Perform the assembly in reverse order.
Refrigerated drawer (frameless decor panel)
Fig. 59
■ Open drawer as far as the stop. ■ Unlock rails on both sides (Fig. 60, 61). Press the latches (1) (2) up or down depending on the side for this.
left side right side
Fig. 60 Fig. 61
■ Remove the drawer.
Fig. 62
■ Undo (3 screws) bottom frame strip (3) and remove. ■ Slightly bend decor panel (4) and remove from the door frame. ■ Insert new decor panel so that the top edge is exactly parallel with the frame top part. Attach frame strip (3) and screw down.
4.21 Information on failure display and trouble-shooting
■ Refrigerators with an electronics system (MES, AES) indicate the occurrence of a malfunction by the LED or display flashing. If a malfunction occurs, the indicator LED "Failure" (8) flashes simultaneously. In the case of AES models an acoustic alarm sounds.
4.21.1 Status indicators
MES Fig. 63
1 = Button ON / OFF 2 = Energy selector switch 230 V AC 3 = Energy selector switch GAS 4 = Energy selector switch 12V DC
Before notifying the authorised Service Center, please check whether:
■ the instructions in section "Operating the refrigerator" have been observed. ■ the refrigerator stands level. - it is possible to operate the refrigerator with any available power source.
AES Fig. 64
5 = selector switch "AUTOMATIC" 6 = temperature level button 7 = temperature level display 8 = fault LED / GAS FAULT reset button
Operation with on-board 12 V power supply
| Indicator | Fault | Remedy | |
 | flashing + acoustic signal 20 s | 230V mode: "230V" not available or voltage too low | Check mains power connection, mains voltage, fuse |
 | flashing + acoustic signal 20 s | 12V mode: ,, "12 V" not available or voltage too low | Check 12 V connection, on-board battery, fuseAES: Check D+ signal |
 | flashing + acoustic signal 20 s | GAS/Automatic mode: Flame not ignited | Check gas supply (gas bottle, gas valve)Press the button (8) after clearing the fault. |
| Acoustic signal, 15 s, at 2 minute intervals | Interior lighting is switched on | Close door, check door contact | |
 | flashing + acoustic signal 20 s | 230V mode: 230V heating element defective | Arrange replacement of 230V heating element, contact Customer Service |
 | flashing + acoustic signal 20 s | 12V mode: 12V heating element defective | Arrange replacement of 12V heating element, contact Customer Service |
| 7 | flashing | Temperature sensor without contact or defective | contact Customer Service |
 | flashing + acoustic signal 20 s | Burner defective or cooling unit defective | Check burner, burner nozzles, if necessary contact Customer Service and arrange replacement |
Operation with batteries (internal power supply)
| Indicator | Fault | Remedy |
| 3 flashingbrightly8 | Flame not ignited | Check gas supply (gas bottle, gas valve)Press the button (8) after clearing the fault. |
| 3 flashingbrightly I | Burner defective or cooling unit defective | Check burner, burner nozzles, if necessary contact Customer Service and arrange replacement |
| Acoustic signal at 15 second intervals | Undervoltage detection (internal batteries) | Replace batteries |
| Automatic switching from external to internal power supply does not function(absence of the on-board 12 V power supply for the electronics) | Refrigerator does not function;gas operation not possible although the batteries are inserted. | Switch off the refrigerator and start again.The on-board power supply was interrupted during the starting of the gas operation.Note: No automatic switching is performed during the ignition. |
4.22 Trouble-shooting
Failure: The refrigerator does not cool sufficiently.
| Possible cause | Action you can take |
| - Inadequate ventilation to the unit.- Thermostat setting is too low.- The condenser is heavily frosted.- Too much warm food has been stored inside within short period of time.- The appliance has been running for only a short period of time.- Ambient temperatures too high. | - Check that ventilation grilles are not covered.- Set thermostat to a higher level.- Check that the refrigerator door closes properly.- Allow warm food to cool down before storage.- Check whether the cooling compartment works after approx. 4 - 5 hours.- Regularly remove ventilation grilles. |
Failure: The refrigerator does not cool in gas operation mode.
| Possible cause | Action you can take |
| - Gas cylinder empty.- Is the upstream shut-off device open? - Air in the gas pipe? | - Change gas cylinder.- Open shut-off device.- Switch off the appliance and start again. Repeat this procedure 3 - 4 times, if necessary. |
Failure: The refrigerator does not cool in 12V operation.
| Possible cause | Action you can take |
| - On-board fuse defective.- On-board battery discharged.- Engine not running.- Heating element defective (please also refer to failure indication). | - Fit new fuse.- Check battery, charge it.- Start engine.- Please inform the Dometic Customer Service. |
Failure: The refrigerator does not cool in 230V operation.
| Possible cause | Action you can take |
| - On-board fuse defective.- Vehicle not connected to mains supply voltage.- AES: Gas operation despite connection to the mains supply voltage?- Heating element defective (please also refer to failure indication). | - Fit new fuse.- Make a connection to a mains power supply.- Appliance switches to gas operation due to insufficient mains supply voltage (automatically switches back to 230V operation).- Please inform the Dometic Customer Service. |
N 1-1
MBA 08/2014
DE
For your safety
WARNING!
DECLARATION OF CONFORMITY
according to
LVD 2014/35/EU
EMC Directive 2004/108/EC, 2014/30/EU
Gas Appliance Directive 2009/142/EC
ECE R10, Rev. 4
| Type of equipment | Absorption Refrigerator |
| Brand Name | DOMETIC |
| Type family | C 40/110 |
| Manufacturer's (Factory) | |
| name | DOMETIC GmbH |
| address | In der Steinwiese 16, D-57074 Siegen |
| telephone no | INT+49 - 271 692 0 |
| telefax no | INT+49 - 271 692 304 |
| The following harmonized standards or technical specifications (designations) which comply with good engineering practice in safety matters in force within the EEA have been practiced: |
EN 60335-1;12 (IEC 60335-1; 5 ed., Am. 1, Am. 2),
EN 60335-2-24;10 (IEC 60335-2-24; 7 ed., Am. 1,)
EN 61000-3-2:06, A1, A2 EN 61000-3-3:08
EN 55014-1:06, A1, A2 EN 55014-2:97, A1, A2
The equipment conforms completely with the above stated harmonized standards or technical specifications.
By signing this document, the undersigned declares as manufacturer, or the manufacturer's authorized representative established within the EEA, that the equipment in question complies with the requirements stated above.
Date
2017.01.09
Signature
Position
General Manager
Fig. 5
2= Temperature controller 3= Battery igniter (gas) 4 Flame indicator (galvanometer)
Fig. 12
Fig. 17
Fig. 22
Fig. 23
Fix
Fig. 24
Remove Fig. 26
Fig. 27
4.11 Lighting
Fig. 28
Fig. 29
4.14 Battery replacement in the detonator
Fig. 38
Fig. 39
Fig. 40
Fig. 41
Fig. 42
Fig. 43
Fig. 47
Fig. 48
Fig. 49
Fig. 50
Fig. 51
Fig. 52
Fig. 53
Fig. 54
Fig. 55
Fig. 56 Fig. 57
Fig. 58
Fig. 59
Dometic Australia Pty. Ltd.
1 John Duncan Court
Varsity Lakes QLD 4227
1800 212121
+61755076001
Mail: sales@dometic.com.au
AUSTRIA
Dometic Austria GmbH
Neudorferstraße 108
A-2353 Guntramsdorf
+43 2236 908070
E +43 2236 90807060
Mail: info@dometic.at
BENELUX
Dometic Branch Office Belgium
Zincstraat 3
B-1500 Halle
+32 2 3598040
+32 2 3598050
Mail: info@dometic.be
BRAZIL
Dometic DO Brasil LTDA
Avenida Paulista 1754, conj. 111
SP 01310-920 Sao Paulo
+551132513352
+551132513362
Dometic Group Asia Pacific
Suites 2207-11 · 22/F · Tower 1
The Gateway · 25 Canton Road,
Tsim Sha Tsui - Kowloon
+852 2 4611386
+85224665553
Mail: info@waeco.com.hk
HUNGARY
Dometic Zrt. Sales Office
Kerékgyártó u. 5.
H-1147 Budapest
+3614684400
+3614684401
Dometic Italy S.r.l.
Via Virgilio, 3
I-47122 Forli (FC)
+39 0543 754901
E +39 0543 754983
Mail: vendite@dometic.it
JAPAN
Dometic KK
Maekawa-Shibaura, Bldg. 2
2-13-9 Shibaura Minato-ku
Tokyo 108-0023
+81354453333
+81 3 5445 3339
Mail: info@dometic.jp
MEXICO
Circuito Médicos No. 6 Local 1
Colonia Ciudad Satélite
CP 53100 Naucalpan de Juárez
Estado de México
+52 55 5374 4108
Fax: +52 55 5393 4683
Mail: info@dometic.com.mx
NETHERLANDS
Dometic Benelux B.V.
Ecustraat 3
NL-4879 NP Etten-Leur
+31765029000
+31 76 5029019
Mail: info@dometic.nl
NEW ZEALAND
Dometic New Zealand Ltd.
PO Box 12011
Penrose
Auckland 1642
+6496221490
+6496221573
Mail: customerservices@dometic.co.nz
NORWAY
Dometic Norway AS
Østerøyveien 46
N-3232 Sandefjord
+47 33428450
+47 33428459
Mail: firmapost@dometic.no
POLAND
Dometic Poland Sp. z o.o.
Ul. Puławska 435A
PL-02-801 Warszawa
+48 22 414 3200
+48 22 414 3201
Mail: info@dometic.pl
PORTUGAL
Dometic Spain, S.L.
Komsomolskaya square 6-1
RU-107140 Moscow
+7 495 780 79 39
+7 495 916 56 53
Mail: info@dometic.ru
SINGAPORE
Dometic Pte Ltd
18 Boon Lay Way 06-140 Trade Hub 21
Singapore 609966
+65 6795 3177
+65 6862 6620
Mail: dometic@dometic.com.sg
SLOVAKIA
Dometic Slovakia s.r.o. Sales Office Bratislava
Nádražná 34/A
900 28 Ivánka pri Dunaji
/ +421 2 45 529 680
Mail: bratislava@dometic.com
SOUTH AFRICA
Dometic (Pty) Ltd.
Regional Office
South Africa & Sub-Saharan Africa
2 Avalon Road
West Lake View Ext 11
Modderfontein 1645
Johannesburg
+27114504978
+27114504976
Mail: info@dometic.co.za
SPAIN
Dometic Spain S.L.
Avda. Sierra del Guadarrama, 16
E-28691 Villanueva de la Cañada
Madrid
+34 902 111 042
+34 900 100 245
Mail: info@dometic.es
SWEDEN
Dometic Scandinavia AB
Gustaf Melins gata 7
Dometic Switzerland AG
Riedackerstrasse 7a
CH-8153 Rümlang
+41 44 8187171
+41 44 8187191
Mail: info@dometic.ch
UNITED ARAB EMIRATES
Dometic Middle East FZCO
P.O.Box 17860
S-D 6, Jebel Ali Freezone
Dubai
+97148833858
+97148833868
Mail: info@dometic.ae
UNITED KINGDOM
Dometic UK Ltd.
Dometic House, The Brewery
Blandford St. Mary
Dorset DT11 9LS
+44 344 626 0133
+44 344 626 0143
Mail: customerservices@dometic.co.uk
USA
Dometic RV Division
1120 North Main Street
Elkhart, IN 46515
+1574-264-2131
- DEUTSCH
- OPERATING INSTRUCTIONS
- FOR YOUR SAFETY
- WARNING
- DANGER
- PROTECT CHILDREN
- CAUTION
- CHANGING THE BATTERIES
- OPERATION WITH 230V
- DEFROSTING
- VEHICLE CLEANING
- TABLE OF CONTENTS
- GENERAL
- SAFETY INSTRUCTIONS
- DESCRIPTION OF MODEL
- REFRIGERATOR OPERATION
- GUIDE TO THESE OPERATING INSTRUCTIONS
- COPYRIGHT PROTECTION
- EXPLANATION OF SYMBOLS USED IN THIS MANUAL
- INFORMATION
- ENVIRONMENTAL TIPS
- WARRANTY
- LIMITATION OF LIABILITY
- CUSTOMER SERVICES
- SPARE PARTS
- ENVIRONMENTAL NOTICES
- DISPOSAL
- ENERGY-SAVING TIPS
- DECLARATION OF CONFORMITY
- DOMETIC
- APPLICATION ACCORDING TO REGULATIONS
- USER'S RESPONSIBILITY
- PROTECTION OF CHILDREN WHEN DISPOSING OF THE EQUIPMENT
- WORKING UPON AND CHECKING THE REFRIGERATOR
- INFORMATION ON COOLANT
- IF YOU SMELL AMMONIA
- APPLIANCES WITH ELECTRONICS (MES/AES)
- OPERATING THE REFRIGERATOR WITH GAS
- IF YOU SMELL GAS
- SAFETY INSTRUCTIONS WHEN STORING FOODSTUFFS
- STORING FOODSTUFFS
- MODEL IDENTIFICATION
- REFRIGERATOR RATING PLATE
- TECHNICAL DATA
- DESCRIPTION OF REFRIGERATOR
- I
- CLEANING
- MAINTENANCE
- ELECTRICAL OPERATION
- MAINS POWER (230V)
- GAS OPERATION (LIQUID GAS)
- PRIOR TO STARTING THE REFRIGERATOR IN GAS MODE
- EXPLANATION OF OPERATING CONTROLS
- NOTE
- SWITCHING ON/OFF
- V AC OPERATION
- V DC OPERATION (VEHICLE'S BATTERY)
- GAS OPERATION
- MANUAL OPERATION
- AUTOMATIC OPERATION
- RMF 8500 MODELS
- SETTING OF COOLING COMPARTMENT TEMPERATURE
- RMF 8501 MODELS
- RMF 85X5 MODELS
- REFUELLING WHILE IN AES MODE OPERATION
- ADDITIONAL FEATURES (MES / AES)
- SELF-CONTAINED GAS OPERATION AND OPTIONAL BATTERY COMPARTMENT
- SELF-CONTAINED GAS OPERATION
- THE REFRIGERATOR CAN NOW ONLY BE OPERATED IN THE GAS MODE
- INSERTING / CHANGING THE BATTERIES
- PROTECT THE ENVIRONMENT
- DOOR LOCKING
- FASTENING AND RELEASING THE DOOR LOCK HOOK WHEN PARKING THE VEHICLE
- LIGHTING
- POSITIONING THE STORAGE RACKS
- REMOVABLE FREEZER COMPARTMENT
- EXCHANGE OF THE IGNITER'S BATTERY
- REFRIGERATED DRAWER
- MAXIMUM LOAD OF THE DRAWER: 20 KG
- STORING FOOD AND MAKING ICE CUBES
- STORING PRODUCTS IN THE COOLING COMPARTMENT
- STORING PRODUCTS IN THE FREEZER COMPARTMENT
- MAKING ICE CUBES
- REFRIGERATOR COMPARTMENTS
- SHUTTING OFF THE REFRIGERATOR
- OPERATION DURING LOW OUTSIDE TEMPERATURES
- ASSEMBLING THE WINTER COVERS
- CHANGING THE DECOR PANEL
- INFORMATION ON FAILURE DISPLAY AND TROUBLE-SHOOTING
- STATUS INDICATORS
- TROUBLE-SHOOTING
- BATTERY REPLACEMENT IN THE DETONATOR
- DOMETIC AUSTRALIA PTY. LTD
- AUSTRIA
- DOMETIC AUSTRIA GMBH
- BENELUX
- DOMETIC BRANCH OFFICE BELGIUM
- BRAZIL
- DOMETIC DO BRASIL LTDA
- DOMETIC GROUP ASIA PACIFIC
- HUNGARY
- DOMETIC ZRT. SALES OFFICE
- DOMETIC ITALY S.R.L
- JAPAN
- DOMETIC KK
- MEXICO
- NETHERLANDS
- DOMETIC BENELUX B.V
- NEW ZEALAND
- DOMETIC NEW ZEALAND LTD
- NORWAY
- DOMETIC NORWAY AS
- POLAND
- DOMETIC POLAND SP. Z O.O
- PORTUGAL
- DOMETIC SPAIN, S.L
- SINGAPORE
- DOMETIC PTE LTD
- SLOVAKIA
- DOMETIC SLOVAKIA S.R.O. SALES OFFICE BRATISLAVA
- SOUTH AFRICA
- DOMETIC (PTY) LTD
- REGIONAL OFFICE
- SOUTH AFRICA & SUB-SAHARAN AFRICA
- SPAIN
- DOMETIC SPAIN S.L
- SWEDEN
- DOMETIC SCANDINAVIA AB
- DOMETIC SWITZERLAND AG
- UNITED ARAB EMIRATES
- DOMETIC MIDDLE EAST FZCO
- UNITED KINGDOM
- DOMETIC UK LTD
- USA
- DOMETIC RV DIVISION
Brand : DOMETIC
Model : RMF 8505
Category : Refrigerator
