VRT 61814 VB - Vacuum Cleaner BEKO - Free user manual and instructions

Brand	Beko
Model	VRT 61814 VB
Product type	Bagged canister vacuum cleaner
Dimensions (H × W × D)	30 × 25 × 40 cm
Weight	5.2 kg
Power supply	220-240 V, 50/60 Hz
Rated power	800 W
Container capacity	3 L
Noise level	75 dB(A)
Filter	Washable HEPA
Bag type	Disposable dust bag
Power regulation	Electronic with speed control
Operating radius	8 m (cable + hose)
Liquid suction function	No
Included accessories	Parquet nozzle, crevice tool, turbo brush
Routine maintenance	Filter cleaning every 3 months, bag replacement
Safety	Automatic shutdown in case of overheating
Spare parts available	Bags (ref. Beko 123), filters (ref. Beko 456)
Warranty	2 years
EAN code	8690842574854

Frequently Asked Questions - VRT 61814 VB BEKO

How to change the dust bag of my Beko VRT 61814 VB vacuum cleaner?

Open the bag compartment by pressing the release button. Remove the full bag and discard it. Insert a new bag by pushing until it clicks into place. Close the cover.

How to clean the HEPA filter?

The HEPA filter is washable. Remove it from the appliance, rinse with warm water without detergent, let it dry completely (24h) before putting it back.

My vacuum cleaner loses suction, what should I do?

First check if the bag is full or the filter is clogged. Clean or replace them. Also check the hoses and brush for any blockage.

How to use the turbo brush?

The turbo brush is ideal for carpets and rugs. Simply attach it to the telescopic tube. It is not suitable for hard floors.

Where to buy spare parts (bags, filters)?

You can find them online on the Beko website or from authorized dealers. References: bags (Beko 123), filters (Beko 456).

The overheating indicator lights up, what should I do?

Turn off the appliance and unplug it. Let it cool down for about 30 minutes. Check that the filters and bag are not obstructed. If the problem persists, contact customer service.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is designed only for dry waste. Never vacuum liquids, as this would damage the appliance.

What is the power in watts of this vacuum cleaner?

The rated power is 800 W, offering good performance for domestic use.

How to rewind the power cord?

Press the rewinding pedal located at the back of the vacuum cleaner. Hold the cord to prevent it from whipping.

What to do if the vacuum cleaner does not start?

Check that the socket works, the cord is properly plugged in, and the switch is in the 'I' position. If no issue, consult the manual or customer service.

USER MANUAL VRT 61814 VB BEKO

Cordless Stick Vacuum Cleaner

User Manual

VRT 61814 VR

VRT 61818 VW

VRT 61821 VD

VRT 61814 VB

EN - DE - FR - IT - RO - ES - SL - CS - PL - BG - HU - NL - RU

CONTENT

ENGLISH	4-12
DEUTSCH	13-24
FRANÇAIS	25-35
ITALIANO	36-47
ROMANIAN	48-59
ESPAÑOL	60-72
SLOVENŠČINA	73-82
ESKY	83-92
POLSKI	93-105
BULGARIAN	106-116
MAGYAR	117-127
NEDERLANDS	128-138
RUSSIAN	139-152

Please read this user manual first!

Dear Valued Customer,

Thank you for selecting this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the appliance and keep it as a reference for future use. If you handover the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

1 important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or material damage.

Failure to follow these instructions voids any granted warranty.

1.1 General safety

•This appliance complies with international safety standards.
- This appliance may be used by children aged 8 years and above and persons whose physical, perceptive or mental skills are impaired or who are inexperienced or not knowledgeable about the appliance as long as they are supervised or informed and made aware of the safe use of the appliance and the encountered dangers. Children should not play with the appliance. Cleaning and user maintenance should not be performed by children unless they are supervised by an adult.

• If the power cable or the appliance itself is damaged, do not use it. Contact an authorised service.

• Your mains power supply should comply with the information supplied on the rating plate of the appliance.

• The mains supply on which you will use the appliance must be secured with a 16 A fuse minimum.

• Do not use the appliance with an extension cable.
• Prevent damage to the power cable by not squeezing, bending, or rubbing it on sharp edges.
• Do not touch the appliance or its plug when it is plugged in if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ash, make sure that it has cooled down.
• Do not vacuum water or other liquids.
• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near places where combustible or inflammable ambience or places are present.
• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance or its power cable in water for cleaning.

1 important safety and environmental instructions

• Only use attempt to dismantle the appliance.
• Use the original parts or parts recommended by the manufacturer.
• Do not clean particles such as cement, plaster and compressed paper in order to prevent the filter from being clogged and the motor being damaged.
• Only use the appliance with the supplied adapter.
• Do not use the appliance without filters; otherwise it can be damaged.
• If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate

disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive(2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular house hold rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0,0005 % mercury or more than 0,004 % lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

1.5 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your cordless stick vacuum cleaner

2.1 Overview

1. Stick vacuum cleaner handle
2. Stick vacuum cleaner on/off button
3. Speed adjustment button
4. Handle collapsing button
5. Cordless vacuum cleaner removal button
6. Cordless vacuum cleaner handle
7. Cordless vacuum cleaner on/off button
8. Body
9. Dust container removal button
10. Dust container
11. Brush removal button
12. Brush
13. LED light
14. Handheld vacuum cleaner
15. Charging and power indicator

The values which are declared on the markings affixed to your product or in other printed documents supplied with it represent the values which have been obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

2 Your cordless stick vacuum cleaner

2.2 Technical data

Model VRT 6181	4 VR -VRT 61814 VB	VRT 61818 VW VRT 61821 VD
Supply voltage	100-240V~50-60Hz
Power	14.4V 90W 18V 100W 21.6V 120W
Product spec	DC 14.4V 2200mAhLi-on	DC 18V 2200mAh Li-on	DC 21.6V 2200mAh Li-on
Apaptor Input	100-240V~50-60Hz0.3A	100-240V~50-60Hz0.3A	100-240V~50-60Hz0.5A
Apaptor Output	18V 500mA 22V 500mA 27V 500mA
Brush spec	14.4V 5W 14.4V 5W 21.6V 8W
Charging time	4~6H

Technical and design modification rights are reserved.

3 Operation

3.1 Intended use

The appliance has been designed for household use and is not suitable for industrial use.

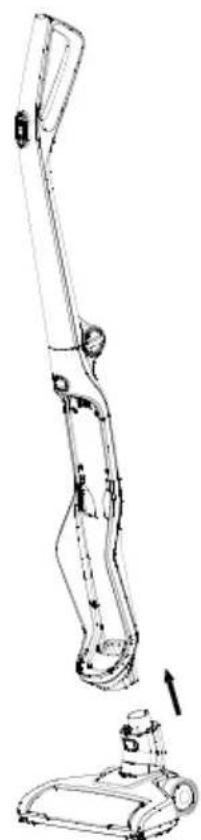

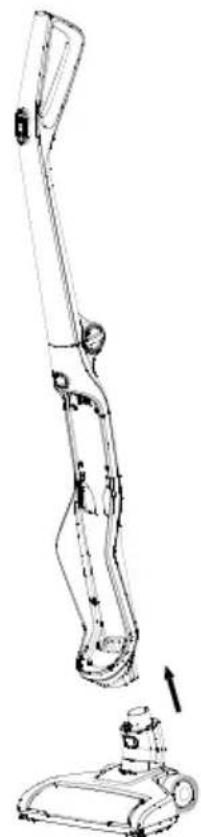

3.2 Installing the body and brush

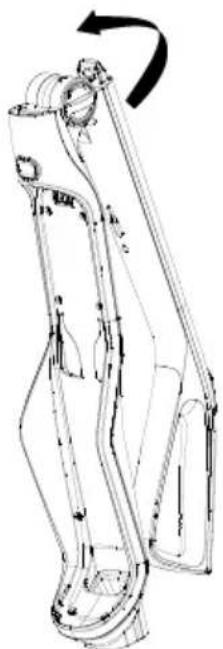

1. Lift the handle (1) in the arrow direction.

1. Attach the brush (12) to the body (8).

1. Attach the handheld cleaner to the body (8).

3.3 Charging the appliance

1. Insert the thin end of the adapter to the charger and plug the adapter in.

3 Operation

1. The charging indicator LED (15) will come on and the product will start to be charged; when charging is done, all charging indicators will be on.
2. If the charging indicator LED (15) is on, this means that the product is being charged.
3. If all levels of the charging indicator LED (15) is on, this means that the product is fully charged.

It takes up to 4-6 hours for the appliance to be fully charged.

WARNING: Appliance cannot be operated during the charging process.

3.4 Operating the appliance

1. Press the on/off button (2) to switch on the appliance.
2. When you press on/off button (2), appliance will start at maximum speed. Press speed adjustment button (3) to use in low speed. When you press speed adjustment button again, the appliance will run at maximum speed again.
3. After using the appliance, switch it off by pressing the On/off button (2).

Check the power indicator LEDs (15) during operation. As charging level decreases, these indicators will gradually go off and the appliance will stop working when all indicators are off.

Appliance will automatically stop if it is placed on charger while still in use.

3.5 Starting cordless vacuum cleaner

1. Press removal button (5) to remove the vacuum cleaner from the body (8).
2. Press on/off button (7) of the cordless vacuum cleaner to switch on your appliance.
3. After using the appliance, switch it off by pressing the On/off button (7) of the cordless vacuum cleaner.

3 Operation

3.6 Accessories

You can use your accessories by inserting them to the end of your vacuum cleaner.

Dust brush

Suitable for cleaning the curtains, and sensitive and fragile objects.

Upholstery tool

Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc.

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

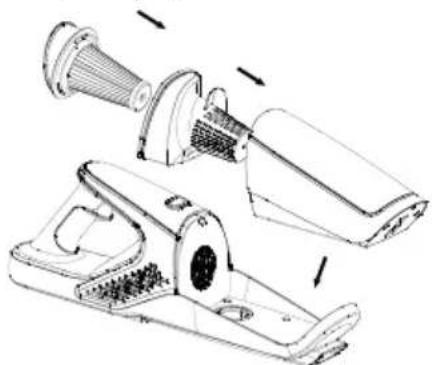

4.1 Cleaning the dust container

It is recommended to clean the dust container after every use.

1. Press the dust container removal button (9) to remove the dust container (10).
2. Pull the filter by holding the handle and remove it from dust container (10).

1. Remove the HEPA filter by grasping the handle of the filter holder and turning counterclockwise.

1. Wash out the dust container (10), filter holder and HEPA filter under the running water.

2. Clean the body of the cordless vacuum cleaner (14) with a soft damp cloth.

3. Replace the HEPA filter in its holder after all parts are dried and place filter holder in the dust container (10).

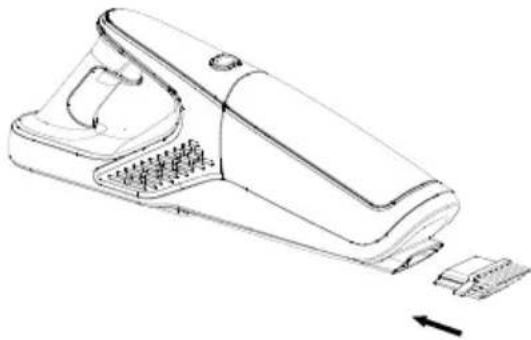

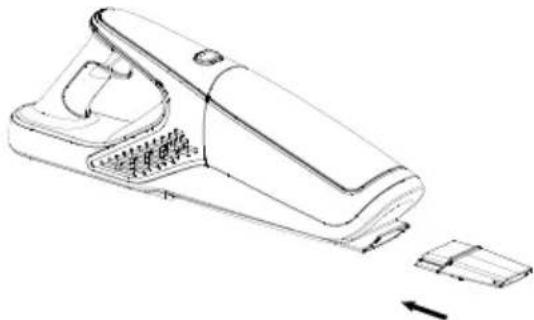

1. Replace the dust container (10) in the body of cordless vacuum cleaner (14).

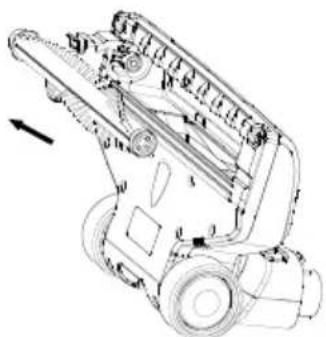

4.2 Cleaning the brush

1. Press the brush removal button (11) and remove the brush (12) from the body (8).

2. To clean the brush (12), release the lock using the roller brush release tab as shown below.

1. Remove the roller brush.

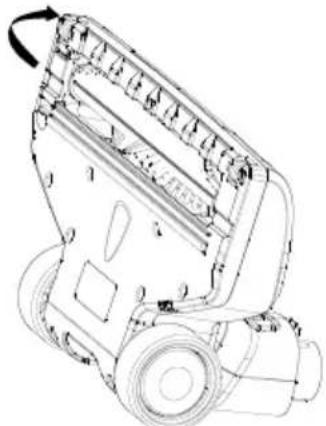

1. After cleaning and drying the roller brush, reattach it and lock the tab.

4 Cleaning and care

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Store the appliance in a vertical position or with its handle folded.
• In order to fold the handle, turn the folding button (4) clockwise and fold the handle (1).
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.
