USER MANUAL SVERIGEDISKEN 2TC VIT Cylinda

SV-DISK 2T AVH

Cylinda year after year

Contents

Your dishwasher 2

Fold-down tines

Cutlery basket

Upper spray arm

NOTE!

NOTE!

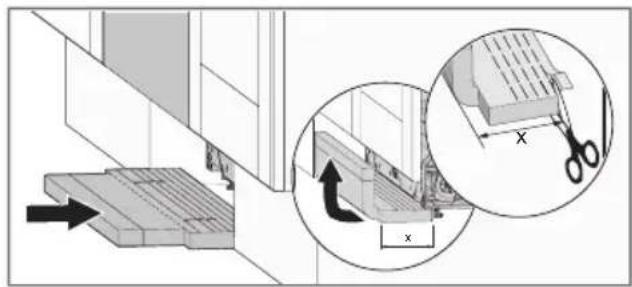

Mounting the sound insulation (only certain models)

Service

Before washing for the first time 26.

Loading the dishwasher 27...

Using the dishwasher 28...

Settings 32

Care and cleaning 34

Troubleshooting 36

Installation 40

Service 44

Information for test institute 44

Technical information 45.

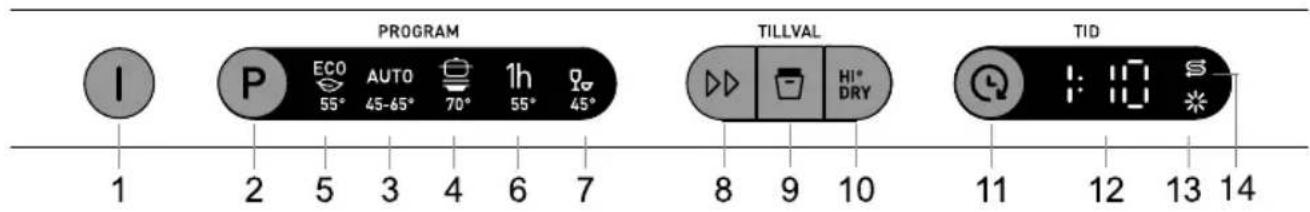

Your dishwasher

1. Main power switch
2. Programme selector
3. Auto wash
4. Intensive wash
5. Eco wash
6. Quick dish and dry
7. Gentle dish
8. SpeedWash
9. Auto open
10. HI DRY
11. Delayed start
12. Display
13. Rinse aid indicator
14. Salt indicator

Safety instructions

General

• Read the operating instructions and keep them in a safe place!
• Never use the dishwasher for any purpose other than that specified in these operating instructions.
• Do not load the dishwasher door or dish baskets with anything other than dishes.
• Never leave the dishwasher door open as someone may trip on it.
• Use only dishwasher detergent!
• This machine can be used by children aged 8 years and above, and by people with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the mains cable is damaged, it must be replaced

by a qualified electrician.

• Only use the dishwasher for its intended purpose, which is washing household dishes. Any other use is prohibited.
• Never place dishes with solvent residues in the dishwasher due to the risk of explosion. Dishes that contain ash, wax, or lubricants should not be washed in the dishwasher.

WARNING!

Knives and other pointed items must be placed with the points down in the cutlery basket or horizontally in other baskets.

Winter storage/transport

EN

Store the dishwasher above freezing and avoid long transport distances in very cold weather. Transport the dishwasher upright or laying on its back.

Overflow guard function

When overflow protection starts, it pumps out the machine and turns off the water supply if the water level in the washer exceeds the normal level. If the overflow protection is triggered, turn off the water supply and call the service department.

Packing material

The packaging protects the product during transport. The packaging material is recyclable. Separate the different packaging materials to help reduce raw material use and waste. Your dealer can take the packaging for recycling or direct you to the nearest recycling centre. The packaging is comprised of:

- Corrugated cardboard made from up to 100% recycled material.

Expanded polystyrene (EPS) with no added chlorine oil

Supports made from untreated wood.

Protective plastic made from polyethylene (PE).

Disposal

The dishwasher is manufactured and labelled for recycling in the

When the dishwasher has reached the end of its service life and is to be disposed of, it should immediately be made unusable. Pull out the power cable and cut it as short as possible.

Contact your local authority for information about where and how your dishwasher should be correctly recycled.

Installation

See the chapter Installation.

Child safety

Children must be watched. Do not allow children to use or play with the dishwasher. Be especially vigilant when the door is open. Some detergent may remain inside! After adding detergent, always start the dishwasher immediately.

WARNING!

Children must be supervised – dishwasher detergent is corrosive!

Before washing for the first time

Checking water hardness

In order to achieve good dishwashing results, the dishwasher needs soft water (water with low mineral content). Hard water leaves a white coating on dishes and

In order to avoid rust stains, a dishwashing programme must be started immediately after adding salt.

Rinse aid

The section Settings describes how to set the rinse aid.

Water hardness is specified using the German water hardness scale (°dH) or the French water hardness scale (°fH).

A water supply with a water hardness in excess of 9°fH must be softened. This is done automatically with the aid of the built-in water softener. In order for the softener to function optimally, it must be adjusted to the hardness of the water supply. Once you have adjusted

up with rinse aid

with the Drying is

faster and a better result is achieved if you You will also achieve a better dishwashing result and spotless dishes.

water softener, use detergent and rinse aid doses for soft water.

Contact the local waterworks to check the water in your area.

Make a note of the water hardness:

If the water hardness exceeds 50°dH (89°fH), we recommend connecting an external water softener.

WARNING!

Hard water leaves a white coating on dishes in the dishwasher. It is therefore important to set the right setting for the water softener! See hardness.

Never run the dishwasher without salt if the water supply has a water hardness in excess of 6°dH (9°fH).

1. Open the rinse aid compartment lid.

Carefully top up with rinse aid to the level marked inside. Wipe up any splashes of rinse aid around the compartment.

1. Close the lid firmly.

Set the water hardness.

Chapter Settings describes how to adjust the water softener.

Top up with salt.

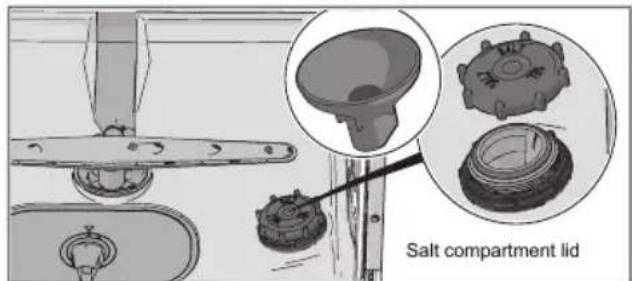

1. Unscrew the salt compartment lid.
2. Place the funnel supplied with the dishwasher in the salt compartment top-up hole. First, pour in about 1 l of water.
3. Then add salt, a maximum of 1.0 kg, until the compartment is full. Use large grain salt or special dishwasher salt.
4. Wipe up any excess salt so that the lid can be screwed on firmly.

Loading the dishwasher.

Greener dishwashing.

Shelf and knives are placed in the knife stand (if fitted).

• Do not rinse under running water. Simply scrape large food particles before loading the dishwasher.
• Choose an environmentally-friendly detergent. Read the environmental declaration on the packaging!
• Do not start the dishwasher until it is fully loaded to save energy.
• If the dishes are only slightly dirty, you can select a programme with a low temperature.
• Better drying results are achieved if you use the Auto open option, which automatically opens the dishwasher door. Wait until the dishwasher indicates that the programme has ended and the dishes have cooled before unloading the dishwasher. (If the dishwasher is built in, the surrounding furnishings must be resistant to any condensation from the dishwasher.)

Fragile dishes

Some cookware is not dishwasher safe. This can be for several reasons. Some materials cannot withstand strong heat, others can be damaged by dishwashing detergent.

Exercise caution with, for example, handmade items, fragile decoration, crystal/glassware, silver, copper, tin, aluminium, wood and plastic. Look for the "Dishwasher safe" mark.

Points to consider

• All dirty surfaces should face inwards and downwards! - Dishes should not be placed in or on each other. 1. Pull out the upper basket. - Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for the items. • Make sure small items cannot fall through the dishwasher basket; place them in the cutlery basket.

NOTE! Check that the spray arms can rotate freely. Check that the spray arms can rotate freely. 3. Repeatedly lift the basket with both hands to change dishwash position. (The upper basket can be set in three positions.) When the upper basket is in the highest position, lifting it will return it to the lowest position. Note that sides of the basket must always be set to the same height.

NOTE!

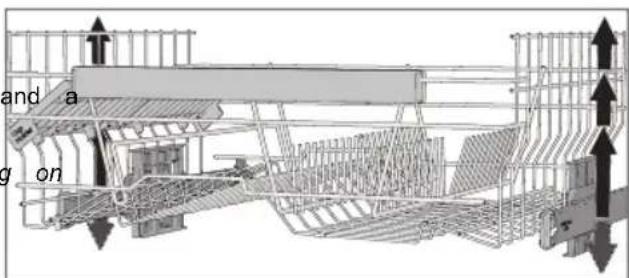

The dishwasher's baskets

The dishwasher is equipped with an upper basket and a lower basket with a cutlery basket.

The appearance of the baskets may differ depending on the dishwasher setup.

Upper basket

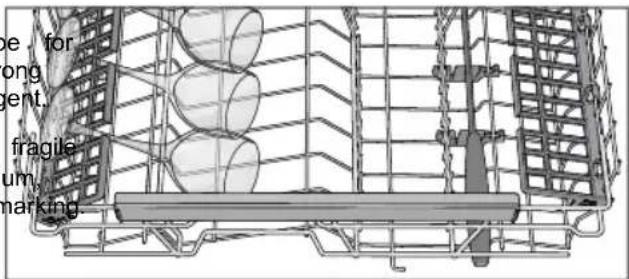

Place glasses, cups, bowls, side plates and saucers in the upper basket. All dirty surfaces should face inwards and downwards! Wine glasses are placed on the wine glass

Using the dishwasher

Lower basket

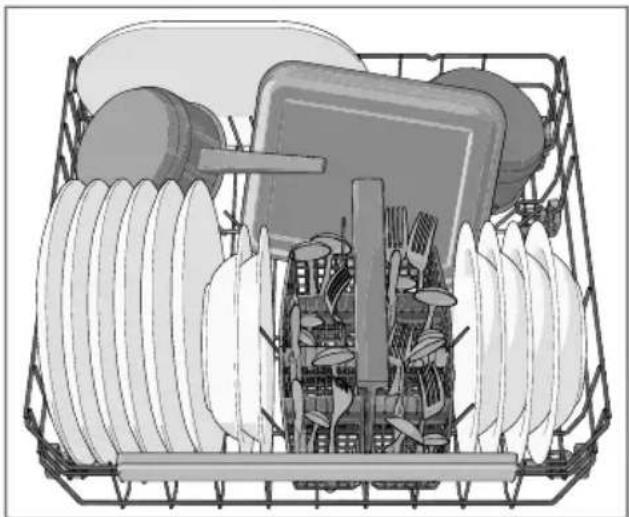

Place plates, side plates, serving dishes, pots and (in the cutlery basket) in the lower basket.

Foldable tines

Fold down the foldable tines (plate supports) when loading pots. Release the foldable tines by pressing inwards before adjusting their position.

Cutlery basket

Place cutlery with the handles facing down, except knives, and spread them out as much as possible so that spoons do not stack inside each other.

Place the cutlery basket in the lower basket.

Add detergent

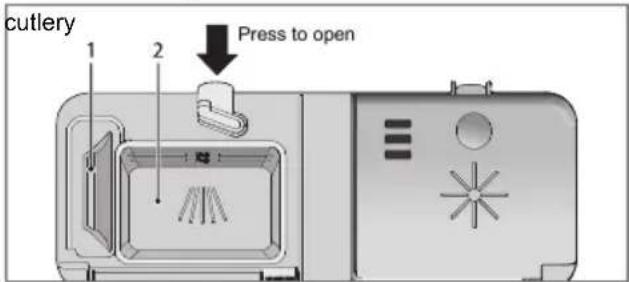

1. Prewash detergent compartment
2. Main wash detergent compartment

Detergent is added according to water hardness.

Follow the instructions on the detergent packaging. This dishwasher is fitted with a water softener, so use detergent and rinse aid doses suitable for soft water.

Too much detergent can result in less effective dishwashing and also entails greater environmental impact.

The detergent compartment must be dry when adding detergent. There is one compartment for the prewash and one for the main wash. If powder or liquid dishwasher detergent is used, add a small amount of the detergent to the prewash compartment. Contact the detergent manufacturer if you have questions about the detergent.

NOTE!

Use only dishwasher detergent! Washing up liquid must not be used as the foam that forms prevents the dishwasher from operating effectively.

Dishwasher tablets

Halve the tablet if it is difficult to close the dispenser. There is a risk that the detergent will not be released if the lid is not tight and will not open correctly.

NOTE!

Dishwasher tablets are not recommended for short programmes (less than 75 minutes). Use powder or liquid dishwasher detergent instead.

All-in-one detergent

There are many types of all-in-one detergents on the market. Read through the directions for these products carefully.

Chapter Settings describes how to activate TAB (3-in-1/All-in-one detergent). Note that salt must be put in the salt compartment. If you are not satisfied with the dishwashing or drying results, deactivate the setting TAB (3-in-1/All-in-one detergent) and top up with salt, detergent and rinse aid. See Chapter Before washing for the first time.

NOTE!

Optimal washing and drying results are achieved with normal dishwasher detergent together with separately dispensed rinse aid and salt.

The main power switch

Press and hold the main power switch until the indicator lights up. Also check that the water tap is on.

PROGRAM - Select a programme

Select a programme to suit the type of dishes. Eco wash is always pre-selected.

Press the Programme selector one or more times until the desired programme symbol is activated.

AUTO

45-65° Auto wash

The dishwasher can measure how dirty the dishes are and adjust water consumption and temperature accordingly. When newly installed, the programme needs to be run a few times before it is fully adapted and can provide the best results.

AUTO

45-65° Auto wash ¹⁾ + SpeedWash

An effective programme for daily use for slightly dirty dishes with leftovers. (This programme is not intended for burnt-on food such as on oven dishes.)

70° Intensive wash

Programme for very dirty dishes, such as pans, dishes and oven dishes. If these dishes do not fill the dishwasher, you can add plates and the like.

ECO

Eco wash

This programme is intended for cleaning normally dirty dishes and is the most effective programme in terms of combined energy and water consumption.

1h

55° Quick dish and dry

This programme is used for glasses and porcelain that are slightly dirty, such as coffee cups.

In combination with SpeedWash, a shorter program is achieved (30 minutes).

45° Gentle dish using

A gentle dishwashing programme with a low temperature for washing fragile items made of crystal/glass. Remember to use a small amount of detergent and to place items so that they do not touch each other during the wash. See Fragile dishes in the chapter Loading the dishwasher. Porcelain that has just been used without dried leftovers can also be washed using this programme.

splay lights

OPTIONS - Select an option

To select an option, press one of the option buttons. The option is activated. The available options vary between programmes and some options cannot be combined (available options glow dimly).

SpeedWash

This option shortens the programme time, but uses more energy and water.

Auto open

The dishwasher door opens automatically, which improves the drying results. Wait until the dishwasher indicates that the programme has ended and the dishes have cooled before unloading the dishwasher. (If the dishwasher is built in, the surrounding furnishings must be resistant to any condensation from the dishwasher.)

NOTE!

The dishwasher door must not be blocked when set to auto open. This can disrupt door lock functionality.

HI DRY

This option is intended for situations where demands on complete hygiene are especially high, such as when dishwashing baby bottles and cutting boards. The temperature is increased in both the main wash and the final rinse.

Delayed start

When you select Delayed start, the dishwasher will start 2-4 hours after you close the door.

1. Press the button once to activate Delayed start. Press the button several times - or hold it in - to set the desired number of hours.

Then close the door and the dishwasher counts down 1 hour at a time and starts after the selected delay.

If you want to cancel the Delayed start option, open the door and press and hold the main power switch until the dishwasher turns off.

1) This combination (Auto wash + SpeedWash) is also known as QuickIntensive (90 minutes).

Starting the dishwasher

Close the door to start the dishwasher. If the main switch is on, the dishwasher will start automatically when the door is closed.

• Angle dishes with hollows, such as cups, so that the rinse water will run off. This is also important for items with power.
• Top up with rinse aid or increase the rinse aid dosage level.
• Activate the Auto open option.

Activate the HI DRY option. - Allow the dishes to cool before unloading the dishwasher.

shows

Is up- heated. Unloading the dishwasher

TID - Time remaining

Once you have chosen a programme and options, the programme took when last used is displayed.

Once you have started the dishwasher the display the remaining programme time. The remaining time dated after the water for the final rinse has been

Hot porcelain is more fragile. Leave the dishes to cool the dishwasher before unloading them. f dishes,

Unload the lower basket first to avoid any water drops the upper basket falling onto the dishes in the lower b

This may differ somewhat from time to time depend the temperature of the water supply, the amount of the ambient temperature and other factors.

Front display

Stopping or changing a programme

If you want to change programme after starting the dishwasher, open the door then press and hold the main power switch until the display turns off. Add more detergent if the lid of the detergent dispenser has opened. Then press the main power switch, choose a new programme and close the door.

If you want to load more dishes

Open the door. The dishwasher stops automatically. Add the dishes and close the door. After a while, the dishwasher continues the programme.

If the dishwasher is turned off due to a power failure

If the dishwashing programme was not finished, the interrupted programme continues when power is restored.

NOTE!

During drying, the programme is interrupted if the power is cut or the door is open for more than 2 minutes.

the power minutes.

Once the programme has finished

Once the programme has finished, "End" appears on the display.

The dishwasher switches off automatically after the programme ends. Shut off the water tap after each use.

How to get the best drying results

• Fully load the dishwasher.

Programme chart

PROGRAM- Programme	Detergent, compartment / 2 (ml)	1. Options		Main washPrewashesTILLVALFinal rinseNumber of Consumption values 1)					(L)Energy
					rinses		Dishwashing time (approx. hrs:min)	(approx. kWh)
									11-200,9-1,52:10-2:5065
Intensive wash	10 / 25		2	70 °C	2	70 °C	2:55	1,7	17
Eco wash 2)	--- / 25		1	55 °C	2	45 °C	3:30	0,82	9,5
Quick dish and dry	--- / 20			55 °C	1	25 °C	1:00	0,6	10
Gentle dish	--- / 20			45 °C	2	50 °C	1:40	0,8	9

1) Consumption values vary depending on the temperature of the incoming water, room temperature, load size, selected additional functions and more. 2) This dishwashing programme is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective programme in terms of combined energy and water consumption.

Settings

Open the settings menu:

1. First, open the door. Turn off the machine. Press and hold the main power switch until lights up.

1. Within 10 seconds:
2. press the Programme selector and the option button for SpeedWash. The display shows the settings menu (current setting and its currently set value).3. (Exit the menu by browsing through the menu or pressing the main power switch.)

Navigate the settings menu:

You can now adjust the following settings:

		OptionsSettings
						Rinse aid dosage setting.1:00 - 1:05Rinse aid1.Increase the rinse aid dosage:If the dishes have water marks.Decrease the rinse aid dosage:If the dishes have a sticky white/blue film.If the dishes are streaked.Build-up of foam. If you have very soft water, the rinse aid can be diluted 50:50 with water.Pre-selected at factory: 05
		OptionsSettings				EN
		2:00 - 2:09Water hardness	Adjusting the water softener. Select a setting on the hardness of the water supply. It is this setting is correct!			depending important
			German water hardness scale	French water hardness scale	Recommended setting
					2:000-9°fH0-5°dH
					2:0110-14°fH6-8°dH
					2:0215-20°fH9-11°dH
					2:0321-25°fH12-14°dH
					2:0426-34°fH15-19°dH
					2:0535-43°fH22-24°dH
					2:0644-52°fH25-29°dH
					2:0753-70°fH30-39°dH
					2:0871-88°fH40-49°dH
					2:0989°fH50°dH
			Do not forget to put salt in the salt compartment at you have set the water softener to 2:01 - 2:09.For a water supply with a hardness under 6°dH (9°f select 2:00. The water softener is deactivated and no salt is needed.Pre-selected at factory: 04
3.	TAB(3-in-1/all-in-one detergent)	3:00 (Off)3:01 (On)	You can activate this setting when using 3-in-1/ All-in-one detergent. The dishwashing programmes automatically adapt to provide the best possible dishwashing and drying results every time. If this setting is activa there is no need to add rinse aid since this option ables rinse aid dispensing. It also reduces the amount of salt added to the water softener. Note that salt be put in the salt compartment.
			NOTE!In order to achieve good dishwashing results, it is essential to check which type of detergent for all-in-one product best suits your needs! Read the deter-gent packaging carefully for information on proper use. Always follow the directions for use or informa-tion on the detergent packaging!

Care and cleaning

Top up with rinse aid

When the rinse aid needs topping up, the above lights on the display.

1. Open the rinse aid compartment lid.
2. Carefully top up with rinse aid to the level marked max. Empty the coarse filter. Remember to refit it!
3. Wipe up any splashes of rinse aid around the compartment. Fine f
4. Close the lid firmly.
5. Lift the coarse filter by the handle.
6. Empty the coarse filter. Remember to refit it! compart-

After topping up, it may take a while before the out.

Top up with salt

When the salt needs topping up, the above symbol on the display.

When the salt runs out, unscrew the cap and fill er with salt. Water is only needed the first time! and tighten. Run a programme to ensure that any dishwasher is rinsed away.

After topping up, it may take a while before the out.

WARNING!

In order to avoid rust stains, a dishwashing cycle must be started immediately after adding salt.

Never pour dishwasher detergent into the salt compartment. This destroys the water softener!

programme

compart-

Coarse filter

The coarse filter traps larger food particles, which cannot get past the drainage pump. Empty the coarse filter when necessary.

Fine filter

Debris that collects on the fine filter is automatically rinsed away during each wash. Clean the fine filter when necessary.

1. Turn the handle anticlockwise.
2. Lift the filter straight up using the handle. Free the filter to clean the fine filter.
3. Refit in reverse order. Check that the edges seal properly when refitting the fine filter.

Lock the filter in place by turning the handle clockwise to the stop position. The handle should point straight out from the dishwasher.

NOTE!

Dishwashing results may be affected if the filters are incorrectly fitted. Note that the dishwasher must not be used without the filters in place!

NOTE!

Check that the coloured stop on the right in the bottom drain is in place.

Spray arms

Holes and bearings can sometimes become blocked. Remove any debris using a pin or the like. The spray arms also have holes underneath.

The door and the door seal

Regularly clean the sides of the door and the door seal with a slightly damp cloth (with a little cleaner if necessary).

Front panel

Keep the buttons clean and free from grease. Wipe them clean with a dry or slightly damp cloth. Never use harsh cleaners – they can scratch the surface. Use the main power switch to turn off the dishwasher before cleaning the buttons to avoid activating any buttons unintentionally.

The dishwasher tub

The dishwasher tub is made of stainless steel and is cleaned through normal use.

Limescale deposits

If you have hard water, limescale deposits may build up in the dishwasher. If this happens, run the Intensive wash programme with two tablespoons of citric acid in the detergent compartment (with no dishes in the machine).

Unblocking the drainage pump

If the dishwasher still contains water after the programme has finished, something may be blocking the drainage pump. Such items are easily removed.

To facilitate cleaning you can remove the spray arms. Turn off the machine using the main power switch and unplug it from the wall socket. Remember to fit them firmly back into place afterwards.

Lower spray arm

Pull the lower spray arm straight up to release it. Scoop out the water from the dishwasher tub.

Upper spray arm

1. Pull out the upper basket.
2. Unscrew the spray arm bearings counterclockwise and remove the spray arm from the upper basket.

1. Remove the coarse filter and the fine filter.

Scoop out the water from the dishwasher tub.

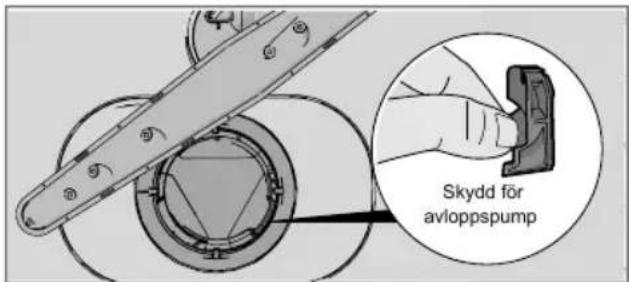

1. In order to inspect the drainage pump, remove the stop on the right in the bottom drain.
2. Turn the pump wheel located behind the drainage stop by hand. Carefully remove any items.
3. Refit the drainage pump stop along with the fine and coarse filters.
4. Plug the machine in again.

If the dishwasher still does not start and a whirring is heard, the overflow protection has been activated.

• Shut off the water.
• Remove the plug from the wall socket.
• Call the service department.

NOTE!

Do not forget to refit the drainage pump stop.

Troubleshooting

		ActionType of fault on the display
	OverfillingF10	Clear the drainage pump. See the chapter Care and cleaning. If the prob persists, call the service department.
	Water outlet faultF11	See “Water remains in the dishwasher” in the table “Problem” below. If the persists, call the service department.
F12	Water inlet fault	Check that the water tap is on. If the problem persists, call the service department.
		Turn off the water tap and call the service department.Inlet valve leakageF
	Water level faultF52	Clean the coarse and fine filters. If the problem persists, call the service ment.
		Turn off the water tap and call the service department.OverfillingF54
		Call the service department.Circulation faultF56

Press any button to clear the error message.

		ActionPossible causesProblem
The buttons do not react when	pressed.after opening the door.	Wait a moment then try again.You have
	The buttons are dirty.	Clean with a dry or slightly damp cloth.
	The door is closed.	Open the door. The buttons only react to use when the door is open.
Cannot close door.	The baskets are not correctly posted.	Check that the baskets are correctly positioned horizontally.
		Check that the dishes are not blocking the baskets from sliding properly into place.
	The door lock does not click into and lock.	Check the door lock. If it does not click into place and lock, open the door. Press and hold the button for the Auto open option for 15 seconds. Then wait 30 seconds. Close the door. Check that the door lock clicks into place and locks.

		ActionPossible causesProblem	EN
		Check.The door is not properly closed.The
	You have opened the dishwasher more dishes while a programme progress.	Close the door and wait. After a while, the indishwasher continues the programme.
	The door lock has not clicked and locked.	Check the door lock. If it has not click into place and locked, open the door. Press and hold the button for the Auto open option for 15 seconds. Then wait 30 seconds. Close the door. Check that the door lock clicks into place and locks.
		Check.A fuse/circuit breaker has been tripp
	socket.	Check.The plug is not plugged into the v
		Check.The water tap is turned off.
		Check.Overflow/leaks.
	A whirring sound (the drainage is heard from the dishwasher and not stop when the main power turned off.	Tomp) off the water tap. Pull out the plug and does all the service department. switch is
	Check that the Delayed start opt not been selected.	Press and hold the main power until the display turns off if you want to cancel the Delayed start option. Restart the dishwasher.
		Remove the arms and clean them.The sp
		Check that the dishes are not blocking the spray arms.
	Spray arm holes or bearings block	Clean the spray arms. See the Care and cleaning.
		Choose a longer programme.Unsuitable dish
	Incorrect detergent dosage.	Dose according to water hardness. Far too much or far too little detergent results in poorer dishwashing results.
	product.	Avoid large packages.Old detergent. Deterge
	Dishes loaded incorrectly.	Do not cover porcelain with large bowls or the like. Avoid placing very tall glasses in the corners of the baskets.
	during the programme.	Place dishes to sit steady.Glasses and cu
	The filters are not fitted correctly.	Check that the filter handle is locked in the stop position. The handle should point straight out from the dishwasher.
	Drainage pump stop missing.	Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning.

		ActionPossible causesProblem
Spots on stainless steel or silver.	Some foodstuffs, such as mustard, mayonnaise, lemon, vinegar, salt and dressings, can mark stainless steel if left for too long.	Rinse off these types of foodstuffs if not starting the dishwasher immediately. Use the Gentle dish programme.
	All stainless steel can cause spots on silver if they come into contact during dishwashing. Aluminium can also cause spots on dishes.	In order to avoid marks and tarnishing, separate dishes made from different metals, such as silver, stainless steel and aluminium.
	The water softener is leaking salt.Spots or fil	I think that the salt compartment lid is properly tightened. Otherwise call the service department.
		See the chapter Settings.Incorrect water softener setting.
		See the chapter Settings.Incorrect rinse aid dosage setting
	Salt compartment empty.	Top up with salt. See the chapter Before washing for the first time.
	3-in-1/ All-in-one detergent is used and the setting TAB (3-in-1/ All-in-one detergent) is activated.	Inactivate the setting TAB (3-in-1/ All-in-one detergent) and top up salt and rinse aid.
	Too high temperature and/or too much detergent can cause etching on crystal. Unfortunately, this cannot be repaired, only prevented.	Wash crystal at a low temperature and with a conservative amount of detergent. Contact the detergent manufacturer.
	Rinse aid dosage setting too high.The dishes	Revuestlick,whine/Lee filsectionsBefore washing for the first time and Settings. If you have very soft water, you may want to dilute the rinse aid 50:50 with water.
Spots left after washing.	off.	Use a detergent with a bleaching agent.Lipstick and tea c
Detergent residue in the detergent compartment after dishwashing.	The detergent compartment was damp when adding detergent.	The detergent compartment must be dry when adding detergent.
Rattling sound when dishwashing.	The dishes are not correctly placed or the spray arms are not rotating.	Check that the dishes are placed securely. Spin the spray arms to make sure they can rotate.
1 minute appears in the display.	The programme is taking longer than estimated.	No action. The programme time is stored and next time the programme is run the corrected time will be displayed.Clean the coarse and fine filters.The filter:
	The filters are not fitted correctly	Check that the filter handle is locked in the stop position. The handle should point straight out from the dishwasher.
	Debris in the drainage pump.	Clean the drainage pump. See the chapter Care and cleaning.
	Drainage pump stop missing.	Check that the coloured stop on the right in the bottom drain is in place. See the chapter Care and cleaning.
	Kink in drainage hose.	Check that the hose is free from kinks and sharp bends.
	Blocked drainage hose.	Disconnect the drainage hose where it connects to the sink unit's water trap. Check that no debris has fastened and that the connection has an inner diameter of at least 14 mm.
	Dirt around the seals and in co	Clear B with dowashin-up dishwasher.and low foaming cleaner.
	Low temperature programmes have been selected for a prolonged period	Run a programme with a higher temper-
		Activate the Auto open option.The Auto op
		Fully load the dishwasher.The dishwasher
	Rinse aid needs topping up or is set too low.	Dosagep with rinse add or increase the rinse aid dosage. See the sections Before washing for the first time and Set-tings.
	3-in-1/ All-in-one detergent is used the setting TAB (3-in-1/ All-in-one gent) is activated.	Innivate the setting TAB (3-in-1/ all-in-

Installation

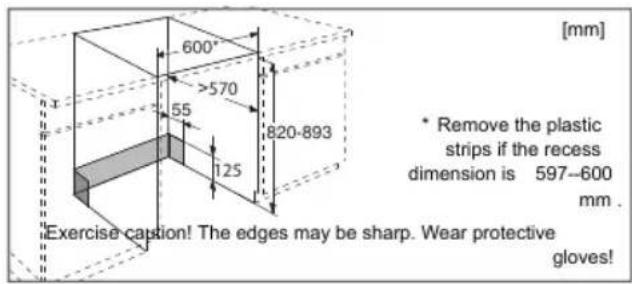

* Remove the plastic strips if the recess dimension is 597–600 mm. Exercise caution! The edges may be sharp. Wear protective gloves! Nominal dimensions. Actual measurements may vary.

Safety instructions

• Connections to electricity, water and drainage must be performed by a qualified professional. Do not forget to remove the transport protection when unpacking the dishwasher. Always follow applicable regulations for water, drainage and electricity. Take care during installation! Wear protective gloves! There must always be two people!
• Place a drip tray on the floor beneath the dishwasher to prevent damage from any water leaks.
• Before screwing the dishwasher into place, test the dishwasher by running the Gentle dish programme. Check that the dishwasher fills with water and drains. Check also that none of the connections leak.

WARNING!

Turn off the water supply when installing the dishwasher!

The plug must be disconnected or power turned off while the work is carried out!

dishwasher!

the socket

Placing the dishwasher

The dishwasher is intended to be built-in under a worktop. The built-in measurements are shown in the illustration. Make sure that the cable and hose hole's edges are smooth and will not damage the drainage and inlet hoses or power cable.

If the dishwasher is built-in, the surrounding furnishings must be resistant to any condensation from the dishwasher.

1. Check that there is an air gap of at least 3 mm between the underside of the worktop and the top edge of the dishwasher.
2. Slide the dishwasher into place.

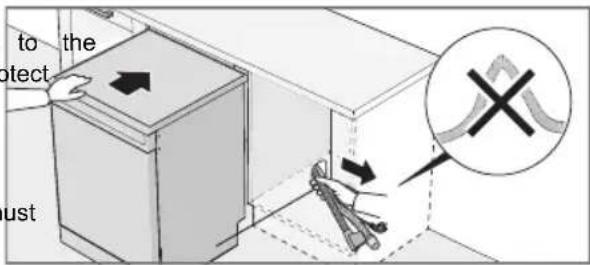

Pull through the drainage and supply hoses when the machine is slid into place.

Check that the hoses have no kinks or sharp bends, and check that there is nothing that can damage the hoses.

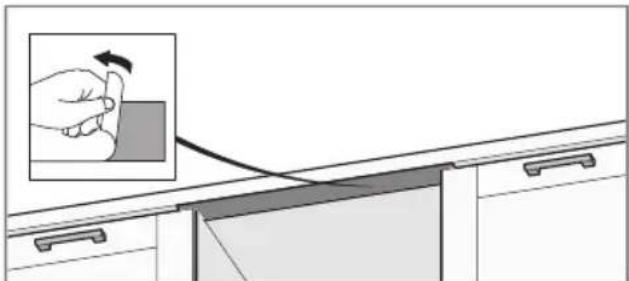

Affix the protective film

Affix the protective film (packed in the document bag) to the underside of the worktop. The protective film is to protect the worktop from moisture.

NOTE!

The surface to which the protective film is affixed must be clean and dry.

Check that the machine is installed such that the door opens freely, otherwise door lock functionality may be disrupted.

1. Make any final adjustments to the front feet (the dishwasher may lean no more than 5 mm).

Adjust the height and slide the dish into place.

Drainage connection

This dishwasher is suitable for installing in a raised position (to attain an ergonomic working height). This means that the dishwasher can be placed so that the drainage hose is at a lower level than the bottom of the dishwasher, such as by routing it directly to a floor drain. The dishwasher is fitted with an integrated anti-siphon device to prevent

the hot water from being emptied out of the machine during the wash cycle.

1. Start by measuring the height from the floor to the bottom edge of the worktop.
2. Measure the height from the floor to the top of the dishwasher.
3. Adjust the front feet by turning them clockwise and anticlockwise to lower or raise the dishwasher.

Lean the dishwasher forwards a little and adjust the foot with the screw at the front of the dishwasher. Turn clockwise to lower or anticlockwise to raise.

NOTE!

Do not exceed the permitted water supply temperature. Certain materials used in some cookware cannot withstand strong heat. See "Fragile dishes" in the chapter "Loading the dishwasher".

Electrical connection

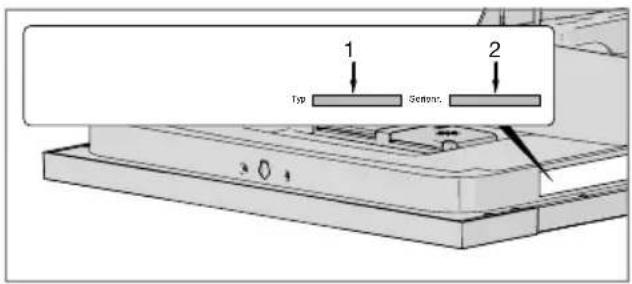

Information about the electrical connection can be found on the serial number plate. This specification must match the electricity supply.

The dishwasher must be connected to an earthed socket.

The electric wall socket must be placed outside of the installation area to be easily accessible after installing the dishwasher. Do not use an extension cord!

NOTE!

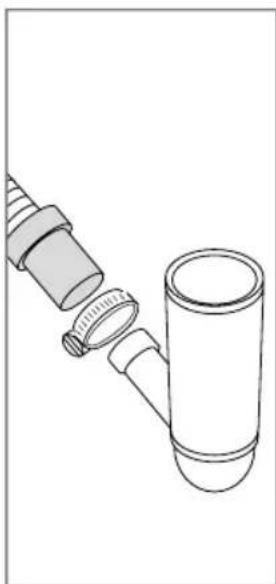

The drainage hose can also be connected to a nipple on the sink unit's water trap. The connection must have an internal diameter of at least 14 mm.

Deactivation of electrical cables as well as repairs and maintenance relating to safety or performance must be carried out by the manufacturer's service agent or someone with similar professional qualifications.

The drainage hose may be extended by a maximum of 2.5 m (the total length of the drainage hose must not exceed

4.5 m). Any joins and connecting pipes must have an internal diameter of at least 14 mm. However, the drainage hose should ideally be replaced with a new hose without joins.

No part of the drainage hose may be more than above the bottom of the dishwasher.

Attach the drainage hose with a hose clamp. Ensure that the drainage hose has no kinks.

Screwing the dishwasher into place

Connection to water supply

Use only the inlet hose supplied with the dishwasher. Do not re-use old or other spare hoses.

After fastening the machine, check that the front feet still stopcock floor.

The supply pipe must be fitted with a water tap. The water tap must be easily accessible, so that

the water

can be shut off if the dishwasher has to be moved.

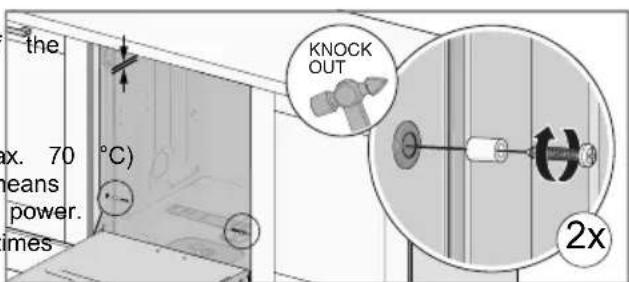

Screw the dishwasher into place with two extra screws. If there is an air gap of more than 3 mm between the sides and the worktop and the top edge of the dishwasher, the dishwasher ought to be screwed into place with two extra screws.

Once the installation is complete, turn on the water and allow the pressure to settle for a while. Check that connections are watertight.

Connection to cold water supply

Connect the dishwasher to the cold water supply if the building is heated using oil, electricity, or gas.

Connection to hot water supply

Connect the dishwasher to the hot water supply (max. 70°C) if the building is heated using an energy-efficient means such as district heating, solar power, or geothermal power. Choosing a hot water connection cuts dishwashing times and reduces the dishwasher's energy consumption.

Dishwasher toe kick

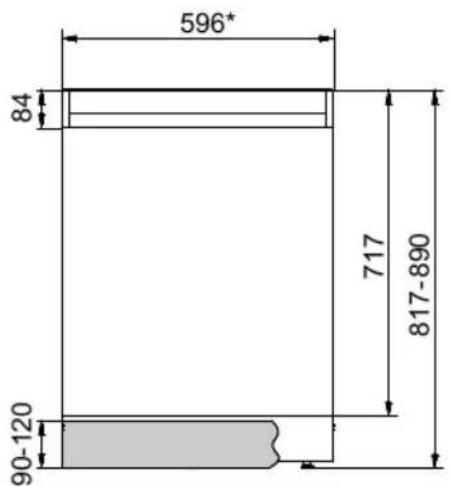

The dishwasher is supplied with a toe kick. Depending on the recess height and plinth depth, the height of the toe kick

can be adjusted. The table shows which toe kick height to use.

(mm)	Plinth depth (mm)Recess height
					90<80706050
					90----820
					1009090--830
					1101001009090840
					120110110100100850
					120120120110110860
					120120120120120870 <

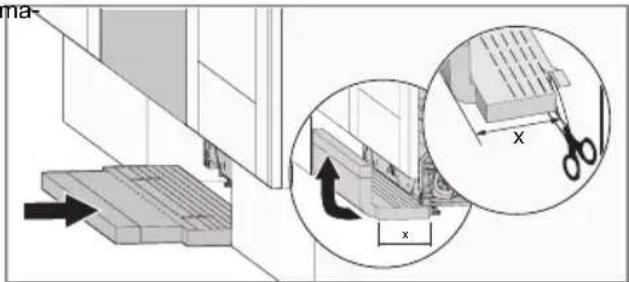

Use a sharp knife to score the front and the back of the toe kick at the desired height. Now carefully separate the toe kick to the right height.

Fit the sound insulation (only certain models)

Service

Information for test institute

Read the chapter Troubleshooting before contacting the service department. Request test institute information via e-mail: [e-mail]. Provide the details on the serial number plate in all contact.

Include the type (1) and the serial number (2).

serial number

The request should include the details on the serial number plate. Include the article number (1) and the serial number (2).

Cylinda service 0771-25 25 00.

Technical information

Information on energy labelling

Information sheet, in compliance with Commission Delegated Regulation (EU) No. 1059/2010

EN

Cylinda

Number of standard place settings:	SV-DISK 2T AVHModel designation: 131) A+++Energy efficiency class:
Annual energy consumption(A)E	233 kWh per year):0,82 kWhEnergy consumption of the standard cleaning cycle(E
Power consumption
Off-mode (P):	0,49 W
Left-on mode1)(P)	0,49 W
Annual water consumption (AW)	2660 litres per year A4)
Drying efficiency class:
	Eco wash5), option Auto openStandard programme:
	210 minutesProgramme time for the standard cleaning cycle:
	InfiniteDuration of the left-on mode (T
	44 dB(A) re 1 pWNoise emissions:
	Integrated productConstruction:

1) In accordance with standard, EN 50242.

2) Based on 280 standard cleaning cycles with a cold water connection and consumption in accordance with energy saving mode. The actual energy consumption depends on how the machine is used.

3) Based on 280 standard cleaning cycles. The actual water consumption depends on how the machine is used.

4) On a scale from G (least efficient) to A (most efficient).

5) This dishwashing programme is the standard cleaning cycle used to compile the energy labelling information. It is intended for washing normally dirty dishes and is the most effective programme in terms of combined energy and water consumption.

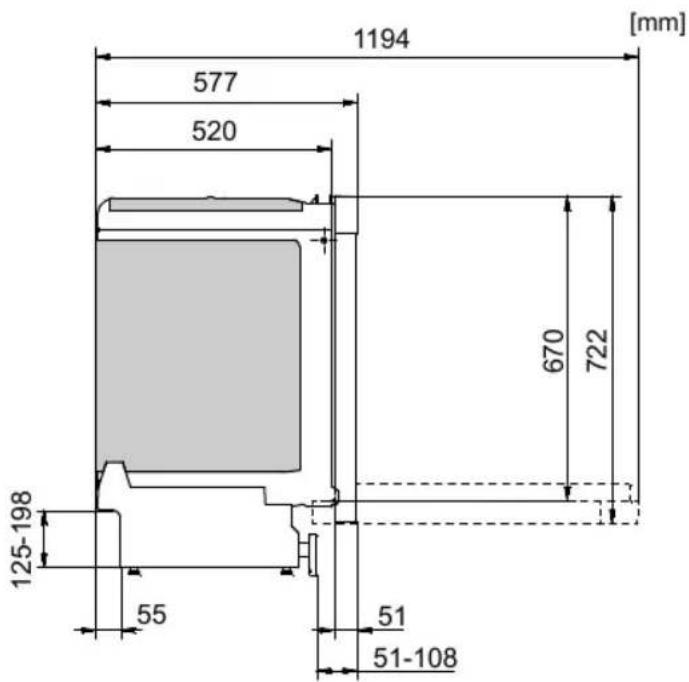

Technical data

Height: 817-890 mm

Width: 596 mm

Depth: 577 mm

Weight: 35 kg ¹⁾

Water pressure: 0.03–1.0 MPa

Electrical connection serial number plate

Rated power: See serial number plate

1) Weight can vary due to different specifications.

Contents

Your dishwasher 46

WARNING!

FI

Pins

Cutlery basket

Coarse strainer

Upper spray arm

Maintenance

Water pressure 0.03–1.0 MPa

WARNING!

Remember

Plate supports

Cutlery basket

Coarse sieve

Upper spray arm

Mount the kick plate

Load the dishwasher 93...

Set the water hardness level

Foldable pins

Fold down the foldable plate supports when you need to wash large items

Cutlery basket

Coarse sieve

Upper spray arm

Panels

Install the sound insulation (only on certain models)

Service

Service: Nationwide service in Sweden Visit www.cylinda.se Call 0771-25 25 00

Declare: Model code, Serial number, Purchase date, Problem description, Name and address, Phone number

Contact us: www.cylinda.se
