Product type	Built-in oven
Brand	Haier
Model	H6 ID46G3SHTB

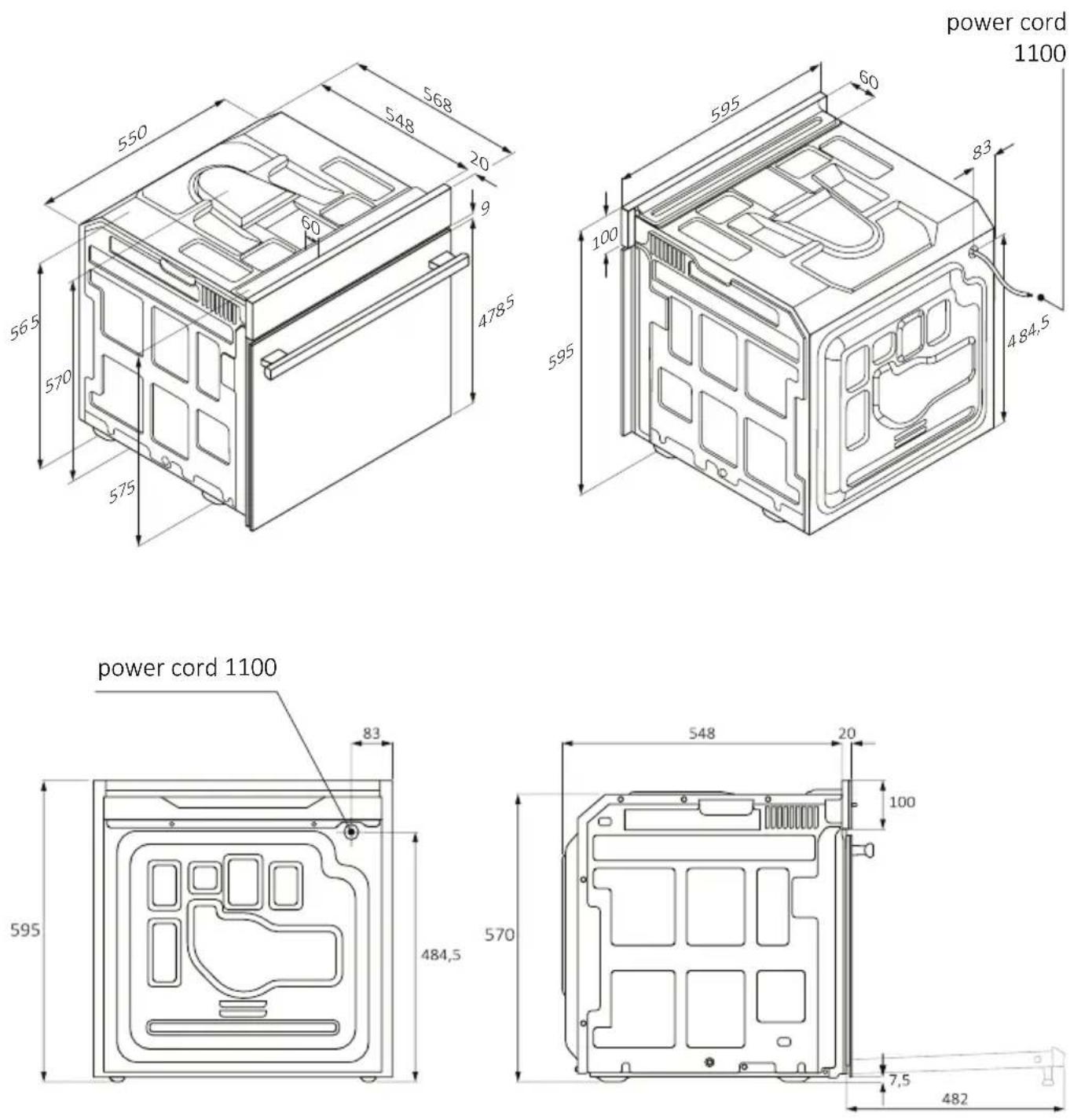

Dimensions (H x W x D)	59.5 cm x 59.6 cm x 56.8 cm
Net weight	35 kg
Power supply	230 V / 50 Hz
Max power	3500 W
Capacity	77 L
Energy type	Electric
Cooking functions	Fan-forced, natural convection, grill, pyrolysis, defrost
Cleaning	Pyrolysis (self-cleaning)
Control type	Electronic touch and rotary
Display	LED digital screen
Door	Removable cold glass, soft hinges
Safety	Child lock, automatic shutdown, door safety
Noise level	48 dB
Repairability index	7.5/10
Availability of spare parts	At least 7 years after purchase
Energy class	A+
Energy consumption (conventional heating)	0.93 kWh
Energy consumption (fan-forced)	0.69 kWh

Frequently Asked Questions - H6 ID46G3SHTB HAIER

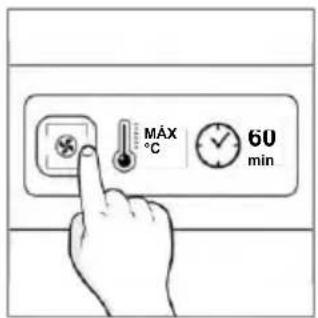

How to use the pyrolysis function to clean my Haier H6 ID46G3SHTB oven?

Remove all accessories and residues. Select the Pyrolyse mode via the menu. The temperature rises to 500°C to burn off grease. After cooling, wipe away the ashes with a damp cloth.

What is the capacity of this oven?

The usable capacity is 77 liters, ideal for large families and bulky dishes.

My oven is not heating, what should I do?

First check the electrical supply (fuse, circuit breaker). If the light is on but no heat, contact customer service. Do not attempt to repair it yourself.

How to activate child lock?

Press and hold the Lock button (often a padlock icon) for 3 seconds until a beep. A symbol appears on the screen. To deactivate, repeat the operation.

Can you use baking paper in this oven?

Yes, but place it on a rack or tray. Do not let it overhang and avoid temperatures above 220°C to prevent any risk of combustion.

What accessories are included with the oven?

The oven comes with a metal grid, an enamel dripping pan, and a cooking probe (depending on version). Consult the manual for the exact list.

How to set the clock?

Press the Clock or Timer button, then use the +/- buttons to adjust. Confirm with OK. The manual details the exact steps.

The fan-forced light is flashing, is it normal?

Yes, the light flashes during preheating and becomes steady once the temperature is reached. If the issue persists, reset the appliance by unplugging for 10 minutes.

Can I remove the door for deep cleaning?

Yes, the door is removable. Open it fully, lift the hinges (lock), and pull towards you. Clean the glass with a non-abrasive product. Reassemble in reverse order.

Where to find spare parts for this model?

Parts are available from authorized Haier dealers or on their official website. Use the model reference H6 ID46G3SHTB to order. 7-year availability guarantee.

USER MANUAL H6 ID46G3SHTB HAIER

Haier.com

English Français Italiano Deutsch Español Ελληνικά Nederlands Português Slovenčina Polski Čeština Română Magyar Slovenščina Srpski Lietuvių Eesti Latviešu Български Hrvatski Dansk Suomi Norsk Svenska Українська Türkçe

WELCOME

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference.

Before installing the oven, note the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the oven's features and accessories may vary depending on the model you purchased.

SUMMARY

1. SAFETY INFORMATION

2. PRODUCT INTRODUCTION

2.1. Overview of the product 2.2. Accessories 2.3. Control panel 2.4. Connectivity

3. BEFORE STARTING

3.1. Information to start 3.2. First usage 3.3. Preliminary cleaning

4. OPERATION OF PRODUCT

4.1. How the product works 4.2. Cooking functions 4.2.1. Standard functions 4.2.2. Special functions 4.2.3. Multi step feature

5. COOKING GUIDELINES

5.1. General Cooking Tables 5.2. Everyday Cooking Tables

6. CARE & CLEANING

6.1. General Recommendations 6.2. Cleaning the Oven 6.2.1. Inside the Oven: Cleaning Functions 6.2.2. Outside the Oven: Removal and Cleaning the Glass Door 6.3. Cleaning of Accessories 6.4. Maintenance

7. TROUBLESHOOTING

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. Appliance Disposal 8.2. Saving and Respecting the Environment

9. INSTALLATION

GENERAL WARNINGS

• Do not use a steam cleaner for cleaning operations.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Use in accordance with intended use

- Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage.

Use limitations

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

INSTALLATION WARNINGS

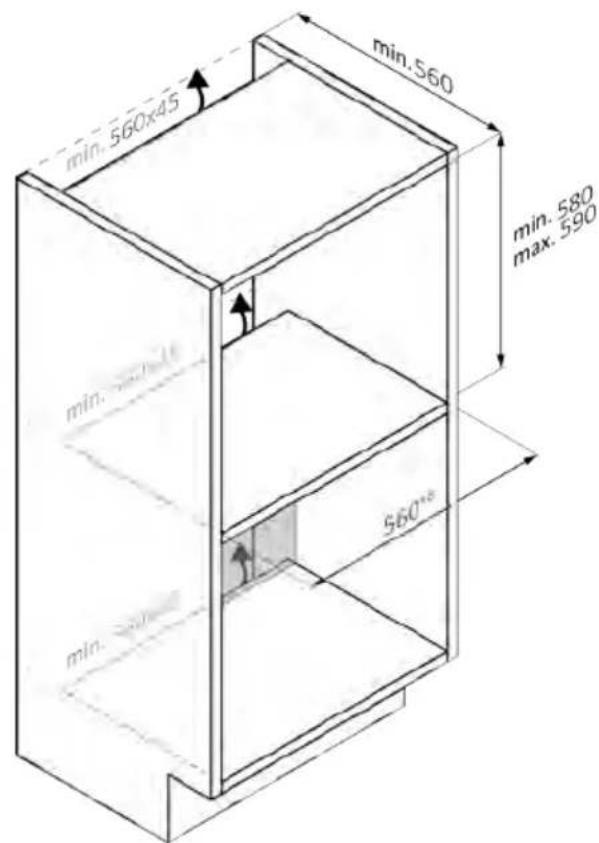

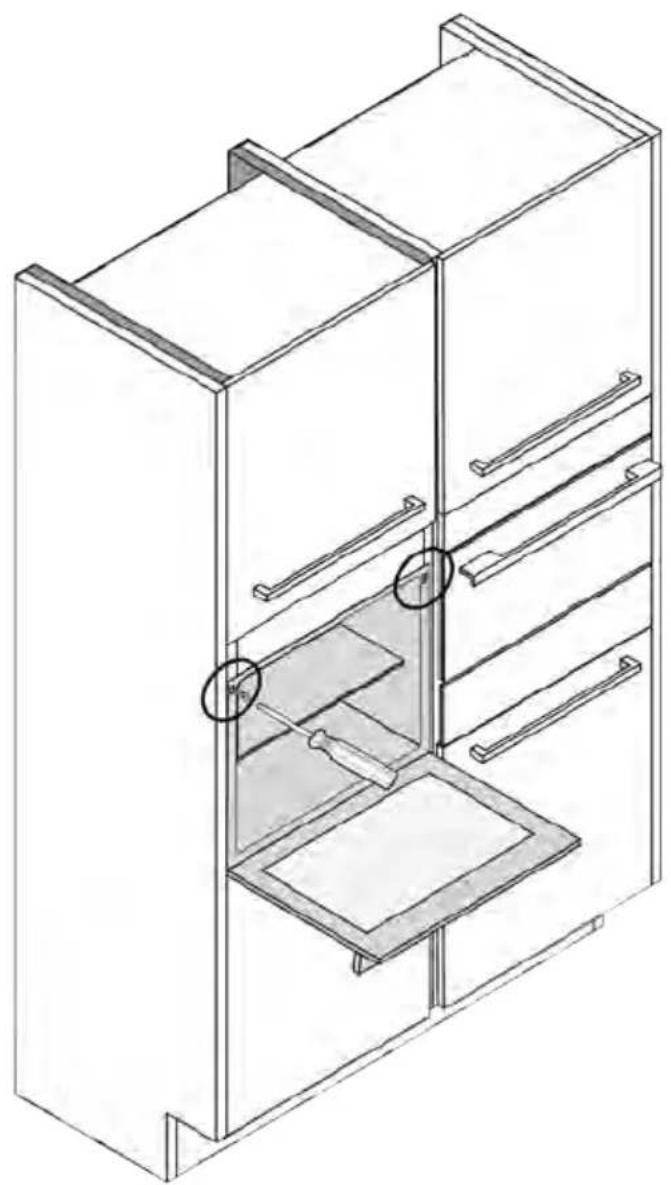

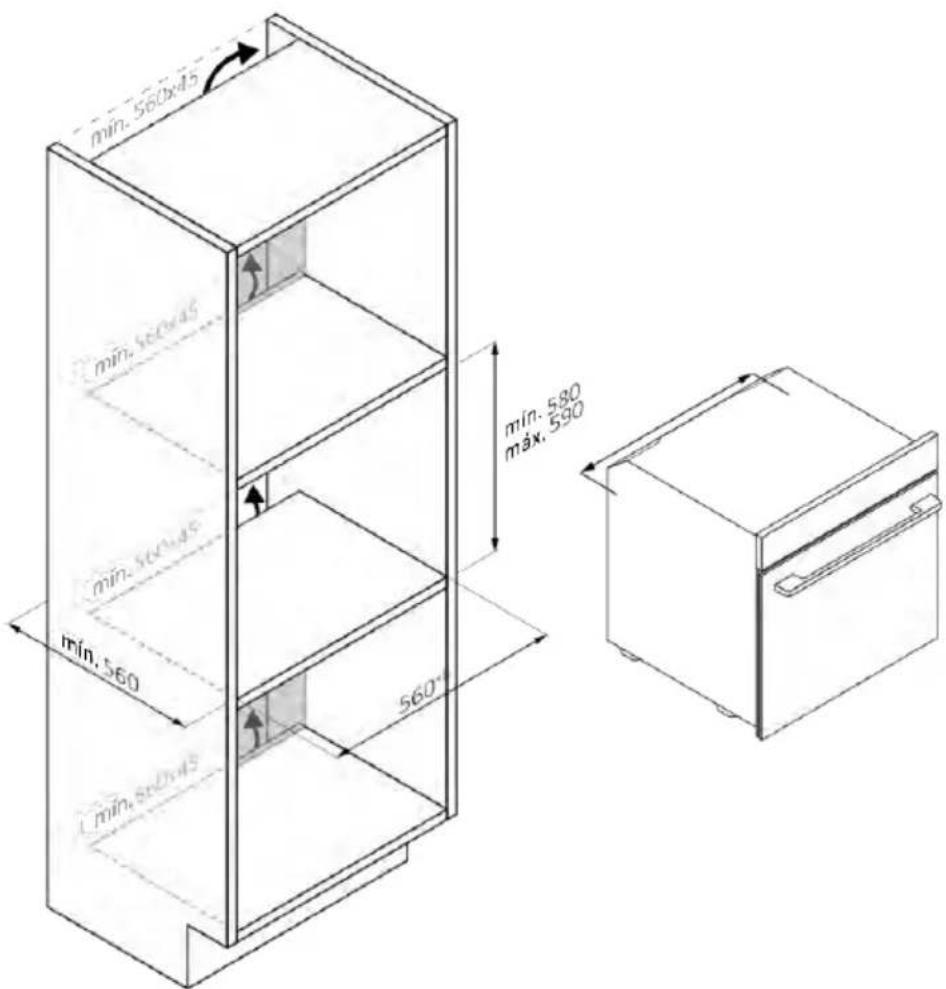

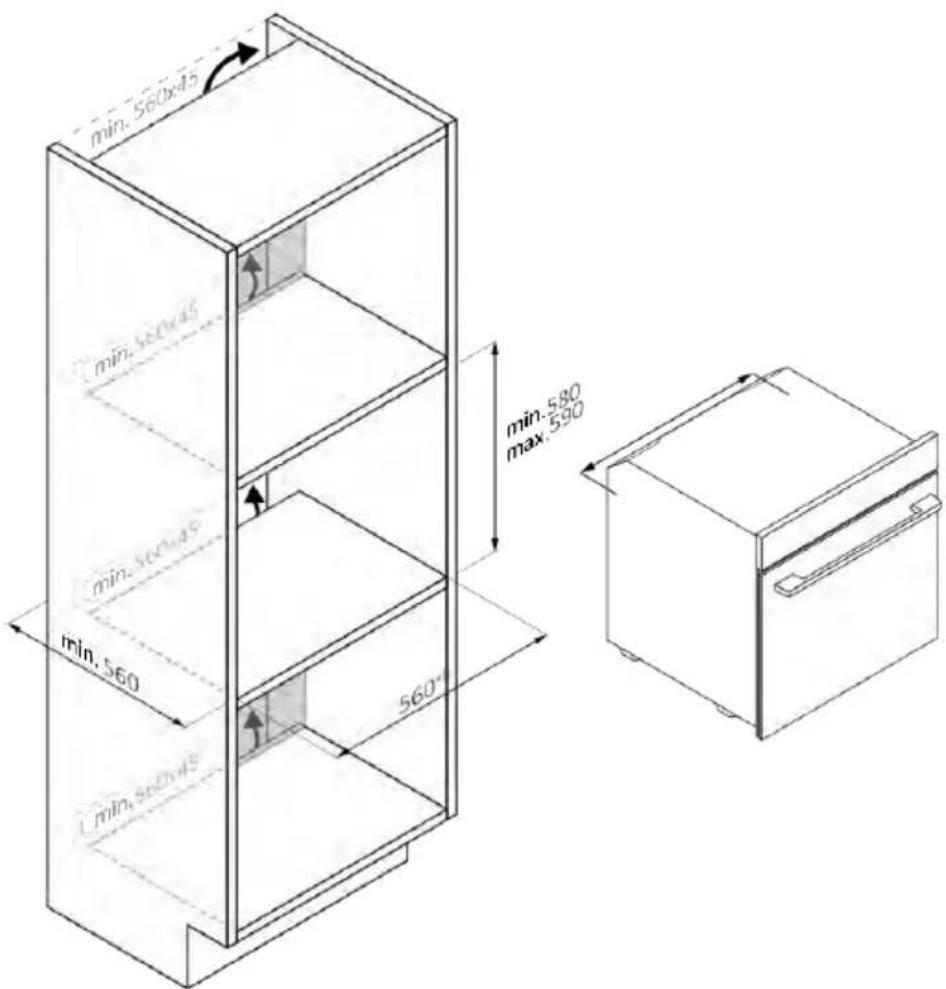

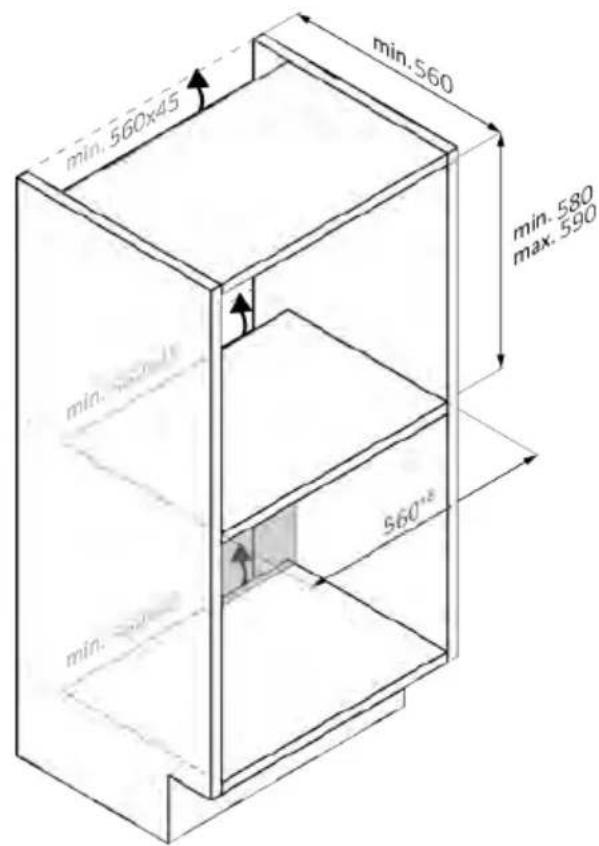

• The oven can be located high in a column or under a worktop.
• Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on the illustrations according to the type of fitting. Always fix the oven to the furniture with screws provided with the appliance.
• No additional operation or setting is required in order to operate the appliance at the rated frequencies.
• The appliance must not be installed behind a decorative door in order to avoid overheating.
• During installation, the oven should be disconnected from the mains to avoid overheating.
• If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed.
• Incorrect installation may cause harm or injury to people, animals, or belongings. The manufacturer cannot be held responsible for such harm or injury.
• Installation must be carried out by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instructions.
• After unboxing the appliance, always check it is not damaged. In case of issue, contact the customer service before installing and do not connect to the power supply.
• Remove the packaging material before operating the appliance.

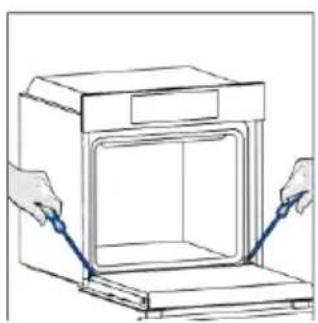

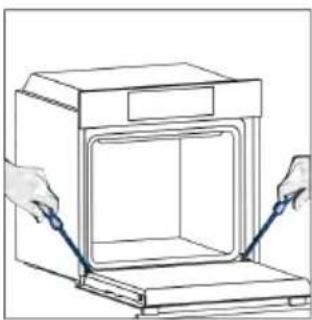

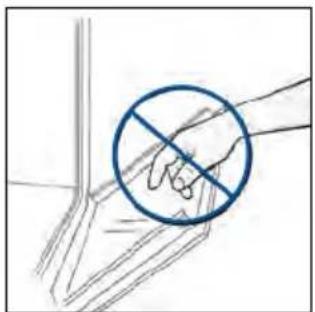

• During installation, do not use the oven door's handle to lift or move the oven.
• The installation furniture and adjacent furniture must withstand temperatures of 95°C.
• It is recommended to wear protective gloves during installation to avoid cut injuries.
• Do not install the product in open environments exposed to atmospheric agents.

This appliance is designed to be used at altitudes lower than 2000m.

• This appliance is designed to be used at altitudes lower than 2000m.
• To remove protective films and advertisement stickers on front surface of the oven before first usage

The socket must be suitable for the load indicated on the tag and must have a ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional.

• The socket must be suitable for the load indicated on the tag and must have a ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional.
• Connection to the power source can be made by plug or by fixed wiring, placing an omnipolar breaker with contact separation compliant with the requirements for overvoltage category III between the appliance and the power source. This breaker must be able to bear the maximum connected load and must comply with current legislation.
• In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must conform to the current norms of the installation country.
• The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.

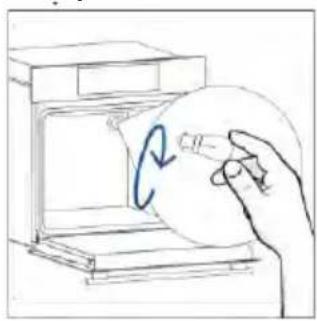

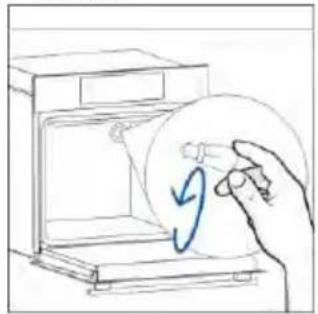

• ⚠ WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.
• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according to the instructions.
• The use of any electrical appliance implies the observance of some fundamental rules:

- do not pull on the power cable to disconnect the appliance from the power source;

- do not touch the appliance with wet or damp hands or feet;

– in general the use of adaptors, multiple sockets and extension cables is not recommended; – in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed.

• Any repair, installation and maintenance not carried out correctly can seriously endanger the user.
• The manufacturing company hereby states that it does not assume any responsibility for direct or indirect damages caused by incorrect installation, maintenance, or repair work. Furthermore, it is not liable for damages caused by the absence or interruption of the grounding system (e.g., electric shock).
• CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance is not designed to be activated by an external timer or separate remote control system.

USE & MAINTENANCE

• The dripping pan collects the residues that drip during cooking.

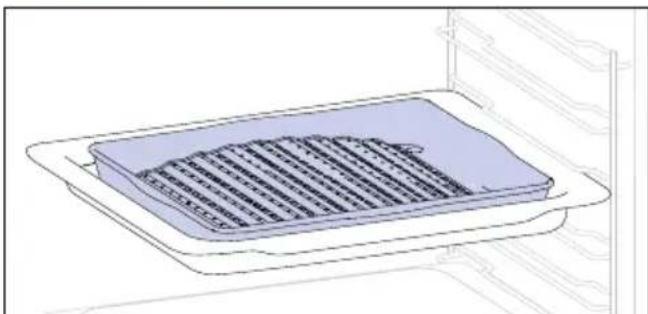

• When you place the Airfry tray or the grid on the side racks, make sure that the shorter section of the side (between the stop and the extremity) is directed towards the interior of the oven. If the grid has a decorative metal bar, pay attention to position it on the exterior of the oven so that the brand logo can be visible and readable. For the correct positioning refer also to the image in the Accessories section of this user manual.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glasses, since they can scratch the surface, which may result in shattering of the glass.
• Only use the temperature probe recommended for this oven.
• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food

inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.
• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.
• WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.
• WARNING: Never remove the oven door seal.
• CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.
• For a correct use of the oven it is advisable not to put the food in direct contact with the racks and trays, but to use oven papers and/or special containers.

WARNINGS (*FOR PYRO OVENS)

• Excess spillage must be removed before cleaning.
• WARNING: before initiating the automatic cleaning cycle:

- Clean the oven door;

- Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;

• Remove all accessories and the sliding rack kit (where present);
• Do not place tea towels.
• In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.
• During the pyrolytic cleaning process (if available), the surfaces may get hotter than usual and children should be kept away.
• If a hob has been fitted above the oven, never use the hob while the Pyrolyzer is working, this will prevent the hob from overheating.

WARNINGS (*FOR STEAM PLUS)

• When filling in the steam tank the level of the water must not exceed the maximum level indicated on the tank.
• Use only drinking water to fill in the tank.
• Before starting a pyrolytic cleaning function the steam tank must be removed. Do not insert the steam tank during the pyrolytic cleaning function.

WARNINGS for WIRELESS TEMPERATURE PROBE

• This product is exclusive for oven appliances. It should only be used as described in this User Manual.
• DO NOT TOUCH Preci Probe WITH BARE HANDS JUST AFTER COOKING. Always wear oven gloves to remove Preci Probe from the food after cooking.
• To use the temperature probe correctly, it is essential to fully insert the metal bar of the probe into the food during cooking until it reaches the black-colored ceramic portion located at the tip of the probe.

Insert Preci Probe in the food up to there

• Do not expose the metal part of Preci Probe to the heat generated by oven directly.
• Do not use Preci Probe in another appliance except for the built-in oven.
• Do not use Preci Probe in a microwave oven.
• Preci Probe can be cleaned and washed but do not immerse it long in water.
• This product is not intended for use by persons with ages 12 and under.
• The supplier will not be liable for any damage of Preci Probe due to misuse of the device.
• Clean the Preci Probe before the use.
• Probe can work in this range of temperature: 10 °C to an internal maximum temperature of 100°C of the metal part. Ceramic part can reach 350°C.
• If the Preci Probe temperature exceeds 100°C, cooking will stop and the Preci Probe must be removed from the oven as soon as possible, wearing gloves, to avoid damage to the probe.

2. PRODUCT INTRODUCTION

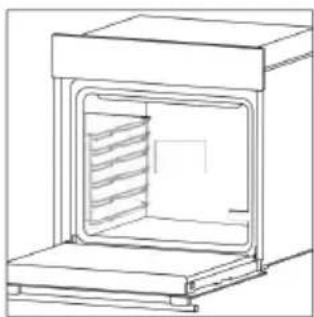

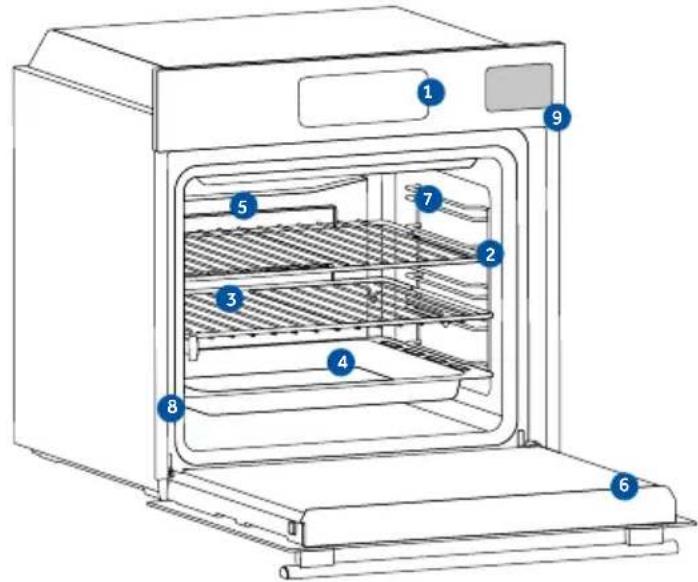

2.1. OVERVIEW OF THE PRODUCT

1. Control panel
2. Shelf positions numbers
3. Grids
4. Trays
5. Fan cover
6. Oven door
7. Lateral wire grids (if present: only for flat cavity)
8. Serial number & QRcode
9. Steam Tank Insertion

Write here your serial number for future reference.

2.2. ACCESSORIES

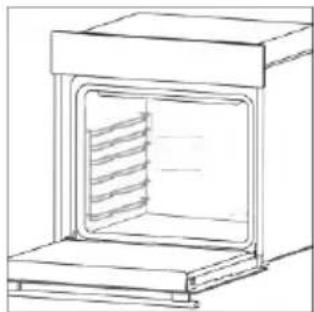

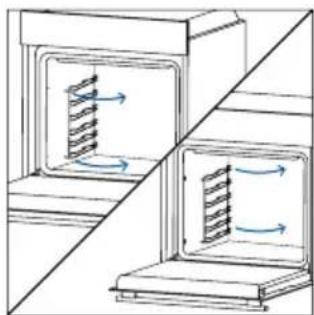

Lateral wire grids (only if present*)

Located on both sides of the oven cavity, the side racks are designed for placing baking tray and grids during the cooking.

NOTE: 6 or 7 levels depending on the model.

Baking tray (only if present*)

A baking tray is ideal for achieving even bottom browning, making it perfect for cookies and pastries due to its shallow, flat design. Additionally, placing it under a cooking grid can help collect drips and prevent messes in the oven.

Metal grid

A metal grid in an oven is a removable, adjustable shelf that supports cookware, ensuring even cooking, and makes cleaning easy. It can be used to hold plates and pans at different heights for various cooking needs.

Deeper Tray

The deeper tray is ideal for recipes with added liquids or layers, such as casseroles or roasts. Its depth is specifically designed to ensure the desired consistency of the food prepared in it.

Telescopic Guides (only if present*)

Telescopic oven rails are shelves that can be extended, making it easier to place or remove items, without the need to reach deep inside a hot oven. They improve safety, stability, and can be adjusted at different level positions.

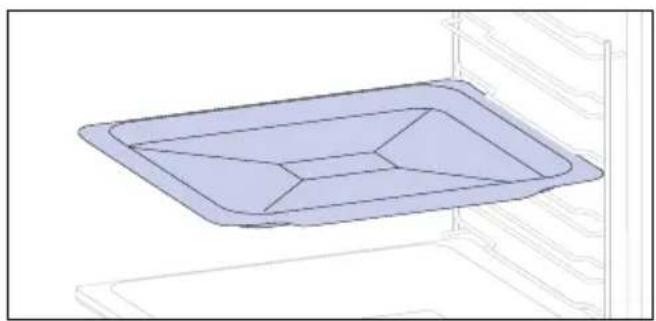

Dual tray – STEAM mode (only if present*)

The concave shape allows a correct circulation of humidity generated in cooking, keeping the food humidity rate high. According to the quantity of water inserted in the tray, a drier or more "wet" cooking will be obtained.

Preci probe (only if present*)

This probe is a temperature sensor that, inserted into the food and connected to the oven via bluetooth, allows to control the inner temperature of the food during cooking. It is mainly used for fish and meat.

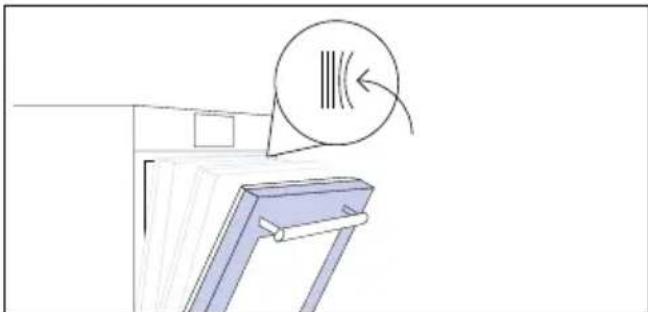

Softclose/Soft open hinges (only if present*)

Soft close and open hinges control the door's motion, ensuring smooth movement and preventing slamming.

Dual tray – BBQ mode (only if present*)

The convex shape is suitable for grilling in the oven at high temperature (220°) allowing a BBQ result even at home with little smoke thanks to the drainage action of the fats on the bottom of the tray.

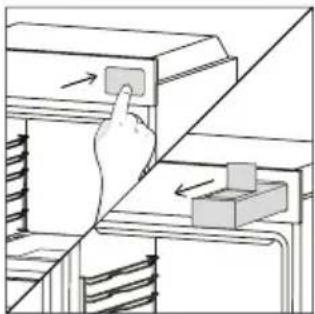

Steam Tank

The Steam Tank is a drawer that can be filled with the water needed to carry out steam-assisted cooking and cleaning programs.

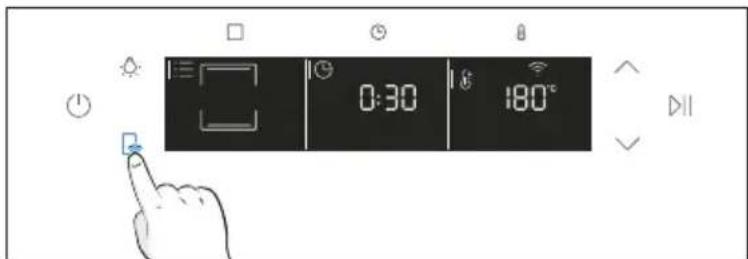

2.3. CONTROL PANEL

Functions and function ranking can be changed depending on the model.

1. On/Off
2. Remote Control
3. Lamp
4. Functions
5. Time
6. Temperature 7/8 Navigation buttons
7. Start/Pause

MAIN FUNCTIONS

The control panel has the following main functions:

Symbol Function Description
	On/Off Press to turn on/off the oven.
	Remote Control ON/OFF	Press the button to activate remote control, after pairing the oven with the hOn app (through the application).
	Light Press to turn on/off the oven cavity light
	Functions	Press once to access Manual functions, twice for Everyday cooking programs, three times for Cleaning menu, and four times for WIFI menu.
	Time	Press once for cooking duration, twice for the minute minder (available in standby mode), three times for delay start. In standby mode are available the kitchen timer and, by pressing for 3 sec, the Time of day.
	Temperature	Press once to check the cavity temperature, twice to activate the fastpreheating option (only available during the oven's preheat phase).
	Navigation buttons	Press Navigation buttons to scroll between function and to adjust the parameters.
	Start/Pause	Press to Start/Pause cooking or to confirm the functions.
Symbol Feedback Description
	Tank Missing The icon appears when the Steam Tank is missing.
	Fill the Tank	The icon appears when water must be added to the Steam Tank.
	Drain in Progress The icon appears during the Drain process.
	Tank Empty	The icon appears when there is no water inside the Steam Tank.
[YGBG]	Empty the Tank	The icon appears to prompt the user to empty the Steam Tank.
[T45S]	Water Level Feedback	The bars next to the icon represent the amount of water available in the Steam Tank.

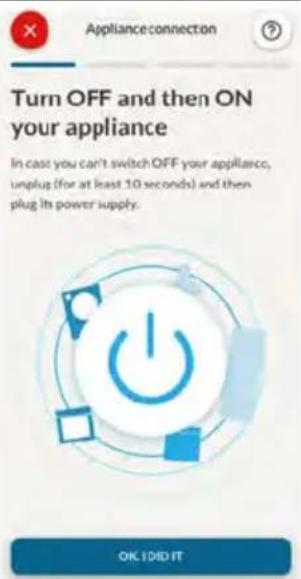

2.4. CONNECTIVITY

Wireless parameters

Technology Wi-Fi Bluetooth
Standard IEEE 802.11	b/g/n Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401 ÷2483 2402÷2480
Maximum Power [mW]	100 10

Preci probe model et180 wireless parameters

Technology Bluetooth
Standard Bluetooth v4.0 BLE
Frequency Band(s) [MHz]	2400÷2480
Maximum Power [mW]	2.5 - (4dBm)

PRODUCT INFORMATION FOR NETWORKED EQUIPMENT

Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated: 2.0 W

How to activate wireless network port:

The Wi-Fi module switches on as soon as the user presses the power on button.

How to deactivate the wireless network port:

The Wi-Fi module deactivates as soon as the user presses the power off button. The Wi-Fi can also be deactivated when the oven is on by selecting "off" in the Wi-Fi settings menu.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements for the UK market. The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

HOW TO INTERACT WITH THE APP

Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features.

NOTE

• Once the oven is turned on, the Wi-Fi icon blinks for 30 minutes. During this period, it is possible to enroll the product.
• Ensure your home Wi-Fi network is turned on.
• You will be given step-by-step guidance on both your appliance and mobile device.
• It may take up to 10 minutes to connect your oven.
• For further guidance and troubleshooting, please refer to the app.

Download on your smartphone.

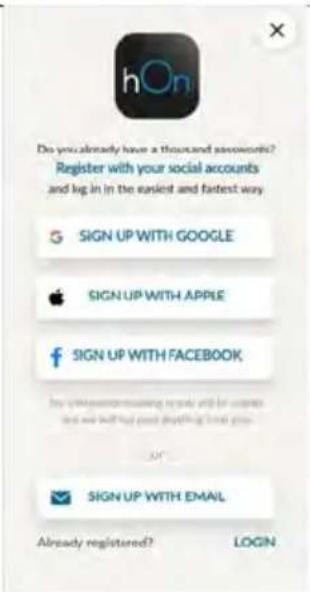

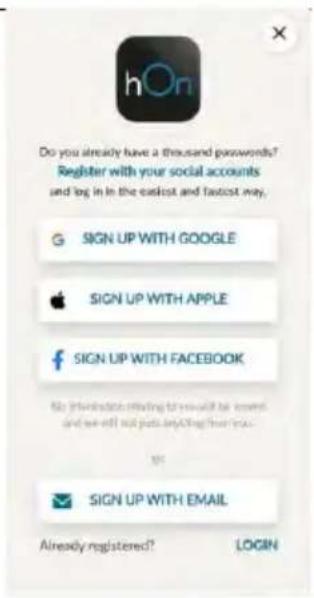

NEW USER REGISTRATION

• Click on "Register"
• You can register through social accounts or sign up with your personal email.

QUICK PAIR ENROLLMENT

Step 1

- Select "Add appliance".

Step 2

- Allow your location permission.

Step 3

- Select oven from the appliance category.

Step 4

- Turn on your appliance; if it is already on, turn it off and on again.

Step 5

• After turning on, the hOn app will start searching for your home appliance.

Step 6.1-6.2

- Select your home appliance, tap on "connect" and wait a few seconds.

Step 7

- Your Oven will be found and you can control it through hOn.

HOW TO CHANGE WIFI SETTINGS

Once the appliance is connected, the user can change the WiFi settings between:

• WIFI ON: It is only possible to monitor the oven status by App.
• WIFI hOn: The oven can be used exclusively by App.
• WIFI OFF: The oven is not connected but still enrolled with network credentials saved.
• WIFI RESET: The connection is reset and a new enrollment is possible.
• Tap □ and enter in WIFI menu. On display appears "On".
• On display appears "On".
• Use the arrows until "Off" or reset setting "rSt" will be showed.

REMOTE CONTROL

The Remote Control offers numerous advantages for users, enhancing convenience, efficiency, and the overall cooking experience, by giving the capability to control the product directly from both the appliance and hOn App.

This function allows, through your device, to enjoy various features, such as: instant or scheduled start of recipes or cooking programs already available in the app; real-time monitoring of the progress of your recipes; adjustment of the cooking parameters in use; monitoring of the cooking process using the probe; managing saved recipes using the “Jolly function” on the product (see related section). Furthermore, it is possible to receive notifications once programs or recipes are completed. The Remote Control can be activated exclusively when the product is enrolled.

NOTE: It is available for all cooking functions on the product, except for Gratin, Grill and Supergrill programs.

How to activate Remote Control:

1. Tap □ to select the WIFI mode.
2. On display appears "connect". Tap ▷. "On" will start blinking.
3. Tap √ to select the "hOn" mode and tap ▷ to activate Remote Control.
4. Press □ to exit "hOn" mode.
5. Access the App, select a program and let the cooking start. During the process, it is possible to control and change the program parameters from both the product and the App.

It is also possible to activate Remote Control during the cooking process by pressing the related button.

How to stop Remote Control:

While the cooking program is in progress, it can be stopped directly from the product itself by pressing the corresponding button of Remote Control that came with your appliance.

You can also stop the cooking program remotely using the app by clicking the 'STOP' button on the display device. The oven will automatically stop the cooking.

NOTE: If the user stops the cooking in progress from the oven, simultaneously the stopped cooking will be seen in the App.

3. BEFORE STARTING

3.1. INFORMATION TO START

When you first turn on the oven, you might notice some smoke. Don't worry, just wait for the smoke to clear before using the oven.

How door works

During the pyrolytic cleaning process, the oven door remains locked at all times. If it's not locked, the oven will display error code 24 and pause the cleaning function.

How illumination works

The oven cavity is illuminated by one or more light bulbs, typically activated each time a cooking function begins.

For ovens equipped with a door switch (see below), the light automatically turns on when the door is opened.

For ovens equipped with lamp button, it can also be used to activate the lighting.

If the oven door remains open for more than 10 minutes, the lights will automatically turn off.

During pyrolytic cleaning process light remains off. *

How cooling fan works

The cooling fan is responsible for dissipating the heat, keeping the oven and its surroundings from getting too hot, as well as protecting kitchen appliances from the effects of high temperatures. For this reason, the cooling fan remains audible for a period of time even after the oven is turned off.

It operates during and after cooking cycle in relation to the internal temperature of the oven.

When the cooling fan is operational, it usually generates a gentle humming or whirring noise. You may also notice a warm airflow emanating from the gap between the oven door and the control panel.

During pyrolytic cleaning and when door is locked, cooling fan is switched on. *

During ECO function the light will remain off.

(*only for pyro ovens)

3.2. FIRST USAGE

When the appliance is switched on for the first time, the initial step is to set the time of day, choose between 13 ampere or 16 ampere, and select the sound level.

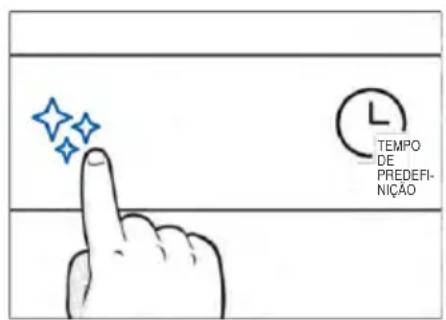

- SET THE TIME: The display will show the blinking preset time '12:00'. To modify it, hold ⏻ and use the arrows to set the current hour. Press ⏱ to confirm hours. Follow the same procedure to set the minutes. To confirm press ▷II.

- AMPERAGE: By default, the oven is set to work with higher power suitable for households with more than 3 kW (16 A). If your home has lower power, you can change this setting to ▷□ 13 A. This setting affects how quickly the oven heats up. Choosing the higher option (16A) means it heats up faster (because the power absorption is increased). On the display, you'll see two choices: 13A and 16A. Select your preferred one by using the arrows. To confirm press ▷□.

NOTE: The option to set the amperage is only available during the initial installation. To modify the set amperage, please refer to the post-installation instructions. - BRIGHTNESS: The display shows the symbol "brig". The numbers represent the level of brightness intensity, editable using the arrows. To confirm press ▷II.

- SOUND: The display shows the symbol "Sound". The numbers represent the level of sound intensity, editable using the arrows. To confirm press ▷II.

• POST INSTALLATION INSTRUCTION

It is possible to go back to initial settings by pressing the Lamp button for 5 seconds.

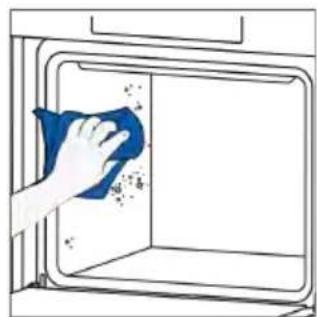

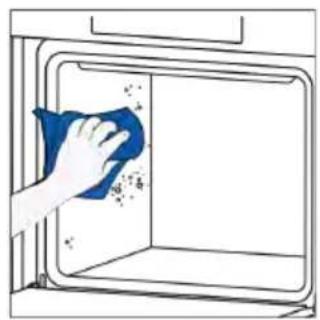

3.3. PRELIMINARY CLEANING

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

4. OPERATION OF PRODUCT

4.1. HOW THE PRODUCT WORKS

SWITCHING ON/OFF THE OVEN

To turn ON/OFF the oven, hold ⏻

FUNCTIONS MENU

Access the Function menu by pressing □.

To navigate, tap as many times as needed to enter the following settings:

Symbol Function Description
	MAIN FUNCTIONS	This function allows to select the desired cooking program by using arrows. Tap建设和to set time and temperature. Pressto start the function. To pause the program, click again.
	FOOD CATEGORIES	In this menu you can access to 4 food cooking categories already integrated on your oven by using arrows. The display will show default time and temperature.
	WIFI	In this mode you can connect your oven to a network and enroll it with the hOn App.
	CLEANING FUNCTIONS	This function allows to choose a cleaning system available on your oven.

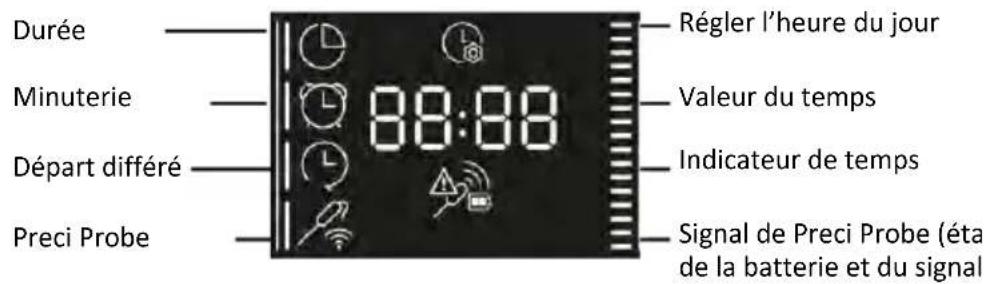

TIME MENU

After selecting the cooking program, access the Time menu by pressing Ⓤ. To navigate, tap Ⓤ as many times as needed to enter the following settings:

NOTE: Several parameters cannot be set at the same time; therefore, only the last set remains in memory while the previous one is deleted.

Symbol Function Description
	a)COOKING DURATION	Allows to preset the cooking time required for the recipe chosen.Press Ⓞto enter in the Time menu. Tap Ⓞas many times as you need to select “Cooking duration” function. Then use the arrows to regulate the value and pressⓍto confirm.The countdown starts at the end of preheating (if present). During cooking phase is possible to change the duration value by pressing Ⓧand by using the arrows. When duration is elapsed the display shows “End” and the cooking stops.
	b)MINUTE MINDER	Allows to use the oven as alarm clock.Press Ⓞto enter in the Time menu. Tap Ⓞas many times as you need to select “Minute minder” function. Then use the arrows to regulate the value and pressⓍto confirm.During cooking phase is possible to change the duration value by pressing Ⓧand by using the arrows. Then press Ⓧto restart the cooking. When duration is elapsed, the cooking continues until manually interrupted.This function can be also set when the oven is in stand by mode by pressing ⓍWhen activated, the minute minder operates independently of the oven’s cooking functions.
	c)DELAY START	Allows to choose the cooking start time.Press Ⓞto enter in the Time menu. Tap Ⓞas many times as you need to select “Delay start” function. Then use the arrows to regulate the value and pressⓍto confirm.NOTE: Delay start is activable only after setting Cooking Duration and it is not available with grill’s functions

a. COOKING DURATION

b. MINUTE MINDER

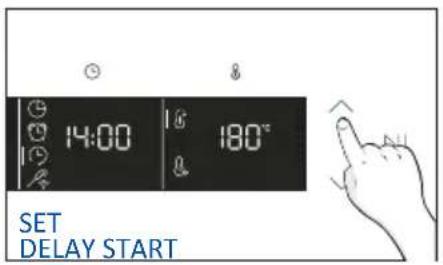

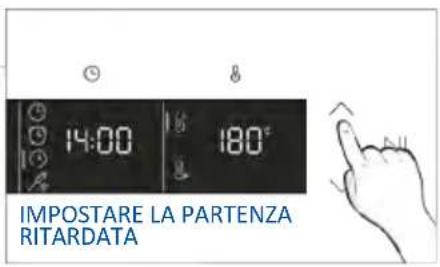

C. DELAY START

TEMPERATURE MENU

After selecting the cooking program, access the Temperature menu by pressing Ⓐ. To navigate, tap Ⓐ as many times as needed to enter the following settings:

Symbol Function Description
	TEMPERATURE	Press ⚫ to set the temperature and use arrows to regulate the value.
	FAST PREHEATING	Press twice ⚫ to set the fast temperature.

ADDITIONAL FUNCTION

Symbol Function Description
	CHILD LOCK	This function allows you to lock the screen to prevent any unwanted use by minors. To activate it, simultaneously press the Lamp and Remote Control buttons for 3 seconds.An icon with a padlock will appear on the user interface. In this condition, the oven user interface is locked, and no changes in settings can be made. To deactivate the child lock, press the Lamp and Remote Control buttons again for 3 seconds (the icon with the key will disappear).

4.2. COOKING FUNCTIONS

FAST PREHEATING OPTION

To accelerate the preheating phase, the fast-preheating option can be selected by pressing the temperature icon for 3 seconds after having selected the cooking program and temperature. This option will activate a combination of fan and heating elements regardless of the chosen cooking function.

To save energy, when fast preheating is activated, the lamp will be turned off until the oven reaches the desired temperature.

4.2.1. STANDARD FUNCTIONS

NOTE: For functions that require preheating, ensure all accessories are removed during this phase. Follow the instructions in the table below regarding preheating.

"YES/FAST PREHEAT" means that preheating is required and the fast preheat option is available; "NO" means that preheat is not available and foods must be inserted with a cold oven.

Symbol	Function	T°C default T°C range	Suggested shelf position	Preheat	PRECI PROBE available	Suggestions
	*Conventional	200°C 30-250°C L2/L3		YES/FAST PREHEAT	YES	IDEAL FOR: cakes, breads, biscuits on one level.
	Convection + fan	175°C 50-250°C	L2/L3	YES/FAST PREHEAT	YES	IDEAL FOR: roasts, casseroles, vegetables or pies with moist fillings.
	Multi-Level	160°C 50-250°C	L3 (one tray) L3+L6 (two trays) L2+L4+L6 (three trays)	YES/FAST PREHEAT	YES	IDEAL FOR: cakes, biscuits and pizzas on one or more levels. Ideal to cook different foods.
	Bottom heating	170°C 50-230°C	L1/L2	YES/FAST PREHEAT	YES	IDEAL FOR: stews and gentle cooking on one level
	Bottom heating+fan	170°C 50-230°C	L2/L3	YES/FAST PREHEAT	YES	IDEAL FOR: salty cakes or foods with liquid toppings on one level
	Grill	L5 L1-L5	L6/L7 NO YES			IDEAL FOR: small quantities of sausages or steak. Use with the door closed.
	**Supergrill	L5 L1-L5	L7 for thin food, L5 for thicker food.	NO YES		IDEAL FOR: big quantities of sausages, steaks and toast bread. The entire area below the grill element becomes hot. Use with the door closed. Turn food two thirds of the way through cooking (If necessary).
	**Gratin	200°C 150-250°C	L4/L5	YES/FAST PREHEAT	YES	IDEAL FOR: whole pieces of meat (roasts) or grati-nated foods. Use with the door closed. Slide the drip tray under the shelf to col-lect juices. Turn food over halfway through cooking if needed.
	Multilevel +	200°C 150-250°C	L1+L2+L3+L6	YES/FAST PREHEAT	YES	IDEAL FOR: complete menu cooking without odor mixing. Foods do not have to be extracted at the same cooking time
	Pizza	300°C 200-300°C	L2/L3 NO NO			IDEAL FOR: all kind of pizzas without preheating the oven. Use lower temperatures for frozen items and 300°C for home-made recipes
	*ECO	190 °C 150-220 °C	L3/L4 NO NO			IDEAL FOR: cooking meat, fish or vegetables. This function allows to save energy during cook-ing keeping the food moist and tender. Cavity lamp is switched off.
	Airfry	200°C 150-250°C	L4 NO NO			IDEAL FOR: preparing frozen foods or breaded par-cooked foods which are usually fried. Thanks to the dedicated tray**, the hot air can flow evenly
	Bread (Steam)	210°C 180-220°C	L2/L3 NO YES			IDEAL FOR: cooking bread and bread loaves
	Jolly - - - -					Special Function

* Tested in accordance with EN 60350-1 for the purpose of energy consumption declaration and energy class. **Use with the door closed.

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	PRECI PROBE available	Suggestions
	White meat (Steam)	190°C 180-200°C	L3/L4 NO YES			IDEAL FOR: poultry and cuts of white meat
	Red meat (Steam)	190°C 180-200°C	L3/L4 NO YES			IDEAL FOR: beef and cuts of red meat
	Fish (Steam)	170°C 160-180°C	L3/L4 NO YES			IDEAL FOR: whole fish and fillets
	Veg (Steam)	190°C 180-200°C	L3/L4 NO YES			IDEAL FOR: roasted vegetables and potatoes

* Tested in accordance with EN 60350-1 for the purpose of energy consumption declaration and energy class. **Use with the door closed.

4.2.2. SPECIAL FUNCTIONS

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	Suggestions
	Jolly - - -				Add to the preset list of functions your favorite one that's not already present in your oven. You canconfigure it through the hOn app.

Jolly function

Thanks to the Jolly function, this product offers a fully customizable experience, allowing you to store your personalized recipes directly on the oven. You can execute these recipes as often as you like, even without the need to log into the app.

How to Set the Jolly Function:

To set the Jolly function on your oven, open the app's recipe section, select the recipe you want to use, and click 'Use As Jolly Function'.

From this point onward, you can launch it from the product even without interaction with the app. Simply turn the function knob to the Jolly function to start the cooking process.

The display will show the preset temperature.

How to edit the Jolly function:

To edit a Jolly function, go to the app's recipe section and select the card of the recipe designated as a Jolly function. Tap the "edit" button to customize the recipe and modify the previously set settings.

A pop-up message will inform you that to save the newly modified Jolly function, you must remove the previous one. If you confirm, the previous Jolly function will be deleted, and the new parameters will be saved on the product and will be visible in the app.

How to Delete the Jolly Function:

To remove the Jolly function from the oven's user interface, access the app's recipe section.

By tapping on the card of the recipe designated as a Jolly function, it's possible to delete it by clicking the red button 'delete button'.

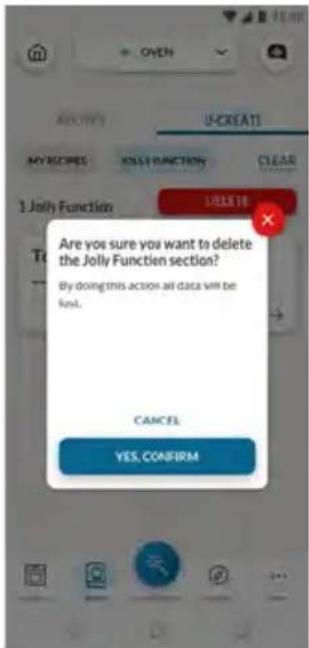

A pop-up will confirm the operation, asking for your confirmation. If you proceed, the Jolly function saved on the oven will be removed, and it will no longer be available in the app.

PRECI PROBE

Before the use verify the charge of the Preci Probe:

1. Put Preci Probe into the charger and close the cover.
2. Connect the charger to a USB power source, such as USB adapter or USB socket of PC/note-book with the USB cable. The charger may not be working properly with power bank because of its auto switch-off function.
3. LED of the charger will turn on and is flashing during charging. It will turn off when Preci Probe is fully charged.

How to enroll and use Preci Probe:

1. Insert the Probe in the food.
2. Tap □ to select the desired function and Tap Ⓠ as many times as you need to select Probe icon.
3. After a while, the oven will recognize the Probe code. Tap ▷II, and use arrows to set the target temperature.
4. Tap ▷ to confirm. From this moment, the oven will use the Probe's data to monitor the internal temperature of your food.
5. Once the desired internal temperature is reached, the alarm sounds and the oven turns off. Carefully remove the Probe from the food.

Cooking tips

The Probe is equipped with a single measuring point. Insert it entirely into the food with the metal tip positioned at the centre of the food. Place this point as close as possible to the thickest (coldest) part of the food to accurately monitor the cooking process.

The Probe can be used with manual functions (Conventional, Conventional + Fan, Grill, Super grill, Gratin and Multilevel), with FOOD COOKING CATEGORIES (Meat, Fish and Vegetables) and Gentle cooking.

Food category Suggested core T°C Suggested positioning
Roast beef 45°C		Diagonally in the thickest part. For cylindrical shape foods (i.e. beef roasts) place the tip as close as possible to the geometric center
Roasted meats 55 °C / 60 °C / 65 °C
Poultry 83-85°C Into the thickest part of the breast
Fish (whole/steaks) 65°C Diagonally in the thickest part
Bread/casseroles 90°C		Close to the geometric center of the food

4.2.3. MULTI STEP FEATURE

The multi step feature allows to maintain previously set cooking parameters (temperature and time) while changing function during cooking.

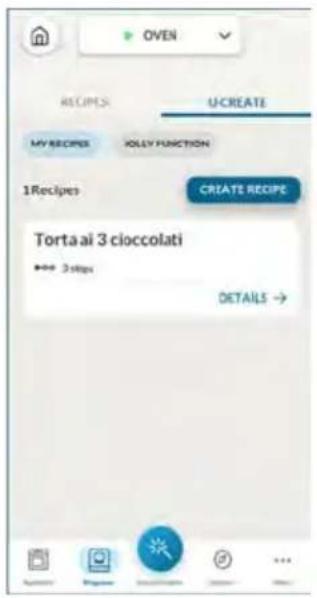

Multi-step recipes can be created on hOn App through the U-Create function and saved on the oven.

The user can save the Multi-step recipe as a Jolly Function to store it on the oven, or save it on hOn to start it remotely from the App.

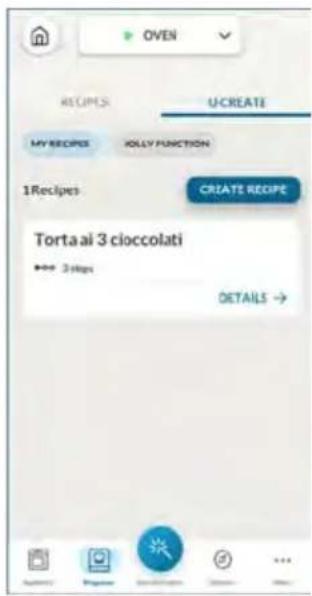

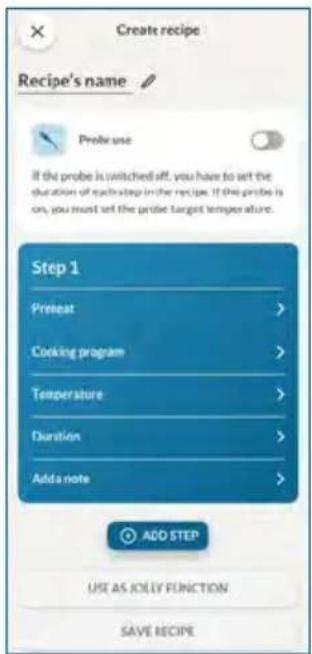

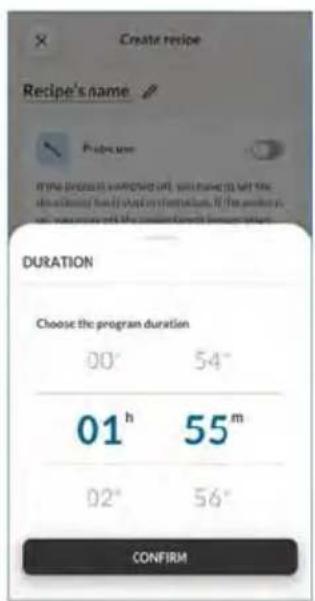

Step 1. From the U-Create section of the App, press "Create Recipe".

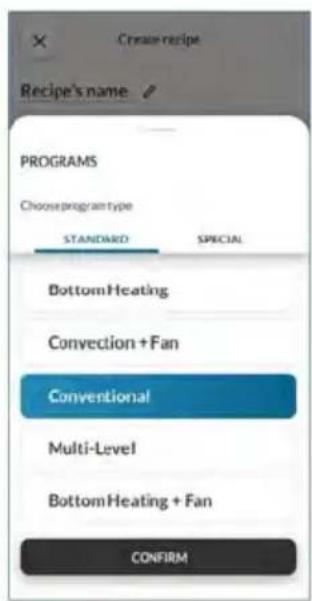

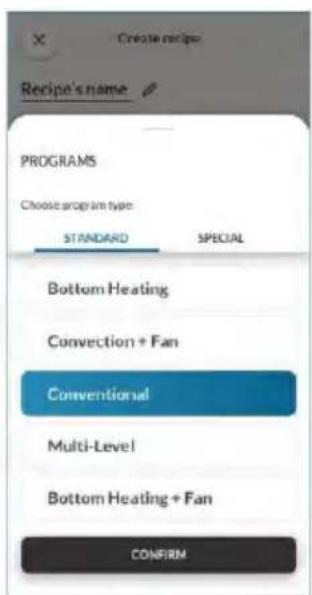

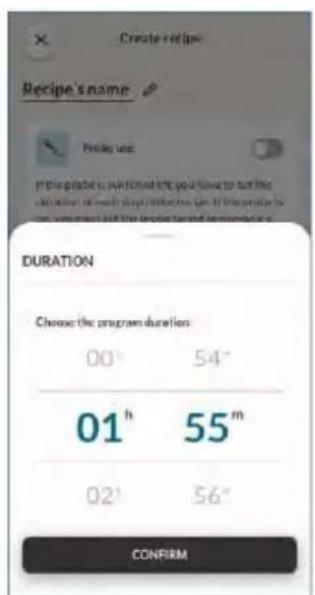

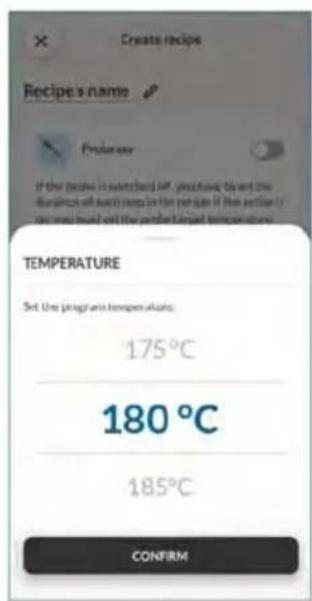

Step 2. Edit the recipe's name and choose the parameters for the first step of the recipe.

Step 3. After customizing the first step, press "Add step" to add another cooking function to the recipe and customize its parameters.

Step 4. Save the recipe on the app to start it from hOn remotely, or save it as a "Jolly Function" to find it directly on the oven.

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

• 7 Levels

Category Recipe		N°of levels	Cooking program	T°C Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Sweet bakery	Small cakes /Muffins	1	Conventional Multilevel	175°C 160°C	Y	Baking tray L3
		2 Mul	tilevel 150°C			Baking + Deeper trays	L3+L6 30-40
		3 Mul	tilevel 140°C Baking	trays L2+L4+L6 40-50
	Sponge cakes (26 cm ∅)	1	Conventional 170°C		Y	Metal grid + Cake tin	L2 30-40
			Multilevel 150°C			Metal grid + Cake tin	L3 40-50
		2 Mul	tilevel 150°C			Metal grids + Cake tin	L3+L6 50-60
	Biscuits/Shortbreads	1	Conventional Multilevel	150°C 150°C	Y	Baking tray L3
		2 Mul	tilevel 140°C Baking	trays L3+L6 35-45
		3 Mul	tilevel 140°C Baking	trays L2+L4+L6 35-40
	Choquettes	1 Mul	tilevel 190°C		Y	Baking tray L3	25-35
		2 Mul	tilevel 170°C		Baking tray	L3+L6 25-35
	Yorkshire pudding	1	Conventional	200°C	Y	Baking tray	L3
	Meringues	1	Multilevel	90°C	Y	Baking tray	L3
	Macaron	1	Conventional	150°C	Y	Baking tray	L3
	Apple pie	1	Conventional 185°C		Y	Metal grid + Cake tin	L2 60-70
		1 Mul	tilevel 170°C			Metal grid + Cake tin	L3 65-75
	Tarte tatin	1	Conventional	170°C	Y	Metal grid + Cake tin	L2 40-60
	Chocolate souffle	1	Conventional 200°C		Y	Baking tray + molds	L3 10-15
	Cheesecake 1	Conventional 150°C		Y		Metal grid + Cake tin	L2 50-65
	Frozen croissants	1	Conventional 180°C		L5 28-35	Baking tray L3	20-25
		2 Mul	tilevel 180°C Baking	trays L2+L4+L6 30-40
		3 Mul	tilevel 160°C Baking	trays L2+L4+L6 30-40
	Strudel, frozen	1	Conventional	210°C	Y	Baking tray	L3
Breads and Flatbread	Toast bread	1	Supergrill	05	N	Metal grid	L7
	Focaccia	1	Conventional	200°C	Y	Baking tray	L2/L3
	Bread, whole	1	Conventional	200°C	Y	Baking tray	L3
Savory pies and casseroles	Salty cakes / Quiches (26 cm ∅)	1 Convection+Fan 180°C			Y	Metal grid + Quiche tin	L3 45-60
		2 Multilevel 180°C				Metal grid + Quiche tin	L2+L5 50-70
	Cheese souffle	1 Conventional 200°C Y Baking tray L3 20-35
	Lasagna, fresh	1 Conventional 200°C Y				Metal grid + ovenproof dish	L3 40-60
	Lasagna, frozen	1 Convection+Fan 180°C Y				Metal grid + ovenproof dish	L3 50-60
	Cannelloni, frozen	1 Convection+Fan 180°C Y				Metal grid + ovenproof dish	L3 45-55
	Baked pasta 1	Gratin 200°C Y				Metal grid + ovenproof dish	L4 20-30
Pizza	Pizza, fresh (Tray)	1	Conventional Pizza	250°C 300°C	YN	Baking tray	L2/L3	15-20 18-25
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 25-35
	Pizza, fresh (Round)	1	Conventional Pizza	250°C 300°C	YN	Baking tray	L2/L3	8-10 15-20
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 30-40
	Pizza, frozen (thin crust)	1	Conventional Pizza	220°C 200°C	YN	Metal grid	L3 10-15
		2 Multilevel 200°C			Y Metal grid	Metal grid	L2+L5 15-25
		3 Multilevel 180°C				L2+L4+L6 25-35
Meat & Poultry	Roasted whole chicken (1-1.2kg)	1 Gratin 220°C Y				Metal grid Place baking tray at L1	L4 40-60
	Chicken thighs	1	Air Fry	220°C	N	Air Fry tray**	L4	30-50
	Roasted duck	1 Gratin 200°C Y				Metal grid + Ovenproof dish	L3 50-60
	Rooster 1 Gratin 220°C Y					Metal grid Place baking tray at L1	L4 20-40
	Roasted Turkey	1 Gratin 200°C Y				Metal grid + Ovenproof dish	L3 50-60
	Pork ribs (1000-1200g)	1 Conventional 200°C Y				Metal grid + Ovenproof dish	L3	80-100
Category Recipe		N° of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Meat & Poultry	Sausages 1 S	Supergrill 04 Y Metal grid L5 40-50
	Roast beef (500g)	1 Gratin 220°C Y Baking tray L3 20-40
	Meatloaf (1000-1500g)	1 Conventional 180°C Y Baking tray L3 40-50
	Roasted chicken with potatoes	1 Gratin 200°C Y Deeper tray L4 45-60
Fish and Seafood	Grilled seafood	1 Supergrill 04 N	Metal grid	L5 15-30
	Frozen fish sticks	1	Air Fry	200°C	N	Air Fry tray**	L4	20-25
	Baked fish	1	ECO	200°C	N	Metal grid Place baking tray at L1	L3 40-60
Vegetables	Vegetable gratin	1	ECO	200°C	N	Metal grid + Ovenproof dish	L3 80-90
	Frozen French fries (300-500g)	1	Air Fry	220°C	N	Air Fry tray**	L4	18-25
	Potato gratin	1 Gratin 200°C Y				Metal grid + Ovenproof dish	L4 15-25
	Roasted potatoes	1 Conventional 200°C Y Baking tray L4 30-50

Cooking times may vary according to consumer's recipe and ingredients.

*if preheating required

** Depending on the oven model.

NOTE: For cooking cakes, quiches and other recipes that require a mold or a container on 2 levels, place the trays staggered: the upper tray on the left side and the lower tray on the right side.

• 6 Levels

Category	Recipe	N° of levels	Cooking program	T°C Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Sweet bakery	Small cakes /Muffins	1	Conventional Multilevel	175°C 160°C	Y	Baking tray L3
		2 Mu	tilevel 150°C			Baking + Deeper trays	L2+L5 30-40
		3 Mu	tilevel 140°C Baking	trays L2-L4+L6 40-50
	Sponge cakes (26 cm ∅)	1	Conventional 170°C		Y	Metal grid + Cake tin	L2 30-40
			Multilevel 150°C			Metal grid + Cake tin	L3 40-50
		2 Mu	tilevel 150°C			Metal grids + Cake tin	L2+L5 50-60
	Biscuits/Shortbreads	1	Conventional Multilevel	150°C 150°C	Y	Baking tray L3
		2 Mu	tilevel 140°C Baking	trays L2-L5 35-45
		3 Mu	tilevel 140°C Baking	trays L2-L4+L6 35-40
	Choquettes	1 Mu	tilevel 190°C		Y	Baking tray L3	25-35
		2 Mu	tilevel 170°C Baking	tray		35
	Yorkshire pudding	1	Conventional	200°C	Y	Baking tray	L3
	Meringues	1	Multilevel	90°C	Y	Baking tray	L3
	Macaron	1	Conventional	150°C	Y	Baking tray	L3
	Apple pie	1	Conventional 185°C		Y	Metal grid + Cake tin	L2 60-70
		1 Mu	tilevel 170°C Y			Metal grid + Cake tin	L3 65-75
	Tarte tatin	1	Conventional	170°C	Y	Metal grid + Cake tin	L2 40-60
	Chocolate souffle	1	Conventional 200°C		Y	Baking tray + molds	L3 10-15
	Cheesecake	1	Conventional	150°C	Y	Metal grid + Cake tin	L2 50-65
	Frozen croissants	1	Conventional 180°C		Y	Baking tray	L3 20-25
		2	Multilevel	180°C		Baking trays	L2+L5
		3	Multilevel	160°C		Baking trays	L2+L4+L6
	Strudel, frozen	1	Conventional	210°C	Y	Baking tray	L3
Breads and Flatbread	Toast bread	1	Supergrill	05	N	Metal grid	L6
	Focaccia	1	Conventional	200°C	Y	Baking tray	L2/L3
	Bread, whole	1	Conventional	200°C	Y	Baking tray	L3

Category Recipe		N°of levels	Cooking program	T°C Preheat		Cooking accessory	Shelf position	Cooking time after preheating* (min)
Savory pies and casseroles	Salty cakes / Quiches (26 cm ∅)	1 Convection+Fan 180°C			Y	Metal grid + Quiche tin	L3 45-60
		2 Multilevel 180°C				Metal grid + Quiche tin	L2+L5 50-70
	Cheese souffle	1 Conventional 200°C Y Baking tray L3 20-35
	Lasagna, fresh	1 Conventional 200°C Y				Metal grid + ovenproof dish	L3 40-60
	Lasagna, frozen	1 Convection+Fan 180°C Y				Metal grid + ovenproof dish	L3 50-60
	Cannelloni, frozen	1 Convection+Fan 180°C Y				Metal grid + ovenproof dish	L3 45-55
	Baked pasta 1	Gratin	200°C Y			Metal grid + ovenproof dish	L4 20-30
Pizza	Pizza, fresh (Tray)	1	Conventional Pizza	250°C 300°C	YN	Baking tray	L2/L3	15-20 18-25
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 25-35
	Pizza, fresh (Round)	1	Conventional Pizza	250°C 300°C	YN	Baking tray	L2/L3	8-10 15-20
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 30-40
	Pizza, frozen (thin crust)	1	Conventional Pizza	220°C 200°C	YN	Metal grid	L3 10-15
		2 Multilevel 200°C			Y Metal grid	Metal grid	L2+L5 15-25
		3 Multilevel 180°C				L2+L4+L6 25-35
Meat & Poultry	Roasted whole chicken (1-1.2kg)	1 Gratin	220°C Y			Metal grid Place baking tray at L1	L4 40-60
	Chicken thighs	1	Air Fry	220°C	N	Air Fry tray**	L4	30-50
	Roasted duck	1 Gratin	200°C Y			Metal grid + Ovenproof dish	L3 50-60
	Rooster	1 Gratin	220°C Y			Metal grid Place baking tray at L1	L4 20-40
	Roasted Turkey	1 Gratin	200°C Y			Metal grid + Ovenproof dish	L3 50-60
	Pork ribs (1000-1200g)	1 Conventional 200°C Y				Metal grid + Ovenproof dish	L3	80-100
Category Recipe		N° of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after preheating* (min)
Meat & Poultry	Sausages 1 S	Supergrill 04 Y Metal grid L5 40-50
	Roast beef (500g)	1 Gratin 220°C Y Baking tray L3 20-40
	Meatloaf (1000-1500g)	1 Conventional 180°C Y Baking tray L3 40-50
	Roasted chicken with potatoes	1 Gratin 200°C Y Deeper tray L4 45-60
Fish and Seafood	Grilled seafood	1	Supergrill	04	N	Metal grid	L4	15-30
	Frozen fish sticks	1	Air Fry	200°C	N	Air Fry tray**	L4	20-25
	Baked fish	1	ECO	200°C	N	Metal grid Place baking tray at L1	L3 40-60
Vegetables	Vegetable gratin	1	ECO	200°C	N	Metal grid + Ovenproof dish	L3 80-90
	Frozen French fries (300-500g)	1	Air Fry	220°C	N	Air Fry tray**	L4	18-25
	Potato gratin	1 Gratin 200°C Y				Metal grid + Ovenproof dish	L4 15-25
	Roasted potatoes	1 Conventional 200°C Y Baking tray L4 30-50

Cooking times may vary according to consumer's recipe and ingredients.

*if preheating required

** Depending on the oven model.

NOTE: For cooking cakes, quiches and other recipes that require a mold or a container on 2 levels, place the trays staggered: the upper tray on the left side and the lower tray on the right side.

5.2. EVERYDAY COOKING TABLE

The Food Category menu allows you to cook a variety of recipes without preheating the oven, thanks to dedicated cooking programs tailored to each category's needs.

After selecting the cooking program, the default values for time and temperature will be shown; the cooking time and temperature can be changed by pressing the dedicated icons. Both parameters can be set within a limited range as shown in the table below.

While navigating the Everyday Cooking functions, the food category menu with steam can be activated by pressing the Temperature icon until the Steam icon appears. Confirm your choice by pressing the Start button.

Symbol	Description Preheat		Shelf position	Temperature range (°C)	Time Range (min)	Meat Probe temperature (if available)	Description
	White Meat	NO	L3	180-200	40-80	70-85°C	For poultry and cuts of white meat
	Red Meat	NO	L3	180-200	20-80	58-65°C	For beef and cuts of red meat
	Fish	NO	L3	160-180	15-45	55-65°C	For whole fish and fillets.
	Vegetables	NO	L3	180-200	30-80	70-90°C	For roasted vegetables and potatoes
	White Meat (Steam)	NO	L3	160-220	40-90	70-85°C	For poultry and cuts of white meat
	Red Meat (Steam)	NO	L3	180-220	20-100	58-65°C	For beef and cuts of red meat
	Fish (Steam)	NO	L3	150-180	15-60	55-65°C	For whole fish and fillets.
	Vegetables (Steam)	NO	L3	150-200	30-90	70-90°C	For roasted vegetables and potatoes

NOTE: If, after turning off the oven, there is a need to continue cooking, it is recommended to avoid using everyday cooking programs and instead opt for standard functions.

How to use the Steam Tank for steam cooking programs

After selecting the steam cooking program, if the Steam Tank is empty, a message will appear on the display to notify you to fill it with water. Proceed as follows:

1. Slightly press the Steam Tank to open it.

1. Add drinking water to the Steam Tank through a jug or directly from the sink. Do not exceed the maximum level of water indicated inside the tank.

1. Push the Steam Tank to close it and close the oven door.

1. Press the Start button to confirm and let the cooking start.

In case the amount of water added isn't enough to carry out the cooking program, a message will appear on the display to notify you to refill the tank.

Recipe Serving size		Cooking program	T°C	Cooking accessory	Shelf position	Cooking time (min)
Beef roast 500-800g		Red Meat (Steam)	180°C Metal	grid L3 30-40
Beef fillet 200g		Red Meat (Steam)	200°C Metal	grid L3 20-25
Meatloaf 1000-1500g		Red Meat (Steam)	200°C Metal	grid L3 40-50
Beef wellington	500g	Red Meat (Steam)	210°C Metal	grid L3 50-80
Pork roast 800-1000g		White Meat (Steam)	180°C Metal	grid L3 40-70
Pork ribs 1000-1200g		White Meat (Steam)	200°C Metal	grid L3 80-100
Lamb rack 800-1000g		White Meat (Steam)	190°C Metal	grid L3 60-80
Lamb leg 1500-2000g		White Meat (Steam)	200°C Metal	grid L3 80-100
Salmon fillets	200-600g	Fish (Steam)	170°C	Baking tray	L3	20-35
Tuna steaks	600g(app. 4 pcs)	Fish (Steam) 180°C Metal grid L3		15-20
Swordfish steaks	700g(app. 4 pcs)	Fish (Steam) 180°C Baking tray L3		15-20
Cod fillet	600g(app. 4 pcs)	Fish (Steam) 150°C Baking tray L3		15-20
Seabream, whole	1 Fish (Steam) 170°C Baking tray L3 35-45
Seabream, fillet	600g(app. 4 pcs)	Fish (Steam) 150°C Baking tray L3		15-20
Seabass fillet	600g(app. 4 pcs)	Fish (Steam) 150°C Baking tray L3		15-20
Fish skewers	8 pieces Fish (Steam) 150°C Metal grid L3 20-30
Stuffed squid	4 pieces Fish (Steam) 180°C Baking tray L3 25-40
Fennels 1 tray		Vegetables (Steam)	200°C Metal	grid L3 30-40
Mixed vegetables	1 tray	Vegetables (Steam)	190°C Metal	grid L3 40-45
Cauliflowers 1 tray		Vegetables (Steam)	150°C Metal	grid L3 40-50
Pumpkins, cubed	1 tray	Vegetables (Steam)	160°C Metal	grid L3 30-40
Stuffed peppers	1 tray	Vegetables (Steam)	180°C Metal	grid L3 70-80
Stuffed zucchini	1 tray	Vegetables (Steam)	190°C Metal	grid L3 35-45
Carrot sticks 1 tray		Vegetables (Steam)	150°C Baking tray L3 35-40
Broccoli	1 tray	Vegetables (Steam)	150°C Baking tray L3 30-40
Ratatouille	1 tray	Vegetables (Steam)	190°C Metal	grid L3 40-45
Vegetable flan	6 ramekins	Vegetables (Steam)	180°C	Baking tray + molds	L3 25-35

6. CARE & CLEANING

6.1. GENERAL RECOMMENDATIONS

Regular cleaning can extend the lifecycle of your appliance. Wait for the oven to cool before carrying out manual cleaning.

• After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean. - Do not line the oven walls with aluminum foil or single-use protection available from stores. Aluminum foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides. - In order to prevent excessive dirt of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. - In addition to the accessories supplied with the oven, we advise you only use dishes and baking molds resistant to very high temperatures.

6.2. CLEANING THE OVEN

6.2.1. INSIDE THE OVEN: cleaning functions

Pyrolytic cleaning (*depending on the oven model)

This process relies on the chemical process bearing the same name, which involves the decomposition of complex substances through the application of heat treatment.

Once initiated, it automatically locks the oven door and swiftly elevates the temperature to a searing 410°C.

At the end of the cleaning cycle, food residues will leave a white coating on the enamel surfaces. To remove these particles, wipe with a cloth soaked in hot soapy water and use a brush or steel wool. Suitable cleaning agents are hot soapy water or oven cleaner.

How does it work:

1. Remove any accessories from the oven, such as grids, side racks and side racks screw (*);
2. Turn function knob on 🎨. Turn the dial control to set the Pyrolytic program; Allow the function to operate for the preset time. During this process and the following cooling phase, the oven door will remain locked.

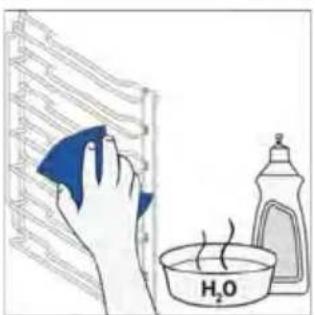

3. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

▲ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

(*) only for models with 7 levels.

H2O Steam

The H2O Steam cleaning function is designed to effortlessly tackle light dirt and provide a quick and eco-friendly solution for cleaning your oven cavity using the power of steam.

How does it work:

1. Pour water into the Steam Tank until reaching the maximum level indicated on the tank.
2. Select the H2O Steam cleaning program. Allow the function to operate for the preset time.
3. At the end of the cleaning process, allow the oven to cool down.
4. When the appliance is cool, clean the inner surfaces of the oven with a cloth.
5. ⚠ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

STEAM SYSTEM CLEANING

Descale

This function is suggested after 25 cycles, and it will be mandatory after 40 cycles. The oven will show at the end of every steam cycle starting from the 25th if users have not performed descale yet. After 40 steam cycles, none of the steam cooking programs will start before users execute the descaling program. It is divided into three steps:

Step 1 (Removing residual water from steamer):

i. Select descaling mode and then press the start button. ii. When the buzzer beeps to proceed with the second step, remove the water tank.

Step 2 (Descaling):

i. Add 400 ml of tap water and 100 ml of descaler into the Steam Tank. Then press the start button. ii. This step will take 30 minutes, after that to proceed to the third stage, the Steam Tank must be removed again.

Step 3 (Rinsing):

i. Add 500 ml of tap water into the Steam Tank. Then press the start button. ii. This step will take 4 minutes; at the end of the process the buzzer beeps

Drain

After each steam cooking cycle, the water remaining in the steamer will be automatically drained back into the Steam Tank.

During this process, Ⓞ will be shown on the display.

In case the Steam Tank is already full, will appear on the display to notify you to empty the tank to allow the draining process to start.

Catalytic cleaning (available depending on the model)

The catalytic panels line the oven cavity and grant you the luxury of never having to contend with a dirty oven.

The panels are coated with a specialized enamel that boasts a microporous structure, adept at absorbing grease from splashes.

Through a catalytic chemical reaction, they efficiently convert the absorbed grease into gaseous elements when exposed to high temperatures.

Recommendation: Consider replacing the catalytic panels after approximately three years of use, especially if you use your oven for two to three cooking cycles per week. This ensures optimal performance and cleanliness.

6.2.2. OUTSIDE THE OVEN: removal and cleaning the glass door

1. Position the door at 90°. Rotate the hinge locking tabs outward from the oven.

1. Position the door at 45°. Simultaneously press the two buttons on both sides of the door's lateral shoulders and pull towards yourself to remove the upper glasses' door cover.

1. Very carefully remove the oven glass, starting with the inner one. During the procedure, firmly hold the glass with both hands and place them on a cushioned flat surface (e.g., on a fabric).

1. ⚠ WARNING: The outer glass is not removable.

1. Clean the glass using a soft cloth and suitable cleaning products.

1. Insert the glass panels, making sure that the "Low-E/PYRO" label is correctly readable and positioned on the lower left side of the door, near the left-side hinge. This way, the printed label on the first glass will remain on the inside of the door.
2. Reattach the upper glasses' door cover by pushing it inwards until you hear a click from the two side buttons.
3. Then, bring the door back to 90° and rotate the hinge locking tabs inward towards the inside of the oven.

6.3 CLEANING OF ACCESSORIES

Ensure that you clean the accessories thoroughly after every use and dry them using a towel. For persistent residues, consider soaking the accessories in a mixture of water and soap for approximately 30 minutes before giving them a second wash.

CLEANING OF SIDE RACKS:

- 6 levels model

1. Remove the side racks by pulling them in the direction of the arrows.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order.

- 7 levels model

1. Remove the side racks by first pulling the front part in the direction of the arrow and detaching the rear part from the screws.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order: positioning the rear part between the screws and push the front part in the direction of the arrow.

6.4 MAINTENANCE

COMPONENTS REPLACEMENT

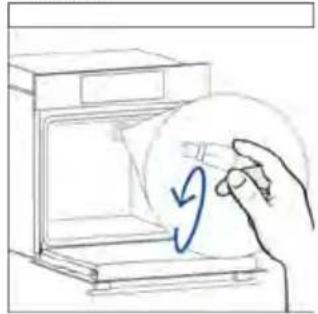

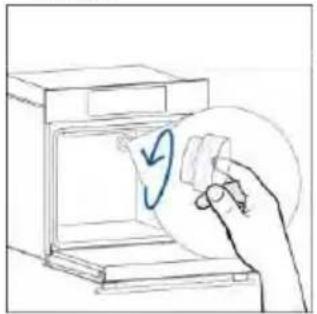

Changing the bulb on top:

1. Disconnect the oven from mains supply.
2. Remove the lamp's glass cover.
3. Disassemble the bulb.
4. Replace the bulb with a new one of the same type.
5. Relocate the lamp's glass cover.
6. Reconnect the oven from mains supply.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

This product contains one or more light sources of energy efficiency class G (Lamp)

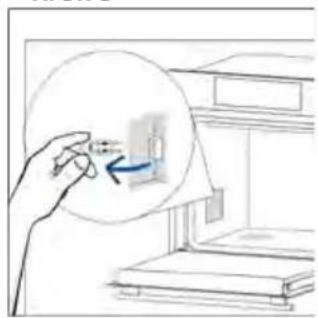

Changing the lateral bulb:

1. Disconnect the oven from mains supply.
2. Use a flat-head screwdriver by positioning it to the side of the protective glass and gently apply pressure to remove it.
3. Carefully grasp the bulb from its base.
4. Insert the new one.
5. Reinstall the protective glass by pressing it gently until it's locked into position.
6. Reconnect the oven from mains supply.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

This product contains one or more light sources of energy efficiency class G (Lamp)

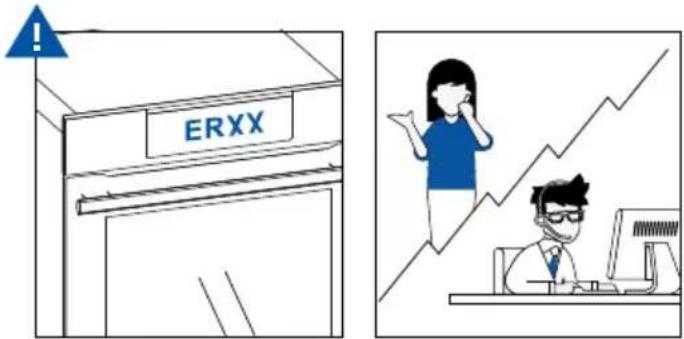

7. TROUBLESHOOTING

If, during oven use, an error occurs, the display will show the code "ER" followed by two digits, which will identify the error.

Proceed by turning off the oven and unplugging it, wait for a few minutes, and then reconnect it.

If the error disappears, you can resume using the oven. If it doesn't, call customer service and communicate the code (ERXX) you see on the display.

Error

Smoke

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. APPLIANCE DISPOSAL

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be re-used). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

environmental problem; it is essential to follow a few basic rules:

– the WEEE should not be treated as domestic waste;

– the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

Where possible, avoid pre-heating the oven and always try to fill it.

Where possible, avoid pre-heating the oven and always try to fill it.

Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For significant energy savings, switch off the oven 5 to 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate.

Keep the seals clean and in good condition to prevent heat loss from the cavity. If you have an electricity contract with an hourly tariff, the “delayed cooking” program makes energy saving easier by starting the cooking process during the reduced-rate time slot.

Back view Side view

WELCOME

HOW TO INTERACT WITH THE APPLICATION

REGISTERING A NEW USER

QUICK PAIRING

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6.1-6.2

Step 7

HOW TO CHANGE WI-FI SETTINGS

REMOTE CONTROL

3. BEFORE YOU START

3.1. INFORMATION TO GET STARTED

4.1. PRODUCT OPERATION

TURNING THE OVEN ON/OFF

FUNCTION MENU

Cooking tips

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

• 7 levels

Step 3 (Rinsing):

Draining

6.3. CLEANING THE ACCESSORIES

6.4. MAINTENANCE

REPLACING COMPONENTS

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8. ENVIRONMENTAL PROTECTION AND DISPOSAL

8.1. DISPOSAL OF THE APPLIANCE

WELCOME

Step 2

Allow your location permission

To enhance your experience, please allow location permission to HOn app in the next step.

Step 3

Select your appliance category

Q SmartView Applicator

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditioner

Air purifier

Airscanner

Step 4

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Step 5

Step 6.1-6.2

Step 7

3. BEFORE YOU BEGIN

4. USING THE PRODUCT

FUNCTION MENU

b. MINUTE REMINDER

c. DELAYED START

TEMPERATURE MENU

Cooking tips

5. COOKING GUIDELINES

Draining

6.3. CLEANING THE ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8.1. DISPOSAL OF THE APPLIANCE

Step 2

Step 3

Step 4

Step 5

Step 6.1-6.2

Step 7

3. BEFORE STARTING

3.1. INFORMATION ABOUT STARTING

MENU FUNCTIONS

Cooking tips

H₂O steam

Draining

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

QUICK REGISTRATION FOR PAIRING

Step 1

Step 2

Step 3

Step 4

Step 5

Steps 6.1-6.2

Step 7

FUNCTION MENU

Cooking tips

STEAM SYSTEM CLEANING

Descaling

Step 3 (rinse):

Drainage

6.3. CLEANING THE ACCESSORIES

6.4. MAINTENANCE

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

WELCOME

2.2. APPENDICES

NEW USER REGISTRATION

Step 2

Step 3

Step 4

Step 5

Step 6.1-6.2

Step 7

REMOTE CONTROL

FUNCTION MENU

H2O Steam

Step 2 (Desalination):

Step 3 (Rinse):

Drain

6.3. CLEANING OF ACCESSORIES

6.4. MAINTENANCE

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

2. PRODUCT INTRODUCTION

4. OPERATION OF THE PRODUCT

GENERAL WARNINGS

INSTALLATION WARNINGS

2. PRODUCT INTRODUCTION

2.1. PRODUCT OVERVIEW

NEW USER REGISTRATION

QUICK PAIRING

Step 1

Step 2

Step 3

- Select 'Oven' in the appliance category.

Step 4

Step 5

Steps 6.1–6.2

Step 7

3. BEFORE YOU BEGIN

3.1. INFORMATION TO GET STARTED

4.1. HOW THE PRODUCT WORKS

TURNING THE OVEN ON/OFF

FUNCTION MENU

Cooking tips

H2O Steam

CLEANING THE STEAM SYSTEM

Descaling

Step 2 (Descaling):

Step 3 (Rinsing):

Draining

6.3. CLEANING THE ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8.1. DISPOSAL OF APPLIANCES

2.2. ACCESSORIES

Side wire grids (only if present*)

Step 2

Step 3

Step 4

Step 5

Step 6.1-6.2

Step 7

HOW TO CHANGE WIFI SETTINGS

REMOTE CONTROL

3. BEFORE YOU START

3.1. INFORMATION TO GET STARTED

FUNCTIONS MENU

How to register and use the Preci Probe:

Cooking tips

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

• 7 Levels

Steam H2O

CLEANING STEAM SYSTEMS

Descale

Drainage

6.3. CLEANING THE ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

REGISTRATION OF A NEW USER

QUICK PAIRING

Step 1

Step 2

- Enable location permission.

Step 3

• Select the oven from the appliance category.

Step 4

- Turn on the appliance. If it is already on, turn it off and on again.

Step 5

Step 6.1 - 6.2

Step 7

HOW TO CHANGE WI-FI SETTINGS

REMOTE CONTROL

3. BEFORE YOU START

3.1. INFORMATION BEFORE STARTING

4. USING THE APPLIANCE

4.1. OPERATING THE PRODUCT

TURNING THE OVEN ON/OFF

FUNCTION MENU

How to set the Jolly function:

Cooking tips

5. COOKING GUIDE

5.1. GENERAL COOKING TABLE

• 7 levels

1. Press the Start button to confirm and start cooking.

H₂O para

STEAM SYSTEM CLEANING

Draining

1. WARNING: The outer glass cannot be removed.

6.3. CLEANING THE ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8. ENVIRONMENTAL PROTECTION AND DISPOSAL OF THE APPLIANCE

8.1. DISPOSAL OF THE APPLIANCE

WELCOME

PRODUCT INFORMATION FOR NETWORKED DEVICES

QUICK EVAPORATION REGISTRATION

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6.1-6.2

Step 7

HOW TO CHANGE WIFI SETTINGS

REMOTE CONTROL

3. BEFORE STARTING

3.1. START-UP INFORMATION

FUNCTION MENU

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

• 7 levels

Steam

CLEANING THE STEAM SYSTEM

Descaling

Step 3 (Rinsing):

Draining

6.3. CLEANING THE ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8. ENVIRONMENTAL PROTECTION AND WASTE DISPOSAL

8.1. DISPOSAL OF THE DEVICE

WELCOME

REGISTRATION OF A NEW USER

QUICK PAIRING WITH REGISTRATION

Step 1

Step 2

Step 3

Step 4

Step 5

Steps 6.1–6.2

Step 7

HOW TO CHANGE THE WIFI SETTINGS

3. BEFORE YOU START

3.1. INFORMATION FOR START-UP

4. APPLIANCE CONTROL

4.1. HOW THIS PRODUCT WORKS

FUNCTION MENU

5. BAKING INSTRUCTIONS

5.1. GENERAL BAKING TABLE

• 7 levels

H₂O Steam

CLEANING THE STEAM SYSTEM

Draining

6.4. MAINTENANCE

REPLACEMENT OF PARTS

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8.1. DISPOSAL OF THE APPLIANCE

REGISTERING A NEW USER

QUICK REGISTRATION OF ASSOCIATIONS

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6.1-6.2

Step 7

HOW TO CHANGE WI-FI SETTINGS

REMOTE CONTROL

• LATER INSTALLATION INSTRUCTIONS

4. USING THE PRODUCT

4.1. HOW THE PRODUCT WORKS

TURNING THE OVEN ON/OFF

FUNCTIONS MENU

5. COOKING RECOMMENDATIONS

5.1. GENERAL COOKING TABLE

• 7 levels

Steam H2O

Step 2 (Descaling):

Stage 3 (Rinsing):

Drain

6.3. CLEANING THE ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8. ENVIRONMENTAL PROTECTION AND PRODUCT DISPOSAL

8.1. DISPOSAL OF THE APPLIANCE
