MX-HE2660 - Oven Mx Onda - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Mx Onda
Model	MX-HE2660
Dimensions (H x W x D)	595 x 595 x 550 mm
Net Weight	30 kg
Gross Weight	33 kg
Power Supply	220-240 V, 50 Hz
Rated Power	3000 W
Energy Class	A
Oven Capacity	65 L
Heating Methods	Conventional, Grill, Fan-Forced, Defrost
Temperature Range	50 °C - 250 °C
Control Type	Rotary Knobs + Digital Display
Timer	Yes, Digital with Auto Shut-Off
Door Type	Drop-Down with Cool-Touch Handle
Interior Light	Yes
Number of Shelves	3 (Removable Guides)
Cleaning	Easy-Clean Enamel Interior
Child Safety	Yes, Child Lock Function
Accessories Included	1 Baking Tray, 1 Wire Shelf
Repairability	Spare Parts Available for 5 Years
Warranty	2 Years

Frequently Asked Questions - MX-HE2660 Mx Onda

How do I set the timer on the MX-HE2660 oven?

Press the 'Timer' button, then use the +/- rotary knob to set the desired time. The oven will automatically shut off when the timer reaches zero.

Can I use aluminum foil in the oven?

Yes, you can use aluminum foil, but avoid covering the bottom of the oven or blocking the fan vents to ensure proper heat circulation.

How do I clean the oven interior?

Use a damp cloth with mild detergent. For stubborn stains, use a non-abrasive cleaner. Do not use harsh chemicals or scouring pads.

What does the 'Fan-Forced' mode do?

The fan-forced mode circulates hot air evenly, allowing you to cook multiple dishes at once and reducing cooking time by up to 20%.

How do I activate the child lock?

Press and hold the 'Lock' button for 3 seconds. The display will show a lock icon, and all controls will be disabled until unlocked.

What are the minimum installation clearances?

Ensure a minimum gap of 5 mm between the oven and surrounding cabinetry. The oven must be installed in a well-ventilated area.

Why is the oven not heating?

Check if the oven is properly plugged in and the circuit breaker is on. Ensure the timer is set and the correct cooking mode is selected.

Can I use the grill mode with the door closed?

Yes, the grill mode is designed for use with the door closed. Keep the door closed during grilling to maintain temperature and efficiency.

How do I replace the oven light bulb?

Remove the glass cover by turning it counterclockwise, then replace the bulb (G9, 25W max) and reattach the cover.

What should I do if the display shows an error code?

Refer to the user manual for error code explanations. Common fixes include resetting the oven by turning it off for 5 minutes. If the error persists, contact customer support.

USER MANUAL MX-HE2660 Mx Onda

Simple line drawing of a microwave oven with three circular ovals above the top (no text or symbols on the oven itself)

CE

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

ATENCIÓN

Technical line drawing of a mechanical or electrical component with internal channels and directional arrows (no text or symbols)

Figura 1

Figura 2

Figura 4

Line drawing of an oven with a black plastic bag inside, labeled as Figure 7 (no text or symbols on the diagram itself)

Line drawing of an open oven or rack unit with internal compartments and ventilation slots (no text or symbols)

Figura 8

Line drawing of an open oven with internal compartments and ventilation grilles (no text or symbols)

Figura 9

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Figura 8.1

Technical line drawing of a door frame with a handle and mounting bracket (no text or symbols)

Figura 8.2

Technical line drawing of a structural joint or bracket (no text or symbols)

Figura 9.1

Technical line drawing of a door frame with mounting bracket (no text or symbols)

Figura 9.2

Technical line drawing of a square component with mounting holes and directional arrows (no text or symbols)

Figura 10

Technical line drawing of a mechanical component with a rectangular base and a vertical rod, showing no text or symbols.

Figura 11

Line drawing of a mechanical assembly with a central arrow symbol (no text or labels)

Figura 12

Line drawing of an oven with a door open and two hands inserting a tray (no text or symbols)

Figura 13

Line drawing of an oven with a door, showing internal structure and airflow direction (no text or symbols)

Figura 14

Figura 15

Line drawing of a hand holding a tool, no text or symbols present

Pure electrical circuit lines without any symbols

Figura 16

Tipo E14 Lámpara

Line drawing of a mechanical joint or bracket with no visible text or symbols

220-240 V, AC 15 W

Line drawing of a hand adjusting a mechanical part with a circular knob (no text or symbols)

Figura 17

Guías soporte

USER AND INSTALLATION MANUAL

Mx Onda

60 CM BUILT-IN OVEN

MODELS: MX-HE2657 and MX-HE2660

Simple line drawing of a microwave oven with three circular ovals above the top panel (no text or symbols on the oven itself)

CE

BEFORE USE PLEASE READ THIS MANUAL CAREFULLY

ATTENTION

THIS APPARATUS WORKS WITH A VOLTAGE OF 220/240 V, TO AVOID A POSSIBLE ELECTRIC SHOCK DO NOT TRY TO OPEN IT. This device does not have any part that can be repaired by yourself, in case of a malfunction do not manipulate it, go to an Official MX ONDA Technical Service.

After the useful life of this electrical product has expired, do not dispose of it in household waste. Deposit it in the appropriate container of a clean point in your locality, for later recycling.

This appliance is labeled according to the European Directive 2012/19 / EU on used electrical and electronic equipment (waste electrical and electronic equipment WEEE).

The Directive sets the framework for the return and recycling of used appliances appropriately across the EU.

Packaging information

The packaging of this product is manufactured with recyclable materials, in accordance with our National Regulation on the Environment. Do not dispose of the packaging materials together with household or other waste. Take them to your local recycling point.

This product complies with the European RoHS Directive (2011/65 / EU), on the restriction of the use of certain dangerous substances in electrical and electronic equipment.

INTRODUCTION

MX ONDA thanks you for the deference you have shown by purchasing this product. This built-in oven has been manufactured with high quality materials, its design makes it adapt to any type of kitchen. Among others it has the following characteristics:

• Energy efficiency class A
- Capacity 60 liters
- Fontal in stainless steel (glass in the MX-HE2660 model)
- 7 operating modes
- Double tempered glass oven door
• Mechanical timer up to 90 minutes
• Temperature control from 40 °C to 240 °C.
- Enamel lined oven cavity
- Includes enameled tray and grill

• Please read these instructions carefully and save them for later use.
• After removing the packaging, check that the appliance is not damaged. If in doubt do not use it; contact technical support personnel.
• All operations related to the electrical installation and / or repair must be carried out by a specialized and authorized installer.
• Check that the voltage of your electrical outlet is 220/240 V \~ 50 Hz and that it is grounded.
• The manufacturer declines any responsibility for damages arising from improper, incorrect or reckless use of the appliance.
• The electrical safety of this appliance is guaranteed only if it is connected to an effective earth connection, as provided by current safety regulations. The manufacturer declines any responsibility for damages derived from the lack of grounding of the installation. If in doubt, consult a qualified electrician.
• The power cord must not be in contact with the hot parts of the oven.
• Packaging materials such as plastic bags, Styrofoam, etc., should not be left within the reach of children, as they are a potential source of danger.

SECURITY MEASURES

- Children must not play with this appliance. Cleaning and maintenance to be carried out by the user cannot be carried out by children, unless they are over 8 years old and are supervised.

- Accessible parts may become hot during use, be careful to keep children away.

• Warning: Fire hazard, do not store products inside the oven.
• This appliance may not be used by children (under the age of 8 years) or people with reduced physical, sensory or mental capacities or without experience and knowledge, unless they have received appropriate instructions on the use of the appliance and understand the dangers involved, as well as supervision by an adult or responsible person.
• Warning: The inside of the oven acquires high temperatures, be extremely careful. Always use oven mitts when handling trays or containers.
• Warning: This appliance is designed for cooking only, it should NOT be used for other purposes.
• To clean the oven, do not use steam cleaners.
• Make sure the oven door is completely closed after placing food inside.
• In case of fire NEVER TRY to smother the flames with water, cut off the electrical supply and cover the flames with a fire blanket or a damp cloth.
• When the oven is in operation NEVER leave it unattended, if you have to be away, turn it off.
• This appliance is designed for household, non-professional use only. MX ONDA will not accept any responsibility and the guarantee will be invalid in case of improper use or non-compliance with the instructions.
• Keep children under 8 years old away from accessible parts of the oven, as well as the power cord.
• Keep flammable materials such as curtains, paper, etc., away from the oven. Do not place flammable materials on top of or in the oven.
• Do not block the vents.
• This appliance is not suitable for use with an external timer or remote control system.

• Do not heat cans or glass containers, as the pressure can cause them to explode.

• Do not use the oven handle to hang tea towels, etc.

• Do not use the oven if you are under medication that may impair its capabilities.
• Do not place the oven tray, containers or aluminum foil on the base of the oven. The accumulated heat can damage the base of the same.
• Be very careful if you use alcohol in your food. Alcohol will evaporate at high temperatures and can cause flames if it comes in contact with hot surfaces.
  • After each use, check that the oven is turned off.
• DO NOT store flammable materials inside the oven. They run the risk of igniting if you turn on the oven without first removing them. Use the device only for the purpose for which it was designed.
• Do not touch the plug with wet hands. To disconnect the oven from the mains, gently pull the plug from the socket. Never do it by pulling on the cord.
• Do not use the oven with the door glass broken or without the glass.
• Place the rack or tray correctly on the guides and check that they are properly attached before placing food on them.
• If you use baking paper or aluminum foil, remove the excess parts. Y Never set the oven to a temperature higher than that specified on the parchment paper. Also, do not place it on the base of the oven.
• When the oven door is open, do not place any heavy object on it, do not lean on it, and do not allow children to sit. It can cause damage to the door hinges.
• Do not use abrasive cleaners or metal scrapers, scratching the glass surface of the door may cause the glass to break when the oven reaches high temperatures.
• When opening the oven door, use caution as the vapors can injure you.

• Unplug the oven from the mains if you are going to make any changes to the home's electrical system.

• Unplug the oven or switch it off using the magnetothermic switch before cleaning it. During cleaning, be extremely careful not to damage the internal heating elements.

• To avoid overheating, do not cover the oven with a decorative panel.
• Make sure that the electrical socket or the magneto-thermal switch where the appliance is connected is easily accessible, but not accessible to children.
• Do not place food directly on the grill, use suitable containers.
• This oven has been designed for indoor use, do not expose it to rain or moisture and do not use it outdoors.
• Never wash the oven by spraying or pouring water on it, it will damage the oven and there is a danger of electrocution.
• Warning: To avoid electric shock, disconnect e the oven from the mains using the thermomagnetic switch before replacing the interior bulb or unplugging it from the mains.
• Do not use extension cords, use only the original cable.
• Make sure that the socket where the oven is connected is protected from moisture, liquid spills, etc.
• The back of the oven becomes hot, so avoid letting the power cord touch this surface.
• Make sure the power plug makes good contact, otherwise it may heat up and deteriorate due to poor electrical contact.
• This appliance must be connected to a circuit incorporating an isolation switch that provides complete disconnection from the power source.
• In case of breakdown, anomalies, if the glass door is damaged (scratches, cracks, etc.), the plug or the cable or other parts show deterioration, unplug the appliance and do not try to repair it yourself. Contact the closest MX ONDA Official Technical Service.

CONTROLS AND ELEMENTS

1. Front panel
2. Deep tray (optional)
3. Chicken roast stand (optional)
4. Grill
5. Enameled tray
6. Oven door

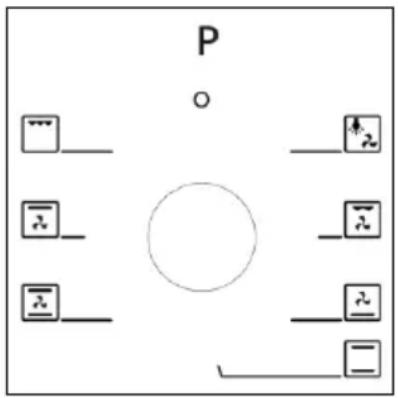

CONTROL PANEL

1. On / off and function selector
2. Timer
3. Temperature selector

INSTALLATION

Warning: Before installing the oven, check that there is no damage to the oven. DO NOT install the oven if after removing the packaging you notice damage to it, bumps, broken or cracked glass, damaged cord or plug, etc.

Very important: The cooling fan extracts heat to prevent overheating of external surfaces during oven operation. The fan is essential to improve the cooking and performance of the appliance. The cooling fan will continue to run after cooking is complete and will stop automatically when the outside oven temperature is low.

Technical line drawing of a mechanical or electrical component with internal channels and directional arrows (no text or symbols)

Fig. 1

You must leave a space behind the back of the oven and never obstruct the air inlet holes (located at the bottom of the sides) for optimal and efficient cooling (Figure 1). Good oven cooling is essential for optimal and long-lasting operation.

Oven location

This oven is designed to be installed in furniture openings of 60 cm, you must install it leaving a space or safety distance between the walls of the oven and the walls of the cabinet, refer to the illustrations on the following pages to obtain the correct measurements (the values are in millimeters).

• The surfaces used, synthetic sheets, adhesives, etc. They must be heat resistant (minimum 100 °C).
• The kitchen cabinet where the oven is located must be level and fixed to the rest of the furniture.
• If there is a drawer under the oven, you must place a protection grid between them.

Warning: Do not install the oven next to the refrigerator or refrigerator. The heat emitted by the oven increases the energy consumption of the refrigeration appliances.

Warning: Do not use the door or door handle to carry or carry the oven.

Cautions

You must choose the location of the oven by making the appropriate measurements and taking into account that you must have a mains power outlet with sufficient power before starting the installation.

Do not install the oven in areas with strong drafts.

At least two people will be required to move the oven.

To avoid damaging the oven and / or the floor, do not drag the oven.

Remove all protection elements, packaging and accessories from the oven.

Installation under the kitchen worktop

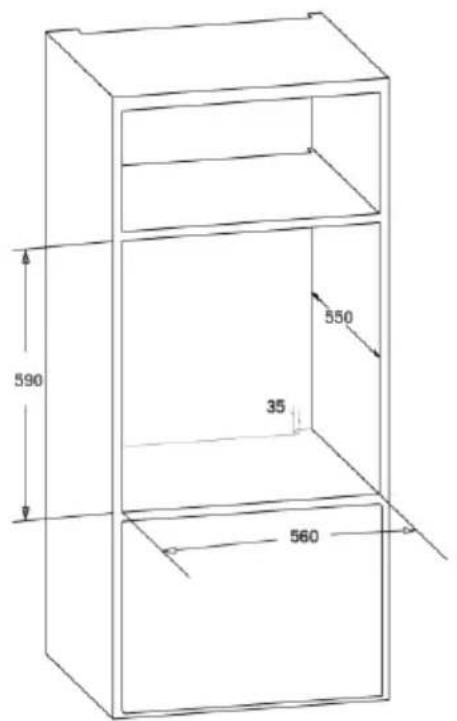

The furniture must have the dimensions indicated in Figure 2.

For optimal and efficient cooling, you should leave a space at the rear of the cabinet as indicated in Figure 2.

After mounting the oven, the space between the top of the oven front and the bottom of the hob is indicated in Figure 5 by the letter “A”. This space is for refrigeration and should not be covered or covered.

Fig. 2

Installation in a raised kitchen cabinet

The furniture must have the dimensions indicated in Figure 4.

For optimal and efficient cooling, you should leave a space at the back, top and bottom of the cabinet as indicated in Figure 4.

Fig. 4

Installation requirements

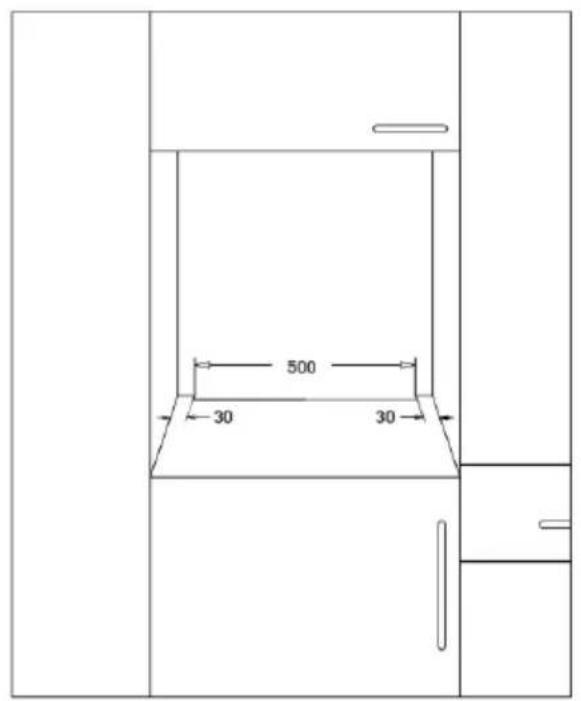

• The dimensions of the oven are indicated in Figure 3.
• The material of the cabinet where the oven is to be installed must be heat resistant to avoid deformation caused by heat radiation, it must withstand a minimum temperature of 100^ C.
• The furniture where the oven is to be installed must be level and correctly fixed to the rest of the furniture to prevent the oven from tilting.
• The base of the furniture must be strong enough to support a load of 60 Kg

Fig. 3

Place and fix the oven

• To place the oven in the cabinet, it is recommended that there be at least two people.
• Check that the oven frame and the front edge of the cabinet coincide evenly.
• The power cord must not be under the oven, caught between the oven walls and the cabinet, or remain bent.
• To fix the oven to the cabinet use the supplied screws. The screws must be positioned as indicated in Figure 5, passing them through the plastic supports fixed to the oven frame. Do not overtighten the screws as you may damage the plastic brackets.
• Once the oven is attached to the cabinet, check that it remains properly attached and does not move.

ELECTRICAL CONNECTION OF THE OVEN

The oven must be installed by a licensed electrician or suitably qualified technician.

Before connecting the oven to the mains, check that:

1. The electrical installation where the oven is to be connected must be adequate for the power consumed by the oven.
2. The voltage must correspond to the nominal value specified in the characteristics described in this manual.
3. The section of the power cables must withstand the current specified on the specifications plate.

The electrical connection of the oven must only be carried out in grounded sockets, installed in accordance with current regulations. The manufacturer will not be liable for damage caused by connection to ungrounded sockets.

To connect the oven to the mains socket, do not use adapters, reducers or branches, as these devices can become hot and cause a fire.

The power cord of the oven must not touch any part or area where it acquires high temperatures and must be positioned so that the temperature will not exceed 75^ C at any point.

Check with a licensed and qualified electrician for proper electrical installation. Any modification to the electrical installation must only be carried out by a licensed electrician.

The electrical connection of the oven must be made in accordance with current regulations and protected by a two-pole magnetothermic or automatic switch.

• If the cable is damaged, to be substituted or replaced, the operation must be carried out by an Official Mx Onda Technical Service.
• The authorized installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
• The cable must not be bent or compressed.
• The cable should be checked regularly and replaced only by authorized technicians.
• The manufacturer is not responsible for any accident resulting from the use of an appliance that is not grounded or from faulty grounding continuity.
• The plug must be located in a place that can be accessed after installation.

Before using the oven for the first time, you must carry out the following process:

1. Remove the labels, packaging and protection elements, as well as the accessories contained inside the oven.
2. Wipe the inside of the oven with a slightly damp cloth and close the oven door.
3. Set the temperature selector to the maximum level 240 °C.
4. Turn the on / off button and function selector to the heat position at the bottom and top □.

5. Using the timer, choose an operating time of 30 minutes.

6. During operation, there may be a little smoke and odor, this is normal and is due to the removal of traces of oil to protect the internal elements from the manufacture.

7. Once the oven is completely cool, wipe it with a cloth slightly dampened with soapy water, then wipe it dry with a clean, dry cloth. Do not use alcohol or abrasive products and do not allow the oven to come into contact with volatile agents such as gasoline, solvents, insecticides, etc.

On / off and function selector

The selector has 8 positions, which are indicated in the following table together with the function they perform. Depending on the food to be cooked, you should choose the most suitable operating mode, in order to obtain the best results and in the shortest possible time.

POSITION	SYMBOL	FUNCTION PERFORMED BY THE OVEN
1		OFF mode
2		Interior lighting + Convection
3		Grill + Convection function
4		Heat at the bottom + Convection
5		Heat on the top and bottom
6		Heat on the top and bottom
7		+ Convection
8		Heat on top + Convection

Interior lighting + Convection

Use this function when the cooking process is finished and you want to keep the food warm using the residual heat through the convection system.

Grill + Convection function

This operating mode is suitable for cooking meat foods. Depending on the food to be cooked, we recommend placing a tray at the bottom with a little water, to prevent the food from being too dry.

Heat at the bottom + Convection

This operating mode is valid for cooking food such as fruit cakes.

Heat on the top and bottom

Use this operating mode to cook food such as cakes, pizza, and cookies.

Heat at the top and bottom + Convection

This operating mode is ideal for cooking cakes, biscuits, lasagna, and meat or fish.

Heat on top + Convection

This operating mode is ideal for cooking cakes, biscuits, lasagna, and meat or fish.

Grill Plus function

Use this operating mode to grill or grill meat or fish, etc. Depending on the food to be cooked, we recommend placing a tray at the bottom with a little water, to prevent the food from being too dry.

Temperature selector

Choose the temperature between a range of 40 to 240 °C, depending on the food to be cooked. Turn this control clockwise to increase the temperature and counterclockwise to decrease it.

Note: It takes time for the oven to reach the selected temperature, so it is recommended to "preheat" the oven before inserting the food.

Timer

Turning the control clockwise will start the oven and the timer will activate and count down from the selected time. At the end of the time, an acoustic indication will sound and the oven will switch off.

To deactivate the timer, set this control to the position 🔊.

Note: At any time you can increase or decrease the timer time, simply turn it to the left or right to decrease or increase the time respectively.

TIPS FOR THE USE OF THE OVEN

• Before putting the food in, we recommend that you preheat the oven.
• Use ovenproof (high temperature resistant) containers.
• The time required to cook the food depends on the size and quality of the food.
• Try to open the oven door as little as possible, use the oven door window to check the process. You will save time and energy!
• Distribute the food over the entire grill or enamel pan area for even cooking.
• If the pieces are medium-large, in the middle of the process you should turn them over and thus obtain a homogeneous result.

MAINTENANCE AND CLEANING

Warning: Before cleaning, disconnect the oven from the mains (plug or magnetothermic switch). And make sure the oven is totally cool. Do not use alcohol or abrasive products (wax brush, steel wool or sharp objects) and do not allow the appliance to come into contact with volatile agents such as gasoline, solvents, insecticides, etc.

Cleaning the outside of the oven

• Clean the outside with a damp cloth, followed by a dry one.
• Avoid getting water through the ventilation holes.
• Always keep the door clean on both sides and the sealing gaskets. Clean these parts with a damp cloth with warm soapy water. Then dry them carefully.

Cleaning the accessories

• Clean the accessories after each use with an anti-grease product.
• You can also wash the accessories in the dishwasher.

Cleaning the inside of the oven

• Do not use metal scourers that can scratch the surfaces, use specific cleaning products for ovens.
• For stubborn stains, clean after preheating at 90^ for 30 seconds.
• Do not use steam cleaners.
• After cleaning, remove the soap residue and thoroughly dry the oven walls.

Steam cleaning

The steam cleaning system will facilitate the removal of stubborn grease, as well as solid remains adhering to the oven walls, the steam will soften the grease and solid remains, making cleaning more comfortable and easy. Follow the process below:

Remove all accessories from inside the oven.

1. Pour half a liter of water into the enamel tray and place it at the bottom of the oven (Figure 7).
2. Set the temperature selector to 70^ C.
3. Set the on / off button and function selector to the position ☐.
4. Turn the timer to the 30 minute position.
5. At the end of the previously set time, open the oven door and remove the fat and solid remains with a slightly damp cloth.
6. For stubborn dirt, pour dishwashing liquid on a damp cloth and rub until all dirt is removed, then wipe dry with a clean, dry cloth.

Line drawing of an oven with a black plastic bag inside, labeled Fig. 7 (no text or symbols on the diagram itself)

Removing and installing the oven door

The oven door can be removed to facilitate cleaning, to do this, follow the steps below:

1. Fully open the oven door 90°, then unlock it by pulling the hinge lock up with the help of a screwdriver as shown in Figure 8.1.
2. Set the hinge lock at the largest angle as shown in Figure 8.2. Adjust the two hinges that hold the door to the oven to the same position.
3. Then close the door so that it is in contact with the hinge lock, as shown in Figure 9.1.
4. In order to easily remove the oven door, when it approaches the closed position, grasp the door with both hands and pull it upwards, see Figure 9.2.

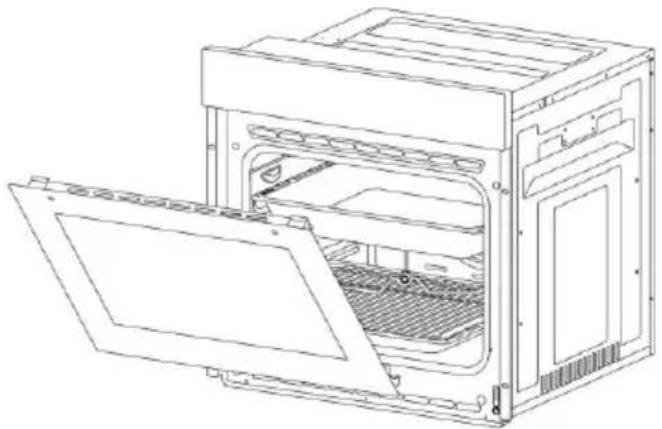

Line drawing of an open oven with internal compartments and ventilation grilles (no text or symbols)

Fig. 7

Line drawing of an open oven with internal compartments and ventilation slots (no text or symbols)

Fig. 9

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Fig. 8.1

Technical line drawing of a mechanical component inside a vehicle, showing parts like a bracket and mounting bracket (no text or symbols)

Fig. 8.2

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Fig. 9.1

Technical line drawing of a door frame with a handle and mounting bracket (no text or symbols)

Fig. 9.2

Cleaning the oven door glass

To remove the glass from the oven door and depending on the model you have, you must proceed as indicated in point 1 or point 2.

1. Press the plastic latches located on both sides (right and left) of the profile as shown in Figure 10, then remove the profile by pulling it out as shown in Figure 11. The glass will be free after removing the profile, as shown in Figure 12. Pull the released glass very carefully towards you, if it includes a central glass it can also be removed in the same way, the outer glass is fixed to the door frame. Once the crystals are clean, proceed to place them in the reverse way to that described to extract them.

Isometric line drawing of a square frame with corner connectors and directional arrows (no text or symbols)

Fig. 10

Technical line drawing of a mechanical component with a square base and a rectangular extension, showing no text or symbols.

Fig. 11

Line drawing of a mechanical assembly with a central arrow symbol (no text or labels)

Fig. 12

1. Remove the screws located on both sides (right and left) of the profile as shown in Figure 13, then remove the profile by pulling it out as shown in Figure 14. The glass will be free after removing the profile as shown in Figure 15. Carefully pull the released glass towards you. If it includes a central glass, it can also be removed in the same way. The outer glass is fixed to the door frame. Once the crystals are clean, proceed to place them in the reverse way to that described to extract them.

Line drawing of an oven with a door open and two hands inserting a tray (no text or symbols)

Line drawing of an oven with a door, showing internal structure and a tool inserted (no text or symbols)

Fig. 14

Fig. 15

Replacing the interior light

Warning: Before changing the light bulb, disconnect the oven from the mains (plug or magnetothermic switch). And make sure the oven is totally cool. Remove the glass shield by turning it counterclockwise, use rubber gloves if you have difficulty removing the glass shield.

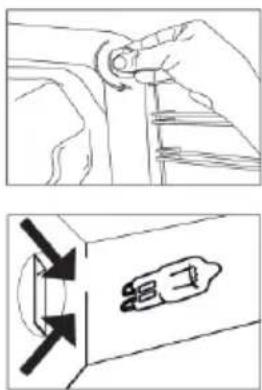

Depending on the oven model purchased, the type of lamp varies, it can be type G9 (Figure 16) or E14 (Figure 17). In the case of being type G9 to extract the bulb pull it outwards, in the case of being type E14 unscrew the bulb by turning it counterclockwise.

Once the bulb has been replaced, replace the glass protection and re-establish the power supply to the oven (plug or magnetothermic switch).

G9 Lamp type

Line drawing showing two steps of a hand pressing down on a mechanical component (no text or symbols present)

220-240 V, AC 15 W

Line drawing of a hand adjusting a mechanical component (no text or symbols)

Fig. 17

Support guides

Warning: It is very important to correctly position the support guides. Do not place the guides touching the back of the oven. The position of the support guides for is shown in the following figure.

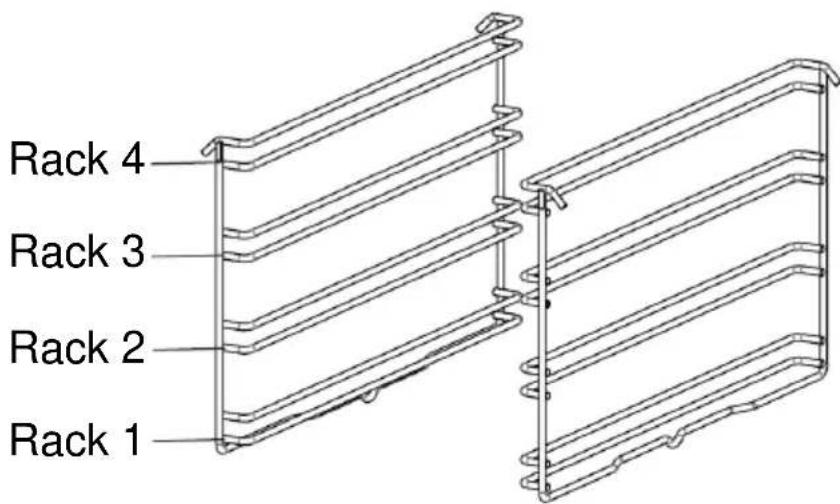

Removing and inserting the support guides

Press the clips in the direction indicated by the arrows and separate the bottom of the support guides from the oven wall, then slide the support guides up and remove them.

To insert the support guides, pay attention to their position (see the previous figure), insert the hooks located at the top of the support guides into the holes located on the wall of the oven, then slide the support guides downwards and slightly press the clips (in the direction of the arrows) secure them to the lower bracket.

TECHNICAL SPECIFICATIONS

Power supply voltage 220 V - 240 V \~ 50/60 Hz

Maximum consumption 2300 W

Capacity 60 liters

Lower heater power 1200 W

Top resistance power 1000 W

Grill power 1000 W

Grill Plus power 2000 W

Temperature range 40 to 240 °C

Mechanical timer up to 90 minutes

Glass door Double tempered

Lamp power 15 to 25 W

External dimensions 595 x 587 x 595 mm (l, w, h)

Approximate weight 28.5 Kg

Technical specifications attached to change without notice.

This product complies with the European Directives 2014/30 / EC (EMC) on Electromagnetic Compatibility and 2014/35 / EC (LVD) on low voltage safety.

"MX, MX ONDA" and their logos are registered trademarks of MX ONDA, S.A.

Information and Technical Service telephone number: 902 551 501

MX ONDA, S. A.

C / Matabueyes, 7 nave 1A

19171 - Cabanillas del Campo (Guadalajara)

E-MAIL: [e-mail]

http://www.mxonda.es
