Brand	Hoover
Model	HOBT5519DW
Product Type	Combined Refrigerator
Dimensions (H x W x D)	180 x 60 x 65 cm
Net Weight	60 kg
Power Supply	220-240 V, 50 Hz
Energy Class	A+
Nominal Power	150 W
Total Net Capacity	300 L
Refrigerator Capacity	200 L
Freezer Capacity	100 L
Cooling System	No Frost (Ventilated)
Interior Lighting	LED
Number of Refrigerator Shelves	4 glass
Number of Door Balconies	3
Vegetable Crisper	1
Number of Freezer Drawers	3
Temperature Regulation	Electronic
Open Door Alarm	Yes
Warranty	2 years parts and labor
Spare Parts	Available for 10 years
Maintenance and Cleaning	Clean with a soft cloth and soapy water; automatic defrost thanks to No Frost

Frequently Asked Questions - HOBT5519DW HOOVER

What is the total capacity of the Hoover HOBT5519DW refrigerator?

The total net capacity is 300 litres, of which approximately 200 litres for the refrigerator and 100 litres for the freezer.

How to adjust the temperature of my appliance?

Use the electronic control panel located inside the refrigerator. Press the + or - buttons to adjust the temperature. The recommended temperature is 4°C for the refrigerator and -18°C for the freezer.

What to do if my refrigerator makes an abnormal noise?

A slight hum is normal (compressor). If the noise is loud or irregular, check that the appliance is level and the shelves are securely fastened. Consult the manual if the noise persists.

How to clean the interior of the refrigerator?

Unplug the appliance, remove the shelves and bins. Wash them in warm water with mild soap. Wipe the interior walls with a damp cloth. Do not use abrasive products. Replace after drying.

Can the door opening direction be reversed?

Yes, the door is reversible. Follow the instructions in the manual to disassemble the hinges and reinstall them on the other side. You will need a screwdriver and possibly additional parts provided.

What does the audible alarm mean?

The alarm usually signals a door left open or a temperature that is too high in the compartment. Close the door or wait for the temperature to return to normal.

The interior light does not turn on, what to do?

First check that the appliance is powered. If the LED light is burnt out, it must be replaced by an authorised technician. Do not attempt to change it yourself.

How to defrost the freezer?

This model is equipped with No Frost technology: frost does not form, no manual defrosting is necessary. The appliance defrosts automatically.

What is the climate class of this refrigerator?

The climate class is N-ST (ambient temperature from 16°C to 38°C). This ensures optimal operation in a room at normal temperature.

How to contact Hoover customer service?

You can reach Hoover customer service by phone at 08 00 00 00 00 (toll-free number) or via the contact form on the official website. Have your serial number ready.

USER MANUAL HOBT5519DW HOOVER

Discover extra contents and create your inventory list

EN.... 1 BG 9 CS 17 DA 25 DE....33 EL 41 ES 49 FI 57 FR 65 HR 73 HU 81 IT 89 NL 97 NO....106 PL 114 PT 122 RO 130 RU 138 SK 146 SL....154 SR 162 SV 170 UK 178 AR....186

Summary

PRODUCT DESCRIPTION ......2

USE....3

Use 3

Customized temperature 4

Super Cool function....4

Super Freeze function 5

Eco mode....5

Holiday function....6

Defrosting....6

Demo mode....6

WI-FI USE....7

In app pairing procedure....7

Step 1 ....7

Step 2 7

Step 3 7

Wi-Fi Use 8

TROUBLESHOOTING

PRODUCT DESCRIPTION

1. Control Panel
2. Wine Rack
3. Shelves
4. Crisper
5. Freezer Boxes
6. Door Rack

* The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product and fan to be off, please refer to the above pictures. ** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Space requirements

The unit's door must be able to fully open as shown.

Spare enough space for convenient opening of the doors and drawers.

Keep a distance of at least 50 mm between the side walls of the product and adjacent parts.

Width: min. 920 mm

Depth: min. 1137 mm

USE

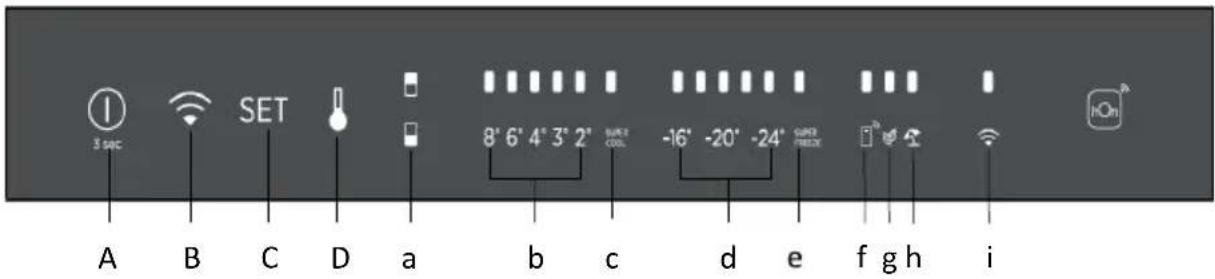

A. ON/OFF key, used to switch on/off the appliance

B. Wi-Fi key, used to switch on/off the Wi-Fi

C. Mode key, used to select the special functions (Eco and holiday)

D. TEMP key, used to select the fridge and freezer temperature

a. Fridge/freezer area icon, shows which compartment of the appliance is selected

b. Fridge temperature levels, show which is the selected temperature

c. Super Cool icon, shows if the Super Cool function is activated

d. Freezer temperature levels, show which is the selected temperature in the freezer

e. Super Freeze icon, shows if the Super Freeze function is activated

f. Customized temperature icon, shows if the temperature has been selected by app

g. Eco mode icon, shows whether the eco mode is activated

h. Holiday function icon, shows whether the holiday function is activated

i. Wi-Fi icon, shows whether the Wi-Fi is working and the appliance is connected

Use

• Plug in the appliance and it automatically turns on.
• The temperature will automatically be set at 4 °C in the fridge and -18 °C in the freezer.

NOTE: wait at least 2/3 hours before putting food in the appliance, so as to ensure the temperature inside the fridge.

- To change the temperature, press the TEMP key for 5 seconds. An acoustic signal is made and the icon of the selected compartment (fridge or freezer) as well as all the temperature LEDs of the corresponding compartment turn on for 2 seconds. After 2 seconds, the selection of the compartment is confirmed. With the selected compartment icon on, quickly press the TEMP key to change the temperature.

When the setting increases, the corresponding LED light will turn on. An acoustic signal is made every time the TEMP key is pressed and the temperature is changed. After 5 seconds, the selection is confirmed. After 30 seconds without operation, the fridge/freezer icons and the LEDs of the selected temperatures turn off. When the TEMP key is touched again, the icon of the last selected compartment (fridge or freezer) turns on.

• In case of power loss, the last cooling level set will be restored. • To restore the default setting, keep pressed the door switch inside the

refrigerator and simultaneously press the ON/OFF key for 5 seconds.

- Under normal operating conditions (in spring and autumn), it is recommended to set the temperature at 4 °C. In summer when the ambient temperature is high, it is recommended to set the temperature at 6~8 °C, so as to guarantee the fridge and freezer temperatures and reduce the refrigerator's continuous running time; and in winter when the ambient temperature is low, it is recommended to set the temperature at 3~4 °C to avoid frequent start/stop of the refrigerator.

Customized temperature

From the app it is possible to customize the temperature for both fridge and freezer. The temperature can be set with 1 °C sensitivity. It is possible to select a temperature from 2 °C to 8 °C in the fridge, and from -16 °C to -24 °C in the freezer.

When the temperature is selected by the app, the customized temperature icon turns on, while all the temperature LED lights of the affected compartment are turned off (i.e., if the refrigerator temperature is selected from the app, LEDs from 2 °C to 8 °C are turned off. If the freezer temperature is selected from the app, LEDs from -16 °C to -24 °C are turned off).

If only a single area (freezer or fridge) has the customized temperature, the temperature selection of the other area is not changed and the LED light of the selected temperature of that area remains on. An acoustic signal is made every time the temperature is changed.

Super Cool function

It is suggested to switch on the Super Cool function if a large quantity of food should be stored (for example after the purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. When the function is activated, the temperature of the fridge is automatically set at 2\ °C .

How to use the Super Cool function:

• The function can be activated by long pressing TEMP key to select the fridge compartment, and then quick pressing the TEMP key until the Super Cool icon led is turned on, or it can be turned on from the app. When the function is activated, the Super Cool LED is always ON. • To exit the Super Cool function, press the TEMP key or turn it off from the app.
• The Super Cool function automatically ends when the function has lasted for more than 12 hours.
• When the Super Cool ends, the icon of the control panel is switched off and the previously set cooling level is restored.

Note: Super Cool and Super Freeze function cannot be activated simultaneously.

Super Freeze function

The super freezing function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If a large amount of food has to be freeze, it is recommended to set the Super-Freeze function on 24h before the usage. When the function is activated, the temperature is automatically set at -28 °C.

How to use the Super Freeze function:

• The function can be launched by long pressing TEMP key to select the freezer compartment, and then quick pressing TEMP key until the Super Freeze icon led is turned on, or it can be turned on from the app. When the function is activated, the Super Freeze LED is always ON. • To exit the Super Freeze function, press the TEMP key or turn it off from the app.
• The Super Freeze function automatically ends when the function has lasted for more than 50 hours.
• When the Super Freeze ends, the icon of the control panel is switched off and the previously set freezing level is restored.

Note: Super Cool and Super Freeze function cannot be activated simultaneously.

Eco mode

The Eco mode can be activated to optimize the performance of the appliance, while ensuring the best food storage. The Eco mode will automatically set the temperature at 4 °C in the fridge and at -18 °C in the freezer.

How to use the Eco mode:

• The function can be activated from the control panel by pressing the “mode” key until the Eco mode icon turns on (an acoustic signal confirms the selection), or by selecting the function from the app. When the function is activated, the Eco mode icon is always ON.
• To exit the Eco mode, turn it off from the app or choose another function from the control panel.
• When the Eco mode ends, the icon on the control panel is switched off and the previously set cooling levels are restored.

Holiday function

The Holiday function can be used to reduce the energy consumption of the appliance when it is not used regularly. When the function is on, the LED lights will be off (even if the door is open) and the fridge will work on low power consumption mode, whereas the freezer will keep working normally.

How to use the Holiday function:

• The function can be activated from the control panel by pressing the “mode” key until the Holiday icon turns on (an acoustic signal confirms the selection), or by selecting the function from the app. When the function is activated, the Holiday icon is always ON.
• To exit the Holiday function, turn it off from the app or choose another function from the control panel.
• When the Holiday function ends, the icon on the control panel is switched off and the previously set cooling levels are restored.

Defrosting

The defrosting of the refrigerator and freezer compartments is done automatically: no manual operation is needed.

Slider

Near the vegetable basket there is a slider that allows you to adjust the humidity inside it: moving it to the right decreases the humidity, moving it to the left increases the humidity.

Demo mode

To enter the demo mode, with the display unlocked, keep pressed the Wi-Fi key (B) and press the MODE key (C) 5 times within 5 seconds. To exit the demo mode, perform the same operation or power off the refrigerator.

Error Codes

Communication error

[-16°C;-18°C;-20°C;-22°C;-24°C] Lights in the fridge turn on sequentially, it means there has been a communication error between the main control board and the display board. Please, contact the technical assistance to help solve the problem

Fan

[-16°C;-20°C;-22°C;-24°C] lights in the fridge flashing simultaneously if the fan is not working properly. Please, contact the technical assistance to help solve the problem

WI-FI USE

In app pairing procedure

Step 1

- Download the hOn app on the stores

Step 2

- Create your account on the hOn App or log in if you already have an account

Step 3

- Follow pairing instructions in the hOn App

Wi-Fi Use

To activate the Wi-Fi, long press the Wi-Fi key for 2 seconds, the Wi-Fi icon will turn on and an acoustic signal is made.

If the Wi-Fi has not been configured yet, when the refrigerator turns on, it will automatically enter the configuration mode and keep this status for 30 minutes. To use the configuration mode:

• Press the Wi-Fi key for 2s, the refrigerator enters the Wi-Fi configuration mode and an acoustic signal is made. The Wi-Fi icon starts blinking.
• Follow in app instructions to configure the Wi-Fi (see above).
• Once the Wi-Fi is configured and the connection established, the Wi-Fi icon is on and fixed.
• After 30 minutes without performing any operation, the Wi-Fi will automatically exit the configuration mode.
• If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information.

To reset the Wi-Fi, long press the Wi-Fi key and Mode for 2s, the Wi-Fi is reset and an acoustic signal is made. After this, the Wi-Fi will automatically enter the configuration state (Wi-Fi icon will start blinking again).

To turn off the Wi-Fi, press the Wi-Fi key for 3s.

Radio-module - Technical data

Frequency rate (OFR)	2400 MHz-2843.5 MHz
Channel frequencies	2412...2472 MHz(step size 5 MHz)
Maximum power(EIRP)	100 mW

Radio equipment type is in compliance with Directive 2014/53/EU.

TROUBLESHOOTING

The inside light bulb does not turn on.	No electricity.	The power cable is not properly plugged in.Check if the appliance is switched off (see Temperature Adjustment).Check the power socket is working correctly (e.g. with another electric device).
	Holiday Mode is activated.	Deactivate Holiday mode.
The internal temperature of the refrigerator and/or freezer is not cold enough.	The doors are not closed.	Check that the door and gaskets close properly.
	The doors are frequently opened.	Avoid opening the doors unnecessarily for some time.
	Incorrect temperature setting.	Check the temperature setting and, if possible, set a lower temperature (see Temperature Adjustment).
	The refrigerator and/or freezer are too full.	Wait for the temperature of the refrigerator/ freezer to stabilise.Avoid filling the refrigerator and freezer excessively.
	The surrounding temperature is too low.	Move the unit to a warmer place or heat the current room.
	Warm items have been stored.	Always allow items to cool before storing them.
The food in the refrigerator freezes.	Incorrect temperature setting.	Check the temperature setting and, if possible, increase the temperature.
	Food in contact with the back wall.	Keep the food away from the refrigerator's back wall.
The bottom of the refrigerator compartment is wet or water droplets are present.	The drain hose could be clogged.	Clean the drain hose with a stick or similar item to allow the water to drain.
Presence of drops of water or frost on the rear wall of the refrigerator.	Depending on the function, drops of water or frost form on the rear wall of the refrigerator during operation.	It is not a defect.
	Warm items have been stored.	Always allow items to cool before storing them.
	There are open food containers or liquids.	Always cover food and liquids.
	The doors are not closed.	Check that the door and gaskets close properly.
	The doors are frequently opened.	Avoid opening the doors unnecessarily for some time.
Presence of water in the vegetable drawer.	Lack of air circulation.	Verify that your appliance is not too full.
	Vegetables and fruit with too much moisture.	Wrap the fruit and vegetables in plastic materials, e.g. cling film, bags or containers.
The motor runs continuously.	The doors are not closed.	Make sure the doors are closed and check the seals close properly.
	The doors are opened frequently.	Avoid opening the doors unnecessarily for some time.
	Ambient temperature is very high.	Verify that the ambient temperature is in the range set out in the specifications on the appliance tag.Set the display screen/thermostat to a warmer temperature.
	The appliance has been off (no power) for some time.	It normally takes the appliance 8-12h to cool completely.
The frozen food is thawing.	Surrounding temperature is too low.	Move the unit to a warmer place or heat the current room.
	The freezer door is not closed.	Make sure the door is closed and that the gasket is sealing proper
Fridge door alarm.	Fridge door alarm (acoustic beep) activates whenever the door is left open for more than 3 minutes.	Avoid leaving the door open when not needed. The beep ceases when the door is closed.
The appliance makes noises such as gurgling, buzzing, clicking, creaking.	No breakdowns. An engine is running, e.g. refrigeration unit, fan. The refrigerant flows into the pipes. Motor, switches and solenoid valves are switched on or off.	No action needed.
	The appliance is not located on level ground.	Adjust the feet to level the appliance.
	The appliance touches an object around it.	Remove objects around the appliance.
The appliance does not cool, the temperature and lighting indicators are on.	Demo mode is activated.	Deactivate DEMO mode.
Strong ice and frost in the freezer compartment.	The items were not adequately packaged.	Always pack the items well.
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer.
	The door/drawer has been opened too frequently or for too long.	Do not open the door/drawer too frequently.
	The door/drawer gasket is dirty, worn, cracked or mismatched.	Clean the door/drawer gasket or replace it with a new one.
	Something on the inside prevents the door/drawer from closing properly.	Reposition the shelves, door racks or internal containers to allow the door/drawer to close.
The sides of the appliance are warm.	This is normal.
