USER MANUAL L1950g HP

HP L1750, L1950/L1950g, L1710, L1910, L1908w, L1908wm, L1945w, L1945wv, L2208w, L2245w/L2245wg, and L2445w LCD Monitors User Guide

© 2007, 2008 Hewlett-Packard Development Company, L.P.

Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

All other product names mentioned herein may be trademarks of their respective companies.

Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The information in this document is provided "as is" without warranty of any kind, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, and is subject to change without notice. The warranties for Hewlett-Packard products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

Sixth Edition (September 2008)

Document Part Number: 449162-006

About This Guide

This guide provides information on setting up the monitor, installing drivers, using the on-screen display menu, troubleshooting and technical specifications.

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. NOTE: Text set off in this manner provides important supplemental information.

Table of contents

1 Product Features

HP LCD Monitors 1

2 Safety and Maintenance Guidelines

Important Safety Information .... 3

Maintenance Guidelines 4

Cleaning the Monitor 4

Shipping the Monitor 4

3 Setting Up the Monitor

Unfolding the Double-Hinged Monitor Pedestal Base 5

Unfolding the Single-Hinged Monitor Pedestal Base 6

Rear Components 7

Cable Management 9

Connecting the Cables 10

Adjusting the Monitor 12

Turning on the Monitor 14

Connecting USB Devices 15

Using the Accessory Rails 15

Removing the Monitor Pedestal Base 16

Mounting the Monitor 17

Locating the Rating Labels 20

4 Operating the Monitor

Software and Utilities 21

The Information File 21

The Image Color Matching File 21

Installing the .INF and .ICM Files 22

Installing from the CD 22

Downloading from the Worldwide Web 22

Using the Auto-Adjustment Function 22

Front Panel Controls 24

Adjusting the Monitor Settings 25

Using the On-Screen Display Menu 25

OSD Menu Selections 26

Optimizing Digital Conversion 30

Using the HP Display Assistant Utility 30

Identifying Monitor Conditions 31

Sleep Timer Mode 32

HP Display LiteSaver 33

Installing the HP Display LiteSaver Software 33

sRGB Support 33

Changing the Color Temperature 34

Installing the sRGB ICM File for Microsoft Windows 2000 and Windows XP .... 34

Installing the sRGB ICM File for Microsoft Windows Vista 34

Appendix A Troubleshooting

Solving Common Problems 35

Using the Worldwide Web 37

Preparing to Call Technical Support 37

Appendix B Technical Specifications

L1750 Model 38

L1950/L1950g Model 39

L1710 Model 40

L1910 Model 41

L1908w Model 42

L1908wm Model 43

L1945w Model 44

L1945wv Model 45

L2208w Model 46

L2245w/L2245wg Model 47

L2445w Model 48

Recognizing Preset Display Resolutions 49

L1750, L1950/L1950g, L1710, and L1910 Models 49

L1908w, 1908wm, L1945w, and L1945wv Models 49

L2208w and L2245w/L2245wg Models 50

L2445w Model 51

Entering User Modes 52

Energy Saver Feature 52

Appendix C Agency Regulatory Notices

Federal Communications Commission Notice 53

Modifications 53

Cables 53

Declaration of Conformity for Products Marked with the FCC Logo (United States Only) 53

Canadian Notice 54

Avis Canadien 54

European Union Regulatory Notice 54

German Ergonomics Notice 55

Japanese Notice 55

Korean Notice 55

Power Cord Set Requirements 55

Japanese Power Cord Requirements 55

Product Environmental Notices 56

Energy Star Compliance 56

Materials Disposal 56

Disposal of Waste Equipment by Users in Private Household in the European

Union 56

Chemical Substances 57

Restriction of Hazardous Substances (RoHS) 57

Appendix D LCD Monitor Quality and Pixel Policy

1 Product Features

HP LCD Monitors

The LCD (liquid crystal display) monitors have an active matrix, thin-film transistor (TFT) panel. The monitor models and features include:

• L1750 model, 43.2 cm (17-inch) diagonal viewable area display with 1280 × 1024 resolution, plus full-screen support for lower resolutions
• L1950/L1950g model, 48.3 cm (19-inch) diagonal viewable area display with 1280 x 1024 resolution, plus full-screen support for lower resolutions
• L1710 model, 43.2 cm (17-inch) diagonal viewable area display with 1280 × 1024 resolution, plus full-screen support for lower resolutions
• L1910 model, 48.3 cm (19-inch) diagonal viewable area display with 1280 × 1024 resolution, plus full-screen support for lower resolutions
• L1908w model, 48.3 cm (19-inch) diagonal viewable area display with 1440 × 900 resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio
• L1908wm model, 48.3 cm (19-inch) diagonal viewable area display with 1440 × 900 resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio
• L1945w model, 48.3 cm (19-inch) diagonal viewable area display with 1440 × 900 resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio
• L1945wv model, 48.3 cm (19-inch) diagonal viewable area display with 1440 × 900 resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio
• L2208w model, 55.88 cm (22-inch) diagonal viewable area display with 1680 x 1050 resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio. L2245w/L2245wg model, 55.88 cm (22-inch) diagonal viewable area display with 1680 x 1050 resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio
• L2445w model, 60.96 cm (24-inch) diagonal viewable area display with 1920 x 1200 resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio
• Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side
• Tilt capability
• Pivot capability to rotate display to portrait mode (select models) • Swivel and height adjustment capabilities (select models)
• Removable base for flexible monitor panel mounting solutions • Video signal input to support VGA analog with VGA signal cable provided • Video signal input to support DVI digital with DVI-D signal cable provided (select models)
• USB 2.0 hub with one upstream port (connects to the computer) and, depending on the model, two or four downstream ports (connects to USB devices) • USB cable provided to connect the monitor's USB hub to the USB connector on the computer
• Accessory rail on monitor to accept optional mounted devices, such as an HP speaker bar • Plug and play capability if supported by the system
• Privacy filter slots to insert filters (purchased separately) to block side screen viewing (select models) • Security slot provision on rear of monitor for optional cable lock • Internal speakers (select models) • Audio input signal cable (select models) • Cable management feature for placement of cables and cords
• On-Screen Display (OSD) adjustments in several languages for easy setup and screen optimization. HP Display Assistant for adjusting monitor settings.
• Software and documentation CD that includes software, monitor drivers, and product documentation. Energy saver feature to meet requirements for reduced power consumption. Intelligent Management AssetControl. Compliant with the following regulated specifications:

European Union CE Directives, Swedish TCO Requirements, Energy Star.

2 Safety and Maintenance Guidelines

Important Safety Information

A power cord is included with the monitor. If another cord is used, use only a power source and connection appropriate for this monitor. For information on the correct power cord set to use with the monitor, refer to the Power Cord Set Requirements on page 55 in Appendix C.

WARNING! To reduce the risk of electric shock or damage to the equipment:

• Do not disable the power cord grounding feature. The grounding plug is an important safety feature.
• Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
• Disconnect power from the product by unplugging the power cord from the electrical outlet.

For your safety, do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.

To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at http://www.hp.com/ergo and/or on the documentation CD, if one is included with the monitor.

CAUTION: For the protection of the monitor, as well as the computer, connect all power cords for the computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips provide surge protection; the power strips must be specifically labeled as having this ability. Use a power strip whose manufacturer offers a Damage Replacement Policy so you can replace the equipment, if surge protection fails.

Maintenance Guidelines

To enhance the performance and extend the life of the monitor:

• Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those controls that are covered in the operating instructions. If the monitor is not operating properly or has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
• Use only a power source and connection appropriate for this monitor, as indicated on the label/back plate of the monitor.
• Be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the electrical outlet, and the total ampere rating of the products connected to the cord does not exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS or A) for each device.
• Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
• Turn the monitor off when not in use. You can substantially increase the life expectancy of the monitor by using a screen saver program and turning off the monitor when not in use.
• Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered. Never push objects of any kind into cabinet slots or other openings.
• Do not drop the monitor or place it on an unstable surface.
• Do not allow anything to rest on the power cord. Do not walk on the cord.
• Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture.
• When removing the monitor base, you must lay the monitor face down on a soft area to prevent it from getting scratched, defaced, or broken.

Cleaning the Monitor

1. Turn off the monitor and the computer.
2. Unplug the monitor from the wall outlet.
3. Clean the monitor plastics with a clean cloth dampened with water.
4. Clean the monitor screen with an antistatic screen cleaner.

△ CAUTION: Do not use benzene, thinner, ammonia, or any other volatile substances to clean the monitor or the screen. These chemicals may damage the cabinet finish as well as the screen.

Shipping the Monitor

Keep the original packing box in a storage area. You may need it later if you move or ship the monitor.

3 Setting Up the Monitor

To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow the instructions below.

Unfolding the Double-Hinged Monitor Pedestal Base

NOTE: The monitor is shipped with the base attached in a folded-flat position. To begin using the monitor, you must unfold the base and place the monitor in an upright position.

1. Lift the monitor from its box and place it on a flat surface with the display head facing up.
2. Pivot the display head from portrait to landscape position (1).

Figure 3-1 Pivoting the Display Head

1. Press down on the rear hinge (2) while gently pulling up on the monitor display head (3).
2. Raise the monitor (4) to extend the pedestal base to the desired height.

△ CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause non-uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its normal condition.

1. Remove the swivel locking pin (5) from the pedestal base.

Figure 3-2 Unfolding the Monitor Pedestal Base

Unfolding the Single-Hinged Monitor Pedestal Base

1. Lift the monitor from its box and place it face down on a flat surface covered by a soft, clean cloth.
2. Hold down the monitor display head with one hand and unfold the base 90 degrees with the other hand.

CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause non-uniformity of color or disorientation of the liquid crystals. If this occurs, the screen will not recover to its normal condition.

Figure 3-3 Unfolding the Monitor Pedestal Base

Rear Components

Figure 3-4 Rear Components (except for L2445w model)

Component Function

1	AC Power Connector	Connects the AC power cord to the monitor.
2	Audio In (select models)	Connects the audio cable to the monitor's internal speakers (select models)
3 USB Downstream	Connectors (2) (select models)	Connects optional USB devices to the monitor.
4 USB Upstream	Connector (select models)	Connects the USB hub cable to the monitor's USB hub connector and to a host USB port/hub.
5 DVI (select models) Connects the DVI-D cable to the monitor.
6 VGA Connects the VGA cable to the monitor.

Figure 3-5 Rear Components, L2445w Model

Component Function

1	AC Power Connector	Connects the AC power cord to the monitor.
2	Audio In (select models)	Connects the audio cable to the monitor's internal speakers.
3 DVI Connects the DVI-D cable to the monitor.
4 VGA Connects the VGA cable to the monitor.
5 USB Upstream	Connector	Connects the USB hub cable to the monitor's USB hub connector and to a host USB port/hub.
6 USB Downstream	Connectors (2)	Connects optional USB devices to the monitor (2 additional downstream USB connectors are on the left side of the monitor's front panel).

Cable Management

Use the cable management feature to secure and hide your cables when viewed from the front.

Before connecting the cables to monitor models with a single-hinged base, route the cables through the hole in the center of the monitor stand.

Figure 3-6 Using the Cable Management Feature (Single-Hinged Base)

After connecting the cables to monitor models with a double-hinged base, place the cables through the cable management channels on the sides of the monitor base.

Figure 3-7 Using the Cable Management Feature (Double-Hinged Base)

Connecting the Cables

1. Place the monitor in a convenient, well-ventilated location near the computer.
2. Connect a VGA signal cable or DVI-D signal cable.

NOTE: For models with both VGA and DVI-D connectors, the monitor is capable of supporting either analog or digital input. The video mode is determined by the video cable used. The monitor will automatically determine which inputs have valid video signals. The inputs can be selected by pressing the +/Input button on the front panel or through the On-Screen Display (OSD) feature by pressing the Menu button.

• For analog operation, use the VGA signal cable provided. Connect the VGA signal cable to the VGA connector on the rear of the monitor and the other end to the VGA connector on the computer.
• For digital operation, use the DVI-D signal cable provided (select models). Connect the DVI-D signal cable to the DVI connector on the rear of the monitor and the other end to the DVI connector on the computer.

Figure 3-8 Connecting the Signal Cable

1. Connect the built-in monitor speakers (on select models) to the computer using the audio cable.
2. Connect one end of the provided USB cable to the USB hub connector on the rear panel of the computer, and the other end to the upstream USB connector on the monitor.

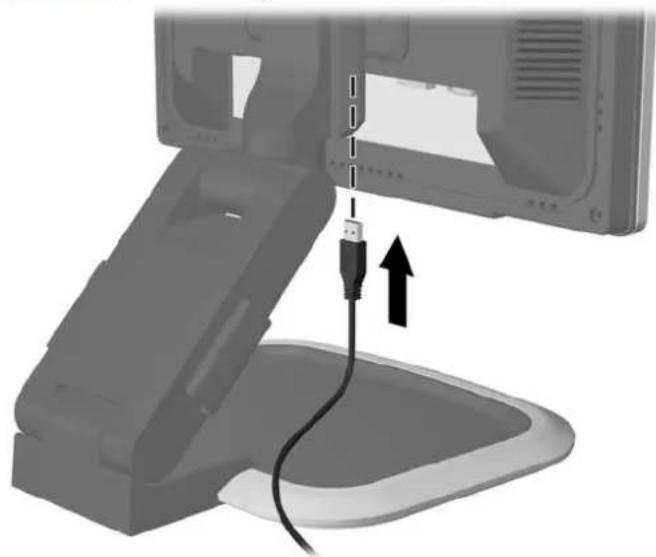

Figure 3-9 Connecting the USB Cable

⚠ WARNING! To reduce the risk of electric shock or damage to the equipment:

Do not disable the power cord grounding plug. The grounding plug is an important safety feature.

Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.

Disconnect power from the equipment by unplugging the power cord from the electrical outlet.

For your safety, do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.

1. Connect one end of the power cable to the AC power connector on the back of the monitor, and the other end to an electrical wall outlet.

Figure 3-10 Connecting the Power Cable

Adjusting the Monitor

NOTE: Your monitor model may look different than the model in the following illustrations.

1. Tilt the monitor's panel forward or backward to set it to a comfortable eye level.

Figure 3-11 Tilting the Monitor

1. Swivel the monitor to the left or right for the best viewing angle (select models).

Figure 3-12 Swiveling the Monitor

1. Adjust the monitor's height so that it is parallel to your eye height for a comfortable viewing position (select models).

Figure 3-13 Adjusting the Height

1. Pivot the monitor clockwise from landscape to portrait orientation to adapt to your application (select models).

Figure 3-14 Pivoting the Monitor

NOTE: To view information on the screen in portrait mode, you will need to install the Pivot Pro software included on the software and documentation CD. The position of the OSD menu can also be rotated to portrait mode. To rotate the OSD menu, access the OSD menu, select Management, then select OSD Control.

Turning on the Monitor

1. Press the power button on the computer to turn it on.
2. Press the power button on the front of the monitor to turn it on.

CAUTION: Burn-in image damage may occur on monitors that display the same static image on screen for a prolonged period of time.* To avoid burn-in image damage on the monitor screen, you should always activate a screen saver application or turn off the monitor when it is not in use for a prolonged period of time. Image retention is a condition that may occur on all LCD screens.

* A prolonged period of time is 12 consecutive hours of non-use.

NOTE: If pressing the power button has no effect, the Power Button Lockout feature may be enabled. To disable this feature, press and hold the monitor power button for 10 seconds.

Connecting USB Devices

USB connectors (on select models) are used to connect devices such as a digital camera, USB keyboard, or USB mouse. Some models include two additional USB connectors on the side panel of the monitor.

NOTE: You must connect the USB hub cable from the monitor to the computer to enable the USB 2.0 ports on the monitor. Refer to Step 4 in Connecting the Cables on page 10.

Figure 3-15 Connecting USB Devices

Using the Accessory Rails

The monitor features accessory rails on the rear that can be used to mount optional devices, such as the HP speaker bar, to attach to the LCD. Refer to the documentation included with the optional device for detailed mounting instructions.

Figure 3-16 Using the Accessory Rails Feature

Removing the Monitor Pedestal Base

You can remove the monitor panel from the pedestal base to install the panel on a wall, a swing arm, or other mounting fixture.

CAUTION: Before beginning to disassemble the monitor, be sure the monitor is turned off and the power and signal cables are both disconnected. If the monitor has a connected audio cable, disconnect it.

1. Disconnect and remove the signal and power cables from the back of the monitor.
2. Lay the monitor face down on a flat surface.
3. Remove the screws on the back of the monitor that connect the monitor panel with the pedestal base.

a. On the double-hinged base, there are four screws that connect the monitor panel to the pedestal base.

Figure 3-17 Removing the Double-Hinged Pedestal Base

b. On the single-hinged base, there are three screws that connect the monitor panel to the pedestal base.

Figure 3-18 Removing the Single-Hinged Pedestal Base

1. Lift up on the pedestal base to remove it from the monitor display head.

Mounting the Monitor

HP provides an HP Flat Panel Monitor Quick Release (purchased separately) that installs to the back of the monitor panel and allows you to quickly and securely attach the panel to a wall or swing arm mounting fixture. To install the HP Quick Release:

1. Remove the monitor panel from the pedestal base. Refer to "Removing the Monitor Pedestal Base" on page 16 for steps.

△ CAUTION: This monitor supports the VESA industry standard 100 mm mounting holes. To attach a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long screws are required. Longer screws should not be used because they may damage the monitor. It is important to verify that the manufacturer's mounting solution is compliant with the VESA standard and is rated to support the weight of the monitor display panel. For best performance, it is important to use the power and video cables provided with the monitor.

1. Set the monitor panel down on a flat, soft, protected surface.
2. Place the optional HP Quick Release onto the back of the monitor. Line up the holes on the HP Quick Release with the mounting holes on the back of the monitor.

Figure 3-19 Mounting the HP Quick Release

1. Insert four 10mm screws into the mounting holes and tighten.

NOTE: Depending on your model, use the screws that were removed from the back of the monitor that connected the monitor panel with the pedestal base, or use the four M4 x 10 mm screws that are provided in the VESA mounting holes on the back of the monitor panel.

1. Mount the HP Quick Release to a swing arm or other mounting fixture using the four screws removed from the back of the monitor in the previous step.

Figure 3-20 Installing the HP Quick Release

△ CAUTION: The HP Quick Release is designed to support a maximum of up to 24 lbs. (10.9 kg). If you are mounting to a wall, HP recommends that you consult with a qualified engineering, architectural, or construction professional to determine the appropriate type and quantity of mounting fasteners required for your application and to ensure that the mounting solution is properly installed to support applied loads.

1. Insert the monitor panel into the HP Quick Release, and then press down firmly on the monitor to lock it in place. When the HP Quick Release locks, it will make a clicking sound.

Figure 3-21 Inserting the Monitor Panel into the HP Quick Release

1. Reconnect the cables to the monitor panel.

Locating the Rating Labels

The rating labels on the monitor provide the spare part number, product number, and serial number. You may need these numbers when contacting HP about the monitor model. The rating labels are located on the rear panel of the monitor display head.

Figure 3-22 Locating the Rating Labels

4 Operating the Monitor

Software and Utilities

The CD that comes with the monitor contains files you can install on the computer:

• an .INF (Information) file • an .ICM (Image Color Matching) file • auto-adjustment pattern utility • additional software for the monitor model

NOTE: If the monitor does not include a CD, the .INF and .ICM files can be downloaded from the HP monitors support Web site. See Downloading from the Worldwide Web on page 22 in this chapter.

The Information File

The .INF file defines monitor resources used by Microsoft Windows operating systems to ensure monitor compatibility with the computer's graphics adapter.

This monitor is Microsoft Windows Plug and Play compatible and the monitor will work correctly without installing the .INF file. Monitor Plug and Play compatibility requires that the computer's graphic card is VESA DDC2-compliant and that the monitor connects directly to the graphics card. Plug and Play does not work through separate BNC type connectors or through distribution buffers/boxes.

The Image Color Matching File

The .ICM files are data files that are used in conjunction with graphics programs to provide consistent color matching from monitor screen to printer, or from scanner to monitor screen. This file is activated from within graphics programs that support this feature.

NOTE: The ICM color profile is written in accordance with the International Color Consortium (ICC) Profile Format specification.

Installing the .INF and .ICM Files

After you determine that you need to update, you can install the .INF and .ICM files from the CD or download them.

Installing from the CD

To install the .INF and .ICM files on the computer from the CD:

1. Insert the CD in the computer CD-ROM drive. The CD menu is displayed.
2. View the Monitor Driver Software Readme file.
3. Select Install Monitor Driver Software.
4. Follow the on-screen instructions.
5. Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.

NOTE: You may need to install the digitally signed monitor .INF and .ICM files manually from the CD in the event of an installation error. Refer to the Monitor Driver Software Readme file on the CD.

Downloading from the Worldwide Web

To download the latest version of .INF and .ICM files from the HP monitors support Web site:

1. Refer to http://www.hp.com/support and select the country region.
2. Follow the links for the monitor to the support page and download page.
3. Ensure the system meets the requirements.
4. Download the software by following the instructions.

Using the Auto-Adjustment Function

You can optimize the screen performance for the VGA (analog) input by using the -/Auto button on the monitor and the auto-adjustment pattern software utility on the CD provided.

Do not use this procedure if the monitor is using a DVI input. If the monitor is using a VGA (analog) input, this procedure can correct the following image quality conditions:

• Fuzzy or unclear focus - Ghosting, streaking or shadowing effects - Faint vertical bars • Thin, horizontal scrolling lines • An off-center picture

To use the auto-adjustment feature:

1. Allow the monitor to warm up for 20 minutes before adjusting.
2. Press the -/Auto button on the monitor front panel.

- You can also press the Menu button, then select Image Control from the OSD Main Menu. Refer to Adjusting the Monitor Settings on page 25 in this chapter.

- If the result is not satisfactory, continue with the procedure.

1. Insert the CD in the disc drive. The CD menu is displayed.
2. Select Open Auto-Adjustment Software. The setup test pattern is displayed.
3. Press the -/Auto button on the monitor front panel to produce a stable, centered image.
4. Press the ESC key or any other key on the keyboard to exit the test pattern.

Front Panel Controls

Table 4-1 Monitor Front Panel Controls

Control Function
1 Menu opens, selects or exits the OSD menu.
2 Minus auto	If the OSD menu is on, press to navigate backward through the OSD menu and decrease adjustment levels.If the OSD menu is inactive, press to activate the auto adjustment feature to optimize the screen image.
3 Plus input	Navigates forward through the OSD menu and increases adjustment levels.When the OSD menu is inactive, an Input button chooses the video input signal input, VGA or DVI (select models have input select function).
4 Power LED Green = Fully powered.
	Amber = Sleep mode.Flashing Amber = Sleep Timer mode.
5 Power turns the monitor on or off.

Adjusting the Monitor Settings

The monitor settings can be adjusted from the On-Screen Display (OSD) menu or from the HP Display Assistant utility.

Using the On-Screen Display Menu

Use the On-Screen Display (OSD) to adjust the screen image based on your viewing preferences. To access the OSD, do the following:

1. If the monitor is not already on, press the Power button to turn on the monitor.
2. To access the OSD Menu, press the Menu button on the monitor's front panel.

1. To navigate through the OSD Menu, press the + (Plus) button on the monitor's front panel to scroll up, or the - (Minus)/Auto button to scroll in reverse.
2. To select an item from the OSD Menu, use the + or - buttons to scroll to and highlight your selection, then press the Menu button to select that function.
3. Adjust the item using the + or - buttons on the front panel to adjust the scale.
4. After adjusting the function, select Save and Return, or Cancel if you don't want to save the setting, then select Exit from the Main Menu.

NOTE: If the buttons remain untouched for 10 seconds while displaying a menu, new adjustments will be discarded and the settings will revert to previous settings and exit the menu.

OSD Menu Selections

The following table lists the On-Screen Display (OSD) menu selections and their functional descriptions. After changing an OSD menu item, and if the menu screen has these options, you may choose to:

• Cancel—to return to the previous menu level.
• Save and Return—to save all changes and return to the OSD Main Menu screen. This Save and Return option is only active if you change a menu item.

Table 4-2 OSD Menu

Icon Main Menu Submenu Description
	Brightness	Adjustable scale	Adjusts the brightness level of the screen. The factory default range is 90.
	Contrast	Adjustable scale	Adjusts the contrast level of the screen. The factory default range is 80.
	Volume (select models with internal speakers)	Adjusts the monitor's speaker volume level. The factory default range is 50.
	Image Control Adjusts the screen image. (VGA input only)
	Auto Adjustment Automatically adjusts the screen image.
	Horizontal Position Adjusts the position of the screen image left and right.
	Vertical Position Adjusts the position of the screen image up and down.
	Custom Scaling (select models)	Selects the method on how displayed information on the monitor will be formatted. Select:Fill to Screen - image fills the entire screen and may look distorted or elongated because of non-proportional scaling of height and widthFill to Aspect Ratio - image is sized to fit the screen and maintains proportional imageOne-to-one (select models) - disables video scaling, displays an image that is smaller in size than the monitor's capability and centers the image on the screen in the active viewing area
	Sharpness (select models)	Adjusts the screen image to look sharper or soft.NOTE: If the one-to-one custom scaling menu is selected, scaling is disabled and the sharpness feature will also be disabled.
[K76S]	Clock Minimizes any vertical bars or strips visible on the screen background. Adjusting the Clock will also change the horizontal screen image.
	Clock Phase Adjusts the focus of the display. This adjustment allows you to remove any horizontal noise and clear or sharpen the image of characters.
	Color	Selects the screen color. The factory default is 6500K or Custom Color, depending on the model.

Table 4-2 OSD Menu (continued)

Icon Main Menu Submenu Description
	9300 K Changes to slightly blueish white.
	6500 K Changes to slightly reddish white.
	Custom Color Selects and adjusts your own color scales:R—sets your own red color levelsG—sets your own green color levelsB—sets your own blue color levels
	sRGB Sets your screen colors to adapt to the color standards used in the image technology industry.
	Language Selects the language in which the OSD menu is displayed. The factory default is English.
	Management Selects the OSD and power management features of the monitor.
	OSD Control Adjusts the position of the OSD menu screen to:Horizontal OSD Position-Changes the viewing position of the OSD menu to the left or right area of the screen. The factory default range is 50.Vertical OSD Position-Changes the viewing position of the OSD menu to the top or bottom area of the screen. The factory default range is 50.OSD Transparency-Adjust to view the background information through the OSDOSD Timeout-Sets the time duration in seconds that the OSD is visible after the last button is pressed. The factory default is 30 seconds.OSD Rotation (select models)-Rotates the OSD Menu to support pivot function.
	Power Saver Enables the power saving feature. Select:OnOffThe factory default is On.
	Power On Recall Restores power to the monitor following an unexpected removal of power. Select:OnOffThe factory default is On.
	Mode Display Displays the resolution, refresh rate and frequency information on the screen each time the OSD Main Menu is accessed. Select:OnOff

Table 4-2 OSD Menu (continued)

Icon Main Menu Submenu Description
		Depending on monitor model, factory default is On or Off.
	Power-On Status Display	Displays the operating status of the monitor each time the monitor is powered on. Select the location to display the status to:TopMiddleBottomOffThe factory default is Top.
	DDC/CI Support Allows the computer to control some OSD menu features such as brightness, contrast and color temperature. Set to:OnOffThe factory default is On.
	Bezel Power LED	Turns off the power LED on the front panel of the monitor. The factory default is On.
	Sleep Timer Provides the timer adjustment menu options:Set Current Time—sets the current time in hours and minutesSet Sleep Time—sets the time you want to place the monitor in sleep modeSet on Time—sets the time you want the monitor to wake up from sleep modeTimer—sets the Sleep Timer feature On or Off. The default setting is Off.Sleep Now—immediately sets the monitor to enter sleep mode
	Video Input Control (select models)	Selects the video input signal. DVI is the factory default.
	Switch Video Input	Selects the other (VGA or DVI) video input signal. Default is DVI.
	Auto-Switch Input	Turns the system's automatic video signal input to on or off. The factory default is On.
	Default	Video Inputthe monitor is connected to two active and valid video sources. The monitor will automatically determine the video format. The default input selection is DVI.Analog — VGA — Selects VGA input.

Table 4-2 OSD Menu (continued)

Icon Main Menu Submenu Description
	Digital — DVI — Selects DVI input.
Information Selects and displays important information about the monitor.
Current Settings Provides the current input video mode.
Recommended Settings	Provides the recommended resolution mode and refresh rate for the monitor.
Serial Number Reports the serial number of the monitor. The serial number is needed if contacting HP technical support.
Version Reports the firmware version of the monitor.
Backlight Hours Reports the total hours of backlight operation.
Service Support: http://www.hp.com/support
Factory Reset Returns all OSD menu settings and DDC/CI controlsto the factory default settings, except the Language.
Exit Exits the OSD menu screen.

Optimizing Digital Conversion

Two controls in the on-screen display can be adjusted to improve image performance: Clock and Clock Phase.

NOTE: The Clock and Clock Phase controls are adjustable only when using an analog input. These controls are not adjustable for digital inputs.

The Clock must first be set correctly since the Clock Phase settings are dependent on the main Clock setting. Use these controls only when the auto-adjustment function does not provide a satisfactory image.

• Clock—Increases/decreases the value to minimize any vertical bars or stripes visible on the screen background.
• Clock Phase—Increases/decreases the value to minimize video distortion or video jitter.

NOTE: When using the controls, you will obtain the best results by using the auto-adjustment pattern software utility provided on the CD.

When adjusting the Clock and Clock Phase values, if the monitor images become distorted, continue adjusting the values until the distortion disappears. To restore the factory settings, select Yes from the Factory Reset menu in the on-screen display.

Using the HP Display Assistant Utility

HP Display Assistant, included on the software and documentation CD, is a software utility that guides you through the tuning process with easy to understand instructions and background patterns designed for each monitor control. It provides:

• Accurate screen calibration through the use of step-by-step instruction Wizards to obtain the best overall image quality.
• Software control of the monitor image and color settings to eliminate dependence on the monitor's front panel buttons and On-Screen Display (OSD) menu.
• Defined preset display settings for each individual user in a multi-user environment. • Multiple preset display settings for a single user based on content and ambient lighting.
• Asset Management and Power Management capabilities that include remote control for individual or a group of displays on the domain from a centralized console application.

The HP Display Assistant Utility has two modes of operation: Wizard and OSD mode. The preferred method of use is Wizard mode, which takes you through a step-by-step process to accurately calibrate the monitor. This method relies on a sequence of steps that will obtain the best display results when completed.

NOTE: Refer to the HP Display Assistant user guide for additional information about the software.

Identifying Monitor Conditions

Special messages will appear on the monitor screen when identifying the following monitor conditions:

• Input Signal Out of Range—Change resolution setting to 1280 x 1024 – 60Hz—Indicates the monitor does not support the input signal because the resolution and/or refresh rate are set higher than the monitor supports (models L1950/L1950g, L1750, L1910 and L1710).
• Input Signal Out of Range—Change resolution setting to 1440 x 900 – 60Hz—Indicates the monitor does not support the input signal because the resolution and/or refresh rate are set higher than the monitor supports (models L1908w, L1908wm, L1945w, and L1945wv).
• Input Signal Out of Range—Change resolution setting to 1680 x 1050 – 60Hz—Indicates the monitor does not support the input signal because the resolution and/or refresh rate are set higher than the monitor supports (models L2208w and L2245w/L2245wg).
• Input Signal Out of Range—Change resolution setting to 1920 x 1200 – 60Hz—Indicates the monitor does not support the input signal because the resolution and/or refresh rate are set higher than the monitor supports (model L2445w).
• No Input Signal—Indicates the monitor is not receiving a video signal from the PC on the monitor video input connector. Check to determine if the PC or input signal source is off or in the power saving mode.
• Multiple Inputs are Active—Use the OSD to select the desired video input—(select models) Indicates the monitor is connected to two video inputs. The monitor is trying to display both inputs, but after 10 seconds the monitor uses the default signal input. • Auto Adjustment in Progress—Indicates the auto-adjustment function is active. • Monitor Going to Sleep—Indicates the screen display is entering a sleep mode.
• Check Video Cable—Indicates the video cable is not properly connected to the computer.
• OSD Lockout—The OSD can be enabled or disabled by pressing and holding the Menu button on the front panel for 10 seconds. If the OSD is locked, the warning message OSD Lockout displays for ten seconds. If the OSD is locked, press and hold the Menu button for 10 seconds to unlock the OSD. If the OSD is unlocked, press and hold the Menu button for 10 seconds to lock the OSD.
• Power Button Lockout—Indicates the power button is locked. If the power button is locked, the warning message Power Button Lockout displays. If the power button is locked, press and hold the power button for 10 seconds to unlock the power button function. If the power button is unlocked, press and hold the power button for 10 seconds to lock out the power button function.

Sleep Timer Mode

The Sleep Timer mode is an energy-saving feature that enables you to set a time for the monitor to power on and off at the same time every day. This also extends the life of the backlight bulbs in the monitor. The Sleep Timer has five settings:

Set Current Time Set Sleep Time Set On Time Timer: On/Off Sleep Now

To set the timer:

1. Press the Menu button on the monitor front panel to display the OSD Menu.
2. Scroll down and highlight Management.
3. Press the Menu button to select Management.
4. Scroll down and highlight and select Sleep Timer > Set Current Time.

NOTE: You must set the current local time before you reset the time for Sleep Time or On Time. Note that the time is displayed in a 24-hour clock format. For example, 1:15 p.m. is displayed as 13 hours 15 minutes.

A power failure or loss of power to the monitor will cause the timer to reset to 00:00. If this occurs, you will need to reset the sleep timer mode.

1. Press the Menu button once to enter the adjustment mode for hours.
2. Press the - (Minus) or + (Plus) button to adjust the hour.
3. Press the Menu button again to enter the time for minutes.
4. Press the - (Minus) or + (Plus) button to adjust the minutes.
5. Press the Menu button to lock in the time chosen.
6. After setting the current time, the highlight automatically skips to Set Sleep Time hours. Repeat steps 6 through 9 to set Sleep Time.
7. If you do not want to set Sleep Time, press the Menu button twice, then select Save and Return to exit the menu.
8. After setting Sleep Time, the highlight automatically skips to Set On Time hours. Repeat steps 6 through 9 to set On Time.
9. Set the Timer mode to On to activate the Sleep Timer settings.
10. When you are finished, select Save and Return to exit the menu.

The fifth selection, Sleep Now, turns the monitor backlights off immediately and stays in sleep mode until the next On Time activates or a monitor button is pressed.

HP Display LiteSaver is a software application, available on the CD, that increases monitor life and saves energy. It allows you to place the monitor into its low power sleep mode at predefined times by shutting down or reducing power to most internal circuits. This helps protect the LCD panel against image retention. Image retention can occur when the monitor is left on while displaying the same image for an extended period of time, leaving a shadow of the image on the screen.

Installing the HP Display LiteSaver Software

1. Insert the CD in the computer CD-ROM Drive. The CD menu is displayed.
2. Select Install HP Display LiteSaver Software.
3. Select the following options to configure the HP Display LiteSaver features:
4. After installing the software, click the HP Display LiteSaver icon in the Windows system tray or right-click the icon and select Configure from the pop-up menu.

Table 4-3 HP Display LiteSaver Configuration Options

Select This Option To Do This
Enable Display LiteSaver	Enables the HP Display LiteSaver functions; deselect to disable the HP Display LiteSaver.
Display Off	Sets the time when the monitor automatically turns off. This does not affect screen saver operation, which has priority over the HP Display LiteSaver.
Display On	Sets the time when the monitor automatically turns on. This does not affect screen saver operation, which has priority over the HP Display LiteSaver.
Activity Extension	Sets the time in minutes before the monitor turns off if there is any keyboard or mouse activity after the Display Off time is reached. If the keyboard or mouse is used, then HP Display LiteSaver waits until the set amount of time before turning the display off again. Set to 0 to disable. If disabled, the monitor will turn off as soon as the Display Off time is reached, regardless of keyboard or mouse activity.
Show 1 minute Display Off Notice	Displays a popup message in the system tray 1 minute before the monitor is turned off by HP Display LiteSaver.
Status	Shows the time until the monitor is next due to be turned off by HP Display LiteSaver.
OK	Stores the current settings and minimizes HP Display LiteSaver to the System Tray.
Cancel Restores the previous settings and minimizes HP Display LiteSaver to the System Tray. HP Display LiteSaver will continue to run.
Help Opens the online help file.
Exit	Exits and closes the HP Display LiteSaver. It will no longer control the monitor power until it is next run.

View HP Display LiteSaver Readme on the CD for additional information on how to configure HP Display LiteSaver.

sRGB Support

The monitor is designed to support sRGB for color management, which adapts to the color standards used in the image technology industry.

To take advantage of the sRGB support, you will need to change the monitor's color temperature to sRGB and install the sRGB color profile (ICM) file.

NOTE: The sRGB color temperature preset will improve the color accuracy of sRGB images on the computer monitor, but some color variation may still occur.

Changing the Color Temperature

1. Press the Menu button on the front panel of the monitor to launch the Main Menu of the OSD.
2. Select Color.
3. Select sRGB.
4. Select Save and Return to exit the menu.

Installing the sRGB ICM File for Microsoft Windows 2000 and Windows XP

NOTE: To complete the following procedure, you must be logged in as an administrator or a member of the administrator's group. If the computer is connected to a network, network policy settings may prevent you from completing this procedure. The sRGB ICM file does not support Windows 95 and Windows NT operating systems.

1. Click the Display icon in the Control Panel.
2. In the Display Properties windows, select the Settings tab, then click the Advanced button.
3. Select the Color Management tab, then click the Add button to open the Add Profile Association dialog box.
4. Select the sRGB Color Space Profile.icm file, then click the Add button
5. To activate a color profile for the monitor, you must set it as the Default Monitor Profile. Select sRGB Color Space Profile, then click Set as Default button.
6. Click Apply or OK.

Installing the sRGB ICM File for Microsoft Windows Vista

1. Click Appearance and Personalization icon in the Control Panel.
2. Click Personalization.
3. Click Display Settings.
4. Click the Advanced Settings button.
5. Click the Color Management tab, then click the Color Management button.
6. Click the Advanced tab, then click the Change System Defaults button.
7. On the Devices tab, click the Add button.
8. Select the RGB Color Space Profile.icm file, then click the OK button.
9. To activate a color profile for the monitor, you must set it as the Default Monitor Profile. Select sRGB Color Space Profile, then click the Set as Default button.

A Troubleshooting

Solving Common Problems

The following table lists possible problems, the possible cause of each problem, and the recommended solutions.

Problem Possible Cause Solution
Screen is blank.	Power cord is disconnected.	Connect the power cord.
	Power button on front panel of the monitor is turned off.	Press the front panel power button.NOTE:If pressing the power button has no effect, press and hold the power button for 10 seconds to disable the power button lockout feature.
	Video cable is improperly connected.	Connect the video cable properly. Refer to Chapter 3,Setting Up the Monitor on page 5for more information.
	Screen blanking is active. Press any key on the keyboard or move the mouse to inactivate the screen blanking utility.
Screen image appears distorted; text is fuzzy or blurred; image quality is degraded.	The computer's graphics card resolution is set lower or higher than the monitor's native resolution.	Set the computer's display resolution to the same mode as the monitor's recommended native screen resolution to provide the best picture quality.
Image appears blurred, indistinct, or too dark.	Brightness and contrast are too low.	Press the—/Adjustbutton on the front panel. If this does not correct the image, press theMenubutton to open the OSD Menu, and adjust the brightness and contrast scales as needed.
Image is not centered	Position may need adjustment.	Press theMenubutton to access the OSD menu. Select Image Control/Horizontal Position or Vertical Positionto adjust the horizontal or vertical position of the image.
Check Video Cableis displayed on screen.	Monitor video cable is disconnected.	Connect the DVI-D signal cable to the DVI connector on the computer (select models), or the VGA cable to the VGA connector on the computer. Be sure that the computer power is off while connecting the video cable.
Input Signal Out of Range. Change Settings to 1280 x 1024 @ 60Hz (17" and 19" 5:4 models) OR Input Signal Out of Range. Change Settings to 1440 x 900 @ 60Hz (19" wide panel models) OR Input Signal Out of Range. Change Settings to 1680 x 1050 @ 60Hz (22" wide panel models)	Video resolution and/or refresh rate are set higher than what the monitor supports.	Restart the computer and enter Safe Mode. Change the settings to a supported setting (seeRecognizing Preset Display Resolutions on page 49). Restart the computer so that the new settings take effect.

Problem Possible Cause Solution

OR Input Signal Out of Range.Change settings to 1920 x 1200 @ 60Hz (24-inch wide panel models) is displayed on screen.
HP Display LiteSaver doesn't turn off the monitor screen.	The Activity Extension time has not elapsed.	The default Activity Extension value is set to 10 minutes. The HP Display LiteSaver will wait to detect no input or movement from the keyboard or mouse for 10 consecutive minutes after the Display Off time has passed, before the monitor enters into low-power mode. For example, if the Display Off time is set to 5 minutes from the current time and the Activity Extension is set to 10 minutes, the HP Display LiteSaver will not actually turn off the display until 10 minutes of inactivity has elapsed, even though the Display Off time is 5 minutes from now.
	The HP Display LiteSaver may not be compatible with the computer system. Some notebook computers are not compatible and the monitor power can not be controlled.	Confirm that the HP Display LiteSaver is compatible with the system.1. Right-click on the HP Display LiteSaver icon in the system tray.2. Select Power Off Display from the menu.The monitor screen should turn off if the system is compatible. To turn the monitor back on, wait 5 seconds and move the mouse.NOTE: If the monitor did not turn off, then the computer graphics driver is not compatible with the HP Display LiteSaver software.
The monitor is off but it did not seem to enter into a low-power sleep mode.	The monitor's power saving control is disabled.	Check the monitor's OSD menu setting for power saving enable/disable controls. The control should be set to enable to allow the monitor to enter into low-power modes.
OSD Lockout is displayed. The monitor's OSD Lockout function is enabled.		Press and hold the Menu button for 10 seconds to disable the OSD Lockout function.
Power Button Lockout is displayed. The monitor's Power Button Lockout function is enabled.		Press and hold the power button for 10 seconds to unlock the power button function.

Using the Worldwide Web

For online access to technical support information, self-solve tools, online assistance, community forums of IT experts, broad multivendor knowledge base, monitoring and diagnostic tools, go to http://www.hp.com/support

Preparing to Call Technical Support

If you cannot solve a problem using the troubleshooting tips in this section, you may need to call technical support. Have the following information available when you call:

The monitor • Monitor model number - Serial number for the monitor • Purchase date on invoice • Conditions under which the problem occurred • Error messages received • Hardware configuration • Hardware and software you are using

B Technical Specifications

NOTE: All performance specifications are provided by the component manufacturers. Performance specifications represent the highest specification of all HP's component manufacturers' typical level specifications for performance and actual performance may vary either higher or lower.

L1750 Model

Table B-1 L1750 Specifications

Display	43.2 cm	17 inches
Type	TFT LCD
Viewable Image Size 43.2 cm diagonal 17-inch diagonal
Tilt -5 to 35°
Swivel -45 to 45°
Maximum Weight (Unpacked) 6.8 kg 15 lbs.
Dimensions (include base)
Height	47.2 cm	18.59 inches
Depth	30.1 cm	11.86 inches
Width	37.7 cm	14.85 inches
Maximum Graphic Resolution 1280 × 1024 (75 Hz) analog input
	1280 × 1024 (75 Hz) digital input (select models)
Optimum Graphic Resolution 1280 x 1024 (60Hz) analog input
	1280 x 1024 (60Hz) digital input (select models)
Text Mode 720 × 400
Dot Pitch 0.264 (H) × 0.264 (W) mm
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 77 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 35°C	41 to 95°F
Storage Temperature	-33 to +60°C	-29 to 140°F
Relative Humidity 20 to 80%
Power Source 100 – 240 VAC, 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet
Power Consumption (maximum) <40 watts
Input Terminal One VGA connector with cable included;one DVI connector with cable included

L1950/L1950g Model

Table B-2 L1950/L1950g Specifications

Display	48.3 cm	19 inches
Type	TFT LCD
Viewable Image Size 48.3 cm diagonal 19-inch diagonal
Tilt -5 to 35°
Swivel -45 to 45°
Maximum Weight (Unpacked) 7.4 kg 16.3 lbs.
Dimensions (include base)
Height	50.3 cm	19.8 inches
Depth	30.1 cm	11.9 inches
Width	41.4 cm	16.3 inches
Maximum Graphic Resolution 1280 × 1024 (75 Hz) analog input
	1280 × 1024 (75 Hz) digital input (select models)
Optimum Graphic Resolution	1280 × 1024 (60Hz) analog input
	1280 × 1024 (60Hz) digital input (select models)
Text Mode	720 × 400
Dot Pitch	0.294 (H) × 0.294 (W) mm
Horizontal Frequency	24 to 83 kHz
Vertical Refresh Rate	50 to 77 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 35°C	41 to 95°F
Storage Temperature	-33 to 60°C	-29 to 140°F
Relative Humidity 20 to 80%
Power Source 100 – 240 VAC, 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet
Power Consumption (maximum) <44 watts
Input Terminal One VGA connector with cable included;one DVI connector with cable included

L1710 Model

Table B-3 L1710 Specifications

Display	43.2 cm	17 inches
Type	TFT LCD
Viewable Image Size 43.2 cm diagonal 17-inch diagonal
Tilt -5 to 25°
Maximum Weight (Unpacked) 4.5 kg 9.9 lbs.
Dimensions (include base)
Height	38.6 cm	15.2 inches
Depth	19.2 cm	7.56 inches
Width	37.7 cm	14.9 inches
Maximum Graphic Resolution 1280 × 1024 (75 Hz) analog input
Optimum Graphic Resolution 1280 x 1024 (60Hz) analog input
Text Mode 720 × 400
Dot Pitch 0.264 (H) × 0.264 (W) mm
Horizontal Frequency	24 to 83 kHz
Vertical Refresh Rate	50 to 77 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 35°C	41 to 95°F
Storage Temperature	-33 to +60°C	-29 to 140°F
Relative Humidity	20 to 80%
Power Source 100 – 240 VAC, 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet

Table B-3 L1710 Specifications (continued)

Power Consumption (maximum) <45 watts

Input Terminal One VGA connector with cable included

L1910 Model

Table B-4 L1910 Specifications

Display	48.3 cm	19 inches
Type	TFT LCD
Viewable Image Size 48.3 cm diagonal 19-inch diagonal
Tilt -5 to 25°
Maximum Weight (Unpacked) 4.9 kg 10.8 lbs.
Dimensions (include base)
Height	41.6 cm	16.4 inches
Depth	19.2 cm	7.56 inches
Width	41.4 cm	16.3 inches
Maximum Graphic Resolution 1280 × 1024 (75 Hz) analog input
Optimum Graphic Resolution 1280 x 1024 (60Hz) analog input
Text Mode 720 × 400
Dot Pitch 0.294 (H) × 0.294 (W) mm
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 77 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 35°C	41 to 95°F
Storage Temperature	-33 to 60°C	-29 to 140°F
Relative Humidity	20 to 80%
Power Source	100 – 240 VAC, 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet
Power Consumption (maximum)	<47 watts
Input Terminal	One VGA connector with cable included

Table B-5 L1908w Specifications

Display	48.3 cm wide screen	19 inches wide screen
Type	TFT LCD
Viewable Image Size 48.3 cm diagonal 19-inch diagonal
Tilt -5 to 25°
Maximum Weight (Unpacked) 5.1 kg 11.2 lbs.
Dimensions (include base)
Height	37.0 cm	14.58 inches
Depth	18.7 cm	7.35 inches
Width	44.6 cm	17.56 inches
Maximum Graphic Resolution 1440 x 900 (75 Hz) analog input
Optimum Graphic Resolution 1440 x 900 (60Hz) analog input
Text Mode 720 × 400
Dot Pitch 0.2835 (H) × 0.2835 (W) mm
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 76 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 40°C	41 to 104°F
Storage Temperature	-33 to 60°C	-29 to 140°F
Relative Humidity 20 to 80%
Power Source 100 – 240 VAC, 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet
Power Consumption (maximum)	<47 watts
Input Terminal	One VGA connector with cable included

Table B-6 L1908wm Specifications

Display	48.3 cm wide screen	19 inches wide screen
Type	TFT LCD
Viewable Image Size 48.3 cm diagonal 19-inch diagonal
Tilt -5 to 25°
Maximum Weight (Unpacked) 5.1 kg 11.2 lbs.
Dimensions (include base)
Height	37.0 cm	14.58 inches
Depth	18.7 cm	7.35 inches
Width	44.6 cm	17.56 inches
Maximum Graphic Resolution 1440 x 900 (75 Hz) analog input
Optimum Graphic Resolution 1440 x 900 (60Hz) analog input
Text Mode 720 × 400
Dot Pitch 0.2835 (H) × 0.2835 (W) mm
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 76 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 40°C	41 to 104°F
Storage Temperature	-33 to 60°C	-29 to 140°F
Relative Humidity 20 to 80%
Power Source	100 – 240 VAC, 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet
Power Consumption (maximum)	<55 watts
Audio	Internal speakers, 2W per channel; audio cable included
Input Terminal	One VGA connector with cable included; one DVI connector

Table B-7 L1945w Specifications

Display	48.3 cm wide screen	19 inches wide screen
Type	TFT LCD
Viewable Image Size 48.3 cm diagonal 19-inch diagonal
Tilt -5 to 35°
Swivel -45 to 45°
Maximum Weight (Unpacked) 6.8 kg 15.0 lbs.
Dimensions (include base)
Height	45.65 cm	17.97 inches
Depth	30.12 cm	11.86 inches
Width	44.6 cm	17.56 inches
Maximum Graphic Resolution 1440 x 900 (75 Hz) analog input
1440 x 900 (75 Hz) digital input
Optimum Graphic Resolution 1440 x 900 (60Hz) analog input
1440 x 900 (60Hz) digital input
Text Mode 720 × 400
Dot Pitch 0.2835 (H) × 0.2835 (W) mm
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 76 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 35°C	41 to 95°F
Storage Temperature	-33 to 60°C	-29 to 140°F
Relative Humidity 20 to 80%
Power Source 100 – 240 VAC 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet
Power Consumption (maximum)	<47 watts
Input Terminal	One VGA connector with cable included; one DVI connector

Table B-8 L1945wv Specifications

Display	48.3 cm wide screen	19 inches wide screen
Type	TFT LCD
Viewable Image Size 48.3 cm diagonal 19-inch diagonal
Tilt -5 to 35°
Swivel -45 to 45°
Maximum Weight (Unpacked) 6.8 kg 15.0 lbs.
Dimensions (include base)
Height	45.65 cm	17.97 inches
Depth	30.12 cm	11.86 inches
Width	44.6 cm	17.56 inches
Maximum Graphic Resolution 1440 x 900 (75 Hz) analog input
1440 x 900 (75 Hz) digital input
Optimum Graphic Resolution 1440 x 900 (60Hz) analog input
1440 x 900 (60Hz) digital input
Text Mode 720 × 400
Dot Pitch 0.2835 (H) × 0.2835 (W) mm
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 76 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 35°C	41 to 95°F
Storage Temperature	-33 to 60°C	-29 to 140°F
Relative Humidity 20 to 80%
Power Source	100 – 240 VAC, 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet
Power Consumption (maximum)	<47 watts
Input Terminal	One VGA connector with cable included

Table B-9 L2208w Specifications

Display	55.9 cm wide screen	22 inches wide screen
Type	TFT LCD
Viewable Image Size 55.9 cm diagonal 22-inch diagonal
Tilt -5 to 25°
Maximum Weight (Unpacked) 5.44 kg 12.0 lbs.
Dimensions (include base)
Height	39.3 cm	15.47 inches
Depth	11.6 cm	4.57 inches
Width	51.5 cm	20.28 inches
Maximum Graphic Resolution 1680 x 1050 (75 Hz) analog input
1680 x 1050 (75 Hz) digital input
Optimum Graphic Resolution 1680 x 1050 (60Hz) analog input
1680 x 1050 (60Hz) digital input
Text Mode 720 × 400
Dot Pitch 0.2835 (H) × 0.2835 (W) mm
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 76 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 40°C	41 to 104°F
Storage Temperature	-33 to +60°C	-29 to 140°F
Relative Humidity 20 to 80%
Power Source 100 – 240 VAC, 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet
Power Consumption (maximum)	<57 watts
Input Terminal	One VGA connector with cable included

Table B-10 L2245w/L2245wg Specifications

Display	55.9 cm wide screen	22 inches wide screen
Type	TFT LCD
Viewable Image Size 55.9 cm diagonal 22-inch diagonal
Tilt -5 to 35°
Swivel -45 to 45°
Maximum Weight (Unpacked) 7.6 kg 16.76 lbs.
Dimensions (include base)
Height	34.5 cm	13.58 inches
Depth	16.0 cm	6.3 inches
Width	53.7 cm	21.14 inches
Maximum Graphic Resolution 1680 x 1050 (75 Hz) analog input
1680 x 1050 (75 Hz) digital input
Optimum Graphic Resolution 1680 x 1050 (60Hz) analog input
1680 x 1050 (60Hz) digital input
Text Mode 720 × 400
Dot Pitch 0.282 (H) × 0.282 (W) mm
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 76 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 40°C	41 to 104°F
Storage Temperature	-33 to 60°C	-29 to 140°F
Relative Humidity 20 to 80%
Power Source	100 – 240 VAC, 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet
Power Consumption (maximum)	<65 watts
Input Terminal	One VGA connector with cable included; one DVI connector

Table B-11 L2445w Specifications

Display	60.96 cm wide screen	24 inches wide screen
Type	TFT LCD
Viewable Image Size 60.96 cm diagonal 24-inch diagonal
Tilt -5 to 35°
Swivel -45 to 45°
Maximum Weight (Unpacked) 9.8 kg 28.21 lbs.
Dimensions (include base)
Height	39.66 cm	15.61 inches
Depth	30.1 cm	11.85 inches
Width	56.55 cm	22.26 inches
Maximum Graphic Resolution 1920 x 1200 (60 Hz) analog input
1920 x 1200 (60 Hz) digital input
Optimum Graphic Resolution 1920 x 1200 (60Hz) analog input
1920 x 1200 (60Hz) digital input
Text Mode 720 × 400
Dot Pitch 0.270 (H) × 0.270 (W) mm
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 50 to 76 Hz
Environmental Requirements Temperature
Operating Temperature	5 to 40°C	41 to 104°F
Storage Temperature	-20 to 60°C	-4 to 140°F
Relative Humidity 20 to 80%
Power Source	100 – 240 VAC, 50/60 Hz
Altitude:
Operating	0 to 3657.6 m	0 to 12,000 feet
Storage	0 to 12192 m	0 to 40,000 feet
Power Consumption (maximum)	<120 watts
Input Terminal	One VGA connector with cable included;one USB connector with cable included;one DVI-D connector with cable included;other inputs available

Recognizing Preset Display Resolutions

The display resolutions listed below are the most commonly used modes and are set as factory defaults. This monitor automatically recognizes these preset modes and they will appear properly sized and centered on the screen.

L1750, L1950/L1950g, L1710, and L1910 Models

Table B-12 Factory Preset Modes

Preset	Pixel Format	Horz Freq (kHz)	Vert Freq (Hz)
1 640 × 480 31.5 60.0
2 640 × 480 37.9 72.0
3 640 × 480 37.5 75.0
4 720 × 400 31.5 70.0
5 800 × 600 37.9 60.0
6 800 × 600 48.1 72.0
7 800 × 600 46.9 75.0
8 832 × 624 49.7 75.0
9 1024 × 768 48.4 60.0
10 1024 × 768 56.5 70.0
11 1024 × 768 60.0 75.0
12 1152 × 870 68.7 75.0
13 1152 × 900 71.7 76.0
14 1280 × 1024 64.0 60.0
15 1280 × 1024 80.0 75.0

L1908w, 1908wm, L1945w, and L1945wv Models

Table B-13 Factory Preset Modes

Preset	Pixel Format	Horz Freq (kHz)	Vert Freq (Hz)
1 640 × 480 31.5 59.9
2 640 × 480 37.5 75.0
3 720 × 400 31.5 70.1
4 800 × 600 37.9 60.3
5 800 × 600 46.9 75.0
6 832 × 624 49.7 74.5
7 1024 × 768 48.4 60.0

Table B-13 Factory Preset Modes (continued)

8 1024 × 768 60.0 75.0

9 1152 × 720 44.9 60.0

10 1152 × 870 68.7 75.1

11 1152 × 900 61.8 66.0

12 1280 × 768 47.4 60.0

13 1280 × 960 60.0 60.0

14 1280 × 1024 64.0 60.0

15 1280 × 1024 80.0 75.0

16 1440 × 900 55.9 59.9

L2208w and L2245w/L2245wg Models

Table B-14 Factory Preset Modes

Preset	Pixel Format	Horz Freq (kHz)	Vert Freq (Hz)
1 640 × 480 31.5 59.9
2 640 × 480 37.5 75.0
3 720 × 400 31.5 70.1
4 800 × 600 37.9 60.3
5 800 × 600 46.9 75.0
6 832 × 624 49.7 74.5
7 1024 × 768 48.4 60.0
8 1024 × 768 60.0 75.0
9 1152 × 870 68.7 75.1
10 1280 × 960 60.0 60.0
11 1280 × 1024 64.0 60.0
12 1280 × 1024 80.0 75.0
13 1440 × 900 55.9 59.9
14 1600 × 1000 61.6 60.0
15 1680 × 1050 65.3 60.0

Table B-15 Factory Preset Modes

Preset	Pixel Format	Horz Freq (kHz)	Vert Freq (Hz)
1 640 × 480 31.5 59.9
2 640 × 480 37.5 75.0
3 720 × 400 31.5 70.1
4 800 × 600 37.9 60.3
5 800 × 600 46.9 75.0
6 832 × 624 49.7 74.5
7 1024 × 768 48.4 60.0
8 1024 × 768 60.0 75.0
9 1152 × 870 68.7 75.1
10 1280 × 960 60.0 60.0
11 1280 × 1024 64.0 60.0
12 1280 × 1024 80.0 75.0
13 1440 × 900 55.9 59.9
14 1600 × 1000 61.6 60.0
15 1680 × 1050 65.3 60.0
16 1920 × 1200 74.0 59.9
17 1920 × 1200 74.5 59.9

Entering User Modes

The video controller signal may occasionally call for a mode that is not preset if:

• You are not using a standard graphics adapter. • You are not using a preset mode.

If this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display. Your changes can be made to any or all of these modes and saved in memory. The monitor automatically stores the new setting, then recognizes the new mode just as it does a preset mode. In addition to the factory preset modes, there are four user modes that can be entered and stored.

Energy Saver Feature

When the monitor is in its normal operating mode, the monitor uses less than 37 watts and the Power light is green.

The monitor also supports a reduced power state. The reduced power state will be entered into if the monitor detects the absence of either the horizontal sync signal and/or the vertical sync signal. Upon detecting the absence of these signals, the monitor screen is blanked, the backlight is turned off, and the power light is turned amber. When the monitor is in the reduced power state, the monitor will utilize less than 2 watts of power. There is a brief warm up period before the monitor will return to its normal operating mode.

Refer to the computer manual for instructions on setting energy saver features (sometimes called power management features).

NOTE: The above power saver feature only works when connected to computers that have energy saver features.

By selecting the settings in the monitor's Energy Saver utility, you can also program the monitor to enter into the reduced power state at a predetermined time. When the monitor's Energy Saver utility causes the monitor to enter the reduced power state, the power light blinks amber.

C Agency Regulatory Notices

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett Packard Company may void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Declaration of Conformity for Products Marked with the FCC Logo (United States Only)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

For questions regarding the product, contact:

Hewlett Packard Company

P. O. Box 692000, Mail Stop 530113

Houston, Texas 77269-2000

Or, call 1-800-HP-INVENT (1-800 474-6836)

For questions regarding this FCC declaration, contact:

Hewlett Packard Company

P. O. Box 692000, Mail Stop 510101

Houston, Texas 77269-2000

Or, call [phone]

To identify this product, refer to the Part, Series, or Model number found on the product.

Canadian Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Avis Canadien

European Union Regulatory Notice

This product complies with the following EU Directives:

• Low Voltage Directive 2006/95/EC • EMC Directive 2004/108/EC

Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for this product or product family.

This compliance is indicated by the following conformity marking placed on the product:

CE This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g. Bluetooth).	CE XXXX*
This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g. Bluetooth)	This marking is valid for EU non-harmonized Telecom products. *Notified body number (used only if applicable — refer to the product label).

Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany

German Ergonomics Notice

HP products which bear the "GS" approval mark, when forming part of a system comprising HP brand computers, keyboards and monitors that bear the "GS" approval mark, meet the applicable ergonomic requirements. The installation guides included with the products provide configuration information.

Japanese Notice

Power Cord Set Requirements

The monitor power supply is provided with Automatic Line Switching (ALS). This feature allows the monitor to operate on input voltages between 100–120V or 200–240V.

The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for use in the country where you purchased the equipment.

If you need to obtain a power cord for a different country, you should purchase a power cord that is approved for use in that country.

The power cord must be rated for the product and for the voltage and current marked on the product's electrical ratings label. The voltage and current rating of the cord should be greater than the voltage and current rating marked on the product. In addition, the cross-sectional area of the wire must be a minimum of 0.75 mm² or 18 AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact an authorized HP service provider.

A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the product.

Japanese Power Cord Requirements

For use in Japan, use only the power cord received with this product.

Product Environmental Notices

Energy Star Compliance

Monitors that are marked with the ENERGY STAR Logo meet the requirements of the U.S. Environmental Protection Agency (EPA) ENERGY STAR program. As an ENERGY STAR Partner, Hewlett Packard Company has determined that this product meets the ENERGY STAR guidelines for energy efficiency. Specific details on using the Energy Saving features can be found in the energy saver or power management section of the computer manual.

Materials Disposal

This HP product contains mercury in the fluorescent lamp in the display LCD that might require special handling at end-of-life.

Disposal of this material can be regulated because of environmental considerations. For disposal or recycling information, contact the local authorities or the Electronic Industries Alliance (EIA) http://www.eiae.org.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling or waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact the local city office, the household waste disposal service or the shop where you purchased the product.

Chemical Substances

HP is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European Parliament and Council). A chemical information report for this product can be found at http://www.hp.com/go/reach.

Restriction of Hazardous Substances (RoHS)

A Japanese regulatory requirement, defined by specification JIS C 0950, 2005, mandates that manufacturers provide Material Content Declarations for certain categories of electronic products offered for sale after July 1, 2006. To view the JIS C 0950 material declaration for this product, visit http://www.hp.com/go/jisc0950.

LCD Monitor Quality and Pixel Policy

The TFT monitor uses high-precision technology, manufactured according to HP standards, to guarantee trouble-free performance. Nevertheless, the display may have cosmetic imperfections that appear as small bright or dark spots. This is common to all LCD displays used in products supplied by all vendors and is not specific to the HP LCD. These imperfections are caused by one or more defective pixels or sub-pixels.

A pixel consists of one red, one green, and one blue sub-pixel. - A defective whole pixel is always turned on (a bright spot on a dark background), or it is always off (a dark spot on a bright background). The first is the more visible of the two. - A defective sub-pixel (dot defect) is less visible than a defective whole pixel and is small and only visible on a specific background.

To locate defective pixels, the monitor should be viewed under normal operating conditions, in normal operating mode at a supported resolution and refresh rate, from a distance of approximately 50 cm (20 in).

HP expects that, over time, the industry will continue to improve its ability to produce LCDs with fewer cosmetic imperfections, and HP will adjust guidelines as improvements are made.
