Toughbook CF-08 - Laptop PANASONIC - Free user manual and instructions

Product Type	Rugged Laptop
Brand	Panasonic
Model	Toughbook CF-08
Dimensions (L x W x H)	270 x 190 x 45 mm
Weight	2.3 kg
Screen	10.4-inch touchscreen, shock-resistant
Processor	Intel Core i5-7300U
RAM Memory	8 GB DDR4
Storage	256 GB SSD
Power Supply	19V, 2.1A AC adapter; 6-cell Li-Ion battery
Battery Life	Up to 8 hours
Operating System	Windows 10 Pro
Connectivity	Wi-Fi 802.11ac, Bluetooth 4.2, Ethernet, USB 3.0, HDMI
Main Features	Water and dust resistant rugged laptop, outdoor use, touchscreen and stylus
Maintenance and Cleaning	Clean with a soft, dry cloth; avoid solvents
Security	Kensington security slot, BIOS password, TPM 2.0
Spare Parts and Repairability	Replaceable battery and SSD; Panasonic technical support
General Information	3-year warranty; operating temperature: -20°C to 60°C

Frequently Asked Questions - Toughbook CF-08 PANASONIC

How to turn on the Toughbook CF-08?

Press the power button located on the upper right side of the screen. Hold for 2 seconds until the indicator lights up.

Can I use the Toughbook CF-08 in the rain?

Yes, the Toughbook CF-08 is rated IP65, making it water and dust resistant. It can be used in light rain, but avoid prolonged exposure.

How to replace the battery of the CF-08?

Turn off the device, unplug the AC adapter. Flip the laptop, slide the battery lock, and remove the old battery. Insert the new battery until it clicks.

Is the CF-08 compatible with a stylus?

Yes, the touchscreen is compatible with a passive stylus or an optional Panasonic active stylus. Use a fine-tip stylus for better accuracy.

What is the maximum RAM capacity?

The Toughbook CF-08 supports up to 16 GB of DDR4 RAM. You can upgrade by opening the memory compartment on the back of the device.

How to clean the screen of the CF-08?

Use a slightly damp (water) microfiber cloth to wipe the screen. Do not use harsh chemicals. Dry with a soft cloth.

Does the CF-08 have a fingerprint reader?

No, the standard CF-08 model does not include a fingerprint reader. Security is provided by BIOS password and TPM 2.0.

How to reset the Toughbook CF-08 to factory settings?

Go to Settings > Update & Security > Recovery. Choose Reset this PC and follow the instructions. Back up your data first.

What USB ports are available?

The CF-08 has two USB 3.0 Type-A ports and one USB 3.0 Type-C port. They allow connection of external peripherals.

Where to find spare parts for the CF-08?

Spare parts (battery, SSD, fan) are available from Panasonic customer service or authorized resellers. Visit the Panasonic Toughbook website.

USER MANUAL Toughbook CF-08 PANASONIC

Panasonic®

OPERATING INSTRUCTIONS

Wireless Display

Model No. CF-08

Contents

Getting Started

Introduction...... 2Read Me First...... 3Precautions...... 10

Description of Parts...... 14First-time Operation...... 17

Basic Operation

Starting Up/Shutting Down......29LCD (Touchscreen) ......33

Battery Power...... 36

Useful Information

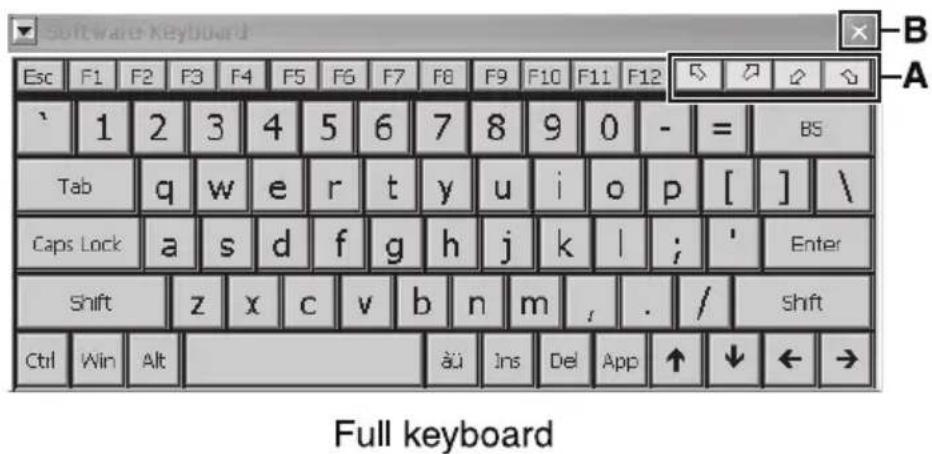

Buttons......38 Quick Menu......39 Software Keyboard ......41 Signature Capture......47

SD Memory Card......48 Bluetooth ......49 Control Panel......53 For Effective Use......54

Troubleshooting

Troubleshooting

55

Appendix

LIMITED USE LICENSE AGREEMENT...58Specifications......72

LIMITED WARRANTY...... 74

Thank you for purchasing this Panasonic wireless display. For optimum performance and safety, please read these instructions carefully.

■ Terms and illustrations in these instructions

CAUTION : Conditions that may result in minor or moderate injury.

NOTE : Useful and helpful information.

→ : Page in these Operating Instructions.

• Some illustrations are simplified to help your understanding and may look different from the actual unit. ● Refer to the catalogs, etc. for the latest information about optional products.

Copyright

This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.

No patent liability is assumed with respect to the use of the information contained herein.

© 2006 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.

■ Disclaimer

Wireless display specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the wireless display and the manuals.

Trademarks

Microsoft®, Windows® and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries.

SD Logo is a trademark.

Citrix® and ICA® protocol are registered trademarks of Citrix Systems, Inc.

Bluetooth™ is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Matsushita Electric Industrial Co., Ltd.

Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.

Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective own companies.

Information to the User

This product and your Health

This product, like other radio devices, emits radio frequency electromagnetic energy. However, the level of energy emitted by this product is far less than the electromagnetic energy emitted by wireless devices such as mobile phones.

Because this product operates within the guidelines found in radio frequency safety standards and recommendations, we believe it is safe for consumer use. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of this product may be restricted by the proprietor of the building or responsible representatives of the organization.

These situations may include, for example:

● Using this product on board airplanes, or in any other environment where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain about the policy that applies to the use of wireless devices in a specific organization or environment (e.g., airports), you are encouraged to ask for authorization to use this product before turning it on.

Regulatory Information

We are not responsible for any radio or television interference caused by unauthorized modification of this product. The correction of interference caused by such unauthorized modification will be the responsibility of the user. We and our authorized resellers or distributors are not liable for damage or violation of government regulations that may arise from failing to comply with these guidelines.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

Please dispose of this item only in designated national waste electronic collection schemes, and not in the ordinary dustbin.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Models for U.S.A.

Federal Communications Commission Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the Panasonic Service Center or an experienced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a wireless display or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:

1-800-LAPTOP5 (1-800-527-8675)

FCC RF Exposure Warning:

• This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
• This equipment must be installed and operated in accordance with provided instructions and minimum 1.5 cm spacing must be provided between antenna and all person's body (excluding extremities of hands, wrist and feet) during wireless modes of operation.
• This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Notice for the products using LCD

This product uses one or more fluorescent lamps containing a small amount of mercury. It also contains lead in some components. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance:

http://www.eiae.org/

Models for U.S.A./Canada

For Use in Motor Vehicle

Warning: Wireless display may be installed in a motor vehicle and visible to the driver only if used to support vehicle related functions such as vehicle information, system control, rear or side observation and navigation. If used for entertainment purpose, such as television reception or video play, it must be installed to the rear of the driver's seat where it will not be visible, directly or indirectly, to the operator of the motor vehicle.

Check with individual state/provincial laws to determine lawful use of this product while operating within a motor vehicle.

This Class B digital apparatus complies with Canadian ICES-003.

This product complies with RSS210 Industry Canada.

Operation is subject to the following two conditions;

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Models for Europe

(For models with a "CE ① mark on the bottom of the wireless display)

Declaration of Conformity (DoC)

"Hereby, we declare that this wireless display is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC."

Hint:

If you want to get a copy of the original DoC of our products which relates to the R&TTE, please contact to our web address: http://www.doc.panasonic.de Contact:

Panasonic Services Europe

A Division of Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Compliance Notice - CE Mark

This equipment is in conformance with the requirements of the European Council Directive listed below:

73/23/EEC Low Voltage Directive with amendment 93/68/EEC

89/336/EEC EMC Directive with amendments 92/31/EEC and 93/68/EEC

1999/5/EC R&TTE

Information of Countries intended for radio application:

The United Kingdom, The Netherlands, Sweden

The Federal Republic of Germany, France, Finland

The Kingdom of Belgium, Italy, Norway

The Swiss Confederation, Spain, Austria

For Use in Motor Vehicle

Warning: Check the following Commission Recommendation to determine proper installation and usage of this product while operating within a motor vehicle.

"Commission Recommendation on safe and efficient in-vehicle information and communication systems: A European statement of principles on human machine interface."

Commission Recommendation is available from Official Journal of the European Communities.

Models for U.K.

Warning

This apparatus must be earthed for your safety.

To ensure safe operation the three-pin plug must be inserted only into a standard three-pin power point which is

effectively earthed through the normal household wiring.

Extension cords used with the equipment must be three-core and be correctly wired to provide connection to earth. Wrongly wired extension cords are a major cause of fatalities.

The fact that the equipment operates satisfactorily does not imply that the power point is earthed and that the installation is completely safe.

For your safety, if you have any doubt about the effective earthing of the power point, consult a qualified electrician.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 3 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 3 amps and that it is approved by ASTA or BSI to BS 1362.

Check for the ASTA mark or the BSI

mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT

OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

Warning: THIS APPLIANCE MUST BE EARTHED.

Important

The wires in this mains lead are colored in accordance with the following code:

Green-and-yellow: Earth

Blue: Neutral

Brown: Live

As the colors of the wires in the mains lead of this apparatus may not correspond with the colored markings identifying the terminals in your plug, proceed as follows:

The wire which is colored GREEN-and-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol colored GREEN or GREEN-and-YELLOW.

The wire which is colored Blue must be connected to the terminal which is marked with the letter N or colored BLACK.

The wire which is colored Brown must be connected to the terminal which is marked with the letter L or colored RED.

The mains plug on this equipment must be used to disconnect the mains power.

Please ensure that a socket outlet is available near the equipment and shall be easily accessible.

■ How to replace the fuse

Open the fuse compartment with a screwdriver and replace the fuse.

Warnings

- This equipment is not designed for connection to an IT power system. (An IT system is a system having no direct connections between live parts and Earth; the exposed-conductive-parts of the electrical installation are earthed. An IT system is not permitted where the wireless display is directly connected to public supply systems in the U.K.)

Parts of the electrical installation are earthed. An IT system is not permitted where the wireless display is directly connected to public supply systems in the U.K.

- Disconnect the mains plug from the supply socket when the wireless display is not in use.

For France

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS *1. PANASONIC WILL NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS *1. PANASONIC WILL NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class 2 Electrical Flight Bag (EFB) Systems and Class 1 EFB Systems when used during critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class 1 EFB Systems and Class 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No. 36.

Panasonic cannot guarantee any specifications, technologies, reliability, safety (e.g., flammability/smoke/toxicity/radio frequency emission, etc.) requirements related to aviation standards that exceed the specifications of our COTS (Commercial-Off-The-Shelf) products.

This wireless display is not intended for use in medical equipment, including life-support systems, air traffic control systems, or other equipment, devices, or systems that are involved with ensuring human life or safety. Panasonic cannot be held responsible in any way for any damages or loss resulting from the use of this wireless display in these types of equipment, devices, or systems, etc.

The CF-08 was developed based on thorough research into real-world portable computing environments. Exhaustive pursuit of usability and reliability under harsh conditions led to innovations such as the magnesium alloy exterior and flexible internal connections. The CF-08's outstanding engineering has been tested using the strict MIL-STD-810F (for vibration and shock) and IP (for dust and water) based procedures.

As with any portable wireless display device, precautions should be taken to avoid any damage. The following usage and handling procedures are recommended.

Before putting the wireless display away, be sure to wipe off any moisture.

If a malfunction occurs, immediately unplug the AC plug and the battery pack.

• This product is damaged • Foreign object inside this product - Smoke emitted - Unusual smell emitted - Unusually hot

Continuing to use this product while any of the above conditions are present may result in fire or electric shock.

- If a malfunction occurs, immediately turn the power off and unplug the AC plug, and then remove the battery pack.

Do Not Touch This Product and Cable When It Starts Thundering

Electric shock may result.

Do Not Connect the AC Adaptor to a Power Source Other Than a Standard Household AC Outlet

Otherwise, a fire due to overheating may result. Connecting to a DC/AC converter (inverter) may damage the AC adaptor. On an airplane, only connect the AC adaptor/charger to an AC outlet specifically approved for such use.

Do Not Do Anything That May Damage the AC Cord, the AC Plug, or the AC Adaptor

Do not damage or modify the cord, place it near hot tools, bend, twist, or pull it forcefully, place heavy objects on it, or bundle it tightly.

Continuing to use a damaged cord may result in fire, short circuit, or electric shock.

Do Not Pull or Insert the AC Plug If Your Hands Are Wet

Electric shock may result.

Clean Dust and Other Debris of the AC plug Regularly

If dust or other debris accumulates on the plug, humidity, etc. may cause a defect in the insulation, which may result in a fire.

- Pull the plug, and wipe it with a dry cloth. Pull the plug if this product is not being used for a long period of time.

Insert the AC Plug Completely

If the plug is not inserted completely, fire due to overheating or electric shock may result.

- Do not use a damaged plug or loose AC outlet.

Close the Connector Cover Tightly When Using the Computer in Areas with a Lot of Water, Moisture, Steam, Dust, Oily Vapors, etc.

The entry of foreign matter may cause a fire or electric shocks.

- If foreign matter has found its way inside, immediately turn the power off and unplug the AC cord, and then remove the battery pack. Then contact your technical support office.

Do Not Disassemble This Product

There are high-voltage areas inside which may give you an electric shock if you should touch them. Do not touch the pins and circuit boards inside, and do not allow foreign matter to enter inside.

Also, remodeling or disassembly may cause a fire.

Keep SD Memory Cards Away from Infants and Small Children

Accidental swallowing will result in bodily injury.

In the event of accidental swallowing, see a doctor immediately.

Do Not Place This Product on Unstable Surfaces

If balance is lost, this product may fall over or drop, resulting in an injury.

Avoid Stacking

If balance is lost, this product may fall over or drop, resulting in an injury.

Do Not Leave This Product in High Temperature Environment Such as in a Sun-Heated Car, for a Long Period of Time

Leaving this product where it will be exposed to extremely high temperatures such as in a sun-heated car or in direct sunlight may deform the cabinet and/or cause trouble in the internal parts. Continued use in such a resulting condition may lead to short-circuiting or insulation defects, etc. which may in turn lead to a fire or electric shocks.

Hold the Plug When Unplugging the AC Cord

Pulling on the cord may damage the cord, resulting in a fire or electric shock.

Do Not Move This Product While the DC Plug Is Connected

The AC cord may be damaged, resulting in fire or electric shock.

- If the AC cord is damaged, unplug the AC plug immediately.

Use Only the Specified AC Adaptor With This Product

Using an AC adaptor other than the one supplied (attached to this product or supplied by Panasonic) may result in a fire.

Do Not Subject the AC Adaptor to Any Strong Impact

Using the AC adaptor after a strong impact such as being dropped may result in electric shock, short circuit, or fire.

Take a Break of 10-15 Minutes Every Hour

Using this product for long periods of time may have detrimental health effects on the eyes or hands.

Do Not Turn the Volume Up to Loud When Using Headphones

Listening at high volumes that overstimulate the ear for long periods of time may result in loss of hearing.

Do Not Connect a Telephone Line, or a Network Cable Other Than the One Specified, into the LAN Port

If the LAN port is connected to a network such as the ones listed below, a fire or electric shock may result.

• Networks other than 100BASE-TX or 10BASE-T - Phone lines (Telephone lines, internal phone lines (on-premise switches), digital public phones, etc.)

Do Not Use with Exposing the Skin to This Product for a Long Period of Time

Using this product with exposing the skin to the heat source of this product or AC adaptor for a long period of time can cause a low-temperature burn.

- Do not place this product near a television or radio receiver.

Battery Pack

Do Not Use with Any Other Product

The battery pack is rechargeable and was intended for the specified product. If it is used with a product other than the one for which it was designed, electrolyte leakage, generation of heat, ignition or rupture may result.

Do Not Charge the Battery Using the Methods Other Than Those Specified

If the battery pack is not charged using one of the specified methods, electrolyte leakage, generation of heat, ignition or rupture may result.

Do Not Throw the Battery Pack into a Fire or Expose It to Excessive heat

Generation of heat, ignition or rupture may result.

Avoid Extreme Heat (Near the Fire, in Direct Sunlight, for Example)

Electrolyte leakage, generation of heat, ignition or rupture may result.

Do Not Insert Sharp Objects into the Battery Pack, Expose It to Bumps or Shocks, Disassemble, or Modify It

Electrolyte leakage, generation of heat, ignition or rupture may result.

Do Not Short the Positive (+) and Negative (-) Contacts

Generation of heat, ignition or rupture may result. Do not place the battery pack together with articles such as necklaces or hairpins when carrying or storing.

Do Not Use This product with a Battery Pack Other Than the One Specified

Use only the specified battery pack (CF-VZSU44) with this product. Use of battery packs other than those manufactured and supplied by Panasonic may present a safety hazard (generation of heat, ignition or rupture).

• Do not touch the terminals on the battery pack. The battery pack may no longer function properly if the contacts are dirty or damaged.
• Do not expose the battery pack to water, or allow it to become wet.
• If the battery pack will not be used for a long period of time (a month or more), charge or discharge (use) the battery pack until the remaining battery level becomes 30% to 40% and store it in a cool, dry place.
• This wireless display prevents over-charging of the battery by recharging only when the remaining power is less than approx. 95% of capacity.
• The battery pack is not charged when the wireless display is first purchased. Be sure to charge it before using it for the first time. When the AC adaptor is connected to the wireless display, charging begins automatically.

- Should the battery leak and the fluid get into your eyes, do not rub your eyes. Immediately flush your eyes with clear water and see a doctor for medical treatment as soon as possible.

- The battery pack may become warm during recharging or normal use. This is completely normal.

- Recharging will not commence if internal temperature of the battery pack is outside of the allowable temperature range (0 °C to 45 °C {32°F to 122°F}). Once the allowable range requirement is satisfied, charging begins automatically. Note that the recharging time varies based on the usage conditions. (Recharging takes longer than usual when the temperature is 10 °C {50°F} or below.)

- If the temperature is low, the operating time is shortened. Only use the equipment within the allowable temperature range.

- The battery pack is a consumable item. If the amount of time the equipment can be run by using a particular battery pack becomes dramatically shorter and repeated recharging does not restore its performance, the battery pack should be replaced with a new one.

- When transporting a spare battery inside a package, briefcase, etc., it is recommended that it be placed in a plastic bag so that its contacts are protected.

● Always power off the equipment when it is not in use. Leaving the equipment on when the AC adaptor is not connected will exhaust the remaining battery capacity.

A. LCD (Touchscreen) B. Wireless LAN antenna C. Bluetooth antenna D. Power status E. Power button F. Battery status G. DC-IN jack

H. LAN port

I. Cursor control button / Enter button J. Keyboard button K. USB port L. USER button M. SD Memory Card slot N. SD Memory Card status

A lithium ion battery that is recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY for information on how to recycle this battery.

A. Battery cover latch B. Hand strap

Adjust the length of the belt so that the wireless display does not fall by mistake, and firmly hold the wireless display when using it.

Adjust the length of the belt so that the wireless display does not fall by mistake, and firmly hold the wireless display when using it.

C. Battery pack

D. Headphone jack

C. Battery pack D. Headphone jack

You can connect headphones or amplified speakers. When they are connected, audio from the internal speakers is not heard.

E. Microphone jack

Use only monaural condenser microphone (miniature jack). Connecting another type of microphone may interrupt audio input or may cause a malfunction.

F. Stylus holder

G. Security lock

You can connect a Kensington cable. Refer to the instruction manual of the cable.

H. Speaker

I. Expansion bus connector

CAUTION

• Do not put metallic objects or magnetic media close to the speaker.
• Do not touch the expansion bus connector. The wireless display may no longer function properly if the connector is dirty or damaged.

Using the Tether

The tether can be attached to the upper right or upper left corner of the display. It prevents the stylus (included) from falling accidentally.

Attaching the Tether

1

3

2

4

First-time Operation

■ Preparation

① Check and identify the supplied accessories. If you do not find the described accessories, contact your technical support office.

- AC adaptor......1

Model No.: CF-AA1623A

- AC Cord ...... 1

- Battery Pack ...... 1

Model No.: CF-VZSU44

- Stylus......1

- Cloth....1

• Tether (→ page 16).... 1
• Operating Instructions (This book) ....1

②Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the wireless display's packaging (→ page 58).

1 Insert the battery pack.

①Turn the wireless display over, and open the hand strap cover. ②Release the hand strap.

③Slide the battery cover latch. ④Open and remove the battery cover.

⑤ Firmly attach the battery pack to the connector.

⑥Fit the battery cover into (A), and then close the battery cover. ⑦Slide the battery cover latch.

⑧Fasten the hand strap.

⑨Close the hand strap cover.

■ To remove the battery pack

①Slide the battery cover latch as in step ③ (→ above). ②Open the battery cover as in step ④ (→ above). ③Pull the tab of the battery pack and remove it from the wireless display.

CAUTION

• Be careful not to catch the tab when you close the battery cover. ● Make sure the cover is securely attached. Otherwise the battery pack may fall when you carry the wireless display.
• Do not touch the terminals of the battery pack and the wireless display. Doing so can make the terminals dirty or damaged, and may cause malfunction of the battery pack and the wireless display.
• Use only the specified battery pack (CF-VZSU44U) with your wireless display.

2 Connect your wireless display to a power outlet.

The battery charging starts automatically.

CAUTION

• When using the wireless display for the first time, do not connect any peripheral device except the battery pack and AC adaptor. ● Handling the AC adaptor
• Do not twist or pull the AC power cord forcefully. Doing so may damage the connections.
• Use only the specified AC adaptor with your wireless display. Using an AC adaptor other than the one supplied might damage the battery and/or the wireless display.
• When the DC plug is not connected to the wireless display, disconnect the AC cord from your AC wall outlet.
• Problems such as sudden voltage drops may arise during periods of thunder and lightning. Since this could adversely affect your wireless display, an uninterruptible power source (UPS) is highly recommended unless running from the battery pack alone.

3 Turn on the wireless display.

Press the power button (for approximately

one or two seconds until the power indicator lights.

4 Calibrate the touchscreen.

Touch the “+” marks on the calibration screen with the stylus (included) for about one second. After the calibration procedure is executed, press the center of the cursor control button (A).

5 Make the date and time setting.

Set the current time and time zone, and then

tap

- For information about "tap": → page 33

• You can use the software keyboard when you set the time. For information about how to use the Software Keyboard: → page 41 ■ If the [Date/Time Properties] screen does not appear automatically

Double-tap on the desktop, and double-tap [Date/Time].

The [Date/Time Properties] screen will appear.

6 Make the network setting.

Before making the settings for the wireless display, check the following server settings.

• Is the remote desktop allowed to use?
• IP address and subnet mask (if the name server is inside the network, use the server name instead.)
• User name and password

When making connections with a LAN● For the following operation, make sure the LAN is enabled.Tap [ETHERNET1], and then tap [File] - [Enable].The icon will change from to ETERNET1	When making connections with a wireless LAN
1Double-tap [ETHERNET1]. <	CF-08TX1BX1M>1Double-tap [WIRELESS LAN1].<CF-08TX2CX1M>1Double-tap [WIRELESS LAN 11BG1].
2Tap the [IP Address] tab, and set an IP address and subnet mask.
If DHCP is available on the network If DHCP is not available on the network
Select [Obtain an IP address via DHCP].	Select [Specify an IP address], and enter the IP address, subnet mask and if necessary, default gateway.

③Tap

- When making connections with a wireless LAN

①Tap ×.

If the [Wireless LAN1] screen is not displayed, double-tap the desktop, and then double-tap [Wireless LAN].

If the [WIRELESS LAN 11BG1] screen is not displayed, double-tap

Control Panel

on the desktop, and then double-tap [Wireless LAN].

② Tap the [Wireless Information] tab, and then tap the access point from the list. Now, select settings as follows according to your own network environment. ③ Tap [Connect].

7 Make the settings to connect the server.

The client used will differ depending on the server.

Server name Client name
● Microsoft® Windows® XP Professional● Microsoft® Windows® Server 2000● Microsoft® Windows® Server 2003	Microsoft® Remote Desktop Connec-tion
● Citrix® MetaFrame Presentation Server 3.0● Citrix® Presentation Server 4.0	Citrix® ICA® Client
● Web server	Microsoft® Internet Explorer

When making connections with Microsoft® Remote Desktop Connection

Perform the following procedure.

① Double-tap

on the desktop.

Desktop Connection

② Tap [Options]. ③ Enter the following items.

● Computer: IP address or server name - User name: Account name for the server - Password: The password required to log on to the server

- If a check mark is added for [Save my password], the password will be saved, and it will not be necessary to enter the password for subsequent connections.

• Domain: (If required, enter it.) ④ Tap [Save As].

Enter the file name, select the save destination and tap OK

*1

will appear on the desktop.

XXX

*1 The file name entered in step ④ will appear instead of "XXX".

⑤ Tap ×.

When making connections with Citrix® ICA® Client

Perform the following procedure.

① Double-tap on the desktop, and tap [Create New Connection]. ② Enter the IP address or server name for the connection destination in [Server or Published Application], and tap [Save]. When the message appears, tap [Yes].

③ Select the name entered in step ②, and tap [Edit].

④ Tap [Edit Logon Information], enter Username and Password (and Domain, if required), and tap [Save].

⑤ Tap [Main] at the top of the screen.

⑥ Select the name entered in step ② and tap [Edit]. ⑦ Tap [Edit Title], add the check mark for [Create a Desktop shortcut], and tap [Save], then tap ×.

The settings made in steps ①-⑦ will be saved, and XXX *1 will appear on the desktop.

*1 The file name entered in step ② will appear instead of "XXX".

When making connections with Microsoft® Internet Explorer

Perform the following procedure.

①Double-tap on the desktop, and then double-tap [Internet Options]. ②Make the necessary settings, then tap OK.

8 Make the security setting.

You can set the password and/or enable/disable some functions for security purpose.

You can set two types of users with different operating authorities.

Supervisor User
Changes settings related to the wireless display operations, and controls the operations of the User.	Executes only operations that have been limited by the Supervisor.

The security setting screen can be displayed using the following procedure.

①Double-tap on the desktop.

Panel

②Double-tap [Security (Supervisor)].

[Supervisor] tab [User] tab	[Device Permission] tab
Settings for the Supervisor	Settings for the User Settings	gs for the Supervisor and User

Here, we will explain the settings made by the Supervisor for the Supervisor and User.

Setting the password

First, set the Supervisor Password using the following procedure.

①Tap the [Supervisor] tab. ②Enter your password in [New Password]. ③Enter your password again in [Confirm Password] and tap OK. ④At the confirmation message, tap [Yes].

When the message that recommends executing Flash Backup appears, tap

Next, set the User Password using the following procedure.

①Tap the [User] tab. ②Set the password.

Refer to steps ②-④ of the Supervisor Password setting. (See above.)

CAUTION

- Do not forget your password. If you forget your Supervisor Password, you will not be able to use your wireless display. Contact your technical support office.

ND

● The password will not be displayed on the screen. ● You can use up to 40 alphanumeric characters (excluding spaces). - When the password has been set, you need to enter your password in [Current Password]. ● To disable the password, leave the input field empty. ● Disabling the Supervisor Password also disables the User Password.

Set the operating restrictions

The following settings can be made by tapping each tab.

■ [Supervisor] tab

■ [User] tab

Add the check mark, and the settings will be enabled.

A. Auto Launch

When you select an application (b), that application will automatically start up when the wireless display is started.

- If the connection settings for Microsoft® Remote Desktop Connection or Citrix® ICA® Client have

been made in advance (→ page 22) and the check mark is added for [Wait for Network Connection] (B), you can set these applications to start up automatically.

B. Wait for Network Connection An application (b) will launch after the network connection is built up.

C. Skip Password Dialog Allows the User to log on without entering a password. When the User turns on the wireless display, the [Enter Password] screen is not displayed. (If you press the power button with the USER button pressed, the [Enter Password] screen will be displayed, and the Supervisor can log on with the Supervisor Password.)

D. Allow Connection Configuration Allows the User to create and change connection settings. To create the connection settings: → page 22

E. Allow Application Assignment Allows the User to allocate applications to the keyboard button, USER button (→ page 38) and Quick Menu (→ page 39).

F. File Explorer Allows the User to view files via Windows Explorer. My Device will be displayed on the desktop.

G. Internet Explorer Allows the User to access the Web browser, and to create/change

connection settings.

displayed on the desktop.

H. Control Panel Allows the User to make various settings in Control Panel.

- You can set the items that the User is allowed to use with the following procedure.

①Tap [Permission] (h) to display the [Permission] screen. ②Add the check mark for only the items to be displayed in the [Control Panel] screen, and tap OK

I. Allow Change Auto Launch Allows the User to change [Auto Launch] (A) setting.

■ [Device Permission] tab

The following items cannot be used when the check mark is removed.

When all settings are complete, tap

When the message that recommends executing Flash Backup appears, tap

9 Save the settings.

Settings made up to step 8 must be saved (backed up) using the following procedure. If the settings are not saved, they will be lost when the wireless display is turned off.

①Double-tap on the desktop and double-tap [Flash Backup].

Confirm that your wireless display is connected to a power outlet. (→ page 19)

②Tap [Start Backup].

Backing up data will start.

③When the message "Backup successful." appears, tap

Copying settings to another CF-08

Using the following procedure, you can copy the backed up settings to another CF-08 from an SD Memory Card or other media.

①Double-tap on the desktop and double-tap [Flash Copy].

Confirm that your wireless display is connected to a power outlet. (→ page 19)

②Insert the copy destination media, and select the media in "Copy To."

③Enter the file name and tap [Copy Backup].

Copying data will start.

● The file that has already existed cannot be overwritten.

In this case, tap to change the file name, and tap [Copy Backup].

④ When the message "Copy successful." appears, tap [OK].

⑤ Remove the media.

From step ⑥ onward are for the CF-08 to which the original settings will be copied. Turn on the CF-08 to which the settings will be copied, and perform the following procedure.

⑥ Double-tap on the desktop and then double-tap [ROM Update].

Control

Panel

⑦ Connect your wireless display to the power outlet. (→ page 19)

⑧ Insert the media containing the files copied in steps ③-④, and then tap [Browse]. ⑨ Select the file and tap [OK]. ⑩ Tap [Next]. ⑪ Tap [Update Start]. ⑫ When the confirmation message appears, tap [Yes]. ROM Update will start.

When ROM Update terminates, the wireless display will restart and the [Date/Time Properties] screen will appear automatically. (→ page 20)

Starting Up

1 Turn on the wireless display.
When you log on as a Supervisor When you log on as a User
Press the power button with the USER button pressed.If you do not do so, even when you set enter the Supervisor Password, the wireless display will run in the User operating environment.	Press the power button.

2 When the [Enter Password] screen appears, enter the password, and then tap [OK].

- When you log on as a User When the check mark is added for [Skip Password Dialog] of the [User] tab in [Security (Supervisor)], the [Enter Password] screen is not displayed. (→ page 26)

3 Connect to the server.
When making connections with Microsoft®Remote Desktop Connection	When making connections with Citrix® ICA® Client
Double-tap *1 on the desktop.[2DXG]The server desktop screen will appear.*1 The file name entered when making the server setting will appear instead of “XXX”.• When you do not add the check mark for [Save my password] in “When making connections with Microsoft® Remote Desktop Connection” step 3 of “First-time Operation” step 7(→ page 22): Enter the password, and then tap [OK].	Double-tap *2 on the desktop.XXX*2 The file name entered when making the server setting will appear instead of “XXX”.
	When making connections with Microsoft® Internet Explorer
	Double-tap on the desktop.Internet Explorer

NO

- When logged on as a User, the security setting screen can be displayed using the following procedure.

Double-tap on the desktop.

Panel

Double-tap [Security (User)].

The following screen will appear.

A. Auto Launch (→ page 25)

B. Wait for Network Connection (→ page 25)

- When the Supervisor does not add the check mark for [Allow Change Auto Launch] in the [User] tab of the [Security Settings (Supervisor)] screen, [Auto Launch] and [Wait for Network Connection] cannot be set here.

C. Password

To set the password: → page 24

- If a User Password has been set in the [User] tab of [Security (Supervisor)] screen, User cannot delete a password. - If a User Password has not been set in the [User] tab of [Security (Supervisor)] screen, User cannot create a new password.

■ When terminating the connection

Perform the following operation.

- Tap [Start] - [Log Off] - [Log Off].

You can terminate the connection using the following operation.

● Tap (A), and when the message appears, tap OK.

CAUTION

- If you tap [Start] - [Shut Down], the power for the server itself will be turned off.

Make the settings (only for the Supervisor)

■ When settings have been changed

Before turning off the wireless display, save (back up) the settings making reference to step 9 in "First-time Operation" (→ page 27).

■ When deleting settings

Perform the following procedure.

① Double-tap on the desktop and double-tap [Flash Delete].

② Connect your wireless display to a power outlet. (→ page 19)

③ Tap [Delete Backup]. When the confirmation message appears, tap [Yes]. Deleting data will start.

④ When the message "Backup data has been deleted." appears, tap

NO

- When you turn on the wireless display next time, the calibration screen will appear. (→ page 20)

■ When returning the wireless display to its condition at the time of shipment

Perform the following procedure while the wireless display is turned off.

Connect your wireless display to a power outlet. (→ page 19)

Press the power button with the keyboard button and USER button (→ page 38) pressed until the message “Reset the device to factory default...” appears. - When the [Enter Password] screen appears, enter the Supervisor Password and tap [OK].

Select [Yes].

NO

When you turn on the wireless display next time, the calibration screen will appear. (→ page 20)

Shutting Down (power off the wireless display)

Press the power button for one or two seconds until the message “Preparing to Power off...” appears.

When shutting down forcefully, press the power button for four seconds or longer.

Using the Stylus

Use the stylus provided to perform operations on the touchscreen. The stylus is located in the stylus holder (A), and can be held like a pen or pencil. The following operations are possible on the touchscreen.

Tapping

You can select an item on the screen by tapping it with the stylus. This operation is called a "tap".

Dragging

You can drag an item on the screen by holding the stylus down over the item and then moving the stylus. This operation is called a "drag".

Tapping and Holding

You can tap and hold the stylus on an item to see a list of actions available for that item. On the pop-up menu that appears, tap the action you want to perform.

Right-clicking

You can execute the right click operation. (→ page 38)

Handling the Stylus

• Clean the stylus tip and screen prior to operation. Foreign particles can scratch the screen and impede the operation of the stylus.
• Use the provided stylus only on the screen. Using it for any other purpose may damage the stylus and scratch the screen.

Handling the Touchscreen

• Use the provided stylus with CF-08. Do not use an implement other than the stylus that comes with the wireless display.
• Do not place any object on the surface or press down forcefully with sharp-pointed objects (e.g., nails), or hard objects that can leave marks (e.g., pencils and ball point pens).
• Do not operate the wireless display when such things as dust are on the LCD. Do not allow substances such as oil to contact the LCD. The cursor may not work properly in such cases.

Calibrating the touchscreen

Calibrate the touchscreen if the cursor does not correctly move to the position where the stylus touches the touchscreen of the wireless display.

①Double-tap on the desktop, and double-tap [Stylus].

Panel

②Tap the [Calibration] tab, and tap [Recalibrate]. ③ Touch the “+” marks on the calibration screen with the stylus (included) for about one second.

After the calibration procedure is executed, press the center of the cursor control button.

Rotating the screen

To rotate the screen, perform the following procedure.

①Double-tap on the desktop.

Panel

②Double-tap [Rotate]. ③Add the check mark for [0 degrees (Landscape)], [90 degrees], [180 degrees] or [270 degrees], and tap [Rotate].

The screen will rotate to the position selected.

Using the following procedure, you can set the screen to rotate to a preset position with the press of a single button.

● Here, we will explain how to make the following settings: - Button to be used/push length: keyboard button/long push - Setting angles: [0 degrees (Landscape)] and [90 degrees]

①Double-tap on the desktop.

Panel

②Double-tap [Buttons].

③Assign [Rotate Screen] to the keyboard button, long push, and tap

④Double-tap [Rotate].

⑤Add the check mark for [0 degrees (Landscape)] and [90 degrees], and tap

⑥ Save the above setting.

Refer to step 9 of "First-time Operation" (→ page 27).

⑦ Press the keyboard button for more than 2 seconds.

The screen will rotate to [90 degrees].

If you press the keyboard button once more, the screen will return to [0 degrees (Landscape)].

- You can set the screen to rotate to a preset position using Quick Menu, just like the button setting above. (→ page 39)

Battery Indicator

Battery indicator Battery status

Not lit The battery pack is not inserted or not being charged.

Pulsing orange Charging is in progress.

Green The battery is fully-charged.

Red The remaining battery is approximately 9% or less.

Blinking red The battery pack or the charging circuit is not operating normally.

Blinking orange The battery cannot be charged temporarily due to the following reason:● Its internal temperature is out of the acceptable range.

ND

- Once the battery is fully charged, the wireless display performs recharging only when the battery level becomes less than approximately 95%, so overcharging is avoided.

Checking the Remaining Battery Charge

You can check the remaining battery charge using any of the following methods.

- Double-tap on the desktop, double-tap [Power] and tap the [Battery] tab.

- Press the keyboard button or USER button (→ page 38) and run Quick Menu (→ page 39).

You can reduce power consumption using the following method.

When using the battery, the wireless display can be used for a longer period of time.

Power conservation effects can be achieved even when the AC adaptor is connected.

●Double-tap on the desktop, double-tap [Control Panel].

Double-tap [Power] and tap the [Schemes] tab.

Power consumption can also be minimized with detailed settings; for example, by reducing the time setting for [Turn off LCD].

Replacing the Battery Pack

The battery pack is a consumable item so the replacement (CF-VZSU44U) will be necessary. If the battery operation time becomes noticeably short, replace with a new battery.

How to remove/insert the battery pack: → page 17

- When the AC adaptor is not connected, after replacing the battery pack, the [Date/Time Properties] screen (→ page 20) will be displayed. On this screen, set the correct date and time.

- When the AC adaptor is not connected, replace the battery within 5 minutes. If neither the AC adaptor nor battery is connected momentarily, Date/Time information will disappear, and after replacing the battery [Date/Time Properties] may be displayed. On this screen, set the correct date and time.

You can display screens for frequently used functions and applications by pressing the keyboard button 📄USER button on this wireless display.

Two functions can be assigned to each button; one that starts up with a short push (less than 2 seconds) and one that starts up with a long push (more than 2 seconds).

At the time of purchase, the following functions or applications are assigned to each button.

Keyboard button	Short push Input	Panel (→ page 41)
	Long push Input	Panel Selector (→ page 42)
USER button	Short push Quick	Menu (→ page 39)
	Long push	Right Click*1

*1 To execute the right click operation:

①Press the USER button for more than 2 seconds.

You can use the right click once.

Each time after this, before using the right click once, execute step ① above.

You can also execute the right click operation using Quick Menu (→ page 39).

Customizing buttons

①Double-tap

Control Panel

②When the [Buttons] screen appears, tap , and then select the function name in accordance with the button positions and short/long push that you want to set.

③ Tap

④Save the above setting.

Refer to step 9 of "First-time Operation" (→ page 27).

Quick Menu is used to display information about the wireless display, or to enable frequently used functions and applications to be launched quickly without going through Control Panel (→ page 53).

At the time of purchase, Quick Menu can be launched with a short push of the USER button

USER.

How to change Quick Menu launching method:

→ page 38

A. Battery

Display remaining battery level (Same setting for [Power] in Control Panel).

B. Wireless

Display status of wireless LAN.

C. Volume

Set and change sound volumes (Same setting for [Volume & Sounds] in Control Panel).

D. Brightness

Set and change display backlight brightness (Same setting for [Backlight] in Control Panel).

E. Buttons

Start up frequently used functions and applications.

At the time of purchase, [Right Click] ^*1 , [Input Panel Selector] ( → page 42), [Control Panel] ( → page 53) and [Stylus Calibration] are set in Quick Menu.

*1 To execute the right click operation: ①Tap [Right Click].

You can use the right click once. Each time after this, before using the right click once, execute step ① above. You can also execute the right click operation by pressing the keyboard button or USER button. (→ page 38)

Customizing buttons

①Double-tap on the desktop and then double-tap [Quick Menu].

Control Panel

The [QuickMenu Application Assignment] screen will appear.

②In [1. Select Button], tap one button to which the function or application is to be assigned from among the four buttons.

③In [2. Assign a Function], tap, and then select the function or application to be assigned.

④Tap

⑤Save the above setting.

Refer to step 9 of "First-time Operation" (→ page 27).

The Software Keyboard can be displayed on the wireless display, and you can then input characters or symbols by tapping the Software Keyboard.

To show or hide the Software Keyboard (input panel) (at the time of purchase):

- Press the keyboard button for less than 2 seconds.

■ Input methods

Numeric Keyboard, Full Keyboard and Transcriber can be used.

Numeric Keyboard and Full Keyboard can be selected as either large or small panels.

- To use Transcriber, refer to "Transcriber" (→ page 42).

Full Keyboard / Numeric Keyboard

A. The keyboard will move to the four corners of the screen.

B. Close the keyboard.

■ To change the input method (and/or panel size):

At the time of purchase, this wireless display is set to display the Full keyboard (small).

You can change the setting using any of the following methods.

- Display the Input Panel Selector screen, and then add a check mark to the input method to be changed.

Input Panel Selector

(At the time of purchase, this wireless display is set to display the Input Panel Selector screen using the following method.)

• Press the keyboard button for more than 2 seconds. (→ page 38)
• Press the USER button for less than 2 seconds to launch Quick Menu (→ page 39), and then tap [Input Panel Selector].

- Display the [Keyboard Options] screen and select the input method in the following procedure.

① Double-tap [Input Panel] in Control Panel. ② In the [Input Panel Properties] screen, select [Keyboard] (A), and then tap [Options] (B). ③ In the [Keyboard Options] screen, change the input method (and/or panel size), and then tap OK.

④ Tap

Transcriber

Transcriber is a function that enables you to input letters, characters, or symbols by writing directly on the touchscreen using the stylus.

• If the [Transcriber Intro] screen is displayed before Transcriber is displayed, tap to close the screen.
• Transcriber cannot be used if the wireless display is connected to a server using the Microsoft® Remote Desktop Connection.

■ To change the input method to Transcriber:

At the time of purchase, this wireless display is set to display the Full keyboard (small). You can change the setting using any of the following methods.

• Display Input Panel Selector screen (→ above), and then add the check mark for [Transcriber]. ● Double-tap [Input Panel] in Control Panel, select [Transcriber] and tap

A. Option settings Display the [Transcriber: Options] screen of Transcriber option settings. (→ below) B. Change recognition mode Run hand/block letter (character (alphabet/symbol/numeric)). C. Display symbol input panel Display the screen for symbol input. D. Change upper/lower/symbol mode Change input mode to upper/lower/symbol mode.

E. Space

Input space.

F. Line feed

Insert line feed.

G. Left move

Move cursor to left.

H. Right move

Move cursor to right.

I. BS

Backspace (delete one character).

J. Help

Display help screen.

Option settings

The following settings can be made by tapping each tab.

■ [Quick Settings] tab

A. Recognition

Change the language of the recognition engine. (In this wireless display, [English Standard] is set and it cannot be changed.)

B. Writing Direction

Change the handwriting input direction.

C. Intro screen

If the check mark is added, the Help screen will be displayed when the Transcriber starts up.

D. Sound

If the check mark is added, you will hear a sound when the Transcriber starts up. The volume of this sound will be the same as the volume set in Quick Menu (→ page 39) or in [Volume & Sounds] in Control Panel.

■ [Inking] tab

A. Recognition Delay

Slide the bar to set the time for recognition of handwritten characters.

B. Add space after

If the check mark is added, when handwritten characters are recognized and displayed on the screen, a single space will also be displayed at the end of each character.

nized and displayed on the screen, a single space will also be displayed at the end of each character.

Tap to set the width and color of the ink.

■ [Advanced] tab

A. Shorthand

Register shorthand. For further information, refer to "Shorthand" (→ page 45).

Register shorthand. For further information, refer to "Shorthand" (→ page 45).

Select a dictionary.

■ Shorthand

The following functions can be assigned for handwriting input.

The following functions can be assigned for handwriting input.

Text expansion Function Run program
Display words, phrases, or sentences.	Display dates, names, or other information.	Start up a program.
e.g.: Input “ABC” in handwriting to display “Hello.”	e.g.: Input “DEF” in handwriting to display the date and time.	e.g.: Input “GHI” in handwriting to start up [Transcriber].

② Tap [Add].

②Tap [Add].

③Select the function that you want to assign, and then tap [Next].

④Register shorthand.

Text expansion Function Run program
Input “ABC” in handwriting on the screen.	Input “DEF” in handwriting on the screen.	Input “GHI” in handwriting on the screen.
The handwriting input will be displayed in the [Shorthand] box.

⑤Register a function.

Text expansion Function Run program
Tap the [Text expansion] box, and then input “Hello” in handwriting on the screen. “Hello” will be displayed in the [Text expansion] box.	Tap in the [Function] box, and a list will appear; select [date and time].	Tap in the [Run pro-gram] box, and a list will appear; select [Transcriber].

⑥Tap [Finish]. The screen will automatically return to step ②. To assign two or more functions in succession, repeat steps ② to ⑥.

⑦Tap

⑧Tap to close the [Transcriber: Options] screen.

⑨Save the above setting. Refer to step 9 of "First-time Operation" (→ page 27).

Signature Capture operates on CF-08, supporting input of signatures in applications running on the connection destination server.

At the time of purchase, this wireless display is not preset to enable startup of Signature Capture. Before using Signature Capture, set the wireless display to enable startup using one of the following methods.

When launching with the keyboard button or USER button	When launching with Quick Menu● At the time of purchase, this wireless display is set so that Quick Menu can be started up with a short push of the USER button.
ControlPanel
	2 Double-tap [Quick Menu].
	3Select a button, select [Signature Capture] from [Assign a Function], and then tap OK
Refer to step 9 of “First-time Operation” (→ page 27).

■ To use Signature Capture:

①Launch Signature Capture with the keyboard button, USER button or Quick Menu.

②Tap, and then tap [Setting].

You can set the pen width and image size.

③Write a character or symbol, and tap [Capture].

The image input by handwriting will be copied onto the server, and Signature Capture will close.

■ To view the handwritten image:

- Check to make sure that the server is set to enable Signature Capture data to be pasted.

① Connect to the server. (→ page 30)

② Tap [Start] - [Run].

③ Input [clipbrd.exe] and then tap [OK].

The [ClipBook viewer] screen will appear.

About SD Memory Card

An SD Memory Card can be used for the following purposes.

• The exchange of data with various devices equipped with an SD Memory Card slot, and so on.
• Use as a memory card (e.g., use as a storage unit on which files can be written).

Inserting/Removing a Card

1 Open the SD Memory Card slot cover and confirm the SD Memory Card indicator is off.

2 Insert/Remove a Card.

■ To insert the card

Insert the SD Memory Card until it snaps into place as shown in the illustration.

■ To remove the card

①Press the card so it comes out of the slot. ②Draw it straight out.

3 Close the SD card slot cover.

To enable Bluetooth

1 Double-tap

2 Double-tap [Bluetooth Device Properties]. 3 Tap the [General] tab, and make the necessary settings.

A. Enable Bluetooth Add the check mark for [Enable Bluetooth] to enable Bluetooth. B. Serial Port / DialUp Network / Human Interface Add the check mark for [Serial Port], [DialUp Network] or [Human Interface] to make connections with the serial port, dial-up network or human interface. C. Bluetooth Name Set the device name for Bluetooth.

D. Automatically enable bluetooth at start-up When you add the check mark for [Automatically enable bluetooth at start-up], Bluetooth will be enabled when the system is started up.

E. Apply ( → below)

4 Tap [Apply] (E) to reflect the settings.

To make connections with the serial port / human interface: → page 50 To make connections with the dial-up network: → page 51

■ To make connections with the serial port / human interface

Tap the [Serial Port] or [Human Interface] tab, and make the following procedure.

(The screen will appear when the wireless display is connected via a serial port.)

①Turn on the Bluetooth device. ②Tap [Select Device] (A).

- If you add the check mark for [Auto Reconnect] (C), the connection will be made automatically when Bluetooth is enabled.

③Tap [Search] (D). ④Tap the Bluetooth device name you want to connect from the list box (E).

⑤Tap OK (F).

⑥Tap [Connect] (B).

- When the [Enter PIN code] screen appears, enter the pin code, and then tap [OK].

When the connection is active, the [Status] display shows "Connected."

- To terminate the connection, tap [Disconnect] from the [Serial Port] or [Human Interface] tab. When the connection is broken, the [Status] display shows "Not connected."

- If the connection terminates by tapping [Disconnect], the connection will not automatically be reestablished until tapping [Connect]. - Refer to the device manual when reconnecting.

■ To make connections with the dial-up network

Tap the [DialUp Network] tab, and make the following procedure.

- The setting procedure below may vary depending on the Bluetooth device you are using. (For example, the [Enter PIN code] screen described in step ⑥ may appear multiple times or in a different order.)

For details, refer to the manual that comes with your Bluetooth device.

①Turn on the Bluetooth device. ②Tap [Select Device] (A). ③Tap [Search] (D). ④Tap the Bluetooth device name you want to connect from the list box (E). ⑤Tap OK (F). ⑥Tap [Register] (B).

When the [Enter PIN code] screen appears, enter the pin code, and then tap

⑦Tap OK (C).

⑧Double-tap [Network and Dial-up Connections] in Control Panel. ⑨Double-tap [Make New Connection]. ⑩At the [Make New Connection] screen, tap [Next].

To change the connection name, enter a name in the [Type a name for the connection:] text field, and then tap [Next].

⑪At the [Modem] screen, select [Bluetooth Modem on COM7], and then tap [Next]. ⑫At the [Phone Number] screen, enter the phone number, and tap [Finish]. ⑬Double-tap [Network and Dial-up Connections] in Control Panel.

⑭Double-tap the connection name created in step ⑩. ⑮At the [Dial-Up Connection] screen, enter the proper User Name, Password, and Domain (G) for the connection destination.

If the phone number entered in step ⑫ does not display correctly at "Phone" (H), such as too many numbers showing, perform the following operation.

Tap [Dial Properties] (I).

Tap [Dialing Patterns], enter the correct number, and then tap ↓

Tap OK.

⑯Tap [Connect].

When the connection is active, the [My Connection Status] screen shows "Connected."

• To save the above setting, refer to step 9 of "First-time Operation" (→ page 27). ● To terminate the connection, tap [Disconnect].

In Control Panel, you can see the list of applets that can be used on this wireless display. If you double-tap the icon (or the name), the screen will start up.

Explanations for each Control Panel applet can be displayed using the following procedure.

①Double-tap

Control

Panel

② Tap [View].

③ Tap [Details].

CAUTION

● After changing settings, if you do not tap , some settings will not take effect.

Maintenance

LCD

Do not use water when cleaning the panel. Ingredients included in water may leave residue and reduce readability of the screen.

Avoid rubbing off dust/dirt with cloth since it may leave scratch on the screen.

Sweep dust/dirt with fine brush, then wipe it with "dry" soft cloth used for cleaning glasses.

Apply camera lens cleaner on a soft gauze and clean it with gentle force. Then, wipe with dry soft cloth used for cleaning glasses.

■ Areas excluding the LCD

Wipe these areas with a soft cloth, after applying water or detergent diluted with water to the soft cloth and firmly wringing out excess water.

CAUTION

• Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discoloration. In addition, do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.
• Do not directly add or spray water or detergent. If liquid enters the inside of the wireless display, it may cause the wireless display to work improperly or be damaged.

Follow the instructions below when a problem has occurred. For a software problem, refer to the software's instruction manual. If the problem persists, contact your technical support office.

■ Starting Up

Cannot start up.The power indicator or battery indicator is not lit.	● Connect the AC adaptor.● Insert a fully charged battery.● Remove the battery pack and the AC adaptor, then connect them again.
Cannot turn on the wireless display.	● Leave it in an environment of 5 °C {41 °F} or higher temperature for about an hour, then turn on the power once more.
You have forgotten the password.	● Supervisor Password or User Password: Contact your technical support office.
The date and time are incorrect.	● Make the correct settings. Double-tap theControlPaneldesktop, and double-tap [Date/Time].
Other startup problems.	● Remove all peripheral devices.

■ Display

No display.	● The display is turned off by the power-saving function.To resume, touch the LCD.● The wireless display powers off by the power-saving function. To power on, press the power button.
The screen is dark.	● Adjust the brightness. As you increase the brightness,battery consumption increases.

■ Touchscreen

The cursor does not work.	● When using the external mouse, connect it correctly.
Cannot point the correct position using the included stylus.	● Perform the touchscreen calibration (→ page 34).

■ Shut Down

Cannot shut down.

● Press the power button for four seconds or longer to shut down the wireless display.

Sound

No sound.	Confirm the volume for [Quick Menu] or [Volume & Sounds] in Control Panel.
Unable to hear sound in stereo.	Playback conditions vary depending on the server.If you are connecting through Microsoft® Remote Desktop Connection or a web server, you will hear monaural sound even if the original sound is stereo.For playback conditions when connecting through Citrix® Presentation Server 4.0, refer to the Citrix manual for details.

■ Wireless Communication

Cannot connect to network.

● Check the network settings.● You may experience interference with other wireless LAN access points.Verify that each wireless LAN access point is set to a different channel.

Want to change the roaming method.

● Change using the following method:1Execute [Windows\APSrcThr.exe].2On the [AP Search Threshold] screen, select the roaming threshold you want to set ([Low Density], [Medium Density], or [High Density]), and tap 3Save the above setting.Refer to step9 of “First-time Operation” (→ page 27).1Double-tap on the desktop, and then double- panel tap [Network and Dial-up Connections].2Double-tap [WIRELESS LAN 11BG1] and tap the [Advanced] tab.3Select the roaming aggressiveness you want to set.4Save the above setting.Refer to step9 of “First-time Operation” (→ page 27).

■ Connecting Peripherals

The connected keyboard and mouse do not work.	● Check the keyboard and mouse connection.
The device connected to the serial port does not work.	● Check the connection.● The device driver may not work. Refer to the instruction manual of the device.● Do not connect two mouse devices simultaneously.
Cannot print. ● Check the printer connection.● Turn on the printer.● The printer is not online.● No paper is in the printer tray or there is a paper jam.● Turn on the printer and connect it to the wireless display, and then turn on the wireless display.

Others

No response.

● The screen content may not display correctly due to poor signal quality. In such case, move to a place where signal quality is good then make a connection. ● Press the power button for four seconds or longer to shut down the wireless display, and then press the power button to turn it on.

THE SOFTWARE PROGRAM(S) ("PROGRAMS") FURNISHED WITH THIS PANASONIC® PRODUCT ("PRODUCT") ARE LICENSED ONLY TO THE END-USER ("YOU"), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.

Matsushita Electric Industrial Co., Ltd. (“MEI”) has developed or otherwise obtained the Programs and hereby licenses their use to you. You assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intended results, and for the installation, use and results obtained therefrom.

LICENSE

A. MEI hereby grants you a personal, non-transferable and non-exclusive right and license to use the Programs in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain no title, ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms, concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of which title, ownership and rights shall remain with MEI or its suppliers. B. You may use the Programs only on the single Product which was accompanied by the Programs. C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing or otherwise, without the prior written consent of MEI. D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or attempt to modify, the Programs. E. You may transfer the Programs and license them to another party only in connection with your transfer of the single Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation, to the same party or destroy any such copies not so transferred.

F. You may not remove any copyright, trademark or other notice or product identification from the Programs and you must reproduce and include any such notice or product identification on any copy of any Program.

YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.

YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.

IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.

TERM

This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate this license at any time by destroying, at your expense, the Programs and related documentation together with all copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions thereof set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all copies thereof in any form.

YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS.

YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATEMENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT, ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MATTER OF THIS AGREEMENT.

End User License Agreement Terms
