USER MANUAL C7200-MARKETINGEDITION OKI

OKI 70037301 Hard Disk Drive Installation Instructions

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. Oki Data assumes no responsibility for the results of errors beyond its control. Oki Data also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by Oki Data.

Copyright 2001 by Oki Data Americas, Inc. All rights reserved.

Written and produced by the Oki Data Training & Publications Dept. Please address any comments on this publication

by mail to:

Training & Publications Dept.

Oki Data Americas, Inc.

2000 Bishops Gate Blvd.

or by email to: [e-mail]

For the latest information, we welcome you to visit our multilingual web site:

http://www.okidata.com

OKI, R/MD/MR Oki Electric Industry Company, Ltd. Adobe & PostScript, TM Adobe Systems, Inc. which may be registered in certain jurisdictions. Macintosh, TM Apple Computer, Inc., registered in the U.S. and other countries. Windows & Windows NT, R or TM Microsoft Corporation in the U.S. and other countries.

Prepare The Printer

1 Turn the printer off and unplug the power cord.
2 Detach the interface cable from the back of the printer.

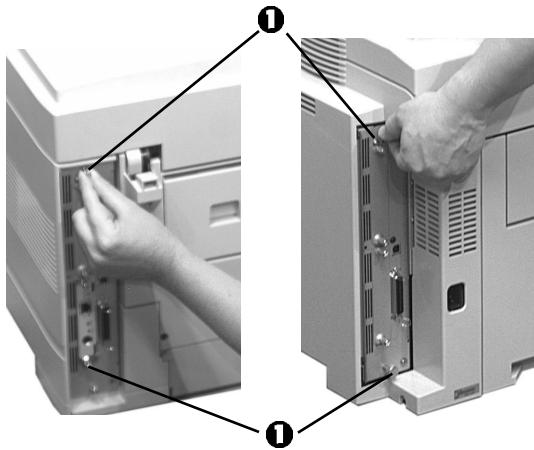

3 Remove and save the thumbscrews (1) at the top and bottom which hold the control board in place.

C7000 Series
C9000 Series

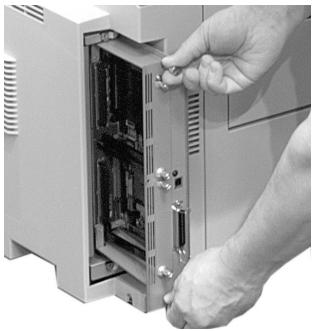

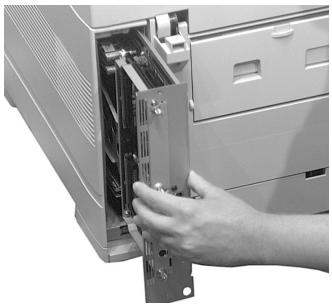

4 Grasp the control board and loosen it by wiggling it back and forth, then slide it out of the printer.

C7000 Series

C9000 Series

Install the Hard Disk Drive (HDD)

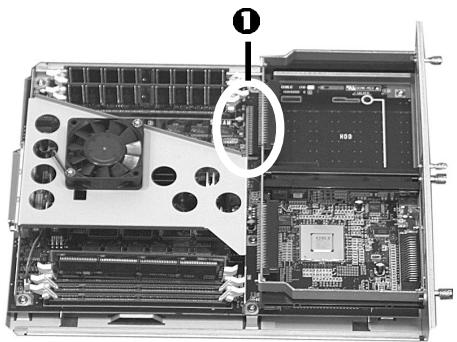

1 Locate the drive connector (1) on the control board:

2 Remove the HDD from its shipping package.

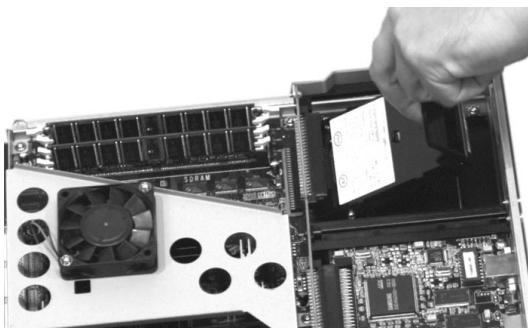

3 Lift the handle on the HDD and lower it onto the control board.

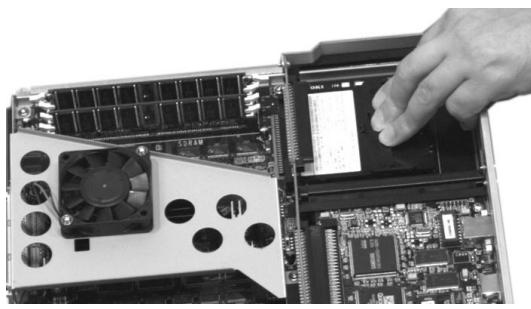

4 Insert the board firmly into the connector and press down on the handle to lock it in place.

Complete the Installation

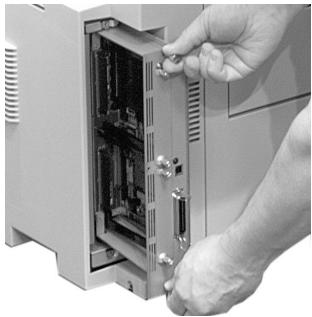

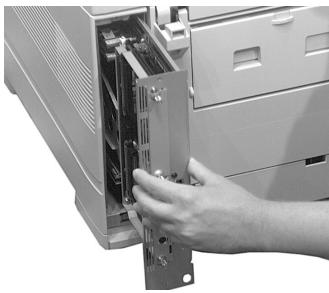

1 Align the bottom of the control board with the track in the printer and slide it back into place.

C7000 Series

C9000 Series

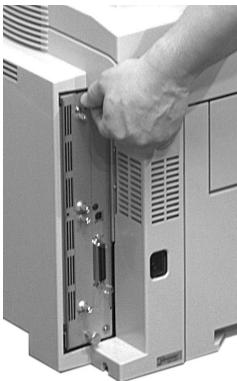

2 Reinstall the screws at the top and bottom of the board.

C7000 Series

C9000 Series

3 Reattach the interface cable, then plug the power cord into the power outlet and turn the printer on.

Check for Proper Installation

1 On the printer control panel, press MENU once or twice until INFORMATION MENU appears on the display.
2 Press SELECT. PRINT MENU MAP appears on the display.
3 Press SELECT. The MenuMap prints.
4 Check the MenuMap printout:

• At the top of the printout you should see "HDD:5.00 GB"
• In the right column you should see a new menu section entitled DISK MAINTENANCE

5 If you do not see these, remove the control board, lift the hard drive handle and check to be sure that the hard drive is firmly inserted in the connector. Then reinstall the control board and print the MenuMap again.

Activate the Hard Disk in the Driver

Windows® PCL Driver

1 Click Start Settings Printers. The Printers dialog box opens.
2 Right click the OKI PCL driver icon, then click Printing Preferences, Properties or Document Defaults, depending on the Windows system.
3 In the Paper tab, click Device options.
4 Click Printer hard disk to select it, then click OK.
5 Click OK, then close the Printers dialog box.

Windows Adobe® PostScript® Driver

1 Click Start Settings Printers. The Printers dialog box opens.
2 Right click the OKI PostScript driver icon, then click Properties.

3 Change the setting:

Windows 2000 and NT 4.0:

a Click the Device Settings tab.
b Scroll down to Installable Options and click Hard Disk.
c Under Change 'Hard Disk' Setting, click Installed.

Windows Me, 98 and 95:

a Click the Device Options tab.
b Click Hard Disk.
c Under Change setting for: Hard Disk, click Installed.

4 Click OK, then close the Printers dialog box.

Macintosh® Driver

1 Activate Chooser from the Apple menu.
2 Select LaserWriter 8.
3 Click Printer Setup.
4 Click Configure.
5 Change the Hard Disk setting to Installed.
6 Click OK twice, then close Chooser.
