Brand	Franke
Model	FCO 70 ON/G
Product type	Decorative chimney hood
Width	70 cm
Depth	50 cm
Height	60-110 cm (telescopic)
Weight	14 kg
Power supply	220-240 V, 50 Hz
Motor power	250 W
Max airflow	600 m³/h
Noise level	52 dB (minimum speed)
Control type	Push buttons
Lighting	2 x LED 3 W
Grease filter	Washable aluminum
Charcoal filter	Optional, model FC
Extraction mode	Extraction or recirculation
Outlet diameter	150 mm
Energy class	A
Installation	Wall-mounted
Cleaning	Grease filter in dishwasher
Maintenance	Clean filter monthly
Warranty	2 years

Frequently Asked Questions - FCO 70 ON/G FRANKE

How to install the Franke FCO 70 ON/G hood?

Installation must be carried out by a professional. Attach the wall bracket to the wall using the supplied dowels, then hang the hood. Connect the exhaust duct (diameter 150 mm) or install the charcoal filter for recirculation mode. Plug in the power supply.

How to clean the grease filter?

The aluminum grease filter can be cleaned in the dishwasher or by hand with warm soapy water. Let it dry completely before reinstalling. Clean it every month or more often if the hood is heavily used.

Is a charcoal filter needed for the FCO 70 ON/G hood?

The charcoal filter is only necessary in recirculation mode (without external evacuation). It is placed behind the grease filter and should be replaced every 3 to 6 months depending on use. Recommended model: Franke FC.

How to change the hood LED bulb?

The LED bulbs are integrated and must be replaced by a professional. Contact Franke after-sales service to get a replacement part.

The hood is noisy, is that normal?

A noise level of 52 dB at minimum speed is normal. If the noise becomes excessive, check that the grease filter is clean and that the ducts are not obstructed. If the problem persists, contact a technician.

What is the recommended mounting height?

For electric cooking, the hood should be installed 65-75 cm above the hob. For gas cooking, allow 75-85 cm to comply with safety standards.

How to use the hood controls?

The push buttons allow you to select the speed (3 levels) and turn on the lighting. Press the stop button to turn off. Refer to the manual for details.

Can I use the hood without external extraction?

Yes, in recirculation mode. You need to add a charcoal filter (sold separately) and follow the installation instructions. The hood recirculates filtered air back into the kitchen.

The hood does not turn on, what to do?

Check that the power supply is plugged in and that the circuit breaker has not tripped. If the lighting does not work, the LEDs may be defective. Contact Franke customer service.

Where to find spare parts for the FCO 70 ON/G?

Spare parts (filters, bulbs, etc.) are available from Franke customer service or on their website. Use the reference 'FCO 70 ON/G' to identify compatible parts.

USER MANUAL FCO 70 ON/G FRANKE

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by a specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation of the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply

guarantees adequate earthing. - Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible. - Regulations concerning the discharge of air have to be fulfilled. - Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.). - If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood. - The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. - If the supply cord is damaged, it must be replaced by the manufacturer or its service agent. - Connect the plug to a socket complying with current regulations, located in an

accessible place.

- With regards to the technical and safety measures to be adopted for fume discharging, it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the hood, remove the protective films.

- Use only screws and small parts supplied with the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance. - The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than those for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

- Clean the hood using a damp cloth and a neutral liquid detergent.

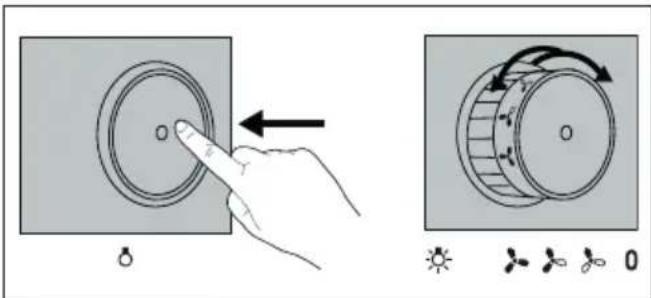

4. CONTROLS

Lights To turn	the lights on, press the dial and release it so that it pops out of its housing.To turn the lights off, push the dial back inwards, returning it to the off position.
Motor Speed Adjustment	Press the dial and release it so that it pops out of its housing, then turn the dial to select one of the available suction speeds.

5. LIGHTING

- For replacement contact technical support ("To purchase contact technical support").
