WELCOME

Thank you for choosing our product. To ensure your safety and get the best results, please read this manual carefully, including the safety instructions, and keep it for future reference.

Before installing the oven, note the serial number, which you might need for repairs. Check for any damage during transportation and consult a technician if you're unsure before using it. Keep packaging materials away from children.

NOTE: Please note that the oven's features and accessories may vary depending on the model you purchased.

SUMMARY

1. SAFETY INFORMATION

2. PRODUCT INTRODUCTION

2.1. Overview of the product 2.2. Accessories 2.3. Control panel 2.4. Connectivity

3. BEFORE STARTING

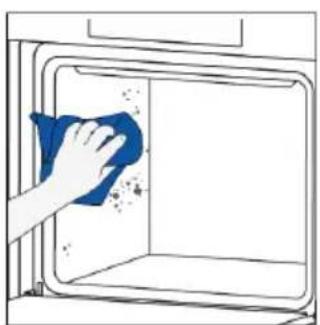

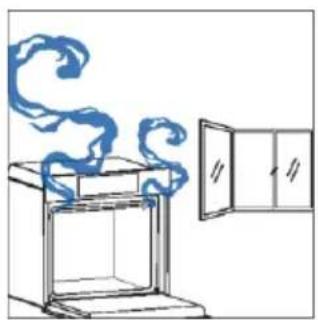

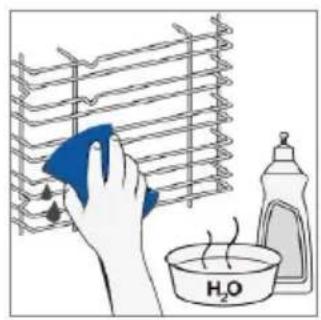

3.1. Information to start 3.2. First usage 3.3. Preliminary cleaning

4. OPERATION OF PRODUCT

4.1. How the product works 4.2. Cooking functions 4.2.1. Standard functions 4.2.2. Special functions

5. COOKING GUIDELINES

5.1. General Cooking Tables 5.2. Everyday Cooking Tables

6. CARE & CLEANING

6.1. General Recommendations 6.2. Cleaning the Oven 6.2.1. Inside the Oven: Cleaning Functions 6.2.2. Outside the Oven: Removal and Cleaning the Glass Door 6.3. Cleaning of Accessories 6.4. Maintenance

7. TROUBLESHOOTING

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. Appliance Disposal 8.2. Saving and Respecting the Environment

9. INSTALLATION

GENERAL WARNINGS

• Do not use a steam cleaner for cleaning operations.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

Use in accordance with intended use

- Only use the oven for its intended purpose, that is only for the cooking of foods: any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect, or unreasonable usage.

Use limitations

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

INSTALLATION WARNINGS

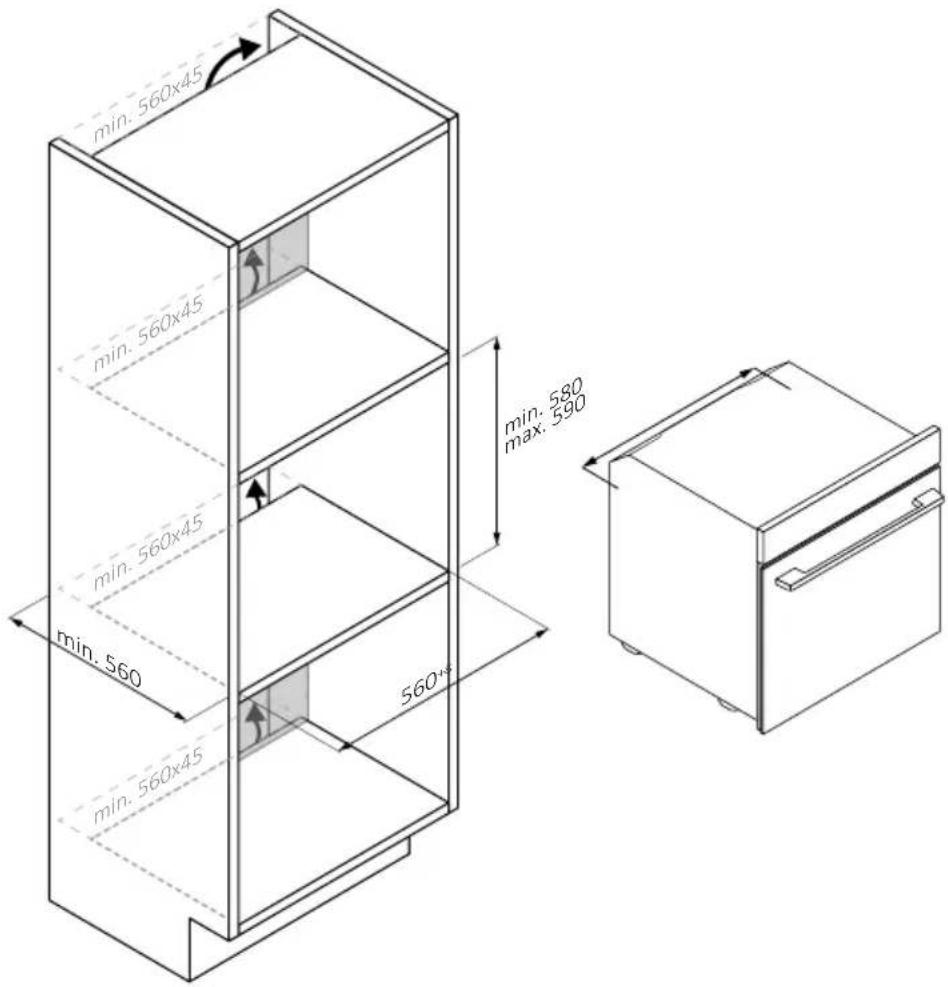

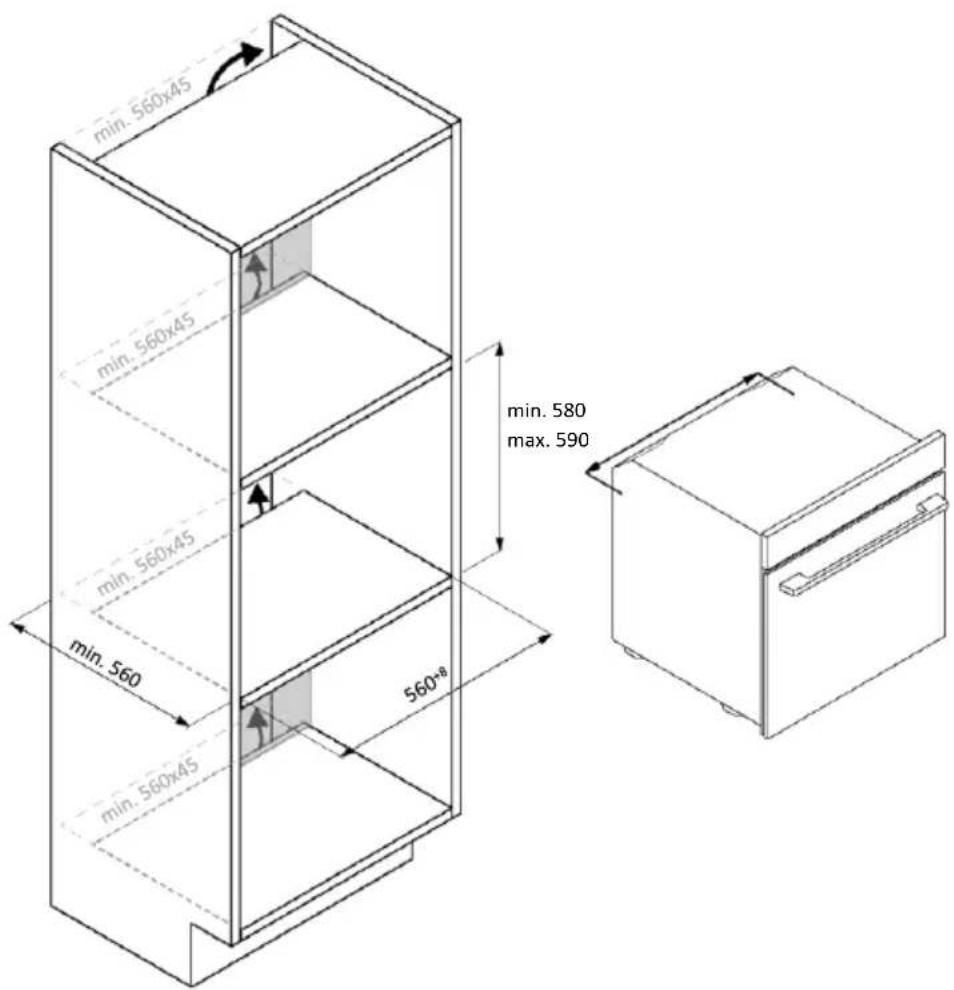

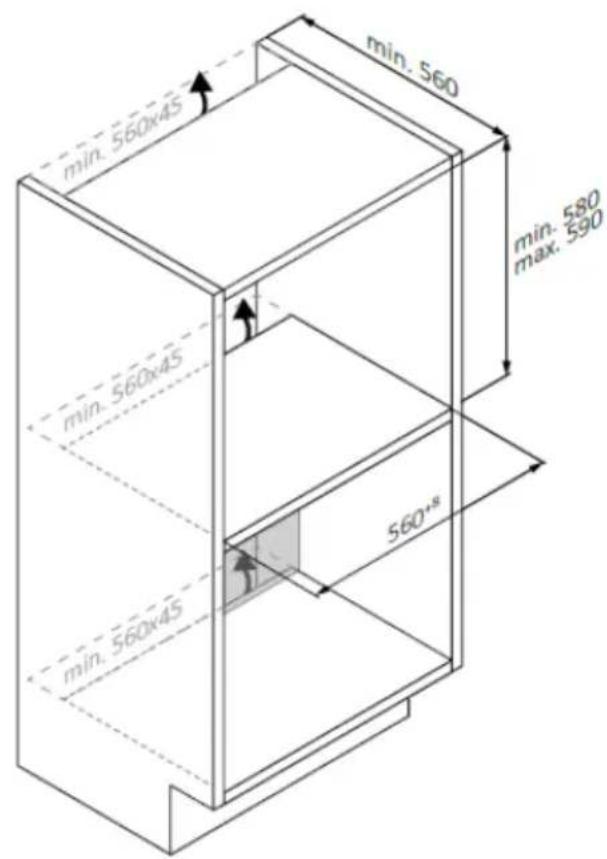

The oven can be located high in a column or under a worktop.

Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on the illustrations according to the type of fitting. Always fix the oven to the furniture with screws provided with the appliance.

No additional operation or setting is required in order to operate the appliance at the rated frequencies.

The appliance must not be installed behind a decorative door in order to avoid overheating.

During installation, the oven should be disconnected from the mains to avoid overheating.

If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed.

Incorrect installation may cause harm or injury to people, animals, or belongings. The manufacturer cannot be held responsible for such harm or injury.

Installation must be carried out by a qualified technician who must know and respect the laws in force in the country of installation and the manufacturer's instructions.

After unboxing the appliance, always check it is not damaged. In case of issue, contact the customer service before installing and do not connect to the power supply.

- Remove the packaging material before operating the appliance.

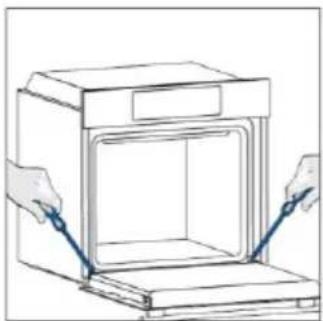

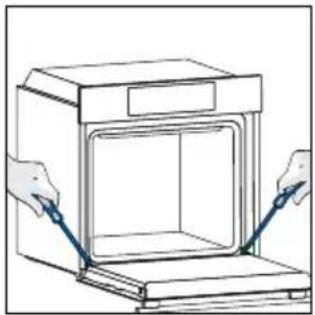

- During installation, do not use the oven door handle to lift or move the oven.

- The installation furniture and adjacent units must withstand temperatures of 95°C.

- It is recommended to wear protective gloves during installation to

avoid cut injuries.

• Do not install the product in open environments exposed to atmospheric agents.
• This appliance is designed to be used at altitudes lower than 2000m.

ELECTRICAL WARNINGS

• The socket must be suitable for the load indicated on the tag and must have a ground contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a suitably qualified professional.
• Connection to the power source can be made by plug or by fixed wiring, placing an omnipolar breaker with contact separation compliant with the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation.
• In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must conform to the current norms of the installation country.
• The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.
• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• ⚠ WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.
• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according to the instructions.
• The use of any electrical appliance implies the observance of some fundamental rules:

- do not pull on the power cable to disconnect the appliance from the power source;

- do not touch the appliance with wet or damp hands or feet;

- in general the use of adaptors, multiple sockets and extension cables is not recommended; - in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

• NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed.
• Any repair, installation and maintenance not carried out correctly can seriously endanger the user.
• The manufacturing company hereby states that it does not assume any responsibility for direct or indirect damages caused by incorrect installation, maintenance, or repair work. Furthermore, it is not liable for damages caused by the absence or interruption of the grounding system (e.g., electric shock).
• CAUTION: in order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance is not designed to be activated by an external timer or separate remote control system.

USE & MAINTENANCE

• The dripping pan collects the residues that drip during cooking.

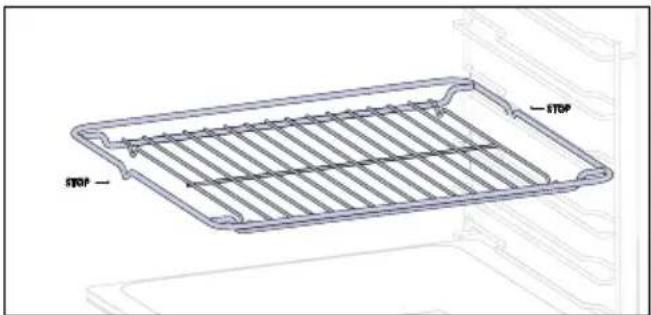

• When you place the grid on the side racks, make sure that the shorter section of the side (between the stop and the extremity) is directed towards the interior of the oven. If the grid has a decorative metal bar, pay attention to position it on the exterior of the oven so that the brand logo can be visible and readable. For the correct positioning refer also to the image in the Accessories section of this user manual.

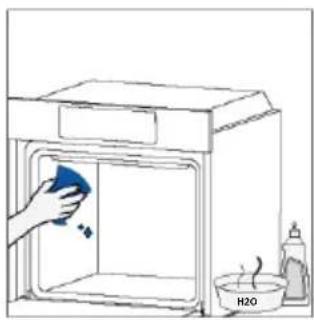

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glasses, since they can scratch the surface, which may result in shattering of the glass.
• Only use the temperature probe recommended for this oven.
• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the

oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.
• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.
• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. In this case contact customer service.
• WARNING: Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.
• WARNING: Never remove the oven door seal.

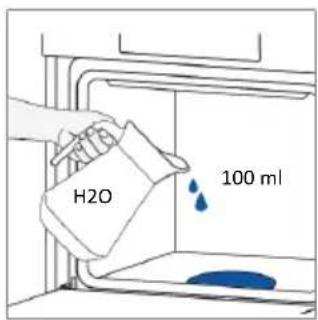

• CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.
• For a correct use of the oven it is advisable not to put the food in direct contact with the racks and trays, but to use oven papers and/or special containers.

WARNINGS (*FOR PYRO OVENS)

• Excess spillage must be removed before cleaning.
• ▲ WARNING: before initiating the automatic cleaning cycle:
• Clean the oven door;
• Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents;

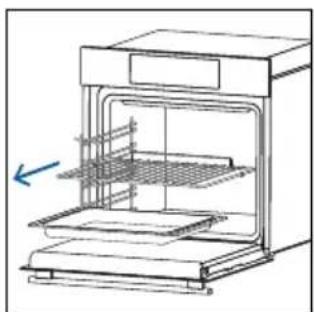

• Remove all accessories and the sliding rack kit (where present);
• Do not place tea towels.

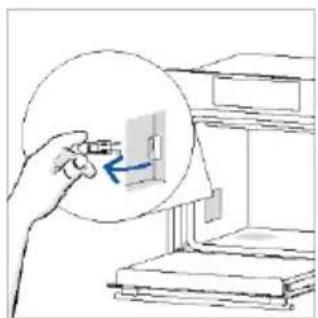

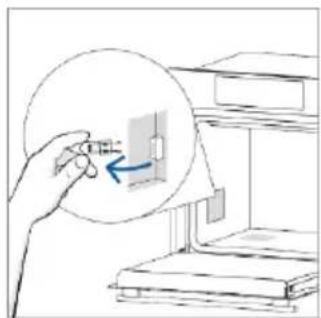

• In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.
• During the pyrolytic cleaning process (if available), the surfaces may get hotter than usual and children should be kept away.
• If a hob has been fitted above the oven, never use the hob while the Pyrolizer is working, this will prevent the hob from overheating.

2. PRODUCT INTRODUCTION

2.1. OVERVIEW OF THE PRODUCT

2.2 ACCESSORIES

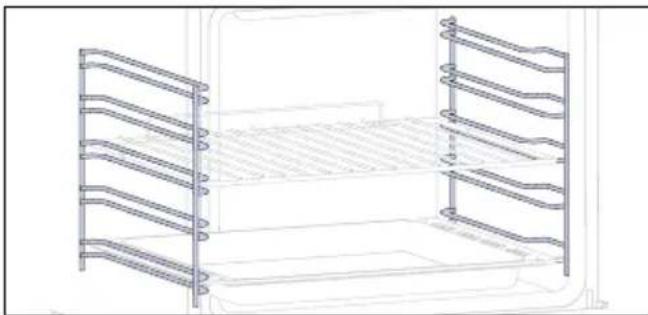

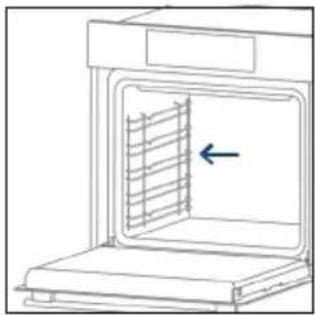

Lateral wire grids (only if present*)

Located on both sides of the oven cavity, the side racks are designed for placing baking tray and grids during the cooking.

NOTE: 6 or 7 levels depending on the model.

Baking tray (only if present*)

A baking tray is ideal for achieving even bottom browning, making it perfect for cookies and pastries due to its shallow, flat design. Additionally, placing it under a cooking grid can help collect drips and prevent messes in the oven.

1. Control panel
2. Shelf positions numbers
3. Grids
4. Trays
5. Fan cover
6. Oven door
7. Lateral wire grids (if present: only for flat cavity)
8. Serial number & QRcode

Write here your serial number for future reference.

Metal grid

A metal grid in an oven is a removable, adjustable shelf that supports cookware, ensuring even cooking, and makes cleaning easy. It can be used to hold plates and pans at different heights for various cooking needs.

Deeper Tray

The deeper tray is ideal for recipes with added liquids or layers, such as casseroles or roasts. Its depth is specifically designed to ensure the desired consistency of the food prepared in it.

Telescopic Guides (only if present*)

Telescopic oven rails are shelves that can be extended, making it easier to place or remove items, without the need to reach deep inside a hot oven. They improve safety, stability, and can be adjusted at different level positions.

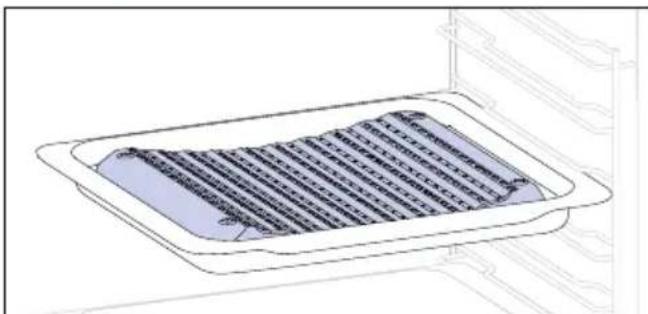

Dual tray – BBQ mode (only if present*)

The concave shape allows a correct circulation of humidity generated in cooking, keeping the food humidity rate high. According to the quantity of water inserted in the tray, a drier or more "wet" cooking will be obtained.

Turnspit (only if present*)

The turnspit works together with the top heating element, by rotating the food can be cooked omogeniously. It is best used for medium-sized food. Ideal for rediscovering the taste of traditional roast.

Softclose/Soft open hinges (only if present*)

Soft close and open hinges control the door's motion, ensuring smooth movement and preventing slamming.

Dual tray – STEAM mode (only if present*)

The convex shape is suitable for grilling in the oven at high temperature (220°) allowing a BBQ result even at home with little smoke thanks to the drainage action of the fats on the bottom of the tray.

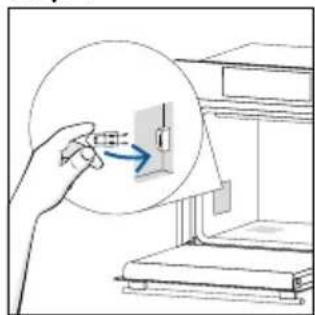

Meat probe (only if present*)

This Meatprobe is a temperature sensor that, inserted into the food and connected to the oven via cable, allows to control the inner temperature of the food during cooking. It is mainly used for fish and meat.

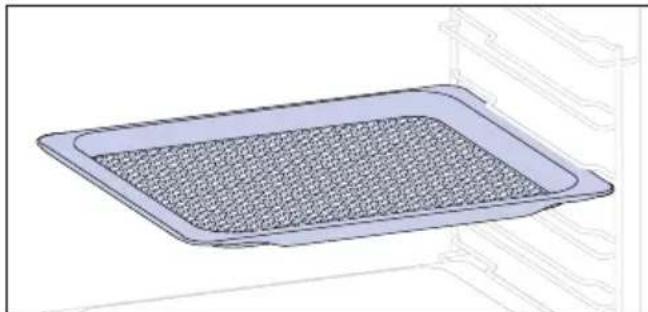

Airfry tray (only if present*)

The airfry tray ensures that hot air reaches the food evenly and tridimensionally, resulting in a crispier exterior while maintaining tenderness inside. To collect juices and breading, place it on top of the baking tray.

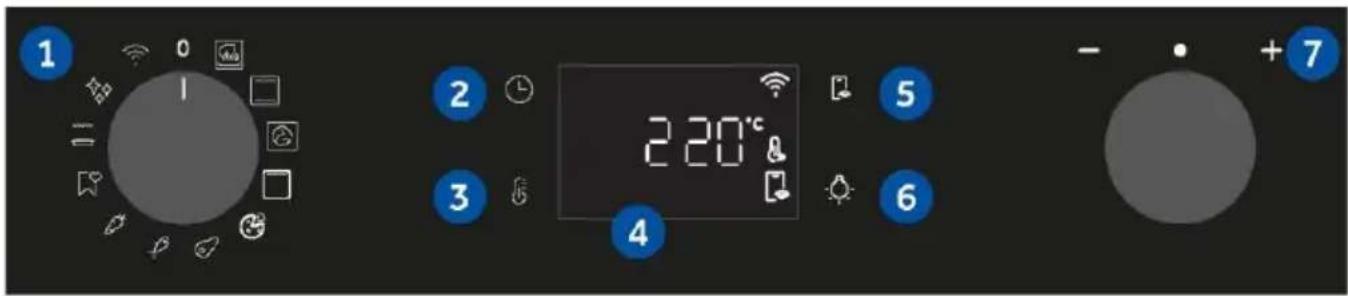

2.3 CONTROL PANEL

Functions and function ranking can be changed depending on the model.

1. Function selector knob
2. Time
3. Temperature
4. LED display 7
5. Remote control
6. Lamp
7. Dial control

MAIN FUNCTIONS

The display has 4 main functions:

Symbol Function Description
	Time	Press once for cooking duration, twice for the minute minder (available in standby mode), three times for the time of day, and four times for delay start. In standby mode, only the kitchen timer is accessible.
	Temperature	Press once to check the cavity temperature, press and hold for 3 seconds to activate the fast-pre-heating option (only available during the oven's preheat phase). When the preheat is active, the released icon will be shown on the display.
	Remote Control on/off	Press the button to activate remote control, after pairing the oven with the hOn app (through the application).
	Light Press to turn on/off the oven cavity light.

2.4 CONNECTIVITY

Wireless parameters

Technology Wi-Fi Bluetooth
Standard IEEE 802.11	b/g/n Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401 ÷2483 2402÷2480
Maximum Power [mW]	100 10

Product information for networked equipment

Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:

2.0 W.

How to activate wireless network port:

WIFI module switches on as soon as the function knob is set to a position different to zero.

How to deactivate wireless network port:

WIFI module is always off when the function knob is set to zero position.

If the knob is set to different position, go to WIFI menu and select off to deactivate the WIFI.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant statutory requirements for the UK market. The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

HOW TO INTERACT WITH THE APP

Your appliance may be connected to your home wireless network and operated remotely using the app. Connect your appliance to ensure it stays up to date with the latest software and features.

NOTE

• Once the oven is turned on, the WIFI icons blinks for 30 minutes. During this period it's possible to enroll the product.
• Ensure your home Wi-Fi network is turned on.
• You will be given step by step guidance on both your appliance and mobile device.
• It may take up to 10 minutes to connect your oven.
• For further guidance and troubleshooting, please refer to the app.

Download on your smartphone.

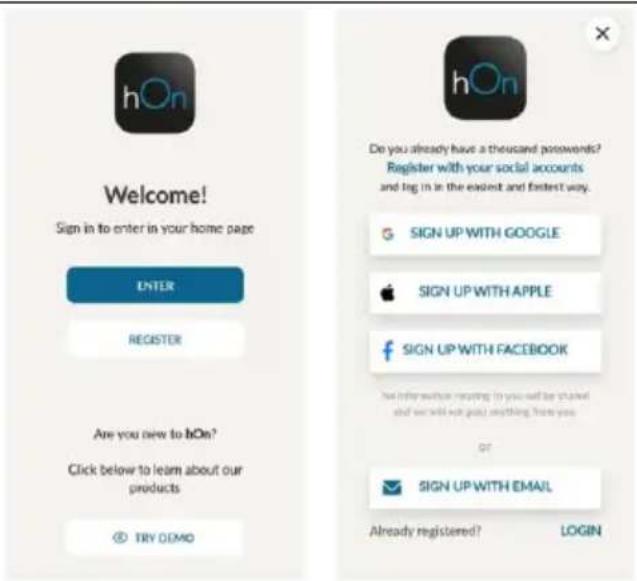

NEW USER REGISTRATION

• Click on "Register"
• You can register through social accounts or sign up with your personal email

QUICK PAIR ENROLLMENT

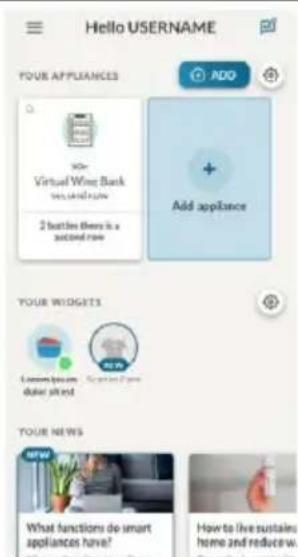

Step 1

- Select "Add appliance".

Step 2

- Allow your location permission.

Step 3

- Select oven from the appliance category.

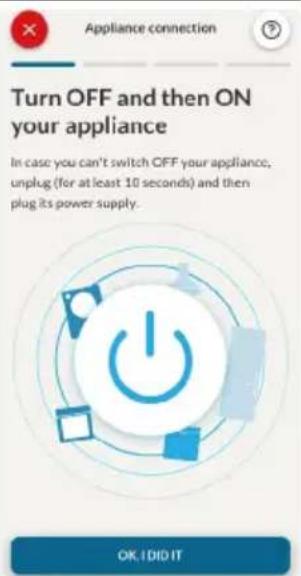

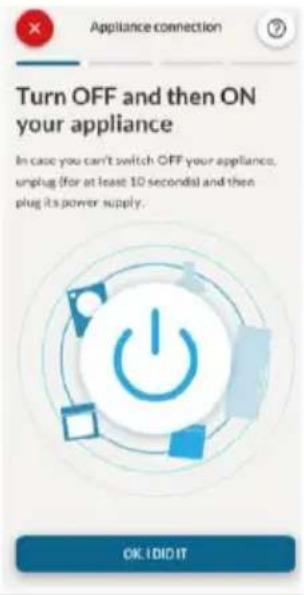

Step 4

- Turn on your appliance; if it is already on, turn it off and on again.

Step 5

• After turning on, the hOn app will start searching for your home appliance.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. The app is looking for your appliance...

Stay close to your appliance in order to correctly capture the signal.

Step 6.1-6.2

- Select your home appliance, tap on "connect" and wait a few seconds.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

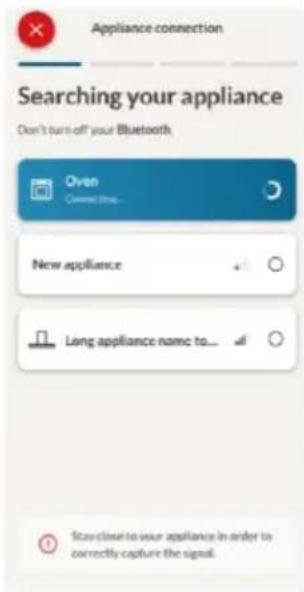

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven Connecting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Step 7

- Your Oven will be found and you can control it through hOn.

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 17345678-1234-1234

Is this your appliance?

YES, IT'S MY OVEN

NO, IT'S NOT

HOW TO CHANGE WIFI SETTINGS

Once the appliance is enrolled, the user can change the WIFI settings between:

• WIFI ON: It is only possible to monitor the oven status by App. • WIFI OFF: The oven is not connected but still enrolled with network credentials saved.
• WIFI RESET: The connection is reset and a new enrollment is possible.
• Turn the function knob on WIFI menu.
• On display appears "On".
• Rotate the dial control until "Off" or the reset setting "rSt" will be showed.

REMOTE CONTROL

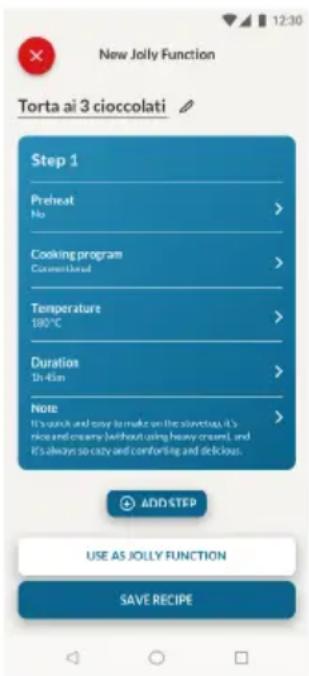

The Remote Control offers numerous advantages for users, enhancing convenience, efficiency, and the overall cooking experience, by giving the capability to control the product directly from both the appliance and hOn App

This function allows, through your device, to enjoy various features, such as: instant or scheduled start of recipes or cooking programs already available in the app; real-time monitoring of the progress of your recipes; adjustment of the cooking parameters in use; monitoring of the cooking process using the probe; managing saved recipes using the "Jolly function" on the product (see related section). Furthermore, it is possible to receive notifications once programs or recipes are completed. The Remote Control can be activated exclusively when the product is enrolled.

NOTE: It is available for all cooking functions on the product, except for Gratin and Supergrill programs.

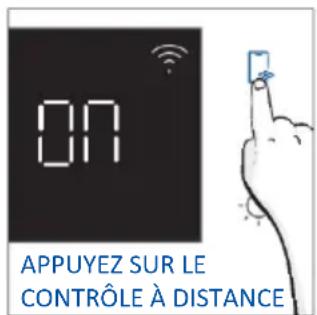

How to activate Remote Control:

1. Turn the function knob on WIFI menu.
2. Press
3. On display appears "hOn". Both WIFI and Remote Control icons will be shown.

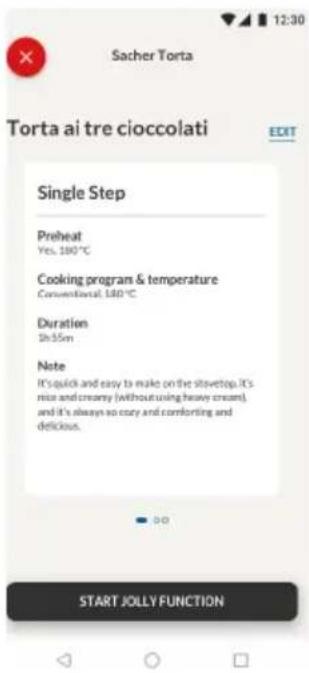

4. Access the App, select a program, and let the cooking start. During the process, it is possible to control and change the program parameters from both the product and the App.

It is also possible to activate Remote Control during the cooking process by pressing the related button.

How to stop Remote Control:

While the cooking program is in progress, it can be stopped directly from the product itself by rotating the function knob to a different position. These actions interrupt the cooking process. Another way is by pressing the corresponding button of the Remote Control that came with your appliance. These actions interrupt the cooking process.

You can also stop the cooking program remotely using the app by clicking the 'STOP' button on the display device. The oven will automatically stop cooking.

NOTE: If the user stops the cooking in progress from the oven, simultaneously the stopped cooking will be seen in the App.

3. BEFORE STARTING

3.1. INFORMATION TO START

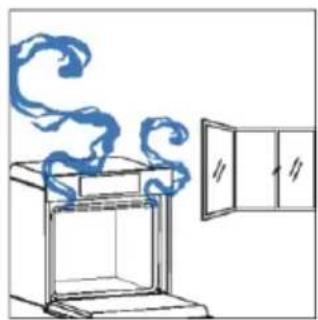

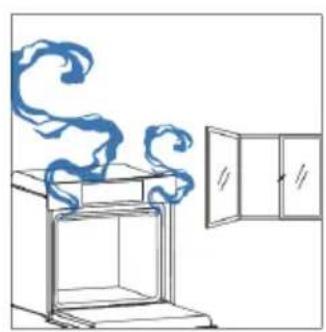

When you first turn on the oven, you might notice some smoke. Don't worry, just wait for the smoke to clear before using the oven.

How the door works

For functions that use the grill, thanks to the door switch technology, the oven will automatically pause the heating elements when you open the door and continue cooking once you close it.

This feature is available only on specific oven configurations. All the pyro models have it.

During the pyrolytic cleaning process, the oven door remains locked at all times. If it's not locked, the oven will display error code 24 and pause the cleaning function.

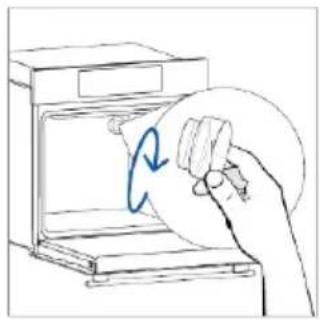

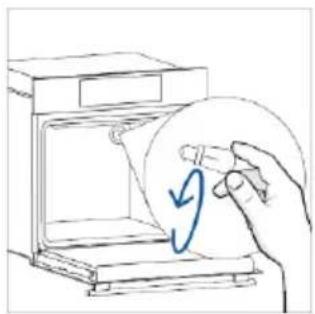

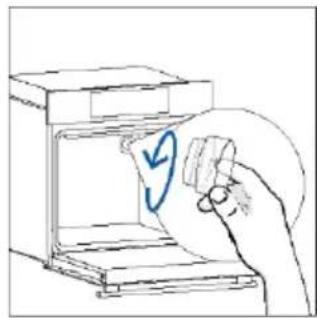

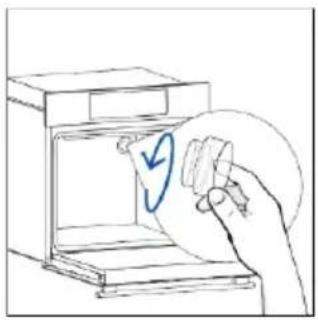

How illumination works

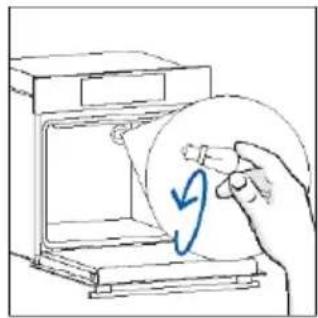

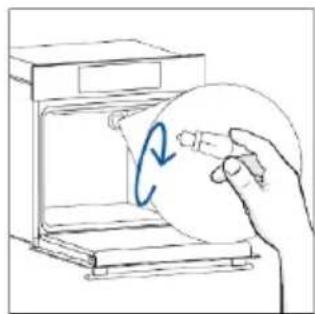

The oven cavity is illuminated by one or more light bulbs, typically activated each time a cooking function begins.

For ovens equipped with a door switch (see below), the light automatically turns on when the door is opened.

For ovens equipped with a lamp button, it can also be used to activate the lighting.

If the oven door remains open for more than 10 minutes, the lights will automatically turn off.

During pyrolytic cleaning process light remains off. *

How cooling fan works

The cooling fan is responsible for dissipating the heat, keeping the oven and its surroundings from getting too hot, as well as protecting kitchen appliances from the effects of high temperatures. For this reason, the cooling fan remains audible for a period of time even after the oven is turned off. It operates during and after cooking cycle in relation to the internal temperature of the oven.

When the cooling fan is operational, it usually generates a gentle humming or whirring noise. You may also notice a warm airflow emanating from the gap between the oven door and the control panel.

During pyrolytic cleaning and when door is locked, cooling fan is switched on. *

During ECO function the light will remain off.

(*only for pyro ovens)

How status bar works

The status bar, based on the set programs, simplifies monitoring of temperature and time. Specifically, for functions involving preheating, it displays the temperature increase during this phase. In cooking programs and the pyrolytic cleaning function, it shows the countdown of cooking time and the cleaning cycle, respectively.

3.2. FIRST USAGE

When the appliance is switched On for the first time, the initial step is to set time of day, choose between 13 ampere or 16 ampere, select brightness and sound level.

- SET THE TIME: The display will show the blinking preset time '12:00'. To modify it, press ⏚ and use the right knob to adjust the current hour. Press again ⏚ and follow the same procedure to set the minutes. To confirm, press ⏚ once more.

- AMPERAGE: By default, the oven is set to work with higher power suitable for households with more than 3 kW (16 A). If your home has lower power, you can change this setting to 13 A. This setting affects how quickly the oven heats up. Choosing the higher option (16A) means it heats up faster (because the power absorption is increased). On the display, you'll see two choices: 13A and 16A. Just turn the right knob to pick the one you want, then press ⏻ to confirm.

NOTE: The option to set the amperage is only available during the initial installation. To modify the set amperage, please refer to the post-installation instructions.

- BRIGHTNESS: The display shows the symbol "br". The numbers represent the level of brightness intensity, editable turning the right knob. To confirm press Ⓛ

- SOUND: The display shows the symbol "Sn". The numbers represent the level of sound intensity, editable turning the right knob. To confirm press ⏻

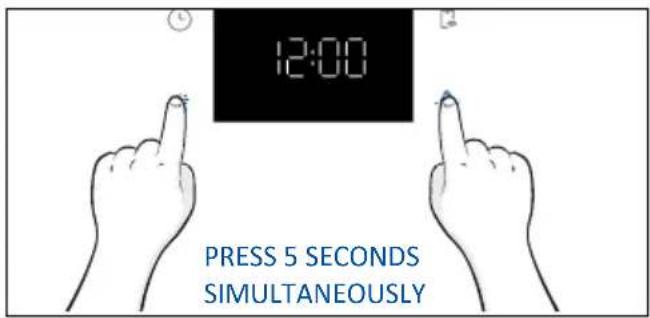

When oven is in stand-by mode, it is possible to go back to initial settings by pressing simultaneously Temperature and Lamp buttons for 5 sec.

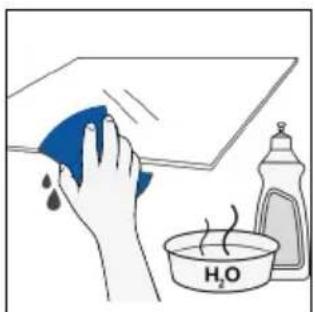

3.2. PRELIMINARY CLEANING

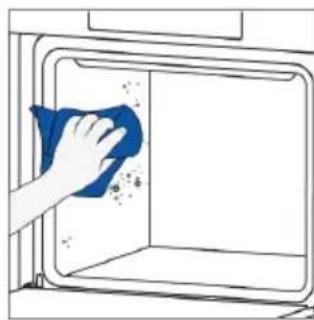

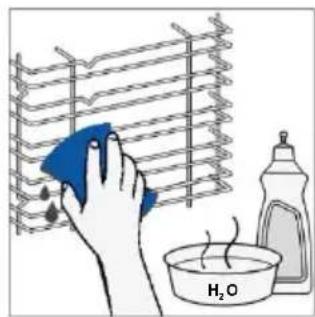

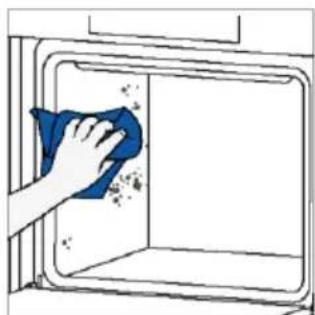

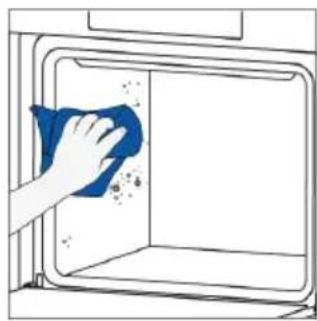

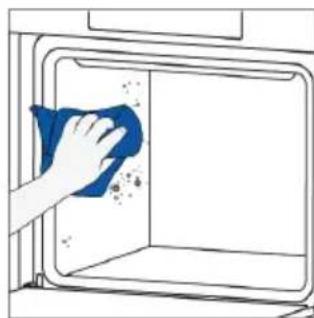

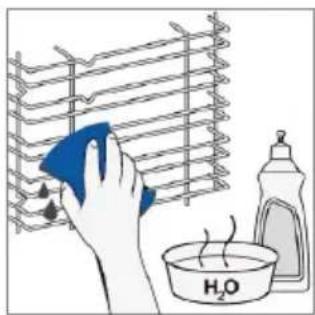

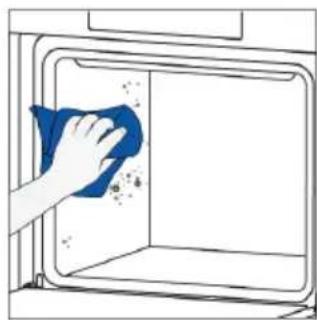

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

4. OPERATION OF PRODUCT

4.1. HOW THE PRODUCT WORKS

SWITCHING ON/OFF THE OVEN

To turn ON the oven rotate the function knob (clockwise/counterclockwise) and select a cooking program. To turn it OFF, set the function knob to the '0' position.

SET COOKING PROGRAM

Turn the function knob and select the desired program. On display will appear a default temperature that can be edit in every moment turning the right knob (clockwise to increase and counterclockwise to decrease the temperature).

TIME MENU

Access the Time menu by pressing Ⓛ. To navigate into tap Ⓞ as many times as is needed to enter in the following settings:

NOTE: several parameters cannot be set at the same time, therefore only the last set remains in the memory while the previous one is deleted.

COOKING DURATION

Allows to preset the cooking time required for the recipe chosen.

ACTIVATION: press ⏻ to enter in the Time menu. Tap ⓐ as many times as you need to select “Cooking duration” function. Then use the dial control to regulate the value.

The countdown starts at the end of preheating (if present). During cooking phase is possible to change the duration value by turning the right knob. When duration is elapsed the cooking stops.

MINUTE MINDER

Allows to use the oven as alarm clock.

ACTIVATION: press Ⓛ to enter in the Time menu. Tap ⓐ as many times as you need to select "Minute minder" function. Then use the dial control to regulate the value.

When the function is set, the primary information showed on display is always the time. To edit the temperature, press ⏻ to enter dedicated edit mode. When duration is elapsed, the cooking continues until the left knob is turned in 0 position.

This function can be set also when the oven is in stand by mode by pressing ⏻. When activated, the minute minder operates independently of the oven's cooking functions.

DELAY START

Allows to choose the cooking start time.

ACTIVATION: press ⏻ to enter in the Time menu. Tap as many times as you need to select “Delay start” function. Then use the dial control to set the start time of cooking.

NOTE: Delay start is activable only after setting Cooking Duration and it is not available with grill's functions.

ADDITIONAL FUNCTIONS

CHILD LOCK

This function allows you to lock the screen to prevent any unwanted use by minors. To activate the screen lock, press and hold down the Remote Control and Lamp buttons simultaneously.

Repeat the same action to deactivate the lock.

4.2. COOKING FUNCTIONS

FAST PREHEATING OPTION

In order to accelerate the preheating phase, the fast-preheating option can be selected by pressing the temperature icon for 3 seconds after having selected the cooking program and temperature. This option will activate a combination of fan and heating elements regardless of the chosen cooking function.

To save energy, when fast preheating is activated the cavity fan will be turned OFF until the oven reaches the desired temperature.

4.2.1. STANDARD FUNCTIONS

NOTE: for functions that require preheating, ensure all accessories are removed during this phase.

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	Suggestions
	*ECO	190 °C 150-220 °C	L3/L4 NO		IDEAL FOR: cooking meat, fish or vegetablesThis function allows to save energy during cooking keeping the food moist and tender.Cavity lamp is switched off
	*Conventional	200°C 30°C	L2/L3	Yes/Fast preheat	IDEAL FOR: cakes, breads, biscuits, quiches on one level using both upper and lower heating.Can be used with Preci Probe.
	Multi-Level	160°C 50-250°C	L4 (one tray)L2+L5 (two trays)L2+L4+L6 (three trays)	Yes/Fast preheat	IDEAL FOR: cakes, biscuits and pizzas on one or more levels.Ideal to cook different foods.Can be used with Preci Probe.
	**Supergrill	05 01-05	L6 NO		IDEAL FOR: big quantities of sausages, steaks and toast bread.The entire area below the grill element becomes hot. Use with the door closed. Turn food two thirds of the way through cooking (If necessary).
	**Gratin(***)	200°C 150-250°C	L4/L5	Yes/Fast preheat	IDEAL FOR: whole pieces of meat (roasts) or gratinated foods. Use with the door closed. Slide the drip tray under the shelf to collect juices. Turn food over halfway through cooking if needed.
	Airfry(***)	200°C150-250°C	L3/L4 NO		IDEAL FOR: preparing frozen foods or breaded par-cooked foods which are usually fried. Thanks to the dedicated tray, the hot air can flow evenly over the foods.

* Tested in accordance with the EN 60350-1 for the purpose of energy consumption declaration and energy class. **Use with the door closed. *** Depending on the oven model.

4.2.2. SPECIAL FUNCTIONS

Symbol Function		T°C default T°C range	Suggested shelf position	Preheat	Suggestions
	Pizza	300°C200-300°C	2/3 NO		IDEAL FOR: all kind of pizzas without preheating the oven. Use lower temperatures for frozen items and 300°C for home-made recipes
	Jolly - - -				Add to the preset list of functions your favorite one that's not already present in your oven. You canconfigure it through the hOn app.

Jolly function

Thanks to the Jolly function, this product offers a fully customizable experience, allowing you to store your personalized recipes directly on the oven. You can execute these recipes as often as you like, even without the need to log into the app.

How to Set the Jolly Function:

To set the Jolly function on your oven, open the app's recipe section, select the recipe you want to use, and click 'Use As Jolly Function'.

From this point onward, you can launch it from the product even without interaction with the app. Simply turn the function knob to the Jolly function to start the cooking process.

The display will show the preset temperature.

How to edit the Jolly function:

To edit a Jolly function, go to the app's recipe section and select the card of the recipe designated as a Jolly function. Tap the "edit" button to customize the recipe and modify the previously set settings.

A pop-up message will inform you that to save the newly modified Jolly function, you must remove the previous one. If you confirm, the previous Jolly function will be deleted, and the new parameters will be saved on the product and will be visible in the app.

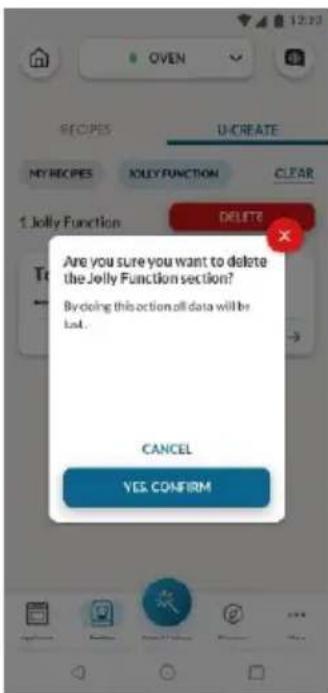

How to Delete the Jolly Function:

To remove the Jolly function from the oven's user interface, access the app's recipe section.

By tapping on the card of the recipe designated as a Jolly function, it's possible to delete it by clicking the red button 'delete button'.

A pop-up will confirm the operation, asking for your confirmation. If you proceed, the Jolly function saved on the oven will be removed, and it will no longer be available in the app.

WIRED PROBE

How to use the probe:

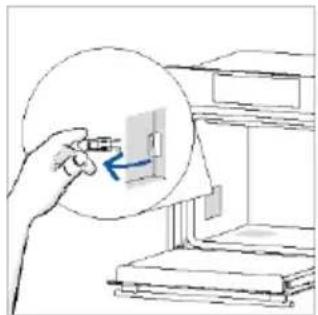

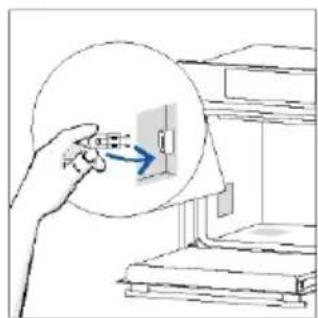

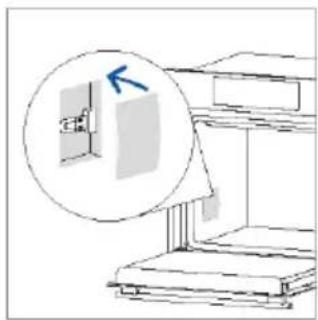

1. Plug the Probe into designed port on the oven and insert the accessory in the food.
2. On display appears the Probe icon. Only dedicated functions or cooking programs are available. From this moment, the displayed temperature will be that of the probe
3. Choose the cooking function and set the Probe target temperature to begin. The oven will then use the Probe data to monitor your food's internal temperature and stop cooking once the desired temperature is reached.

NOTE: When using the probe, there's no need to set a cooking timer; it will automatically stop once the desired temperature is reached.

1. Once the desired internal temperature is reached, the alarm sounds and the oven turns off. Before taking the food out of the oven, be sure to remove the Probe from the food carefully.

The Probe icon will be displayed on the screen. Only specific functions or cooking programs are accessible when this icon is active. If you attempt to use other functions, the oven will display a message saying "can't use probe."

Cooking tips

The Probe is equipped with a single measuring point. Insert it entirely into the food with the metal tip positioned at the centre of the food. Place this point as close as possible to the thickest (coldest) part of the food to accurately monitor the cooking process.

The Probe can be used with manual functions (Static, Static + Fan, Grill, Super grill, Gratin, and Multi-level), with FOOD COOKING CATEGORIES (Meat, Fish and Vegetables) and Gentle cooking.

Food category	Suggested core T°C	Suggested positioning
Roast beef	45°C	Diagonally in the thickest part. For cylindrical shape foods (i.e. beef roasts) place the tip as close as possible to the geometric center
Roasted meats 55	°C / 60 °C / 65 °C
Poultry	83-85°C	Into the thickest part of the breast
Fish (whole/steaks)	65°C	Diagonally in the thickest part
Bread/casseroles	90°C	Close to the geometric center of the food

5.1. GENERAL COOKING TABLE

Category	Recipe	N° of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after pre heating*(min)
Sweet bakery	Small cakes /Muffins	1	Static Multilevel	175°C 160°C	Y	Baking tray Baking tray	L3 L4	20-30 30-40
		2 Multilevel 150°C				Baking +Deeper trays	L2+L5 30-40
		3	Multilevel	140°C		Baking trays	L2+L4+L6	40-50
	Sponge cakes (26 cmø)	1	Static Multilevel	170°C 150°C	Y	Metal grid + Cake tin Metal grid + Cake tin	L3 L4	30-40 40-50
		2 Multilevel 150°C				Metal grids + Cake tin	L1+L4 50-60
	Biscuits	1	Static Multilevel	150°C 150°C	Y	Baking tray Baking tray	L3 L4	25-30 30-40
		2 Multilevel 140°C				Baking + Deeper trays	L2+L5 30-40
		3	Multilevel	140°C		Baking trays	L2+L4+L6	35-40
	Choquettes	1	Static	190°C	Y	Baking tray	L4	25-35
		2	Multilevel	170°C		Baking tray	L3	25-35
	Yorkshire pudding	1	Static	200°C	Y	Baking tray	L3	20-30
	Meringues	1	Multilevel	90°C	Y	Baking tray		90-160
	Macaron	1	Static	150°C	Y	Baking tray	L3	15-20
	Apple pie	1 Static 185°C Y				Metal grid + Cake tin	L2 60-70
		1 Multilevel 170°C Y				Metal grid + Cake tin	L4 65-75
	Tarte tatin	1	Static	170°C	Y	Metal grid + Cake tin	L2 40-60
	Chocolate souffle	1 Static 200°C Y				Baking tray + molds	L3 10-15
	Cheesecake	1 Static 150°C Y				Metal grid + Cake tin	L2 50-65
	Frozen croissants	1 Static 180°C			Y	Baking tray L3	20-25
		2 Multilevel		180°C		Baking trays	L2+L5	25-35
		3 Multilevel		160°C		Baking trays	L2+L4+L6	30-40
	Strudel, frozen	1	Static	210°C	Y	Baking tray	L3	30-45
Breads and Flatbread	Toast bread	1	Supergrill	5	N	Metal grid	L6	4-6
	Focaccia	1	Static	200°C	Y	Baking tray	L2 or L3	25-35
	Bread, whole	1	Static	200°C	Y	Baking tray	L3	35-50
Category Recipe		N° of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after pre heating*(min)
Savory pies and casseroles	Salty cakes / Quiches (26 cm ∅)	1 Static 200°C			Y	Metal grid + Quiche tin	L1 or L2 30-50
		2 Multilevel 180°C				Metal grid + Quiche tin	L1+L4 50-70
	Cheese souffle	1 Static 200°C Y				Baking tray + molds	L3 20-35
	Lasagna, fresh	1 Static 200°C Y				Metal grid + ovenproof dish	L3 40-60
	Lasagna, frozen	1 Static 180°C Y				Metal grid + ovenproof dish	L3 50-60
	Cannelloni, frozen	1 Static 180°C Y				Metal grid + ovenproof dish	L3 45-55
	Baked pasta	1 Gratin 200°C Y				Metal grid + ovenproof dish	L4 20-30
Pizza	Pizza, fresh (Tray)	1	Static	250°C	Y	Baking tray	L2 or L3	15-20
	Pizza, fresh (Tray)	1	Pizza	250°C	N	Baking tray	L2 or L3	18-25
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 25-35
	Pizza, fresh (Round)	1	Static	300°C	Y	Baking tray	L2 or L3	8-10
	Pizza, fresh (Round)	1	Pizza	300°C	N	Baking tray	L2 or L3	15-20
		2 Multilevel 180°C Y				Baking + Deeper trays	L2+L5 30-40
	Pizza, frozen (thin crust)	1	Pizza	200°C	N	Metal grid	L2	10-15
	Pizza, frozen (thin crust)	1 Static 220°C			Y	Metal grid	L3	10-15
		2 Multilevel	200°C			Metal grid	L2+L5	15-25
		3 Multilevel	180°C			Metal grid	L2+L4+L6
Meat & Poultry	Roasted whole chicken (1-1.2kg)	1	Gratin	220°C	Y	Metal grid/L4 Place Backing tray at L1 with half cup of water	L4 40-60
	Chicken thighs	1	AirFry**	220°C	N	Air fry tray**	L4	30-50
	Roasted duck	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L3 50-60
	Rooster	1	Gratin	220°C	Y	Metal grid Place baking tray at L1	L4 20-40
	Roasted turkey	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L3 50-60
	Pork ribs (1000-1200g)	1	Static	200°C	Y	Metal grid + Ovenproof dish	L3	80-100
	Sausages	1	Supergrill	4	Y	Metal grid	L5	40-50
Category	Recipe	N° of levels	Cooking program	T°C	Preheat	Cooking accessory	Shelf position	Cooking time after pre heating*(min)
	Beef fillet (1000-1500g)	1	Gentle cooking**	60°C	N	Metal grid + Ovenproof dish	L3 60-80
	Roast beef (500g)	1	Gratin	220°C	Y	Baking tray	L3	20-40
	Meatloaf (1000-1500g)	1	Static	180°C	Y	Baking tray	L3	40-50
	Roasted chicken with potatoes	1	Gratin	200°C	Y	Deeper tray	L4	45-60
Fish and Seafood	Grilled seafood	1	Supergrill	4	N	Metal grid	L5	15-30
	Frozen fish sticks	1	AirFry**	200°C	N	Air fry tray**	L4	20-25
	Baked fish	1	ECO	200°C	N	Metal grid Place baking tray at L1	L3 40-60
Vegetables	Vegetable gratin	1	ECO	200°C	N	Metal grid + Ovenproof dish	L3 80-90
	Frozen french fries (300-500g)	1	AirFry**	220°C	N	Air fry tray**	L4	18-25
	Potato gratin	1	Gratin	200°C	Y	Metal grid + Ovenproof dish	L4 15-25
	Roasted potatoes	1	Static	200°C	Y	Baking tray	L4	30-50

Cooking times may vary according to consumer's recipe and ingredients.

*if preheating required

** Depending on the oven model.

NOTE: For cooking cakes, quiches and other recipes that require a mold or a container on 2 levels, place the staggered: the upper tray on the left side and the lower tray on the right side.

5.2. EVERYDAY COOKING TABLE

Food category menu allows to cook a variety of recipes without preheating the oven, thanks to dedicated cooking programs tailored to each category needs.

After selecting the cooking program, the default time will be shown and can be edited by turning the right knob; cooking temperature can be changed by pressing the dedicated icon. Both parameters can be set within a limited range as shown in the table below.

Symbol	Description Preheat		Shelf position	Temperature range (°C)	Time Range (min)	Meat Probe temperature (if available)	Description
	Meat	NO	2-3-4	180-200	20-30	55-85°C	For beef, veal and pork roasts, poultry and cuts of meat.
	Fish	NO	3-4	160-180	15-45	55-65°C	For whole fish and fillets.
	Vegetables	NO	3-4	180-200	30-80	70-90°C	For roasted vegetables and potatoes

NOTE: if, after turning off the oven, there is a need to continue cooking, it's recommended avoiding the use of everyday cooking programs and instead opting for standard functions.

Recipe Serving size		Cooking program	T°C	Cooking accessory	Shelf position	Cooking time (min)
Beef roast	500-800g	Meat	190°C	Metal grid	L3	30-40
Beef fillet	200g	Meat		Metal grid	L3
Meatloaf	1000-1500g	Meat	180°C	Metal grid	L3	40-50
Beef wellington	500g	Meat	200°C	Metal grid	L3	50-80
Port roast	800-1000g	Meat	200°C	Metal grid	L3	40-70
Pork ribs	1000-1200g	Meat	200°C	Metal grid	L3	80-100
Lamb rack	800-1000g	Meat	200°C	Metal grid	L3	60-80
Lamb leg	1500-2000g	Meat	190°C	Metal grid	L3	80-100
Salmon filets	200-600g	Fish	170°C	Baking tray	L3	20-35
Tuna steaks	600g (app. 4 pcs)	Fish	180°C	Metal grid	L3	10-20
Swordfish steaks	700g (app. 4 pcs)	Fish	200°C	Baking tray	L3	15-20
Cod fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Seabream, whole	1	Fish	170°C	Baking tray	L3	35-45
Seabream, fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Seabass fillet	600g (app. 4 pcs)	Fish	150°C	Baking tray	L3	10-20
Salt baked fish	1	Fish	220°C	Baking tray	L3	30-40
Fish skewers	8 pieces	Fish	150°C	Metal grid	L3	20-30
Stuffed squid	4 pieces	Fish	180°C	Baking tray	L3	25-40
Whole bread	1	Bakery	200°C	Metal grid	L3	35-50
Rye bread	1	Bakery	190°C	Metal grid	L3	35-50
Sandwich loaf	1	Bakery	200°C	Metal grid	L3	35-50
Frozen baguettes	1	Bakery	200°C	Metal grid	L3	15-25
Frozen puff pastry snacks	1	Bakery	190°C	Metal grid	L3	20-30
Fennels	1 tray	Vegetables	200°C	Metal grid	L3	30-40
Mixed vegetables	1 tray	Vegetables	190°C	Metal grid	L3	40-45
Cauliflowers	1 tray	Vegetables	190°C	Metal grid	L3	40-50
Pumpkins, cubed	1 tray	Vegetables	200°C	Metal grid	L3	30-40
Stuffed peppers	1 tray	Vegetables	180°C	Metal grid	L3	70-80
Stuffed zucchini	1 tray	Vegetables	190°C	Metal grid	L3	35-45
Carrot sticks	1 tray	Vegetables	180°C	Baking tray	L3	35-40
Broccoli	1 tray	Vegetables	190°C	Baking trat	L3	30-40
Ratatouille	1 tray	Vegetables	190°C	Metal grid	L3	40-45
Vegetable flan	6 ramekins	Vegetables	180°C	Baking tray + molds	L3 25-35

6. CARE & CLEANING

6.1. GENERAL RECOMMENDATIONS

Regular cleaning can extend the lifecycle of your appliance. Wait for the oven to cool before carrying out manual cleaning.

• After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean. - Do not line the oven walls with aluminum foil or single-use protection available from stores. Aluminum foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides. - In order to prevent excessive dirt of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. - In addition to the accessories supplied with the oven, we advise you only use dishes and baking molds resistant to very high temperatures.

6.2. CLEANING THE OVEN

6.2.1. INSIDE THE OVEN: cleaning functions

Pyrolytic cleaning (*depending on the oven model)

This process relies on the chemical process bearing the same name, which involves the decomposition of complex substances through the application of heat treatment.

Once initiated, it automatically locks the oven door and swiftly elevates the temperature to a searing 410°C.

At the end of the cleaning cycle, all that remains within the cavity is a minimal deposit of dust, easily wiped away with a damp cloth.

How does it work:

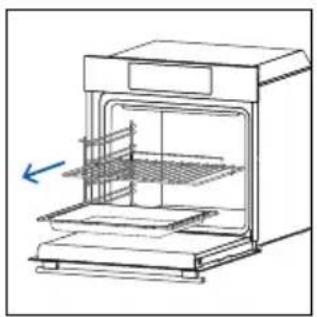

1. Remove any accessories from the oven, such as grids, side racks and side racks screw (*);

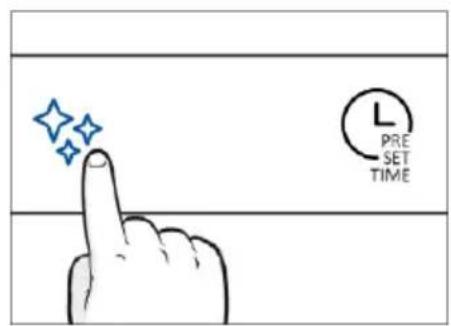

2. Turn function knob on ❖. Turn the dial control to set the Pyrolytic program; Allow the function to operate for the preset time. During this process and the following cooling phase, the oven door will remain locked.
3. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

▲ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

(*) only for models with 7 levels.

H2O cleaning

The H2O cleaning function is designed to effortlessly tackle light dirt and provide a quick and eco-friendly solution for cleaning your oven cavity using the power of steam.

How does it work:

1. Pour 100 ml of water into the bottom embossment of the oven.

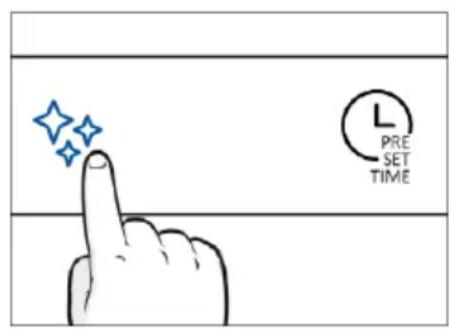

2. Turn the knob on ☐/☐. If necessary, turn the dial control to set the Hydro clean program. Allow the function to operate for the preset time.
3. At the end of the cleaning process, allow the oven to cool down.
4. When the appliance is cool, clean the inner surfaces of the oven with a cloth.
5. ⚠ WARNING: Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water.

Catalytic cleaning

The Catalytic panels line the oven cavity and grant you the luxury of never having to contend with a dirty oven.

The panels are coated with a specialized enamel that boasts a microporous structure, adept at absorbing grease from splashes.

Through a catalytic chemical reaction, they efficiently convert the absorbed grease into gaseous elements when exposed to high temperatures.

Recommendation: Consider replacing the catalytic panels after approximately three years of use, especially if you use your oven for two to three cooking cycles per week. This ensures optimal performance and cleanliness.

6.2.2. OUTSIDE THE OVEN: removal and cleaning the glass door

1. Position the door at 90°. Rotate the hinge locking tabs outward from the oven.

2.

1. Position the door at 45°. Simultaneously press the two buttons on both sides of the door's lateral shoulders and pull towards yourself to remove the upper glasses' door cover.

1. Very carefully remove the oven glass, starting with the inner one. During the procedure, firmly hold the glass with both hands and place them on a cushioned flat surface (e.g., on a fabric).

1. ⚠ WARNING: The outer glass is not removable.

1. Clean the glass using a soft cloth and suitable cleaning products.

1. Insert the glass panels, making sure that the "Low-E" label is correctly readable and positioned on the lower left side of the door, near the left-side hinge. This way, the printed label on the first glass will remain on the inside of the door.
2. Reattach the upper glasses' door cover by pushing it inwards until you hear a click from the two side buttons.
3. Then, bring the door back to 90° and rotate the hinge locking tabs inward towards the inside of the oven.

6.3 CLEANING OF ACCESSORIES

Ensure that you clean the accessories thoroughly after every use and dry them using a towel. For persistent residues, consider soaking the accessories in a mixture of water and soap for approximately 30 minutes before giving them a second wash.

CLEANING OF SIDE RACKS:

- 6 levels model

1. Remove the side racks by pulling them in the direction of the arrows.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order.

- 7 levels model

1. Remove the side racks by first pulling the front part in the direction of the arrow and detaching the rear part from the screws.
2. To clean the side racks either put them in the dishwasher or use a wet sponge, ensuring that they are dried afterwards.
3. After the cleaning process install the side racks in reverse order: positioning the rear part between the screws and push the front part in the direction of the arrow.

6.4 MAINTENANCE

COMPONENTS REPLACEMENT

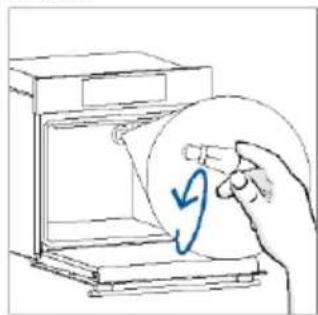

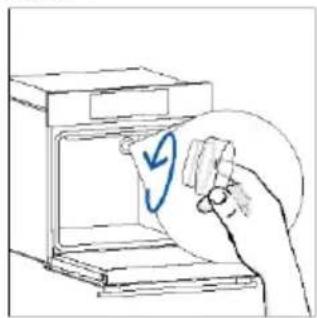

Changing the bulb on top:

1. Disconnect the oven from mains supply.
2. Remove the lamp's glass cover.
3. Disassemble the bulb.
4. Replace the bulb with a new one of the same type.
5. Relocate the lamp's glass cover.
6. Reconnect the oven from mains supply.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

This product contains one or more light sources of energy efficiency class G (Lamp)

Changing the lateral bulb:

1. Disconnect the oven from mains supply.
2. Use a flat-head screwdriver by positioning it to the side of the protective glass and gently apply pressure to remove it.
3. Carefully grasp the bulb from its base.
4. Insert the new one.
5. Reinstall the protective glass by pressing it gently until it's locked into position.
6. Reconnect the oven from mains supply.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

This product contains one or more light sources of energy efficiency class G (Lamp)

7. TROUBLE SHOOTING

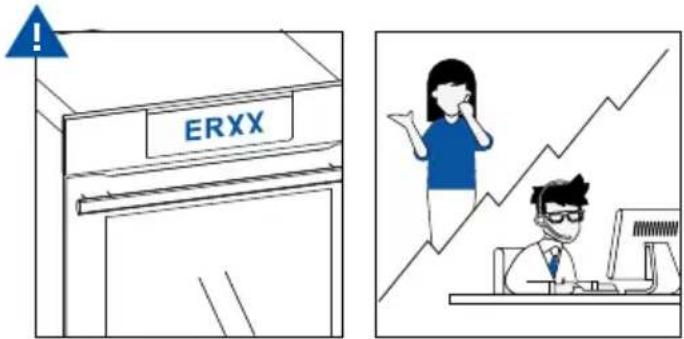

If, during oven use, an error occurs, the display will show the code "ER" followed by two digits, which will identify the error.

Proceed by turning off the oven and unplugging it, wait for a few minutes, and then reconnect it.

If the error disappears, you can resume using the oven. If it doesn't, call customer service and communicate the code (ERXX) you see on the display.

Error

Smoke

8. ENVIRONMENTAL PROTECTION & DISPOSAL

8.1. APPLIANCE DISPOSAL

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be re-used). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials.

Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

environmental problem; it is essential to follow a few basic rules:

– the WEEE should not be treated as domestic waste;

– the WEEE should be taken to dedicated collection areas managed by the town council or a registered company.

In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor, who must accept it free of charge as a one-off, provided that the appliance is of an equivalent type and has the same functions as the purchased appliance.

Where possible, avoid pre-heating the oven and always try to fill it.

Where possible, avoid pre-heating the oven and always try to fill it.

Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For significant energy savings, switch off the oven 5 to 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in good condition to avoid any heat dispersal outside the cavity. If you have an electric contract with an hourly tariff, the “delayed cooking” programme makes energy saving simpler, moving the cooking process to start at the reduced tariff time slot.

WILLKOMMEN

COMMENT INTERAGIR AVEC L'APPLICATION

INSCRIPTION D'UN NOUVEL UTILISATEUR

REGISTRATION OF A NEW USER

QUICK PAIRING

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6.1-6.2

Step 7

HOW TO CHANGE WI-FI SETTINGS

REMOTE CONTROL

3. BEFORE YOU BEGIN

3.1. INFORMATION TO GET STARTED

4. PRODUCT OPERATION

4.1. PRODUCT OPERATION

TURNING THE OVEN ON/OFF

H2O-Clean

6.2.2. OVEN EXTERIOR: REMOVAL AND CLEANING OF THE GLASS DOOR

6.3. CLEANING OF ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8.1. DISPOSAL OF THE APPLIANCE

Step 2

Step 5

Step 6.1-6.2

Step 7

REMOTE CONTROL

3. BEFORE YOU START

4. USE OF THE PRODUCT

H2O Clean

Catalytic cleaning

6.2.2. OVEN EXTERIOR: DISASSEMBLY AND CLEANING OF THE GLASS DOOR

6.3. CLEANING OF ACCESSORIES

— 7-level model

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8.1. DISPOSAL OF THE APPLIANCE

WELCOME

2.2. ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Steps 6.1-6.2

Step 7

REMOTE CONTROL

3. BEFORE STARTING

3.1. INFORMATION ABOUT STARTING

H2O Clean

2.

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

WELCOME

2.2. ACCESSORIES

REGISTERING A NEW USER

Step 2

Step 3

Step 4

Step 5

Step 6.1-6.2

Step 7

REMOTE CONTROL

H2O Clean

6.3. CLEANING ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

WELCOME

QUICK REGISTRATION FOR MATCHING

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6.1-6.2

Step 7

REMOTE CONTROL

3. BEFORE STARTING

H2O Clean

Catalytic cleaning

2.

5.

6.3. CLEANING ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

in mm

WELCOME

2. PRODUCT INTRODUCTION

4. OPERATION OF THE PRODUCT

GENERAL WARNINGS

INSTALLATION WARNINGS

2. PRODUCT INTRODUCTION

2.1. PRODUCT OVERVIEW

2.2. ACCESSORIES

NEW USER REGISTRATION

QUICK COUPLING

Step 1

Step 2

Step 3

- Select 'Oven' in the appliance category.

Step 4

Step 5

Steps 6.1–6.2

Step 7

4. OPERATION OF THE PRODUCT

4.1. HOW THE PRODUCT WORKS

TURNING THE OVEN ON/OFF

H2O-clean

Catalytic cleaning

2.

6.3. CLEANING OF ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8.1. DISPOSAL OF APPLIANCES

WELCOME

Step 2

Step 3

Step 4

Step 5

Steps 6.1-6.2

Step 7

HOW TO CHANGE WIFI SETTINGS

REMOTE CONTROL

3. BEFORE YOU START

3.1. INFORMATION TO GET STARTED

H2O Clean

Catalytic cleaning

2.

5.

6.3. CLEANING THE ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

Smoke

WELCOME

HOW TO COMMUNICATE WITH THE APPLICATION

REGISTRATION OF A NEW USER

QUICK PAIRING

Step 1

Step 2

Allow device location.

Allow your location permission

To enhance your experience, please allow location permission to hOn app in the next step.

CONTINUE

Step 3

Select your appliance category

Select your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditioner

Air purifier

Air scanner

Step 4

Turn on the appliance. If it is already on, turn it off and then on again.

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Step 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

May close to your appliance in order to correctly capture the signal.

Step 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Open

Convering

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Step 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVER

NO IT'S NOT

HOW TO CHANGE WIFI SETTINGS

REMOTE CONTROL

3. BEFORE STARTING

3.1. INFORMATION BEFORE STARTING

4. OPERATING THE APPLIANCE

4.1. HOW THE APPLIANCE WORKS

SWITCHING THE OVEN ON/OFF

How to set the Jolly function:

2.

6.3. CLEANING THE ACCESSORIES

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8. ENVIRONMENTAL PROTECTION AND DISPOSAL OF THE APPLIANCE

8.1. DISPOSAL OF THE APPLIANCE

WELCOME

QUICK STEAM REGISTRATION

Step 1

Step 2

Allow your location permission

To enhance your experience, please allow location permission to the hOn app in the next step.

CONTINUE

Step 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditioner

Air purifier

Air scanner

Step 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Step 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. The app is looking for your appliance...

Move close to your appliance in order to correctly capture the signal.

Step 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

Connecting.

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Step 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES! IT'S MY OVEN

NO, IT'S NOT

HOW TO CHANGE WIFI SETTINGS

REMOTE CONTROL

3.1. INFORMATION AT START

4. PRODUCT OPERATION

4.1. HOW THE PRODUCT WORKS

TURNING THE OVEN ON/OFF

H2O Clean

2.

6.3. CLEANING ACCESSORIES

- 7-level model

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8. ENVIRONMENTAL PROTECTION AND WASTE DISPOSAL

8.1. DISPOSAL OF THE DEVICE

WELCOME

2.2. ACCESSORIES

Side wire racks

REGISTRATION OF A NEW USER

QUICK PAIRING WITH REGISTRATION

Step 1

Step 2

Allow your location permission

To enhance your experience, please allow location permission to the hOn app in the next step.

CONTINUE

Step 3

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditioner

Air purifier

Air scanner

Step 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Step 5

Steps 6.1–6.2

Step 7

HOW TO CHANGE WIFI SETTINGS

REMOTE CONTROL

3. BEFORE YOU START

3.1. INFORMATION FOR STARTUP

4. APPLIANCE CONTROL

4.1. HOW THIS PRODUCT WORKS

Catalytic cleaning

2.

Step 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

8. ENVIRONMENTAL PROTECTION AND DISPOSAL

8.1. DISPOSAL OF THE APPLIANCE

2.2. ACCESSORIES

REGISTERING A NEW USER

QUICK REGISTRATION OF ASSOCIATIONS

Step 1

Step 2

Step 3

Step 4

Step 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. hOn app is looking for your appliance...

May close to your appliance in order to correctly capture the signal.

Step 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Own Convesting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Step 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVER

NO IT'S NOT

CUM SE SCHIMBĂ SETĂRILE WI-FI

CONTROL LA DISTANȚĂ

4. UTILIZAREA PRODUSULUI

4.1. CUM FUNCȚIONEAZĂ PRODUSUL

PORNIREA/OPRIREA CUPTORULUI

Curățare catalitică

2.

6.3. CURĂȚAREA ACCESORIILOR

- Model cu 7 niveluri

Pasul 2

Step 3

Step 4

Step 5

Step 6

Step 2

Step 3

Step 4

Step 5

Step 6

REGISTRATION OF A NEW USER

QUICK PAIRING

Step 1

Step 2

Step 3

Step 4

Step 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. The app is looking for your appliance...

Move close to your appliance in order to correctly capture the signal.

Steps 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

Connecting.

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Step 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover

Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVEN

REMOTE CONTROL

3. BEFORE YOU START

3.1. INFORMATION NEEDED TO GET STARTED

4. OPERATION OF THE PRODUCT

4.1. OPERATION OF THE PRODUCT

TURNING THE OVEN ON AND OFF

H2O cleaning

2.

- 7-level model

1. step

1. step

1. step

1. step

1. step

1. steps

1. steps

1. steps

1. steps

1. steps

WELCOME

NEW USER REGISTRATION

QUICK START GUIDE

Step 1

- Select "Add appliance".

Step 2

• Grant location permission.

Allow your location permission

To enhance your experience, please allow location permission to the hOn app in the next step.

CONTINUE

Step 3

- Select the oven in the appliance categories.

Select your appliance category

Search your appliance

Washing machine

Washer dryer

Tumble dryer

Dishwasher

Air conditioner

Air purifier

Air scanner

Step 4

Appliance connection

Turn OFF and then ON your appliance

In case you can't switch OFF your appliance, unplug (for at least 10 seconds) and then plug its power supply.

Step 5

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. The app is looking for your appliance...

Move close to your appliance in order to correctly capture the signal.

Steps 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Own Convesting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Step 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES, IT'S MY APPLIANCE

NO, IT'S NOT

HOW TO CHANGE WI-FI SETTINGS

REMOTE CONTROL

3. BEFORE STARTING

3.1. INFORMATION FOR STARTING

4. PRODUCT OPERATION

4.1. HOW THE PRODUCT WORKS

OVEN ON/OFF

To turn on the oven, rotate the function knob (clockwise/counterclockwise) and select a cooking program. To turn it off, set the function knob to the "0" position.

SET THE COOKING PROGRAM

How to set the Jolly function:

Catalytic cleaning

2.

1. Place the door at a 45° angle. Simultaneously press both buttons on both sides of the door side arms and pull them towards you to remove the cover of the upper door glasses.

1. Clean the glass with a soft cloth and a suitable cleaning agent.

6.3. CLEANING ACCESSORIES

- Model with 7 levels

8.1. DISPOSAL OF THE APPLIANCE

WELCOME

1. Control panel
2. Shelf position numbers
3. Grilles
4. Plehovi
5. Poklopac ventilatora
6. Vrata pećnice
7. Bočne žičane rešetke (ako su deo opreme: samo za ravnu šupljinu)
8. Serijski broj i QR kod

Postavljene na obe strane unutrašnjosti pećnice, bočne rešetke su dizajnirane za postavljanje pleha za pečenje i rešetki tokom kuvanja.

NAPOMENA: 6 ili 7 nivoa u zavisnosti od modela.

Pleh za pečenje (samo ako je deo opreme*)

Pleh za pečenje je idealan za postizanje ravnomernog potamnjivanja sa donje strane, što ga čini savršenim za kolače i peciva zbog svog plitkog ravnog dizajna. Pored toga, ako se postavi ispod rešetke za kuvanje može pomoći u sakupljanju curenja i sprečava prljanje pećnice.

Metalna rešetka

Dublji pleh je idealan za recepte prema kojima se dodaju tečnosti ili slojevi, kao što su đuveč ili pečenja. Njegova dubina je posebno dizajnirana da osigura željenu ujednačenost hrane pripremljene u njemu.

Teleskopske vodice

(samo ako su deo opreme*)

Ražanj funkcioniše zajedno sa gornjim grejnim elementom, a okretanjem se hrana može pripremati ujednačeno. Najbolje se koristi za hranu srednje veličine. Idealno za ponovno otkrivanje ukusa tradicionalnih pečenja.

Šarke za lagano zatvaranje/otvaranje

(only if part of the equipment*)

The convex shape is suitable for grilling in the oven at high temperature (220°), allowing you to achieve grilling results even at home with little smoke, thanks to the effect of fat draining to the bottom of the pan.

Meat probe (only if part of the equipment*)

The Airfry tray ensures that hot air reaches the food evenly and three-dimensionally, resulting in a crispier exterior while maintaining a soft interior. To collect juices and crumbs, place it on top of the baking tray.

2.3. CONTROL PANEL

NEW USER REGISTRATION

• Click on "Register"
• Register using a social media account or personal email address

LOGIN FOR QUICK PAIRING

Step 1

Step 2

Step 3

Step 4

Step 5

- After switching on, the hOn app starts searching for your home appliance.

Appliance connection

Searching your appliance

Don't turn off your Bluetooth. The app is looking for your appliance...

Move close to your appliance in order to correctly capture the signal.

Steps 6.1-6.2

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Oven

New appliance

Long appliance name to...

CONNECT

PRODUCT NOT FOUND

Appliance connection

Searching your appliance

Don't turn off your Bluetooth.

Open Connecting

New appliance

Long appliance name to...

Stay close to your appliance in order to correctly capture the signal.

Step 7

Appliance connection

Your appliance has been correctly identified!

Brand Hoover Model 31008486-7888-1824

Serial number 12345678-1234-1234

Is this your appliance?

YES!S MY OVEN

NO IT'S NOT

HOW TO CHANGE WI-FI NETWORK SETTINGS

Once the appliance is registered, the user can change the Wi-Fi network settings between:

REMOTE CONTROL

3. BEFORE STARTING

3.1. INFORMATION RELATED TO STARTING

When you turn on the oven for the first time, you may notice smoke. Do not worry, before using the oven just wait until the smoke clears.

4. PRODUCT OPERATION

4.1. HOW THE PRODUCT WORKS

TURNING THE OVEN ON/OFF

To turn on the oven, turn the function knob (clockwise/counterclockwise) and select a cooking program. To turn it OFF, set the function knob to the "0" position.

SET THE COOKING PROGRAM

How to set the Jolly function:

To set the Jolly function on the oven, open the recipe section in the app, select the recipe you want to use, and click "Use as Jolly function".

From that moment, you can start it from the product even without interacting with the app. Simply turn the function knob to the Jolly function to start the cooking process.

The probe can be used with manual functions (convection, convection + fan, grill, Super grill, gratinating, and multi-level), with FOOD COOKING CATEGORIES (meat, fish, and vegetables), and Gentle cooking.

Kategorija hrane	Predložena T °C sredine	Predloženo pozicioniranje
Pečena govedina	45 °C	Dijagonalno u najdebljem delu.
Pečeno meso	55 °C / 60 °C / 65 °C	Za namirnice cilindričnog oblika (kao što je goveđe pečenje), postavite vrh što bliže geometrijskom centru
Živinsko meso	83-85 °C	U najdeblji deo grudi
Riba (cela/odresci)	65 °C	Dijagonalno u najdebljem delu
Hleb/musaka	90 °C	Blizu geometrijskog centra hrane

5. COOKING GUIDELINES

5.1. GENERAL COOKING TABLE

Kategorija	Recept	Br. nivoa	Program kuvanja	T °C	Predgrevanje	Pribor za kuvanje	Položaj police	Vreme kuvanja nakon predgrevanja * (min)
Slatka peciva	Sitni kolači / mafini	1	Konveksni višeslojni	+175 °C~ +160 °C	Da	Pleh za pečenje Pleh za pečenje	L3 L4	20-30 30-40
		2	Više nivoa	150 °C		Pleh za pečenje / dublji pleh	L2+L5	30-40
		3	Više nivoa	140 °C		Pleh za pečenje	L2+L4+L6	40-50
	Vazdušasti kolači (26 cm ∅)	1	Konveksni višeslojni	+170 °C~ +150 °C	Da	Metalna rešetka + kalup za kolače Metalna rešetka + kalup za kolače	L3 L4	30-40 40-50
		2	Više nivoa	150 °C		Metalne rešetke + kalup za kolače	L1+L4	50-60
	Keks	1	Konveksni višeslojni	+150 °C~ +150 °C	Da	Pleh za pečenje Pleh za pečenje	L3 L4	25-30 30-40
		2	Više nivoa	140 °C		Pleh za pečenje + dublji pleh	L2+L5	30-40
		3	Više nivoa	140 °C		Pleh za pečenje	L2+L4+L6	35-40
	Kroketi	1	Konvekcija	190 °C	Da	Pleh za pečenje	L4	25-35
		2	Više nivoa	170 °C		Pleh za pečenje	L3	25-35
	Jorkširski puding	1	Konvekcija	200 °C	Da	Pleh za pečenje	L3	20-30
	Puslice	1	Više nivoa	90 °C	Da	Pleh za pečenje		90-160
	Makaronsi	1	Konvekcija	150 °C	Da	Pleh za pečenje	L3	15-20
	Pita od jabuka	1	Konvekcija	185 °C	Da	Metalna rešetka + kalup za kolače	L2	60-70
		1	Više nivoa	170 °C	Da	Metalna rešetka + kalup za kolače	L4	65-75
	Tart tatin	1	Konvekcija	170 °C	Da	Metalna rešetka + kalup za kolače	L2	40-60
	Čokoladni sufle	1	Konvekcija	200 °C	Da	Pleh za pečenje + modle	L3	10-15
	Čizkejk	1	Konvekcija	150 °C	Da	Metalna rešetka + kalup za kolače	L2	50-65
	Smrznuti kroasani	1	Konvekcija	180 °C	Da	Pleh za pečenje	L3	20-25
		2	Više nivoa	180 °C		Pleh za pečenje	L2+L5	25-35
		3	Više nivoa	160 °C		Pleh za pečenje	L2+L4+L6	30-40
	Štrudla, smrznuta	1	Konvekcija	210 °C	Da	Pleh za pečenje	L3	30-45
Hleb i lepinja	Tost hleb	1	Supergrill	5	Ne	Metalna rešetka	L6	4-6
	Fokača	1	Konvekcija	200 °C	Da	Pleh za pečenje	L2 ili L3	25-35
	Hleb, ceo	1	Konvekcija	200 °C	Da	Pleh za pečenje	L3	35-50
Slane pite i musake	Slani kolači / kiševi (26 cm ∅)	1	Konvekcija	200 °C	Da	Metalna rešetka + Pleh za kiš	L1 ili L2	30-50
		2	Više nivoa	180 °C		Metalna rešetka + Pleh za kiš	L1+L4	50-70
	Sufle od sira	1	Konvekcija	200 °C	Da	Pleh za pečenje + modle	L3	20-35
	Lazanje, sveže	1	Konvekcija	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	40-60
	Lazanje, smrznute	1	Konvekcija	180 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
	Kaneloni, smrznuti	1	Konvekcija	180 °C	Da	Metalna rešetka + posuda za pečenje	L3	45-55
	Pečena testenina	1	Grati-niranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L4	20-30
Pica	Pica, sveža (pleh)	1	Konvekcija	250 °C	Da	Pleh za pečenje	L2 ili L3	15-20
	Pica, sveža (pleh)	1	Pica	250 °C	Ne	Pleh za pečenje	L2 ili L3	18-25
		2	Više nivoa	180 °C	Da	Pleh za pečenje + dublji pleh	L2+L5	25-35
	Pica, sveža (okrugla)	1	Konvekcija	300 °C	Da	Pleh za pečenje	L2 ili L3	8-10
	Pica, sveža (okrugla)	1	Pica	300 °C	Ne	Pleh za pečenje	L2 ili L3	15-20
		2	Više nivoa	180 °C	Da	Pleh za pečenje + dublji pleh	L2+L5	30-40
	Pica, smrznuta (tanka kora)	1	Pica	200 °C	Ne	Metalna rešetka	L2	10-15
	Pica, smrznuta (tanka kora)	1	Konvekcija	220 °C	Da	Metalna rešetka	L3	10-15
		2	Više nivoa	200 °C		Metalna rešetka	L2+L5	15-25
		3	Više nivoa	180 °C		Metalna rešetka	L2+L4+L6
Meso i živina	Pečeno celo pile (1-1,2 kg)	1	Grati-niranje	220 °C	Da	Metalna rešetka/L4 Postavite pleh za pečenje na L1 sa pola šolje vode	L4	40-60
	Pileći karabatak	1	AirFry**	220 °C	Ne	Air fry pleh**	L4	30-50
	Pečena patka	1	Grati-niranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
	Petao	1	Grati-niranje	220 °C	Da	Metalna rešetka Postavite pleh za pečenje na L1	L4	20-40
	Pečena ćurka	1	Grati-niranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	50-60
	Svinjska rebra (1000-1200g)	1	Konvekcija	200 °C	Da	Metalna rešetka + posuda za pečenje	L3	80-100
	Kobasice	1	Supergrill	4	Da	Metalna rešetka	L5	40-50
	Goveđi file (1000-1500g)	1	Gentle cooking**	60 °C	Ne	Metalna rešetka + posuda za pečenje	L3	60-80
	Pečena govedina (500g)	1	Grati-niranje	220 °C	Da	Pleh za pečenje	L3	20-40
	Mesna vekna (1000-1500g)	1	Konvekcija	180 °C	Da	Pleh za pečenje	L3	40-50
	Pečena piletina sa krompirom	1	Grati-niranje	200 °C	Da	Dublji pleh	L4	45-60
Riba i morski plodovi	Morski plodovi sa roštilja	1	Supergrill	4	Ne	Metalna rešetka	L5	15-30
	Smrznuti riblji štapići	1	AirFry**	200 °C	Ne	Air fry pleh**	L4	20-25
	Pečena riba	1	ECO	200 °C	Ne	Metalna rešetka Postavite pleh za pečenje na L1	L3	40-60
Povrće	Gratinirano povrće	1	ECO	200 °C	Ne	Metalna rešetka + posuda za pečenje	L3	80-90
	Zamrznuti pomfrit (300-500g)	1	AirFry**	220 °C	Ne	Air fry pleh**	L4	18-25
	Gratinirani krompir	1	Grati-niranje	200 °C	Da	Metalna rešetka + posuda za pečenje	L4	15-25
	Pečeni krompir	1	Konvekcija	200 °C	Da	Pleh za pečenje	L4	30-50

H2O Clean

The H2O Clean function is designed to effortlessly tackle light soiling and provide a quick, eco-friendly solution for cleaning the oven interior using the power of steam.

How it works:

1. Pour 100 ml of water into the lower recessed part of the oven.
2. Press the 🚗️ button. If necessary, turn the dial control to adjust the Hydro Clean program. The function will run for a preset time.
3. At the end of the cleaning process, allow the oven to cool down.
4. Once the appliance has cooled, clean the interior surfaces of the oven with a cloth.
5. ▲ WARNING: Make sure the appliance is cool before touching it. Be careful of all hot surfaces as there is a risk of burns. Use distilled or drinking water.

Catalytic cleaning

Catalytic panels coat the interior of the oven and give you the luxury of never having to struggle with a dirty oven.

The panels are coated with a specialized enamel that boasts a microporous structure that readily absorbs splattered grease.

Through a catalytic chemical reaction, they efficiently convert absorbed grease into gaseous elements when exposed to high temperatures.

6.2.2. OVEN EXTERIOR: removing and cleaning the glass door

2.

1. Position the door at 45°. Simultaneously press the two buttons on both sides of the door sides and pull towards you to remove the top glass cover.

1. Very carefully remove the oven glass, starting with the inner glass. During the procedure, hold the glass firmly with both hands and place it on a soft, flat surface (e.g., on a cloth).

1. Clean the glass with a soft cloth and suitable cleaning agents.

1. Insert the glass panels, making sure that the "Low-E" label is correctly readable and positioned on the lower left side of the door, near the left hinge. In this way, the printed label on the first glass will remain on the inner side of the door.
2. Reattach the top glass door cover by pushing it inward until you hear a click from the two side buttons.
3. Then return the door to 90° and turn the hinge locking tabs toward the inside of the oven.

6.3. CLEANING THE ACCESSORIES

Always thoroughly clean the accessories after each use and dry them with a towel. For stubborn deposits, soak the accessories in a mixture of water and soap for about 30 minutes before washing them again.

CLEANING THE SIDE RACKS:

- Model with 6 levels

1. Remove the side racks by pulling them in the direction of the arrows.
2. To clean the wire racks, place them in the dishwasher or use a damp cloth and be sure to dry them afterwards.
3. After the cleaning process, install the wire racks in reverse order.

Model at 7 levels

1. Remove the side holders by first pulling the front part in the direction of the arrow and detaching the rear part from the screws.
2. To clean the wire holders, place them in the dishwasher or use a damp cloth and be sure to dry them afterwards.
3. After the cleaning procedure, reposition the side holders in reverse order: place the rear part between the screws and push the front part in the direction of the arrow.

6.4. MAINTENANCE

COMPONENT REPLACEMENT

1. step

1. step

1. step

1. step

1. step

1. step

1. step

1. step

1. step

8. ENVIRONMENTAL PROTECTION AND WASTE DISPOSAL

8.1. DISPOSAL OF THE DEVICE
