RSO45SEU - Freezer BEKO - Free user manual and instructions

Product Type	Chest Freezer
Brand	Beko
Model	RSO45SEU
Dimensions (H x W x D)	85 cm x 45 cm x 50 cm
Weight	25 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	150 kWh/year
Energy Class	F
Storage Volume	100 L
Temperature Range	-18°C to -24°C
Control Type	Mechanical thermostat
Defrost Type	Manual
Functions	Adjustable legs, interior light, storage baskets
Maintenance	Defrost and clean interior regularly; clean condenser coils annually
Safety Features	Overload protection, door alarm
Spare Parts Availability	Yes, through Beko service centers
Reparability	Modular design for easy repair; certified service network
Warranty	1 year standard warranty

Frequently Asked Questions - RSO45SEU BEKO

How do I set the temperature on my Beko RSO45SEU freezer?

The temperature is controlled by a mechanical thermostat located inside the freezer. Turn the dial to a higher number for colder temperatures. A medium setting is usually sufficient for normal use.

How often should I defrost the freezer?

Defrost when ice buildup reaches about 5 mm thickness, typically every 6-12 months depending on usage. Follow the manual's defrosting instructions to avoid damage.

What is the energy consumption of the RSO45SEU?

The annual energy consumption is approximately 150 kWh. The energy class is F. Actual consumption may vary based on usage and ambient temperature.

Why is my freezer making loud noises?

Noises can come from the compressor, fans, or ice cracking. Normal sounds include a low hum. If it's unusually loud, check that the freezer is level and not touching walls. If persists, contact service.

Can I install the freezer in a garage or shed?

This freezer is designed for indoor use with ambient temperatures between +10°C and +43°C. Avoid temperatures below +10°C as it may affect performance.

How much can I store in the RSO45SEU?

The net storage volume is about 100 liters, suitable for a small household. It comes with baskets for organization.

What should I do if the freezer stops working?

First check the power supply and fuse. Ensure the plug is connected. If still not working, contact Beko service. Do not attempt to repair yourself.

How do I clean the freezer?

Unplug the freezer, remove food, and clean with a mild detergent and warm water. Do not use abrasive cleaners. Dry thoroughly before powering on.

Does the freezer have a door alarm?

Yes, the model includes a door open alarm to alert you if the door is left ajar, preventing temperature rise.

Where can I find spare parts for the RSO45SEU?

Spare parts are available through Beko authorized service centers. You can contact Beko customer support or check their website for a list of parts.

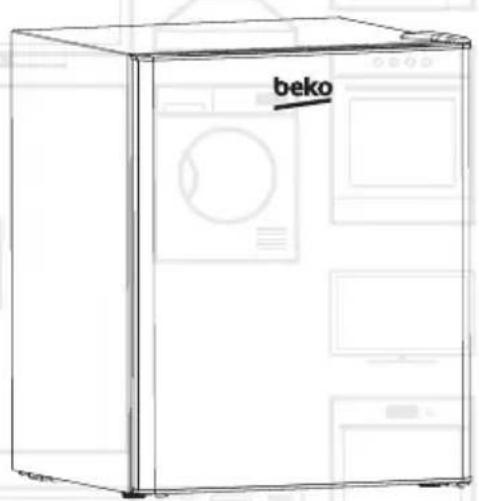

USER MANUAL RSO45SEU BEKO

RSO45WEUN / RSO45SEU / RSO44WEUN

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Symbol meanings

Following symbols are used in the various parts of this manual:

Important information and useful hints about usage.

Warning for hazardous situations with regard to life and property.

INFORMATION

ENERG

SUPPLIER'S NAME

MODEL IDENTIFIER → (*)

The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label.

https://eprel.ec.europa.eu/

C€

This product was manufactured using the latest technology in environmentally friendly conditions.

1 Important safety and environmental instructions 2-3

1.1 General safety 2 1.2 Compliance with the WEEE Directive and disposal of waste products 3 1.3 Package information 3

2 Your Minibar 4

2.1 At a glance 4 2.1.1 Controls and components 4 2.1.2 Technical data 4

3 Use 5-6

3.1 Intended use 5 3.2 Position of appliance 5 3.2.1 Alignment of appliance 5 3.3 First Use 5 3.4 Operation 5 3.4.1 Thermostat knob 6 3.5 Defrosting 6 3.6 Drip container 6 3.7 Guidance for storing fresh food 6

4 Cleaning and maintenance 8

4.1 Internal cleaning of appliance 8 4.2 External cleaning of appliance 8 5 Troubleshooting 9

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

This appliance can be used by children who are at the age of 8 or over and by people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers. Children should not play with the appliance. Cleaning and maintenance works should not be performed by children unless they are supervised by an adult.

Unplug the appliance before cleaning and maintenance.

Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.

Only use the original parts or parts recommended by the manufacturer.

Do not attempt to dismantle the appliance.

Your mains power supply should comply with the information supplied on the rating plate of the appliance.

Do not use the appliance with an extension cord.

Do not pull the power cable when unplugging the appliance.

In order to prevent the power cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.

Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.

Never use the appliance in or near to combustible or inflammable places and materials.

If your keep the package material, keep it out of the reach of children.

Do not use electric appliances such as hair dryer or heater to defrost the appliance.

Containers containing combustible gases and liquids can leak in low temperatures.

Do not keep flammable materials like spray can, refilling cartridges of fire extinguisher in your appliance.

Do not put fizzy drinks in the freezer compartment. When consumed as soon as they are taken out of the appliance, ice cubes may cause freeze burns.

1 Important safety and environmental instructions

Do not take any material out of the appliance when your hands are damp or wet as it may cause skin irritation and freeze burn. Bottles and cans should not be kept in freezer compartment as there is the risk of explosion when contents freeze.

Manufacturer's recommended storage periods should be followed. Refer to relevant instructions.

• Do not put any block in front of ventilation holes of the case and internal components of the appliance.
• To quicken defrosting do not use any mechanical devices or other methods except the ones recommended by the manufacturer.
• Do not damage the cooler circuit.
• Do not use electric appliances in the food storage compartments as long as they are not of the recommended type.
• R600a is a combustible gas. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

1.2 Compliance with the WEEE Directive and disposal of waste products

This product does not include harmful and prohibited materials specified in the "Regulation for Supervision of the Waste Electric and Electronic Appliances" issued by the Ministry of Environment and Urban Planning. Complies with the WEEE Regulation. This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Contribute to the preservation of environment and natural sources by taking the used products to the recycling points.

1.3 Package details

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your Minibar

2.1 Overview

2.1.1 Controls and components 2.1.2 Technical data

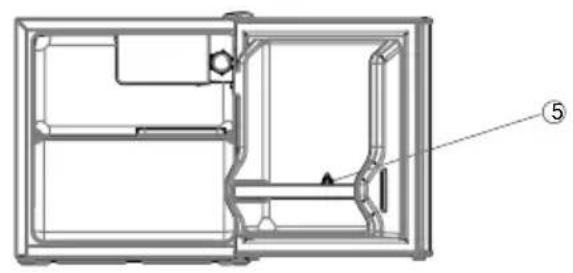

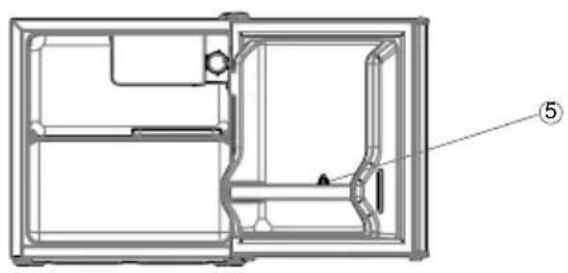

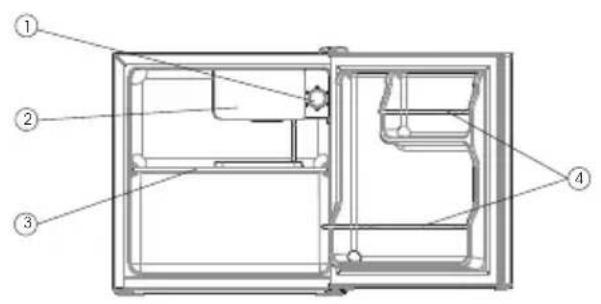

① Temperature regulator ② ice making compartment ③ Storage shelves ④ wire rack (RSO45WEUN/RSO45SEU) ⑤ plastic rack (RSO44WEUN)

Total net volume : 45 L

Height: 500 mm

Width: 480 mm

Depth: 445 mm

Weight: 14 kg

Power inlet: 220-240V~ / 50Hz

Volume: 37 dBA

Energy class: F

Energy efficiency class: N/ST

Household cooler appliance stage:

Cooler and fridge with 0 star compartment

Rights to make technical and design changes are reserved.

The values declared in the markings affixed on your product or in the other printed documents supplied with it represent the values obtained in laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Use

3.1 Intended use

The appliance is intended for household use and in staff kitchens in offices and other work environments; for use by customers in farm houses, hotels, and other accommodation-type environments; in hostel-type places; and in food and beverage services and similar non-retail applications.

3.2 Position of appliance

• This refrigerating appliance is not intended to be used as a built-in appliance.
• When determining a location for your appliance, make sure that the floor is level and strong.
• It should be a well-ventilated location, and the average room temperature should be between 16°C and 38°C.
• Do not place the appliance near heat sources such as an oven, water heater, or central heating. Do not place the product in places subject to direct sunlight like an annex or sunroom.
• If you place the appliance in outdoor locations like a garage or annex, place the appliance above the damp course; otherwise, there may be condensation in the appliance.
• Never place and operate the appliance in built-in walls or in any cabinet or furniture designed for the appliance. The rear grill and sides of the cabinet may heat up.
• Place it in a way that the back of the appliance is 9 cm (3 1/2") and the sides of the appliance are 6 cm (3/4") away from the wall. Do not use anything to cover the appliance.
• If two coolers are to be installed side by side, there should be at least 4 cm distance between them.

3.2.1 Alignment of appliance

When the appliance doesn't stand even, alignment of the door and the magnetic seal is affected, and this prevents the appliance from operating properly. When placed in its location, align the appliance by rotating the adjustable front legs.

3.3 Initial use

• Wipe the internal surface of the appliance with diluted sodium bicarbonate solution. Then rinse with warm water using a sponge or cloth. Wash the baskets and shelves with soapy water and allow them to dry completely before placing them back in the appliance. External parts of the appliance can be cleaned with wax polish.
• Make sure that there is a socket appropriate for the plug supplied with your appliance.

WARNING: Do not activate the appliance sooner than 4 hours after it has been moved.

• It takes time for the cooler fluid to settle. If you turn off the appliance, wait for 30 minutes before reactivating it. This period of time is necessary for the cooler fluid to settle.
• Before placing food into the appliance, activate it and wait for 24 hours. This period of time is necessary for the appliance to operate properly and reach the right temperature.
• Clean the appliance parts with warm water containing some neutral detergent, and then wipe them dry.

WARNING: Electric parts of the appliance should only be wiped with a dry cloth.

3 Use

3.4 Operation

1. Turn the thermostat knob to the "3" position and turn on the electricity. The compressor starts to operate.
2. Open the door 30 minutes later. If the temperature in the appliance has declined prominently, this means the appliance system is operating properly. When the appliance has been operated for a while, the heat control system will automatically adjust the temperature within the allowed limits.

3.4.1 Thermostat knob

1. The internal temperature of the appliance is controlled with the thermostat knob (6) placed on the side wall of the appliance compartment.
2. The internal temperature of the appliance can be adjusted by turning the thermostat knob (6) to the right or left.
3. The marks on the knob are not actual temperature values in the fridge but temperature grades. "OFF" means cooling is STOPPED, "5" indicates the lowest temperature setting. Turn the knob from the "1" position to the "5" position, and the temperature will decrease continuously. You can switch the thermostat knob (6) to a position suitable for your requirements.
4. Turn the knob to the "3" position for normal use.

3.5 Defrosting

When the appliance is operated for a period of time, the inner surface of the freezer will be covered with a layer of frost. This may increase electricity consumption and reduce the cooling effect. Therefore, you should defrost it immediately. After defrosting, clean the water accumulated in the drip container immediately.

WARNING: Never use sharp or metal tools, as they may damage the refrigerator.

Unplug the minibar and leave the appliance door open weekly. This will melt the frost on the evaporator surface of the fridge and improve cooling performance.

3.6 Drip container

Check the drip container at regular intervals and drain the accumulated water. If not, the water in the drip container may overflow and leak out.

3.7 Guidance for storing fresh food Storing into the fresh food compartment:

• Keep your fridge at the recommended temperature level of 4°C.
• Food to be stored should be properly sealed to avoid odor or taste alterations.
• Do not store excessive quantities of food inside your refrigerator. Leave spaces between foods to allow cold air to circulate around them, achieving better and more homogeneous cooling.
• To allow shorter door openings, foods eaten daily should be stored at the front of the shelf.
• Leave a gap between foods and the inner walls to allow air to flow. If you store foods against the rear wall, they may freeze.
• Hot, cooked food must be cooled down to room temperature before storing in the appliance.

3 Use

Then, warm food can be stored in the lower shelves of your fridge. Please do not put warm food near highly perishable foods.

• Thaw your frozen food in the fresh food compartment. This way, you can use the frozen food to cool down the fresh food compartment and save energy.
• If unripe tropical fruits (mango, melons, papaya, banana, pineapple) are stored in the refrigerator, the ageing process can be accelerated, which is not advisable as it causes shorter storage times. However, the ripening of strongly green fruits (apple, pear) can be promoted for a certain period in the fridge compartment.
• Onions, garlic, ginger, and other root vegetables should be stored in dark, cool room conditions, not in the fridge.
• When spoiled food inside the refrigerator is noticed, it should be disposed of. When rotten food is noticed, please clean the inner liner or accessories that were in contact to prevent contamination.
• Large pots of food, such as soups or stews, can be divided into shallow containers to quickly cool in the refrigerator. Large pieces of cooked meat and whole poultry should be divided into smaller pieces for the same purpose.
• Do not store unpacked foods near eggs.
• Keep fruits and vegetables separate and store like with like: apples with apples, carrots with carrots. Fruits and vegetables give off different gases that can cause others to deteriorate.
• Take leafy greens out of plastic bags, wrap them in a paper towel or tea towel before storing in the refrigerator. Do not forget to dry them if they are rinsed or wet before storing.
• Store fruits and vegetables susceptible to drying out in perforated or unsealed plastic bags to maintain a moist environment yet still allow air to circulate.
• Different foods should be placed in different areas according to their properties:

Please check the appropriate Climate Class of your appliance rated on the rating plate. One of the following information is valid for your appliance according to the rated Climate Class.

• SN: Extended Temperate: This refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C
• N: Temperate: This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C
• ST: Subtropical: This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C
• T: Tropical: This refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C

"This refrigerating appliance is not suitable for freezing foodstuffs"

Food	Locatbn
Eggs	Door rack
Dairy products (butter, cheese)	If available, biofresh or chiller compartmentLowest shelves
Fruits, vegetables and salad	Fruit and vegetable box, crisper or EverFresh+compartment (if available)
Fresh meat, poultry, fresh fish, sausages, cooked foods	If available, biofresh or chiller compartmentLowest shelf
Ready to eat foods, packaged products, canned foods, pickled products	Upper shelves or door rack
Drinks bottles, condiments, snacks	Door rack
Leftovers	Middle shelves

4 Cleaning and maintenance

4.1 Internal cleaning of appliance

Turn off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

After the defrosting procedure you should wipe the internal surface of the cooler/freezer with diluted sodium bicarbonate solution. Then rinse and dry with warm water using a sponge or cloth. Wash the shelves with soapy water and make sure that they dried completely before placing back in appliance.

4.2 External cleaning of appliance

• Clean the external surface of the appliance with nonabrasive and water diluted detergent.
• Clean the back side of the appliance once a year with a brush or a piece of soft cloth, this part does not need any special maintenance.
• Do not use abrasive cleaning agents, kitchen sponge of solutions while cleaning any part of the appliance.
• Door sealing of the cooler appliance should never come in contact with oil or grease. The door sealing will keep its softness if you powder it especially close to the hinge sections and it will last longer.

5 Troubleshooting

Power failure

- Do not open the appliance door unnecessarily

Appliance is overcooling

You may have accidentally turned the thermostat knob (6) to a higher setting.

Appliance does not cool sufficiently

- The compressor may not be running. Turn the thermostat knob (6) to the highest setting and wait a few minutes. If you do not hear the humming noise, it means it is not working. Contact the store where you bought the product.

Appliance does not work

Make sure the appliance is plugged into the mains and turned on. Check if the fuse is blown. The appliance should be placed in a well-ventilated room with an average room temperature between 16°C and 38°C. Leave the appliance for 30 minutes.

There is condensation on the external surface of the appliance

This may be due to a change in room temperature. Wipe the moisture off the surface. If the problem persists, contact the store where you bought the product.

There is sound coming from the appliance

This is due to the circulation of the cooling fluid in the cooling system. This condition is more noticeable since the use of CFC-free gases. It is not a failure and does not affect the performance of your appliance.

Humming and vibration noises

- These are the noises made by the compressor engine while pumping the cooling fluid during operation.

DISCLAIMER/WARNING

Some (simple) failures can be adequately handled by the end-user without any safety issue or unsafe use, provided that they are carried out within the limits and in accordance with the following instructions (see the “Self-Repair” section).

Therefore, unless otherwise authorized in the “Self-Repair” section below, repairs shall be addressed to registered professional repairers in order to avoid safety issues. A registered professional repairer is a professional repairer that has been granted access to the instructions and spare parts list of this product by the manufacturer according to the methods described in legislative acts pursuant to Directive 2009/125/EC.

However, only the service agent (i.e. authorized professional repairers) that you can reach through the phone number given in the user manual/warranty card or through your authorized dealer may provide service under the guarantee terms. Therefore, please be advised that repairs by professional repairers (who are not authorized by Beko) shall void the guarantee.

Self-Repair

Self-repair can be done by the end-user with regard to the following spare parts: door handles, door hinges, trays, baskets and door gaskets (an updated list is also available in support.beko.com as of 1st March 2021).

Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the instructions in the user manual for self-repair or which are available in support.beko.com. For your safety, unplug the product before attempting any self-repair.

Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give rise to safety issues not attributable to Beko, and will void the warranty of the product.

Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or registered professional repairers. On the contrary, such attempts by end-users may cause safety issues and damage the product and subsequently cause fire, flood, electrocution and serious personal injury to occur.

By way of example, but not limited to, the following repairs must be addressed to authorized professional repairers or registered professional repairers: compressor, cooling circuit, main board, inverter board, display board, etc.

The manufacturer/seller cannot be held liable in any case where end-users do not comply with the above.

The spare part availability of the refrigerator that you purchased is 10 years.

During this period, original spare parts will be available to operate the refrigerator properly. The minimum duration of guarantee of the refrigerator that you purchased is 24 months.

Minibar

Instruction Manual

RSO45WEUN / RSO45SEU / RSO44WEUN

EN

beko

https://eprel.ec.europa.eu/
