Product Type	Home Theater Projector
Model	DLA-NZ700
Display Technology	D-ILA (LCoS)
Native Resolution	4K (4096 x 2160)
Light Source	Laser Phosphor
Light Source Life	Up to 20,000 hours
Brightness (Lumens)	2,200 ANSI Lumens
Contrast Ratio	Native Infinity:1 with Dynamic Control
Lens Shift (Vertical/Horizontal)	±80% / ±34%
Zoom Lens	2x Motorized, with Lens Memory
HDR Support	HDR10, HDR10+, HLG
3D Support	Yes (RF compatible)
Input Lag	Approx. 20ms (4K/60Hz)
Dimensions (W x H x D)	17.95" x 9.41" x 19.02" (456 x 239 x 483 mm)
Weight	31.5 lbs (14.3 kg)
Power Consumption	350W (Normal Mode)
Noise Level	24 dB (Low Lamp Mode)
Inputs	2x HDMI 2.1, 1x USB 2.0, 1x LAN, 1x RS-232C, 1x 3D Sync
Warranty	3 Years (Parts & Labor)

Frequently Asked Questions - DLA-NZ700 JVC

What is the native resolution of the JVC DLA-NZ700?

The JVC DLA-NZ700 features a native resolution of 4096 x 2160 (4K DCI) using D-ILA technology.

How long does the laser light source last?

The laser light source is rated for up to 20,000 hours of operation, significantly reducing maintenance costs compared to traditional lamp projectors.

Does the DLA-NZ700 support HDR and which formats?

Yes, the projector supports HDR10, HDR10+, and HLG formats for a wide dynamic range and compatibility with various content.

Can I watch 3D movies on this projector?

Yes, the DLA-NZ700 supports 3D playback via RF 3D sync (compatible glasses required, sold separately).

What is the input lag for gaming?

The input lag is approximately 20ms at 4K/60Hz, making it suitable for casual gaming, though not optimized for competitive play.

How do I clean the projector lens?

Use a soft, dry microfiber cloth to gently wipe the lens. For stubborn dirt, lightly dampen the cloth with lens cleaning solution (never spray directly onto the lens).

What is the warranty period?

JVC provides a three-year limited warranty covering parts and labor for the projector.

Can I mount the projector on the ceiling?

Yes, the DLA-NZ700 is compatible with standard ceiling mounts using the four M4 screw holes on the bottom. Ensure the mount supports the weight of 31.5 lbs.

What firmware version is the latest?

The latest firmware version can be found on JVC's support website. Updates add features like HDR10+ support and improve performance. Check the manual for update instructions.

How do I connect external speakers?

The projector has an optical audio output and a 3.5mm mini-jack for connecting external audio devices. Alternatively, use HDMI ARC if supported by your receiver.

USER MANUAL DLA-NZ700 JVC

DLA-NZ700 DLA-NZ500 DLA-RS2200 DLA-RS1200

D-ILA®

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

Mobile User Guide

- https://manual3.jvckenwood.com/projector/mobile/global/

The Mobile User Guide can be viewed on mobile internet devices including smartphones and tablets.

For Customer use :

Enter below the serial No. which is located on the side of the cabinet. Retain this information for future reference.

DLA-NZ700BK, DLA-NZ500BK, DLA-NZ700BE, DLA-NZ500BE,

Model No. DLA-RS2200K, DLA-RS1200K, DLA-RS2200E, DLA-RS1200E

Serial No.

Not suitable for household room illumination.

Safety Precautions

IMPORTANT INFORMATION

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

WARNING:

THIS APPARATUS MUST BE EARTHED.

CAUTION:

To reduce the risk of electric shock, do not remove cover. Refer servicing to qualified service personnel.

This projector is equipped with a 3-blade grounding type plug to satisfy FCC rule. If you are unable to insert the plug into the outlet, contact your electrician.

NOISE EMISSION DECLARATION

The sound pressure level at the operator position is equal or less than 60dB(A) according to ISO7779.

WARNING

REMOVE THE LENS COVER BEFORE TURNING ON THE PROJECTOR

FCC INFORMATION (U.S.A. only)

CAUTION:

Changes or modification not approved by JVC could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Supplier's Declaration of Conformity

Trad e Na m e: JVC

Products: D-ILA Projector

Model Name: DLA-NZ700BK, DLA-NZ500BK, DLA-RS2200K, DLA-RS1200K

Responsible Party: JVCKENWOOD USA Corporation

1440 Corporate Drive, Irving, TX 75038

Telephone number: 678-449-8879

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions;

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use and service. Please read these Important Safeguards carefully before use.

• All the safety and operating instructions should be read before the product is operated.
• The safety and operating instructions should be retained for future reference.
• All warnings on the product and in the operating instructions should be adhered to.
• All operating instructions should be followed.
• Place the projector near a wall outlet where the plug can be easily unplugged.
• Unplug this product from the wall outlet before cleaning.
• Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
• Do not use attachments not recommended by the product manufacturer as they may be hazardous.
• Do not use this product near water. Do not use immediately after moving from a low temperature to high temperature, as this causes condensation, which may result in fire, electric shock, or other hazards.
• Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. The product should be mounted according to the manufacturer's instructions, and should use a mount recommended by the manufacturer.

- When the product is used on a cart, care should be taken to avoid quick stops, excessive force, and uneven surfaces which may cause the product and cart to overturn, damaging equipment or causing possible injury to the operator.

- Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the product and protect it from overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the product on bed, sofa, rug, or similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instructions have been adhered to.)

- To allow better heat dissipation, keep a clearance between this unit and its surrounding as shown below. When this unit is enclosed in a space of dimensions as shown below, use an air-conditioner so that the internal and external temperatures are the same. Overheating can cause damage.

PORTABLE CART WARNING (symbol provided by RETAC)

S3126A

• Power source indicated on the label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
• This product is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.
• For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges.
• Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.
• Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
• Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages and other hazards. Refer all service to qualified service personnel.
• Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions:

a) When the power supply cord or plug is damaged.

b) If liquid has been spilled, or objects have fallen on the product.

c) If the product has been exposed to rain or water.

d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the Operation Manual, as an improper adjustment of controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

e) If the product has been dropped or damaged in any way.

f) When the product exhibits a distinct change in performance, this indicates a need for service.

• When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
• Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
• The product should be placed more than one foot away from heat sources such as radiators, heat registers, stoves, and other products (including amplifiers) that produce heat.
• When connecting other products such as VCR's, and DVD players, you should turn off the power of this product for protection against electric shock.
• Do not place combustibles behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas lighters that present special hazards when over heated
• Do not ceiling-mount the projector to a place which tends to vibrate; otherwise, the attaching fixture of the projector could be broken by the vibration, possibly causing it to fall or overturn, which could lead to personal injury.
• Use only the accessory cord designed for this product to prevent shock.
• For health reasons, please take a break of about 5-15 minutes every 30-60 minutes and let your eyes rest.
• Once every three years, please perform an internal test. This unit is provided with replacement parts needed to maintain its function (such as cooling fans). Estimated replacement time of parts can vary greatly depending on frequency of use and the respective environment. For replacement, please consult your dealer, or the nearest authorized JVC service center.
• When fixing the unit to the ceiling, Please note that we do not take any responsibility, even during the warranty period, if the product is damaged due to use of metal fixtures used for fixation to the ceiling other than our own or if the installation environment of said metal fixtures is not appropriate. If the unit is suspended from the ceiling during use, please be careful in regard to the ambient temperature of the unit. If you use a central heating, the temperature close to the ceiling will be higher than normally expected.
• Video images can burn into the electronic component parts. Please do not display screens with still images of high brightness or high contrast, such as found in video games and computer programs. Over a long period of time it might stick to the picture element. There is no problem with the playback of moving images, e.g. normal video footage.
• Install the outlet at an accessible height to unplug from the wall. Or install the circuit breaker at an accessible height to shut down the projector. If you need information, please consult your authorized dealer or specialist.
• Take care not to drop this unit while carrying it. Otherwise, it may cause injuries, or damage this unit.
• Do not project images with the lens cover attached. Otherwise, the lens cover may be deformed due to the heat, or the projector may malfunction.

• Do not place your hand into the opening near the lens while lens shift is in progress. Otherwise, your hand may get caught, resulting in an injury.

• Not using the unit for a long time can lead to malfunction. Please power it on and let it run occasionally. Please avoid using the unit in a room where cigarettes are smoked. It is impossible to clean optical component parts if they are contaminated by nicotine or tar. This might lead to performance degradation.

• When you are connecting the devices, connect the cable after you have turned off the power of each device. Making connection with each device being turned on may cause this unit to malfunction.
• Before connecting the cables, remove any static electricity from your body by touching the wall with the palm of your hand.

* DO NOT allow any unqualified person to install the unit.

Be sure to ask your dealer to install the unit (e.g. attaching it to the ceiling) since special technical knowledge and skills are required for installation. If installation is performed by an unqualified person, it may cause personal injury or electrical shock.

Do not use optical instruments (such as magnifying glass or -reflector) viewing the laser output. It may pose an eye hazard.
When turning on the projector, ensure that no one is looking into the projection lens.
Do not look into the lens and openings when the light is on.
- Doing so would have serious effects on the human body. Do not detach or attach the projection lens with the power - connected.
Attempting to disassemble, repair or modify the projector - yourself may lead to serious safety issues.
Using a faulty product not only results in electrical shock or
- fire hazard, it can cause visual impairment.
When abnormality occur, stop using the projector
- immediately and send it to your authorized dealer for repair.

About the installation place

Do not install the projector in a place that cannot support its weight securely.

If the installation place is not sturdy enough, the projector could fall or overturn, possibly causing personal injury.

POWER CONNECTION

For USA and Canada only Use only the following power cord.

Power cord

The power supply voltage rating of this product is AC100V – AC240V. Use only the power cord designated by our dealer to ensure Safety and EMC. Ensure that the power cable used for the projector is the correct type for the AC outlet in your country. Consult your product dealer.

Power cord

For United Kingdom

For European continent countries

WARNING:

Do not cut off the main plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter or consult your dealer. If nonetheless the mains plug is cut off, dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply.

WARNING:

THIS APPARATUS MUST BE EARTHED.

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of JVC KENWOOD Corporation is: JVCKENWOOD Deutschland GmbH Konrad-Adenauer-Allee 1-11, 61118 Bad Vilbel, GERMANY

IMPORTANT (Europe only):

The wires in the mains lead on this product are colored in accordance with the following code:

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As these colors may not correspond with the colored making identifying the terminals in your plug, proceed as follows:

The wire which is colored green-and-yellow must be connected to the terminal which is marked M with the letter E or the safety earth or colored green or green-and-yellow. The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black.

The wire which is colored brown must be connected to the terminal which is marked with the letter L or colored red.

POWER CONNECTION (United Kingdom only)

HOW TO REPLACE THE FUSE:

When replacing the fuse, be sure to use only a correctly rated approved type, re-fit the fuse cover.

IF IN DOUBT — CONSULT A COMPETENT ELECTRICIAN.

Open the fuse compartment with the blade screwdriver, and replace the fuse.

(* An example is shown in the illustration below.)

Battery

Information on Battery into the Remote Controller The batteries included with this product comply with EU battery regulations.

Type : R03(NWC)

Manufacturer : Panasonic Energy Co., Ltd.

Address : 1-1, matsushita-cho, moriguchi-shi, osaka 570-8511, JAPAN

URL : https://www.panasonic.com/global/energy/

ENGLISH

Information for Users on Disposal of Old Equipment and Batteries

Products

Battery

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

FRANÇAIS

CLASS 1 LASER PRODUCT

PRODUIT LASER DE CLASSE 1

PRODUCTO LÁSER DE CLASE 1

LASERPRODUKT DER KLASSE 1

PRODOTTO LASER DI CLASSE 1

KLASSE 1 LASERPRODUCT

PRODUKT LASEROWY KLASY 1

LASER CAUTION LABEL

ÉTIQUETTE DE MISE EN GARDE POUR LE LASER

This product complies with EN60825-1:2014+A11:2021.

This product complies with EN50689:2021.

This product is designed to project images on a wall or screen.

Do not look into the lens while in use.

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser radiation exposure.

Location information of the labels

Informations d'emplacement des étiquettes Información de la ubicación de las etiquetas Informationen zur Lage der Etiketten Informazioni sulla posizione delle etichette Locatie-informatie van de etiketten Informacje o lokalizacji etykiet

LASER CAUTION LABEL

ÉTIQUETTE DE MISE EN GARDE POUR LE LASER

Light source specifications

82 W Laser diodes x 1, Wavelength 455nm, Maximum output is 90 W

Beam divergence angle from lens of this unit

Safety Precautions 2

Accessories 12

Check the Accessories 12

Controls and Features 13

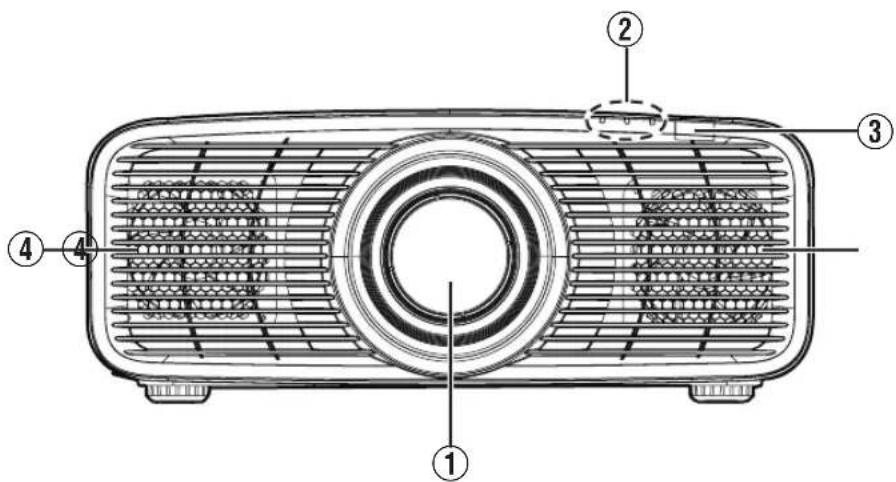

Main Unit - Front 13

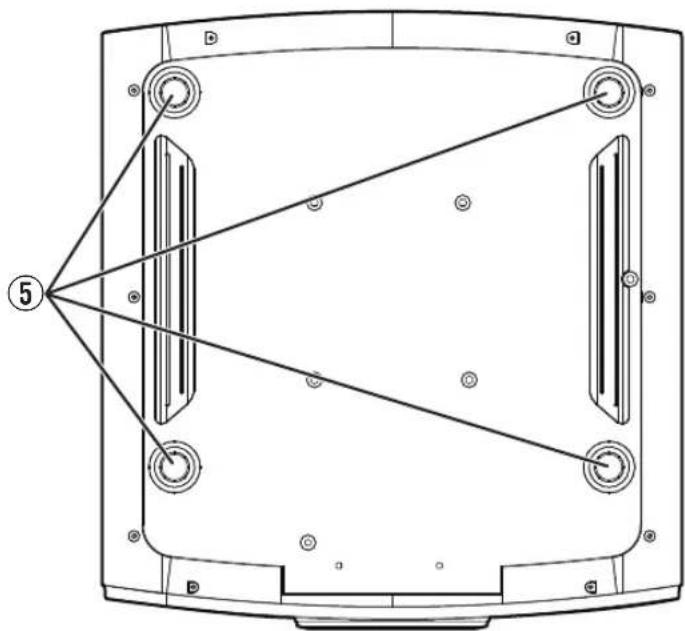

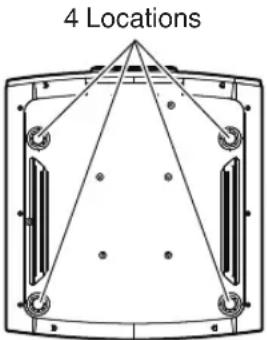

Main Unit - Bottom 13

Main Unit - Rear 14

Main Unit - Input Terminals 14

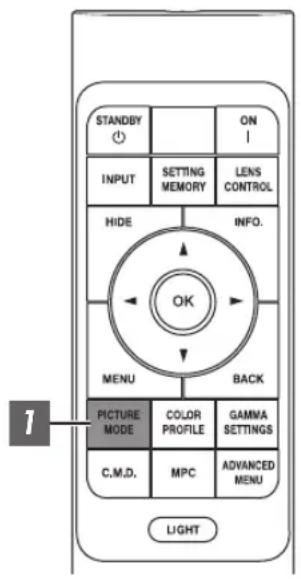

Remote Control 15

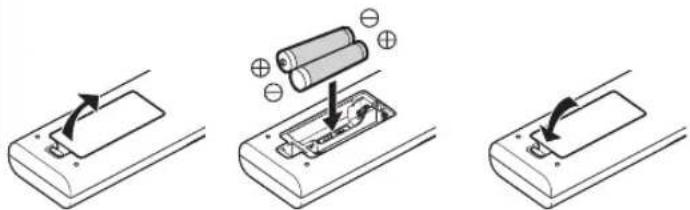

Loading Batteries into the Remote Control ..... 16

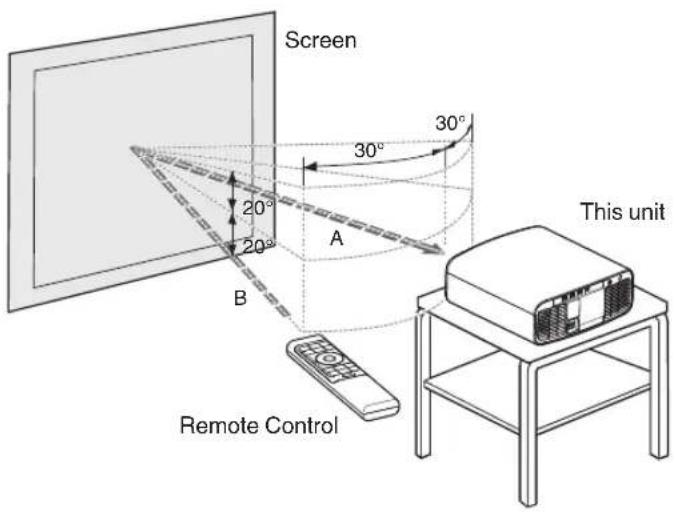

Effective Range of Remote Control Unit 16

Menu 17

Set up

Installing the Projector 19

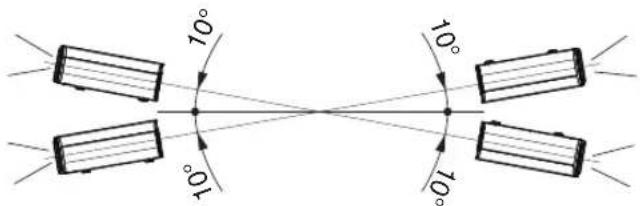

Precautions during Installation 19

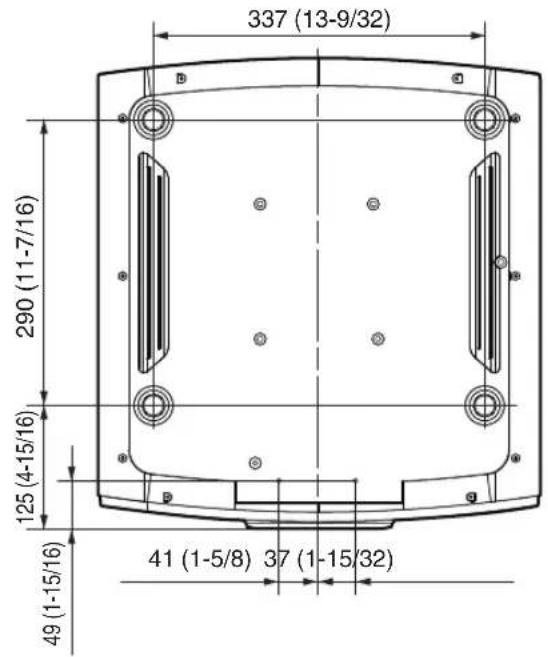

Precautions during Mounting 20

Adjusting the Position 21

Connecting the Projector 22

Connecting to the HDMI Input Terminal (Digital Input) ..... 22

Connecting to the LAN Terminal 23

Connecting the Power Cord (Supplied Accessory) ..... 24

Operate

Viewing Videos 25

Adjusting the Projector Screen 27

Adjusting the Lens According to the Projection Position 27

Adjusting the Screen Size (Aspect) 28

Adjust/Set

Tuning the Image Quality 29

Setting the Picture Mode 29

Setting the Color Profile 30

Adjusting the Output Value of the Projected Image (Gamma/Tone Mapping) 33

Reducing the After-image of Fast-moving Images (C.M.D.) . 34

Adjustments and Settings in the Menu 35

List of Menu Items 35

Picture Settings 39

HDMI Settings 51

Installation Settings 54

Information 67

Maintenance

Maintaining the Cabinet and Remote Control ..... 68

Troubleshooting

Troubleshooting 69

When the Following Messages Appear... 73

Others

External Control 74

TCP/IP Connection 74

Command Format 75

Remote Control Code 76

Communications Example 77

Specifications 78

UK Product Security and Telecommunications Infrastructure Act 2022 (United Kingdom only) .. 79

Index 88

Symbols used in this manual

NZ700 indicates a function that is supported by DLA-NZ700.

NZ500 indicates a function that is supported by DLA-NZ500.

RS2200 indicates a function that is supported by DLA-RS2200.

RS1200 indicates a function that is supported by DLA-RS1200.

Items not marked with any of the above symbols are supported by all models.

The illustrations of the projector unit used in this manual are those of DLA-NZ700.

The appearance of the projector of other models may differ slightly.

Accessories

Check the Accessories

Lens cover 1 piece

* It is attached to the main unit at the time of shipment.

Remote control .... 1 piece

AAA-size batteries (for operational check) 2 pieces

Power cord (for USA) (about 2 m (about 78.7 in)) .... 1 piece

Power cord (for UK) (about 2 m (about 78.7 in)) .... 1 piece

Power cord (for EU) (about 2 m (about 78.7 in)) .... 1 piece

• Quick User Guide, safety precautions, warranty card, and other printed material are also included.
• Be sure to read the "Safety Precautions" before using this projector.

Controls and Features

Main Unit - Front

① Lens

This is a projection lens. Do not look through the lens while an image is projected.

② Indicator

Refer to "Indicator Display on the Main Unit" P. 85.

③ Remote Sensor (front)

Please aim the remote control at this area when using it.

* There is also a remote sensor at the rear.

④ Air Inlets

The inlets take in air to cool down the internal temperature.

Do not block the inlet. Do not blow hot air on the inlet. Doing so may cause the unit to malfunction.

Main Unit - Bottom

⑤ Feet

The height and angle of the projector can be adjusted by turning the foot. (0 to 10 mm (0 to 0.4 in)) (P. 21)

When the foot is removed, it can be used as the mounting hole for the ceiling mount bracket.

Main Unit - Rear

⑥ Input terminals

For more details, please refer to the "Main Unit -Input Terminals" P. 14 in the diagram below.

⑦ ⏻/I Power Button

Turns "on"/"off" the power. (P. 25)

⑧ Remote Sensor (rear)

Please aim the remote control at this area when using it.

* There is also a remote sensor at the front.

⑨ Power input terminal

Connect the supplied power cord to this terminal.

⑩ Exhaust vent

Warm air is discharged to cool down the internal temperature.

Do not block the vents.

Main Unit - Input Terminals

① [HDMI 1] input terminal

② [HDMI 2] input terminal

For connecting to devices that support HDMI output. (P. 22)

③ [LAN] terminal (RJ-45)

The projector can be controlled by connecting it to a PC through the computer network for control commands to be sent to the projector.

④ [SERVICE] terminal

For updating the software or using the backup setting feature via a commercially available USB flash drive.

Remote Control

① ⏻ [STANDBY]

Turns off the power. (P. 26)

② I [ON]

Turns on the power. (P. 25)

③ [INPUT]

Switches the input to [HDMI 1] or [HDMI 2]. (P. 25)

④ [SETTING MEMORY]

Displays the installation mode selection menu.

⑤ [LENS CONTROL]

For adjusting focus, zoom, and shift. (P. 27)

- Pressing the button each time switches the setting in the following sequence: "Focus" → "Zoom" → "Shift"...

⑥ [HIDE]

Hides the image temporarily. (P. 25)

⑦ [INFO.]

Displays the information menu. (P. 67)

⑧ [▲▼◀▶] keys

For selecting an item.

⑨ [OK]

Confirms a selected item.

⑩ [MENU]

Displays the menu, or hides the menu if it is displayed.

⑪ [BACK]

Returns to the previous menu.

⑫ [PICTURE MODE]

Displays the picture mode selection menu. (P. 29)

⑬ [COLOR PROFILE]

Displays the color profile selection menu. (P. 30)

⑭ [GAMMA SETTINGS]

Displays the gamma setting menu. (P. 48)

⑮ [C.M.D.]

Displays the C.M.D. selection menu. (P. 34)

⑯ [MPC]

Displays the MPC setting menu. (P. 43)

⑰ [ADVANCED MENU]

Press and hold to register the currently displayed menu. If the button is pressed when a menu is registered, the registered menu will be displayed. (P. 17)

⑱ [LIGHT]

Illuminates the buttons on the remote control.

Loading Batteries into the Remote Control

Loading the batteries

Removing the batteries

• If the remote control has to be brought closer to the unit to operate, it means that the batteries are wearing out. Replace the batteries with new ones (AAA).
• Insert the batteries according to the marks. Be sure to insert the end first.
  When removing the battery, do so from the end.
• If an error occurs while using the remote control, remove the batteries and wait for five minutes. Load the batteries again and operate the remote control.

CAUTION

• Do not put the remote control in a place with an exposure to direct sun light or high temperature. It may deformed due to heat, or the internal components may be adversely affected resulting in fire hazard.
• Remove the batteries from the remote control when storing the remote control. Storing the remote control for a prolonged period without removing the batteries can cause battery leakage.
• Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
• If you want to dispose of the battery, please consider the collection systems or facilities for appropriate recycling.

Effective Range of Remote Control Unit

When aiming the remote control toward the sensor on this unit (front or rear), ensure that the distance to the sensor is within 7 m (23 ft).

If the remote control fails to work properly, move closer to this unit.

Control through reflection off a screen, etc.

Ensure that the total of distance A (between this unit and the screen) and distance B (between the remote control and the screen) is within 7 m (23 ft).

* As the efficiency of signals reflected from the remote control unit varies with the type of screen used, the operable distance may decrease.

Menu

Pressing the [MENU] button on the remote control displays the menu.

There are three types of settings in the menu ("Picture Settings", "HDMI Settings" and "Installation Settings"). Use "Setting Menu Select" at the top right corner of the screen to switch the menu.

MEMO

- You can press and hold the [ADVANCED MENU] button on the remote control while a menu is being displayed to register the menu to the [ADVANCED MENU] button. Pressing the [ADVANCED MENU] button when a menu is registered will display the registered menu.

Picture Settings Menu

① Mode Settings

② Picture Adjust

③ Color Profile

④ Color Temp.

⑤ Gamma

⑥ Information

⑦ Setting Menu Select

HDMI Settings Menu

① HDMI 1 Settings

② HDMI 2 Settings

③ Information

④ Setting Menu Select

Installation Settings Menu

① Installation Settings

② Network Settings

③ Display Settings

④ ECO Settings

⑤ System Settings

⑥ Information

⑦ Setting Menu Select

Installing the Projector

Precautions during Installation

Please read the following carefully before installing this unit.

When carrying this unit

Take care not to drop this unit while carrying it. Otherwise, it may cause injuries, or damage this unit.

Do not install at the following

This unit is a precision device. Please refrain from installing or using it at the following locations. Otherwise, it may cause fire or malfunction.

• Dusty, wet and humid places
- Places subject to oily smoke or cigarette smoke
- On top of a carpet or bedding, or other soft surfaces
- Places exposed to direct sunlight
- Places with a high or low temperature
- Do not install this unit in a room that is oily or subject to cigarette smoke. Even a small quantity of smoke or oiliness can have a long-term impact on this unit.
* This unit produces a great amount of heat, and is designed to take in cool air to cool its optical components. Using the unit at the above locations may cause dirt to attach to the light path, thereby resulting in dark images or dull colors.
* Dirt that sticks to the optical components cannot be removed.

Maintain clearance from the wall, etc.

As the unit discharges a large amount of heat, install it with adequate clearance from the surroundings as shown below.

Leave the front area of the unit (air inlets) unblocked. If there is any obstructing object in the front area of this unit, interior temperature of this unit will get high, affecting the picture quality and performance of this unit, and causing malfunction.

Using the unit

Please refrain from projecting in the following circumstances. Otherwise, it may cause fire or malfunction.

• Projection with the unit stood vertically

- Projection with the unit inclined at an angle Angle to horizontal plane: within ± 10°

Vertical inclination: within ± 10°

- Malfunction may occur if the angle is not set within the above-mentioned range.

Installing the screen

Install the unit and the screen such that they are perpendicular to each other.

• Please choose a screen material with non-uniform patterns. Uniform patterns such as checks may cause interference patterns to occur.
• In this case, you can change the size of the screen to make the interference patterns less noticeable.

Using the projector at a high altitude

When using this unit at a location that is higher than 900 m (3,000 ft) above sea level (low air pressure), set the "High Altitude Mode" to "On". (P. 65)

Precautions during Mounting

Securing (mounting) the projector

• When this unit is to be mounted to a fixed position for use, install it horizontally.
• Make sure to secure the main unit to prevent accidents such as during an earthquake.

Securing with screws

Remove the four feet at the bottom, and fasten using the screws (M5 screws, 20 to 25 mm (0.8 to 1.0 in)).

* Using screws other than ones mentioned may damage the unit or cause the unit to fall from the mount.

Securing the projector (ceiling mount)

• Be sure to ask your dealer to install the unit for you. Installing the unit on your own may cause the unit to fall resulting in injury.
  • Take the necessary actions to prevent the main unit from falling off such as during an earthquake.
• Regardless of the warranty period, JVC is not liable for any product damage caused by mounting the unit with non-JVC ceiling fittings or to an environment that is not suited for ceiling mount.
• When using the unit with it suspended from a ceiling, pay attention to the surrounding temperature. When a heater is in use, the temperature around the ceiling may be higher than expected.
• To attach the unit to the ceiling mount bracket, set the torque between the range of 1.5N m to 2.0N m. Tightening with torque exceeding the above range may cause damage to the unit, which may result the unit to fall.
• Use a projector mount that supports more than the weight of the projector.
• When reusing the ceiling mount bracket of an old model, consult the specialist to check if there are any issues with the surrounding space and increase in weight.
• Install the outlet at an accessible height to unplug from the wall. Or install the circuit breaker at an accessible height to shut down the projector. If you need information, please consult your authorized dealer or specialist.

Adjusting the Position

Adjusting the elevation angle of the projector

The height and inclination of the unit can be adjusted by turning the feet.

Lift the unit and adjust the four feet.

* Do not pull the feet more than 10 mm. Feet may fall off.

Adjusting the position of the image

By using the lens shift feature of this unit, you can shift the image upward/downward or to the left/right. Set it to your preferred position.

→ "Adjusting the Lens According to the Projection Position" (P. 27)

Horizontal Position

Vertical Position: 0% (Center)

Up to about 28% of the projected image*

Vertical Position

Horizontal Position: 0 % (Center)

Up to about 70% of the projected image*

* 16:9 image

Lens Shift Range (16:9)

• The maximum vertical shift varies with the amount of horizontal shift. Similarly, the maximum horizontal shift also changes with the amount of vertical shift.
• The values on the graph are intended as a guide. Use them for reference during installation.

Connecting the Projector

• Do not turn on the power until connection is complete.
• Before connecting the cables, turn off the power of each device. Making connection with each device being turned on may cause this unit to malfunction.
• Before connecting the cables, remove any static electricity from your body by touching the wall with the palm of your hand.
• The connection procedures differ according to the device used. For details, please refer to the instruction manual of the device to be connected.
• This projector is used for projecting images. To output the audio of connected devices, please connect a separate audio output device, such as an amplifier or speaker.
• Projector has no audio pass through or eARC output.
• The images may not be displayed depending on the devices and cables to be connected. When using an HDMI cable (sold separately), make use of one with the Ultra High Speed HDMI Cable certification (supports 48 Gbps).
• Also, please refer to "HDMI Format Setting" P. 53.
• Some cables cannot be connected to this unit due to the size of their connector cover.
• Configuration of a network password is necessary before connecting to the LAN terminal. For details, refer to "Network Password"P. 62.

Connecting to the HDMI Input Terminal (Digital Input)

Connecting via HDMI cable

• If noise occurs, move the laptop away from this unit.

Connecting through an AV amplifier

• If the source device is connected to the projector through an intermediate device such as an AV amplifier or divider, the video image may not appear depending on the specifications of the intermediate device. In this case, connect the source device directly to the projector, and check whether the video image is displayed.

Connecting via HDMI-DisplayPort conversion cable

• If noise occurs, move the desktop PC away from this unit.
• If the video is not displayed, try to reduce the length of the cable or lower the resolution of the video transmitting equipment.

Connecting to the LAN Terminal

• The network is used to control this unit. It is not used for sending or receiving video signals.
• Please contact your network administrator for information concerning the network connection.
• Configuration of a network password is necessary before connecting to the LAN terminal. (P. 62)
• Set "ECO Mode" to "Off" if LAN communication is performed in the Standby mode. (P. 64)
• For more information on control, please refer to "External Control" P. 74.

Connecting the Power Cord (Supplied Accessory)

① Connect the power cord supplied to the power input terminal on the main unit
② Insert the supplied power plug into the wall outlet.

Precautions to prevent fire and electric shock

• When you are not using the projector, please unplug the power cord from the outlet.
• Connect it using only the power cord supplied.
• Do not use a voltage other than the indicated power voltage.
• Do not damage, break or modify the power cord. Do not place a heavy object on the power cord, or heat or pull it. Doing so may damage the power cord.
• Do not unplug the power cord with wet hands.

Viewing Videos

MEMO

• Make sure to remove the lens cover.
- Connect the power cord, and ensure that the "STANDBY/ON" indicator lights up in red.
- During standby in the "ECO Mode", the "STANDBY/ON" indicator does not light up even when the power cord is correctly connected. In this case, cancel the standby mode by pressing any button on the remote control unit, or use the ⏻/I button on the projector unit when you are turning on the power.

1 Turn on the power

Remote control: press the I [ON] button

Projector unit: press the ⏻/I button

- The "STANDBY/ON" indicator light switches from red (light off in "ECO Mode") to green (light goes off after the unit starts up).

"STANDBY/ON" lights up (red) In standby state

"STANDBY/ON" lights up (green) When light source is starting up

"STANDBY/ON" light off When in "ECO Mode"

□

WARNING

0 LIGHT

WARNING

0 LIGHT

STANDBY/ON

2 Choose the image to project

Remote control: press the [INPUT] button to switch the input - Play back the selected device to project the image.

To hide the image temporarily

Press the [HIDE] button on the remote control

• The "STANDBY/ON" indicator light starts to blink in green.
• Press the [HIDE] button again to resume display of the image.
• The power cannot be turned off when the image is temporarily hidden.
• The light source is turned off when the "Hide Mode" is set to "On" in the OSD menu.

3 Turn off the power

Remote control: press the ⏻ [STANDBY] button

Projector unit: press the ⏻/I button

• While the "Are you sure you want to turn off?" message is displayed, press the button again.
• The light of the LD block goes off, and the “STANDBY/ON” indicator switches from a green light to a red blinking light.
• After the light goes off, the fan will run for approximately 10 seconds to cool down the LD block (Cool-down mode). Do not disconnect the power cable while cooling is in progress.
• Depending on the settings of the projector unit, cooling time may be about 30 seconds longer due to internal processing.
• After cooling is complete, the "STANDBY/ON" indicator switches from a blinking red to a solid red light.

"STANDBY/ON" blinking (red) In the Cool-down mode

"STANDBY/ON" lights up (red) In standby state

CAUTION

• The power cannot be turned on again while cooling is in progress.
• Pull out the power plug when the unit is not to be used for a prolonged period of time.
• If the indication of indicator differs from the description, refer to "Indicator Display on the Main Unit" P. 85 for details.

Adjusting the Projector Screen

Adjusting the Lens According to the Projection Position

1

Press the [LENS CONTROL] button, and use the [▲▼◀▶] keys to adjust Focus, Zoom (screen size), and Shift (screen position)

• Pressing the [LENS CONTROL] or [OK] button each time switches the mode in the following sequence: "Focus" → "Zoom" → "Shift" → "Focus"...
• Operation of the lens control feature is disabled when the lens lock is set to "On". (P. 55)
• For more detailed information, please refer to "Lens Control" P. 55.

Focus Adjustment

Zoom (Screen Size) Adjustment

Shift (Screen Position) Adjustment

2

Press the [MENU] or [BACK] button to end adjustment

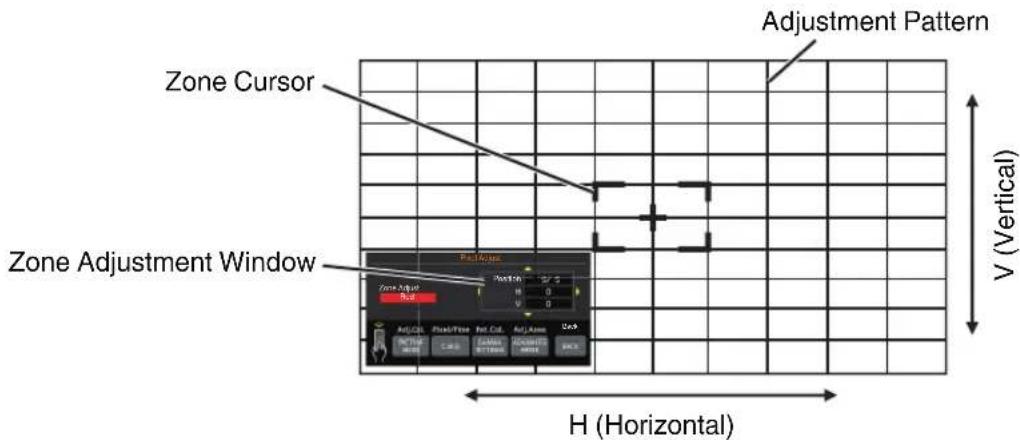

Adjustment Pattern Displayed on the Adjustment Screen

Adjust the display according to the viewing angle of the respective aspect ratios for the adjustment patterns.

* This is not displayed when "Image Pattern" is configured to "Off".

Adjusting the Screen Size (Aspect)

The screen size of the projected image can be adjusted optimally according to the original screen size (aspect) that has been input.

1 Press the [MENU] button to display the menu
2 Select “Installation” → “Aspect” in the menu, then select the setting and press [OK]

Setting Description
Zoom	Magnifies the input image horizontally to the maximum while maintaining its aspect ratio for display.Part of the image that runs off the edge vertically will not be displayed.
Auto	Magnifies the input image horizontally or vertically to the maximum while maintaining its aspect ratio for display.
Native	Any image below 1920x1080 and 2048x1080 will be scaled 2 times (vertical and horizontally) the native resolution of the source.Any source above 1920x1080 will be shown without any scaling. *2048x1080 the exception.

3 Press the [MENU] button to exit

* When "Picture Mode" is configured to "FILMMAKER MODE", "Aspect" is fixed at "Auto".

Example of input image and screen size

Setting Input Image Size	Zoom	Auto Native
720×480
1920×1080

Tuning the Image Quality

Setting the Picture Mode

You can adjust the image quality according to the type of video image you are viewing.

1 Press the [PICTURE MODE] button, use the [▲▼] keys to select "Picture Mode" and press [OK]

- You can also perform the setting by pressing the [MENU] button to display the menu followed by selecting "Picture Settings" → "Mode Settings" → "Picture Mode".

Input Image	Available Picture Modes	Description
SDR	Natural	Image quality that focuses on natural color and gradation reproduction. Suitable for drama footage, etc.
	Cinema Reproduces the	image in vivid colors. Suitable for all movies.
	Vivid Bright and rich colors with vivid image quality. Suitable for viewing in a slightly bright environment, such as living room.
	FILMMAKER MODE Picture mode that supports the FILMMAKER MODETM of the UHD Alliance standard.
	SDR 1, SDR 2 Enables	user-defined image quality data to be saved and retrieved.
HDR10+	HDR10+	Picture mode suitable for viewing HDR10+ content. Tone mapping is optimally performed for each scene according to the dynamic metadata to faithfully reproduce HDR video images according to the intentions of the video producer.
HDR10	Frame Adapt HDR 1	Picture mode that analyzes and automatically adjusts the HDR Tone Mapping of each frame in the HDR10 content. Image quality that focuses on natural color and gradation reproduction. Suitable for drama footage, etc.
	Frame Adapt HDR 2 Picture mode that analyzes and automatically adjusts the HDR Tone Mapping of each frame in the HDR10 content. Reproduces the image in vivid colors. Suitable for all movies.
	FILMMAKER MODE Picture mode that supports the FILMMAKER MODETM of the UHD Alliance standard.
	HDR 1, HDR 2	Enables user-defined image quality data to be saved and retrieved.
HLG	HLG	Image quality suited for viewing content produced in Hybrid Log-Gamma, a HDR standard for HLG broadcasting.

MEMO

You can further configure the detailed settings in "Picture Settings" → "Picture Adjust".

Setting the Color Profile

By setting the "Color Profile" (color space information) according to the "Picture Mode", you can fine-tune the image quality according to the movie you are viewing.

* When "Picture Mode" is set to "HDR10+", the setting is fixed at BT.2020(Normal).

1 After configuring "Picture Mode" (P. 29), press the [COLOR PROFILE] button, use the [▲▼] keys to select "Color Profile", followed by pressing [OK]

• You can also perform the setting by pressing the [MENU] button to display the menu followed by selecting "Picture Settings" → "Mode Settings" → "Color Profile".
• The selectable "Color Profile" settings vary according to "Picture Mode".

"Color Profile"

Color Profile Description
Auto	Switches the color profile automatically based on the color gamut information of the input content. *1
BT.709 Color space that is suitable for BT.709.
BT.2020(Wide) NZ700 RS2200	Color space that is suitable for BT.2020. The cinema filter is configured to Wide. *2
BT.2020(Normal) NZ700 RS2200BT.2020 NZ500 RS1200	Color space that is suitable for BT.2020. The cinema filter is configured to Normal. *2
DCI Color space that is suitable for DCI.
Video	Color gamut that reproduces video footage such as dramas and live images in bright and vivid colors.
Anime. NZ700 RS2200	Color space that is suitable for CG animation works. Ideal for animated works with bright colors.
Cinema	Cinema-specific color gamut that achieves a balance between increased brightness and color vividness.
Off (Wide) NZ700 RS2200	Disables color space adjustment. The cinema filter is configured to Wide. *2
Off (Normal) NZ700 RS2200Off NZ500 RS1200	Disables color space adjustment. The cinema filter is configured to Normal. *2
Vivid	Bright and rich colors. Suitable for viewing in a slightly bright environment, such as living room.
Custom1 to Custom4	For saving the color profile data created using the projector calibration software.

*1 If no signal is input, or the color gamut information included in the input signal is not supported, or a signal that cannot be displayed is input, the "Auto" characters will be displayed in yellow.
*2 Normal cinema filter is a setting that prioritizes brightness and is best suited for video content or movies with an apparent peak.
Wide cinema filter is a setting that prioritizes color reproduction and allows users to enjoy the wide color gamut of HDR. Recommended for all kinds of movie contents. NZ700 RS2200

List of selectable "Color Profile" according to "Picture Mode"

Picture Mode Color Profile
Natural Auto
	BT.709
	BT.2020(Wide) NZ700 RS2200
	BT.2020(Normal) NZ700 RS2200
	BT.2020 NZ500 RS1200
	DCI
	Video
	Anime. NZ700 RS2200
	Cinema
Cinema BT.709
	BT.2020(Wide) NZ700 RS2200
	BT.2020(Normal) NZ700 RS2200
	BT.2020 NZ500 RS1200
	DCI
	Video
	Anime. NZ700 RS2200
	Cinema
Frame Adapt HDR 1	BT.2020(Wide) NZ700 RS2200
	BT.2020(Normal) NZ700 RS2200
	BT.2020 NZ500 RS1200
Frame Adapt HDR 2	BT.2020(Wide) NZ700 RS2200
	BT.2020(Normal) NZ700 RS2200
	BT.2020 NZ500 RS1200
Vivid Vivid
FILMMAKER MODE (SDR Signal Input)	Auto
FILMMAKER MODE (HDR Signal Input)	BT.2020(Wide) NZ700 RS2200
	BT.2020(Normal) NZ700 RS2200
	BT.2020 NZ500 RS1200
HDR10+	BT.2020(Normal) NZ700 RS2200
	BT.2020 NZ500 RS1200
HLG Auto
	BT.709
	BT.2020(Wide) NZ700 RS2200
	BT.2020(Normal) NZ700 RS2200
	BT.2020 NZ500 RS1200
	DCI

(Continue on next page)

Picture Mode Color Profile
SDR 1, SDR 2 Auto
	BT.709
	BT.2020(Wide) NZ700 RS2200
	BT.2020(Normal) NZ700 RS2200
	BT.2020 NZ500 RS1200
	DCI
	Video
	Anime. NZ700 RS2200
	Cinema
	Off (Wide) NZ700 RS2200
	Off (Normal) NZ700 RS2200
	Off NZ500 RS1200
	Custom1 to Custom4
HDR 1, HDR 2 Auto
	BT.709
	BT.2020(Wide) NZ700 RS2200
	BT.2020(Normal) NZ700 RS2200
	BT.2020 NZ500 RS1200
	DCI
	Off (Wide) NZ700 RS2200
	Off (Normal) NZ700 RS2200
	Off NZ500 RS1200
	Custom1 to Custom4

* When "Picture Mode" is configured to "HDR10+", "Color Profile" is fixed at BT.2020(Normal) and the color profile function cannot be used.

MEMO

You can further configure the detailed settings in "Picture Settings" → "Color Profile".

Adjusting the Output Value of the Projected Image (Gamma/Tone Mapping)

You can adjust the output value of the projected image with respect to the video signal input.

* This feature is not available when "Picture Mode" is configured to "Frame Adapt HDR 1"/"Frame Adapt HDR 2"/"FILMMAKER MODE" during HDR signal input.
* This item is not available when "Picture Mode" is set to "HDR10+".

Example of gamma adjustment

The overall image appear brighter with respect to the original image, making the dark areas more visible.

The photos are for illustrative purposes only.

Increases the contrast with respect to the original image, creating a greater sense of depth.

The photos are for illustrative purposes only.

1 Press the [MENU] button to display the menu, followed by displaying “Picture Settings” → “Mode Settings”

2 Select the "Gamma/Tone Mapping" you want to configure from "Gamma/Tone Mapping"

- The selectable "Gamma/Tone Mapping" settings vary according to "Picture Mode".

Gamma/Tone Mapping Description
2.2 The gamma is set to “2.2”, “2.4” and “2.6” respectively.
2.4
2.6
Cinema 1 Places emphasis on the gradation.
Cinema 2 Places emphasis on the contrast.
Vivid	Gamma settings that is suited for viewing when “Picture Mode” is configured to “Vivid”.
HDR(Auto)	Automatically corrects “Picture Tone”“Dark Level”“Bright Level” from Max CLL/Max FALL with “HDR(PQ)” as the base.
HDR(PQ) Suited for viewing HDR content such as UHD BD (HDR10).
HDR(HLG) Suited for viewing HDR content such as HDR broadcast.
Custom 1 to Custom 3	Enables fine adjustment of gamma according to preference.

List of Selectable “Gamma/Tone Mapping” According to “Picture Mode”

Picture Mode Gamma/Tone Mapping
Vivid Vivid, Custom 1 to Custom 3
Cinema Natural SDR 1, SDR 2	2.2
	2.4
	2.6
	Cinema 1
	Cinema 2
	Custom 1 to Custom 3
HLG HDR(HLG)
	Custom 1 to Custom 3
HDR 1, HDR 2 HDR(PQ)
	Custom 1 to Custom 3

MEMO

You can further configure the detailed settings in "Picture Settings" → "Gamma/Tone Mapping".

Reducing the After-image of Fast-moving Images (C.M.D.)

For reducing the after-image, which occurs in a fast-moving scene.

1

Press the [C.M.D.] button, use the [▲▼] keys to select a setting, followed by pressing [OK]

- You can also perform the setting by pressing the [MENU] button to display the menu followed by selecting "Mode Settings"→"Clear Motion Drive".

Setting Description

Off Turns off the blur reduction features.

Low Applies black insertion to reduce blurriness in the video images slightly.

High Applies black insertion to minimize blurriness in the video images.

* C.M.D. is the abbreviation for Clear Motion Drive.
* This item cannot be set when "Picture Mode" is set to "FILMMAKER MODE" or "HDR10+".
* This item cannot be configured when the input signal is configured to a setting other than 60Hz.
* When "Low" or "High" is selected, the image appears darker than "Off".

Adjustments and Settings in the Menu

Pressing the [MENU] button displays the menu.

Press the [▲▼◀▶] keys to select an item, followed by pressing the [OK] button to confirm the selection.

List of Menu Items

Picture Settings

Mode Settings		P. 39
Picture Mode P. 29
Color Profile P. 30
Color Temp. P. 39
Gamma/Tone Mapping P. 33
HDR Settings P. 41
HDR Processing P. 41
HDR Quantizer P. 41
Deep Black P. 42
MPC P. 43
Graphic Mode P. 43
Enhance P. 43
Smoothing P. 43
Reset P. 43
Clear Motion Drive P. 34
Reset -

Picture Adjust	P. 44
Picture Mode P. 29
LD Power P. 44
Dynamic CTRL	P. 44
Aperture	P. 44
Contrast	P. 44
Brightness	P. 44
Color	P. 44
Tint	P. 44
User Name Edit	P. 45

Color Profile	P. 46
Color Profile P. 30
Color Management	P. 46
Color Selection	P. 46
Hue	P. 46
Saturation	P. 46
Brightness	P. 46
Reset -

Color Temp.

P. 47

Color Temp. P. 39

Correction Value P. 47

Gain Red P. 47

Gain Green P. 47

Gain Blue P. 47

Offset Red P. 47

Offset Green P. 47

Offset Blue P. 47

Reset -

Gamma/Tone Mapping

P. 48

Color Selection P. 48

Picture Tone P. 48

Dark Level P. 48

Bright Level P. 48

Reset -

Information P. 67

HDMI Settings

HDMI 1 Settings / HDMI 2 Settings

P. 51

Input Level P. 51

Color Space

Auto Pic. Mode Select

SDR

HDR10

HDR10+

FILMMAKER MODE

Content Type

HDMI Format Setting

P. 51

P. 51

P. 51

P. 52

P. 52

P. 52

P. 53

P. 53

Installation Settings

Installation Settings

P. 54

Installation Mode P. 54

Load P. 54

Save P. 54

Name Edit P. 54

Lens Control P. 55

Focus P. 27

Zoom P. 27

Shift P. 27

Image Pattern P. 55

Lock P. 55

Lens Center P. 55

Pixel Adjust P. 56

Adjust P. 56

Adjust Area P. 56

Adjust Color P. 56

Adjust Pattern P. 56

Adjust Pattern Color P. 56

Adjust (Pixel) P. 56

Adjust (Fine) P. 56

Reset P. 56

Mask

Mask P. 60

Top P. 60

Bottom P. 60

Left P. 60

Right P. 60

Anamorphic

Screen Setting P. 61

Screen Adjust P. 61

Screen No. P. 61

Screen Aspect P. 61

Installation Style P. 61

Keystone P. 61

Aspect P. 61

Network Settings

P. 62

Display Settings

P. 63

Back Color P. 63

Menu Position P. 63

Signal Display P. 63

Logo P. 63

Language P. 63

ECO Settings

P. 64

Off Timer P. 64

ECO Mode P. 64

Hide Mode P. 64

System Settings

P. 65

Remote Code P. 65

High Altitude Mode P. 65

Back-up Settings P. 65

Export Settings P. 66

Import Settings P. 66

Factory Reset P. 66

Software Update P. 66

Picture Settings

Mode Settings

Picture Mode

You can adjust the image quality according to the type of video image you are viewing.

→ "Setting the Picture Mode" (P. 29)

You can further configure the detailed settings in the "Picture Adjust" tab. " Picture Adjust"P. 44

Color Profile

Configures "Color Profile" according to the preconfigured "Picture Adjust".

→ "Setting the Color Profile" (P. 30)

You can further configure the detailed settings in the "Color Profile" tab. " Color Profile"P. 46

Color Temp.

Configures "Color Temp." according to the preconfigured "Picture Adjust".

You can further configure the detailed settings in the "Color Temp." tab. "K Color Temp."P. 47

• The "Color Temp." settings available for configuration vary according to "Picture Mode".
  * When "Color Profile" is set to "Off (Wide)/Off (Normal)", the setting is fixed at "High Bright".

"Color Temp."

Color Temp. Description
Xenon 1 NZ700 RS2200	Color temperature that reproduces the characteristics of a xenon lamp used in cinemas.Xenon 1: A light source color that is emitted by a film projectorXenon 2: A light source color emitted by a projector used for digital cinema
Xenon 2 NZ700 RS2200
5500K	Increasing the value enhances the blue tone of the video image, while decreasing the value enhances the red tone.
6500K
7500K
9300K
High Bright Color temperature that gives priority to brightness.
HDR10+ Color temperature suitable for viewing HDR10+ content.
HDR10	Color temperature suitable for viewing HDR10 content. The default setting is 6500K.
HLG	Color temperature suitable for viewing HLG content. The default setting is 6500K.
Custom 1 to Custom 2	The color temperature of video images can be adjusted manually and saved as one of the three customized settings.

List of selectable "Color Temp." according to "Picture Mode"

Picture Mode Color Temp.
NaturalVividSDR 1, SDR 2	5500K
	6500K
	7500K
	9300K
	High Bright
	Custom 1 to Custom 2
Cinema 5500K
	6500K
	7500K
	9300K
	Xenon 1 NZ700 RS2200
	Xenon 2 NZ700 RS2200
	High Bright
	Custom 1 to Custom 2
Frame Adapt HDR 1Frame Adapt HDR 2HDR 1, HDR 2	5500K
	6500K
	7500K
	9300K
	High Bright
	HDR10
	Custom 1 to Custom 2
FILMMAKER MODE 6500K
HDR10+ HDR10+
HLG 5500K
	6500K
	7500K
	9300K
	High Bright
	HLG
	Custom 1 to Custom 2

Gamma/Tone Mapping

This item adjusts “Gamma/Tone Mapping” according to the preconfigured “Picture Mode” (output value of the projected video with respect to the video signal input).

→ "Adjusting the Output Value of the Projected Image (Gamma/Tone Mapping)" (P. 33)

You can further configure the detailed settings in the "Gamma/Tone Mapping" tab. " Gamma/Tone

Mapping"P. 48

HDR Settings

For configuring the picture adjustment feature of the HDR video image.

* This setting is not available when the input signal is SDR or HLG.
* This setting is not available during HDR signal input and when “Picture Mode” is configured to “HDR 1” and “HDR 2”.

HDR Processing

This is a feature for configuring the method of content analysis in "Tone Mapping".

* When “Picture Mode” is configured to “HDR10+”, “HDR Processing” is fixed at “HDR10+”. “HDR10+” is used only when the Picture Mode is configured to “HDR10+”.

Setting Description
Frame by Frame	Automatically adjusts the HDR tone mapping after analyzing the peak brightness of each frame.
Scene by Scene	Automatically adjusts the HDR tone mapping after analyzing the peak brightness of each scene.
Static	Configures based on the mastering information (MaxCLL/FALL) of the content and does not make any dynamic adjustment.
HDR10+	Automatically adjusts the brightness for each scene based on the HDR10+ image information. *2

HDR Quantizer

This is a feature for adjusting the overall brightness during tone mapping.

When “Picture Mode” is set to “Frame Adapt HDR 1”, “Frame Adapt HDR 2” or “FILMMAKER MODE”

Setting Description
Auto (Normal)	Automatically selects an appropriate tone mapping based on the mastering information (MaxCLL/DML) of the content.
Auto (Wide)	Automatically selects an appropriate tone mapping based on the mastering information (MaxCLL/DML) of the content. A comparison is made with “Auto (Normal)” to switch to the direction that will become brighter.
-2 Displays in a tone map with 600	nits as the clip point.
-1 Displays in a tone map with 400	nits as the clip point.
0 Displays in a tone map with 300	nits as the clip point.
1 Displays in a tone map with 200	nits as the clip point.
2 Displays in a tone map with 150	nits as the clip point.

When "Picture Mode" is set to "HDR10+"

Setting Description
High	Displays the tone map when the overall brightness is configured to the high level. This is suited for large-sized screens.
Mid	Displays the tone map when the overall brightness is configured to the medium level. This is suited for medium-sized screens.
Low	Displays the tone map when the overall brightness is configured to the low level. This is suited for small-sized screens.

To enjoy HDR10+ content when the Picture Mode is “HDR10+”, the following installation conditions are recommended.

	HDR Quantizer: High		HDR Quantizer: Mid		HDR Quantizer: Low
	Screen Size Diagonal (inch)	Projection Distance (m)	Screen Size Diagonal (inch)	Projection Distance (m)	Screen Size Diagonal (inch)	Projection Distance (m)
NZ700RS2200	96	2.86	83	2.44	71	2.09
NZ500RS1200	88	2.69	77	2.28	66	1.93

	HDR Quantizer: High		HDR Quantizer: Mid		HDR Quantizer: Low
	Screen Size Diagonal (inch)	Projection Distance (inch)	Screen Size Diagonal (inch)	Projection Distance (inch)	Screen Size Diagonal (inch)	Projection Distance (inch)
NZ700RS2200	96	113	83	96	71	82
NZ500RS1200	88	106	77	90	66	76

Deep Black

Controls the tonal range of the shadows precisely to enhance the overall contrast of the image.

* This item is not available when "Picture Mode" is set to "HDR10+".

Setting Description
On	Turns on the Deep Black feature for a more realistic expression of darkness.
Off Turns off the Deep Black feature.

MPC

This is a feature for adjusting the sharpness of the displayed image. It employs an original algorithm to create a natural impression that is sharper at areas in focus and softer at areas that are not in focus, enabling you to enjoy highly expressive images with a greater sense of depth.

*1 This item is not available when "Picture Mode" is set to "FILMMAKER MODE".
*2 "Smoothing" and "Enhance" are not available when "Picture Mode" is configured to "HDR10+".
*3 "Smoothing" and "Enhance" are not available when "Graphic Mode" is configured to "Off".

Graphic Mode

Switches the MPC setting.

We recommend setting “High” when watching content such as DVDs and Blu-rays, and “Low” for 4K content such as UHD.

If "High" or "Low" enhances the sharpness of the displayed image, we recommend setting "Off".

Setting Description
Off The video will not undergo any	enhancement processing.
Low	Performs enhancement processing suitable for 4K resolution content (UHD).
High	Performs enhancement processing suitable for 2K or lower resolution content (DVD, Blu-ray).

Enhance

For adjusting the high-frequency areas. Increasing the value enhances the definition for a sharper image quality.

- Setting range: 0 to 10

Smoothing

For adjusting the low-frequency areas. Increasing the value produces smoother video images.

• Setting range: 0 (weak) to 10 (strong)
  * If the setting value of "Enhance" is low, the effect may be weakened.

Reset

Resets the MPC settings.

Toggling between the States before and during Adjustment

Pressing the [HIDE] button on the remote control enables you to toggle between the states before adjustment and during adjustment.

Clear Motion Drive

For reducing the after-image, which occurs in a fast-moving scene.

→ "Reducing the After-image of Fast-moving Images (C.M.D.)" (P. 34)

Picture Adjust

You can further configure the detailed settings for "Picture Mode".

Picture Mode

You can adjust the image quality according to the type of video image you are viewing. → “Setting the Picture Mode” (P. 29)

LD Power

Controls the brightness of the light source by controlling the LD current. - Setting range: 0 to 100

Dynamic CTRL

Expands the dynamic range of video expression through controlling the brightness of the light source based on image analysis.

Setting Description
Off Does not control.
Low	Maintains the peak brightness while automatically optimizing laser light source control and video signal. Weaker control than “High”.
High	Maintains the peak brightness while automatically optimizing laser light source control and video signal to produce a solid black tone throughout the entire video image.
Balanced	Adjusts both the shadows and highlights moderately while suppressing the peak brightness. Enhances the depth and reality of the scene.

Aperture

For changing the brightness through controlling the aperture.

- Setting range: -15 (stops down) to 0 (opens up)

Contrast

For adjusting the white level point to avoid clipping or over saturation.

- Setting range: -50 (little difference in brightness) to +50 (large difference in brightness)

Brightness

For adjusting the black level point to avoid clipping or over saturation.

- Setting range: -50 (darker) to +50 (brighter)

Color

For adjusting the color saturation of the video image.

- Setting range: -50 (lighter) to +50 (deeper)

Tint

For adjusting the hue of the video image.

- Setting range: -50 (reddish) to +50 (greenish)

You can edit the name of the picture mode "SDR 1"/"SDR 2"/"HDR 1"/"HDR 2".

• Characters that are usable include alphabets (upper or lower case), numeric characters, symbols and blank (space) character. (However, blank (space) cannot be used for the first and last characters.)
• Enter not more than 10 characters.

User Name Edit

Selection Cursor

Input Cursor

After entry is complete, select "OK" and press the [OK] button

Color Profile

You can further configure the detailed settings for "Color Profile".

Color Profile

Configures "Color Profile" according to the preconfigured "Picture Adjust". ➤ "Setting the Color Profile" (P. 30)

Color Management

Based on the setting of the selected "Color Profile", you can adjust each of the following colors according to your preference: Red, Magenta, Cyan, Yellow, Green, and Blue.

Setting Description
On Enables fine adjustment.
Off Disables fine adjustment.

Color Selection

For selecting the color to be adjusted ("Red", "Magenta", "Cyan", "Yellow", "Green", "Blue").

Hue

Adjusts the hue (color tone).

- Setting range: -30 to +30

Saturation

Adjusts the color saturation (vividness).

- Setting range: -30 (dull) to +30 (vivid)

Brightness

Adjusts the brightness.

- Setting range: -30 (dark) to +30 (bright)

Toggling between the States before and during Adjustment

Pressing the [HIDE] button on the remote control enables you to toggle between the states before adjustment and during adjustment.

Color Temp.

You can further configure the detailed settings for "Color Temp.".

Color Temp.

Configures "Color Temp." according to the preconfigured "Picture Adjust".

→ "Color Temp." (P. 39)

Correction Value

Configures the color temperature based on which “Gain Red” / “Gain Green” / “Gain Blue” / “Offset Red” / “Offset Green” / “Offset Blue” are adjusted when “Color Temp.” is configured to “HDR10”“HLG”“Custom 1”“Custom 2”.

- The “Correction Value” settings available for configuration vary according to “Picture Mode”.

Gain Red / Gain Green / Gain Blue

Adjusts each color in the bright parts of the video image.

- Setting range: -255 (reduces the red/green/blue tone) to 0 (no adjustment)

Offset Red / Offset Green / Offset Blue

Adjusts each color in the dark areas of the video image.

- Setting range: -50 (reduces the red/green/blue tone) to 0 (no adjustment) to +50 (enhances the red/green/blue tone)

List of selectable “Correction Value” according to “Picture Mode”

Picture Mode Correction Value
Natural	5500K
Vivid	6500K
Frame Adapt HDR 1, Frame Adapt HDR 2	7500K
SDR 1, SDR 2	9300K
HDR 1, HDR 2	High Bright
HLG
Cinema 5500K
	6500K
	7500K
	9300K
	Xenon 1 NZ700 RS2200
	Xenon 2 NZ700 RS2200
	High Bright

Gamma/Tone Mapping

You can further configure the detailed settings for "Gamma/Tone Mapping".

* This feature is not available when “Picture Mode” is configured to “Frame Adapt HDR 1”/“Frame Adapt HDR 2”/“FILMMAKER MODE” during HDR signal input.
* This item is not available when "Picture Mode" is set to "HDR10+".

Gamma/Tone Mapping

This item adjusts “Gamma/Tone Mapping” according to the preconfigured “Picture Mode” (output value of the projected video with respect to the video signal input).

→ "Adjusting the Output Value of the Projected Image (Gamma/Tone Mapping)" (P. 33)

Correction Value

For setting the base gamma for the adjustment of "Picture Tone", "Dark Level" and "Bright Level" when one of the "Custom 1" to "Custom 3" settings is selected in Gamma/Tone Mapping.

Color Selection

For selecting the color to be adjusted (“White”, “Red”, “Green”, “Blue”) for “Picture Tone”, “Dark Level” and “Bright Level”.

Picture Tone

Adjusts the overall brightness automatically for a well-balanced result without compromising the gradation of the image.

- Setting range: -16 (darkens image for an underexposed effect) to +16 (brightens image for an overexposed effect)

Dark Level

You can adjust the image quality to produce a sharp contrast in the brightness.

- Setting range: -7 (darkens the shadows) to +7 (brightens the shadows)

Bright Level

You can adjust the image quality to produce a sharp contrast in the brightness.

- Setting range: -7 (darkens the highlights) to +7 (brightens the highlights)

List of selectable "Correction Value" according to "Picture Mode"

Picture Mode Correction Value
Vivid Vivid, Import
Cinema Natural SDR 1, SDR 2	1.8
	1.9
	2.0
	2.1
	2.2
	2.3
	2.4
	2.5
	2.6

Picture Mode Correction Value
Cinema Natural SDR 1, SDR 2	Cinema 1
	Cinema 2
	Import
HLG HDR(HLG)
	Import
HDR 1, HDR 2 HDR(PQ)
	Import

When "Correction Value" is set to "Import"

• By selecting “Import” for “Correction Value”, the gamma data created externally can be selected as the base setting value for adjustment.
• The factory setting for "Import" is "2.2".
• You can use the calibration software to customize the gamma data adjustment, and import the created gamma data.
  For details, contact your authorized dealer.

Gamma Adjustment

• When the gamma curve is a straight line: The brightness and contrast of the video input will be the same as that of the video output.
• Area for which the gamma curve is above the straight line (A): Video output appears brighter than the input.
• Area for which the gamma curve is below the straight line (B): Video output appears darker than the input.
• Area for which the slope of the gamma curve is steep (midtone) (C): The grayscale range of the video output becomes wider, and the contrast increases (D → D') .

Using Tone Map Manually during HDR Signal Input

“HDR(PQ)” gamma is the PQ curve adopted by HDR10. Fine adjustments can be made according to the screen size and environment although the default settings for viewing with the projector have been adjusted to allow optimum viewing.

* Set "Picture Mode" to "HDR 1" or "HDR 2".

Picture tone adjustment method

Picture Tone

When Picture Tone is set to “-” (The entire screen becomes dark.) Screen becomes brighter in the course of viewing

0

When Picture Tone is set to “+” (The entire screen becomes brighter.) Screen becomes darker in the course of viewing

Bright/dark area adjustment method

Dark Level

(一) To enhance the contrast

0

(+) To make the dark area information more visible

Bright Level

(一) To enhance the gradation of highlight areas

0

(+) To enhance the contrast

For users seeking to obtain a gamma curve that is more faithful to the original PQ curve

This unit has been adjusted to display the projector images on the screen in the optimal quality in the default setting based on the original PQ curve. For users who wish to obtain results more faithful to the original PQ curve, please adjust manually with reference to the values below.

* Set "Picture Mode" to "HDR 1" or "HDR 2".

When clipping point is 400 nits

Picture Tone +5
Dark Level 0
Bright Level +7

When clipping point is 1000 nits

Picture Tone -7
Dark Level 0
Bright Level +7

When clipping point is 2000 nits

Picture Tone -9
Dark Level 0
Bright Level +7

When clipping point is 4000 nits

Picture Tone -13
Dark Level 0
Bright Level +7

* This product is designed for home use and we do not provide guarantee for commercial uses such as in mastering work.

HDMI Settings

HDMI 1 Settings / HDMI 2 Settings

Input Level

For setting the dynamic range (gradation) of the video input.

If the image is not displayed properly even after selecting "Auto", select an appropriate setting.

- If the dynamic range is not appropriate, the bright areas become overexposed, and the dark areas become underexposed.

Setting Description
Auto Sets the input signal level automatically.
16-235 (Video)	Select this setting if you are inputting video signals (dynamic range: 16 - 235).
0-255 (PC)	Select this setting if you are inputting PC signals (dynamic range: 0 - 255).
16-255 (S.White)	Select this setting when inputting Super White-compatible device signals (dynamic range: 16 - 255).

Color Space

For setting the color space of the input signal.

If the image is not displayed properly even after selecting "Auto", select an appropriate setting.

Setting Description
Auto Detects “YCbCr444”, “YCbCr422”, and “RGB” automatically.
YCbCr444	Select this setting when inputting YCbCr (4:4:4) video signals.
YCbCr422	Select this setting when inputting YCbCr (4:2:2) video signals.
RGB Select this setting when inputting RGB video signals.

Auto Pic.Mode Select

SDR

For configuring the "Picture Mode" to switch to automatically during input of SDR signal.

Setting Description
Last Setting	Switches to the “Picture Mode” that was last configured when viewing SDR content.
Natural Switches the “Picture Mode” automatically to “Natural”.
Cinema Switches the “Picture Mode” automatically to “Cinema”.
Vivid Switches the “Picture Mode” automatically to “Vivid”.
SDR 1, SDR 2	Switches the “Picture Mode” automatically to “SDR 1” and “SDR 2”.

HDR10

For configuring the "Picture Mode" to switch to automatically during input of HDR10 signal.

Setting Description
Last Setting	Switches to the “Picture Mode” that was last configured when viewing HDR10 content.
Frame Adapt HDR 1	Switches the “Picture Mode” automatically to “Frame Adapt HDR 1”.
Frame Adapt HDR 2	Switches the “Picture Mode” automatically to “Frame Adapt HDR 2”.
HDR 1, HDR 2	Switches the “Picture Mode” automatically to “HDR 1” and “HDR 2”.

HDR10+

For configuring whether HDR10+ transmission is allowed. To enjoy HDR10+ content, configure to "On".

Setting Description
On Allows HDR10+ transmission
Off Prohibits HDR10+ transmission

FILMMAKER MODE

For configuring whether to switch “Picture Mode” automatically to “FILMMAKER MODE” when FILMMAKER MODE is detected.

Setting Description
Auto	Automatically switches “Picture Mode” to “FILMMAKER MODE” when FILMMAKER MODE is detected.
Manual	Does not automatically switch “Picture Mode” to “FILMMAKER MODE” when FILMMAKER MODE is detected.

MEMO

- Displays a message asking whether to switch “Picture Mode” automatically when FILMMAKER MODE is detected for the first time. If “No” is selected, “FILMMAKER MODE” will be configured to “Manual”. To enable automatic switching, configure “FILMMAKER MODE” to “Auto”.

Content Type

For configuring the type of video content used for selecting an image quality mode.

If the image is not displayed properly even after selecting "Auto", select an appropriate setting.

Item Description
Auto	Switches the video type automatically according to the input video system. After switching automatically, the picture mode switches to the setting preconfigured in “Auto Pic.Mode Select”. (“Auto Pic.Mode Select”P. 51)
SDR Picture mode suitable for viewing SDR content.
HDR10+ Picture mode suitable for viewing HDR10+ content.
HDR10 Picture mode suitable for viewing HDR10 content.
HLG Picture mode suitable for viewing HLG content.

HDMI Format Setting

For changing the EDID mode of the "HDMI 1/HDMI 2" terminal. Set to "Standard" under normal condition.

The images may not be displayed on some old devices. In this case, try "Option 1" or "Option 2".

* EDID (Extended Display Identification Data) refers to the information, such as supported resolutions, exchanged between devices.
- Setting values: Standard, Option 1 and Option 2

HDMI Format Settings and Supported Resolution

Supported Resolution	Color Space	Bit Number	HDMI Format Setting
			Standard Option 1 Option 2
4K24p4K30p4K25p	RGB/YCbCr4:4:4	8 bit	√	√	√
		10, 12 bit √ √ -
	YCbCr4:2:2	12 bit	√	√	√
4K60p4K50p	YCbCr4:2:0	8 bit	√	√	-
		10, 12 bit √ √ -
	RGB/YCbCr4:4:4	8 bit	√	√	-
		10, 12 bit √ -	-
	YCbCr4:2:2	12 bit	√	√	-

Installation Settings

Installation Settings

Installation Mode

Collectively manages the setting values of "Lens Control", "Pixel Adjust", "Mask", "Anamorphic", "Screen Setting", "Installation Style", "Keystone" and "Aspect".

* The lens position may be shifted slightly with respect to the position that was saved.

Load

Applies the saved settings to the current settings.

• Setting values: Mode 1 to Mode 5
  * The name of the setting value can be changed using "Name Edit".

Save

Saves the current settings.

• Setting values: Mode 1 to Mode 5
  * The name of the setting value can be changed using "Name Edit".

Name Edit

For editing the name of Installation Mode.

• Characters that are usable include alphabets (upper or lower case), numeric characters, symbols and blank (space) character. (However, blank (space) cannot be used for the first and last characters.)
• Enter not more than 10 characters.

Lens Control

Focus / Zoom / Shift

For adjusting the lens according to the projection position

→ "Adjusting the Lens According to the Projection Position" (P. 27)

Image Pattern

For setting whether to display the lens adjustment pattern.

Setting Description
Off	Displays external signals, and does not display the lens adjustment pattern.
On Displays the lens adjustment pattern.

Lock

For setting whether to lock or unlock the lens.

Setting to "On" to lock the lens allows you to preserve the adjustment status of the lens.

Setting Description
Off Does not lock the lens.
On	Locks the lens to prevent any erroneous operation on the adjustments.Even when “On”, the lens will be in the mode selected by “Installation Mode”.

Lens Center

Returns the lens position to the center.

Pixel Adjust

For correcting the phase shifting between each RGB color by adjusting the pixel.

Adjust

For setting the adjustment feature to On or Off.

Adjust Area

Setting Description
Whole Adjusts the entire image.
Zone	Enables fine adjustment of each area by dividing the screen evenly into 10 vertical and horizontal zones.

Adjust Color

For selecting the color to adjust ("Red" or "Blue").

Adjust Pattern

Setting Description
Off	Displays the external signals without displaying the test pattern for adjustment.
On Displays the test pattern for adjustment.

Adjust Pattern Color

For setting the color of the adjustment pattern displayed during adjustment to "White" or "Yellow / Cyan".

Adjust (Pixel)

When “Adjust Area” is set to “Whole”, adjustment can be made by moving in units of one pixel on the screen of the color selected in “Adjust Color”.

→ "Whole Adjust (Pixel) Operation Procedure" (P. 57)
- Adjustment cannot be made when "Adjust Area" is set to "Zone".

Setting Description
H (Horizontal)	Setting range: -2 (moves red/blue to the left) to +2 (moves red/blue to the right)
V (Vertical)	Setting range: -2 (moves red/blue downward) to +2 (moves red/blue upward)

Adjust (Fine)

When “Adjust Area” is configured to “Whole”, fine adjustment can be made to the entire screen’s pixels by shifting them in one-eighth pixel increments based on the color selected in “Adjust Color”.

→ "Whole Adjust (Fine) Operation Procedure" (P. 58)

When “Adjust Area” is set to “Zone”, the screen is divided evenly into 10 vertical and horizontal zones, and fine adjustment of each area is possible.

→ "Zone Adjust Operation Procedure" (P. 59)

Setting Description
H (Horizontal)	Setting range: -31 (moves red/blue to the left) to +31 (moves red/blue to the right)
V (Vertical)	Setting range: -31 (moves red/blue downward) to +31 (moves red/blue upward)

Reset

Restores all pixel adjustment data to the factory default.

Whole Adjust (Pixel) Operation Procedure

For making general adjustments to slight color fringing in the horizontal/vertical directions of the video image.

① Set “Adjust Area” to “Whole”
② Select "Adjust Color" and "Adjust Pattern Color"
③ Select "Adjust (Pixel)", and press the [OK] button

- The Adjustment mode is activated, and the selected adjustment pattern and Adjustment (Pixel) window are displayed.

④ Use the [▲▼◀▶] keys to move and adjust the vertical and horizontal pixels of the entire zone

- The adjustment setting appears at the center of the Adjustment (Pixel) window.

⑤ After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode

Remote Control Operation Guide

Button Name	Function	Description of Operation
[PICTURE MODE]	Adj.Col.	Changes “Adjust Color”.
[C.M.D.]	Pixel/Fine	Switches between “Adjust (Pixel)” and “Adjust (Fine)”.• Switches to “Adjust (Pixel)” when “Adjust Area” is set to “Zone”.
[GAMMA SETTINGS]	Pat.Col.	Changes “Adjust Pattern Color”.
[ADVANCED MENU]	Adj.Area	Switches “Adjust Area”.• A zone cursor appears on the adjustment pattern when the “Zone” setting is selected.

Whole Adjust (Fine) Operation Procedure

For making general adjustments on the misalignment of the entire screen using “Adjust (Pixel)”, followed by making fine adjustments.

① Set “Adjust Area” to “Whole”
② Select "Adjust Color" and "Adjust Pattern Color"
③ Select Adjust (Fine), and press the [OK] button

• The Adjustment mode is activated, and the selected adjustment pattern and Fine window are displayed.
• The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.

④ Use the [▲▼◀▶] keys to move and adjust the vertical and horizontal pixels of the entire zone

- The adjustment setting appears at the center of the Fine window.

⑤ After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode

MEMO

• If both the maximum overall screen misalignment of H (horizontal direction) and V (vertical direction) are "31", you cannot select a value that is larger than the displayed setting even when the adjustment setting is lower than the maximum value.
• If the minimum overall screen misalignment is “-31”, you cannot select a value that is smaller than the displayed setting even when the adjustment setting is higher than the minimum value.

Zone Adjust Operation Procedure

For fine-tuning misalignments on a part of the screen after adjusting the overall screen misalignment using "Adjust (Pixel)" and "Adjust (Fine)".

- The screen can be divided vertically and horizontally into 10 sections for partial adjustments to be made.

① Set "Adjust Area" to "Zone"

② Select "Adjust Color" and "Adjust Pattern Color"

③ Select Adjust (Fine), and press the [OK] button

• The Adjustment mode is activated, and the selected adjustment pattern and Zone Adjustment window are displayed.
• The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.

④ Press the [▲▼◀▶] keys to move the cursor to the point to be adjusted
⑤ Press the [OK] button to enter the Adjustment mode
⑥ Use the [▲▼◀▶] keys to move and adjust the vertical and horizontal pixels of the entire zone
- The adjustment setting appears at the center of the Zone Adjustment window.

⑦ After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode

Mask

For hiding the peripheral area of the image with a mask (black strip).

Setting Description
Off Not masked.
On	Hides the ranges specified in “Top”, “Bottom”, “Left” and “Right” by masking (with black strips).

Off

On

Mask: black strip around the periphery

"Top" / "Bottom" / "Left" / "Right"

For specifying the ranges to hide by masking (with black strips).

- Setting range: 0 to 220

Anamorphic

Configure this setting when an anamorphic lens is used.

Setting Description
Off Projects the 2.35:1 image without any changes.
A	Projects the 2.35:1 image with it stretched in the vertical direction only using a 3840 pixel width.
B	Projects the 16:9 image with it compressed in the horizontal direction only.
C This is a mode used exclusively	for the DCR lens of Panamorph.Projects the image by stretching 2.35:1 video images in the vertical direction and enlarging them in the horizontal direction to the maximum panel width of 4096 pixels.
D This is a mode used exclusively	for the DCR lens of Panamorph.Projects the 16:9 image with it compressed in the horizontal direction only.

Screen Setting

Screen Adjust

Corrects the color temperature according to the properties of the screen to be used.

Selecting the optimal correction mode enables corrections to be performed to reproduce natural images with balanced colors.

- This feature is not available when "Color Profile" is configured to "Off (Wide)" or "Off (Normal)".

Setting Description
Off Does not perform correction
On	Corrects the color temperature according to the properties of the screen configured in “Screen No.”.

Screen No.

For configuring the correction mode according to the screen to be used.

• This item cannot be set when "Screen Adjust" is set to "Off".

- For information on the screen and the corresponding correction mode, please visit our website. https://www.jvc.com/global/projector/screen

MEMO

- You can utilize the optional optical sensor and dedicated projector calibration software to make finer adjustments. For details on the dedicated projector calibration software, please visit our website.

https://www.jvc.com/global/support/

Screen Aspect

For configuring the aspect ratio of the screen for viewing.

Installation Style

For setting to “Front”, “Ceiling Mount (F)”, “Rear”, or “Ceiling Mount (R)” according to the installation status of the projector.

• "Front" or "Ceiling Mount (F)" is set when projector is installed in the front with respect to the screen.
• “Rear” or “Ceiling Mount (R)” is set when projector is installed in the rear with respect to the screen.

Keystone

For correcting any keystone distortion that occurs when the projector is installed at an angle with respect to the screen. Vertical Keystone only.

• Vertical setting range: -7 to 7
* Increasing the value changes the aspect slightly.
* Image will reduce in size when keystone is adjusted.

Aspect

The screen size of the projected image can be adjusted optimally according to the original screen size (aspect) that has been input.

→ "Adjusting the Screen Size (Aspect)" (P. 28)

Network Settings

For specifying the settings for external control from a PC or smartphone.

Setting Description
DHCP Client	On	Obtains the IP address automatically from the DHCP server inside the connected network.
	Off For configuring the network settings manually.
IP Address For configuring the IP address.
Subnet Mask For configuring the subnet mask.
Default Gateway For configuring the default gateway.
MAC Address Displays the MAC address of the unit.
Set Applies the network settings.
Control4 SDDP		Set to “On” to allow Control4 SDDP to detect this unit.When this unit is not connected to an environment under the control of the control and Control4 SDDP from the Control4 Corporation, set this to “Off”.

Glossary of Network Terminology

DHCP	Abbreviation for Dynamic Host Configuration Protocol. This is a protocol for the network to assign an IP address automatically to the connected device.
IP Address	Numeric characters for identifying the device that is connected to the network.
Subnet Mask	Numeric characters that define the bit count used for the network address that is a segment of the IP address.
Default Gateway	Server for communicating beyond the network that is divided by the subnet mask.
MAC Address	Abbreviation for Media Access Control address. This is a number that is unique to each network adapter. Each of the network adapters is assigned with a unique MAC address.

Network Password

For configuring the password during LAN connection.

• Characters that are usable include alphabets (upper or lower case), numeric characters, and symbols.
• Enter a password with at least 8 characters and not more than 10 characters.

CAUTION

• Configuration of a network password is necessary before connecting to the LAN terminal.
  * Any 3rd party IP control system will have to configure this password into their communication protocol.

Display Settings

Back Color

For setting the color of the background to "Blue" or "Black" when there is no signal input.

Menu Position

For setting the display position of the menu.

Signal Display

For setting the display of the input information to "On" or "Off".

Setting Description
Off Not displayed.
On Shows the input terminal for 5 seconds when input is switched.

Logo

For setting the display of logo during startup to "On" or "Off".

Setting Description
Off Not displayed.
On Displays the “D-ILA” logo for 5	seconds during startup.

Language

For setting the display language to “English”, “Deutsch”, “Español”, “Italiano”, “Français”, “Português”, “Nederlands”, “Polski”, “Norsk”, “繁體中文”, or “日本語”.

Off Timer

For setting the duration before the power turns off automatically when the projector is not operated.

• Setting values: "Off", "1 Hour", "2 Hours", "3 Hours" and "4 Hours"
  * The setting will be retained even after the Off Timer operation has completed.

ECO Mode

Setting Description
On	Enables “ECO Mode” to minimize power consumption in the Standby mode.LAN communication cannot be used in the Standby mode.If there is no signal transmission and operation for 15 minutes while an image is projected, the power management switches the equipment automatically into standby mode.
Off	Select this option to control via LAN communication in the Standby mode or if Control4 is to be used.

* If this unit enters into standby while “ECO Mode” is set to “On”, all the indicators on the unit including the “STANDBY/ON” indicator are turned off. To turn on the power from this state, use the [STANDBY/ON] button on the unit. Alternatively, press any button on the remote control once to cancel the standby mode then press the [ON] button on the remote control.

Hide Mode

For reducing the power consumption through suppressing the current supply for the LD block when the [HIDE] button is pressed to hide the image temporarily.

Setting Description
Off	The illumination supply remains on when the [HIDE] button is pressed to hide the image.
On	The illumination supply is turned off when the [HIDE] button is pressed to hide the image.

System Settings

Remote Code

For changing the remote control code.

Setting Description
A Sets the remote control code to	“A”.
B Sets the remote control code to	“B”.

- You need to configure the remote control according to the settings of this unit.

On the remote control unit, press the [MENU] button for three seconds or longer while pressing and hold the [BACK] button to switch the code.

• The backlight of the remote control blinks 3 times: change the remote control code to "A"
• The backlight of the remote control blinks 2 times: change the remote control code to "B"

- If the setting differs between this unit and the remote control, the “STANDBY/ON” indicator blinks in green when receiving the remote control code.

(Green)

High Altitude Mode

For setting the high altitude mode to "On" or "Off".

Set to “On” when using the projector at a location of low atmospheric pressure (higher than 900 m (3,000 ft) above sea level).

Back-up Settings

For exporting or importing the projector settings using a commercially available USB flash drive.

- Current lens control information (focus, zoom, shift) will not be exported or imported.

CAUTION

Take note of the following when using a USB flash drive.

• Use a 1 GB or more, FAT32 format drive.
• Make sure there are no other folders or files.
• Do not turn off the main unit or remove the USB flash drive while it is running. Doing so may cause the projector to malfunction.
• Do not change the file name.

Export Settings

For exporting the projector settings to a USB flash drive.

* If there is not enough free space on the USB flash drive, the settings may not be exported.
* Information such as date and time created is not reflected in the file created during export.

CAUTION

- Multiple settings cannot be exported to the same USB flash drive. If the data already exists in the USB flash drive, it will be overwritten.

Import Settings

For retrieving the projector settings from the USB flash drive and applying them to the projector.

* Once the settings have been imported, the projector and all LED indicators will turn off. To turn on the power again, use the ⏻/I button on the unit. Alternatively, press any button on the remote control once to put it to Standby then press the I [ON] button on the remote control.

CAUTION

Importing the settings will overwrite the current settings.

Factory Reset

For restoring the settings of this unit to the factory default. However, the following settings will not be reset.

• Gamma data saved in "Gamma" → "Correction Value" → "Import".
• Color profile data saved in "Color Profile" → "Custom1 to Custom4".

Software Update

For performing a software update.

For the latest information on the software, refer to https://www.jvc.com/global/support/.

Information

Information

Setting Description
Input Displays the currently selected video input terminal.
Source (Displayed only during video signal input)	Displays the input source.
Resolution (Displayed only during PC signal input)	Displays the image resolution.
H Frequency Displays the horizontal frequency.
V Frequency Displays the vertical frequency.
Color Space	Displays the color space and color bit depth of the input video signal.The color bit depth is not displayed when “YCbCr422” is input.The color bit depth is displayed when color bit depth information is received from the source device.
Colorimetry Displays the Colorimetry of the input signal.
HDR	Displays the EOTF information when HDR packet is received. Displays “HDR10+” when HDR10+ packets are received.Displays “FILMMAKER MODE” when FILMMAKER MODE packets are received.
Max CLL/FALL/DML	Displays the mastering information of the content during HDR playback.Max CLL: Maximum Content Light LevelMax FALL: Maximum Frame Average Light LevelMax DML: Brightness of the master monitor during content productionThe information may not be displayed depending on the player and content.
Soft Ver. Displays the firmware version.
Light Source Time Displays the laser light source time.

Maintaining the Cabinet and Remote Control

• Gently wipe off dirt on the cabinet with a soft cloth.
• If it is extremely dirty, wet a cloth in water, wring dry and use it to wipe off the dirt, followed by wiping again with a dry cloth.

• Pay attention to the following as the cabinet may deteriorate in condition or the paint may come off.

• Do not wipe with thinner or benzine

• Do not allow prolonged contact with rubber or plastic products
• Do not spray volatile chemicals such as insecticide

Troubleshooting

Before sending the unit to your authorized dealer for repair, please check the following points.

The following symptoms are not malfunctions.

You do not need to worry about the following symptoms if there is no abnormality on the screen.

• A part of the top or front surface of the unit is hot.
• A creaking sound is heard from the unit.
• An operating sound is heard from the inside of the unit.
  • Color smear occurs on some screens.

This unit is a digital device. This unit may become unable to operate normally due to external static or noise. Perform the following operations when such malfunctions occur.

① If the unit is in the Standby mode, pull out the power plug, followed by inserting it again
② Press the ⏻/I button on the projector unit to turn on the power again

If “High Altitude Mode” is set to “On”, the fan spins at a higher speed and produces a sound louder than usual.

Power is not supplied

Check Action Refer to
Is the power cord disconnected?	Insert the power cord (plug) firmly.	P. 24
Is the unit in the Cool-down mode?	After exiting the Cool-down mode, turn on the power again.	P. 26
Is this unit in the “ECO Mode”?	Press the ⏻/I button on the projector unit or the remote control unit. After the “STANDBY/ON” indicator lights up in red, press the I [ON] button.	P. 64

Power shuts down automatically

Check Action Refer to
Has “ECO Mode” been configured?	Set “ECO Mode” to “Off”.	P. 64
Has “Off Timer” been configured?	Set “Off Timer” to “Off”.	P. 64
Are the air inlets and exhaust vent blocked?	Leave proper clearance when installing the unit. P. 13, 14, 19

Video image does not appear

Check Action Refer to
Is the correct external input selected?	Select the correct external input terminal.	P. 25
Is the power of the AV device or PC turned on?	Turn on the power of the AV device or PC and play the video.	P. 22
Is the AV device or PC properly connected?	Connect the AV device or PC properly. P. 22
Are the correct signals being output from the AV device or PC?	Set the AV device or PC properly. P. 22
Is the cable in use an HDMI-certified cable?	Use an Ultra High Speed HDMI Cable (supports 48 Gbps) HDMI cable may be directional and some HDMI cables require external power. Please check the specifications of the cable you are using.	P. 22
Is an intermediate device (AV amplifier, divider, etc.) in use?	Change the sequence of turning on the source device, intermediate device and the projector. And after turning on each device, ensure that the signal output is stable before turning on the next device. If the intermediate device does not support HDR10+, configure the HDR10+ setting under “Auto Pic. Mode Select” to “Off”.	P. 51
Is an old source device in use?	Change the resolution setting of the source device. For details on how to change the setting, please refer to the instruction manual of the source device. Also, try the “HDMI Format Setting” mode settings under “Option 1” “Option 2”.	P. 53
Is the input signal 2K (2048x1080) 24/25/30/60Hz?	If the input signal is 2K (2048x1080) 24/25/30/50/60Hz, configure “HDMI Format Setting” setting to “Option 1”.	P. 53
This may be due to a temporary connection problem.	Turn on the projector and the connected devices (player and AV amplifier) again (ON → OFF → ON).	P. 22

Video image looks unnatural

Colors are unnatural

Check Action Refer to
Is the color space of the input signal correctly set?	The color may turn out unnatural when the input signal is different from that in the projector setting.Set the “Color Space” for “HDMI 1 Settings” / “HDMI 2 Settings” correctly.	P. 51
Is the image correctly adjusted?	Adjust “Color” and “Tint” accordingly.Check Picture Settings.	P. 44
Is the AV device or PC properly connected?	Connect the AV device or PC properly. P. 22

* The video image may appear slightly reddish immediately after starting up. This is not a malfunction.

Video image is fuzzy

Check Action Refer to
Is the focus correctly adjusted?	Adjust the focus.	P. 27
Is the unit placed too near or too far away from the screen?	Set the unit at a correct distance from the screen. P. 80

Video image flickers

Check Action Refer to
Has “Dynamic CTRL” been configured?	Set “Dynamic CTRL” to “Off”	P. 44
Has “C.M.D.” been configured?	Set “C.M.D.” to “Off”.	P. 34

Video format changes

Check Action Refer to
Is the cable in use an HDMI-certified cable?	Depending on the quality of the cable in use, the signal from the device connected may change to a receivable video format. Make use of an HDMI cable with the Ultra High Speed HDMI Cable certification (supports 48 Gbps).	R. 22

Projected image is dark

Check Action Refer to
Is the aperture closed?	Increase the value of the “Aperture” setting.	P. 44
Is the “LD Power” value set too low?	Increase the “LD Power” value.	P. 44
Check Picture Settings.	Select different Picture Mode.	P. 29
Is “Dynamic CTRL” set to a setting other than “Off”?	Set “Dynamic CTRL” to “Off”. P. 44

Video image appears horizontally (vertically) extended

Check Action Refer to
Is “Anamorphic” set to a setting other than “Off”?	Set “Anamorphic” to “Off” P. 60

Moire patterns appear on the screen

Check Action Refer to
Does the fabric of the screen have a regular pattern?	Interference fringes may sometimes occur between the fabric pattern and the pixels. Please consult the authorized dealer.	—

Part of the video Image is missing

Check Action Refer to
Has screen mask been configured?	Set “Mask” to “Off”.	P. 60
Is “Anamorphic” set to a setting other than “Off”?	Set “Anamorphic” to “Off”.	P. 60
Is “Aspect” set to a setting other than “Native”?	Set “Aspect” to “Native”	P. 28

Remote control does not work

Check Action Refer to
Are the batteries correctly installed?	Match the polarities (⊕⊖) correctly when loading the batteries.	P. 16
Are the batteries exhausted?	Replace with new batteries.	P. 16
Is there an obstructing object between the remote control and remote sensor?	Remove any obstructing object. P. 16
Is the remote control held too far away from the unit?	Hold the remote control closer to the sensor during use. P. 16
Is remote control code correctly?	Match the settings of the projector and the remote control. The factory settings are both “A”.	P. 65

Noise is heard

Check Action Refer to
Is the exhaust vent blocked?Is the unit used near a heater or air-conditioner?	Check the installation condition of the projector.When the surrounding temperature of the projector is high, the fan revolution speed increases to protect the projector unit, hence a louder operating sound.	P. 19
Is the “LD Power” value set too high?	Setting the “LD Power” value too high increases the fan rotation speed, and noise would be louder as a result.	P. 44

Unable to connect to LAN terminal

Check Action Refer to
Has a network password been configured?	Configuration of a network password is necessary before connecting to the LAN terminal. Configure the network password.	P. 62

There are small black or colored dots on the screen

The D-ILA device is manufactured using high-precision technologies, but there may be some (less than 0.01%) missing pixels or pixels that remain permanently lit. This is not a malfunction.

Settings are not exported

Check Action Refer to
Is there enough free space on the USB flash drive?	Take note of the following when using a USB flash drive.Use a 1 GB or more, FAT32 format drive.Make sure there are no other folders or files.	P. 65

When the Following Messages Appear...

Message Description	Action
	No device is connected to the input terminal.The input terminal is connected but there is no signal.	Input the video signals.
	The video signal input is not supported on this unit.	Input video signals that can be used.(P. 84)

External Control

The projector can be controlled by connecting it to a PC through the computer network with a LAN cable for control commands to be sent to the projector.

→ "Network Settings" (P. 62)
- Please use it after you have gained proper understanding from professional books or consulting the system administrator.

TCP/IP Connection

Before controlling via LAN, it is necessary to establish connection of the TCP layer by a "3-way handshake", followed by sending out "PJREQ" and receiving "PJACK" within five seconds after the projector sends out "PJ_OK" for connection authentication.

If you are unable to complete sending within five seconds, or when "PJ_NG" or "PJNAK" is received, check the operating status of the projector, followed by performing the steps again starting from establishment of a TCP connection.

Command Format

The command between this unit and the computer consists of "Header", "Unit ID", "Command", "Data" and "End".

- Header (1 byte), Unit ID (2 bytes), Command (2 bytes), Data (n bytes), End (1 byte)

Header

This binary code indicates the start of communication.

Binary Code Type	Description
21	Operating command	PC → This unit
3F	Reference command	PC → This unit
40	Response command	This unit → PC
06	ACK	This unit → PC (returns to PC after the command is accepted without error)

Unit ID

This is a code that specifies the unit. The binary code is fixed at "8901".

Command and data

Operating command and data (binary code)

Command	Type Description
0000	Connection check	Check whether communication is enabled between this unit and the PC during standby.
5057 Power supply		During standby31: Turns on the powerWhen power is on30: Turns off the power (Standby mode)
4950 Input	When power is on36: HDMI 137: HDMI 2
5243 Remote control		Sends the same code as the supplied remote control.“Remote Control Code”P. 76

Reference command and data (binary code)

Command	Type Description
5057 Power supply		During standby or when power is on30: Standby mode31: When power is on32: In the Cool-down mode34: When error occurs on this unit
4950 Input	When power is on36: HDMI 137: HDMI 2

End

This code indicates the end of communication. The binary code is fixed at "0A".

Remote Control Code

Binary code is sent during communication.

Remote Control Button Name	Binary Code
STANDBY 37 33 30 36
ON 37 33 30 35
INPUT 37 33 30 38
SETTING MEMORY 37 33	44 34
LENS CONTROL 37 33 33	30
HIDE 37 33 31 44
INFO. 37 33 37 34
▲	37 33 30 31
▼	37 33 30 32
▶	37 33 33 34
◀	37 33 33 36

Remote Control Button Name	Binary Code
OK 37 33 32 46
MENU 37 33 32 45
BACK 37 33 30 33
PICTURE MODE 37 33 46	34
COLOR PROFILE 37 33 38	38
GAMMA SETTINGS 37 33	46 35
C.M.D. 37 33 38 41
MPC 37 33 46 30
ADVANCED MENU 37 33	37 33

Communications Example

Shows the communication examples.

Operating command

Type Command Description
Connection check	PC → This unit: 21 89 01 00 00 0AThis unit → PC: 06 89 01 00 00 0A	Connection check
Power (On)	PC → This unit: 21 89 01 50 57 31 0AThis unit → PC: 06 89 01 50 57 0A	When power is turned on from the Standby mode
Power (Off)	PC → This unit: 21 89 01 50 57 30 0AThis unit → PC: 06 89 01 50 57 0A	When power is turned off (Standby mode) from power-on mode
Remote control (MENU)	PC → This unit: 21 89 01 52 43 37 33 32 45 0AThis unit → PC: 06 89 01 52 43 0A	When the same operation as pressing the [MENU] button on the remote control is performed

Reference command

Type Command Description
Power (On)	PC → This unit: 3F 89 01 50 57 0AThis unit → PC: 06 89 01 50 57 0AThis unit → PC: 40 89 01 50 57 31 0A	When information on the power-on state is acquired
Input (HDMI 1)	PC → This unit: 3F 89 01 49 50 0AThis unit → PC: 06 89 01 49 50 0AThis unit → PC: 40 89 01 49 50 36 0A	When information on HDMI 1 input is acquired

Specifications

Product Name D-ILA Projector
Model Name DLA-NZ700BK, DLA-NZ700BE,		DLA-NZ500BK, DLA-NZ500BE,DLA-NZ500WE, DLA-RS2200K, DLA-RS2200E, DLA-RS1200K,DLA-RS1200E
Display Panel/Size D-ILA device *1, 2		0.69" 4K D-ILA (4096 x 2160 pixels) x 3
Projection Lens 1.6 x power zoom lens, motorized zoom and focus
Light Source Laser Diode
Screen Size Approx. 60" to 200" (Aspect ratio of 16:9)
Brightness		2300 lm NZ700 RS2200, 2000 lm NZ500 RS1200
Zoom Ratio x 1.6
Throw Ratio		1.34 to 2.14 (Aspect ratio of 16:9)1.26 to 2.01 (Aspect ratio of 17:9)
Projection Distance Refer to P. 80.
Input Compatibility Signal Refer to P. 84.
Display Resolution 4096 x 2160 pixels
Input Terminal	HDMI Input	Dual, HDMI 19-pin x 2 (HDCP 2.3-compatible) *3
Control Terminal	LAN Terminal	Single, RJ45 jack, 10BASE-T/100BASE-TX
	Service Terminal	SERVICE Single (USB Type A) *4
Power Requirements		AC 100 V to 240 V, 50 Hz/60 Hz
Power Consumption		280 W (during normal standby: 1.5 W *5, during Eco Mode standby: 0.3 W)
Operation Environment		Temperature: 5°C to 35°C; humidity: 20% to 80%; storage temperature: -10°C to 60°C
Installation Altitude		Below 6,561 ft (2,000 m)
Dimensions (Width x Height x Depth)		450 mm x 181 mm x 479 mm (17-23/32 in x 7-5/32 in x 18-7/8 in)(including feet)
Mass		14.8 kg (32.6 lb) NZ700 RS2200, 14.6 kg (32.2 lb) NZ500 RS1200
Accessories		Refer to P. 12.

*1 D-ILA is the abbreviation for Direct Drive Image Light Amplifier.

*2 D-ILA devices are manufactured using extremely high-precision technology with a pixel effectiveness of 99.99%. Only 0.01% or less of the pixels are either missing or would remain permanently lit.

*3 HDCP is the abbreviation for High-bandwidth Digital Content Protection system. The image of the HDMI input terminal may not be displayed in some cases due to changes in the HDCP specifications.

*4 For software update and setting backup features.

*5 The power consumption of this product during networked standby when all wired network ports are connected is 1.5 W.

- Design and specifications are subject to change without prior notice.

- Please note that some of the pictures and illustrations may have been abridged, enlarged or contextualized in order to aid comprehension. Images may differ from the actual product.

This unit has acquired the certification of the “HDR10+” standard set by HDR10 + Technologies, LLC.

Tone mapping is optimally performed for each scene according to the dynamic metadata to faithfully reproduce HDR video images for viewing according to the intentions of the video producer.

HDR10+ ^TM logo is a trademark of HDR10+ Technologies, LLC.

® This unit is isf-certified, so calibration can be performed by an isf-certified trainer. After calibration is performed, an isf mode is added to the Picture mode.

For more details, please refer to the isf website.

http://www.imagingscience.com/

About Trademarks and Copyrights

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

FILMMAKER MODE™

FILMMAKER MODE™ logo is a trademark of UHD Alliance, Inc.

UK Product Security and Telecommunications Infrastructure Act 2022 (United Kingdom only)

This product is compliant with the UK Product Security Telecommunications Infrastructure Act 2022.

For relevant compliance statements, please scan the QR code or visit the URL below for further information.

https://uk.jvckenwood.com/product_security/

Screen Size and Projection Distance

Screen Size Diagonal (inch)	Projection Distance (m)
	17:9 Screen		16:9 Screen		2.35:1 Screen		2.40:1 Screen		4:3 Screen
	Wide-end	Tele-end	Wide-end	Tele-end	Wide-end	Tele-end	Wide-end	Tele-end	Wide-end	Tele-end
60	1.68	2.72	1.77	2.85	1.87	3.02	1.87	3.03	2.17	3.50
70	1.97	3.18	2.07	3.34	2.19	3.53	2.20	3.54	2.54	4.10
80	2.26	3.63	2.37	3.82	2.51	4.04	2.52	4.05	2.92	4.69
90	2.54	4.10	2.68	4.31	2.83	4.55	2.84	4.56	3.29	5.28
100	2.83	4.56	2.98	4.79	3.15	5.06	3.16	5.08	3.66	5.88
110	3.12	5.02	3.28	5.28	3.47	5.57	3.48	5.59	4.03	6.47
120	3.41	5.48	3.58	5.76	3.79	6.08	3.80	6.10	4.40	7.06
130	3.69	5.94	3.89	6.24	4.11	6.59	4.12	6.62	4.77	7.65
140	3.99	6.40	4.19	6.73	4.43	7.11	4.44	7.13	5.14	8.25
150	4.27	6.86	4.49	7.21	4.75	7.62	4.76	7.64	5.51	8.84
160	4.56	7.32	4.80	7.70	5.07	8.13	5.08	8.16	5.88	9.43
170	4.85	7.78	5.10	8.18	5.39	8.64	5.40	8.67	6.25	10.02
180	5.14	8.24	5.40	8.67	5.71	9.15	5.72	9.18	6.62	10.62
190	5.42	8.71	5.70	9.15	6.03	9.66	6.04	9.69	6.99	11.21
200	5.71	9.17	6.01	9.63	6.34	10.17	6.37	10.21	7.36	11.80

Screen Size Diagonal (inch)	Projection Distance (m)
	16:9 image on a 2.35:1 aspect screen		16:9 image on a 2.40:1 aspect screen
	Wide-end	Tele-end	Wide-end	Tele-end
60	1.40	2.27	1.38	2.23
70	1.64	2.66	1.61	2.61
80	1.88	3.04	1.85	2.99
90	2.13	3.43	2.09	3.37
100	2.37	3.82	2.33	3.75
110	2.61	4.20	2.56	4.13
120	2.85	4.59	2.80	4.51
130	3.09	4.98	3.04	4.89
140	3.34	5.36	3.28	5.27
150	3.58	5.75	3.51	5.65
160	3.82	6.14	3.75	6.03
170	4.06	6.52	3.99	6.41
180	4.30	6.91	4.23	6.79
190	4.55	7.30	4.46	7.17
200	4.79	7.68	4.70	7.55

* The values in the projection table may contain ±5% error. If the product is to be used at the Wide-end or the Tele-end, set a margin of about 5%.

Screen Size Diagonal (inch)	Projection Distance (inch)
	17:9 Screen		16:9 Screen		2.35:1 Screen		2.40:1 Screen		4:3 Screen
	Wide-end	Tele-end	Wide-end	Tele-end	Wide-end	Tele-end	Wide-end	Tele-end	Wide-end	Tele-end
60	66.1	106.9	69.6	112.4	73.5	118.7	73.8	119.1	85.6	138.0
70	77.5	125.0	81.5	131.4	86.1	138.9	86.4	139.3	100.2	161.3
80	88.8	143.1	93.4	150.5	98.7	159.0	99.1	159.5	114.8	184.6
90	100.1	161.2	105.3	169.6	111.3	179.1	111.7	179.7	129.4	208.0
100	111.4	179.3	117.3	188.6	123.9	199.3	124.3	199.9	144.0	231.3
110	122.8	197.6	129.2	207.7	136.5	219.4	136.9	220.1	158.6	254.6
120	134.2	215.7	141.1	226.8	149.1	239.5	149.6	240.3	173.1	278.0
130	145.4	233.7	153.0	245.8	161.7	259.6	162.2	260.5	187.7	301.3
140	157.0	251.9	165.0	264.9	174.3	279.8	174.8	280.7	202.3	324.7
150	168.3	270.0	176.9	284.0	186.9	299.9	187.5	300.9	216.9	348.0
160	179.5	288.2	188.8	303.0	199.4	320.0	200.1	321.1	231.5	371.3
170	190.9	306.3	200.7	322.1	212.0	340.2	212.7	341.3	246.1	394.7
180	202.3	324.5	212.7	341.2	224.6	360.3	225.4	361.5	260.7	418.0
190	213.5	342.7	224.6	360.2	237.2	380.4	238.0	381.7	275.3	441.3
200	224.9	360.8	236.5	379.3	249.8	400.5	250.6	401.8	289.9	464.7

Screen Size Diagonal (inch)	Projection Distance (inch)
	16:9 image on a 2.35:1 aspect screen		16:9 image on a 2.40:1 aspect screen
	Wide-end	Tele-end	Wide-end	Tele-end
60	55.2	89.3	54.1	87.7
70	64.7	104.6	63.5	102.7
80	74.2	119.8	72.9	117.6
90	83.7	135.0	82.2	132.6
100	93.3	150.2	91.6	147.5
110	102.8	165.5	100.9	162.5
120	112.3	180.7	110.3	177.5
130	121.8	195.9	119.6	192.4
140	131.4	211.2	129.0	207.4
150	140.9	226.4	138.3	222.3
160	150.4	241.6	147.7	237.3
170	159.9	256.8	157.1	252.3
180	169.4	272.1	166.4	267.2
190	179.0	287.3	175.8	282.2
200	188.5	302.5	185.1	297.1

* The values in the projection table may contain ±5% error. If the product is to be used at the Wide-end or the Tele-end, set a margin of about 5%.

Types of Possible Input Signals

Video

Digital Video Signal 480p

576p720p 50/60 Hz1080p 24/25/30/50/60 Hz2K (2048×1080) 24/25/30/50/60 Hz*4K (3840×2160) 24/25/30/50/60 Hz4K (4096×2160) 24/25/30/50/60 Hz

* If the input signal is 2K (2048x1080) 24/25/30/50/60Hz, configure "HDMI Format Setting" setting to "Option 1". (P. 53)

PC signal (HDMI)

Designation	Resolution	fh [kHz]	fv [Hz]	dot CLK [MHz]	Total No. of Dots [dot]	Total No. of Lines [line]	No. of Effective Dots [dot]	No. of Effective Lines [line]
VGA	640×480	31.469	59.940	25.175	800	525	640	480
SVGA	800×600	37.879	60.317	40.000	1056	628	800	600
UXGA	1600×1200	75.000	60.000	162.000	2160	1250	1600	1200
WUXGA	1920×1200	74.556	59.885	193.250	2592	1245	1920	1200
QXGA	2048×1536	95.446	59.954	267.250	2800	1592	2048	1536
WQHD	2560×1440	88.787	59.951	241.500	2720	1481	2560	1440

* Even when signals can be input, video images may not be projected properly depending on the PC or cable in use. When this occurs, switching to another compatible resolution or changing the cable may help to resolve the problem in some cases.

Indicator Display on the Main Unit

Meaning of the front panel indicators

The indicator is solid.

The indicator appears blinking.

Operation mode display

Displays using the different colors and solid/blinking light of the indicator on the projector unit.

"STANDBY/ON" lights up (red)

• In standby state

"STANDBY/ON" lights up (green)

- When light source is starting up

All lights off

- During projection

- When in "ECO Mode"

"STANDBY/ON" blinking (red)

- In the Cool-down mode

"STANDBY/ON" blinking (green)

- When the video image is temporarily hidden (HIDE is on)

Warning display

You can tell the details of a warning from the (repeated) displays of the "WARNING" and "LIGHT" indicators. The "STANDBY/ON" indicator will light up or appear blinking according to the operation mode of the projector unit. (Please refer to "Operation mode display" P. 85".)

The Warning mode is activated once the message is displayed. Projection is interrupted and the cooling fan starts running.

The power cannot be turned on again while cooling is in progress. Check the following after cooling is complete.

If the Warning mode is activated again, wait for the cooling fan to stop, followed by pulling out the power plug from the outlet. Then pull out the power plug from the power outlet. Call your authorized dealer for repair.

Indicator Status			Blinking Frequency	Description Check and Countermeasure
WARNING	LIGHT	STANDBY/ON
(Red)	LIGHT STANDBY/ON	Mode Display	x2 Cooling fan stopped abnormally	Check that nothing is blocking the air inlets.Check that the external temperature is normal. Countermeasure: Leave the unit unoperated until it cools down. After that, turn on the power again.
			x3 Internal temperature is abnormally high
			x4 External temperature is too high
(Red)	(Orange)	STANDBY/ON Mode Display	x1 DD board occurs error
			x2 Fan motor board occurs error
			x3 CPU board occurs error
			x4 Power board occurs error
(Red)	(Orange)	STANDBY/ON Mode Display	x1 Abnormality in the light source	Request for repair at your authorized dealer or a nearby service center.
			x2
			x3
			x4 When the safety switch is activated
WARNING LIGHT	[IMAGE]	(Green)	x3 The remote control code differs between this unit and the remote control	Set the remote control code for this unit and the remote control correctly.

Dimensions

(Unit: mm (in))

Top Surface

Bottom Surface

Front

Rear Surface

Index

A Accessories....12

Adjust (Fine) 56

Adjust (Pixel Adjust)....56

Adjust (Pixel) 56

Adjust Area 56

Adjust Color 56

Adjust Pattern 56

Adjust Pattern Color 56

Adjusting Distortion of the Projection Screen.....27

Adjusting the Position.... 21

Adjustments and Settings in the Menu....35

Anamorphic 60

Aperture 44

Aspect 28

Auto Pic.Mode Select 51

B Back Color 63

Back-up Settings....65

Bright Level 48, 49

Brightness (Color Profile)......46

Brightness (Picture Adjust)...... 44

C Clear Motion Drive 34, 43

Color 44

Color Management 46

Color Profile 39,46

Color Selection (Color Profile)......46

Color Selection (Gamma/Tone Mapping)...... 48

Color Space (HDMI Settings)....51

Color Space (Information)....67

Color Temp. 39, 47

Colorimetry 67

Connecting the Projector.... 22

Content Type 53

Contrast 44

Controls and Features.... 13

Correction Value (Color Temp.).... 47

Correction Value (Gamma/Tone Mapping)...... 48

D Dark Level 48, 49

Deep Black 42

Default Gateway 62

DHCP Client 62

Dimensions....87

Display Settings....63

Dynamic CTRL 44

E ECO Mode 64

ECO Settings....64

Enhance 43

Export Settings.... 66

External Control....74

F Factory Reset 66

FILMMAKER MODE 52

Focus 27

G Gain Blue 47

Gain Green 47

Gain Red 47

Gamma 33, 41, 48

Graphic Mode 43

H H Frequency 67

HDMI Format Setting.... 53

HDMI Settings....51

HDR 67

HDR Processing 41

HDR Quantizer 41

HDR Settings 41

HDR10 52

HDR10+ 52

Hide Mode.... 25, 64

High Altitude Mode 65

Hue 46

I Image Pattern ....55

Import Settings....66

Indicator Display....85

Information 67

Input (HDMI Settings).... 51

Input (Information)......67

Input Terminal....14

Installation Method....19

Installation Mode ....54

Installation Settings....54

Installation Style 61

IP Address 62

K Keystone 61

L LAN Terminal....14, 23, 74

Language 63

LD Power 44

Lens....13

Lens Center 55

Lens Control 27,55

Lens Cover.... 12

Light Source Time 67

List of Menu Items....35

Load....54

Lock 55

Logo 63

M MAC Address 62

Mask 60

Max CLL/FALL/DML 67

Menu....17

Menu Position 63

Mode Settings....39

MPC....43

N Name Edit 54

Network Password 62

Network Settings....62

O Off Timer 64

Offset Blue 47

Offset Green 47

Offset Red 47

P Partial Adjustment (Zone Adjust).... 59

Picture Adjust 44

Picture Mode 29,39,44

Picture Settings....39

Picture Tone 48, 49

Pixel Adjust 56

Power Cord....12, 12, 24

Precautions during Installation....19

Projection Distance....80

R Remote Code 65

Resolution 67

S Saturation 46

Save....54

Screen Adjust 61

Screen Aspect 61

Screen No. 61

Screen Setting 61

Screen Size and Projection Distance....80

SDR....51

Securing (Mounting) the Projector.... 20

Securing the Projector (Ceiling Mount).... 20

SERVICE Terminal....14, 66

Shift 27

Signal Display 63

Smoothing....43

Soft Ver. 67

Software Update 66

Source 67

Specifications....78

Subnet Mask 62

System Settings....65

T Tint 44

Tone Mapping 33, 41, 48

Troubleshooting....69

Types of Possible Input Signals....84

U User Name Edit 45

V V Frequency 67

Viewing Videos.... 25

W When the Following Messages Appear....73

Whole Adjust (Fine) 58

Whole Adjust (Pixel) 57

Z Zoom 27

JVC

RS130 - RD160 SFP Connection Guide

1. Remove the protective caps from the modules and optical cable.

2. Insert the module into the USB PORTON the RS130.

3. Insert the module into the SFP port on the RD160.

4. Connect the two modules with the optical cable.

* Press firmly until you hear a click.

5. On the RS130 screen,

tap the seathetop right to enter the In/Out Settings.

6. From the OUTPUT options, select USB 3.0 FIBER

7. When the SFP Connection window appears, choose RD160-DAC.

8. Confirm that the USB 3.0 FIBER option has changed to RD160-DAC.

RD160 Configuration

9. Press the selection buttons on the far left and set the input to SFP.
