Brand	Philips
Model	MCD305
Product Type	Home Theater System
Dimensions (Approx.)	360 x 300 x 280 mm (main unit)
Weight (Approx.)	5 kg (main unit)
Power Consumption	100 W (operating), <1 W (standby)
Power Supply	AC 100-240 V, 50/60 Hz
Disc Playback	DVD, VCD, CD, MP3-CD, JPEG CD
Tuner	FM, AM (MW)
Audio Output Power (RMS)	2 x 25 W (front speakers)
Connectivity	USB, AUX input, component video output, composite video output, audio line out
Speaker System	Passive, 2-way (woofer + tweeter)
Supported Audio Formats	MP3, WMA, PCM
Supported Video Formats	MPEG-1, MPEG-2, DivX
Display	Vacuum fluorescent (VFD) with text and icons
Remote Control	Included (batteries not included)
Care & Cleaning	Wipe with a soft dry cloth. Do not use solvents.
Safety Features	Class I laser, automatic power-off after 15 min inactivity in standby
Spare Parts & Repairability	Contact Philips authorized service center for spare parts. Repairs by qualified personnel only.

Frequently Asked Questions - MCD305 PHILIPS

How do I connect the speakers to the MCD305?

Connect each speaker to the corresponding terminal on the back of the main unit. Ensure the wires match the polarity: red to positive (+), black to negative (-).

Can I play movies from a USB drive?

Yes, the USB port supports playback of DivX, MPEG-1, and MPEG-2 video files, as well as MP3, WMA audio, and JPEG images.

Why is there no sound from the subwoofer?

Check that the subwoofer is connected to the SUBWOOFER output on the main unit. Also ensure the subwoofer level is not set to minimum in the audio menu.

How do I set the time on the system?

Press the CLOCK button on the remote control, then use the number buttons to enter the current time (24-hour format). Press CLOCK again to confirm.

The disc is not playing. What should I do?

Ensure the disc is inserted correctly with the label facing up. Check if the disc is scratched or dirty. Clean the disc with a soft cloth from center to edge. Also verify the disc format is compatible (DVD, VCD, CD).

How can I improve FM radio reception?

Extend the FM antenna fully and adjust its position. If reception is weak, try using an outdoor FM antenna or a signal amplifier.

What is the maximum USB drive capacity supported?

The system supports USB drives up to 32 GB formatted as FAT32.

How do I reset the system to factory settings?

Press and hold the STOP button on the front panel for about 5 seconds until the display shows 'RESET'. Release to complete the reset.

Can I use the system as a Bluetooth speaker?

No, the MCD305 does not have built-in Bluetooth. You can connect external devices via the AUX input using a 3.5mm audio cable.

How do I clean the lens of the disc player?

Use a lens cleaning disc specifically designed for DVD/CD players. Do not use any liquids or spray directly on the lens.

USER MANUAL MCD305 PHILIPS

Chinese 4

English 42

General Information

Features 44

Supplied accessories 44

Environment information 44

Installation 44

Maintenance 44

Connections

Step1: Placing speakers and subwoofer ..... 45

Step2: Connecting speakers and subwoofer... 45

Step3: Connecting TV set 46~47

Using Video in jack (CVBS)

Using Component Video in jack (Pr Pb Y)

Using S-Video in jack

Using an accessory RF modulator

Step 4: Connecting FM/MW antennas.....48

Step 5: Connecting the power cord....48

Step 6: Connecting a VCR or cable/satellite

box....49

Step 7: Connecting digital audio equipment....49

Functional Overview

Controls on the system 50

Remote control 51~52

Getting Started

Step 1: Inserting batteries into the Remote

Control 53

Using the Remote Control to operate the Player

Step 2: Setting up the TV 53~54

Setting up Progressive Scan feature To deactivate Progressive manually

Step 3: Setting the speakers .... 55

Adjusting the delay effect Adjusting volume level of speakers

Step 4: Setting language preference .... 56

Setting the OSD Language Setting the Audio, Subtitle and Disc Menu language

Basic Functions

Switching the system on/off 57

Volume control 57

Sound Control 58

DBB (Dynamic Bass Boost)

DSC (Digital Sound Control)

Selecting surround sound

Dimming the display screen 58

Disc Operations

Playable Discs 59

Region Codes 59

Playing discs 60

Using the Disc Menu.... 60

Selecting and searching 60~61

Selecting a different track/chapter

Skipping forward/backward GOTO

Different play modes:

REPEAT, SHUFFLE and REPEAT A-B ...... 61

REPEAT and SHUFFLE REPEAT A-B

Programming tracks/chapters 62

Display information 63

Playing in slow motion 63

ZOOM 64

AUDIO 64

SUBTITLE 64

Camera angle 64

Playing a title 64

Playing MP3/WMA CD 65

Playing JPEG Picture CD 66

Previewing pictures (JPEG)

Zooming pictures (JPEG)

Rotating pictures (JPEG)

Slide show playback modes (JPEG)

System Menu Options

Basic Operations 67

General Setup Page 67

TV Display

Screen Saver

Audio Setup Page 68-70

Speaker Setup

SPDIF Setup

Dolby Digital Setup

3D Processing

HDCD

Night Mode

Video Setup Page.... 70

Component

TV Mode

Quality

Preference Page 71

Parental

Default

Password Setup Page 72

Password mode

Password

Tuner

Tuning to radio stations 73

Storing preset radio stations.... 73

Manual programming

Auto store: Automatic programming

Listening to preset radio stations

Clock/Timer

Setting the clock 74

Setting sleep/wake-up timer 74

Sleep timer setting

Wake-up timer setting

Specifications 75

Troubleshooting 76-78

Glossary 79

Features

Built-in DTS and Dolby Digital decoder, 5.1-channel amplifier.

Additional Component Connections

Lets you connect other audio and audio/visual components to the DVD micro system.

Night Mode

Lets you compress the dynamic range, reducing the difference in loudness between different sounds in Dolby Digital mode.

Parental Control (Rating Level)

Lets you set a ratings level so that your children cannot watch a DVD that has a rating higher than you set.

Sleep/Wake-up Timer

Enables the system to switch on/off automatically at a preset time.

Progressive Scan

Provides high quality flicker-free images for film based sources. When a picture refreshes, its vertical resolution can double to 525 lines.

Note:

To fully enjoy the progressive scan feature, you need a progressive scan TV.

Supplied accessories

– Remote control with two AAA batteries - MW loop antenna - FM wire antenna – Five speakers and one subwoofer - DIN OUT cable - Composite video cable (yellow) - Stand – User Guide and Quick Start Guide

If any item is damaged or missing, contact your retailer or Philips.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Installation

• Place the player on a flat, hard, and stable surface.
• In a cabinet, allow about 10cm (4 inches) of free space all around the player for adequate ventilation.
• Do not expose your player to extreme temperatures or humidity. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquid, such as vases, shall be placed on the apparatus.
• No naked flame sources, such as lighted candles, shall be placed on the apparatus. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

Maintenance

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out, in a straight line.
• Do not expose the player, batteries or discs to humidity, rain, sand or excessive heat

(caused by heating equipment or direct sunlight). Always keep the disc tray closed to avoid dust on the lens.

• Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static spray intended for colour discs. The lens may cloud over when the player is suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.

Step 1: Placing speakers and subwoofer

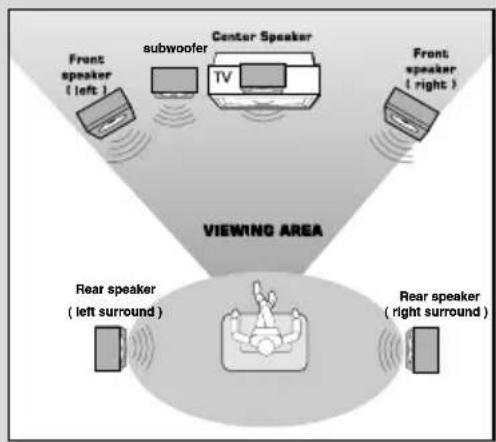

For best possible surround sound, all speakers (except subwoofer) should be placed at the same distance from the listening position.

• Place the front left and right speakers at equal distances from the TV set and at an angle of approximately 45 degrees from the listening position.
• Place the center speaker above the TV set or the system so the center channel's sound is localized.
• Place the surround speakers at normal listening ear level, facing each other or mounted on the set.
• Place the subwoofer on the floor near the TV set.

Notes:

- To avoid magnetic interference, do not position the front speakers too close to your TV set. - Allow adequate ventilation around the DVD system.

IMPORTANT!

The type plate is located on the rear of the system.

To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it.

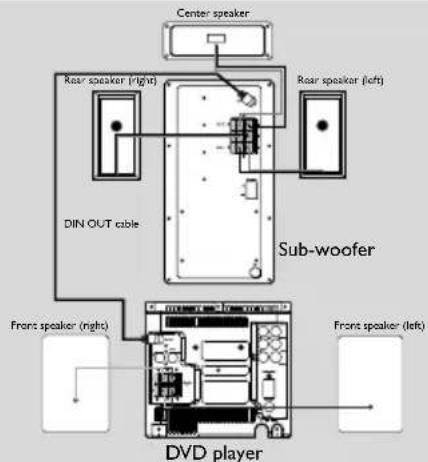

Step 2: Connecting speakers and subwoofer

IMPORTANT!

A sticker indicating speaker types (e.g., front/rear and left/right speaker) can be found at the back of each supplied speaker box (except the supplied subwoofer box).

- Connect the supplied speaker wires of the front speakers (FRONT L. and FRONT R.) to the speaker jacks of the DVD player, right speaker to "R", left speaker to "L", colored (labeled) wire to "+", labeled black wire to "-". Fully insert the stripped portion of the speaker wire into the terminal as shown.

- Connect the supplied speaker wires of the surround speakers (REAR L. and REAR R.) and center speaker (CENTER) to the speaker jacks on the SUBWOOFER by matching the corresponding speaker type, and colored (labeled) wire to "+", labeled black wire to "-".

- Using the supplied DIN OUT cable, connect the Subwoofer's DIN IN jack to the DVD player's DIN OUT jack.

- Connect the AC MAINS.

Notes:

• For optimal sound performance, use the supplied speakers.
• Do not connect more than one speaker to any one pair of +/- speaker terminals.
• Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

Step 3: Connecting TV set

IMPORTANT!

• You only need to make one video connection from the following options, according to the capabilities of your TV system.
• S-Video or Component Video connection provides higher picture quality. These options must be available on your TV set.
• Connect the system directly to the TV set.

Using Video In jack (CVBS)

Use the composite video cable (yellow) to connect the system's VIDEO jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV set. ● To listen to TV channels through this system, use the audio cables (white/red, not supplied) to connect AUX IN (L/R) jacks to the corresponding AUDIO OUT jacks on the TV set.

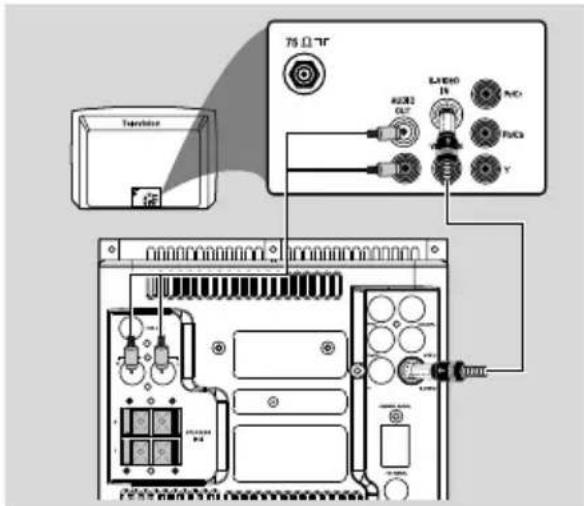

Using component Video In jack (Pr Pb Y)

• Use the component video cables (red/blue/green, not supplied) to connect the system's Pr/Cr Pb/Cb Y jacks to the corresponding Component video input jacks (or labeled as Pr/Cr Pb/Cb Y or YUV) on the TV set.
• To listen to TV channels through this system, use the audio cables (white/red, not supplied) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV set.

Notes for progressive scan video:

• The progressive scan video quality is only possible when using Y Pb Pr, and a progressive scan TV is required.
• If you are using a Progressive Scan TV (TV must indicate Progressive Scan or ProScan capability), to activate TV Progressive Scan, please refer to your TV user manual. For DVD system's Progressive Scan function, see "Getting Started - Setting up Progressive Scan feature".
• If your TV does not support Progressive Scan, you will not be able to view the picture. Press SYSTEM on the remote to exit the system menu and then DISC to exit progressive scan.

Using S-Video In jack

IMPORTANT!

- If S-video is used for DVD playback connection, the system's Video Setup setting will need to be changed accordingly.

- Use the S-Video cable (not supplied) to connect the system's S-VIDEO jack to the S-Video input jack (or labeled as Y/C or S-VHS) on the TV set.

- To listen to TV channels through this system, use the audio cables (white/red, not supplied) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV set.

Using an accessory RF modulator

IMPORTANT!

- If your TV set only has a single Antenna In jack (or labeled as 75 ohm or RF In), you will need a RF modulator in order to view the DVD playback via TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations.

- Use the composite cable (yellow) to connect the system's VIDEO jack to the video input jack on the RF modulator.

- Use the RF coaxial cable (not supplied) to connect the RF modulator to your TV's RF jack.

Step 4: Connecting FM/MW antennas

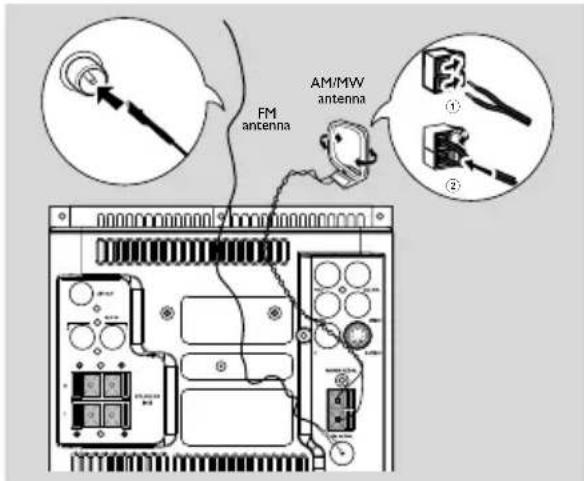

• Connect the supplied MW loop antenna to the MW jack. Place the MW loop antenna on a shelf or attach it to a stand or wall.
• Connect the supplied FM antenna to the FM jack. Extend the FM antenna and fix its end to the wall.

For better FM stereo reception, connect an outdoor FM antenna to the FM AERIAL terminal.

Notes:

• Adjust the position of the antennas for optimal reception.
• Position the antennas as far as possible from your TV set, VCR or other radiation sources to prevent unwanted interference.

Step 5: Connecting the power cord

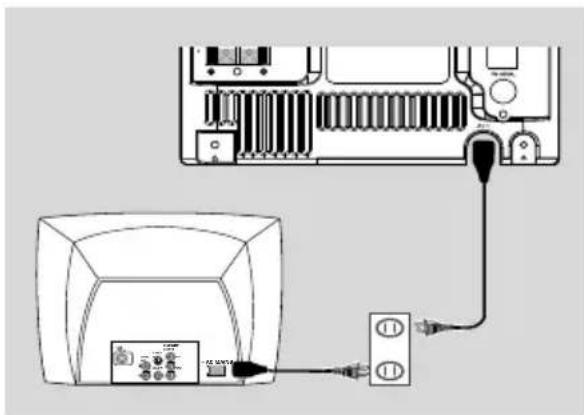

After everything is connected properly, plug in the AC power cord to the power outlet.

Never make or change any connection with the power switched on.

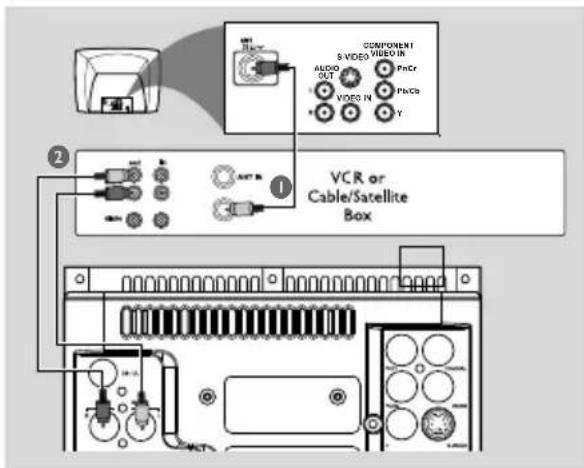

Step 6: Connecting a VCR or cable/satellite box

Viewing and listening to playback

Connect the VCR or Cable/Satellite Box to the TV system as shown. 2 Connect the system's AUX IN jacks to the AUDIO OUT jacks on the VCR or Cable/Satellite box.

Before starting operation, press AUX on the remote control to select "AUX" in order to activate the input source.

Step 7: Connecting digital audio equipment

Recording (digital)

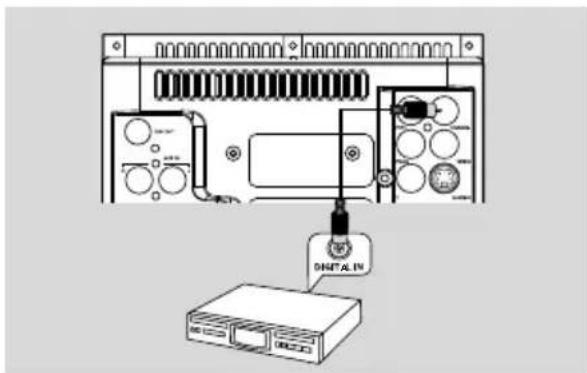

Connect the system's COAXIAL (DIGITAL OUT) jack to the DIGITAL IN jack on a digital recording device (DTS-Digital Theater System compatible, with a Dolby Digital decoder, for example).

Before operation, set SPDIF according to the audio connection. (See "SPDIF Setup").

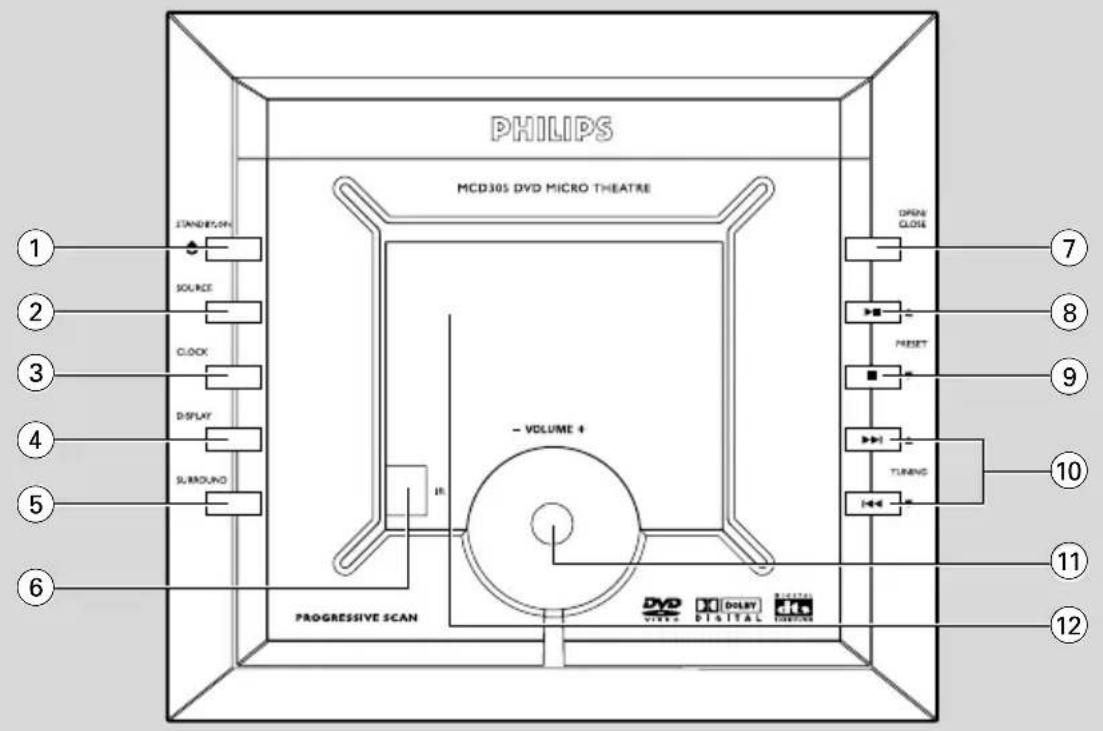

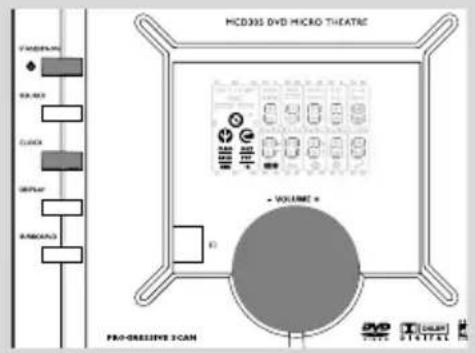

Controls on the system

① STANDBY-ON ⏻

- switches the system on or to standby mode.

② SOURCE

- selects the respective sound source: DVD/AUX/TUNER (FM and MW).

- switches the system on.

③ CLOCK

Standby mode

- sets the system clock.

Playback mode

– displays the system clock.

④ DISPLAY

– displays information on TV screen during playback.

⑤ SURROUND

– selects 2.1 channel output (2.1 CH) or 5.1 channel output (SUR 5.1 or DVD 5.1).

⑥ iR Sensor

- point the remote control towards this sensor.

⑦ OPEN/CLOSE

- opens or closes the disc door.

⑧ ▶ II /PRESET▲

- DISC: starts or interrupts disc playback

– TUNER: selects a preset radio station upward

⑨ ■ /PRESET ▼

- DISC: stops disc playback or erases a program.

- TUNER: selects a preset radio station backward

⑩ |◀◀/▶▶|

DISC ...... press to skip to the previous/next chapter/title/track.

TUNING ▲▼

TUNER .... press to tune to a higher/lower radio frequency.

⑪ VOLUME -/+

- adjusts the volume upward/downward.

- adjusts the hours and minutes in clock/timer setting mode.

- switches the set timer ON or OFF.

⑫ Display

– shows the current status of the DVD player.

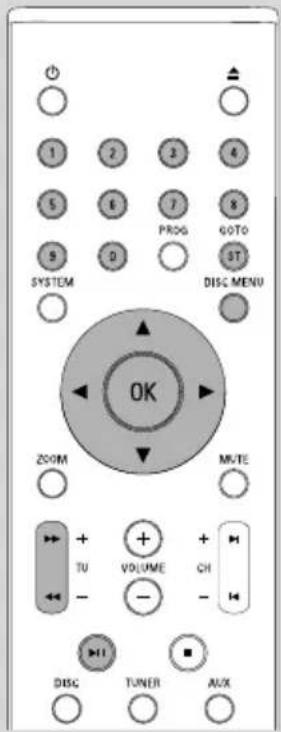

Remote control

①

- switches the system on/off.

②

- opens or closes the disc compartment door.

• DVD/VCD/CD: enters the program menu.
• MP3/WMA-CD: adds/deletes a programmed track to/from the program list. Picture CD: during playback, to select a slide show mode. – Tuner: programs preset radio stations.

⑤ GOTO/ST

• Disc: fast searches in a disc by entering a time, title, chapter or track.
• FM: sets stereo or mono sound mode.

⑥ SYSTEM (disc mode only)

- enters or exits the system menu.

⑦ DISC MENU (disc mode only)

• DVD/VCD: enters or exits the disc contents menu.
• VCD2.0: switches the playback control (PBC) mode on or off.
• MP3/WMA: switches between Album and Filelist.

⑧ ▼ / ▲ / ▶ / ◀

- selects an item in a menu.

- moves an enlarged picture up/down/left/right.

⑨ OK

– confirms a selection.

⑩ ZOOM

- DVD/VCD/Picture CD: enlarges or reduces a picture or active image on the TV screen.

⑪ MUTE – disables or enables sound output. ⑫ TU +/- (◀◀ / ▶▶)

Tuner

• Press to tune to a lower/higher radio frequency gradually.
• Press and hold, then release the key to start automatic search for a radio frequency downward/upward.

Disc

- Searches backward/forward in a disc at different speeds.

⑬ VOLUME +/-

• Adjusts the volume upward/downward.
• Adjusts the hours and minutes in clock/timer setting mode.
• Switches the set wake-up timer ON or OFF.

⑭ CH +/-(|◀ / ▶|)

• Disc: skips to the previous/next chapter/title/track.
• Tuner: selects a preset radio station.

15 ▶ II

• Starts or interrupts disc playback. 16
• Stops disc playback or erases a program.

⑰ DISC/TUNER/AUX

Selects the respective sound source for DVD/TUNER/AUX.

Exits P-SCAN (progressive scan). (Only for DISC)

⑱ SLEEP/TIMER

Stand-by mode (wake-up timer)

Sets a time for switching on the system automatically.

Power-on mode (sleep timer)

Sets the sleep timer function (auto off).

⑲ CLOCK

Standby mode

Sets the system clock.

Playback mode

Displays the system clock.

⑳ DIM

– selects different levels of brightness for the display screen.

⑳ SUBTITLE

– selects a subtitle language.

⑳ ANGLE

– selects a DVD camera angle.

②3 DISPLAY

– displays information on TV screen during playback

24 AUDIO

for VCD

- sets Stereo, Mono-Left or Mono-Right sound mode.

for DVD

– selects an audio language.

⑳ A-B

– repeats playback of a specific section on a disc.

26 MODE

- selects various repeat modes or the shuffle play mode for a disc.

⑳ SLOW

- selects different slow playback modes for a VCD/SVCD/DVD.

28 DBB

- enables or disables bass enhancement.

29 SURROUND

- selects 2.1 channel output (2.1 CH) or 5.1 channel output (SUR 5.1 or DVD 5.1).

⑳ VOL.SEL

- for disc mode only: simultaneously adjusts volume level for speakers under LOW, MID and HIGH selections.

③1 DSC

– selects different types of preset sound equalizer settings (CLASSIC, JAZZ, POP or ROCK).

③2 LOUDNESS (unavailable for this version)

- enables or disables automatic loudness adjustment.

Step 1: Inserting batteries into the Remote Control

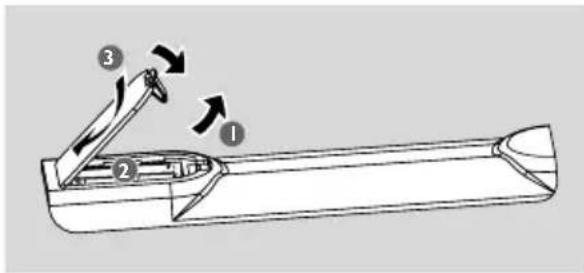

Open the battery compartment door. 2 Insert two AAA batteries following the indications (+/-) inside the compartment. 3 Close the cover.

Using the Remote Control to operate the Player

Aim the Remote Control directly at the remote sensor (IR) on the front panel. Do not put any objects between the Remote Control and the DVD Player while operating the DVD Player.

CAUTION!

- Remove batteries if they are exhausted or if the Remote Control is not being used for a long time.

• Do not use old and new or different types of batteries in combination.
• Batteries contain chemical substances, so they should be disposed of properly.

Step 2: Setting up the TV

IMPORTANT!

Make sure you have completed all the necessary connections. (See "Connecting TV").

Switch the DVD system on and then select DISC source. (See "Switching the system on/off").

2 Turn on the TV and set to the correct video-in channel. You should see the blue Philips DVD background screen on the TV.

→ Usually these channels are between the lowest and highest channels and may be called FRONT, A/V IN, or VIDEO. See your TV manual for more details. → Or, you may go to channel 1 on your TV, then press the Channel up button repeatedly until you see the Video In channel. → Or, the TV Remote Control may have a button or switch that chooses different video modes. → Or, set the TV to channel 3 or 4 if you are using an RF modulator.

Setting up Progressive Scan feature (for Progressive Scan TV only)

The progressive scan display twice the number of frames per seconds than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality.

IMPORTANT!

Before enabling the progressive scan feature, you must ensure:

1) Your TV can accept progressive signals; a progressive scan TV is required. 2) You have connected the DVD player to your TV using Y Pb Pr (see page 38).

1. Turn on your TV. 2. Turn off your TV's progressive scan mode or turn on interlaced mode (refer to your TV user manual). 3. Press STANDBY-ON ⏻ (on the remote) to turn on the DVD player. 4. Select the correct Video Input channel.

The DVD background screen appears on the TV.

5. Press SYSTEM on the remote control.

6. Press ◀▶ repeatedly to select "Video Setup Page".

7. Select "TV MODE" to "P-SCAN", then OK to confirm.

The instruction menu appears on the TV.

8. Press ◀▶ to highlight OK in the menu and press OK to confirm.

There will be a distorted picture on your TV at this state until you turn on the progressive scan mode on your TV.

9. Turn on your TV's progressive scan mode (refer to your TV user manual).

The below menu appears on the TV.

10. Press ◀▶ to highlight OK in the menu and press OK to confirm.

The setup is complete now and you can start enjoying the high quality picture.

To deactivate Progressive manually

- When the distorted sign still appears on the TV, it may be due to the connected TV not accepting progressive signals, and progressive is set by mistake. You must reset the unit to interlace format.

Turn off your TV progressive scan mode or turn on to interlaced mode (refer to your TV user manual).

2 Press SYSTEM on the remote to exit the system menu and then DISC to exit progressive scan.

→ The DVD blue background screen will appear on the TV.

Note:

- During normal playback in the progressive scan mode, pressing DISC button will exit the progressive scan mode.

Step 3 : Setting the speakers

You can adjust the delay effect (center, subwoofer and rear speakers only) and volume level for individual speakers. These adjustments let you optimize the sound according to your surroundings and setup.

Adjusting the delay effect

Press SYSTEM. 2 Press ◀▶ to select "Audio Setup Page". 3 Use ▲ ▼ on the remote to highlight "Channel Delay" and then press ▶ or OK to enter channel delay setting. 4 Press ▲ ▼ to highlight one speaker icon at a time to set the listening position/distance from the corresponding speaker.

→ The options are as follows (distance in centimeters):

For center speaker: 0cm, 10cm, 20cm, 30cm, ..., 170cm

For subwoofer and rear speakers: 0cm, 10cm, 20cm, 30cm, ..., 510cm

5 Press ◀▶ to adjust the settings that best suit your surround sound needs.

To exit from the menu

- Press SYSTEM again.

Adjusting volume level of individual speakers

Press VOL.SEL on the remote repeatedly to enter volume setting modes for the FL (front left), FR (front right), CT (center), SL (surround left, i.e., rear left), SR (surround right, i.e., rear right) and SW (subwoofer) speakers. 2 Turn VOLUME-/+ (or press VOLUME+/- on the remote) to simultaneously set the volume for 5 speakers of FL, FR, CT, SL and SR under LOW, MID and HIGH selections.

Notes:

• During setting, if no adjustment is made within 3 seconds, the system will exit the volume setting mode automatically.
• If you select 2.1CH output, only the FL and FR speakers are available for setting volume simultaneously.

Step 4: Setting language preference

You can select your own preferred language settings. This DVD system will automatically switch to the selected language whenever you load a disc. If the language selected is not available on the disc, the disc's default language will be used instead. The OSD language in the system menu will remain once selected.

Setting the OSD Language

In the stop mode, press SYSTEM on the remote control. → The system menu pops up on the TV screen. 2 Press ◀▶ to select "General Setup Page". 3 Use ◀ ▶ ▲ ▼ on the remote to navigate in the menu. Move to "OSD Lang" and press ▶. 4 Select a language and press OK.

To exit the menu

- Press SYSTEM on the remote control again.

Setting the Audio, Subtitle and Disc Menu language

In the stop mode, press SYSTEM on the remote control. 2 Press ◀▶ to select "PREFERENCE PAGE". 3 Press ▲ ▼ to highlight the following in the Preference Page. - "Audio" (disc's soundtrack) - "Subtitle" (disc's subtitles) - "Disc Menu" (disc's menu) 4 Enter its submenu by pressing ▶. 5 Select a language and press OK. 6 Repeat steps 3\~5 for other language settings.

To exit the menu

- Press SYSTEM on the remote control again.

If you choose OTHERS in Audio, Subtitle or Disc Menu,

Press ▲ ▼ to highlight "OTHERS". 2 Press OK. 3 When you are asked to enter a language code, input a language code by using the Numeric Keypad (0-9). 4 Press OK to confirm.

IMPORTANT!

- Before you operate the system,

complete the connection procedures.

- When the system is switched to Standby mode, it is still consuming power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

Switching the system on/off

- Press STANDBY ON ⏻ ( On the remote ).

→ "HELLO" is displayed briefly. The system will switch to the last selected source.

- Press DISC, TUNER or AUX on the remote.

→ The system will switch to the selected source.

To switch the system to standby mode

- Press STANDBY ON ⏻ ( On the remote ).

→ The display shows "BYE BYE" briefly, then -- --:-- (if you haven't set time) or the set time. (See "Setting the clock" on page 74.)

Helpful hints:

— The interactive sound settings, last selected source and tuner presets will be retained in the player's memory.

Volume control

Turn VOLUME (+/-) clockwise or anticlockwise (or press VOLUME +/- on the remote) to increase or decrease the volume level.

→ The display shows "VOL" and a volume value from "1" to "30" ("MIN" or "MAX" is displayed when the volume level is adjusted to the lowest or highest).

To listen through the headphone

- Connect the headphone plug to the headset socket at the top of the system.

→ The speakers will be muted.

IMPORTANT!

- Adjust the volume to a moderate level before you plug in the headphones.

To switch off the volume temporarily

- Press MUTE on the remote.

→ Playback will continue without sound and "MUTE" flashes.

● To activate sound reproduction, you can:

- press MUTE again;

- adjust the volume controls;

- change source.

Sound Control

DBB, DSC and LOUDNESS sound features cannot be activated at the same time.

DBB (Dynamic Bass Boost)

DBB enhances the bass response.

- Press DBB on the remote to enable/disable DBB feature.

→ If the DBB is activated, DBB is shown.

Helpful hints:

- Some discs might be recorded in high modulation, which causes a distortion at high volume. If this occurs, switch off DBB or reduce the volume.

DSC (Digital Sound Control)

DSC provides a different type of preset sound equalizer setting.

- Press DSC on the remote repeatedly to select: CLASSIC, JAZZ, POP or ROCK.

→ The display shows the selected sound setting.

Selecting surround sound

IMPORTANT!

For proper surround sound, make sure the speakers and subwoofer are connected (see Connections - Step 2: Connecting speakers and subwoofer).

Press SURROUND to select surround sound or stereo mode.

The availability of the various surround sound modes depends on the number of speakers used and the sound available on the disc. The center and surround speakers operate only in Multi-channel surround mode. The available output modes for multi-channel include: Dolby Digital, Dolby Pro Logic or Dolby Pro Logic II surround sound. Stereo broadcast or recordings will produce some surround channel effects when played in a surround mode. However, monaural (single channel sound) sources will not produce any sound from the rear speakers.

Dimming the display screen

Press DIM repeatedly to select different levels of brightness for the display screen.

IMPORTANT!

• Depending on the DVD or VIDEO CD, some operations may be different or restricted.
• Do not push on the disc tray or put any objects other than disc on the disc tray. Doing so may cause the disc player malfunction.
• If the inhibit icon appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time.

Playable Discs

Your DVD Player will play:

• Digital Versatile Discs (DVDs)
• Video CDs (VCDs) – Super Video CDs (SVCDs)
• Digital Versatile Discs + Recordable (DVD+R)
• Digital Versatile Discs + Rewritable (DVD+RW)
• Compact Discs (CDs)
• MP3 disc on CD-R(W):

– Supported sampling frequencies: 8 kHz to 48 kHz – Supported bit-rates: 8 to 320 kbps, variable bitrates

- WMA-CDs (CD-ROMs with WMA tracks)

– Picture (JPEG) files on CD-R(W)

Region Codes

DVDs must be labeled for ALL regions or Region 6 in order to play on this DVD system. You cannot play discs that are labeled for other

regions.

Note:

- If you are having trouble playing a certain disc, remove the disc and try a different one. Improperly formatted discs will not play on this DVD Player.

Playing discs

For DVDs and VCDs, make sure that the system is properly connected to your TV (see Connecting a TV on page 46), and your TV is turned on and set to video-in channel (Setting up the TV on page 53).

2 Press SOURCE on the system once or more to select DVD mode (or DISC on the remote control).

→ You should see the blue Philips DVD background screen on the TV.

3 Press OPEN/CLOSE (or ▲ on the remote control) to open the disc tray.

4 Insert a disc with the print side facing up and press OPEN/CLOSE (or ▲ on the remote control) to close the disc tray.

5 Playback will start automatically (depending on the disc type).

→ If a disc menu appears on the TV, see "Using the Disc Menu". → If the disc is locked by parental control, you must enter your four-digit password. (See "Password Setup Page").

To interrupt playback

- Press ▶ II.

→ The playtime on the display flashes.

● To resume playback, press ▶ II again.

To stop playback

- Press ■.

Using the Disc Menu

Depending on the disc, a menu may appear on the TV screen once you load the disc.

To select a playback feature or item

- Use ◀ ▶ ▲ ▼ and OK or Numeric Keypad (0-9) on the remote control, then press ▶ II to start playback.

For VCD with Playback Control (PBC) feature (version 2.0 only)

PBC playback allows you to play Video CDs interactively, following the menu on the display, such as allowing you to select favourite songs.

- To switch PBC on or off, press DISC MENU during playback.

→ If PBC was ON, it will switch to OFF and continue playback. → If PBC was OFF, it will switch to ON and return to menu screen.

Selecting and searching

Selecting a different track/chapter

For DVD/VCD/CD/MP3:

- During playback, briefly press ◀◀ / ▶▶ (or on the remote control, CH ◀◀ / ▶▶) once or more until your desired track/chapter number appears.

Or,

use the Numeric Keypad (0-9) on the remote control to input your track/chapter number using two digits. e.g.

Track/chapter 2: Press 0 and then, 2

Track/chapter10, Press 1 and then, 0

(For MP3, you may directly input your desired track number in one, two or three digits.)

→ After selecting, playback will automatically start from the selected chapter/track.

Helpful hints:

- Some VCDs have a single track, so track selecting or an invalid input value for the current disc will be ignored.

Skipping forward/backward

For DVD/VCD/CD/MP3:

During playback, press TU ◀◀/▶ on the remote control repeatedly to select fast search speed (×2, ×4, ×8, ×16 or ×32 in backward or forward playback). → The disc plays at a high speed with no sound.

2 When you recognize the passage you want, press ▶ Ibr OK

→ Normal playback resumes.

Helpful hints:

- For MP3, skipping forward/backward is available only within the same track.

GOTO

During playback, press GOTO/ST once or more on the remote control.

→ TV screen shows various search bars in the sequence as follows:

For DVDs:

Title 04/04 Chapter /24

(used to select chapter number, or title title field using ◀ ▶ on the remote control)

(used to select playtime within the current title)

(used to select playtime within the current chapter)

For VCDs/CDs:

Disc Go To: - - : - -

(used to select playtime within the entire disc)

Track Go To: - - : - -

(used to select playtime within the current track)

Select Track: -- /12

(used to select a track number within the entire disc)

For MP3:

- - - /196

(used to select a file number within the entire disc)

---:---

(used to select playtime within the current file)

2 Use the Numeric Keypad (0-9) on the remote control to input your title/track/chapter number or playtime.

→ After selecting, playback will automatically start from the selected chapter/track or playtime.

Helpful hints:

- An invalid input value for the current disc will be ignored.

Different play modes: REPEAT, SHUFFLE and REPEAT A-B

REPEAT and SHUFFLE

- During playback, press repeatedly MODE on the remote control to choose desired play modes.

→ TV screen shows the play modes in the sequence as follows:

DVDs

Chapter: Repeats the current chapter Title: Repeats the current title All: Repeats the entire disc

Shuffle: Repeats the titles and chapters of the entire disc in a random order

VCDs/CDs

Track: Repeats the current track All: Plays all the tracks repeatedly

Shuffle: Repeats the tracks of the entire disc in a random order

MP3/JPEG:

Repeat One: Plays an MP3/JPEG file repeatedly

Repeat All: Plays all files repeatedly

Shuffle: Plays all files in a random order

Off: Switches off shuffle play

● To return to normal playback, press MODE repeatedly until the REPEAT/SHUFFLE play modes are no longer displayed.

Helpful hints:

- The display on the system shows REP when the repeat of the current title/chapter/track is selected, or shows REP ALL when the repeat of the entire disc is selected, or shows SHUFF when shuffle play is selected.

Repeat A-B

For DVD/VCD/CD/MP3/WMA:

Press A-B at your chosen starting point. 2 Press A-B again at your chosen end point.

→ The section will now repeat continuously.

3 To exit the sequence, press A-B again.

Programming tracks/chapters

For DVDs/VCDs/CDs

You can select and program up to 20 desired tracks/chapters for playback in the desired sequence. If you like, store any track/chapter/title more than once.

Press PROG on the remote control to activate programming mode.

→ On the TV screen, the program pop-up appears, and the first program position is highlighted for you to enter the desired track/chapter/title numbers.

(DVD program for example)

2 Use the Numeric Keypad (0-9) on the remote control to enter your desired track/chapter/title number using 2 digits. E.g. Track/chapter 7, press 0 and then, 7.

• Programming is possible only in the sequence starting from 01.
• For DVDs, you need to input title number (TT), then input chapter number (CH).
• To access another 10 program sequence in the next page, use ◀ ▶ ▲ ▼ on the remote control to select Next, then press OK.

→ After title/chapter/track number is correctly entered in a program position, the next program sequence will be highlighted for you to program.

3 To start playback, use ◀ ▶ ▲ ▼ on the remote control to select Start, then press OK on the remote control.

→ The display on the system shows PROG.

Erasing program

• To exit program menu without programming, navigate to select Exit, then press OK, or simply press PROG.
• During playback of program, press PROG to pop up the program menu to select Stop, then press OK.

- When playback of program comes to an end, the playback will come to the stop position and the program will be erased.

To review program

During program playback, press PROG on the remote control.

→ The program list is displayed on the TV screen.

- To exit the program list, use ◀▶ on the remote control to select Exit, then press OK.

For MP3/JPEG

Use ◀▶ ▲▼ on the remote control to highlight the desired MP3 file displayed on the TV screen. - You may press DISC MENU once or more to switch between file list and album (folder) display. Press ▶ to access the MP3 files in one folder.

2 Press PROG on the remote control to add an MP3 file to the program list.

→ "Add To Program List" is displayed briefly at the bottom of the TV screen.

To playback program

Press DISC MENU once or more until the program list is displayed on the TV screen. → "Program list" is displayed briefly at the bottom of the TV screen. 2 Press OK when a program file is highlighted.

To erase a program

- In the program list, use ◀ ▶ ▲ ▼ on the remote control to highlight the program you want to delete, then press PROG to delete.

Display information

During playback, press DISPLAY on the remote control once or more to display the disc information on the TV screen.

For DVDs:

- By pressing DISPLAY, the TV screen shows current/total title number and current/total chapter (of the current title) number.

TT

04/04

CH

16/24

0:37:46

- By pressing DISPLAY repeatedly, the TV screen also shows time options in the following sequence:

Title Elapsed - elapsed playback time of current title

Title Remain - remaining time of current title Chapter Elapsed - elapsed playback time of current chapter

Chapter Remain - remaining time of current chapter

Display Off - turns off the display information

For VCDs/CDs

- By pressing DISPLAY, TV screen shows current/total track number.

Track 01/12

01:37

- By pressing DISPLAY repeatedly, TV screen also shows time option in the sequence as follows:

Single Elapsed - elapsed playback time of current track

Single Remain - remaining time of current track

Total Elapsed - elapsed playback time of disc.

Total Remain - remaining playback time of disc

Display Off - turns off the display information

Playing in slow motion

For DVDs/VCDs:

1 Press SLOW repeatedly on the remote control during playback to select the desired speed: 1/2, 1/4, 1/8 or 1/16 (in forward or backward playback)

→ Sound will be muted. → Slow backward is not possible on VCDs.

2 To return to normal speed, press ▶ II (or press SLOW repeatedly until the speed number disappears).

ZOOM

For DVDs/VCDs/JPEG

Zooming allows you to enlarge or reduce the video/JPEG image during playback.

• Press ZOOM repeatedly to zoom in and out on the playback video image. → Image size enlarges at 2X, 3X, 4X or reduces at 1/2, 1/3, 1/4. ● To return to normal playback, press ZOOM repeatedly until the numbers disappear.

Helpful hints:

- When zooming in, you may use ◀▶▲▼ on the remote control to pan a picture across your TV screen in pause position or during playback.

AUDIO

For DVDs

● On the remote control, press AUDIO repeatedly to select the desired language for sound track. → The feature is disc dependent.

For VCDs

- Press AUDIO repeatedly to select the audio channel for sound output displayed on the TV screen.

Mono Left, Mono Right and Stereo

SUBTITLE (DVD only)

- Press repeatedly SUBTITLE on the remote control to select different subtitle languages. → The feature is disc dependent.

Camera Angle (DVD only)

• Press ANGLE repeatedly to select different desired angle, allowing you to view pictures from different recorded camera angles. → The feature is disc dependent.

Playing a Title (DVD only)

During playback, press DISC MENU on the remote control. → The disc title menu appears on the TV screen. 2 Use ◀ ▶ ▲ ▼ or Numeric Keypad (0-9) to select a play option. 3 Press OK to confirm.

Playing MP3/WMA CD

IMPORTANT!

- Make sure that the system is properly connected to your TV (see Connecting a TV on page 46), and your TV is turned on and set to video-in channel (Setting up the TV on page 53).

- For DRM protected WMA files, use Windows Media Player 10 (or later) for CD burning/conversion. Visit www.microsoft.com for details about Windows Media Player and WM DRM (Windows Media Digital Rights Management).

Load an MP3/WMA disc.

→ The file list of the entire disc is displayed on the TV screen.

2 Use ▲ ▼ or Numeric Keypad (0-9) on the remote control to highlight a file. 3 To playback the highlighted file, press OK. - Press DISC MENU to view the album (folder) display of the entire disc. To open the selected folder, press ▶ or OK. To exit the opened folder, press ◀. - To switch back to the file list display, press DISC MENU once or more.

To interrupt playback

• Press ▶ II. → The playtime on the display flashes. ● To resume playback, press ▶ II again.

To stop playback

- Press ■.

Playing JPEG Picture CD

IMPORTANT!

- Make sure that the system is properly connected to your TV (see Connecting a TV on page 46), and your TV is turned on and set to video-in channel (Setting up the TV on page 53).

Load a JPEG Picture disc. ● After several seconds of disc loading, pictures will be automatically slide showed on the TV screen at an interval of 4-5 seconds.

→ Slide show will continue until all the pictures are slide showed. → The display on the system shows JPEG, and the number of pictures already slide showed.

To exit slide showing

- Press DISC MENU.

→ The file list appears on the TV screen.

Or,

Press ■.

→ 12 thumbnail pictures appear on the TV screen.

Previewing pictures (JPEG)

JPEG pictures can be previewed by using either of the following ways.

During slide show, press DISC MENU. → The file list appears on the TV screen.

2 Use ▲ ▼ or Numeric Keypad (0-9) on the remote control to highlight a file.

→ The selected picture will be previewed in thumbnail on the TV screen.

- To slide show, press OK when a picture is highlighted.

→ Slide show will start from the selected picture.

Or,

During slide showing, press ■.

→ 12 thumbnail pictures appear on the TV screen.

Slide Show

Menu

Prev Next

2 Use ◀ ▶ ▲ ▼ to highlight ◀Prev or Next▶, then press OK to go to the previous or next screen. To slide show, press OK when a picture or Slide Show is highlighted by using ◀▶▲▼.

Zooming pictures (JPEG)

• During slideshow, press ZOOM repeatedly to display a picture at enlarged sizes (125%, 150% or 200%) or reduced sizes (75% or 50%).
• Use ◀▶ ▲▼ to pan across the enlarged picture.

→ Slide show is paused at a zoomed picture, and slide show will resume when the zoomed picture is adjusted to the normal size.

Rotating pictures (JPEG)

● During slideshow, press ◀ ▶ ▲ ▼ to rotate a picture on the TV screen.

▲: flip a picture vertically ▼: flip a picture horizontally ◄: rotate a picture anti-clockwise ▶: rotate a picture clockwise

Slide show playback modes (JPEG)

- During slideshow, press PROG repeatedly to select different slide-show playback modes in the sequence as follows:

Mode 0: None

Mode 1: Wipe Top

Mode 2: Wipe Bottom

Mode 3: Wipe Left

Mode 4: Wipe Right

Mode 5: Diagonal Wipe Left Top

Mode 6: Diagonal Wipe Right Top

Mode 7: Diagonal Wipe Left Bottom

Mode 8: Diagonal Wipe Right Bottom

Mode 9: Extend From Center H

Mode 10: Extend From Center V

Mode 11: Compress To Center H

Mode 12: Compress To Center V

Mode 13: Window H

Mode 14: Window V

Mode 15: Wipe From Edge To Center

Mode 16: Move In From Top

Basic operations

Press SYSTEM to enter the Setup Menu. 2 Press ◀▶ to select the desired page: General Setup Page, Audio Setup Page, Video Setup page and Password Setup page. 3 Press ▲▼ to highlight an option. 4 Enter its submenu by pressing ▶ or OK. 5 Move the cursor by pressing ▲▼ to highlight the selected item.

→ In cases of value setting, press ◀▶ to adjust values.

6 Press OK to confirm.

To return to the upper-level menu

- Press ◀ or OK (in cases of value adjustment).

To exit the menu

- Press SYSTEM again.

→ The settings will be stored in the player's memory even if the player is switched off.

Note:

- Some of the features in the System Menu Options are described in "Getting Started".

General Setup Page

The options included in General Setup page are: "TV Display", "OSD Lang", and "Screen Saver"

TV Display (default: Normal/PS)

Set the aspect ratio of the DVD Player according to the TV you have connected.

→ Normal/PS (panscan): If you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.

→ Normal/LB (letterbox): If you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.

→ Wide: If you have a wide-screen TV.

Screen Saver (default: On)

This function is used to turn the screen saver on or off.

→ On: In STOP, PAUSE or No DISC mode, if no actions are performed about 3 minutes, the screen saver will be activated. → Off: Screen saver is disabled.

Audio Setup Page

The options included in Audio Setup page are: "Speaker Setup", "SPDIF Setup", "Dolby Digital Setup", "Channel Delay", "3D Processing", "HDCD" and "Night Mode".

Speaker Setup

The options included in Speaker Setup page are: "Downmix", "Front Speaker", "Center Speaker", "Rear Speaker", "Subwoofer" and "Test Tone".

Downmix

This option allows you to set the stereo analog output of your DVD Player.

In 'Speaker Setup Page', press ▶ to highlight 'Downmix', then press ▶ or OK.

→ LT/RT: Select this option if your DVD Player is connected to a Dolby Pro Logic decoder. → Stereo: Select this option when output delivers sound from only the two front speakers. → V Surr: Allows the DVD player to use virtual surround sound effects. → 5.1CH: Select this option for 5.1-channel sound output.

Front Speaker

Adjusts the volume levels for front speakers. Options include "Large" and "Small".

Center Speaker

Adjusts the volume level for the center speaker. Options include "Large", "Small" and "Off".

Note:

- This option is available only when you select "5.1CH" under "Downmix".

Rear Speaker

Adjusts the volume levels for rear speakers. Options include "Large", "Small" and "Off".

Note:

- This option is available only when you select "5.1CH" under "Downmix".

Subwoofer

Selects ON/OFF for the subwoofer.

Test Tone

The test tone will be automatically generated.

Note:

- This option is available only when you select "5.1CH" under "Downmix" and the disc tray is open.

SPDIF Setup (default: SPDIF/RAW)

The options included in SPDIF (Sony/Phillips Digital Interface Format) Setup Page are: "SPDIF Off", "SPDIF/Raw" and "SPDIF/PCM".

→ SPDIF Off: Turns off the SPDIF output. → SPDIF/Raw: If you have connected your COAXIAL (digital out) to a multi-channel decoder/receiver. → SPDIF/PCM: Only if your receiver is not capable of decoding multi-channel audio.

Dolby Digital Setup

The options included in Dolby Digital Setup are: "Dual Mono" and "Dynamic".

Dual Mono (default: stereo)

Select the setting that matches the number of speakers you have.

→ Stereo: Left mono sound will send output signals to Left speaker and Right mono sound will send output signals to Right speaker.

→ L-Mono: Left mono sound will send output signals to Left speaker and Right speaker.

→ R-Mono: Right mono sound will send output signals to Left speaker and Right speaker.

Dynamic (default: Off)

Optimize the dynamic sound output. High volume outputs are softened, enabling you to watch your favorite movie without disturbing others.

→ The levels for dynamic selection: FULL, 3/4, 1/2, 1/4 and OFF.

3D Processing

The options included in 3D Processing are: "Pro Logic II" and "Reverb Mode".

Pro Logic II

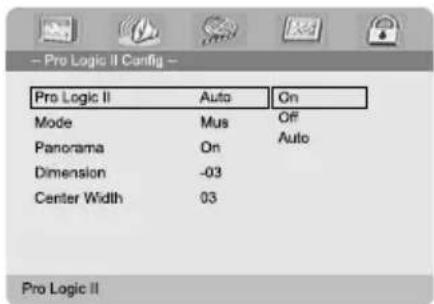

The options included in Pro Logic II Config page are: "Pro Logic II", "Mode", "Panorama", "Dimension" and "Center Width".

Pro Logic II

This function provides a convincing three-dimensional sound field on conventional stereo music recordings.

→ On: Turns on the Pro Logic II effect.

→ Off: Turns off the Pro Logic II effect. In this case, all options below "Pro Logic II" will be unavailable.

→ Auto: Allows automatic selection of the Pro Logic II effect depending on the discs being played back.

Mode

You can select your desired Pro Logic II mode here.

→ Music: When listening to music, you can experience sound effects as if you were listening to the actual performance. The options below "Mode" will be available only when this option is selected.

→ Movie: Is mainly intended for use with DTS discs. It can add realism to movie sound tracks.

→ Pro Logic: After selecting this, you will experience a realistic multi-channel effect even with just the front left and right speakers.

→ Auto: Allows automatic selection of the Pro Logic II mode depending on the discs being played back.

Panorama

Extends the front stereo image to include the surround speakers for a wraparound effect.

→ On: Enables this function.

→ Off: Disables this function.

Dimension

Incrementally adjusts the sound field either towards the front or towards the rear speakers. The adjustable range is from -3 (towards the rear) to +3 (towards the front).

Center Width

Adjusts the center image from all front speakers to varying degrees. A larger value adjusts the center image towards the front left and right speakers. The adjustable range is from 0 (center channel sound is output only from center speaker) to 7 (center channel sound is output only from front left and right speakers).

Reverb Mode

Reverb mode provides a virtual surround sound experience using just two speakers.

→ Off, Concert, Living Room, Hall, Bathroom, Cave, Arena and Church.

HDCD

The option included in HDCD (High Definition Compatible Digital) is: "Filter".

Filter (default: Off)

Sets the audio output cutoff frequency point when playing an HDCD disc.

→ Off, 44.1K and 88.2K.

Night mode

In this mode, the high volume outputs are softened and low volume outputs are brought upward to an audible level. It is useful for watching your favourite action movie without disturbing others at night.

→ On: Select this to level out the volume. This feature is only available for movies with Dolby Digital mode. → Off: Select this when you want to enjoy the surround sound with its full dynamic range.

Video Setup Page

The options included in Video Setup page are: "Component", "TV Mode" and "Quality".

Component

Sets the video output according to your video connection. This setting is not required if you are using the VIDEO jack (yellow) to connect the DVD micro system to your TV.

→ Pr/Cr Pb/Cb Y: Select this if you have connected the DVD micro system to your TV using Component video jacks. → S-Video: Select this if you have connected the DVD micro system to your TV using S-Video jack.

TV Mode (default: Interface)

Selects interlace or P-SCAN video output mode when Pr/Cr Pb/Cb Y is selected. → P-SCAN and Interlace.

In the progressive scan mode, you can enjoy the high quality picture with less flickers. It only works when you have connected the DVD player's Y Pb Pr jacks to your TV that supports the progressive video input. Otherwise, a distorted picture will appear on the TV. For proper progressive scan set up, see page 43-44.

Quality

This menu helps you to set the video quality.

Press ▲ ▼ to highlight "Quality". 2 Press ▶ or OK to enter Video Quality Setup.

The options included in Video Quality Setup page are: "Sharpness", "Brightness", "Contrast", "Gamma", "Hue", "Saturation" and "Luma Delay".

Sharpness

Adjusts the sharpness level.

→ High, Medium and Low.

Brightness

Adjusts the brightness level. Range: -20-+20.

Contrast

Adjusts the contrast level. Range: -16-+16.

Gamma

Adjusts the gamma level.

→ High, Medium, Low and None.

Hue

Adjusts the hue level. Range: -9 to +9.

Saturation

Adjusts the saturation level. Range: -9 to +9.

Luma Delay

Adjusts the luma delay.

→ 0T and 1T.

Preference Page

The options included in the Preference page are: "TV Type", "Audio", "Subtitle", "Disc Menu", "Parental", and "Default".

Note:

- Preference features can be selected only during "No Disc" condition or full STOP mode.

Parental

Some DVDs may have a parental level assigned to the complete disc or to certain scenes on the disc. This feature lets you set a playback limitation level.

The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children or have certain discs played with alternative scenes.

● VCD, SVCD, and CD have no level indication, so parental control function has no effect on those kinds of discs. This applies to most illegal DVD discs.

Press ▲ ▼ to highlight "Parental". 2 Enter its submenu by pressing ▶. 3 Use ▲ ▼ to highlight a rating level for the disc inserted.

DVDs rated above the level you selected will not play unless you enter your four-digit password and choose a higher rating level.

Note:

Some DVDs are not encoded with a rating even though the movie rating may be printed on the disc cover. The rating level feature does not work for such discs.

Rating explanations

1 KID SAF

– Kids material; recommended especially for children and viewers of all ages.

2 G

– General Audience; recommended as acceptable for viewers of all ages.

3 PG

- Parental Guidance suggested.

4 PG 13

- Material is unsuitable for children under age 13.

5-6 PGR, R

- Parental Guidance - Restricted; recommended that parents restrict children under 17 from viewing or allow to view only when supervised by a parent or adult guardian.

7 NC-17

- No children under age 17; not recommended viewing for children under age 17.

8 Adult

– Mature materials; should be viewed only by adults due to graphic sexual material, violence or language.

Default

Setting the “Default” function will reset all options and your personal settings to the factory defaults and all your personal settings will be erased.

Caution!

- When this function is activated, all settings will be reset to factory defaults.

Password Setup Page

The options included in Password Setup page are: "Password Mode" and "Password".

Password Mode (default: On)

This feature is used to enable/disable password protection by selecting "ON"/"OFF".

Password

Enter your four digit password when a hint is displayed on the screen. The default password is 1234.

Press ▲ ▼ to highlight "Password". 2 Enter its submenu by pressing ▶. 3 Press OK to open the page for inputting a new password.

4 Enter the existing 4-digit code. 5 Enter the new 4-digit code. 6 Enter the new 4-digit code a second time to confirm.

The new 4-digit code will take effect.

7 Press OK to exit.

Notes:

• If the password has been changed, the parental and disc lock code will also be changed.
• The default password (1234) is always active even if the password has been changed.

Tuning to radio stations

Press STANDBY-ON (or ⏻ on the remote) to switch on the last selected source. 2 Press repeatedly SOURCE (or TUNER on the remote) until FM or MW is displayed. 3 Press and hold TUNING ▲▼ or TU +/-

▶▶ on the remote until the frequency in the display starts changing. → Display shows SEARC during automatic tuning. → After the system tunes to a station of sufficient reception, display shows its frequency.

● To tune to a weak station, press briefly and repeatedly TUNING ▲▼ or TU +/- ◀◀▶▶ on the remote until an optimal reception is found.

4 Repeat Step 3 if necessary until you find the desired radio station.

Storing preset radio stations

You can preset up to 40 stations (20 in each band) regardless of the reception.

Manual programming

①Tune to your desired radio station (refer to "Tuning to radio stations"). 2 Press PROG on the remote.

→ "PROG" icon flashes.

3 Press PRESET▲/▼ or CH +/- (◄/►) on the remote to select the desired preset number. 4 Press PROG on the remote again to store the radio station.

→ "PROG" disappears on the display.

- Repeat steps 1-4 to store other radio stations.

Helpful hints:

- You can erase a preset station by storing another frequency in its place.

Autostore: automatic programming

Autostore automatically starts programming radio stations from preset 1. Any previous presets, e.g. manually programmed, will be erased.

- In tuner mode (FM or AM), press and hold PROG until AUTO appears.

→ During automatic programming, the display shows AUTO and flashing PROG. → Available stations are programmed (20 FM or 20 AM). → After all stations are stored, the first autostore preset station automatically plays.

Listening to preset radio stations

In tuner mode, press PRESET▲/▼ or CH +/- (◀ / ▶) on the remote to select the desired preset number.

→ The preset number, radio frequency, and waveband are displayed.

Setting the clock

In Standby mode, press and hold CLOCK on the remote until the time flashes on the display. → "SET CLOCK" is displayed briefly. Then, the hour digits flash on the display screen. 2 Turn VOLUME -/+ clockwise or anticlockwise or press VOLUME +/- on the remote to set the hours. 3 Press CLOCK to confirm. → The minute digits flash on the display screen. 4 Turn VOLUME -/+ clockwise or anticlockwise or press VOLUME +/- on the remote to set the minutes. 5 Press CLOCK again to confirm the clock setting.

Notes:

- This system only supports 24-hour mode. - The clock setting will be erased when the system is disconnected from the power supply. - The system will exit clock setting mode if no button is pressed within 30 seconds.

Setting sleep/wake-up timer

Sleep timer setting

In power-on mode, the sleep setting enables the system to switch to standby mode automatically at a preset time.

In power-on mode, press SLEEP/TIMER on the remote repeatedly to select a preset time. → The selections are as follows (time in minutes): 00 → 10 → 20 → 30 → 40 → 50 → 60 → 70 → 80 → 90 → 00

2 When you reach the desired length of time, stop pressing SLEEP/TIMER. → When sleep function is activated, ₁ is displayed.

To deactivate the sleep timer

- Press SLEEP/TIMER repeatedly until "00" is displayed, or press STANDBY ON (ON on the remote). → When sleep function is deactivated, _zz disappears on the display.

Wake-up timer setting

In standby mode, the timer setting enables the system to switch on automatically at a set time.

IMPORTANT!

- Before setting the timer, ensure that the clock is set correctly.

In standby mode, press and hold SLEEP/ TIMER until the time flashes on the display. → "SET TIME" is displayed briefly. Then, the hour digits flash on the display screen. 2 Turn VOLUME -/+ clockwise or anticlockwise or press VOLUME -/+ on the remote to set the hours. 3 Press SLEEP/TIMER to confirm. → The minute digits flash on the display screen. 4 Turn VOLUME -/+ clockwise or anticlockwise or press VOLUME -/+ on the remote to set the minutes. 5 Press SLEEP/TIMER to confirm the time setting. → "OFF" flashes on the display screen. 6 Turn VOLUME -/+ clockwise or anticlockwise or press VOLUME -/+ on the remote to select "ON". → @on appears on the display screen.

To deactivate the timer

- Select "OFF" at Step 6.

SYSTEM

Power supply .... \~220V/50 Hz Rated working power consumption (1/8 rated output power) ....≤ 40W AUX input sensitivity .... ≤ 350mV Channel Separation ≥ 40dB Distortion 0.7%

DVD

Frequency response ...... 100Hz-20kHz (±1dB) Video output 1 V _P-P Horizontal definition ≥ 500 (TV) Dimensions ... 163 (W) × 150 (H) × 240(D) mm Weight 3.1 kg

TUNER

FM Frequency range 87.5-108 MHz FM Noise limit sensitivity .... ≤ 20μ V/M FM S/N ≥ 46dB MW Frequency range 531-1602 kHz MW Noise limit sensitivity .... ≤ 3.0μ V/m MW S/N ≥ 40dB

SPEAKER

Front Speakers

System....2-way shielded Impedance....8 Ω

Speaker drivers.....1× 3" woofer, 1× 0.8" treble

Dimensions (w × h × d)....92mm × 170mm × 64mm

Weight....0.60 kg/each

Center Speaker

System....2-way shielded Impedance....8 Ω

Speaker drivers.....2x 2" woofer, 1x 0.8" treble Dimensions (w x h x d).....246mm x 93mm x 70 mm

Weight....1.00 kg

Surround Speakers

System....2-way shielded Impedance....8 Ω

Speaker drivers.....1× 3" woofer, 1× 0.8" treble

Dimensions (w × h × d)....92mm × 170mm × 64mm

Weight....0.60 kg/each

SUBWOOFER

Subwoofer (not magnetically shielded design).... 1×6.5" Impedance....8 Ω Dimensions (w × h × d)......350 mm × 360 mm × 185 mm Weight....7.4 kg

REMOTE

Distance 6m Angle ±30°

Specifications and external appearance are subject to change without notice.

WARNING

Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.

Problem	Solution
No power.	✓ Check if the AC power cord is properly connected. ✓ Press STANDBY ON ⏻ on the top of the DVD micro system or ⏻ on the remote to turn on the power.
No picture.	✓ Check if the TV is switched on. ✓ Check the video connection. ✓ Press SOURCE on the top of the DVD player repeatedly to select "DVD" or press DISC on the remote. ✓ Set your TV to the correct Video In channel. This channel is usually near channel 00. Or, you may have a button on the TV remote control that selects Auxiliary or A/V IN channel. See your TV owner's manual for details. Or, change channels at the TV until you see DVD screen on the TV. ✓ If the progressive scan feature is activated but the connected TV does not support progressive signals or the cables are not connected accordingly, see page 43-44 for proper progressive scan setup or deactivate the progressive scan feature as below: 1) Turn off your TV progressive scan mode or turn on to interlaced mode. 2) Press SYSTEM on the remote to exit the system menu and then DISC to exit progressive scan.
Distorted or poor picture.	✓ Sometimes a small amount of picture distortion may appear. This is not a malfunction. ✓ Clean the disc.
Completely distorted picture or black/ white picture.	✓ TV has a colour system standard. If the disc's or DVD system's colour system is different than your TV's colour system, the picture may be distorted or colourless.

The aspect ratio of the screen cannot be changed even though you have set the TV shape.

No sound or distorted sound.

There is no sound from the center and surround speakers.

The micro DVD player does not start playback.

The DVD micro system does not respond when the buttons are pressed.

Cannot activate some features, such as Angles, Subtitles, or multi-language Audio.

√ The aspect ratio is fixed on the DVD disc. √ Depending on the TV, it may not be possible to change the aspect ratio.

√ Adjust the volume.

√ Check that the speakers are connected correctly.

√ Replace the speaker cables.

√ Disconnect the headphones.

√ The system is in pause, slow motion or fast forward/reverse mode, press ▶ II (or ▶ II on the remote) to resume normal play mode.

√ Make sure the center and sound speakers are connected correctly.

√ Press SURROUND to select a correct surround sound setting.

√ Make sure the source you are playing is recorded or broadcast in surround sound (DTS, Dolby Digital, etc.).

√ Insert a readable disc with the playback side facing down.

Check the disc type, colour system and regional code. Check for any scratches or smudges on the disc.

Press SYSTEM MENU to turn off the setup menu screen.

Cancel the parental control rating function or change the rating level.

Moisture has condensed inside the system. Remove the disc and leave the system turned on for about an hour.

Disconnect the power plug from the outlet and insert again.

Multi-language sound or subtitle is not recorded on the DVD.

Changing the language for the sound or subtitle is prohibited on the DVD.

The features may not be available on the disc.

Considerable noise in radio broadcasts.

The remote control does not function.

The display is dark.

Low hum or buzz sound.

Low bass response.

Unable to select Progressive Scan

Tune in to the correct frequency. Connect the antennas. Fully extend the FM wire antenna. Position for best reception and secure to a wall. Connect an outdoor FM or AM antenna. Adjust the direction and position for best reception. Place the antenna farther away from any equipment that may be causing the noise. Increase the distance between the system and your TV or other equipment.

Select the correct source (DISC or TUNER, for example) before pressing the function button. Point the remote control at the remote sensor of the unit. Reduce the distance to the player. Remove any possible obstacles. Replace the batteries with new ones. Check that the batteries are loaded correctly.

Press DIM again.

Place the DVD micro system as far away as possible from electrical devices that may be causing interference.

Check all speakers for correct polarity.

Check that the output of the video signal is switched to 'Ypbpr'.

Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right.

Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs is 4:3, and that of wide-screens is 16:9.

AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV set, Stereo, etc.).

Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per second, or kbps. Or, the speed at which you record. Generally, the higher the bit rate the better the sound quality. However, higher bit rates use more space on a Disc.

Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Component Video Out Jacks: Jacks on the back of the DVD System that send high-quality video to a TV set that has Component Video In jacks (R/G/B, Y/Pb/Pr, etc.).

Disc menu: A screen display prepared for the selection of images, sound, subtitles, multi-angles, etc recorded on a DVD.

Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does.

Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right and center).

DTS: Digital Theater Systems. This is a surround sound system, but different from Dolby Digital. The formats were developed by different companies.

JPEG: A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio.

MP3: A file format with a sound data compression system, "MPE" is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. Through the MP3 format, one CD-R or CD-RW can contain about 10 times as much data volume as a regular CD can.

Multichannel: DVD is specified to have all sound tracks constitute one sound field. Multichannel refers to a structure of sound tracks having three or more channels.

Parental control: A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software's level is higher than the user-set level.

PCM (Pulse Code Modulation): A system for converting analog sound signal to digital signal for later processing without data compression.

Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for reproduction control. By using screen menus recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive-type software as well as software having a search function.

Progressive Scan (P-Scan): It displays all the horizontal lines of a picture at one time, as a signal frame. This system can convert interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution. A progressive scan TV set is needed to receive progressive scan output from the system.

Region code: A system allowing discs to be played only in preset regions. This unit will only play discs that have compatible region codes. You can find the region code of your unit from the product label. Some discs are compatible with more than one region (or ALL regions).

S-Video: Produces a clear picture by sending separate signals for luminance and the color. You can use S-Video only if your TV set has S-Video In jack.

Sampling Frequency: Frequency of data sampling when analog data is converted to digital data. Sampling frequency numerically represents how many times the original analog signal is sampled per second.

Surround: A system for users to create realistic three-dimensional sound fields full of realism by arranging multiple speakers around the listener.

Title: The longest section of a picture or music feature on DVD, music, etc., in video software, or the entire album in audio software. Each title is assigned a title number enabling you to locate the title you want.

VIDEO OUT jack: Jack on the back of the DVD System that sends video to TV.
