USER MANUAL G52-75141XF MSI

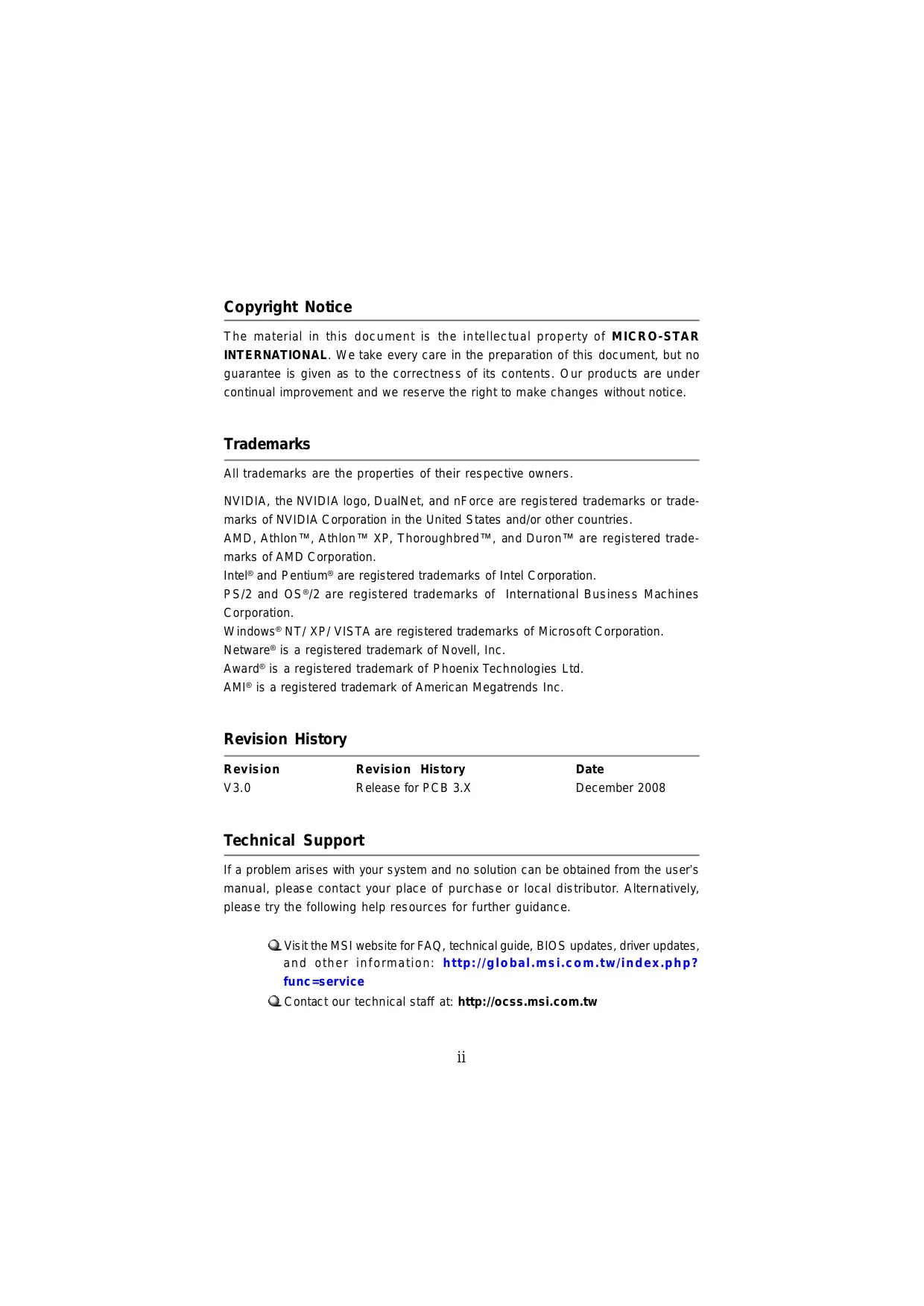

Copyright Notice T he material in this doc ument is the intellec tual property of M ICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice. Trademarks All trademarks are the properties of their respective owners. NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or trademarks of NVIDIA Corporation in the United States and/or other countries. AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered trademarks of AMD Corporation. Intel® and Pentium® are registered trademarks of Intel Corporation. PS/2 and OS ® /2 are registered trademarks of International Business Machines Corporation. W indows ® NT/ XP/ VISTA are registered trademarks of Microsoft Corporation. Netware® is a registered trademark of Novell, Inc. Award® is a registered trademark of Phoenix Technologies Ltd. AMI® is a registered trademark of American Megatrends Inc. Revision History Revision Revision History Date V3.0 Release for PCB 3.X December 2008 Technical Support If a problem arises with your system and no solution can be obtained from the user’s manual, please contact your place of purchase or local distributor. Alternatively, please try the following help resources for further guidance. Visit the MSI website for FAQ, technical guide, BIOS updates, driver updates, an d ot h er i n f orm at i on: h t t p: / / g l o ba l . m s i. c o m . t w / i n d e x .p h p ? func=service Contact our technical staff at: http://ocss.msi.com.tw

Always read the safety instructions carefully.

Keep this User’s Manual for future reference.

Keep this equipment away from humidity.

Lay this equipment on a reliable flat surface before setting it up.

The openings on the enclosure are for air convection hence protects the equipment from overheating. DO NOT COVER THE OPENINGS.

Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the power inlet.

Place the power cord such a way that people can not step on it. Do not place anything over the power cord.

All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electrical

11. If any of the following situations arises, get the equipment checked by service

The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture. The equipment does not work well or you can not get it work according to User’s Manual. † The equipment has dropped and damaged. † The equipment has obvious sign of breakage. 12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STORAGE TEMPERATURE ABOVE 600 C (1400F), IT MAY DAMAGE THE EQUIPMENT. CAUT ION: Danger of expl os i on if bat ter y i s i nc orrec tl y r epl ac ed. Replac e only with the same or equivalent type rec ommended by the manufacturer. iii FCC-B Radio Frequency Interference Statement T h is eq uip men t h as been tested and found to c omply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below. † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. † Consult the dealer or an experienced radio/television technician for help. Notice 1 The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Notice 2 Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits. VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU RESEAU. Micro-Star International MS-7514 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WEEE (Waste Electrical and Electronic Equipment) Statement

Chip integrated by Realtek® ALC888 Flexible 8-channel audio with jack sensing Com pliant with Azalia 1.0 Spec Meet Microsoft ® VistaTM Premium spec IDE - 1 IDE port by JMicron® JMB363 - Supports Ultra DMA 66/100/133 m ode - Supports PIO, Bus Master operation mode SATA - 6 SATAII ports by Intel ® ICH10/ ICH10R (SATA1~6) - 2 SATAII ports by JMicron® JMB363 (SATA7~8) - Supports storage and data transfers at up to 3 Gb/s RAID - SATA1~6 support RAID 0/ 1/ 5/ 10/ JBOD mode by Intel ® ICH10R (opti onal) - SATA7 & SATA8 support RAID 0/ RAID1/ JBOD mode by JMicron® JMB363 En-2 English 1394 (optional) - Supports 1394 by JMicron® JMB381 FDD - 1 floppy port - Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB Connectors Back panel - 1 PS/2 m ouse port - 1 PS/2 keyboard port - 1 Serial port - 6 USB 2.0 Ports - 1 1394 port (optional) - 1 LAN jack - 6 flexible audio jacks On-Board Pinheaders / Connectors / buttons - 3 USB 2.0 pinheaders - 1 1394 pinheader (optional) - 1 chassis intrusion connector - 1 S/PDIF-out pinheader - 1 CD-in connector - 1 front audio pinheader - 1 TPM Module connector (optional) - 1 Hardware Overclock FSB Switch TPM (optional) - Supports TPM Slots - 1 PCI Express x16 slot, support up to PCI Express 2.0 x16 speed - 1 PCI Express x1 slot - 4 PCI slots, support 3.3V/ 5V PCI bus Interface Form Factor - ATX (30.5cm X 24.4cm) M ounting - 9 mounting holes En-3 M S-7514 M ainboard Quick Components Guide SYSFAN2, En-16 JPWR2, En-11 CPUFAN1, En-16 CPU, En-5 DDR3 DIMMs, En-9 SYSFAN1, En-16 Back Panel, En-12 JPWR1, En-11 IDE1, En-14 PCIE, En-23 OC_SW1, En-22 SATA, En-15 JTPM1, En-19 PCI, En-23 JUSB1~3, En-20 JAUD1, En-19 JCD1, En-18 JSP1, En-17 En-4 FDD1, En-14 JBAT1, En-21 JCI1, En-16 J1394_1, En-17 JFP1, JFP2 En-18 W hen you are installing the CPU, make sure to install the cooler to prevent overheating. If you do not have the CPU cooler, consult your dealer before turning on the computer. For the latest information about CPU, please visit http://global.msi.com.tw/index. php?func=cpuform2 Important Overheating Overheating will seriously damage the CPU and system. Always make sure the cooling fan can work properly to protect the CPU from overheating. Make sure that you apply an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to enhance heat dissipation. Replacing the CPU While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power cord from the grounded outlet first to ensure the safety of CPU. Overclocking This mainboard is designed to support overclocking. However, please make sure your components are able to tolerate such abnormal setting, while doing overclocking. Any attempt to operate beyond product specifications is not recommended. We do not guarantee the damages or risks caused by inadequate operation or beyond product specifications. Introduction to LGA 775 CPU The pin-pad side of LGA 775 CPU. Alignment Key Yellow triangle is the Pin 1 indicator The surface of LGA 775 CPU. Remember to apply some thermal pas te on it f or bet t er heat dispersion. Alignment Key Yellow triangle is the Pin 1 indicator En-5 English CPU (Central Processing Unit) M S-7514 M ainboard CPU & Cooler Installation W hen you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU before installing the heat sink/cooler fan for better heat dispersion. Follow the steps below to install the CPU & cooler correctly. W rong installation will cause the damage of your CPU & mainboard.

1. The CPU socket has a plastic cap

on it to protec t the contac t from damage. Before you install the CPU, always cover it to protect the socket pin.

2. Remove the cap from lever hinge

side (as the arrow shows).

3. The pins of socket reveal.

4. Open the load lever.

1. Confirm if your CPU cooler is firmly installed before turning on your system.

2. Do not touch the CPU socket pins to avoid damaging.

3. The availability of the CPU land side cover depends on your CPU packing.

6. After confirming the CPU direction

for correct mating, put down the CPU in the socket housing frame. Be sure to grasp on the edge of the CPU base. Note that the alignment keys are matched. alignment key

7. Vis ually ins pec t if the CPU is

seated well into the socket. If not, take out the CPU with pure vertical motion and reinstall.

8. Cover the load plate onto the

package. En-7 English

5. Lift the load lever up and open the

load plate. M S-7514 M ainboard

9. Press down the load lever lightly

onto the load plate, and then secure the lever with the hook under retention tab.

11. Press the four hooks down to fasten

the cooler. Then rotate the locking switch (refer to the correct direction marked on it) to lock the hooks.

12. Turn over the mainboard to confirm that the clip-ends are correctly

inserted. Mainboard locking switch Hook Important

1. Read the CPU status in BIOS.

2. Whenever CPU is not installed, always protect your CPU socket pin with the

plastic cap covered (shown in Figure 1) to avoid damaging.

3. Mainboard photos shown in this section are for demonstration of the CPU/

cooler installation only. The appearance of your mainboard may vary depending on the model you purchase. En-8 These DIMM slots are used for installing memory modules. For more information on compatible components, please visit http://global.msi.com. tw/index.php?func=testreport DDR3 240-pin, 1.5V 48x2=96 pin 72x2=144 pin Dual-Channel Memory Population Rules In Dual-Channel mode, the memory modules can transmit and receive data with two data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system performance. Please refer to the following illustrations for population rules under Dual-Channel mode.

DIMM1 DIMM2 DIMM3 DIMM4 Installed Empty Important - DDR3 memory modules are not interchangeable with DDR2 and the DDR3 standard is not backwards compatible. You should always install DDR3 memory modules in the DDR3 DIMM slots. - In Dual-Channel mode, make sure that you install memory modules of the same type and density in different channel DIMM slots. - To enable successful system boot-up, always insert the memory modules into the DIM M1 first. - Due to the chipset resource deployment, the system density will only be detected up to 7+GB (not full 8GB) when each DIMM is installed with a 2GB memory module. En-9 English Memory M S-7514 M ainboard Installing Memory Modules

1. The memory module has only one notch on the center and will only fit in the right

2. Insert the memory module vertically into the DIMM slot. Then push it in until the

golden finger on the memory module is deeply inserted in the DIMM slot. The plastic clip at each side of the DIMM slot will automatically close when the memory module is properly seated. Important You can barely see the golden finger if the memory module is properly inserted in the DIMM slot.

3. Manually check if the memory module has been locked in place by the DIMM slot

clips at the sides. Volt En-10 Notch ATX 24-pin Power Connector: JPWR1 This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector. You may use the 20-pin ATX power supply as you like. If you’d like to use the 20-pin ATX power supply, please plug your power supply along with pin 1 & pin 13 (refer to the image at the right hand). pin 13 pin 12 Pin Definition

GND ATX 4-pin Power Connector: JPWR2 This power connector is used to provide power to the CPU. Pin Definition

12V Important 1. Make sure that all the connectors are connected to proper ATX power supplies to ensure stable operation of the mainboard.

2. Power supply of 400 watts (and above) is highly recommended for system

stability. En-11 English Power Supply M S-7514 M ainboard Back Panel (optional) 1394 Port Mouse LAN Line-In RS-Out Line-Out CS-Out Keyboard Serial Port USB Port USB Port USB Port Mic SS-Out M ouse/Keyboard The standard PS/2® mouse/keyboard DIN connector is for a PS/2® mouse/keyboard. Serial Port The serial port is a 16550A high speed communications port that sends/ receives 16 bytes FIFOs. You can attach a serial mouse or other serial devices directly to the connector. 1394 Port (optional) The IEEE1394 port on the back panel provides connection to IEEE1394 devices. USB Port The USB (Universal Serial Bus) port is for attaching USB devices such as keyboard, mouse, or other USB-compatible devices. LAN The standard RJ-45 LAN jack is for connection to the Local Area Network (LAN). You can connect a network cable to it. LED Color LED State Off Left Yellow On (steady state) Yellow Green / Orange Condition LAN link is not established. LAN link is established. On (brighter & pulsing) The computer is communicating with another computer on the LAN. Green Right Orange En-12 Off 10 Mbit/sec data rate is selected.

100 Mbit/sec data rate is selected.

1000 Mbit/sec data rate is selected. En-13 English Audio Ports These audio connectors are used for audio devices. It is easy to differentiate between audio effects according to the color of audio jacks. Line-In (Blue) - Line In is used for external CD player, tape-player or other audio devices. Line-Out (Green) - Line Out, is a connector for speakers or headphones. Mic (Pink) - Mic, is a connector for microphones. RS-Out (Black) - Rear-Surround Out in 4/ 5.1/ 7.1 channel mode. CS-Out (Orange) - Center/ Subwoofer Out in 5.1/ 7.1 channel mode. SS-Out (Gray) - Side-Surround Out 7.1 channel mode. M S-7514 M ainboard Connectors Floppy Disk Drive Connector: FDD1 This connector supports 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB floppy disk drive. IDE Connector: IDE1 This connector supports IDE hard disk drives, optical disk drives and other IDE devices. Important If you install two IDE devices on the same cable, you must configure the drives separately to master / slave mode by setting jumpers. Refer to IDE dev ic e’s doc umentation s upplied by the vendors for jumper s etting instructions. En-14 This connector is a high-speed Serial ATA interface port. Each connector can connect to one Serial ATA device.

1. Please do not fold the Serial ATA cable into 90-degree angle. Otherwise,

data loss may occur during transmission.

2. SATA1~6 controlled by Intel® ICH10R/ ICH10, and the ICH10R supports

RAID 0/ 1/ 0+1/ 5 mode.

3. SATA7~8 controlled by JMicron ® JMB363 and they support RAID 0/ 1

mode. En-15 English Serial ATA Connector: SATA1~8 M S-7514 M ainboard Fan Power Connectors: CPUFAN1, SYSFAN1~2 GND +1 2V SENSOR CONTROL GND +1 2V SENSOR The fan power connectors support system cooling fan with +12V. W hen connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V; the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset on-board, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control. GND +1 2V SENSOR CPUFAN1 SYSFAN1 SYSFAN2 Important

1. Please refer to the recommended CPU fans at processor’s official website

or consult the vendors for proper CPU cooling fan.

2. CPUFAN1 supports fan control. You can install Dual Core Center utility

that will automatically control the CPU fan speed according to the actual CPU temperature.

3. Fan cooler set with 3 or 4 pins power connector are both available for

CPUFAN1. Chassis Intrusion Connector: JCI1 This connector connects to the chassis intrusion switch cable. If the chassis is opened, the chassis intrusion mechanism will be activated. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record.

Ground IEEE1394 Bracket (optional) S/PDIF-Out Connector: JSP1 This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format) interface for digital audio transmission. VCC GND SPDIF S/PDIF Bracket (optional) En-17 English IEEE1394 Connector: J1394_1 (optional) M S-7514 M ainboard Front Panel Connectors: JFP1, JFP2 These connectors are for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide. JFP1 Pin Definition Power Power LED Switch

Power Switch low reference pull-down to GND Reserved. Do not use. JFP2 Pin Definition Speaker

SLED BUZ+ Suspend LED Buzzer+

PLED BUZ- Power LED Buzzer-

SPK+ No connection Speaker+ CD-In Connector: JCD1 This connector is provided for external audio input.

En-18 This connector allows you to connect the front panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide.

Microphone - Right channel

LINE out_R MIC_JD Analog Port - Right channel Jack detection return from front panel microphone JACK1

Front_JD Jack detection sense line from the High Definition Audio CODEC jack detection resistor network

LINEout_JD Jack detection return from front panel JACK2 TPM Module Connector: JTPM1 (optional) This connector connects to a TPM (Trusted Platform Module) module (optional). Please refer to the TPM security platform manual for more details and usages.

GND GND Ground Ground En-19 English Front Panel Audio Connector: JAUD1 M S-7514 M ainboard Front USB Connector: JUSB1~3 These connectors, compliant with Intel® I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, M P3 players, printers, modems and the like. Pin Definition

USB 2.0 Bracket (optional) Important Note that the pins of VCC and GND must be connected correctly to avoid possible damage. En-20 Clear CMOS Jumper: JBAT1 There is a CMOS RAM onboard that has a power supply from an external battery to keep the data of system configuration. W ith the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, set the jumper to clear data.

Clear Data Important You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard. En-21 English Jumper M S-7514 M ainboard Switch Hardware Overclock FSB Switch: OC_SW1 You can overclock the FSB to increase the processor frequency by changing the switch OC_SW 1. Follow the instructions below to set the FSB.

200->266 MHz 200->333 MHz 266->333 MHz 200->400 MHz Default 266->400 MHz 333->400 MHz Important

1. Make sure that you power off the system before changing the switch.

2. Overclocking may cause instability or crash during boot, and then please

set the switch to default setting. En-22 English Slots PCI (Peripheral Component Interconnect) Express Slot The PCI Express slot supports the PCI Express interface expansion card. The PCI Express 2.0 x16 supports up to 8.0 GB/s transfer rate. The PCI Express x1 supports up to 250 MB/s transfer rate. PCI Express x16 Slot PCI Express x1 Slot PCI (Peripheral Component Interconnect) Slot The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that comply with PCI specifications. 32-bit PCI Slot Important When adding or removing expansion cards, make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to configure any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration. PCI Interrupt Request Routing The IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines over which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus pins as follows: Order 1 Order 2 Order 3 Order 4 PCI Slot 1 INT A# INT B# INT C# INT D# PCI Slot 2 INT E# INT F# INT G# INT H# PCI Slot 3 INT F# INT G# INT H# INT E# PCI Slot 4 INT G# INT H# INT E# INT F# En-23 M S-7514 M ainboard LED Status Indicators LED3 LED4 Blue Light LED1 LED2 Off

M o de CPU is in 1 phase power mode. CPU is in 2 phase power mode. CPU is in 3 phase power mode. CPU is in 4 phase power mode. En-24 This chapter provides basic information on the BIOS Setup program and allows you to configure the system for optimum use. You may need to run the Setup program when:

• An error message appears on the screen during the system booting up, and requests you to run BIOS SETUP.
• You want to change the default settings for customized features. Important 1.The items under each BIOS category described in this chapter are under continuous update for better system performance. Therefore, the description may be slightly different from the latest BIOS and should be held for reference only. 2.Upon boot-up, the 1st line appearing after the memory count is the BIOS version. It is usually in the format: A7514IMS V3.0 112208 where: 1st digit refers to BIOS maker as A = AMI, W = AWARD, and P = PHOENIX. 2nd - 5th digit refers to the model number. 6th refers to the Chipset vender as A = AMD, I = Intel, V = VIA, N = Nvidia, U = ULi. 7th - 8th digit refers to the customer as MS = all standard customers. V3.0 refers to the BIOS version. 112208 refers to the date this BIOS was released. En-25 English BIOS Setup M S-7514 M ainboard Entering Setup Power on the computer and the system will start POST (Power On Self Test) process. W hen the message below appears on the screen, press <DEL> key to enter Setup. Press DEL to enter SETUP If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. Getting Help After entering the Setup menu, the first menu you will see is the Main Menu. M ain M enu The main menu lists the setup functions you can make changes to. You can use the arrow keys (↑↓ ) to select the item. The on-line description of the highlighted setup function is displayed at the bottom of the screen. Sub-M enu If you find a right pointer symbol (as shown in the right view) appears to the left of certain fields that means a sub-menu containing additional options can be launched from this field. You can use control keys (↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press <Esc >. General Help <F1> The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen. En-26 Standard CMOS Features Use this menu for basic system configurations, such as time, date etc. Advanced BIOS Features Use this menu to setup the items of special enhanced features. Integrated Peripherals Use this menu to specify your settings for integrated peripherals. Power M anagement Setup Use this menu to specify your settings for power management. H/W Monitor This entry shows your PC health status. G r een Pow er Use this menu to specify the power phase. BIOS Setting Password Use this menu to set the Password. Cell M enu Use this menu to specify your settings for frequency/voltage control and overclocking. USER SETTINGS Use this menu to save/ load your settings to/ from CMOS for BIOS. Load Fail-Safe Defaults Use this menu to load the default values set by the BIOS vendor for stable system performance. Load Optimized Defaults Use this menu to load the default values set by the mainboard manufacturer specifically for optimal performance of the mainboard. Save & Exit Setup Save changes to CMOS and exit setup. Exit Without Saving Abandon all changes and exit setup. En-27 English The M ain Menu Once you enter AMI® or AWARD ® BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from the setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu. M S-7514 M ainboard W hen enter the BIOS Setup utility, follow the processes below for general use.

1. Load Optimized Defaults : Use control keys (↑↓) to highlight the Load

Optimized Defaults field and press <Enter> , a message as below appears: Select [Ok] and press Enter to load the default settings for optimal system performance.

field and press <Enter> , a message as below appears: Select [Ok] and press Enter to save the configurations and exit BIOS Setup utility. Important The configuration above are for general use only. If you need the detailed settings of BIOS, please read the manual in English version on MSI website. En-28 Important Change these settings only if you are familiar with the chipset. Current CPU / DRAM Frequency These items show the current clocks of CPU and Memory speed. Read-only. Multi-step OC Booster This item is used to avoid the BIOS might crash with overclocking. Disabled Disable this item, apply OC settings during POST. Mode 1 Slight OC during POST and then apply full OC when loading the OS Mode 2 Load the OS then apply the OC settings. En-29 English

4. Cell Menu Introduction : This menu is for advanced user who want to overclock

the mainboard. M S-7514 M ainboard D.O.T. Control D.O.T. (Dynamic Overclocking Technology) is an automatic overclocking function, included in the MSITM ’s newly developed Dual Core Center TM Technology. It is designed to detect the load balance of CPU while running programs, and to adjust the best frequency automatically. W hen the mainboard detects system is running programs, it will speed up automatically to make the program run smoothly and faster. W hen the system is temporarily suspending or staying in the low load balance, it will restore the default settings instead. Usually the Dynamic Overclocking Technology will be powered only when users' PC need to run huge amount of data like 3D games or the video process, and the CPU and PCIE frequency need to be boosted up to enhance the overall performance. Important Even though the Dynamic Overclocking Technology is more stable than manual overclocking, basically, it is still risky. We suggest user to make sure that your CPU / memory modules can afford to overclocking regularly first. If you find the PC appears to be unstable or reboot incidentally, it's better to dis able the Dy namic O v erc loc k ing or to lower the lev el of overclocking options. By the way, if you need to conduct overclocking manually, you also need to disable the Dynamic OverClocking first. Intel EIST The Enhanced Intel SpeedStep technology allows you to set the performance level of the microprocessor whether the computer is running on battery or AC power. This field will appear after you installed the CPU which supports speedstep technology. Adjust CPU FSB Frequency (M Hz) This item allows you to set the CPU FSB frequency (in MHz). Adjusted CPU Frequency (M Hz) It shows the adjusted CPU frequency (FSB x Ratio). Read-only. Advance DRAM Configuration Press <Enter> to enter the sub-menu. MEMORY-Z Press <Enter> to enter the sub-menu. DIM M1~4 Memory SPD Information Press <Enter> to enter the sub-menu. These items display the current status of the current DIMM Memory speed information such as memory type, max bandwidth, manufacture, part number, serial number, SDRAM cycle time, and etc. They are read only. En-30 CAS Latency (CL) W hen the DRAM Timing Mode sets to [Manual], the field is adjustable. This controls the CAS latency, which determines the timing delay (in clock cycles) before SDRAM starts a read command after receiving it. tRCD W hen the DRAM Timing Mode sets to [Manual], the field is adjustable. W hen DRAM is refreshed, both rows and columns are addressed separately. This setup item allows you to determine the timing of the transition from RAS (row address strobe) to CAS (column address strobe). The less the clock cycles, the faster the DRAM performance. tRP W hen the DRAM Timing Mode sets to [Manual], the field is adjustable. This setting controls the number of cycles for Row Address Strobe (RAS) to be allowed to pre-charge. If insufficient time is allowed for the RAS to accumulate its charge before DRAM refresh, refresh may be incomplete and DRAM may fail to retain data. This item applies only when synchronous DRAM is installed in the system. tRAS W hen the DRAM Timing Mode sets to [Manual], the field is adjustable. This setting determines the time RAS takes to read from and write to memory cell. TRTP W hen the DRAM Timing Mode sets to [Manual], the field is adjustable. Time interval is between a read and a pre-charge command. TRFC W hen the DRAM Timing M ode sets to [Manual], the field is adjustable. This setting determines the time RFC takes to read from and write to a memory cell. TWR When the DRAM Timing Mode sets to [Manual], the field is adjustable. Minimum time interval between end of write data burst and the start of a pre-charge command. Allows sense amplifiers restore data to cells. TRRD When the DRAM Timing Mode sets to [Manual], the field is adjustable. Specifies the active-to-active delay for different banks. TWTR When the DRAM Timing Mode sets to [Manual], the field is adjustable. Minimum time interval between the end of write data burst and the start of a column-read command. It allows I/O gating to overdrive sense amplifiers before read command starts. En-31 English DRAM Timing Mode Setting to [Auto] enables the advance memory timing automatically to be determined by BIOS. Setting to [Manual] allows you to set advanced memory timings. M S-7514 M ainboard 1N/2N M emory Timing This item controls the SDRAM command rate. Select [1N] makes SDRAM signal controller to run at 1N (N=clock cycles) rate. Selecting [2N] makes SDRAM signal controller run at 2N rate. Power User M ode Press <Enter> to enter the sub-menu. This item will appear after you press “F4” function key, and press “F4” again to hide this item. Change NB Drive This item allows you to enable/ disable Power User mode. The power user mode can enhance the DRAM performance. FSB/DRAM Ratio This item will allow you to adjust the ratio of FSB to memory. Adjusted DRAM Frequency (MHz) It shows the adjusted DDR Memory frequency. Read-only. ClockGen Tuner Press <Enter> to enter the sub-menu. CPU Clock Drive/ PCI Express Clock Drive These items are used to select the CPU/ PCI Express clock amplitude. CPU CLK Skew/ M CH CLK Skew These items are used to select the CPU/ North Bridge chipset clock skew. They can help CPU to reach the higher overclocking performance. Adjust PCI Frequency (MHz) This field allows you to select the PCI frequency (in MHz). Auto Disable DRAM /PCI Frequency W hen set to [Enabled], the system will remove (turn off) clocks from empty DIMM and PCI slots to minimize the electromagnetic interference (EMI). CPU Voltage (V)/ CPU GTL REF0 (V) / CPU GTL REF1 (V)/ DRAM Voltage (V)/ DDR _VREF_CA_A/B (V)/ DDR_VREF_DA_A/B (V)/ MCH Voltage (V)/ MCH GTL REF (V)/ VTT FSB Voltage (V)/ ICH Voltage (V) These items are used to adjust the voltage of CPU, Memory, FSB and chipset. Spread Spectrum W hen the mainboard’s clock generator pulses, the extreme values (spikes) of the pulses create EMI (Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by modulating the pulses so that the spikes of the pulses are reduced to flatter curves. If you do not have any EMI problem, leave the setting at Disabled for optimal system stability and performance. But if you are plagued by EMI, set to Enabled for EMI reduction. Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up. En-32 English Important

1. If you do not have any EMI problem, leave the setting at [Disabled] for

optimal system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction.

2. The greater the Spread Spectrum value is, the greater the EMI is reduced,

and the system will become less stable. For the most suitable Spread Spectrum value, please consult your local EMI regulation.

3. Remember to disable Spread Spectrum if you are overclocking because

even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up. En-33 M S-7514 M ainboard Software Information Take out the Driver/Utility CD that is included in the mainboard package, and place it into the CD-ROM drive. The installation will auto-run, simply click the driver or utility and follow the pop-up screen to complete the installation. The Driver/Utility CD contains the: Driver menu - The Driver menu shows the available drivers. Install the driver by your desire and to activate the device. Utility menu - The Utility menu shows the software applications that the mainboard supports. W ebSite menu- The W ebSite menu shows the necessary websites. Important Please visit the MSI website to get the latest drivers and BIOS for better system performance. En-34 Deutsch P45D3 Neo3/ P43D3 Neo3 Serie Benutzerhandbuch Deutsch De-1 M S-7514 M ainboard Spezifikationen Pro z es sor en - Intel ® CoreTM 2 Extrem e, CoreTM 2 Quad, CoreTM 2 Duo, Pentium ® Dual-Core und Celeron® Dual-Core Prozessoren für Sockel LGA775 - Intel ® neue Generation 45 nm Multi-Koren CPU *(W eitere CPU Informationen finden Sie unter http://global.m si.com.tw/index.php?func=cpuform 2) FSB (Front-Side-Bus) - 1600*(OC)/ 1333/ 1066/ 800 MHz Chipsatz - North-Bridge: Intel ® P45/ P43 Chipsatz - South-Bridge: Intel ® ICH10/ ICH10R (optional) Chipsatz Speicher - 4 DDR3 DIMMs unterstützen DDR3 1333 (nur für P45 Chipsatz)/ 1066/ 800 (maximale Speichergröße: 8GB) (W eitere Informationen zu kom patiblen Speicherm odulen finden Sie unter http://global.msi.com .tw/index.php?func=testreport) LAN - Unterstützt die 10/100/1000 Fast Ethernet über Realtek® RTL8111C Audio

Hard disk LED pull-up MSG LED pull-up

Hard disk active LED MSG LED pull-up

BUZ+ PLED Buzzer+ Power LED

BUZNC BuzzerNo connection

Microphone - Right channel

LINE out_R MIC_JD Analog Port - Right channel Jack detection return from front panel microphone JACK1

Front_JD Jack detection sense line from the High Definition Audio CODEC jack detection resistor network

SLED BUZ+ Suspend LED Buzzer+

PLED BUZ- Power LED Buzzer-

Microphone - Right channel

LINE out_R MIC_JD Analog Port - Right channel Jack detection return from front panel microphone JACK1

Front_JD Jack detection sense line from the High Definition Audio CODEC jack detection resistor network

Hard disk LED pull-up MSG LED pull-up

Hard disk active LED MSG LED pull-up

RSVD_DNU Reserved. Do not use. JFP2 Pin Definition Speaker

SLED BUZ+ Suspend LED Buzzer+

PLED BUZ- Power LED Buzzer-

Microphone - Right channel

LINE out_R MIC_JD Analog Port - Right channel Jack detection return from front panel microphone JACK1

Front_JD Jack detection sense line from the High Definition Audio CODEC jack detection resistor network
