USER MANUAL 9500 ELNA

• Moveable screen
  • Full-colour touch screen (122 x 91 mm)
  • Automatic / programmable thread cutter (scissors button)
• Start / stop button
• Up / down needle key
• Adjustable speed control
• Needle threader
• 8 white LED lamps illuminate entire sewing area
• Computerized thread tension control
• Drop feed dog
  • External memory device: ATA card / USB memory key
  • PC link: two-way USB communication
• Eco mode
• Multi-voltage
  • Horizontal full rotary hook
• Independent bobbin-winding motor
• Multilingual interface – 10 languages
  • Horizontal spool pin
  • Upper & bobbin thread sensor
• Hard cover with storage box

EMBROIDERY FEATURES

• 122 embroidery des
• 10 monogram fonts
- Lettering – upper & lower case
• Maximum embroidery size: 200 x 280 mm
• Embroidery format: .JEF & .JEF+
• Memory cancellation and recall
- Folder system: built-in, ATA card, USB

SEWING FEATURES

• 307 built-in stitches, including 13 buttonholes
- 3 monogram fonts
• Maximum stitch length: 5 mm
• Maximum stitch width: 7 mm
- Satin stitch elongation
• Memory cancellation and recall
- Folder system: built-in, ATA card, USB
- Twin needle key

ACCESSORIES

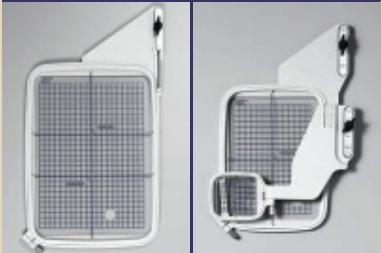

- Hoops:

- 2 standard hoops included

(200×200 mm/126×110 mm)

- 3 optional hoops

(200 x 280 mm / 140 x 200 mm / 50 x 50 mm)

- "Clothsetter" table

Consult our website for more accessories

Laboratory instrument with digital display showing a grid of test tubes (no visible text or symbols)

WARRANTY AND SERVICE: Elna's superior reputation was established in 1940 with the production of its first sewing machine. Ever since, Elna has continued to be a leading brand of home sewing and related equipment especially designed with the innovative sewer in mind. Thousands of professionals worldwide provide expert service. Millions of people have chosen Elna for its quality, performance and reliability.

Collection of various electronic components and accessories arranged on a surface (no visible text or symbols)

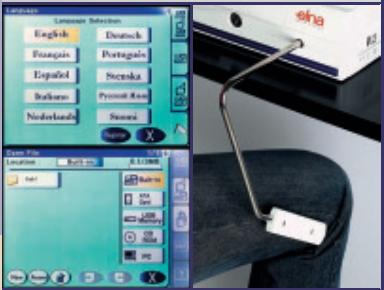

Language Selection English Deutsch Français Portuguese Español Soroska Brasilien Prénom Raim Nederlands Szeri sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina sina

Two technical diagrams showing internal grid patterns and mounting brackets (no text or symbols)

elna

SWISS DESIGN

9500 ena 9500 9500

9500

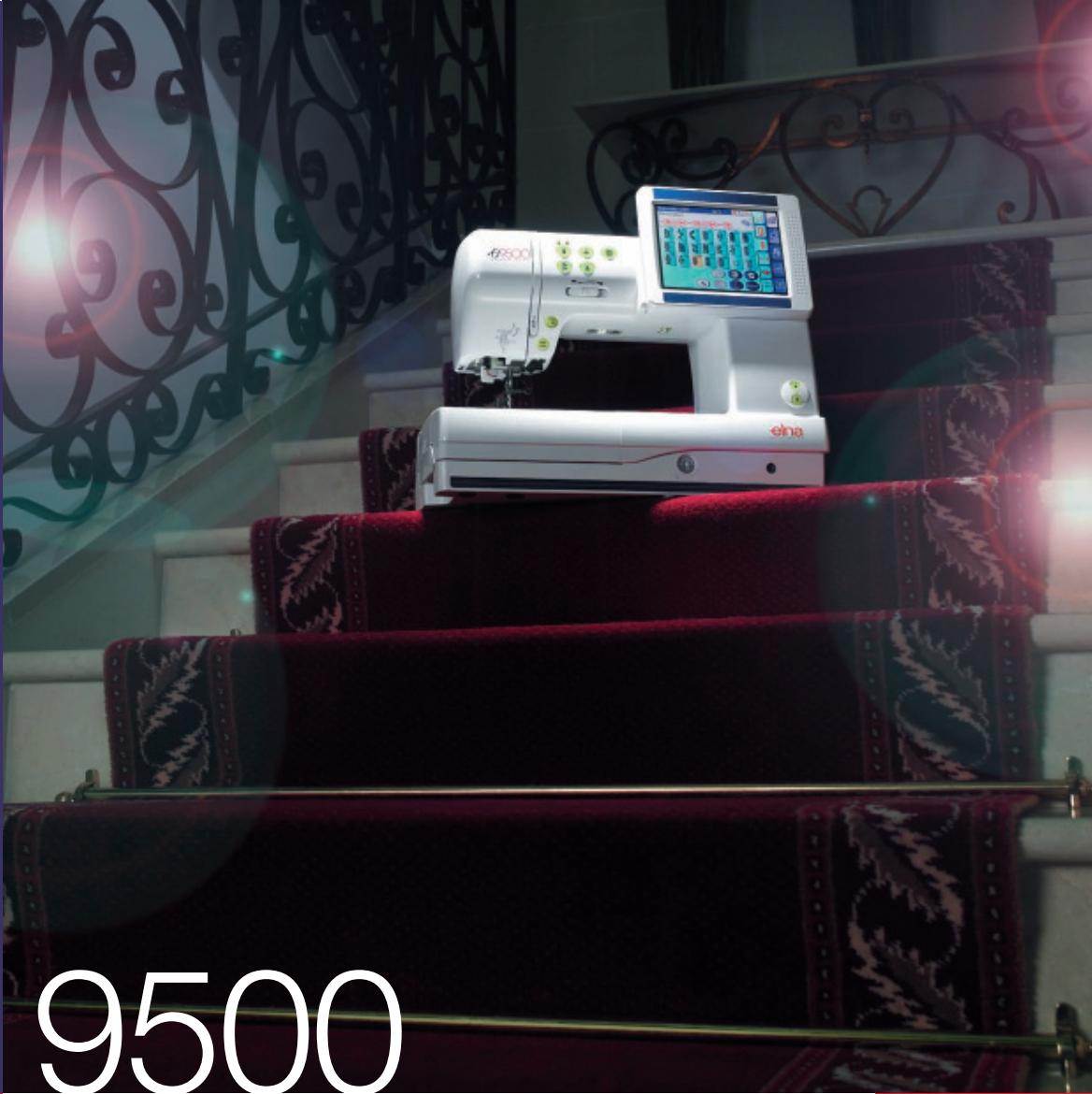

A star is born!

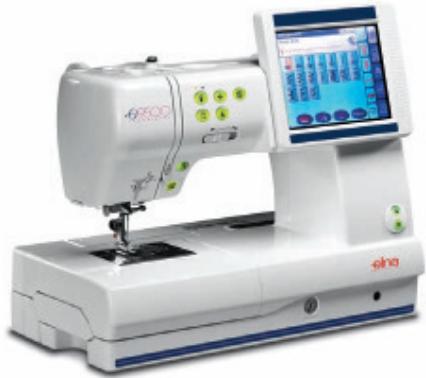

White sewing machine with digital display and control panel (no visible text or symbols)

-eln a

SWISS DESIGN

Black-and-white photo of a woman in a black dress standing beside a sewing machine with ornate staircase and floral patterns (no visible text or symbols)

You and the Elna 9500. Who has the highest standards?

What a sensation! Whether it's professional quality sewing or flawless embroidery, the Elna 9500 always steals the limelight. Nothing's too dazzling or too ambitious for this gifted new artist. When only the very best will do, the Elna 9500 delivers. And with so many talents in one machine, who could hope to outshine such star performance? Based on today's most advanced technology, the Elna 9500 is intelligent enough to combine simplicity with user-friendliness. No half-measures, no compromises: the Elna 9500 is a single-minded perfectionist – just like you. What more do you need to bring out your best?

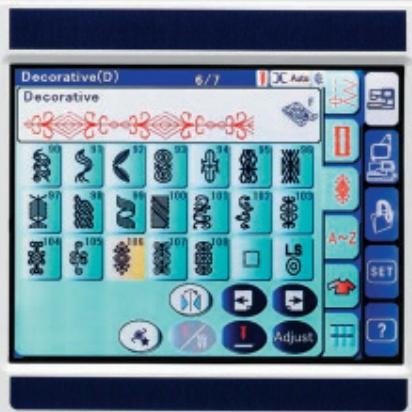

Decorative(D) 6/7 Decorative 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 A~Z SET ? Adjust

5-STAR QUALITY

An automatic needle threader, to ensure you start as you mean to go on.

TAKE CONTROL

Easy-to-reach, easy-to-read electronic control keys obey your every command.

WIDESCREEN PROJECTION

Getting the big picture helps you decide what you want to do – fast.

WELL- CONNECTED

Plenty of well-placed connections, including a USB port.

CHANGE OF SCENE?

Consult the screen at any time for a full range of stitch previews.

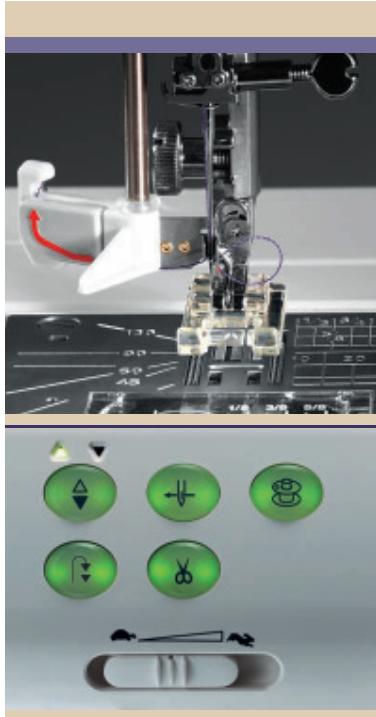

Close-up of a sewing machine's mechanical component and its corresponding green control buttons (no text or symbols visible)

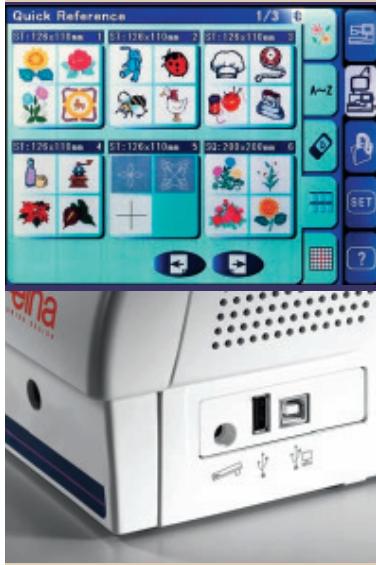

Quick Reference 1/3 SI: 126x110mm 1 SI: 126x110mm 2 SI: 126x110mm SI: 126x110mm 4 SI: 126x110mm 5 SI: 208x208mm 6 Sina

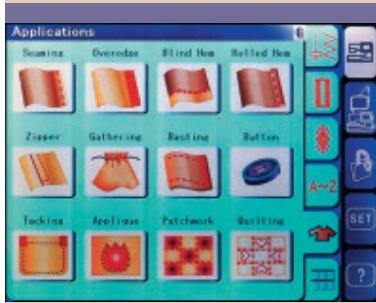

Applications Scanning Overdressing Blind Hop Rolled Hop Zinner Gathering Packing Button Tacking Applique Patchwork Stitching

Close-up of a sewing machine needle stitching a blue fabric (no visible text or symbols)

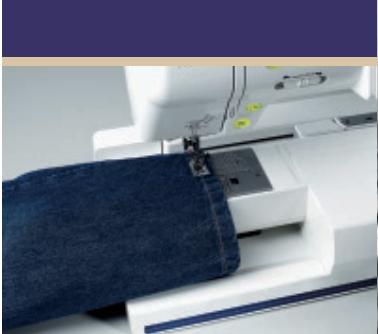

SLIM, BOOT CUT OR CAPRI?

Free arm makes finishing off a pair of jeans a breeze.

Close-up of pleated fabric with a dotted seam and star pattern (no text or symbols)

VINTAGE

Fagoting, piping, retro looks... beautiful results come from exquisitely executed details.

Decorative(D) 6/7 DC Auto 6 Decorative 98 99 100 101 102 103 104 105 106 107 108 LS A~2 SET ? Adjust

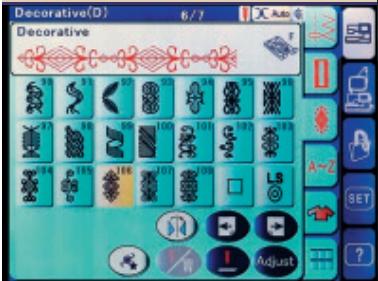

A STAR-STUDDED CAST

For your most ambitious productions, choose from a huge range of decorative stitches, along with all the instructions you'll need to employ them to brilliant effect.

Close-up of golden plant leaves on a dark blue background (no text or symbols)

OSCAR-WINNING CREATIVITY

Follow your inspiration and come up with stunning new ideas, like elongated stitching.

Black-and-white photo of a woman sitting at a bar with chandeliers and decorative items in the background (no visible text or symbols)

Four-panel filmstrip-style image of a laboratory instrument with digital displays and control panels (no visible text or symbols)

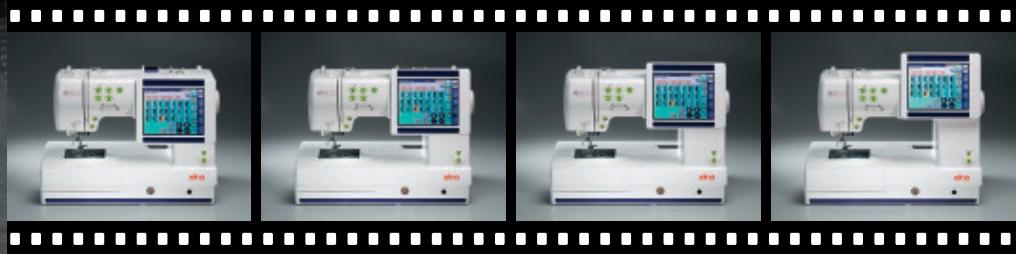

PRIVATE SCREENING

For in-depth explanations, watch a short demonstration film right onscreen!

Black and white photo of a draped fabric bag with pleated ends and a woven pattern on the side (no text or symbols visible)

SPECIAL APPEARANCE

A range of different techniques turn utility stitches into decorative features – for even more creative possibilities.

THAT TOUCH OF CLASS

Looking for an exclusive? Choose from a wide selection of buttonholes to complement any style.

Black fabric belt with gold and silver decorative elements (no text or symbols)

LIGHTS, CAMERA...

You're in the director's chair! Create, name and save your own unique combinations of decorative stitches.

RISING STAR

Incorporating the very latest advanced technology, the Elna 9500 puts you right at the forefront of sewing excellence. Unleashing your creativity has never been so easy – or enjoyable!

SCRIPT GIRL

Carefree and amusing, have fun with an extensive range of sewing alphabet stitches.

LUXURY LOOKS

For those who appreciate the finer things in life, shell tuck stitch delivers a flawless finish every time.

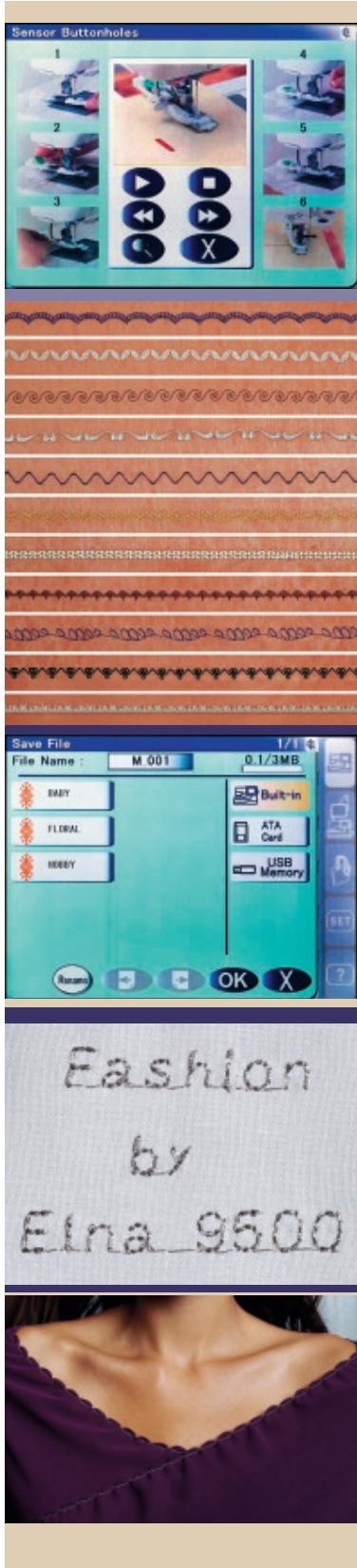

Sensor Buttonholes 1 2 3 4 5 6 Save File File Name : M 001 0.1/3MB BABY FLOBAL HOEBY Built-in ATA Card USB Memory Fashion by Eina 9500

Edit SQ 200x200mm ELNA 9500 A-2 OK X

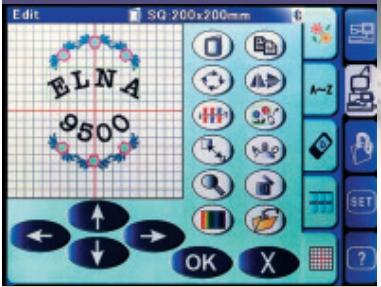

SCREEN PRESENCE

Check your embroidery through the screen provided, add your final touches – and you're done.

Director

ELNA 9500

HAUTE COUTURE

Give your creations the personal touch they deserve with a broad range of embroidered alphabet styles.

EmbF SQ 200x200mm 1/1 BLD ELNA FLOWER W.801 QUIT Rename X

Black fabric with gold decorative swirls and leaves, no text or symbols present

DELICATE TOUCH

Bring your talent for embroidery to even the most delicate fabrics – then stand back and admire the results!

Black-and-white photo of a woman in a black dress with floral embroidery, standing indoors, and another man in a suit standing nearby; inset images show two sewing machines.

CUTTING EDGE DESIGN

Precision hoop movement, for a design that's compact, practical and beautiful.

Close-up of a stylized flower with purple and black feather-like design, no visible text or symbols

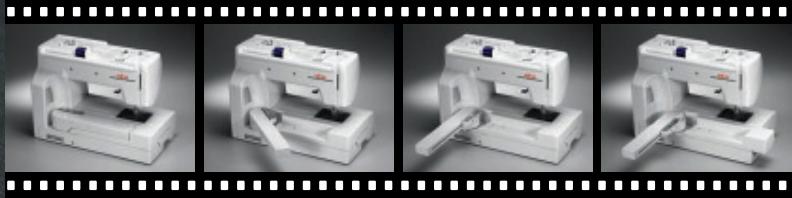

ACTION!

From professional sewing to precision embroidery with a simple turn of the hand! Thank to the built-in embroidery table.

Four-panel image showing a white industrial machine with control buttons and a mechanical arm, displayed against a dark background (no visible text or symbols)

Diagram of a grid-patterned device with a triangular handle and rectangular base (no text or symbols)

MOVE IN FOR THE CLOSE-UP

An extra-large hoop gives you even more scope for success.

THE EYES HAVE IT

Stunning results couldn't be simpler when you have all the resources and information you need, right before your eyes!

SIMPLY THE BEST

Bring a professional quality finish to all your embroidery.

INDULGE YOUR FANCY

Mix embroidery and quilting at whim, using the same machine!

A young girl sitting in a bed holding a transparent rectangular frame, with three sleeping faces drawn on the blanket (no text or symbols visible)

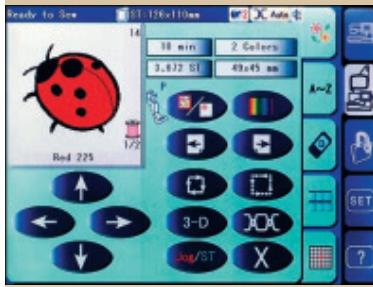

Ready to See 51.150x110mm 3.8/72 ST 49x45 mm 18 min 2 Colors A~2 Red 225 3-D DOC Jog/ST X
